Holley EFI

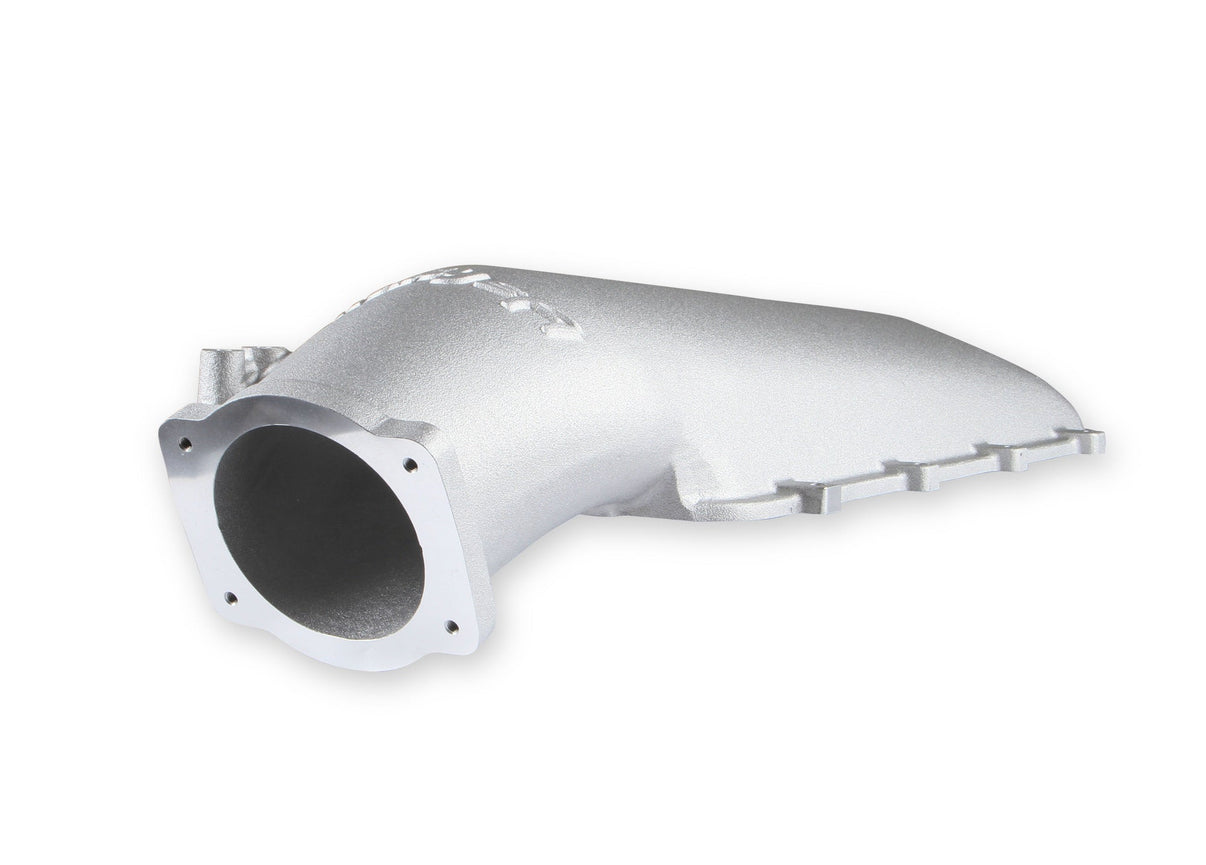

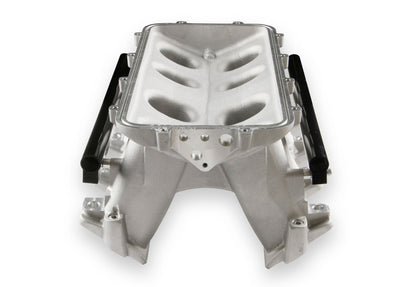

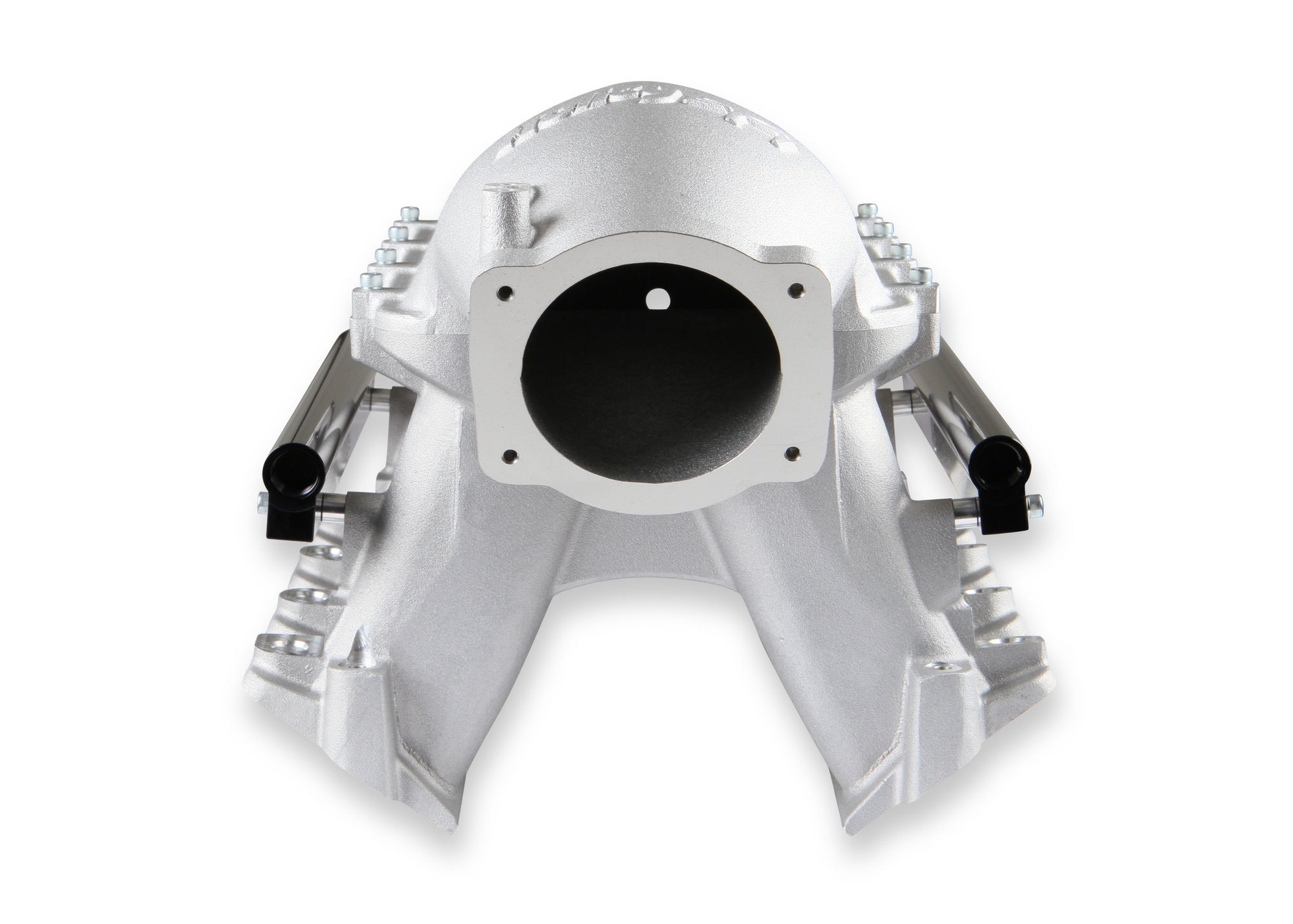

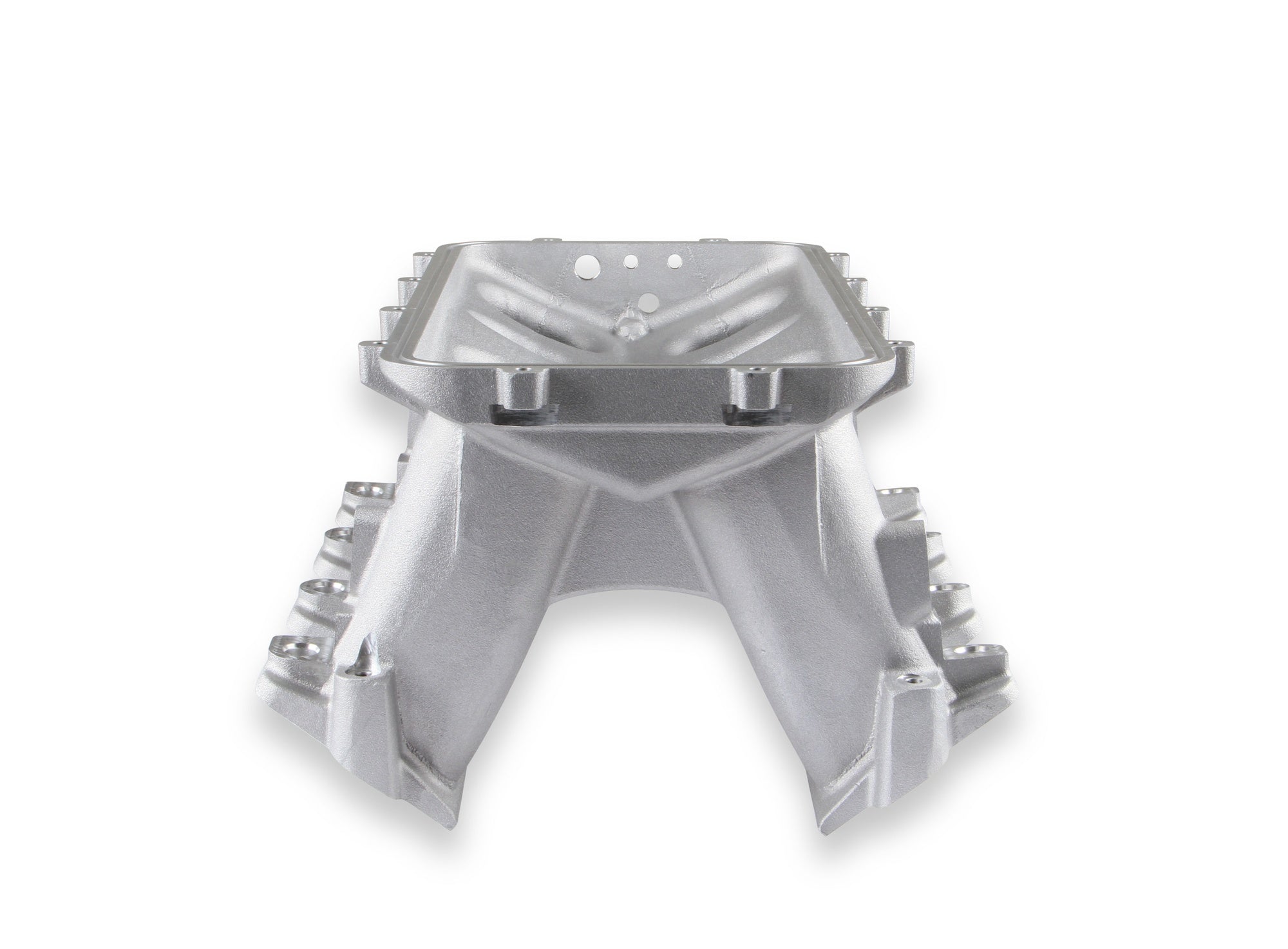

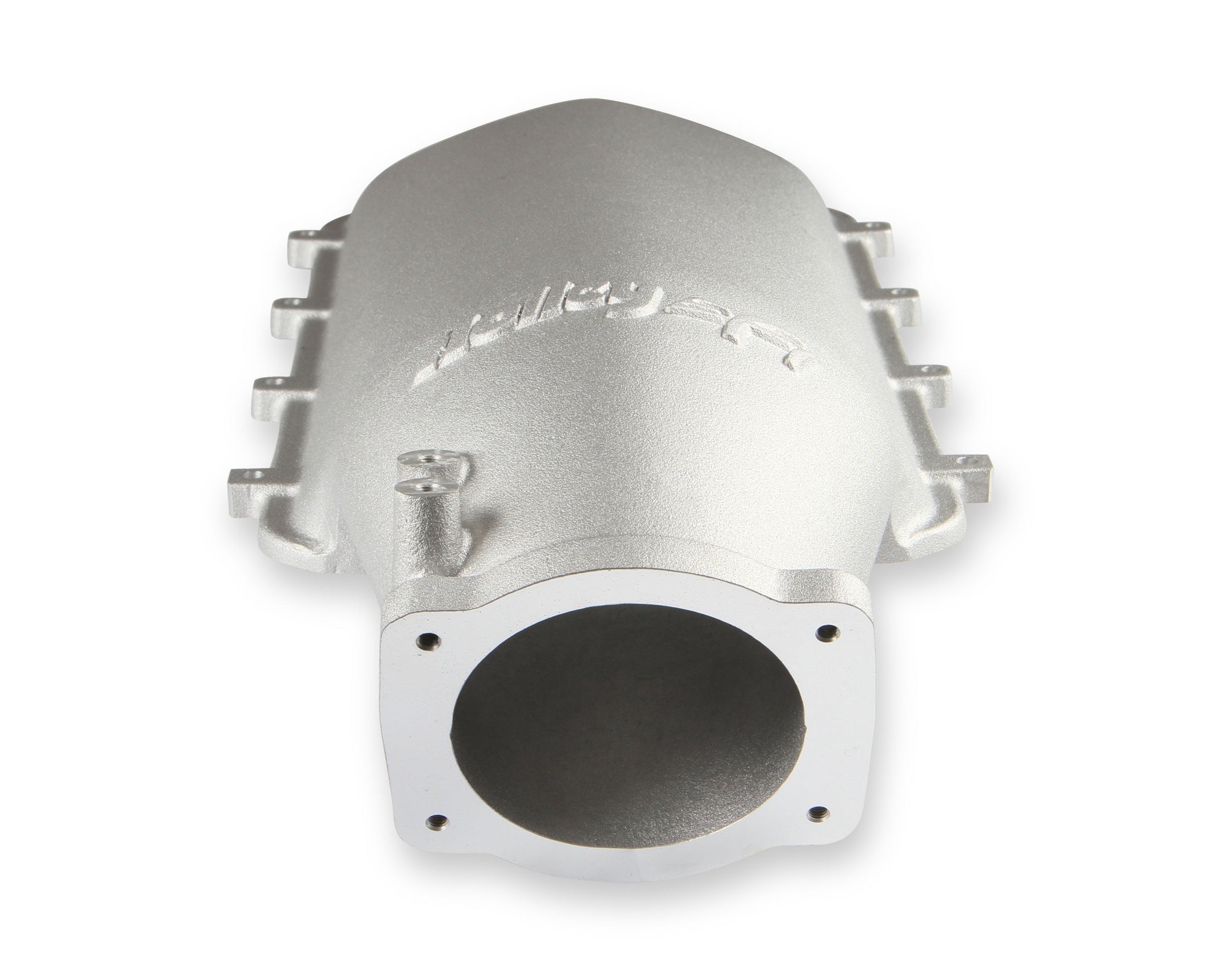

Holley LS Hi-Ram EFI Manifold GM LS1/LS2/LS6

£1,262.47 GBP inc VAT £1,755.54 GBP
Fragt beregnet ved kassen.
Varenummer: 300-123

På lager

Checking stock levels…
🇬🇧 UK warehouse —
🇺🇸 US warehouse —
Estimated Delivery


Build check

Is this right for your build?

Unsure if this is the right choice for your car or project? The Billy's team can check fitment, supporting parts and make recommendations before you purchase.

This message will include the product details and SKU you are currently viewing so we can talk about the exact parts in front of you.

Email my build details

We regularly support complex conversions and high value engine and driveline packages. If anything in your plan looks like it wont fit or incomplete, we will highlight it and suggest alternatives.

Se detaljer
1 / 1
Tryk og træk for at se

Product Details

⭐

Key Features

LS1/LS2/LS6 Cathedral Port EFI til 1 x 105 mm gasspjæld
  • Højde på bundplenum øverste monteringsflange 8,42" til løfterdaldækslets flange på motorblokken.
  • Totalhøjde med 92/105 mm EFI-plenumtop 12,32" til løfterdaldækslets flange på motorblokken.
  • Løbelængde 6,58" (16,4 cm), tværsnitsareal af støbt løber konisk 4,25 tommer² til 2,53 tommer²
  • Placering af gasspjældsflange, med 102 mm EFI-plenumtop: Højde 8,42" (fra motorblokløfterens daldækselflange), placering i længderetningen 3,84" (fremad fra motorblokkens forreste flange), vinkel 25 grader (nedad fra lodret)
  • Plenum toppakning type 3/32" rund O-ring snor
  • Monteringsflange Pakning Type Standard LS3 Støbt O-ring
  • Portstørrelse 2,49" Højde x 1,21" Bredde
🎬

Product Videos

YouTube video thumbnail
▶
Watch Video
YouTube video thumbnail
▶
Watch Video
📋

Product Specifications

Basic Operating RPM Range
3500-8000
Basic Operating RPM Range
3500-8000 RPM
Brand
Holley EFI
Carburetor Flange
N/A
Carburetor Quantity
N/A
Carburetor Studs Included
N/A
CNC Ported
No
Color
Natural
Construction
Cast
Country
US
Cylinder Head Port Shape
Cathedral
Deck Height
9.24
EGR Port
No
Emission Code
3
Engine
GM LS1/LS2/LS6
Flange Style
EFI
Front Maximum Height
12.32
Fuel Injectors Included
No
Fuel Rail(s) Included
Yes
Fuel System Type
EFI
Gasket Or Seal Included
Yes
Grade Type
Performance
HTS Code
8409915085
Intake Port Gasket(s) Included
No
Manifold Type
Hi-Ram
Material
Aluminum
Nitrous Bung(s) Included
No
Part Type
Engine Intake Manifold
Plenum Finish
Natural
Product Type
Intake Manifold
Prop 65 Yes/No
Yes
Rear Maximum Height
11
Recommended Use
Forced Induction
Removable Runners
No
Removable Top/Lid
Yes
RPM Power Band
3500-8000 RPM
Single Or Dual Plane Type
Single Plane
Throttle Body Bore Diameter
105 MM
Throttle Body Gasket Included
Yes
Throttle Body Included
No
Vacuum Ports
Yes
Warranty
Manufacturer's Limited 90 Day Warranty
📦

Package Contents

Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
