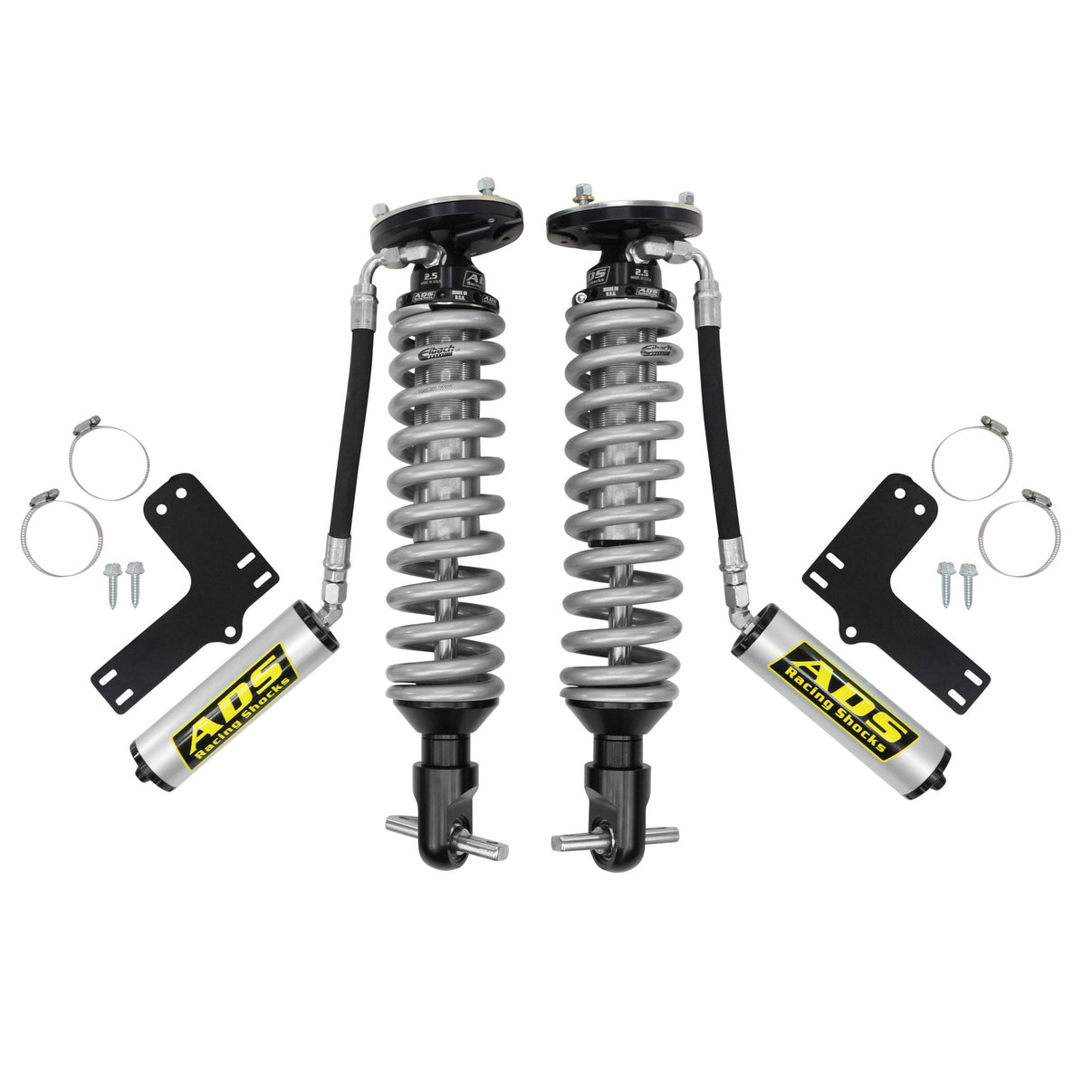

ADS Direct Fit 2.5" Reservoir Race Coilovers - Front
ADS Racing Shocks coilovers were born from the years of desert racing experience our founders have accumulated. Performance, reliability and longevity were the primary concerns when ADS sent out to develop its coil overs, and we have not strayed from that initial thought process. Years of racing will teach you that ,if something can go wrong it will go wrong. With that mindset in place, eliminating the possibility of failure was the primary goal. Every single component on an ADS Racing Shock has a purpose from our screw in end cap reservoirs to the captive lower spring perch ensure that we have done everything to eliminate failure. Extended threaded bodies allow for larger range of adjustment on dual rate spring setups. Heavy duty adjustment collars prevent thread skipping when adjusting preload or cross over engagement. Truncated threads prevent dirt and debris from jamming into hardware. All these features add up to a coil over that is not only as tough as the desert it was born in but allows for ease of adjustment and use for years to come.
ADS Racing Shocks coilovers were born from the years of desert racing experience our founders have accumulated. Performance, reliability and longevity were the primary concerns when ADS sent out to develop its coil overs, and we have not strayed from that initial thought process. Years of racing will teach you that ,if something can go wrong it will go wrong. With that mindset in place, eliminating the possibility of failure was the primary goal. Every single component on an ADS Racing Shock has a purpose from our screw in end cap reservoirs to the captive lower spring perch ensure that we have done everything to eliminate failure. Extended threaded bodies allow for larger range of adjustment on dual rate spring setups. Heavy duty adjustment collars prevent thread skipping when adjusting preload or cross over engagement. Truncated threads prevent dirt and debris from jamming into hardware. All these features add up to a coil over that is not only as tough as the desert it was born in but allows for ease of adjustment and use for years to come.
🎬
Product Videos
No videos available for this product.
📋
Product Specifications
Active or Passive Suspension
Passive
Adjustable Compression
No
Adjustable Rebound
No
Adjustable Reservoir
No
Adjustable Ride Height
Yes
Body Color
Silver
Body Diameter
2.5
Body Material
Steel
Brand
ADS
California Proposition 65
No
Category
Suspension
Coil Spring Insulator(s) Included
No
Collapsed Length
17.13
Cylinder Diameter
2.5
Damping Type
Oil
Dust Bood Included
No
Dust Shield Included
No
Emission Code
6
Extended Length
23.32
Finish
Electric zinc plated w/ Ceramic coat
Grade Type
Performance
Includes Bump Stop
No
Internal Construction Type
Monotube
Internal Rebound Bumper
No
Internal Rebound Spring
No
Lower Mount Type
T-Bar
Mounting Hardware Included
Yes
part type
Suspension Shock Absorber and Coil Spring Assembly
Remote Reservoir
No
Requires UCA
Yes
Self-Leveling
No
Shaft Diameter
0.875
Shaft Material
Hard-chrome plated steel
Spring Color
Silver
Spring Finish
Powdercoated
Spring Included
Yes
Spring Material
Steel
Spring Rate
650
Stroke
6.2
Strut Mount Insulator(s) Included
No
Sub Category
Shocks and Struts
Travel Length
6.2
Upper Mount Type
Mounting Plate
Valving Type
Progressive
📦
Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
