Transmission & Drivetrain - Complete Transmissions

Choosing complete transmissions for engine swaps

Once you've committed to an engine, the transmission is the next decision that touches everything else: the tunnel, the driveshaft, the clutch or converter, the control system, and the final drive ratio you need to make the car usable on the road. This page covers the full Tremec manual range and the GM SuperMatic automatic line-up, both families work across LS, LT, and Ford V8 platforms with the right bellhousing or input configuration.

The buying guide below covers the four things that actually narrow the choice: manual vs automatic, engine and bellhousing compatibility, gear ratios and overdrive, and performance tier.

What to look for

Manual or automatic

Manual transmissions give the driver direct control over gear selection and put no additional electronics between the engine and the wheels. For track use, close-ratio manuals reduce the time spent between gears. For a pure driver's car, the engagement is part of the point.

Automatic transmissions simplify the installation considerably. There is no clutch pedal, no hydraulic release bearing to plumb, and no need to match a clutch kit to the engine's torque output. The GM SuperMatic units use adaptive shift logic and are genuinely good to drive on the road. The trade-off is the standalone controller: every GM electronic automatic needs a TCM or CAN integration module to operate outside its original vehicle. That is an additional cost and an additional calibration step.

For most road-driven swap builds, the automatic is the easier choice. For anything with serious track intent, the manual earns its keep.

Engine fitment and bellhousing compatibility

The GM LS and LT families use the same bellhousing bolt pattern, which means the Tremec T-56, Magnum-F, and Magnum XL all bolt to LS and LT engines with GM-style input configurations. The Ford V8 family, Coyote, 302, 351W, uses a different bolt pattern and a different input spline diameter. The TKX is available in Ford V8 configuration specifically for this reason.

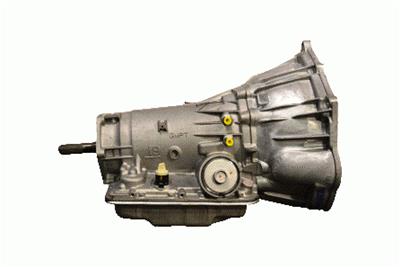

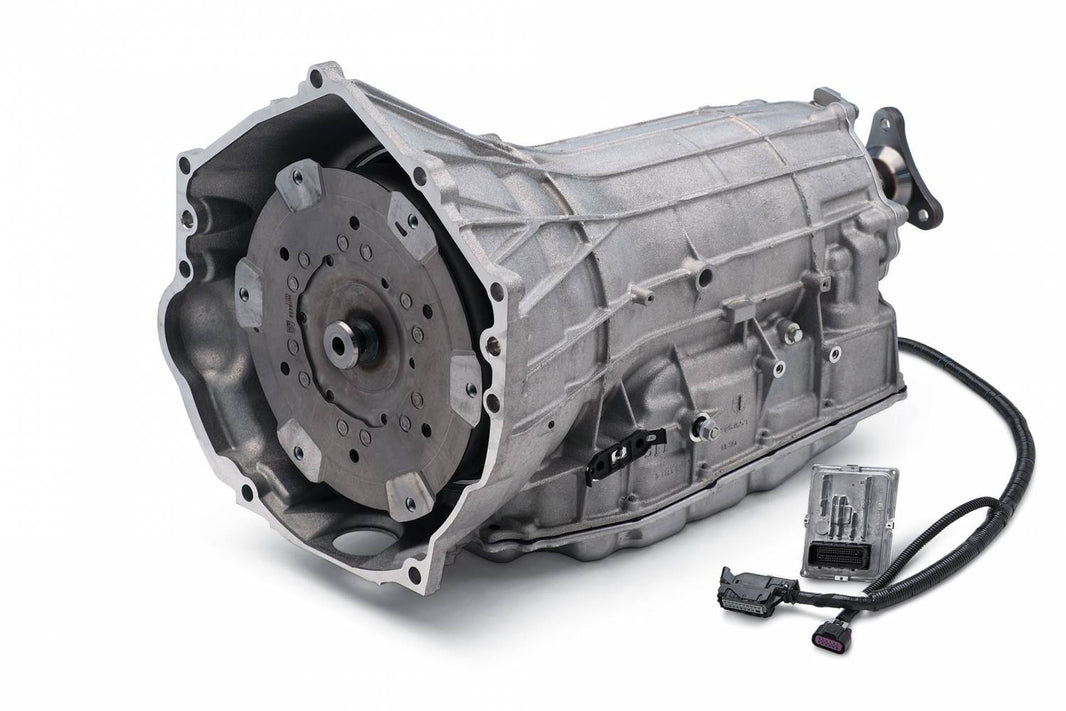

For GM automatics, the 6L80E, 4L80E, and 4L70-E bolt directly to LS engines. The 8L90E packages listed here are engine-specific: each one is configured for LT1, LT4 supercharged, or LT5 naturally aspirated. Check the product listing for the engine code before ordering, the physical package looks identical but the calibration and converter differ.

If you are building a crossover swap, a Ford chassis with an LS engine, or a British classic with a Coyote, the bellhousing choice is what determines which transmission family you can use. The conversion kits collection covers the adapters and bellhousings for both GM and Ford input configurations.

Gear ratios and overdrive

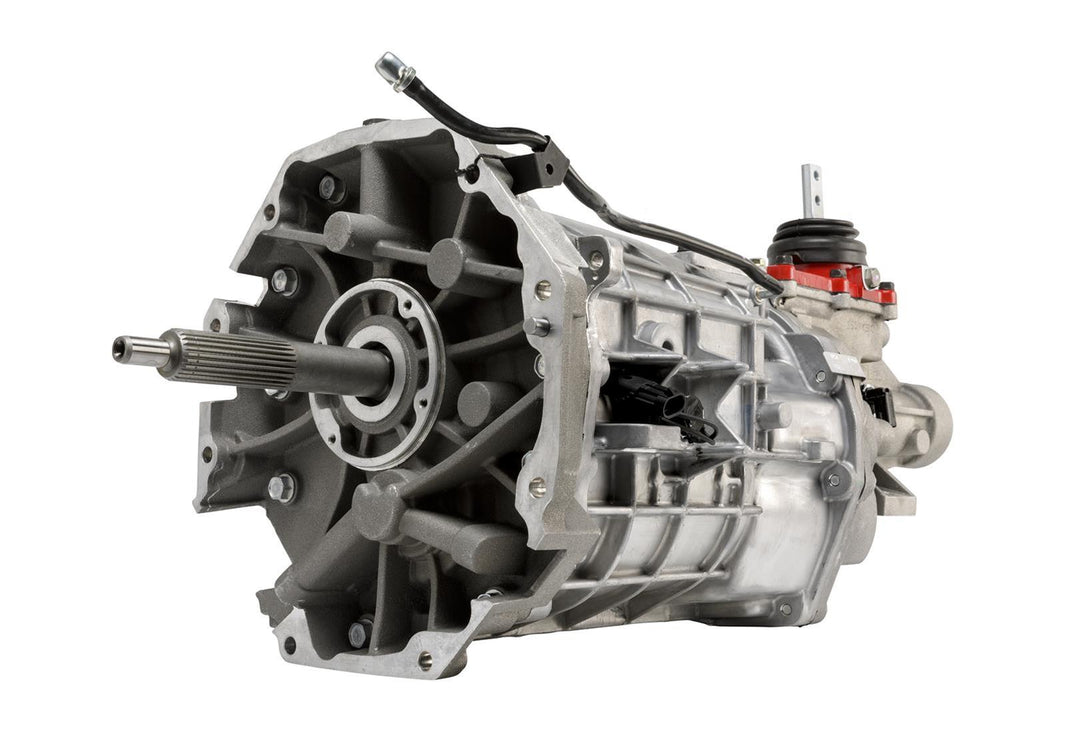

Ratio spacing affects drivability more than most builders expect. A close-ratio T-56 Magnum-F has tighter steps between gears, which keeps the engine in its power band during hard acceleration. The wide-ratio version has a deeper first gear and a taller overdrive, which makes it easier to drive on the road but leaves a larger drop between upshifts under power.

The Magnum XL adds a 0.50 overdrive option, sixth gear at half engine speed, which brings motorway cruising RPM down significantly on a car with a numerically high rear axle ratio. On a 3.73:1 diff with 235/45/17 tyres, the difference between a 0.63 and a 0.50 sixth is roughly 400 rpm at 70 mph. That matters for a car that sees regular motorway use.

For automatics, the 6L80E and 8L90E both have tight ratio spacing and genuine overdrive in their upper gears. The 4L80E has four speeds with a 0.75 overdrive in fourth. For a build where simplicity and torque capacity matter more than highway efficiency, four speeds is not a disadvantage.

Performance tier and torque rating

The Tremec T-56 Magnum is rated to 700 Nm in standard form. The Magnum XL is strengthened internally and suits higher-output or heavier vehicle applications. The TKX is compact and lighter, suited to conversions where tunnel space is tight rather than applications producing peak torque figures.

For automatics, the 4L80E is the benchmark for high-torque and boosted applications. It handles turbocharged and supercharged LS builds with broad aftermarket support for further internal upgrades. The 6L80E and 8L90E are better suited to naturally aspirated and mildly boosted builds where road manners and shift quality matter.

B&M's Street/Strip units are built specifically for performance use, with upgraded internals and calibration for hard launches and repeated high-load shifts.

Where the criteria conflict

The manual vs automatic choice often conflicts with the chassis constraints. A TKX fits tunnels that a T-56 Magnum will not. A 4L80E is the right transmission for a turbocharged build, but its length and weight may not suit a lightweight chassis. The 6L80E needs a TCM, if the build already has a standalone ECU, adding a transmission controller is straightforward; if it does not, that changes the wiring scope.

Ratio choice and rear axle ratio pull against each other: a deep overdrive sixth gear needs a numerically higher diff ratio to give acceptable acceleration in the lower gears, which then makes the car less relaxed in top gear unless the overdrive is genuinely deep. Model the driveline with the ratio calculator on this page before committing.

Which transmission to pick

For an LS-powered street and road build running a manual: the T-56 Magnum-F or Magnum XL. For an LS build that will see regular motorway use: the Magnum XL with 0.50 overdrive. For a Ford V8 swap into any chassis: the TKX. For a turbocharged or supercharged LS build running an automatic: the 4L80E. For a naturally aspirated LS or LT road car wanting modern shift quality: the 6L80E or 8L90E.

Top picks

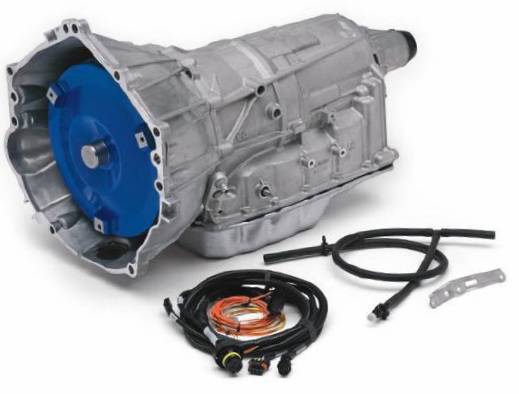

Chevrolet Performance 6L80E 6-Speed Automatic, LS Engines, 2400-2800 Stall

The most popular automatic choice for LS street builds. Six forward speeds with adaptive shift logic, a 2400-2800 stall converter suited to naturally aspirated and mildly boosted LS applications, and direct bolt-up to GM LS engines. A complete kit with the hardware needed for a swap installation. If the build is a road car and the engine is naturally aspirated or running a mild blower, this is the default starting point. A standalone TCM is required for operation outside the original vehicle, pair it with an ECU that supports transmission integration or add a dedicated controller.

Tremec TKX Manual Transmission, Ford V8

The compact modern manual for Ford V8 applications, Coyote, 289, 302, and 351W. The TKX is shorter and narrower than the T-56, which makes it the right choice for British classics, kit cars, and restomods where tunnel dimensions are limited. It has a genuine overdrive sixth gear and a modern synchroniser design. If the engine is a Ford V8 and the build needs a manual, the TKX is the answer. Not suited to GM LS or LT applications in this configuration.

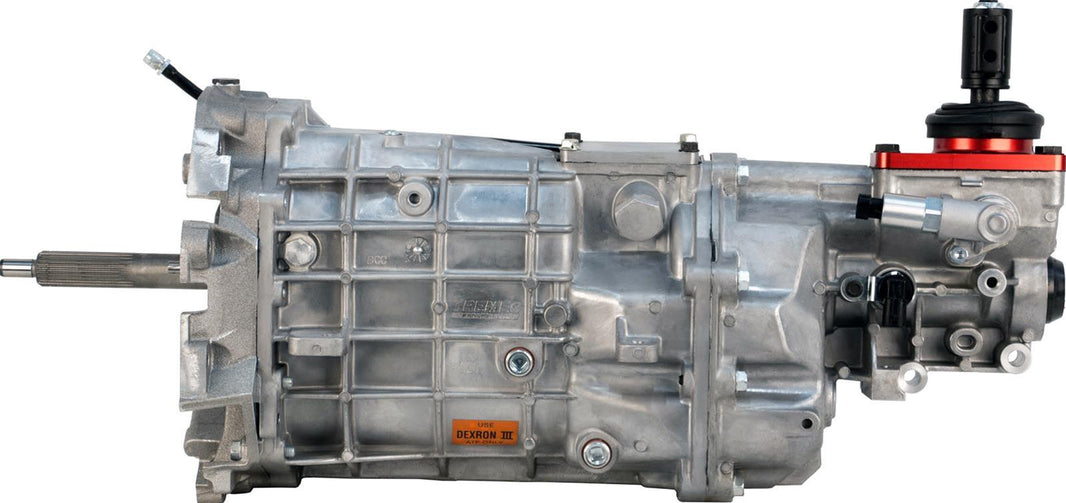

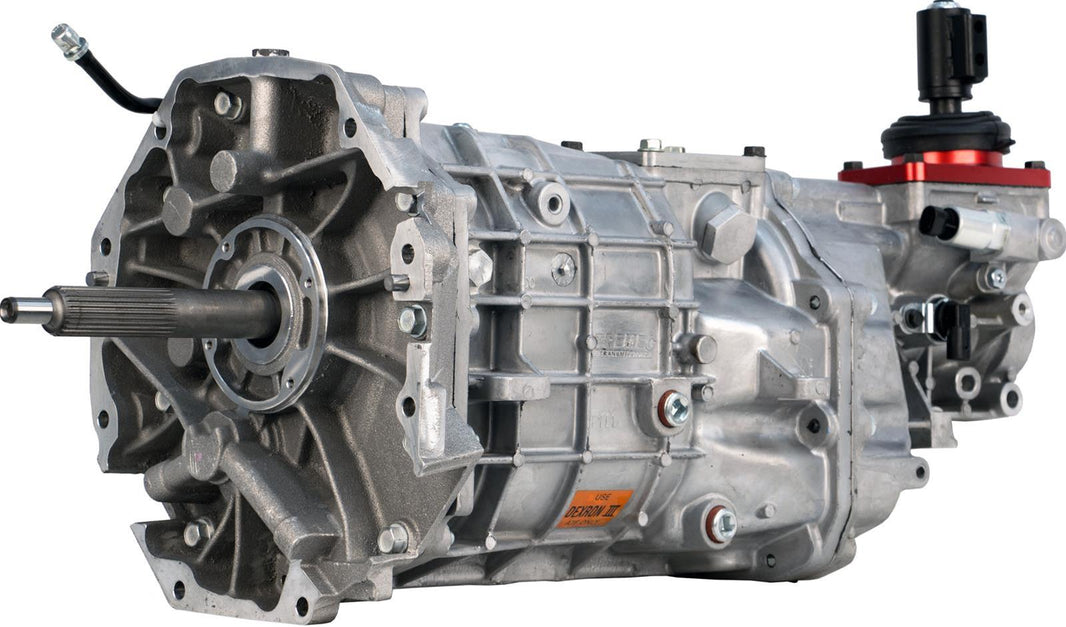

Tremec Magnum-F 6-Speed Manual, Close Ratio, GM Style

The performance manual for GM LS builds where track use is part of the plan. Close-ratio gear spacing keeps the engine in its power band between shifts on circuit. The Magnum-F shares the T-56 Magnum external dimensions and mounting pattern, so tunnel and crossmember fitment carries over from standard T-56 installations. If the build does road miles but the track is the priority, the close-ratio Magnum-F is the better choice over the wide-ratio version. Not ideal for a car that spends most of its time at motorway speeds, the ratio spacing is tighter than comfortable for long-distance cruising.

B&M Street/Strip 4L80E Automatic Transmission

The automatic for boosted LS builds. The 4L80E is built around heavy-duty gear sets and oversize clutch packs, and B&M's Street/Strip calibration prepares it for hard launches and high-torque converter loads. Four forward speeds with a 0.75 overdrive in fourth. Simpler internal architecture than the 6L80E, with broader aftermarket support for further upgrades. The right choice when the build is turbocharged or supercharged and the priority is transmission durability over ratio count. Requires a standalone controller.

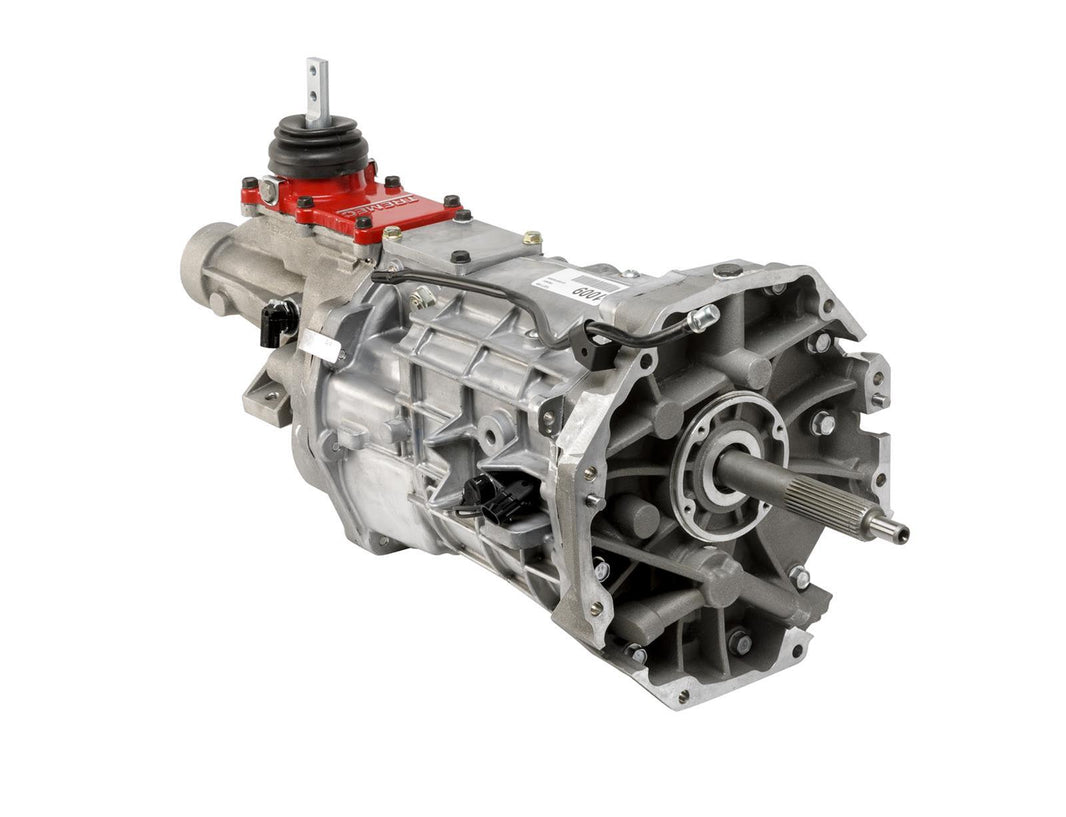

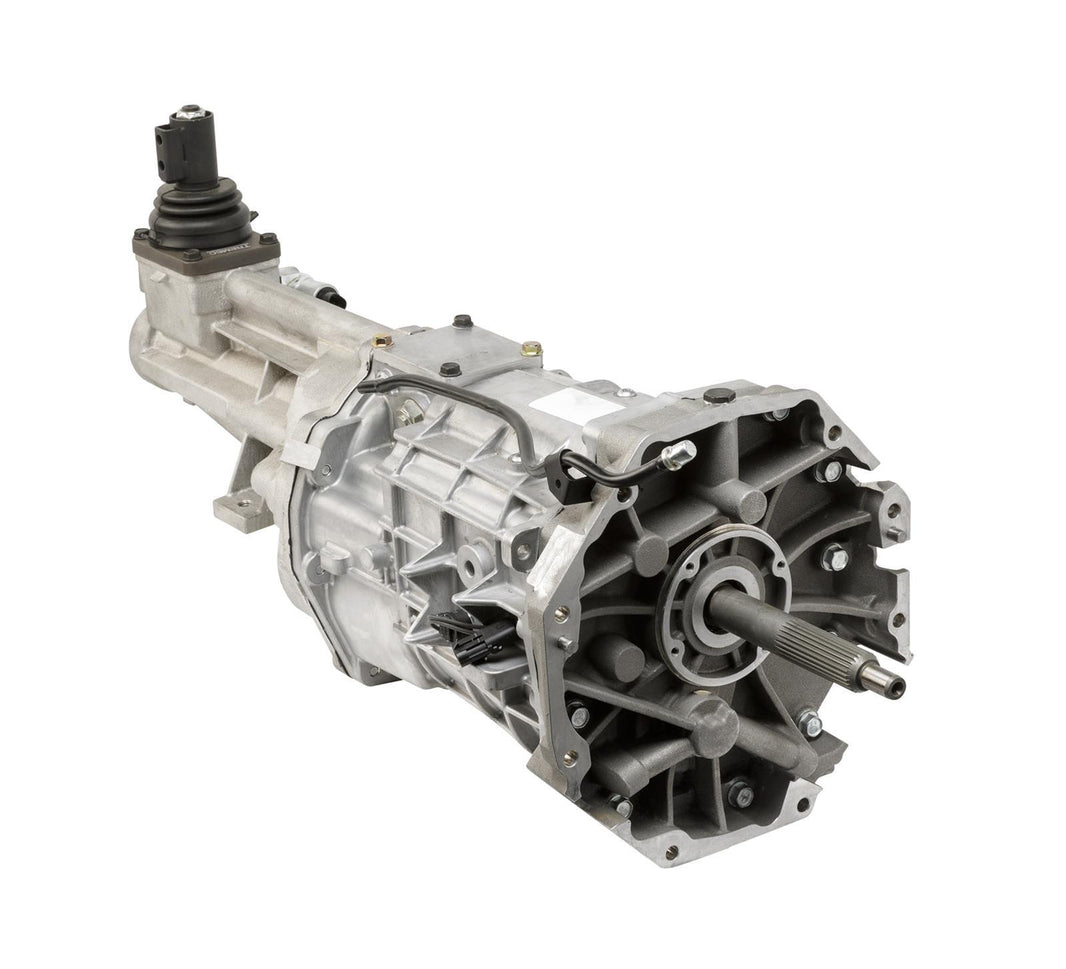

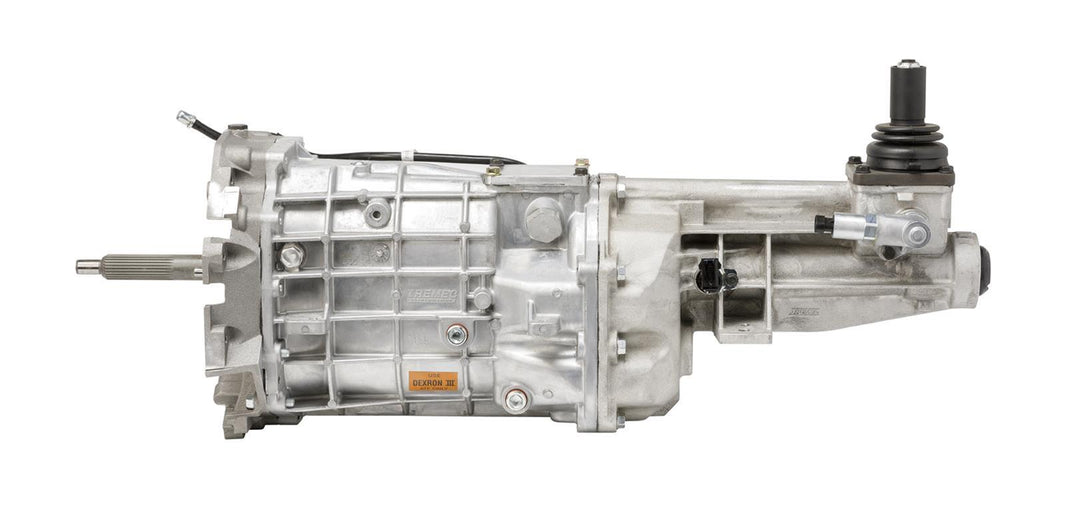

Tremec T-56 Magnum XL 6-Speed Manual, 0.50 OD, Universal Fitment

The strongest and most versatile manual in the range. The Magnum XL adds internal strengthening over the standard T-56 Magnum and offers a 0.50 overdrive sixth gear on this listing, the deepest overdrive available in the Tremec range. Universal fitment with a 26-spline input. Suits high-output builds, heavier vehicles, and any application where highway cruising RPM needs to come down. If the build is a road car with serious power and genuine motorway miles, the Magnum XL with 0.50 overdrive is the one to specify.
