Product Details
⭐
Overview
Modern Six-Speed Performance for LS Applications
The SuperMatic 6L80-E represents a significant advancement in automatic transmission technology, offering six forward speeds with enhanced torque capacity specifically calibrated for LS engine applications.
Specifications:
- Type: Six-Speed Automatic Transmission
- Electronic Control: Electro-hydraulically controlled with advanced shift logic
- Torque Capacity: 650 lb-ft (45% increase over production units)
- Overall Length: Approximately 23.5 inches (1.5" longer than 4L60)
- Stall Speed: 2400-2800 RPM converter
Comprehensive Gear Ratios:
- 1st Gear: 4.03:1
- 2nd Gear: 2.36:1
- 3rd Gear: 1.53:1
- 4th Gear: 1.15:1
- 5th Gear: 0.85:1
- 6th Gear: 0.67:1 (Deep Overdrive)
- Reverse: 3.06:1
Revolutionary Design Features:
- Three-gearset arrangement with simple input planetary
- Two output gearsets (one compound with three pairs of pinions)
- Clutch-to-clutch operation (no conventional bands)
- Modular design departure from traditional GM automatics

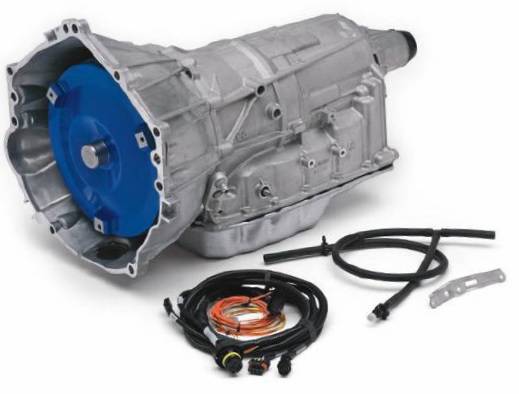

Complete Kit Includes:
- Enhanced 6L80-E transmission with performance internals
- Transmission controller with street and track calibrations
- Complete wiring harness
- Production vent tube assembly
- Provisions for aftermarket transmission cooler with -6 AN fittings
Performance Benefits:
- Improved fuel efficiency through optimized gear spacing
- Enhanced acceleration with lower numerical gear ratios
- Superior cruising efficiency with deep overdrive
- Smooth clutch-to-clutch shifts
Engine Compatibility:
- Specifically designed for LS crate engines
- Based on robust production transmissions from Camaro and trucks
- Enhanced internal components for increased capacity
This Product is a USA Special Order, and will take around 6 - 8 weeks to arrive, call to discuss options
📋
Product Specifications
Fitment
LS
Forward Gears
6
Gearbox Type
Automatic
