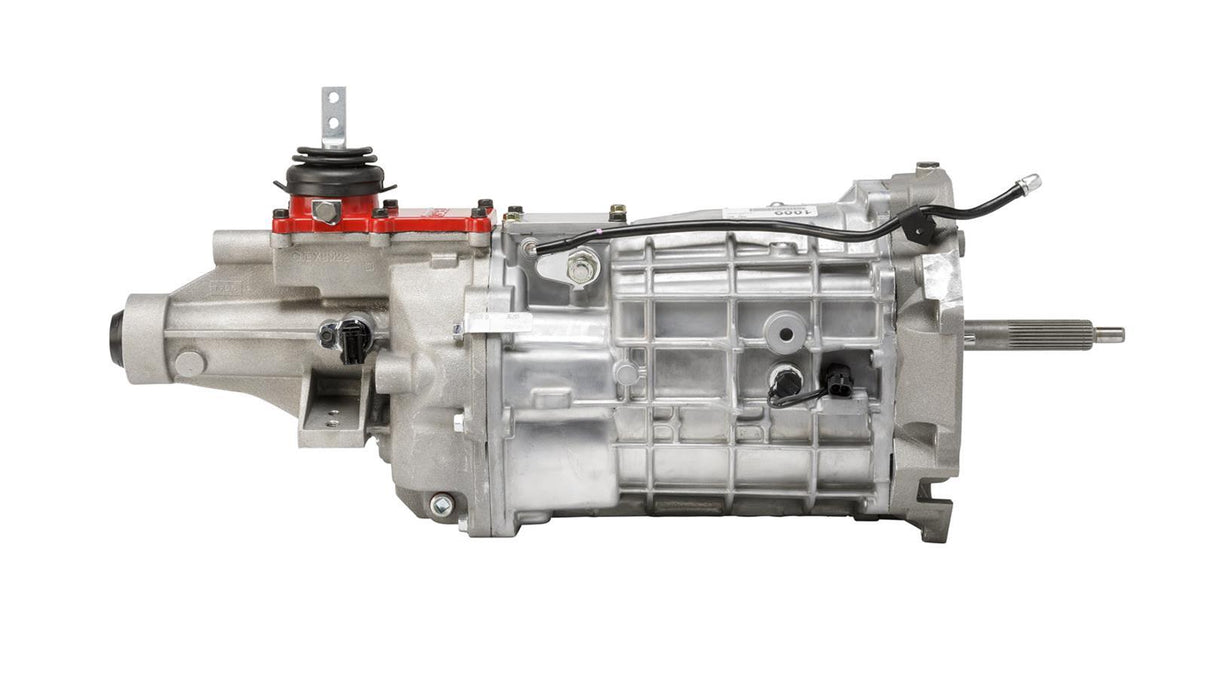

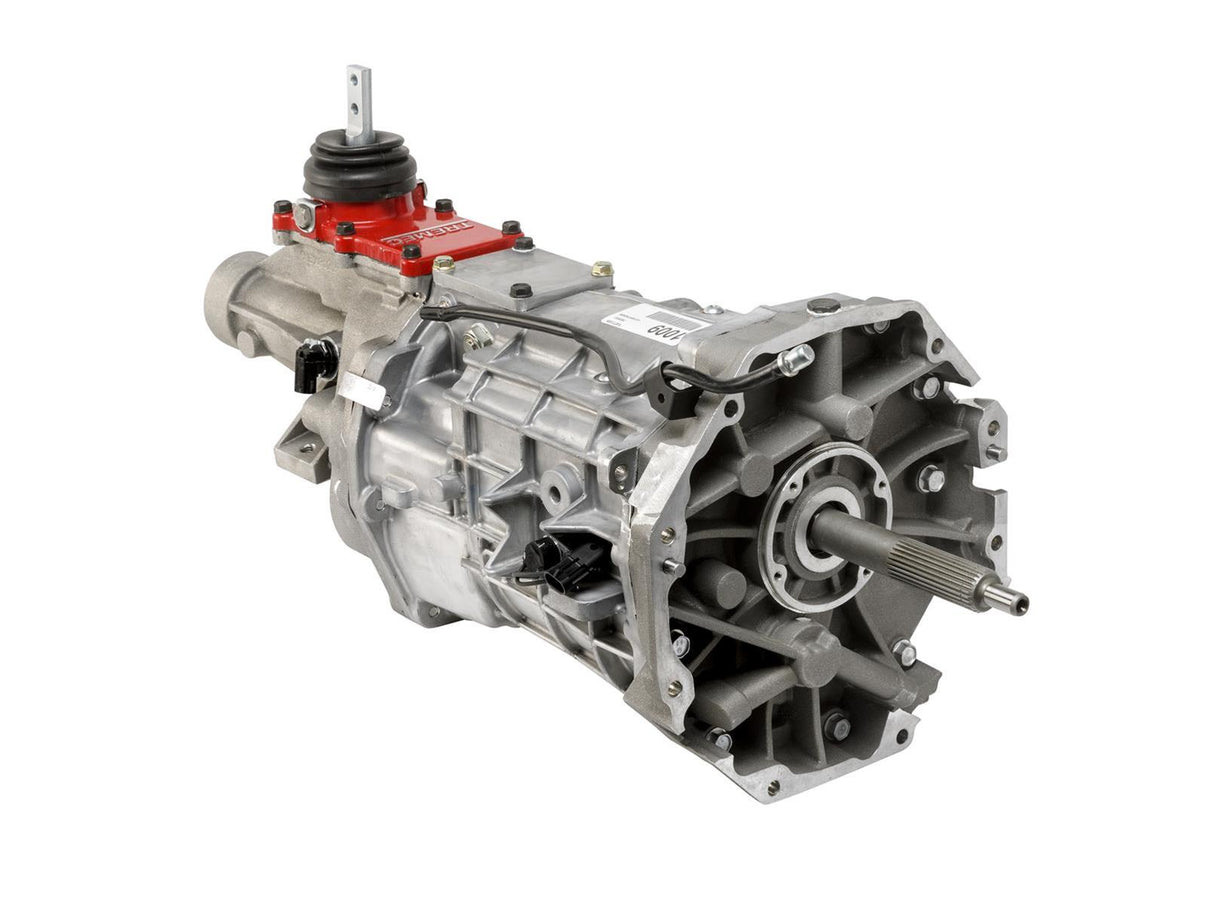

Tremec T-56 Magnum Manual Transmission - Ford Style
Tremec Manual
Search over 60,000 products...
Tremec T-56 Magnum Manual T...
Get notified when this item is back in stock
Press & drag to view
Product Details
Compatibility
Fits Tremec T-56 Magnum Manual Transmission - Ford Style.
Please refer to manufacturer specifications for complete compatibility information.
Product Specifications
Forward Gears
6
Gearbox Type
Manual
Output Splines
31
Release Type
Hydraulic or Mechanical
Shifter Positions
3
Transmission
T56 Magnum
Product Description
Key Features
Manual Transmission, 6 Gears, 1.125 in. Shaft Diameter, 26 Input Spline, 31 Output Spline, Slip-on Yoke Style, Aluminum, Ford
Known for robust, superior quality, Tremec T-56 Magnum manual transmissions are brand new from the ground up with a 2.97 first gear. They can withstand up to 700 lbs.-ft. of torque, with gears featuring substantially increased face widths and 2-piece laser-beam welded construction. This allows for greater control of the tooth angles, pitch, and alignment.
Additional benefits include:
* Bolstered one-piece countershaft to resist distortion
* Stronger input shaft
* New synchronizers featuring fine-tooth angles
* Redesigned shift forks
* An extensively modified transmission case to prevent leaks under high-stress conditions and increase overall power-handling capabilities
Number of Gears:
6
Input Shaft Diameter:
1.125 in.
Input Spline Quantity:
26
Output Shaft Spline Quantity:
31
Bellhousing Included:
No
Yoke Included:
No
Yoke Style:
Slip-on
Shifter Included:
No
First Gear Ratio:
2.97:1
Second Gear Ratio:
2.10:1
Third Gear Ratio:
1.46:1
Fourth Gear Ratio:
1.00:1
Fifth Gear Ratio:
0.80:1
Sixth Gear Ratio:
0.63:1
Case Material:
Aluminum
Remanufactured:
No
Quantity:
Sold individually.
Notes:
Designed for electronic or mechanical speedometers. The 7-tooth internal speedometer drive gear is included.
Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
