2024+ TACOMA FRNT DF CO REM...
Get notified when this item is back in stock
Press & drag to view
ADS
Product Details
🔧
Vehicle Compatibility
Select your vehicle to verify compatibility:
⭐
Key Features

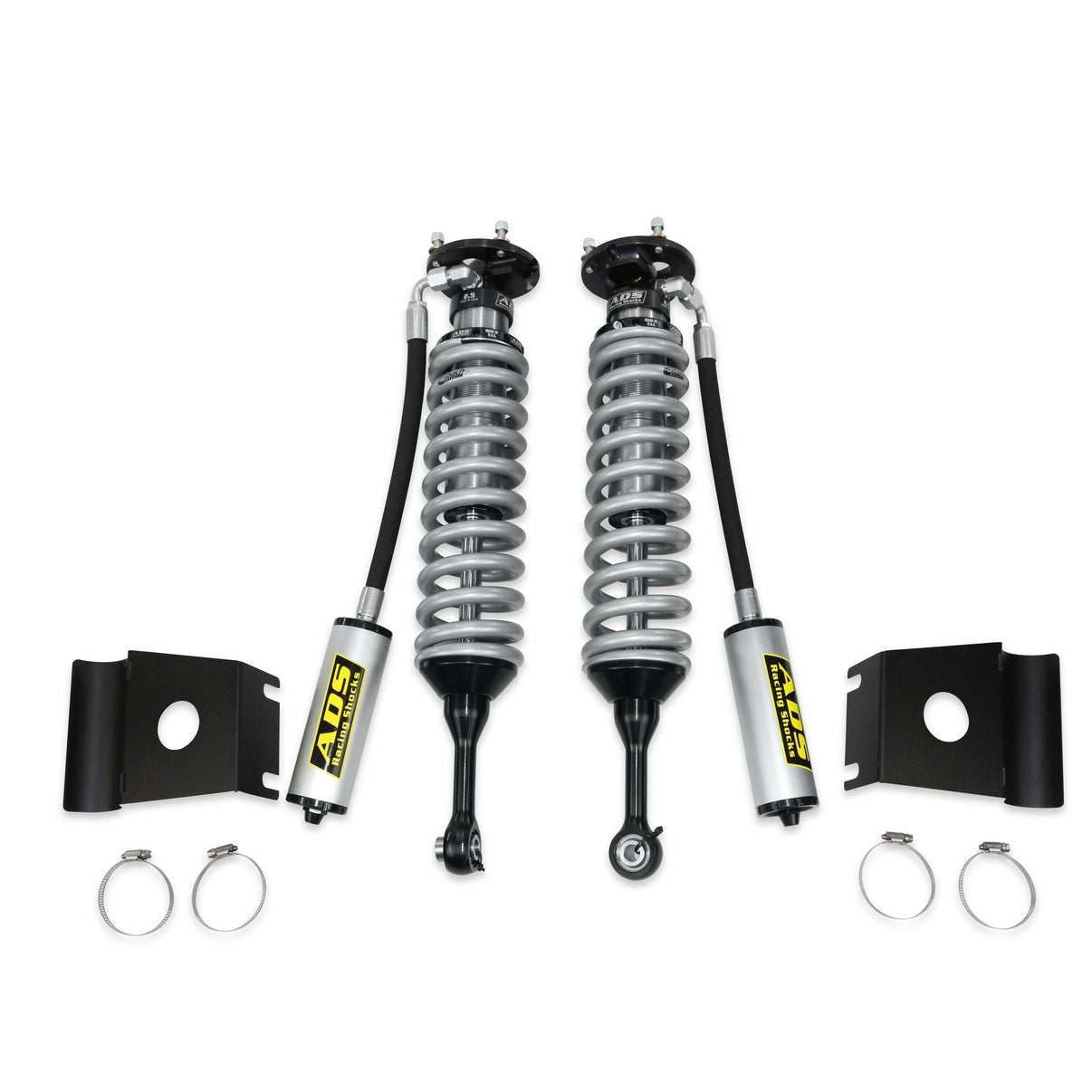

ADS Direct Fit 2.5" Reservoir Race Coilovers - Front
Upgrade the control arms and shocks of your 3rd or 4th generation Toyota Tacoma with our line of suspension components and Direct Fit Race shocks. Choose from front upper and rear (upper and lower) control arms made from heavy-duty tubular DOM steel or premium billet, along with adjustable and non-adjustable options of our popular Direct Fit Race shocks. Front upper control arms accommodate lifts up to 4-inches, correct camber and caster for a smoother ride, and are fully rebuildable, making either option a sustainable and long-lasting upgrade for your Tacoma!
ADS is also proud to offer our all-new Direct Fit Race Series shocks for Tacoma. This shock line is engineered to provide maximum stability and control in a bolt-on upgrade that is built to withstand extreme conditions and heavy use. Benefit from the durability and corrosion resistance of zinc plated, steel shock bodies, with a crystal clear Cerakote® finish. The shock features black anodized billet aluminum top and bottom caps, along with hardchrome plated steel shafts for superior corrosion resistance. Its shock eye mounts include machined rod ends with high-strength spherical bearings to boost performance. Everything about these shocks are premium!
Upgrade the control arms and shocks of your 3rd or 4th generation Toyota Tacoma with our line of suspension components and Direct Fit Race shocks. Choose from front upper and rear (upper and lower) control arms made from heavy-duty tubular DOM steel or premium billet, along with adjustable and non-adjustable options of our popular Direct Fit Race shocks. Front upper control arms accommodate lifts up to 4-inches, correct camber and caster for a smoother ride, and are fully rebuildable, making either option a sustainable and long-lasting upgrade for your Tacoma!
ADS is also proud to offer our all-new Direct Fit Race Series shocks for Tacoma. This shock line is engineered to provide maximum stability and control in a bolt-on upgrade that is built to withstand extreme conditions and heavy use. Benefit from the durability and corrosion resistance of zinc plated, steel shock bodies, with a crystal clear Cerakote® finish. The shock features black anodized billet aluminum top and bottom caps, along with hardchrome plated steel shafts for superior corrosion resistance. Its shock eye mounts include machined rod ends with high-strength spherical bearings to boost performance. Everything about these shocks are premium!
🎬
Product Videos
No videos available for this product.
📋
Product Specifications
Active or Passive Suspension
Passive
Adjustable Compression
Yes
Adjustable Rebound
Yes
Adjustable Reservoir
No
Adjustable Ride Height
Yes
Body Color
Silver
Body Diameter
2.5
Body Finish
Electric zinc plated w/ Ceramic coat
Body Material
Steel
Boot Included
No
Brand
ADS
California Proposition 65
No
Category
Suspension
Collapsed Length
19.37
Drivetrain
2WD/4WD
Emission Code
6
Extended Length
25.48
Gas Charged
Yes
Grade Type
Performance
Hose Length
14
Hose Material
Rubber
Hose Outer Diameter
0.875
Includes Bump Stop
Yes
Internal Construction Type
Mono tube
Internal Rebound Bumper
No
Internal Rebound Spring
No
Lift Range
1.5-3
Lower Mount Type
Eyelet
Mounting Hardware Included
Yes
part type
Suspension Shock Absorber
Position
Front
Product Type
Coilover shock
Quantity
Sold as a pair
Requires UCA
Yes
Reservoir Color
Silver
Reservoir Diameter
2.5
Reservoir Finish
Anodized
Reservoir Length
8
Reservoir Material
6061 Aluminum
Reservoir Type
Remote
Shaft Diameter
0.875
Shaft Material
Hard-chrome plated steel
Shock Travel
6.1
Spring Color
Silver
Spring Finish
Powdercoated
Spring Included
Yes
Spring Material
Steel
Spring Rate (lb/in)
450
Stroke
6.1
Sub Category
Shocks and Struts
Travel Length
6.1
Upper Mount Type
Mounting Plate
Valving Type
Progressive
Weight
61
📦
Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
