21-24 TRX 1500 FRNT DF MBR ...
Get notified when this item is back in stock
Press & drag to view
ADS
Product Details
🔧
Vehicle Compatibility
Select your vehicle to verify compatibility:
⭐
Key Features

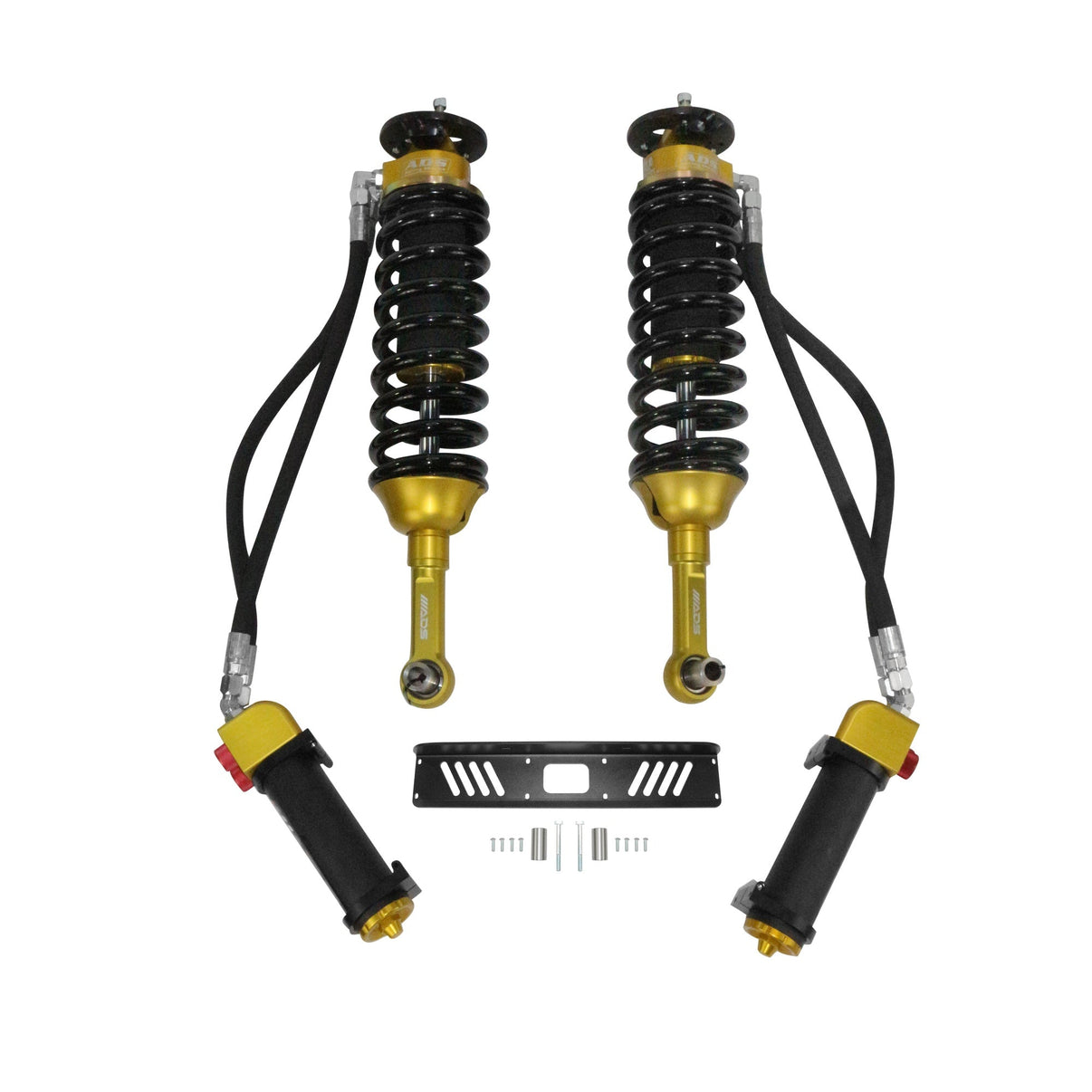

ADS Direct Fit MBR Race Coilovers - Front
MBR technology, or Multi-Stage Bypass Ring, embodies a genuine multi-stage bypass system where each zone is independently adjustable via a positive stop helix system. This design ensures ample flow, similar to 7-tube External bypasses on 16" stroke variations, and internal free bleed ports enable tuners to optimize the damping curve for specific vehicle needs. A true top-out zone provides both mechanical and hydraulic damping, guarding against shock damage during full extension in harsh conditions, although the use of limit straps is recommended for racing and severe use. Additionally, the 4-way adjustable reservoir allows independent high and low-speed adjustments for compression and rebound events. A dual hose system establishes a genuine recirculating fluid path to the reservoir, maximizing fluid cooling with internal diverters ensuring fluid flow across the entire shock body for enhanced cooling efficiency. Each unit undergoes vacuum bleeding and features full synthetic fluid to reduce fade and extend product life.
Furthermore, large 2.5" reservoirs increase fluid capacity to aid in cooling, while high-temperature seals prevent blow-by, ensuring consistent performance across a wide temperature range. Threaded end caps prevent contamination from external sources. Finally, a 3-stage urethane seal package delivers unmatched sealing performance, suitable for extreme cold snow-ridden trails and scorching deserts alike.
MBR technology, or Multi-Stage Bypass Ring, embodies a genuine multi-stage bypass system where each zone is independently adjustable via a positive stop helix system. This design ensures ample flow, similar to 7-tube External bypasses on 16" stroke variations, and internal free bleed ports enable tuners to optimize the damping curve for specific vehicle needs. A true top-out zone provides both mechanical and hydraulic damping, guarding against shock damage during full extension in harsh conditions, although the use of limit straps is recommended for racing and severe use. Additionally, the 4-way adjustable reservoir allows independent high and low-speed adjustments for compression and rebound events. A dual hose system establishes a genuine recirculating fluid path to the reservoir, maximizing fluid cooling with internal diverters ensuring fluid flow across the entire shock body for enhanced cooling efficiency. Each unit undergoes vacuum bleeding and features full synthetic fluid to reduce fade and extend product life.
Furthermore, large 2.5" reservoirs increase fluid capacity to aid in cooling, while high-temperature seals prevent blow-by, ensuring consistent performance across a wide temperature range. Threaded end caps prevent contamination from external sources. Finally, a 3-stage urethane seal package delivers unmatched sealing performance, suitable for extreme cold snow-ridden trails and scorching deserts alike.
🎬
Product Videos
No videos available for this product.
📋
Product Specifications
Active or Passive Suspension
Passive
Adjustable Compression
Yes
Adjustable Rebound
Yes
Adjustable Reservoir
Yes
Adjustable Ride Height
No
Body Color
Black
Body Diameter
3
Body Finish
Ceramic coat
Body Material
Steel
Boot Included
No
Brand
ADS
California Proposition 65
No
Category
Suspension
Collapsed Length
19.32
Drivetrain
4WD
Emission Code
6
Extended Length
25.9
Gas Charged
Yes
Grade Type
Performance
Hose Length
24 & 25.75
Hose Material
Rubber
Hose Outer Diameter
0.875
Includes Bump Stop
Yes
Internal Construction Type
Internal bypass
Internal Rebound Bumper
No
Internal Rebound Spring
No
Lift Range
1
Lower Mount Type
Eyelet
Mounting Hardware Included
Yes
part type
Suspension Shock Absorber
Position
Front
Product Type
Internal bypass shock
Quantity
Sold as a pair
Requires UCA
Yes
Reservoir Color
Black
Reservoir Diameter
2.5
Reservoir Finish
Ceramic coat
Reservoir Length
8
Reservoir Material
6061 Aluminum
Reservoir Type
Remote
Shaft Diameter
0.875
Shaft Material
Hard-chrome plated steel
Shock Travel
6.6
Spring Color
Black
Spring Finish
Powdercoated
Spring Included
Yes
Spring Material
Steel
Spring Rate
700
Stroke
6.6
Sub Category
Shocks and Struts
Travel Length
6.6
Upper Mount Type
Mounting Plate
Valving Type
Progressive
Weight
44.5
📦
Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
