Key Features

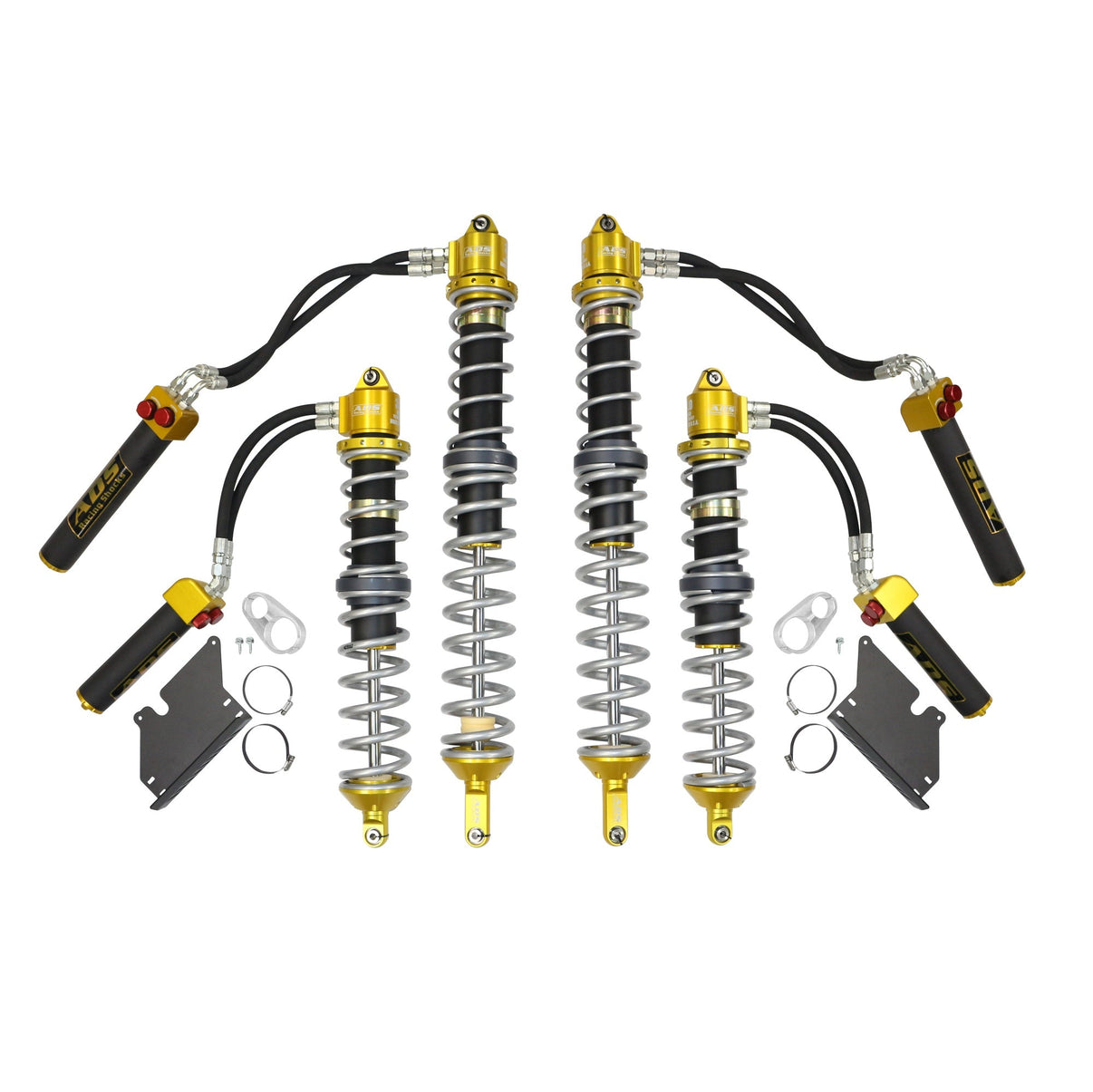

ADS Direct Fit MBR Race Suspension Kit - Front and Rear
MBR technology, or Multi-Stage Bypass Ring, embodies a genuine multi-stage bypass system where each zone is independently adjustable via a positive stop helix system. This design ensures ample flow, similar to 7-tube External bypasses on 16" stroke variations, and internal free bleed ports enable tuners to optimize the damping curve for specific vehicle needs. A true top-out zone provides both mechanical and hydraulic damping, guarding against shock damage during full extension in harsh conditions, although the use of limit straps is recommended for racing and severe use. Additionally, the 4-way adjustable reservoir allows independent high and low-speed adjustments for compression and rebound events. A dual hose system establishes a genuine recirculating fluid path to the reservoir, maximizing fluid cooling with internal diverters ensuring fluid flow across the entire shock body for enhanced cooling efficiency. Each unit undergoes vacuum bleeding and features full synthetic fluid to reduce fade and extend product life.
Furthermore, large 2.5" reservoirs increase fluid capacity to aid in cooling, while high-temperature seals prevent blow-by, ensuring consistent performance across a wide temperature range. Threaded end caps prevent contamination from external sources. Finally, a 3-stage urethane seal package delivers unmatched sealing performance, suitable for extreme cold snow-ridden trails and scorching deserts alike.
MBR technology, or Multi-Stage Bypass Ring, embodies a genuine multi-stage bypass system where each zone is independently adjustable via a positive stop helix system. This design ensures ample flow, similar to 7-tube External bypasses on 16" stroke variations, and internal free bleed ports enable tuners to optimize the damping curve for specific vehicle needs. A true top-out zone provides both mechanical and hydraulic damping, guarding against shock damage during full extension in harsh conditions, although the use of limit straps is recommended for racing and severe use. Additionally, the 4-way adjustable reservoir allows independent high and low-speed adjustments for compression and rebound events. A dual hose system establishes a genuine recirculating fluid path to the reservoir, maximizing fluid cooling with internal diverters ensuring fluid flow across the entire shock body for enhanced cooling efficiency. Each unit undergoes vacuum bleeding and features full synthetic fluid to reduce fade and extend product life.
Furthermore, large 2.5" reservoirs increase fluid capacity to aid in cooling, while high-temperature seals prevent blow-by, ensuring consistent performance across a wide temperature range. Threaded end caps prevent contamination from external sources. Finally, a 3-stage urethane seal package delivers unmatched sealing performance, suitable for extreme cold snow-ridden trails and scorching deserts alike.
🎬
Product Videos
No videos available for this product.
📋
Product Specifications
Air Adjustable
No
Bladder Heavy Duty Crimping Rings Included
No
Bladder Material
N/A
Bladder Sleeve(s) Included
No
Bladder(s) Included
No
Brand
ADS
Bushing Color
No
Bushing Inside Diameter
5/8
Bushing Material
Heim
Bushing Outside Diameter
1 3/16
California Proposition 65
No
Category
Suspension
Coil Spring Color
Silver
Coil Spring Insulator(s) Included
Yes
Coil Spring Material
Mild Steel
Coil Spring Relaxed Length
N/A
Emission Code
6
Front Shocks Compressed Length
21.48
Front Shocks Relaxed Length
31.8
Grade Type
Performance
Link Bolt Bushing Color
N/A
Link Bolt Length
N/A
Link Bolt Thread Diameter
N/A
part type
Suspension Kit
Product Type
UTV Coilover Kit
Qty
Sold with front pair and rear pair
Rear Shocks Compressed Length
27
Rear Shocks Relaxed Length
41.5
Springs Included
Yes
Strut Mount Insulator(s) Included
No
Sub Category
Suspension
Suspension Type
Spring
📦
Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
