Holley EFI
Product Details
🔧
Vehicle Compatibility
Select your vehicle to verify compatibility:
⭐
Key Features

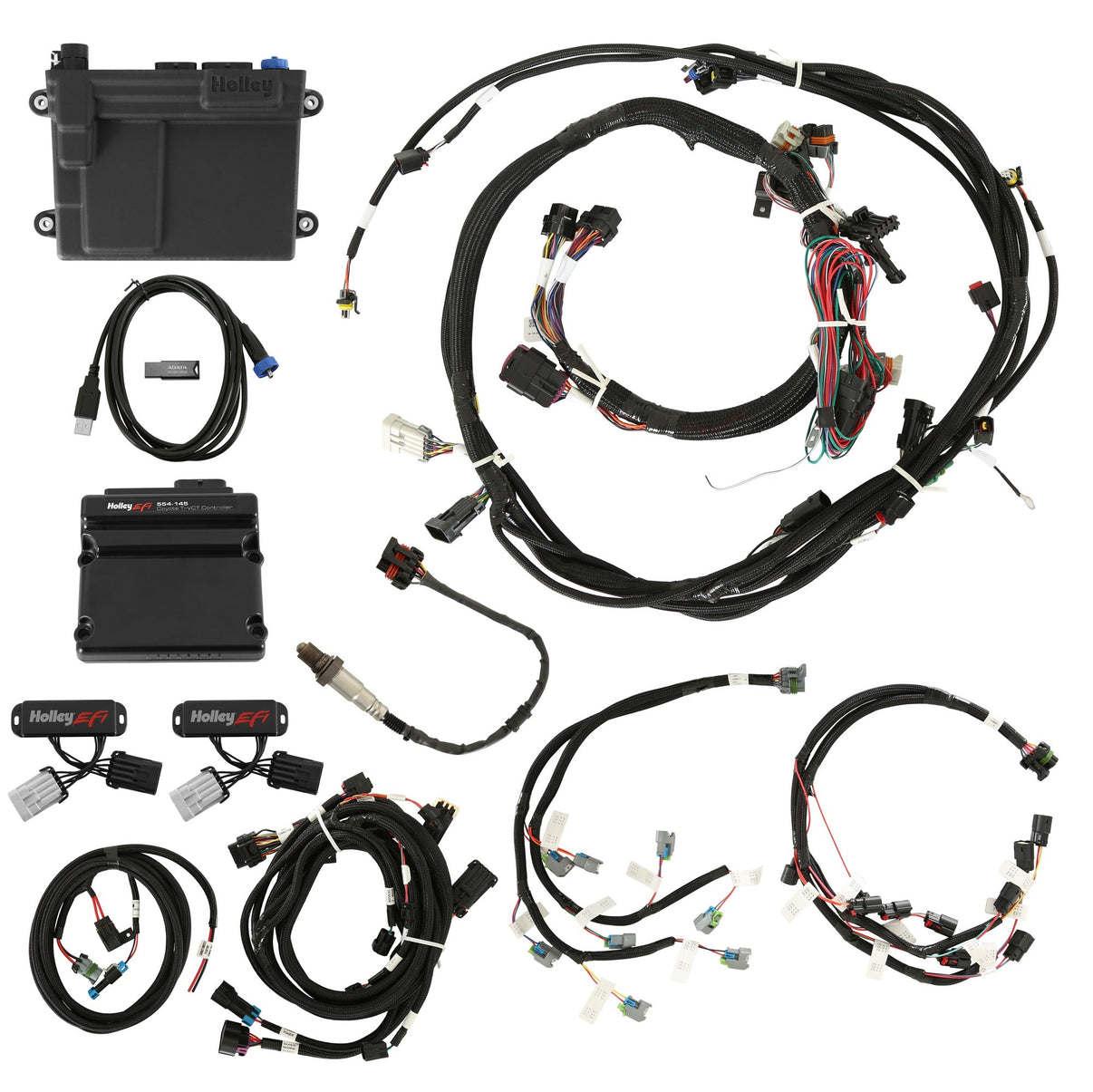

Ford Coyote Ti-VCT HP EFI ECU and Ti-VCT Controller Kit with Power Harness, Main Harness, Coil Harness, Injector Harness and Sensors includes Bosch Oxygen Sensor
- Now supports 2015-2017 Coyote engines
- HP EFI kits available
- Plug and Play main harness for 2011-2017 Coyote engines w/ stock cam shafts using stock coils (558- 110)
- Plug and Play main harness for 2011-2017 Coyote engines w/ stock cam shafts using Holley EFI coils (558-122)
- Compatible with HP or Dominator EFI
- Pre-calibrated Ford sensor drop downs in the Holley EFI software
- Ti-VCT Cam control down to 400 RPM
- Commanded timing matched within 1 degree
- User programmable tables enable the end user to fine tune aftermarket Ti-VCT compatible camshafts
- 4 Built in Diagnostic LEDS make diagnostics easy in the event of a cam or crank sensor failure
- Integrated stock cam position tables eliminate tuning guess work, optimal drive-ability and power right out of the box
- Main harnesses come terminated with Ford TPS and IAC connectors, making it easy to convert from a DBW throttle body to a manual throttle body
- Installation of an external MAP sensor is required, we recommend part number 538-13 for N/A applications
- Main Harnesses includes a Power Tap Connector, as a convenient source for power and grounds when adding additional sensors or actuators
- CANBus communication between Coyote Ti-VCT and Holley EFI ECU for high speed data transfer and diagnostics
📋
Product Specifications
Accelerometer Support
Yes
Brand
Holley EFI
CAN-BUS Support
Yes
Coil Per Cylinder Ignition Support
Yes
Datalogging Support
Yes
e85 Support
Yes
EGT Support
Yes
Forced Induction Support
Yes
Fuel Filter Included
No
Fuel Hose Included
No
Fuel Injectors Included
No
Fuel Pressure Regulator Included
No
Fuel Pump Included
No
Grade Type
Performance
Harness Application
Ford
Harness Type
Ignition
Ignition Type
Ford Coyote
Individual Cylinder Fuel Corrections
Yes
Injector Connector
USCAR (EV6)
Intake Manifold Included
No
Knock Retard Support
Yes
Part Type
Fuel Injection Conversion Kit
Product Type
ECU Assembly
Self-Tuning
Yes
Throttle Position Sensor Included
No
Traction Control Support
Yes
User-Tuneable
Yes
📦
Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
