Hilborn
Product Details
🔧
Vehicle Compatibility
Fits Hilborn Terminator X MPFI Universal.
Please refer to manufacturer specifications for complete compatibility information.
⭐
Key Features
Universal Terminator X MPFI Kit for Hilborn EFI Systems
- This kit includes a universal main harness, EV1 injector harness, Bosch LSU 4.9 Wideband, Input/output harness, main power harness.
- High Impedance Injector Drivers will safely power most Stock injectors, and Holley EFI Injectors. Injector support chart provided in the instructions (Will not control Low Impedance Injectors)

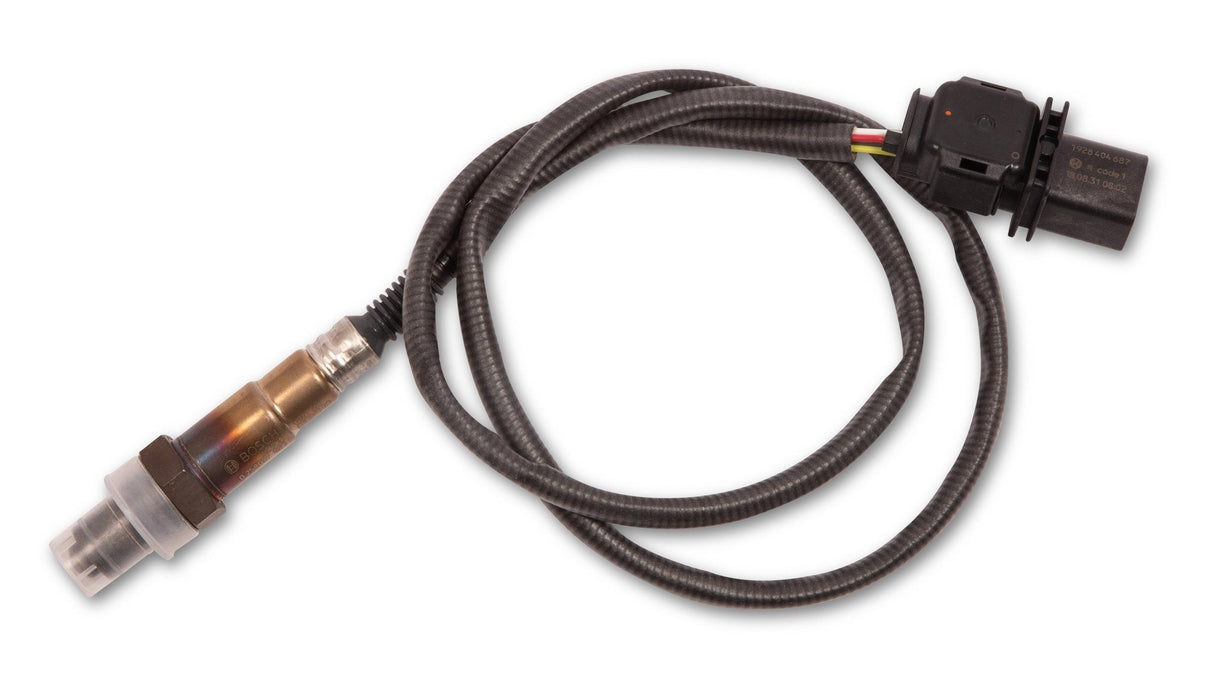

- Bosch LSU 4.9 wideband to relay AFR information to the ECU for accurate reading and precise tuning control
- Built in 1bar MAP Sensor with vacuum hose adapters included (1/8th ¼ and 3/16ths)
- Boosted applications; you can disable the internal MAP sensor and utilize an external MAP sensor; harness comes with the connector terminated, allowing for easy installation
- MAP Sensor vacuum hose adapters (1/8th ¼ and 3/16ths)
- Plug and plug ignition capability with Dual Sync and HyperSpark Distributors; adapter 558-323 required for HyperSpark Distributors
- 4 Inputs 12v, Ground, 5v, and Frequency for things such as additional pressure sensors, activation triggers for nitrous activation, or a trans brake
- Boost Control Boost vs Time, Boost vs Gear, Boost vs RPM, Boost vs Speed, Boost Safeties
- Nitrous Control Single Channel of Wet or Dry, Progressive or Non-Progressive, Rich/Lean Safeties, and target Closed Loop AFR
- Advanced Tables 4x 1D Tables, 1x 1D per Gear Table, 4x 2D Tables, 1x 2D per Gear Table can be used for any custom tables you can dream up, such as Flex Fuel Sensor Offset Table, or a custom fuel or oil pressure safety
- On-Board Diagnostic LEDS for: ECU Power Engine Run Wideband Status TPS Calibration Crank Signal Cam Signal. Allows you to identify any Critical engine issues at a glance
🎬
Product Videos
No videos available for this product.
📋
Product Specifications
Accelerometer Support
Yes
Air Metering Style
Speed Density
Brand
Hilborn
CAN-BUS Support
Yes
Coil Per Cylinder Ignition Support
Yes
Datalogging Support
Yes
Distributor Included
No
e85 Support
No
EGT Support
Yes
Forced Induction Support
Yes
Fuel Filter Included
No
Fuel Hose Included
No
Fuel Injectors Included
No
Fuel Pressure Regulator Included
No
Fuel Pump Included
No
Grade Type
Performance
Idle Air Control Motor Included
No
Individual Cylinder Fuel Corrections
Yes
Intake Manifold Included
No
Knock Retard Support
Yes
Part Type
Fuel Injection System
Self-Tuning
Yes
Throttle Position Sensor Included
No
Universal Or Specific Fit
Universal
User-Tuneable
Yes
📦
Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
