LS3 HI-RAM IM, EFI, 1 X 92M...
Get notified when this item is back in stock
Press & drag to view
Holley EFI
Product Details
🔧
Vehicle Compatibility
Select your vehicle to verify compatibility:
⭐
Key Features

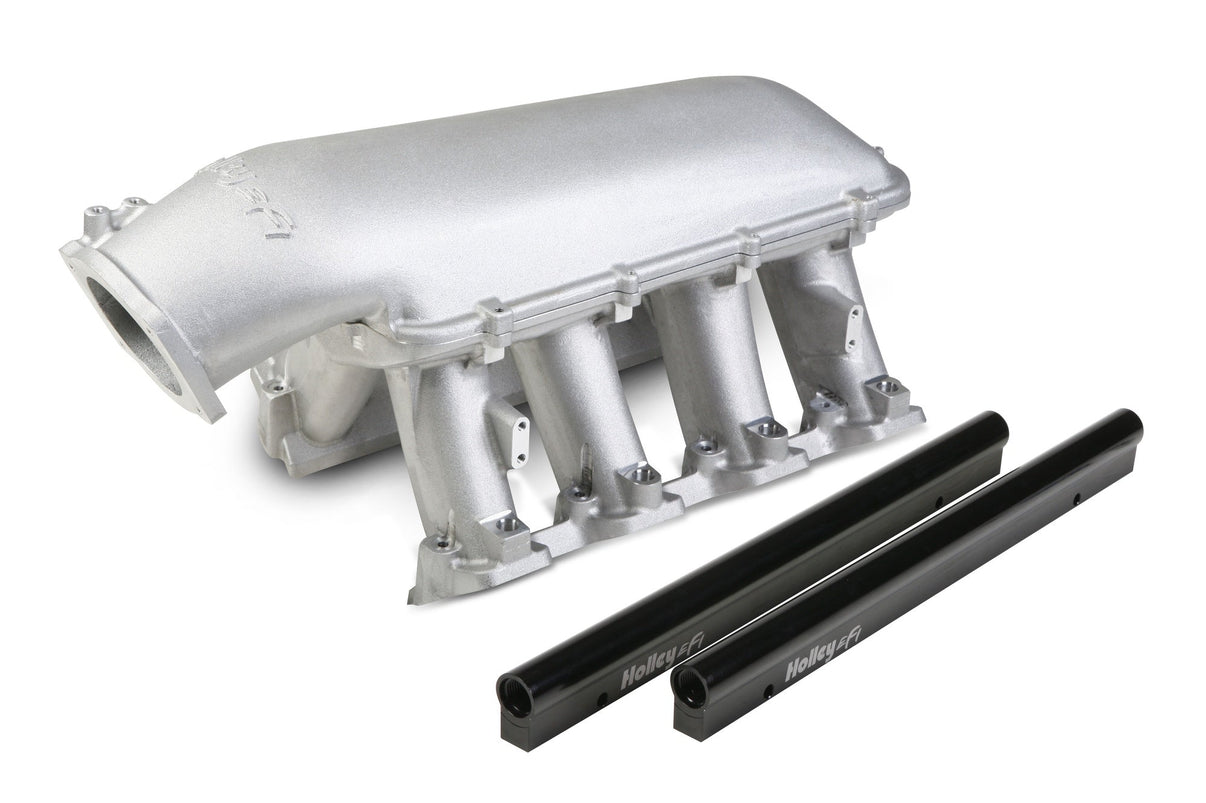

EFI Hi-Ram Intake for 1 x 92mm GM LS Throttle Body - Longitudinal Mount Plenum Top
- Base Plenum Top Mounting Flange Height 8.42� to the lifter valley cover flange on engine block.
- Total Height with 92/102mm EFI Plenum Top 12.32� to the lifter valley cover flange on engine block.
- Port Size 2.49� Height x 1.21� Wide
- Mounting Flange Gasket Type Standard LS3 Molded O-Ring
- Plenum Top Gasket Type 3/32� Round O-ring Cord
- Throttle Body Flange Location, with 92/102mm EFI Plenum Top : Height 8.42� (from engine block lifter valley cover flange), Longitudinal Location 3.84� (forward from engine block front flange), Angle 25 deg. (down from vertical)
- Runner Length 6.50�, As-Cast Runner Cross-Sectional Area Tapered 4.25 in² to 2.77 in²
- Intended for use on naturally aspirated or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM
📋
Product Specifications
Basic Operating RPM Range
3500-8000 RPM
Brand
Holley EFI
Construction
Cast
EGR Port
No
Engine
GM LS3/L92
Flange Style
EFI
Fuel Injectors Included
No
Fuel Rail(s) Included
Yes
Fuel System Type
EFI
Gasket Or Seal Included
Yes
Grade Type
Performance
Intake Port Gasket(s) Included
No
Manifold Type
Hi-Ram
Nitrous Bung(s) Included
No
Part Type
Engine Intake Manifold
Product Type
Intake Manifold
Recommended Use
Forced Induction
Removable Runners
No
Removable Top/Lid
Yes
RPM Power Band
3500-8000 RPM
Single Or Dual Plane Type
Single Plane
Throttle Body Bore Diameter
92 MM
Throttle Body Included
No
📦
Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
