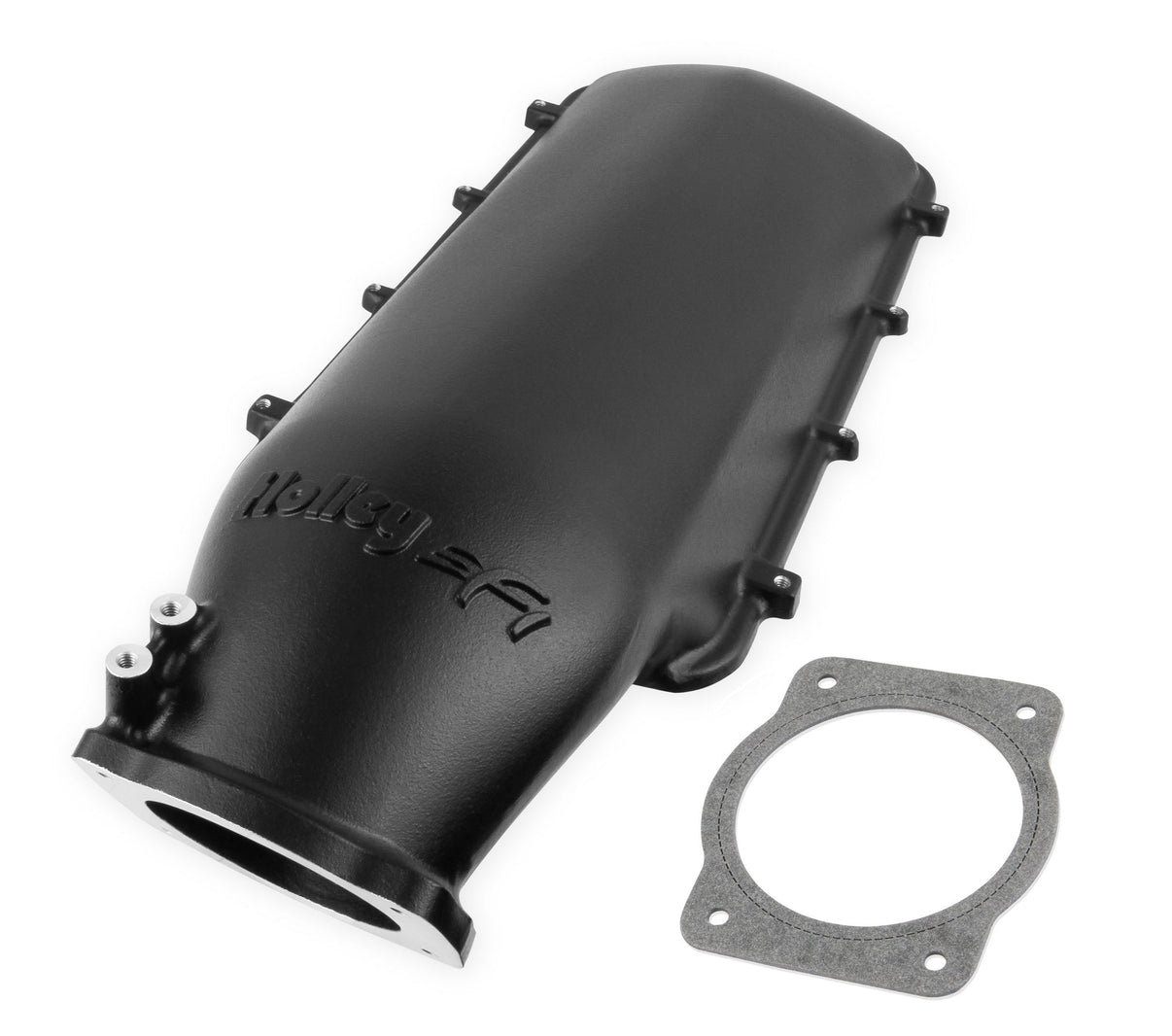

Holley LS Hi-Ram EFI Manifold-Black GM LS7
Holley EFI
Search over 60,000 products...
Holley LS Hi-Ram EFI Manifo...
Get notified when this item is back in stock
Press & drag to view
Product Details
Compatibility
Fits Holley LS Hi-Ram EFI Manifold-Black GM LS7.
Please refer to manufacturer specifications for complete compatibility information.
Product Specifications
Basic Operating RPM Range
3500-8000 RPM
Brand
Holley EFI
Construction
Cast
EGR Port
No
Engine
GM LS7
Flange Style
EFI
Fuel Injectors Included
No
Fuel Rail(s) Included
Yes
Fuel System Type
EFI
Gasket Or Seal Included
Yes
Grade Type
Performance
Intake Port Gasket(s) Included
No
Manifold Type
Hi-Ram
Nitrous Bung(s) Included
No
Part Type
Engine Intake Manifold
Product Type
Intake Manifold
Recommended Use
Forced Induction
Removable Runners
No
RPM Power Band
3500-8000 RPM
Single Or Dual Plane Type
Single Plane
Throttle Body Bore Diameter
92 MM
Throttle Body Included
No
Product Description
Key Features
LS7 EFI w/ 92MM Throttle Body
- Runner Length 6.29�, As-Cast Runner Cross-Sectional Area Tapered 4.67in² to 2.84 in²
- Throttle Body Flange Location, with 92/102mm EFI Plenum Top : Height 8.42� (from engine block lifter valley cover flange), Longitudinal Location 3.84� (forward from engine block front flange), Angle 25 deg. (down from vertical)
- Plenum Top Gasket Type 3/32� Round O-ring Cord
- Mounting Flange Gasket Type Standard LS3 Molded O-Ring
- Port Size 2.49� Height x 1.21� Wide
- Total Height with 92/102mm EFI Plenum Top 12.32� to the lifter valley cover flange on engine block.
- Base Plenum Top Mounting Flange Height 8.42� to the lifter valley cover flange on engine block.
Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
