AEM 7 BAR Stainless Steel MAP Sensor Kit

Fits AEM 7 BAR Stainless Steel MAP Sensor Kit.

Please refer to manufacturer specifications for complete compatibility information.

AEM 7 BAR Stainless Steel MAP Sensor Kit (30-2130-7)

Ultra-High Boost Pressure Monitoring with Laboratory Precision

The AEM 7 BAR MAP Sensor Kit delivers uncompromising accuracy for extreme boost applications up to 88 PSI. Built with 100 PSIa stainless steel construction and 1% full-scale accuracy, this sensor provides the precise manifold pressure data required for high-horsepower engine management.

Detailed Specifications

Pressure Specifications

• Range: 0-7 BAR absolute (0-100 PSIa)
• Maximum Boost Reading: 6 BAR (88 PSI)
• Accuracy: ±1% full scale (-40°C to 105°C)
• Burst Pressure: 150 PSI

Performance Characteristics

• Response Time: <1ms
• Operating Temperature: -40°C to 105°C (-40°F to 221°F)
• Vibration Resistance: 100-2000Hz, 20g sinusoidal, 3 axes
• Output: 0.5-4.5VDC linear

Construction Details

• Sensor Body: Stainless steel
• Wetted Materials: 304L & 316L stainless steel
• Sealing: 360-degree welded wetted area
• Thread: 1/8" NPT male
• Weight: <85 grams

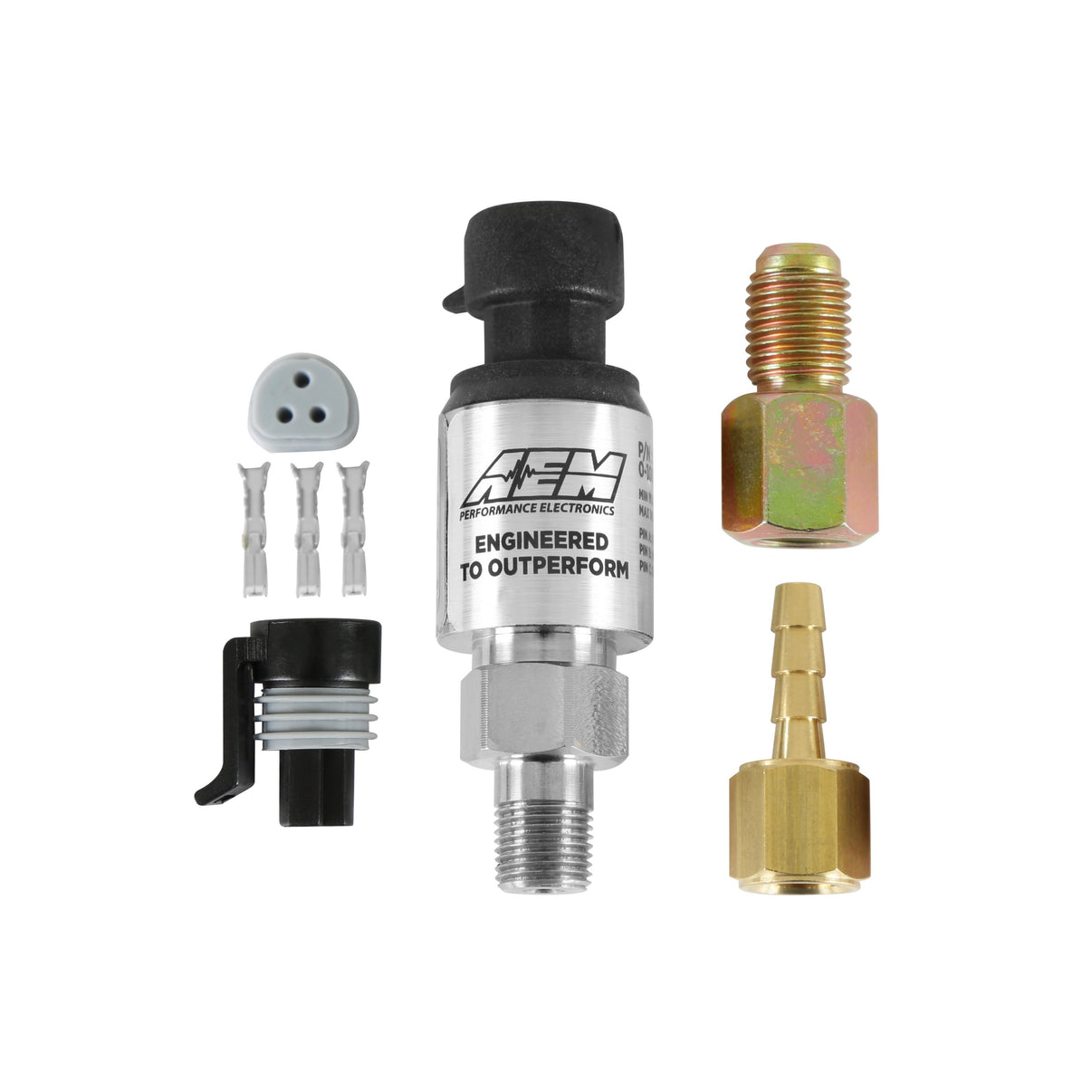

Complete Kit Includes

• 100 PSIa (7 BAR) stainless sensor
• Weatherproof connector with pins
• Pin retention lock
• 1/8" NPT to -4AN adapter
• 1/8" NPT to 3/16" barb adapter

Why Absolute Pressure Matters

PSIa sensors reference absolute zero - the complete absence of pressure. This allows accurate vacuum and boost readings, with atmospheric pressure reading ~14.7 PSI at sea level.

Superior to Brass Sensors

Stainless steel construction provides:

• Caliper-like precision vs. ruler-like reference
• Immunity to automotive fluids
• Long-term calibration stability
• Professional-grade accuracy

Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
