Product Details
Vehicle Compatibility

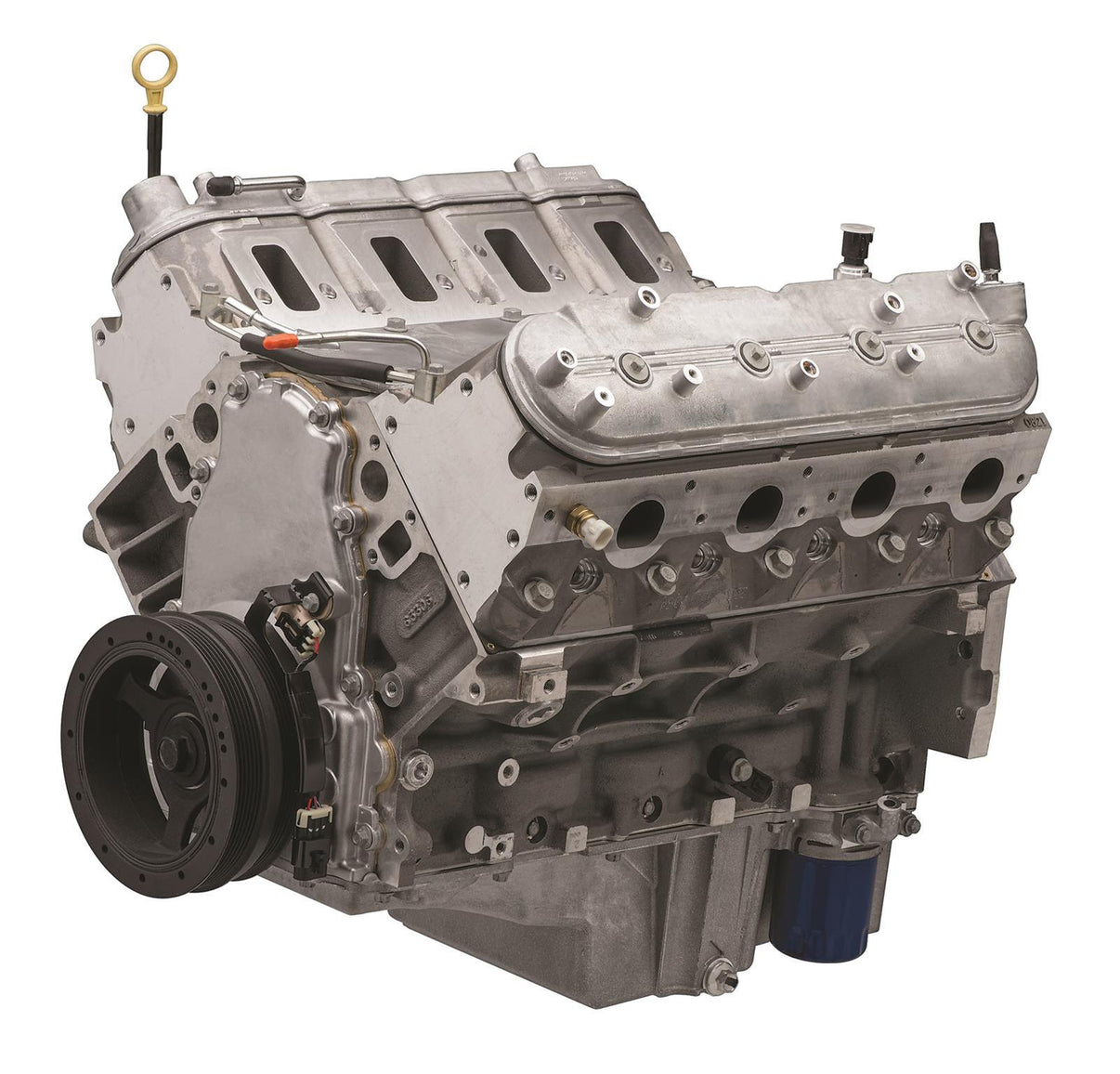

Fits Chevrolet Performance LS3 6.2L Hot Cam Crate Engine - 495 HP/475 TQ - Race Tested Cam - 50+ HP Gain.
Please refer to manufacturer specifications for complete compatibility information.
Key Features
LS3 with Racing-Tested Hot Cam
The LS3 495 HP features the production LS3 bottom end combined with the race-tested LS "Hot" cam, delivering an impressive 495 horsepower at 5,750 rpm with 475 lb-ft of torque. This represents a 14% power increase from a simple camshaft change.
Specifications:
- Part Number: 19432416 (superseded by 19435100)
- Engine Type: LS-Series Gen IV Small-Block V-8
- Displacement: 376 cu in (6.2L)
- Bore x Stroke: 4.065 x 3.622 (103.25 x 92mm)
- Power: 495 horsepower at 5,750 rpm
- Torque: 475 lb-ft at 4,500 rpm
- Compression Ratio: 10.7:1
LS Hot Cam Technology:
- Race-tested LS "Hot" camshaft
- Steel hydraulic roller tappet design
- Valve lift: 0.525" intake / 0.525" exhaust
- Duration (@0.050): 219° intake / 228° exhaust
- Lobe separation: 112 degrees
- Significantly more duration than stock camshaft allows valves to remain open longer
Engine Construction:
- Cast aluminum block with 6-bolt cross-bolted main caps
- Nodular iron crankshaft
- Powdered metal connecting rods
- Hypereutectic aluminum pistons
- Production bottom-end for proven reliability
Cylinder Head Technology:
- High-flowing rectangular-port L92-style aluminum cylinder heads
- 68cc combustion chambers
- Valve sizes: 2.165" intake / 1.590" exhaust
- Large rectangular ports borrowed from LS7 design
- Cast roller trunnion rocker arms with 1.7:1 ratio
Performance Features:
- Increased clean air intake through large rectangular ports
- Maintains good street manners while adding 50+ horsepower over base LS3
- Maximum recommended RPM: 6,600
- Recommended torque converter stall: 2,400-2,800
- 58X Gen IV reluctor wheel
Installation Package:
- Fully assembled long block
- Oil pump, pickup, and Camaro oil pan
- Corvette harmonic balancer
- Front timing cover with cam sensor
- Oil filter
- Aluminum water pump
This Product is a USA Special Order, and will take around 6 - 8 weeks to arrive, call to discuss options
