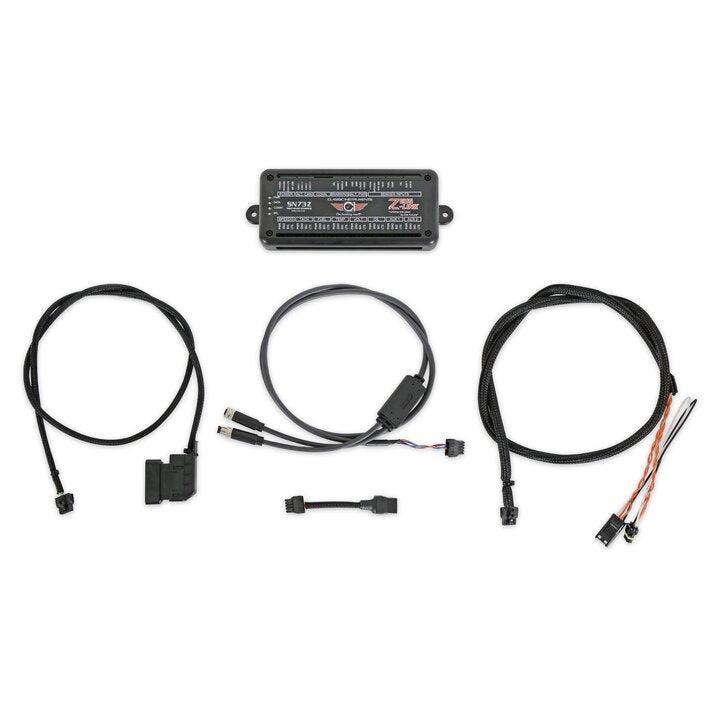

Zeus-Link Gauge Interface Module

Fits Zeus-Link Gauge Interface Module.

Please refer to manufacturer specifications for complete compatibility information.

• System queries vehicle upon installation to determine what list of parameters can be obtained from the vehicle and used as inputs to gauges
• Spaces for 6 standard gauges: speedo, tach, fuel, oil, volt, temp, and 2 auxiliary gauges of the customers choosing
• All instruments can be driven traditionally through proper senders if vehicle ECU does not support an output the driver wants to monitor
• Set up and managed all through an app available on the App Store® or Google Play®
• The app is used to configure by choosing which gauges a customer has in the dash and how each gauge gets its signal
• The app has a virtual gauge screen, aligning with the dash instruments
• The app has easy diagnostics, displays values being received by Zeus-Link and will allow user to cycle gauges to predetermined positions, to verify correct outputs and wiring
• Warning and check engine light outputs on the Zeus-Link and external contacts to light a dash light
• Dash light connection
• All gauge connections to Zeus-Link (power, ground, signal, dash lights)
• Additional resistor dongle available if needed to use multiple Holley CAN devices on the same harness
• Harness plugs direct into Zeus-Link and then to Holley ECU or OBD
• Holley harness has additional Holley ECU connector for other devices
• On-board diagnostic lights give status of power, BLE, and data on the circuit board for Zeus-Link
• Pass-through CAN port connection for other CAN devices
• Compatible with all Classic Instruments sending units and gauges

Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
