Product Details
🔧
Vehicle Compatibility
Fits 750 CFM Street Demon Carburetor.
Please refer to manufacturer specifications for complete compatibility information.
⭐
Key Features
750 CFM - Street Demon - Vacuum Secondaries - Black - Gasoline
- Shadow Black ceramic coated finish acts as a protective barrier to corrosion and heat
- Designed for use on most stock to mildly modified V8s
- Developed from the ground up with smooth styling - patented timeless design fits modern and traditionally themed vehicles (Patent #: US D648,746 S)
- One piece airhorn is easy to clean and maintain
- Aerospace Composite fuel bowl offers significant heat insulating benefits over aluminum fuel bowls - keeps fuel up to 20º cooler for optimum performance with modern fuels
- Electric Choke Management means easy cold starts

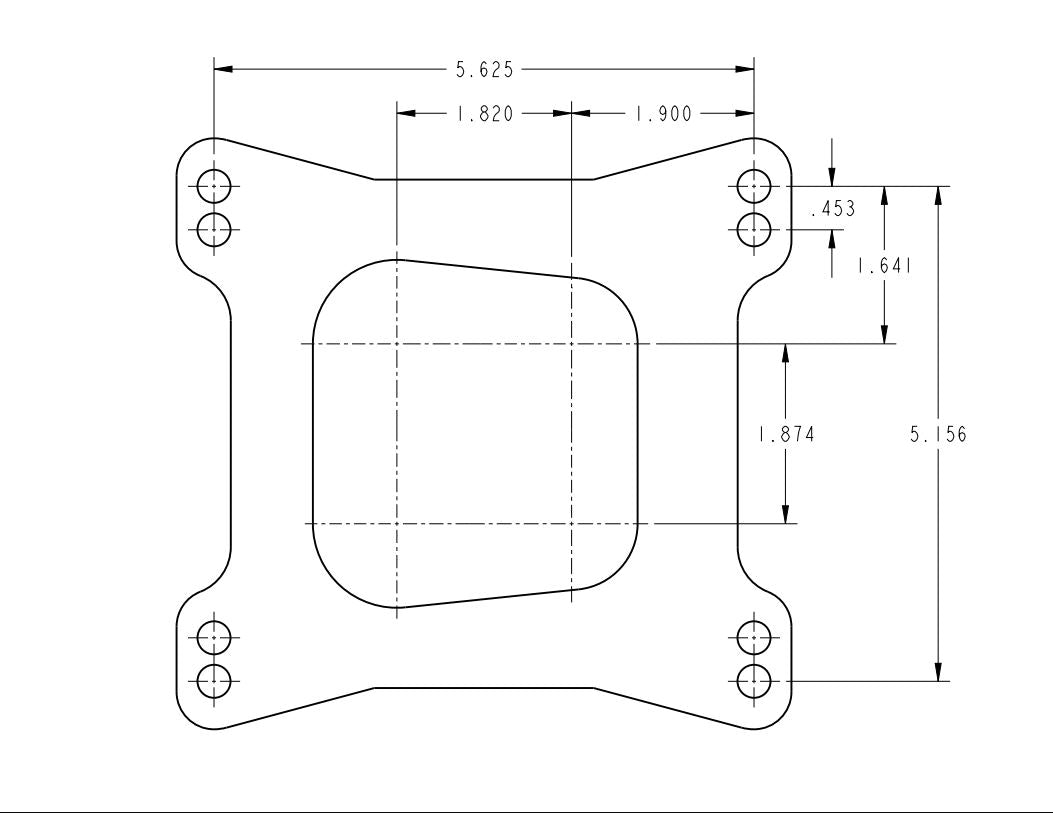

- Dual mounting bolt pattern - fits most aftermarket spread or square bore intake manifolds without an adapter
- Integrated fuel bowl/main body design with gasket above fuel level and no plugged passages to eliminate all potential leak paths
- Small 1-11/16� primary throttle bores combined with proven Triple-Stackž boosters deliver amazingly crisp throttle response and drivability, superior fuel atomization and improved fuel economy
- Goggle Valve Secondary (GVSž) throttle plate (Patent # D677755) delivers over twice the air flow of the primary bores for power you can hear and feel
- GVSž makes total air flow of 750 CFM while maintaining the crisp throttle response delivered by small primary bores
- Secondary air valve control with torsion spring allows smooth primary to secondary throttle transition, optimizing fuel distribution across cylinders for improved throttle response at any opening rate.
- 2 Stage metering rods are easily accessible without carburetor disassembly or removal
- Single fuel inlet for simple installation
- Integrated 700R4/200R4 transmission kickdown cable mounting location as well as Ford A/T kickdown for proper shifts
- Patent pending mechanical design
- 750 CFM specific calibration kit available for tuning and altitude adjustments
- Available TPS kit allows use with 4L60 and 4L80 transmissions
🎬
Product Videos
No videos available for this product.
📋
Product Specifications
Barrels
4
Booster
Triple Stack
Brand
Demon
Carburetor Use
Street
CFM
750
Choke
Electric
Fuel Inlet
Single
Marine Use
No
Metering Rod Size
56/40
Part Type
Carburetor
Primary Main Jet
89
Primary Pump Nozzle Size
40
Product Type
Carburetor
Secondaries
Vacuum
Secondary Main Jet
86
Step up Spring
Green
Supercharged Application
No
Vacuum Ports
1 timed (spark) port
📦
Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
