AEM
Product Details
🔧
Vehicle Compatibility
Fits Unsealed BMS Satellite Module - Unsealed Battery Management System Satellite.
Please refer to manufacturer specifications for complete compatibility information.
⭐
Key Features

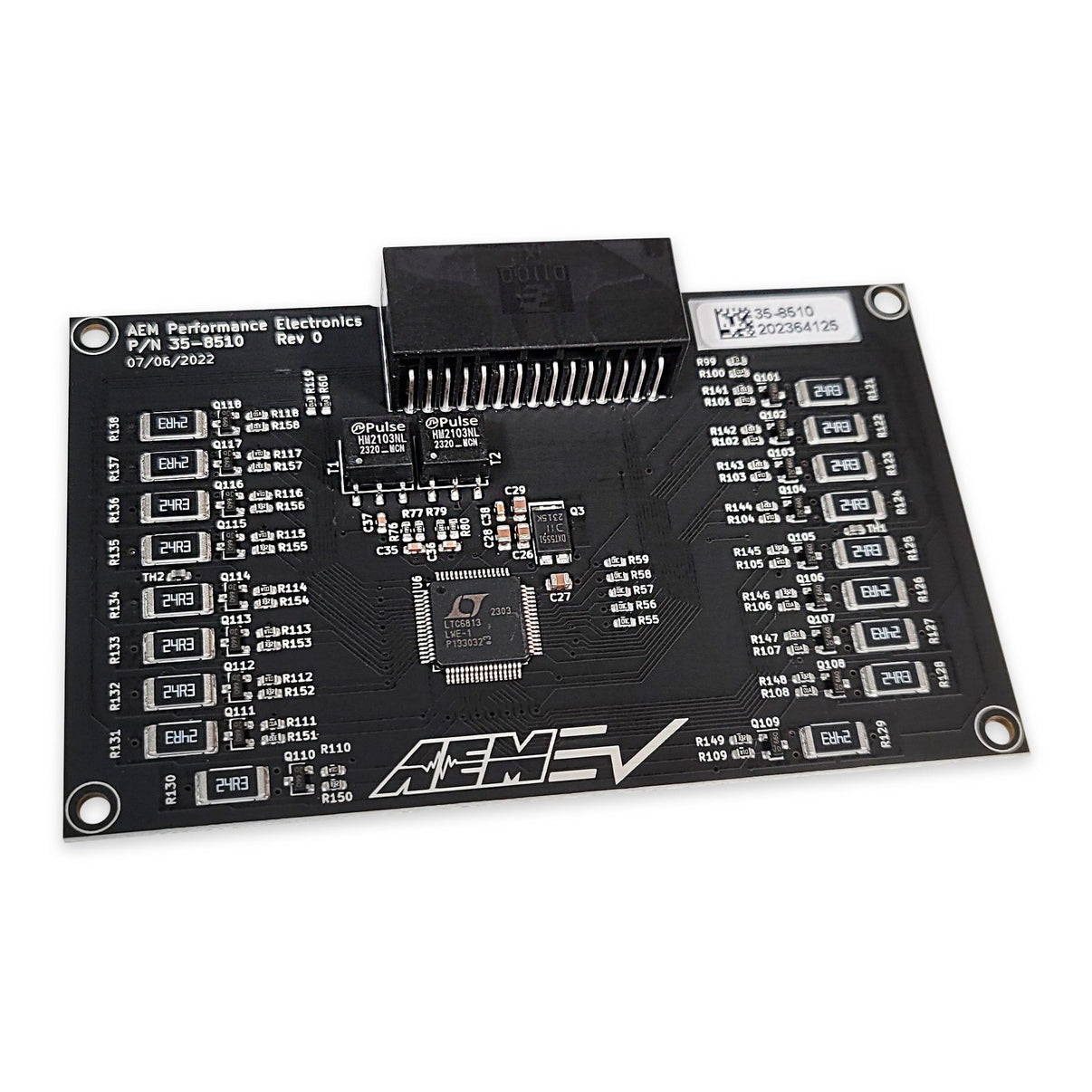

Unsealed Battery Management System Satellite
The AEM EV Battery Management System (BMS-18) is comprised of three components:
1. VCU
2. BMS-18 Master
3. BMS-18 Satellite(s)
The BMS is implemented as two different Module types: the BMS Master and the BMS Satellite. Each Module is capable of measuring up to 18 cells and 3 temperatures (thermistors) but the Master also contains the CAN communication interface and J1772 charging specific connections needed for each battery pack.
The VCU communicates with the BMS via the Master Module and all battery packs need at least one Master unit. The Satellites expand the capability of the Master by an additional 18 cells and 3 thermistors per additional Satellite connected. The Satellite Modules are connected to their Master via a high-speed serial interface (isoSPI) that allows additional units to be daisy chained together, adding as many Satellites as necessary for the battery pack configuration.
The VCU is responsible for all BMS control logic. All setup and calibration items can be modified using the AEMCal user interface.
The AEM EV Battery Management System (BMS-18) is comprised of three components:
1. VCU
2. BMS-18 Master
3. BMS-18 Satellite(s)
The BMS is implemented as two different Module types: the BMS Master and the BMS Satellite. Each Module is capable of measuring up to 18 cells and 3 temperatures (thermistors) but the Master also contains the CAN communication interface and J1772 charging specific connections needed for each battery pack.
The VCU communicates with the BMS via the Master Module and all battery packs need at least one Master unit. The Satellites expand the capability of the Master by an additional 18 cells and 3 thermistors per additional Satellite connected. The Satellite Modules are connected to their Master via a high-speed serial interface (isoSPI) that allows additional units to be daisy chained together, adding as many Satellites as necessary for the battery pack configuration.
The VCU is responsible for all BMS control logic. All setup and calibration items can be modified using the AEMCal user interface.
🎬
Product Videos
No videos available for this product.
📋
Product Specifications
Brand
AEM
Category
Electrical
Emission Code
5
Product Type
BMS Satelite
Sub Category
Battery and Related Components
Warning
California Proposition 65
Warranty
Manufacturer's 1 Year Warranty
Wiring Pigtail Included
No
📦
Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
