MSD
Product Details
🔧
Vehicle Compatibility
Fits ULTRA 6AL PLUS BLACK - MSD Ultra 6AL Plus Ignition Control - Black.
Please refer to manufacturer specifications for complete compatibility information.
⭐
Key Features

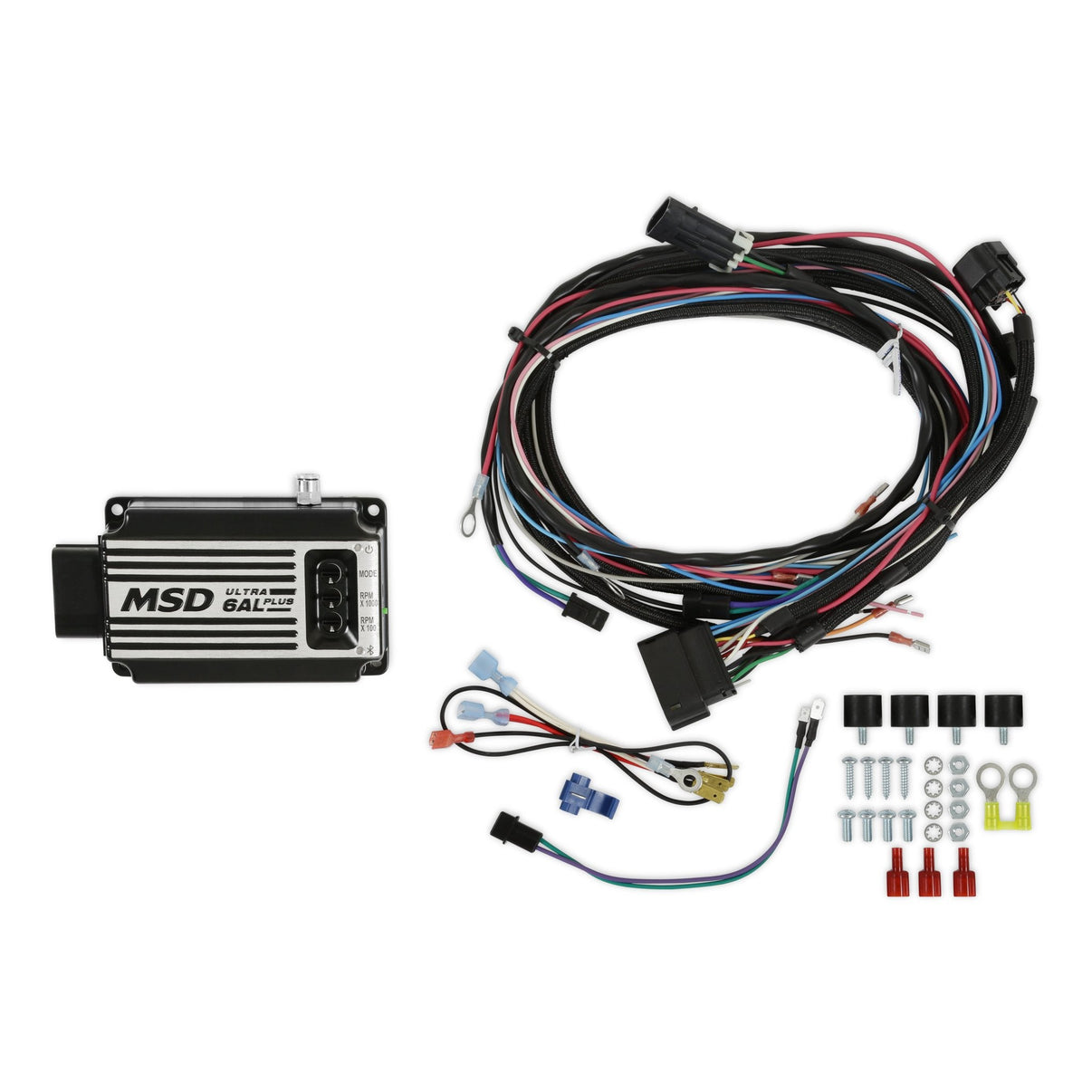

MSD Ultra 6AL Plus Ignition Control - Black
The new ground-breaking Ultra 6AL and Ultra 6AL Plus delivers full MSD power in a compact, feature dense, and lighter package!
The Ultra 6AL greatly expands on the capabilities of the 6-series line with three rev limiters (Launch, Burnout, and Step Retard activation) and is wirelessly controlled from a smart phone via the "MSD Ultra 6AL" app. A Programmable Step Retard (up to 30 degrees) is available for: On Ramp time, Off Delay, Off Ramp Time, Engine RPM for activation. High level of security connection from phone to Ignition box (encryption) including sequence in push button implementation. Mobile app available settings include Cylinder selection, Step retard value, Launch RPM value, Burnout RPM value, Max (Race) RPM Value, Start retard value.
The Ultra 6AL Plus features boost dependent timing control up to 400 kPA (58 PSI / 4 BAR internal sensor), making it the ultimate ignition box for moderately boosted vehicles utilizing a blow-through or draw-through carburetor. Program through the "MSD Ultra 6AL" app or MSDView software via the integrated USB port. Programmable timing curves in 2D Plots or 3D tables (RPM vs Timing vs MAP Pressure) - you can plot the 3D graph and edit a table 20x20 either from Mobile app (phone) or from MSDView (laptop). Mobile app available settings: Step retard value, Launch RPM value, Burnout RPM value, and Max (Race) RPM Value.
The new ground-breaking Ultra 6AL and Ultra 6AL Plus delivers full MSD power in a compact, feature dense, and lighter package!
The Ultra 6AL greatly expands on the capabilities of the 6-series line with three rev limiters (Launch, Burnout, and Step Retard activation) and is wirelessly controlled from a smart phone via the "MSD Ultra 6AL" app. A Programmable Step Retard (up to 30 degrees) is available for: On Ramp time, Off Delay, Off Ramp Time, Engine RPM for activation. High level of security connection from phone to Ignition box (encryption) including sequence in push button implementation. Mobile app available settings include Cylinder selection, Step retard value, Launch RPM value, Burnout RPM value, Max (Race) RPM Value, Start retard value.
The Ultra 6AL Plus features boost dependent timing control up to 400 kPA (58 PSI / 4 BAR internal sensor), making it the ultimate ignition box for moderately boosted vehicles utilizing a blow-through or draw-through carburetor. Program through the "MSD Ultra 6AL" app or MSDView software via the integrated USB port. Programmable timing curves in 2D Plots or 3D tables (RPM vs Timing vs MAP Pressure) - you can plot the 3D graph and edit a table 20x20 either from Mobile app (phone) or from MSDView (laptop). Mobile app available settings: Step retard value, Launch RPM value, Burnout RPM value, and Max (Race) RPM Value.
📋
Product Specifications
Brand
MSD
Category
Ignition
Color
Black
Connector Gender
Female
Connector Quantity
1
Current Draw
0.8 Amps per 1
Emission Code
4
Features
Rev Limiter
Grade Type
Performance
Height
2.95
Ignition Type
Performance
Length
11
MAP Sensor
4-Bar
Mount Type
Surface Mount
Mounting Hardware Included
Yes
Primary Voltage
520-540 Volts
Product Type
Digital 6AL Ignition Control Box w/Rev Control
RPM Range
15
Secondary Voltage
45
Spark Energy
135mJ - 150mJ Per Spark
Sub Category
Control Modules
Terminal Gender
Male
Terminal Quantity
20
Voltage Required
12-15 Volts
Warning
California Proposition 65
Warranty
Manufacturer's Limited 1 Year Warranty
Weight and Size
3.3" x 5.2" - 498 Grams
Width
10.05
📦
Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
