Ignition Coil, HVC-III W/CS...
Get notified when this item is back in stock
Press & drag to view
MSD
Product Details
🔧
Vehicle Compatibility
Fits Ignition Coil, HVC-III W/CS, Black - MSD Ignition Coil - HVC-3 Series - Black.
Please refer to manufacturer specifications for complete compatibility information.
⭐
Key Features

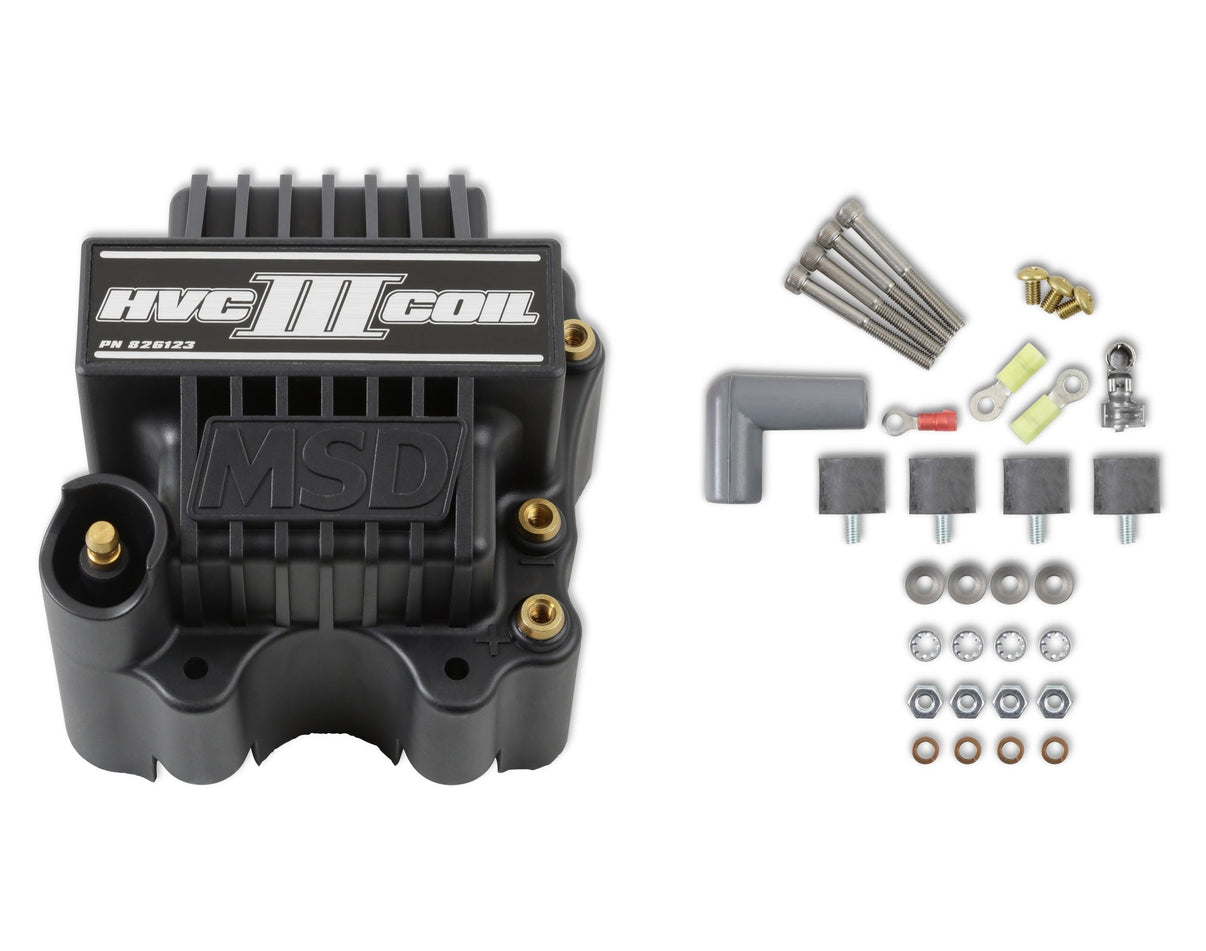

MSD Ignition Coil - HVC-3 Series - Black
The HVC III Coil is completely built in-house so our engineers have exclusive control over their performance and quality. The Coil utilizes an iron U-Core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from Dupont Rynite FR946 material which has incredible dielectric capabilities at high temperatures. MSD also incorporated a cutting-edge winding material that has improved insulation and is also capable of enduring extreme voltages. Together, these materials create a durable coil with incredible voltage capabilities, lightning-quick rise time, and longer spark duration. Equipped with an industry-first third terminal to allow secondary current sensing, for each spark, when used in conjunction with the MSD 8001 Pro 600 Single Channel ignition.
The HVC III Coil is completely built in-house so our engineers have exclusive control over their performance and quality. The Coil utilizes an iron U-Core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from Dupont Rynite FR946 material which has incredible dielectric capabilities at high temperatures. MSD also incorporated a cutting-edge winding material that has improved insulation and is also capable of enduring extreme voltages. Together, these materials create a durable coil with incredible voltage capabilities, lightning-quick rise time, and longer spark duration. Equipped with an industry-first third terminal to allow secondary current sensing, for each spark, when used in conjunction with the MSD 8001 Pro 600 Single Channel ignition.
📋
Product Specifications
Brand
MSD
Category
Ignition
Color
Black
Emission Code
4
Inductance
.250 mH
Maximum Voltage
45
part type
Ignition Coil
Peak Current
2 Amps
Primary Resistance
.016 OHMs
Product Type
Coil
Secondary Resistance
30
Spark Duration
150 uS
Sub Category
Ignition Coil
Turns Ratio
2.917361111111111
Type
Drag Race / Long Duration Use
Warning
California Proposition 65
Warranty
Manufacturer's Limited 1 Year Warranty
Weight
3.75 Lbs
📦
Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
