Key Features

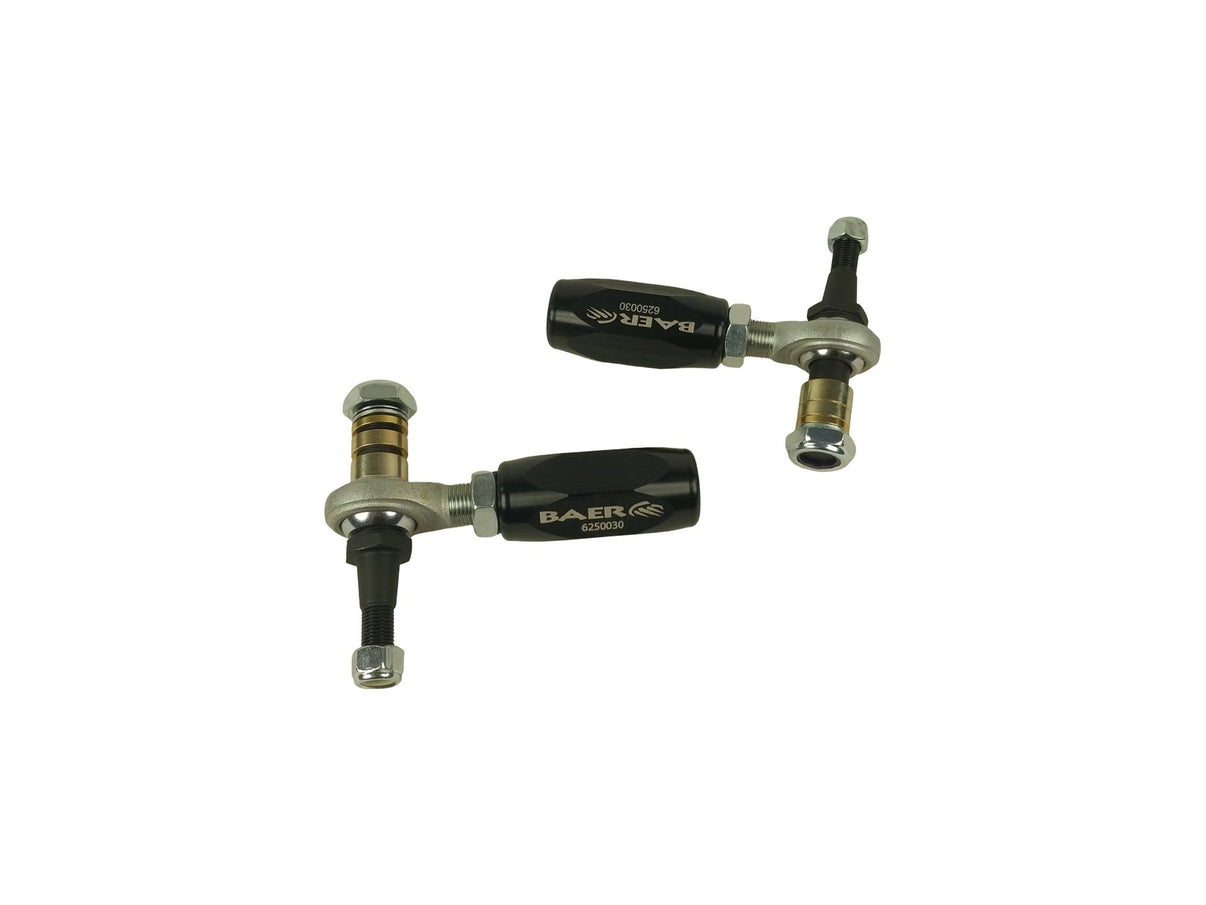

Baer Brakes Tracker Tie Rod/Bump Steer Kit

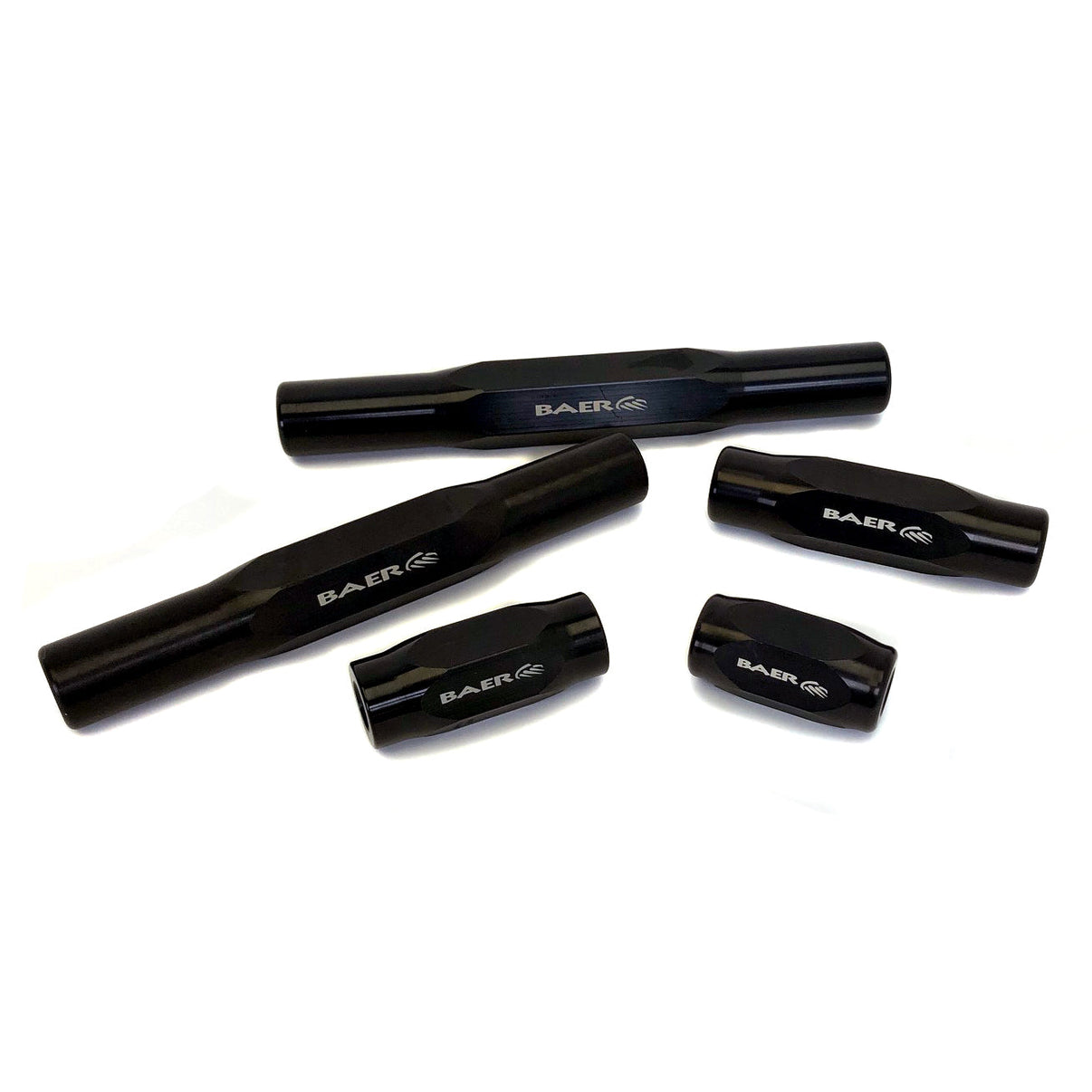

The Baer “Tracker” adjustable tie-rods feature 6061 T-6 aluminum, fully machined sleeve with a black anodized finish, a Teflon lined 5/8” heim joint and 4140 steel pin which. The pin is machined with the correct taper so no modification to the OE spindles is required and then heat treated. The Trackers Tie Rods are vehicle specific, mounting to the OE inner tie rod and offer approximately .875” of adjustment at the spindle to help correct bump steer issues due to modified suspensions and/or poor OE design. Best of all these are made in the USA!
The Baer “Tracker” adjustable tie-rods feature 6061 T-6 aluminum, fully machined sleeve with a black anodized finish, a Teflon lined 5/8” heim joint and 4140 steel pin which. The pin is machined with the correct taper so no modification to the OE spindles is required and then heat treated. The Trackers Tie Rods are vehicle specific, mounting to the OE inner tie rod and offer approximately .875” of adjustment at the spindle to help correct bump steer issues due to modified suspensions and/or poor OE design. Best of all these are made in the USA!
🎬
Product Videos
No videos available for this product.
📋
Product Specifications
Adjustable
Yes
Adjusting Sleeve Included
Yes
Adjustment Range
0.875
Applications
1988-96 C4 Corvette
Applications
1997-04 C5 Corvette
Applications
2005-09 Cadillac XLR with stock spindle
Applications
2005-13 C6 Corvette
Axle
Front
Boot Color
N/A
Box Count
1
Brand
Baer Brakes
Castle Nut Included
No
Category
Steering
Color
Black
Cotter Pin Included
No
Dust Boot Included
No
Emission Code
6
End 1 Gender
Female
End 2 Gender
Female
Export Description
Suspension Components
Finish
Black e-coated
Grade Type
Premium
Grease Fitting Included
No
Greaseable
Yes
Head Drive Type
Hex
Heim Joint
Teflon lined 5/8” heim joint
Housing Material
6061 T-6 aluminum
Includes
2x Tie Rods
Inner Sleeve Thread Size
M14"x1.5 RH Thread
Locking Nut Included
Yes
Manufacturer Restriction
None
Mounting Hardware Included
Yes
Outer Sleeve Thread Size
5/8"x18 RH Thread
part type
Steering Tie Rod End
Pre-Greased
Yes
Product Line
Steering Tie Rod End
Prop 65 - Short Label
WARNING
Quantity
1
Reinforced
Yes
Sleeve Length
2.9
Steering Type
Manual
Sub Category
Steering
Thread Direction
Right Hand Thread
Tie Rod Material
6061 T-6 aluminum
Title
Baer Brakes Tracker Adjustable Front Tie Rods Bump Steer Kit for 1988-2013 Y-Body
Tube Diameter
5/8"
Type
Straight
Universal Or Specific Fit
Specific Fit
Warning
California Proposition 65
Washer(s) Included
Yes
Weight
2.405
📦
Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
