Product Details
⭐
Key Features
Overview
Terminator X and X Max Coyote systems supports Ford Coyote platform with Ti-VCT.
Terminator X features real-time fuel learn, high impedance injector drivers, integrated 1bar MAP sensor, and 4 programmable inputs and outputs. These are ideal for electric fans, boost control solenoids, progressive nitrous control, and much more.
Terminator X ECU comes fully loaded with base maps for common Coyote engine combinations to get you out of the garage and on the road/track fast. The included 3.5" LCD touch screen handheld contains an easy to use calibration wizard as well as tuning and gauge display functions.
Included with Terminator X is Holley EFI's industry leading support, easy to use software suite that allows full laptop access/compatibility for advance users.
Whether you're building a budget beater or full on race car, Terminator X has the industry leading features and technology you need at a price that won't break the bank.
EV6 Injectors - 98+ 4R70W Transmission Control, for Early Coils
Features
- Plug and play engine control (for Ford 5.0L Coyote with Ti-VCT (Twin Independent Variable Camshaft timing)
- Plug and play compatible with multiple Holley EFI accessories including our gauges, shift lights, various modules, and digital and pro dashes (Holley P/N's 553-106, 553-111, and 553-112)
- EV1 or EV6 injector harness included (depending on your injector configuration)
- High Impedance Injector drivers power Holley EFI and most stock injectors -Injector support chart found in instructions (will not support low impedance injectors)
- Included Bosch LSU 4.9 wideband O2 sensors for accurate readings and precise tuning control
- Built in 1bar MAP (manifold absolute pressure) sensor included - For Boosted applications – internal MAP sensor can be disabled and utilize external MAP sensor harness (kit includes a terminated connector for seamless installation)
- Vacuum hose adapters included - (1/8”, ¼”, and 3/16” sizes)
- 4 inputs – 12v, Ground, 5v, and frequency for items like pressure sensors, activation triggers, nitrous activation, or trans brake
- Boost Control – boost vs. time, boost vs. gear, boost vs. RPM, boost vs. speed, and boost safeties
- Nitrous Control – channels for wet or dry, progressive or non-progressive, rich/lean safeties, and target closed loop AFR (Air/Fuel Ratio)
- Advanced Tables – ( 4x 1D tables, 1x 1D gear table, 4x 2D table, and 1x 2D gear tables) for nearly unlimited table configuration options
- On-board diagnostic LEDS - ECU power, engine run, TPS calibration, cam signal, and more! Identify critical engine parameters at a glance
- 3.5” touchscreen handheld included - Internal data-logging, custom gauge display, and calibration wizard allow quick building bases tunes for any Domestic V8 engine

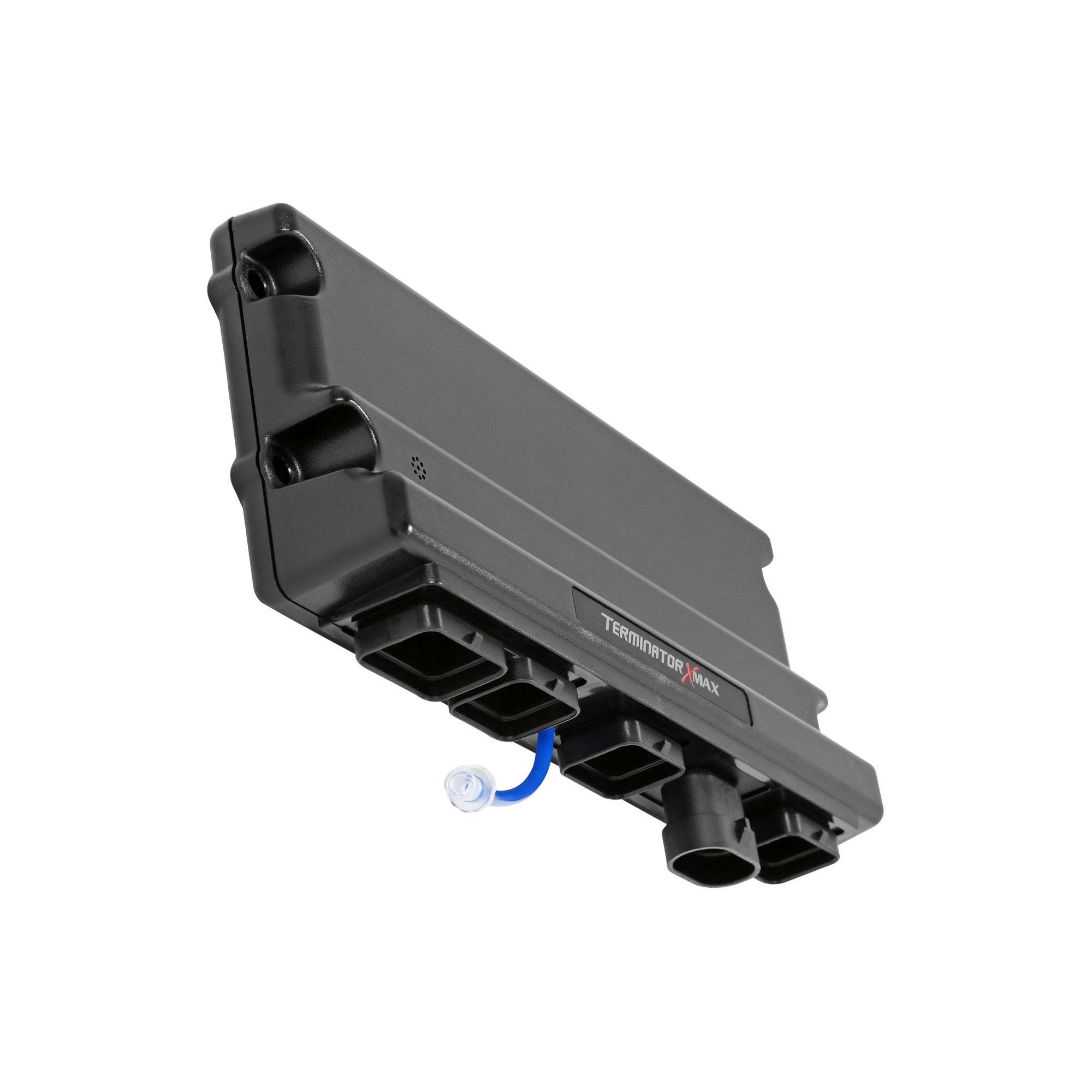

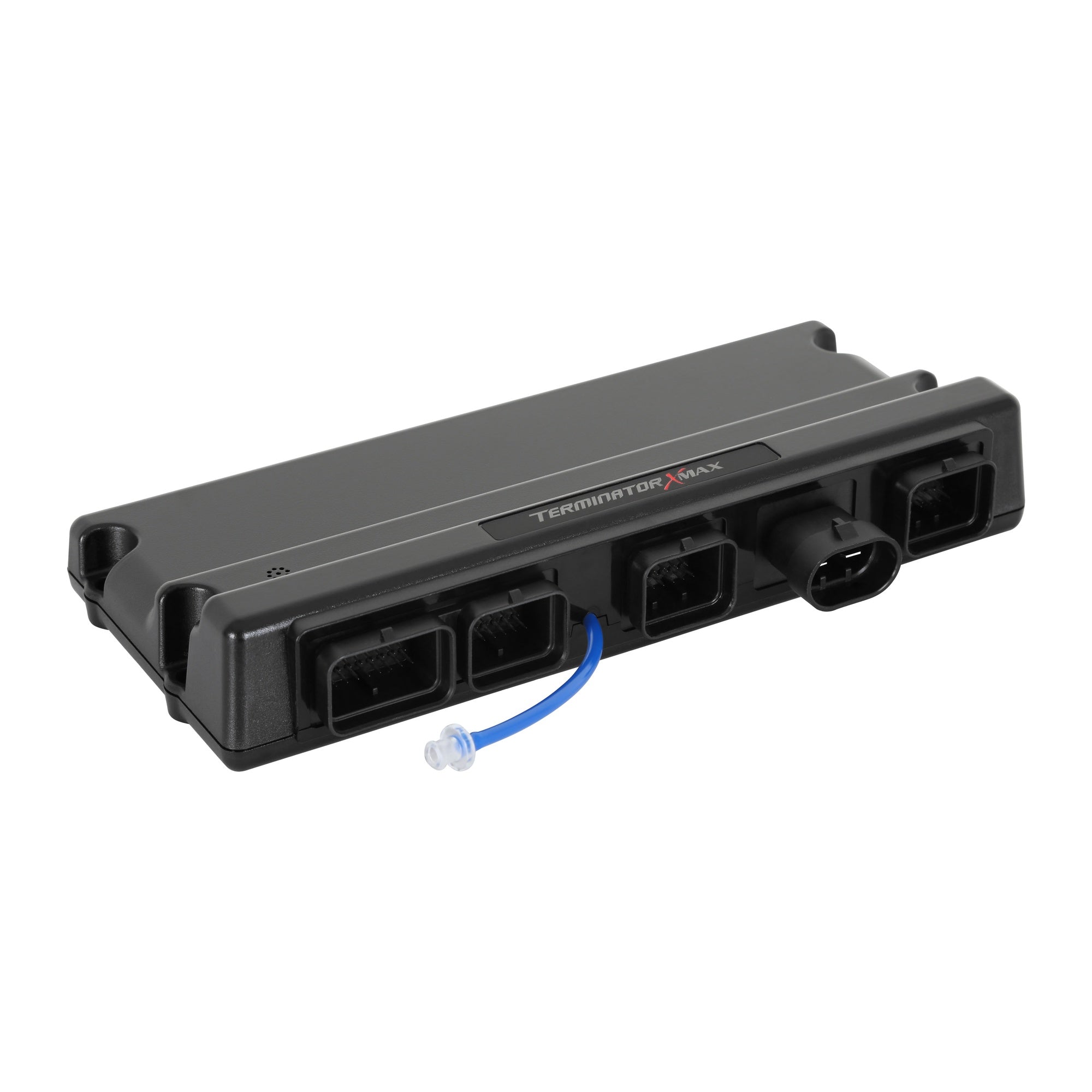

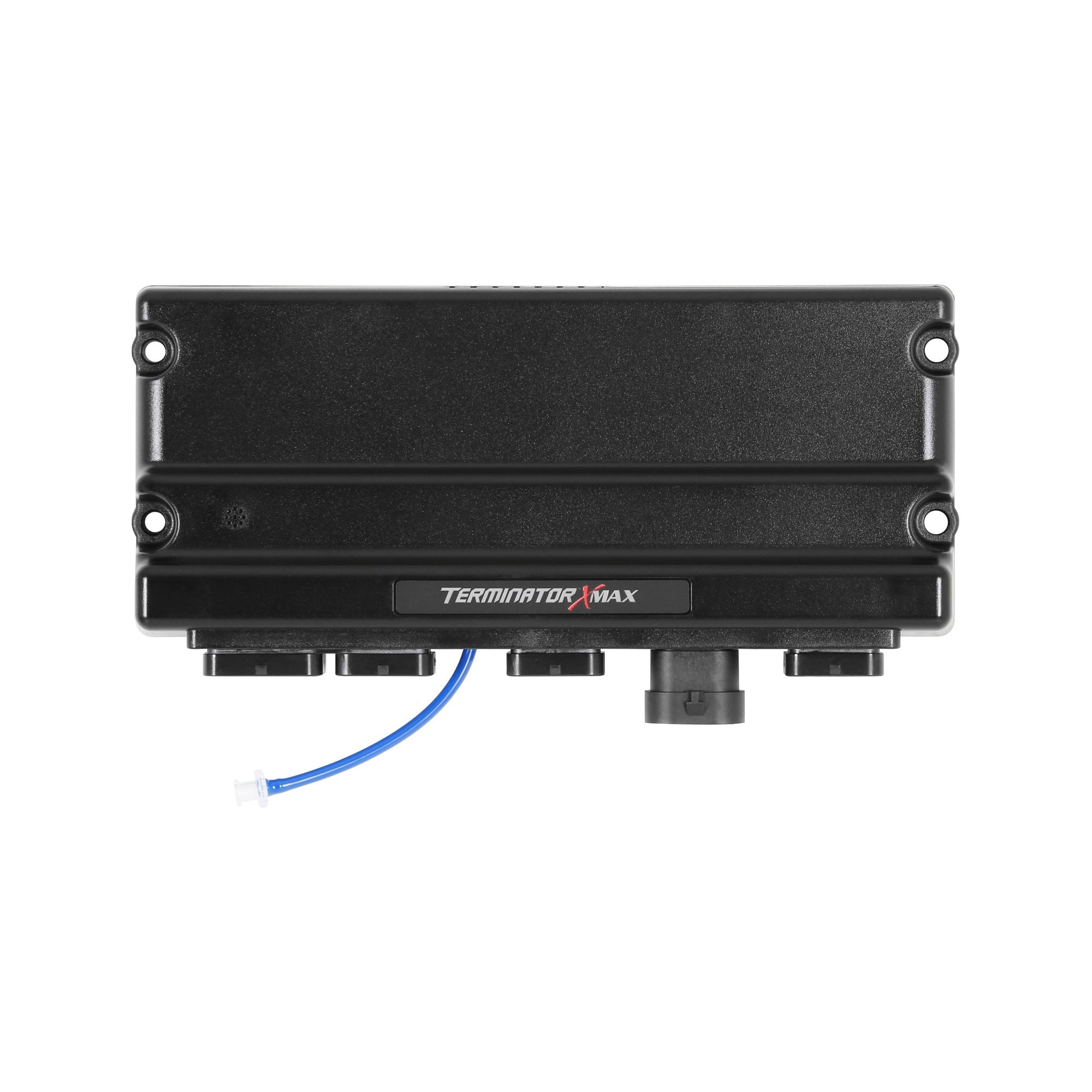

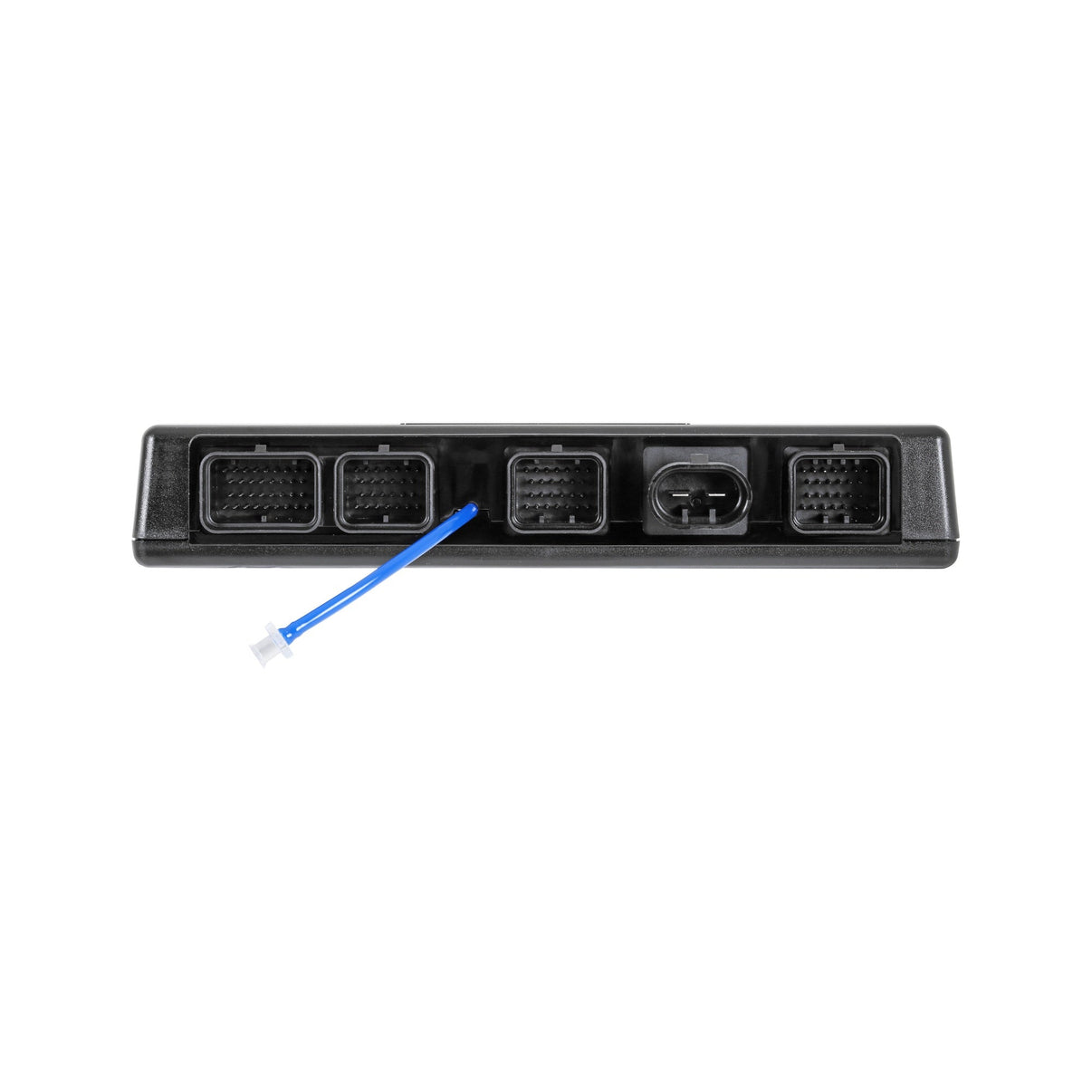

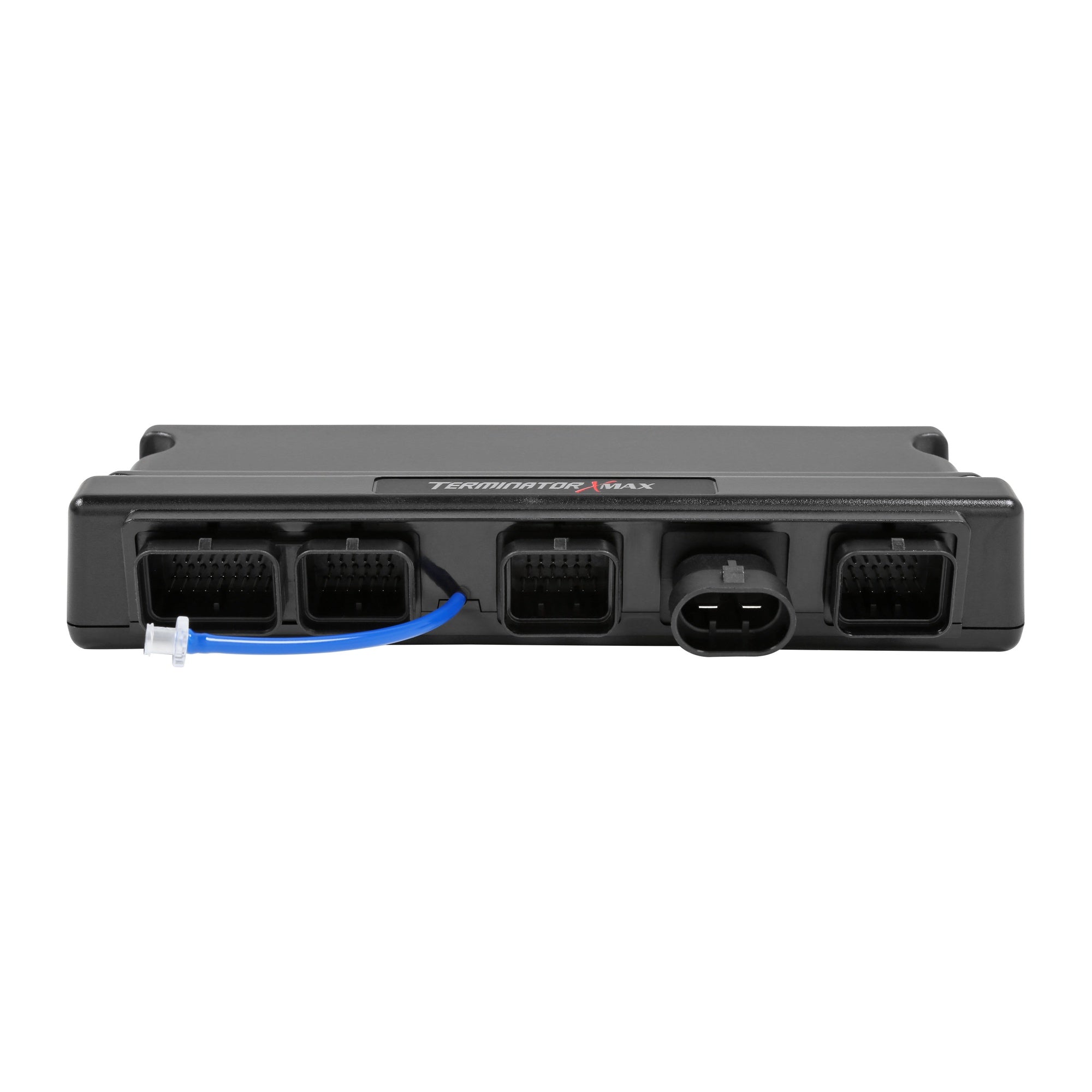

- Compact ECU (Engine Control Unit) – At only 7.45” x 4.1” x 1.66” the compact packaging allows mounting virtually anywhere (XMAX ECU = 9.6” x 4.1” x 1.66”). REMINDER: diagnostic LED’s must face up!
- FREE EFI Tuning software – For compete control of your Terminator X power plant
📋
Product Specifications
Accelerometer Support
Yes
Boost Control
Yes
Brand
Holley EFI
CAN-BUS Support
Yes
Category
Fuel Injection - EFI
Coil Per Cylinder Ignition Support
Yes
Color
Black
Country
US
Datalogging Support
Yes
Distributor Included
No
Drive-By-Wire
No
Dry Nitrous Control
Yes
e85 Support
Yes
EGT Support
Yes
Emission Code
3
Engine
Coyote
Finish
Textured
Forced Induction Support
Yes
Fuel Filter Included
No
Fuel Hose Included
No
Fuel Injectors Included
No
Fuel Pressure Regulator Included
No
Fuel Pump Included
No
Grade Type
Performance
Handheld Included
Yes
HTS Code
8409915085
Idle Air Control Motor Included
No
Ignition Coil Type
Early
Ignition Timing Control
Yes
Individual Cylinder Fuel Corrections
Yes
Injector Connector
USCAR (EV6)
Intake Manifold Included
No
Knock Retard Support
Yes
Mounting Hardware Included
No
Multi-Stage Nitrous Control
Yes
Part Type
Fuel Injection System
Product Type
EFI System
Progressive Nitrous Control
Yes
Prop 65 Yes/No
No
Self-Tuning
Yes
Throttle Position Sensor Included
No
Transmission
4R70W
User-Tuneable
Yes
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
Wet Nitrous Control
Yes
Year Range
2013-2015
📦
Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
