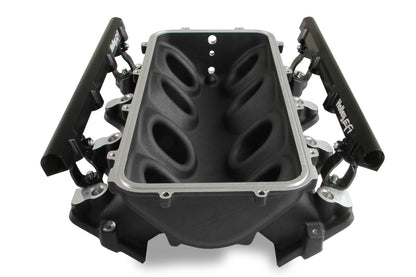

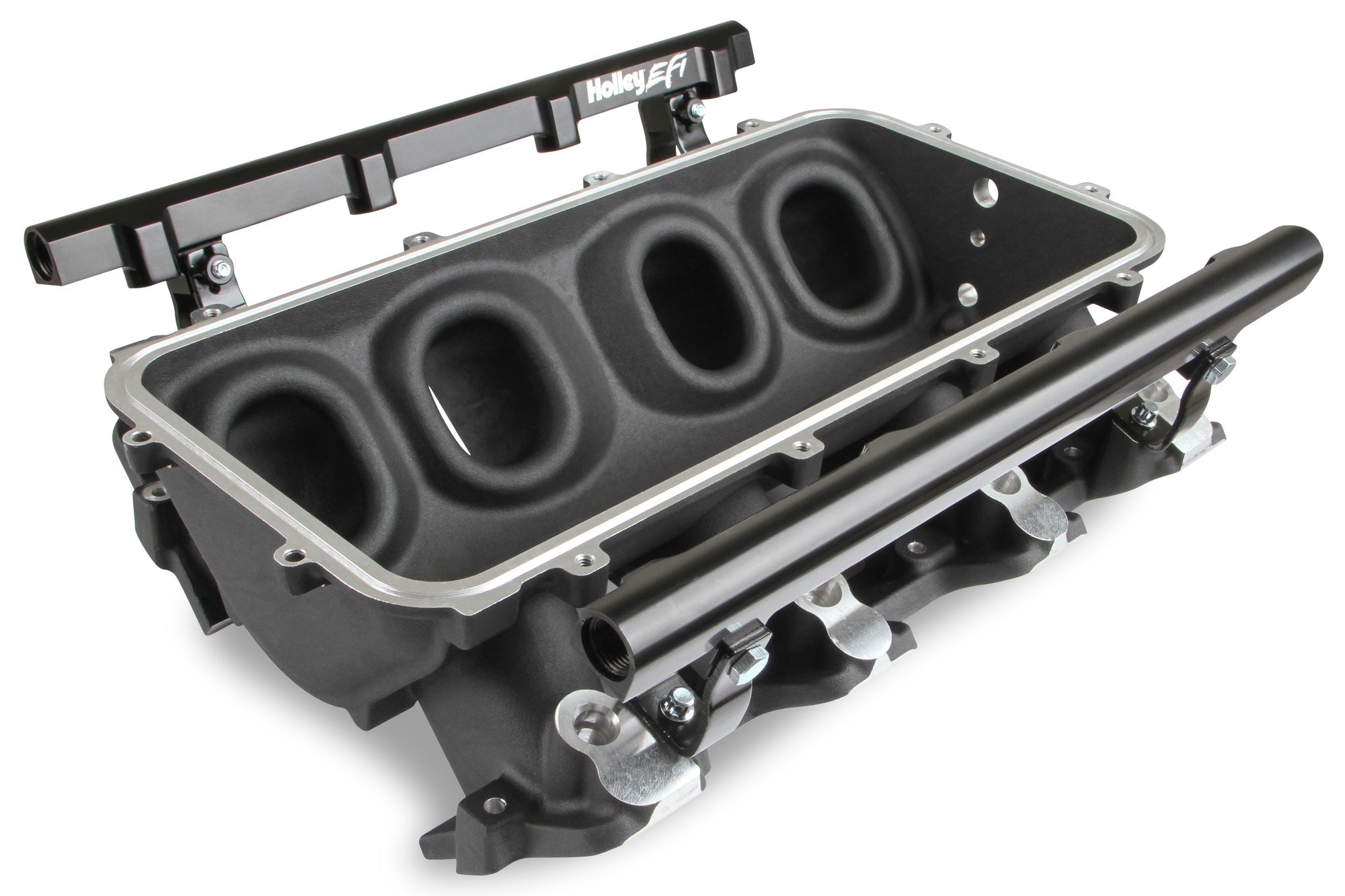

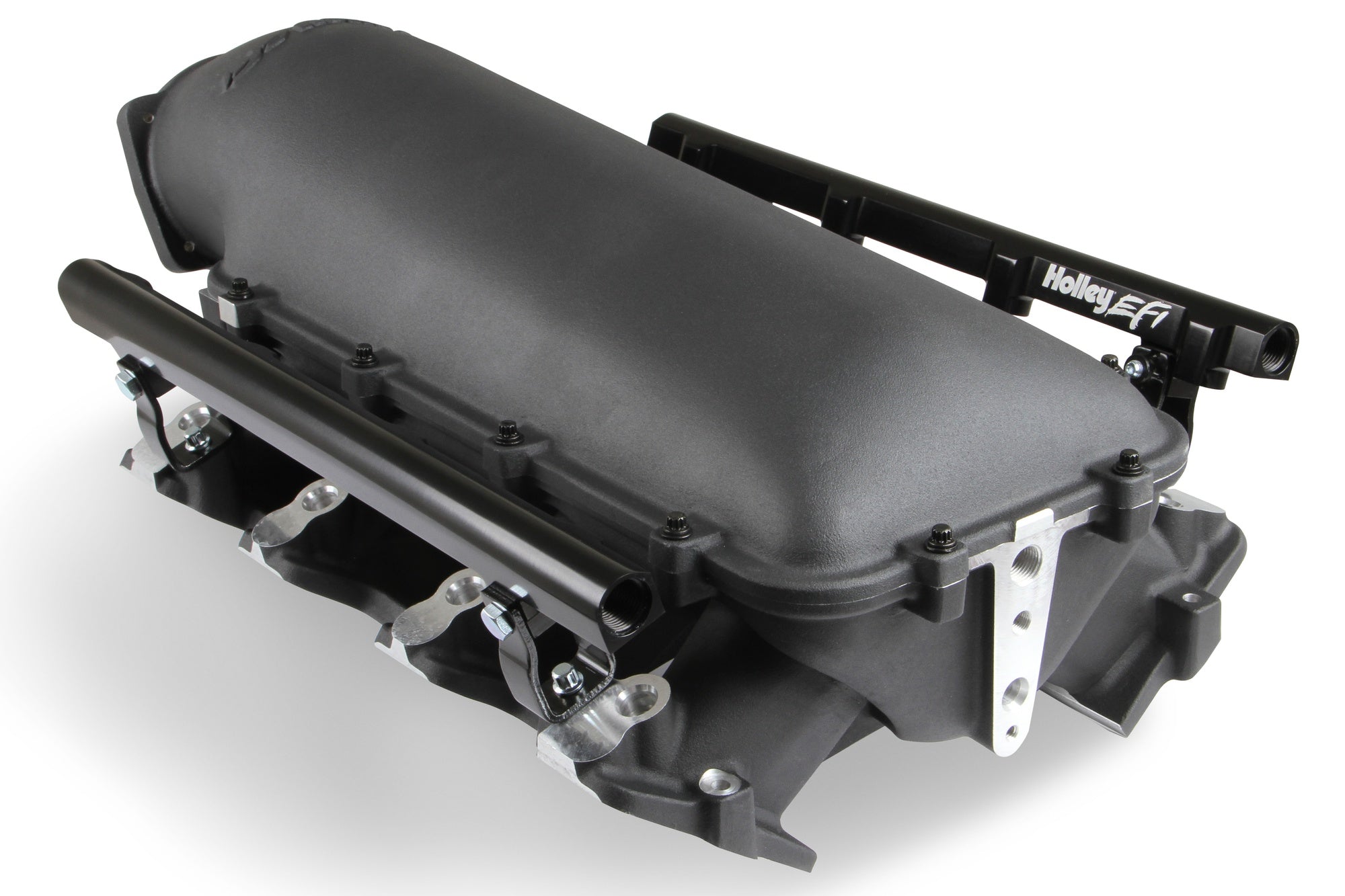

Holley Modular Lo-Ram EFI Manifold LS1/2/6

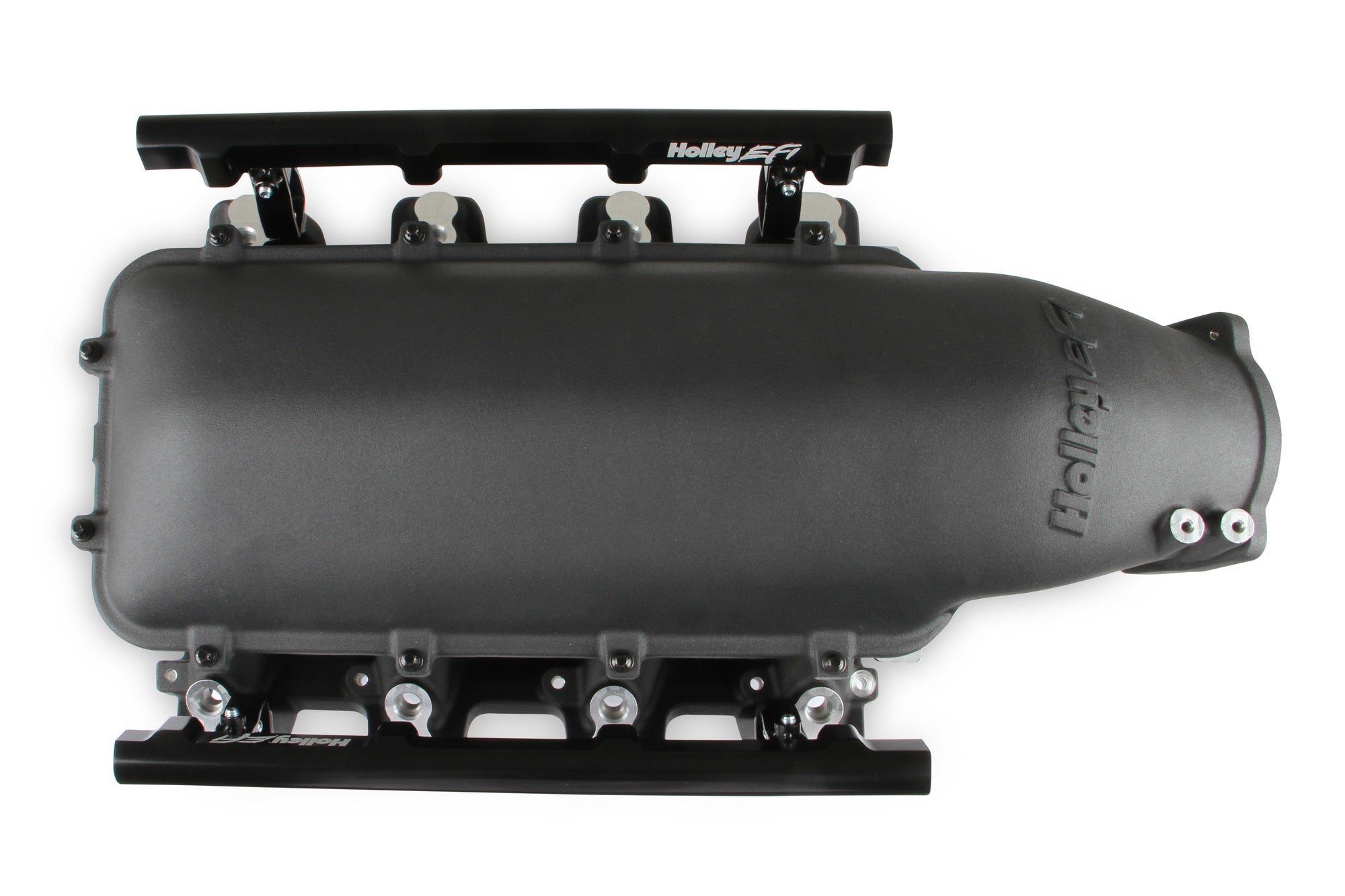

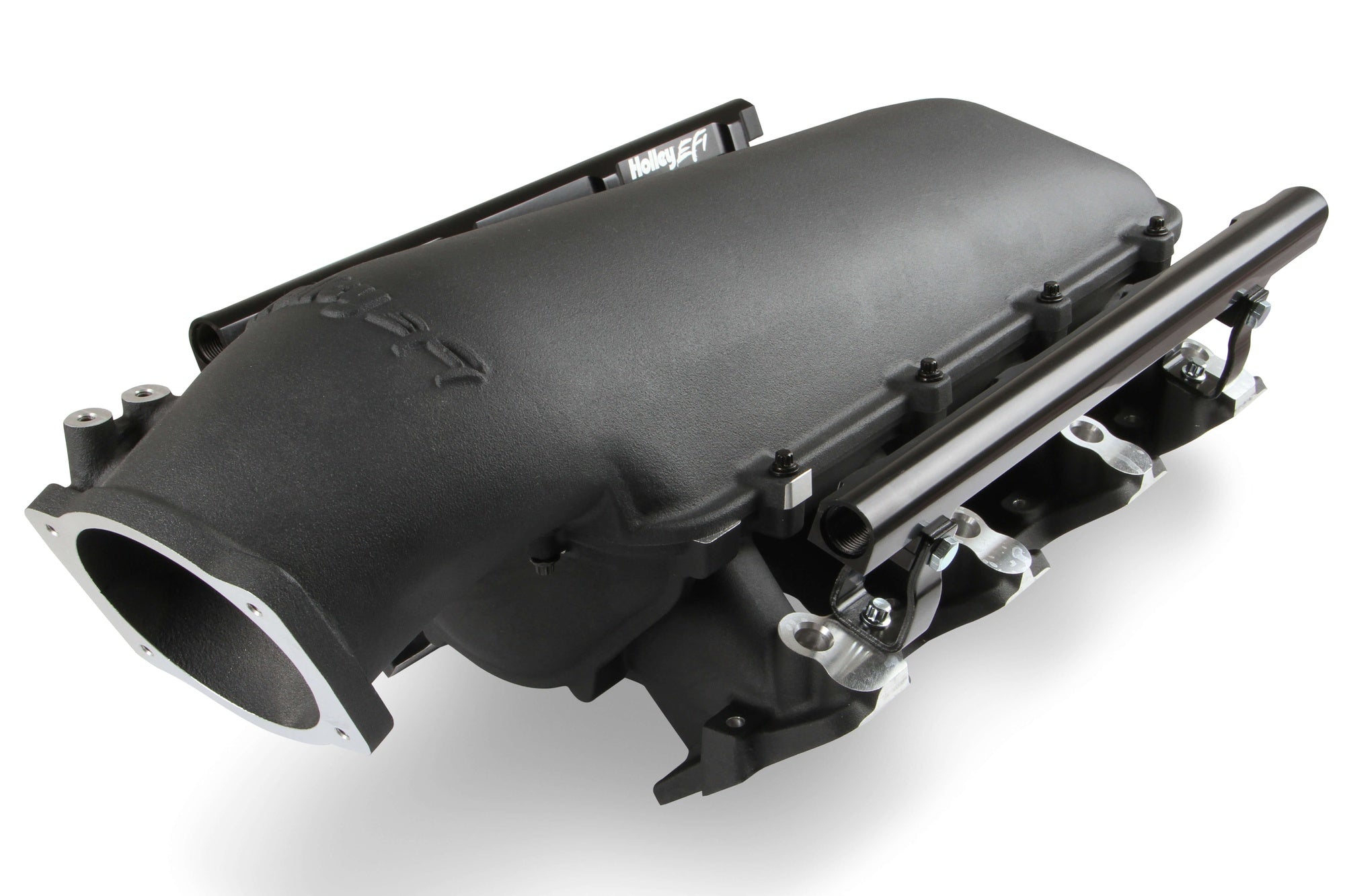

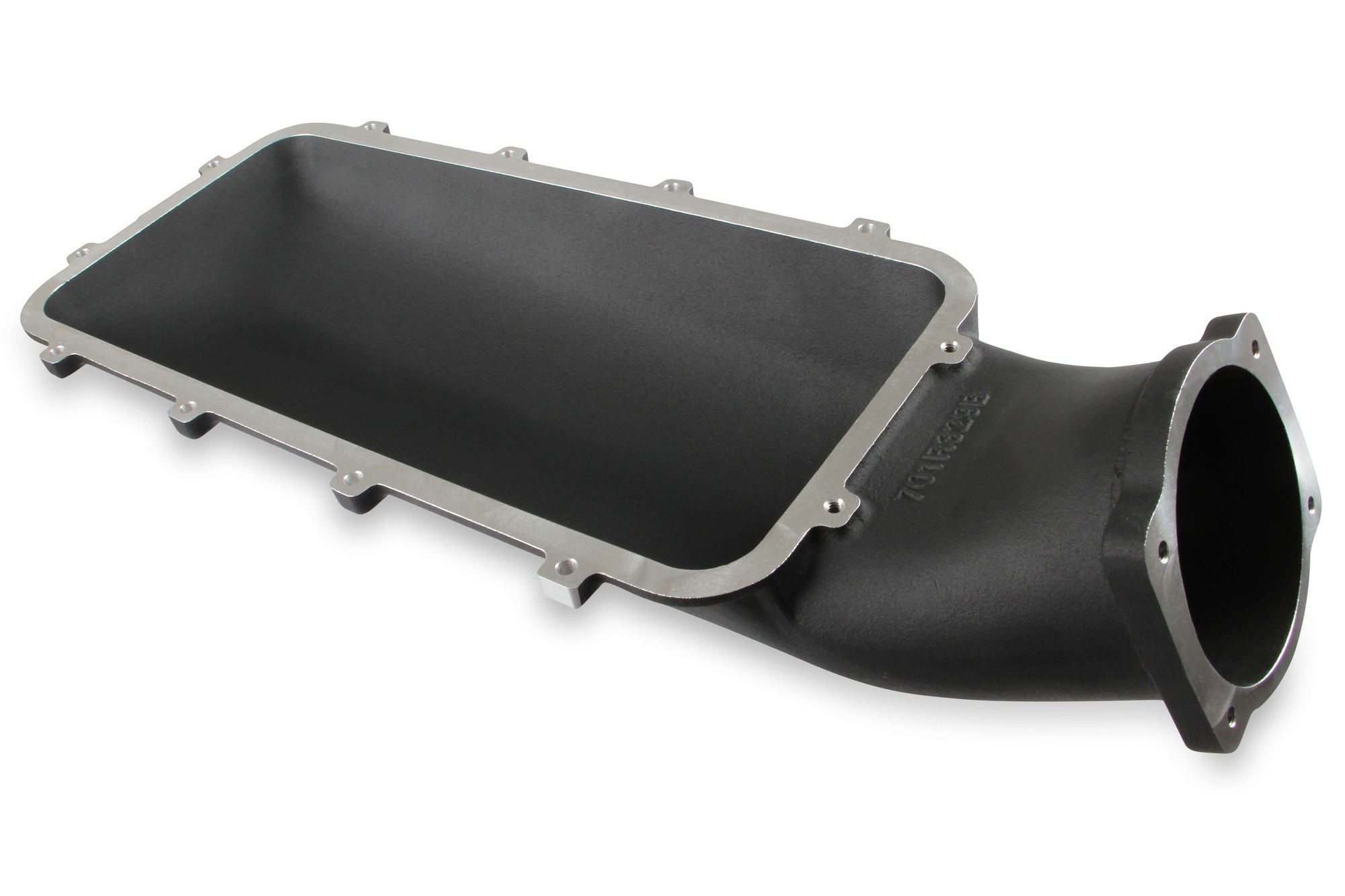

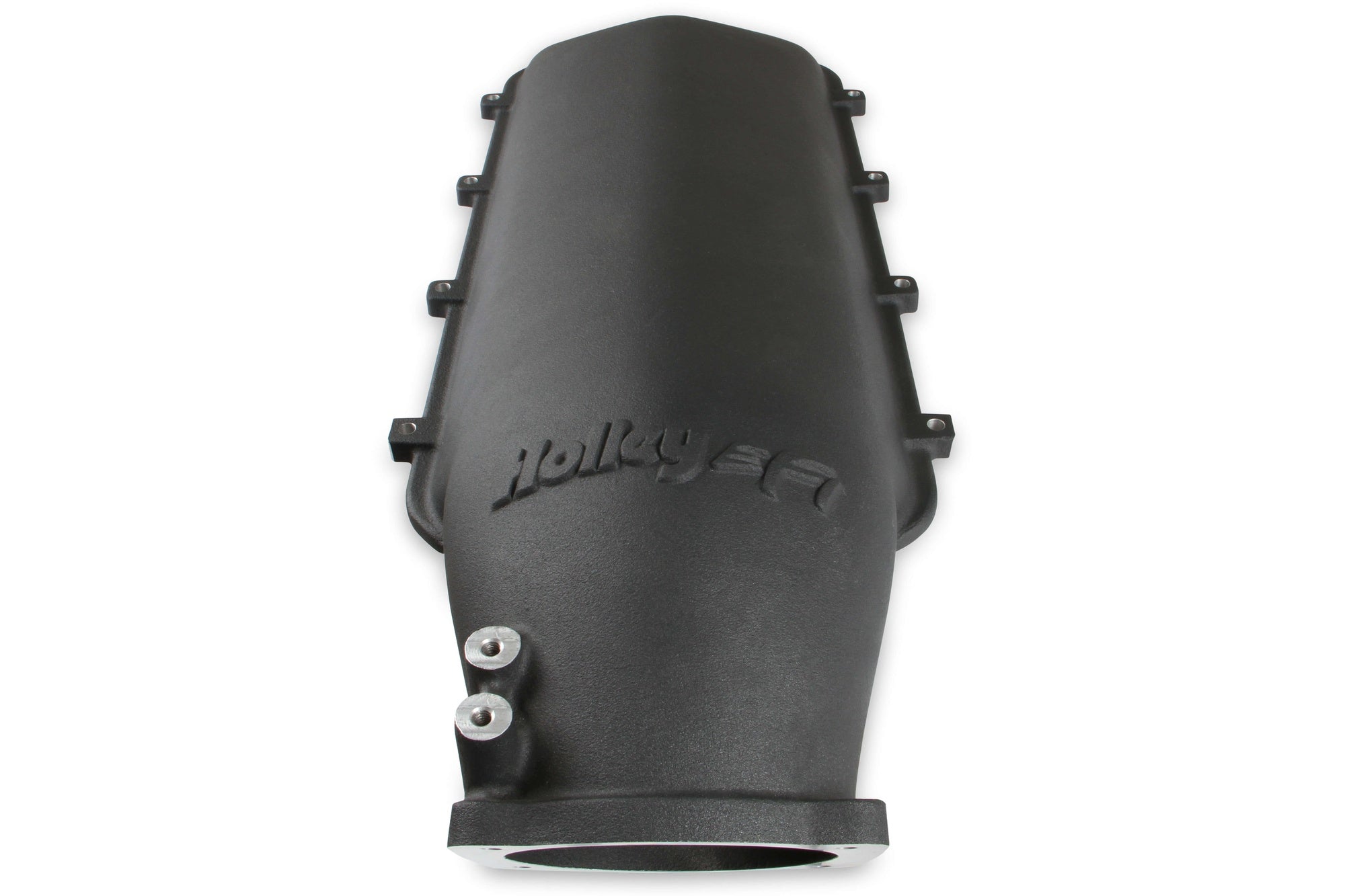

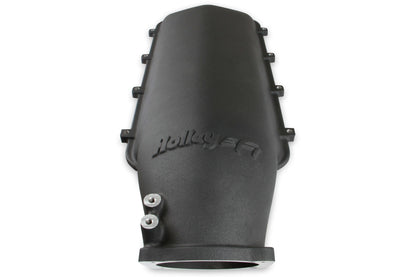

The 300-620 plenum entry configuration is designed to allow the included Hi-Ram 105 mm plenum top to be fitted to a low-profile base intake manifold. The short runner, low-profile base intake manifold intended for forced induction applications was conceived to package with an air to water plenum mounted intercooler with a shorter overall height than possible with other existing intake manifolds.

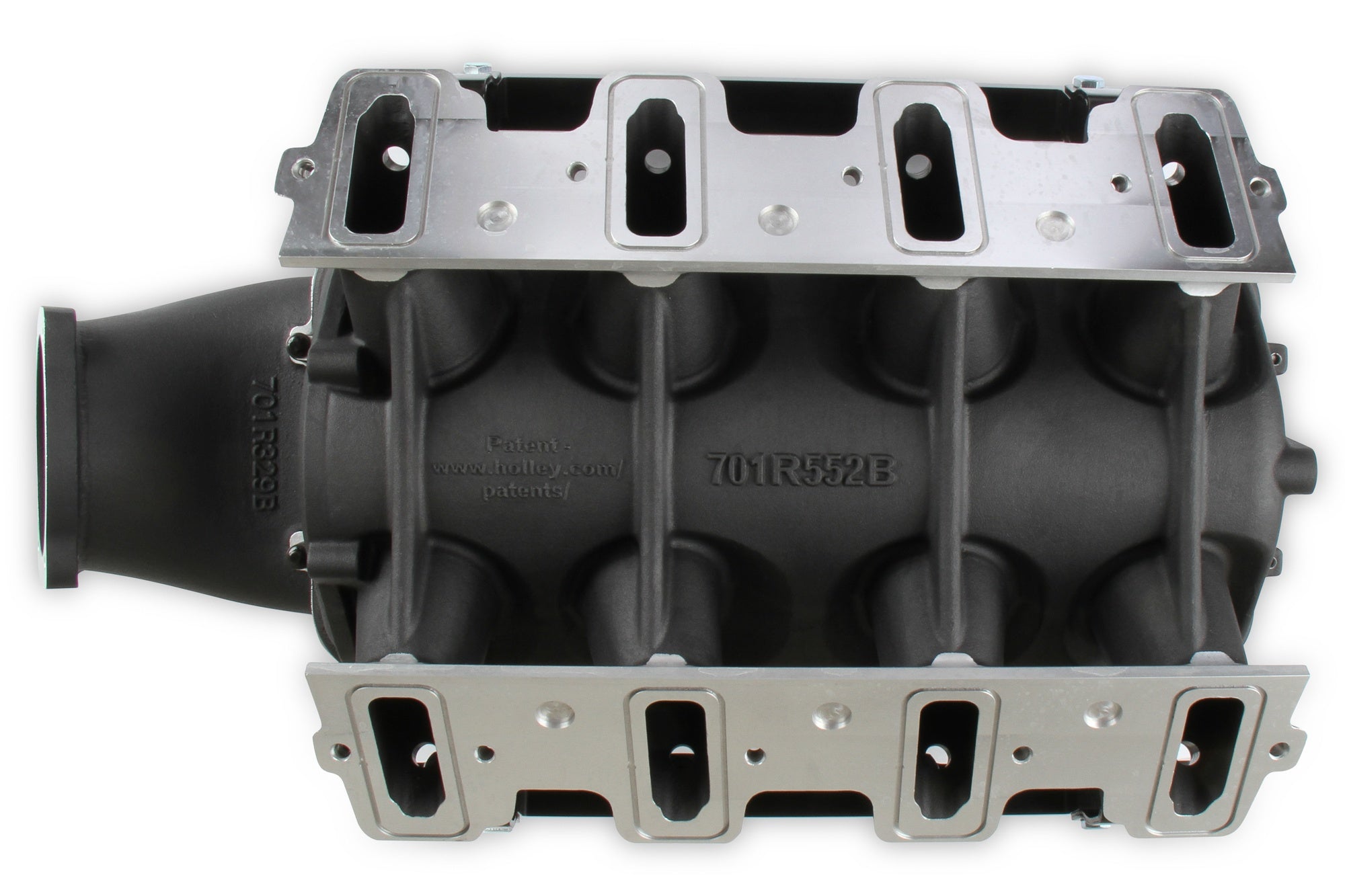

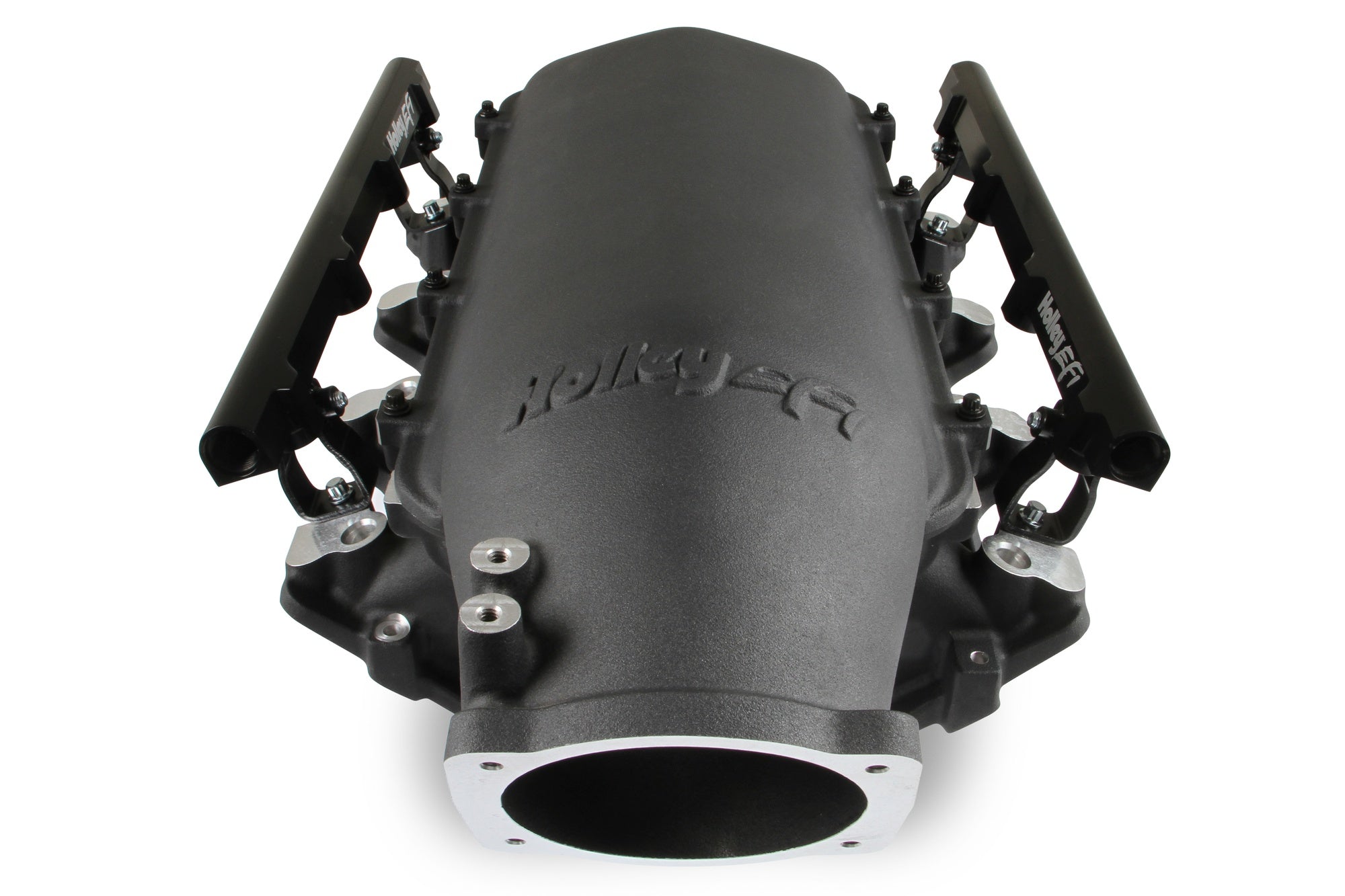

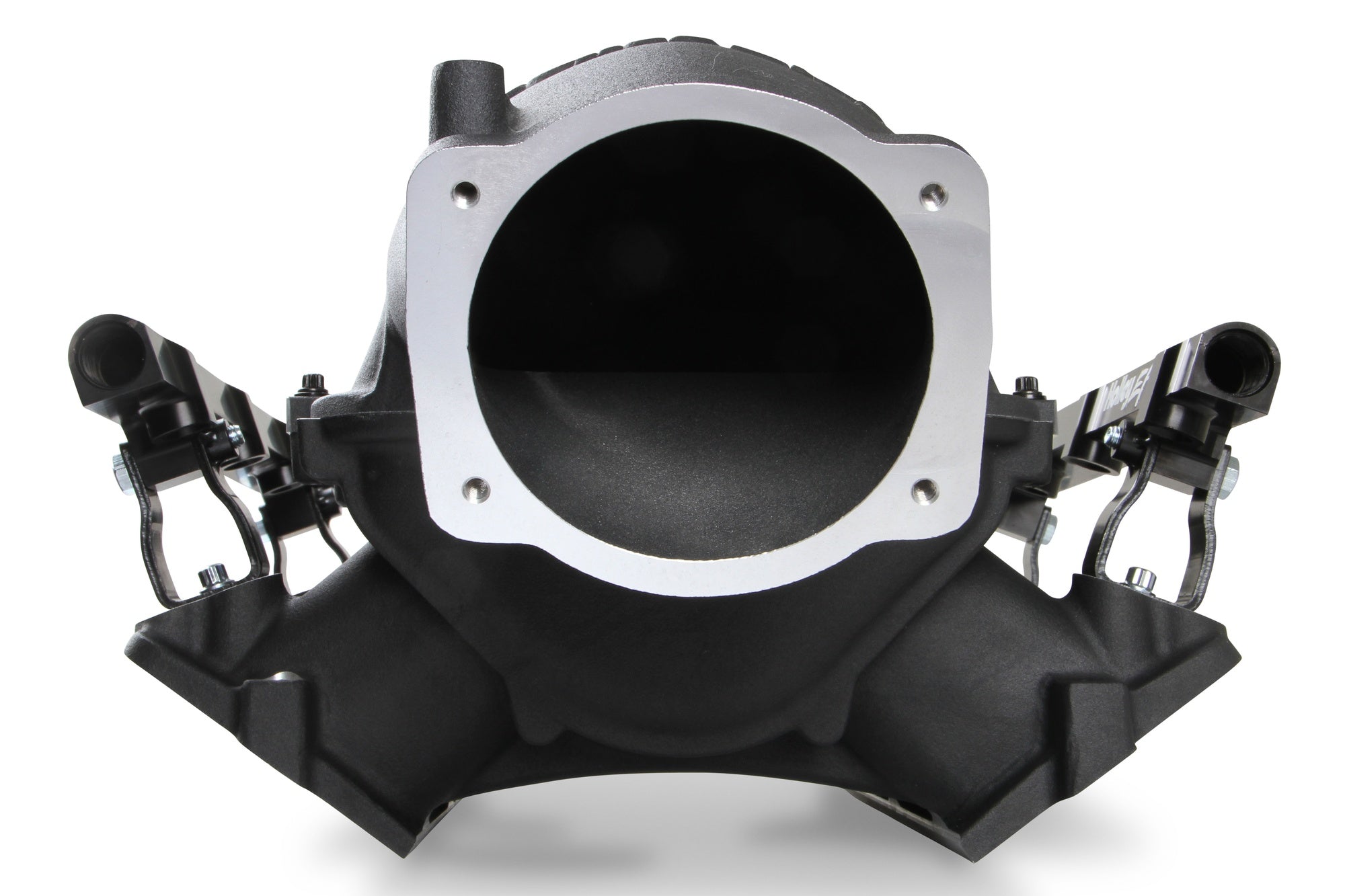

The Holley LS1/2/6 Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. The Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications and the 105 mm throttle body part number 112-581 or similar models. The base intake manifold is designed with a low height to aid the packaging of a plenum-mounted air-to-water intercooler in a top-entry configuration.
set for short (such as Pico, or LS7) fuel injectors.

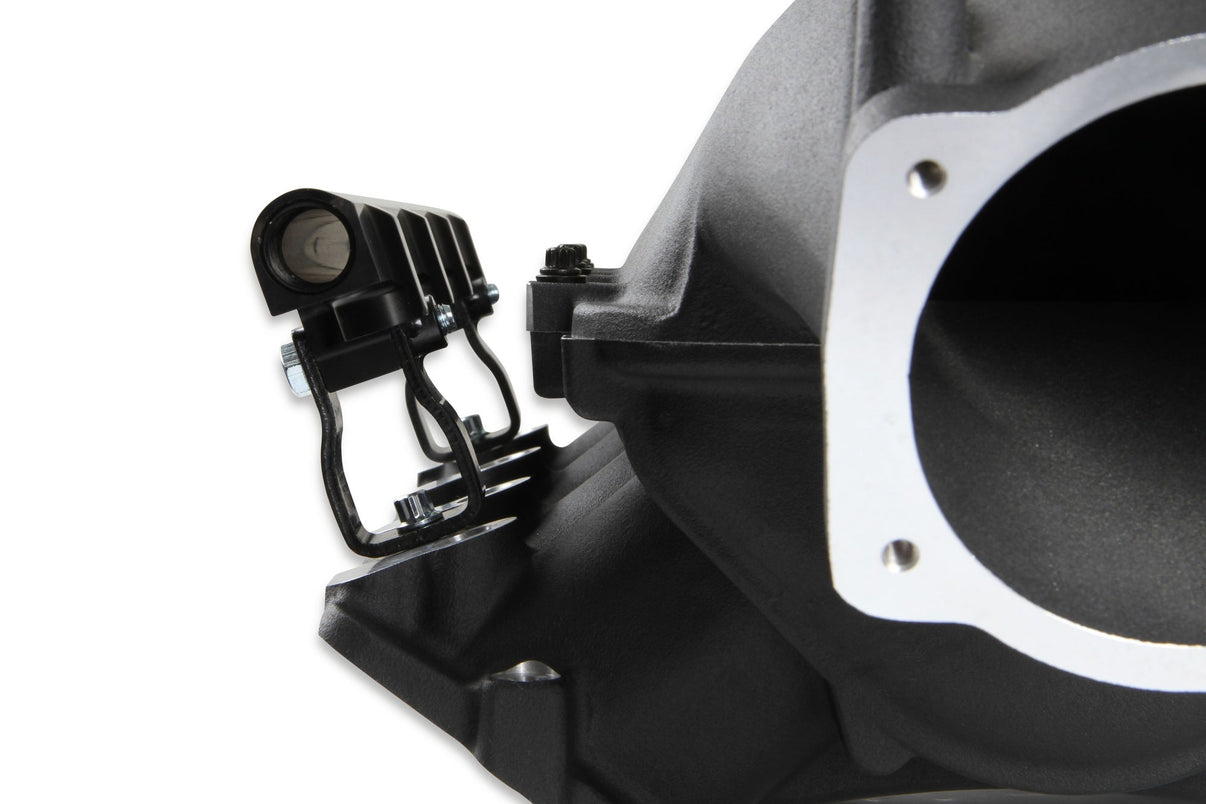

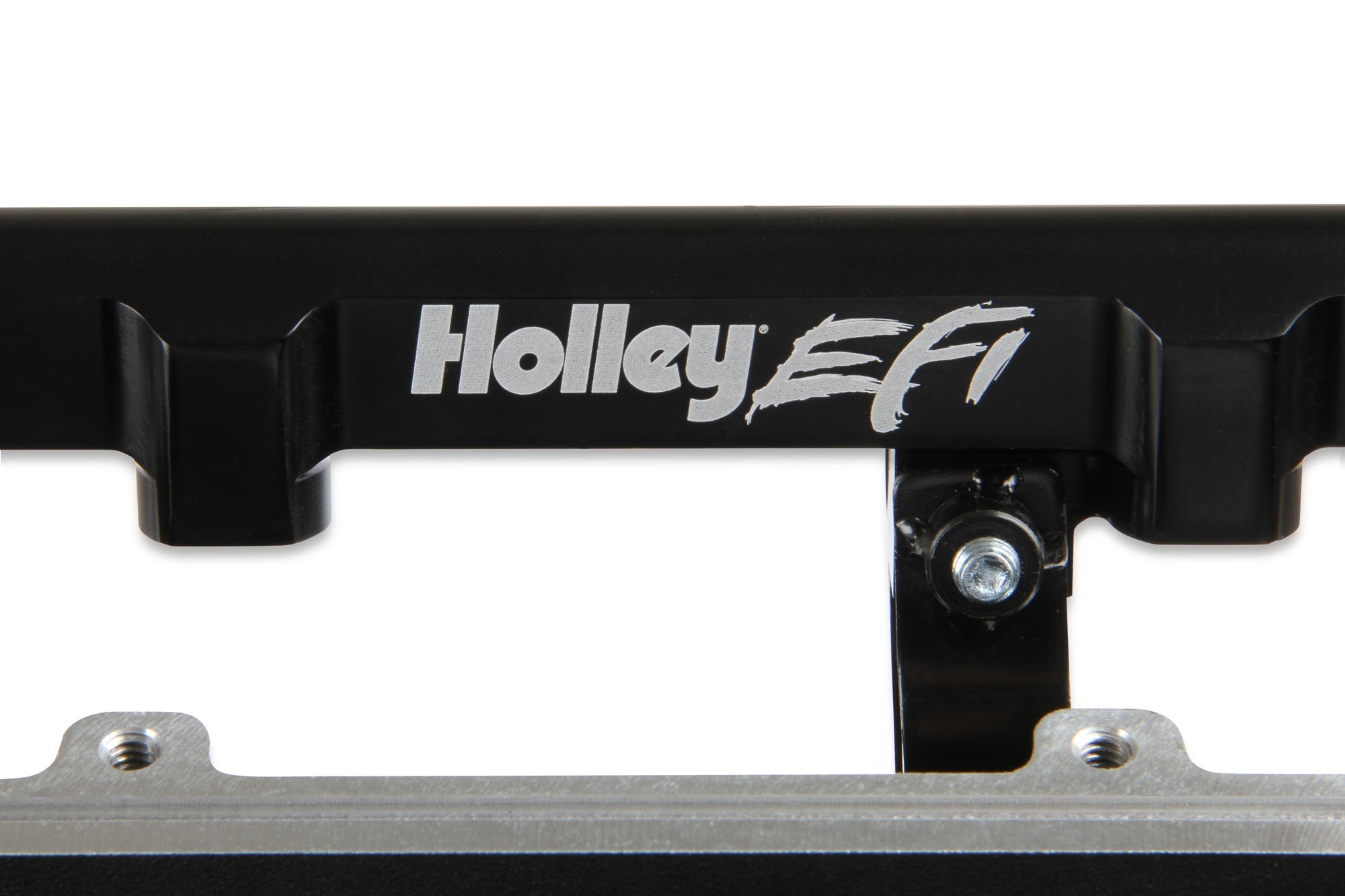

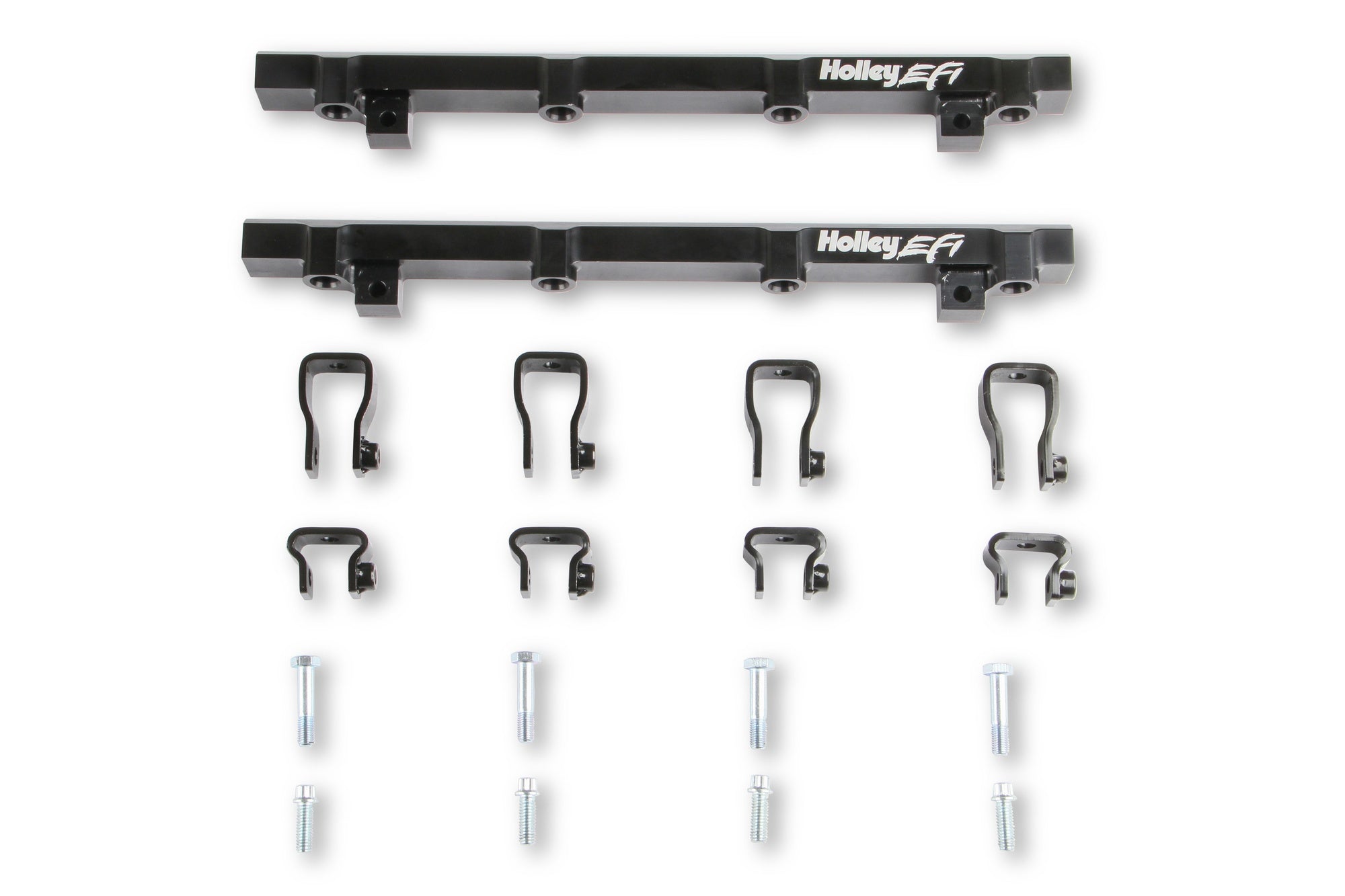

The fuel rail kits come with two sets of brackets. A set for long (usually standard length) fuel injectors and a
The 300-620 plenum entry configuration is designed to allow the included Hi-Ram 105 mm plenum top to be fitted to a low-profile base intake manifold. The short runner, low-profile base intake manifold intended for forced induction applications was conceived to package with an air to water plenum mounted intercooler with a shorter overall height than possible with other existing intake manifolds.
The Holley LS1/2/6 Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. The Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications and the 105 mm throttle body part number 112-581 or similar models. The base intake manifold is designed with a low height to aid the packaging of a plenum-mounted air-to-water intercooler in a top-entry configuration.
set for short (such as Pico, or LS7) fuel injectors.
The fuel rail kits come with two sets of brackets. A set for long (usually standard length) fuel injectors and a
📋
Product Specifications
Basic Operating RPM Range
3500-8000
Basic Operating RPM Range
3500-8000 RPM
Brand
Holley EFI
Carburetor Flange
N/A
Carburetor Quantity
N/A
Carburetor Studs Included
N/A
CNC Ported
No
Color
Black
Construction
Cast
Cylinder Head Port Shape
Cathedral
Deck Height
9.24
EGR Port
No
Engine
GM LS1/LS2/LS6
Flange Style
EFI

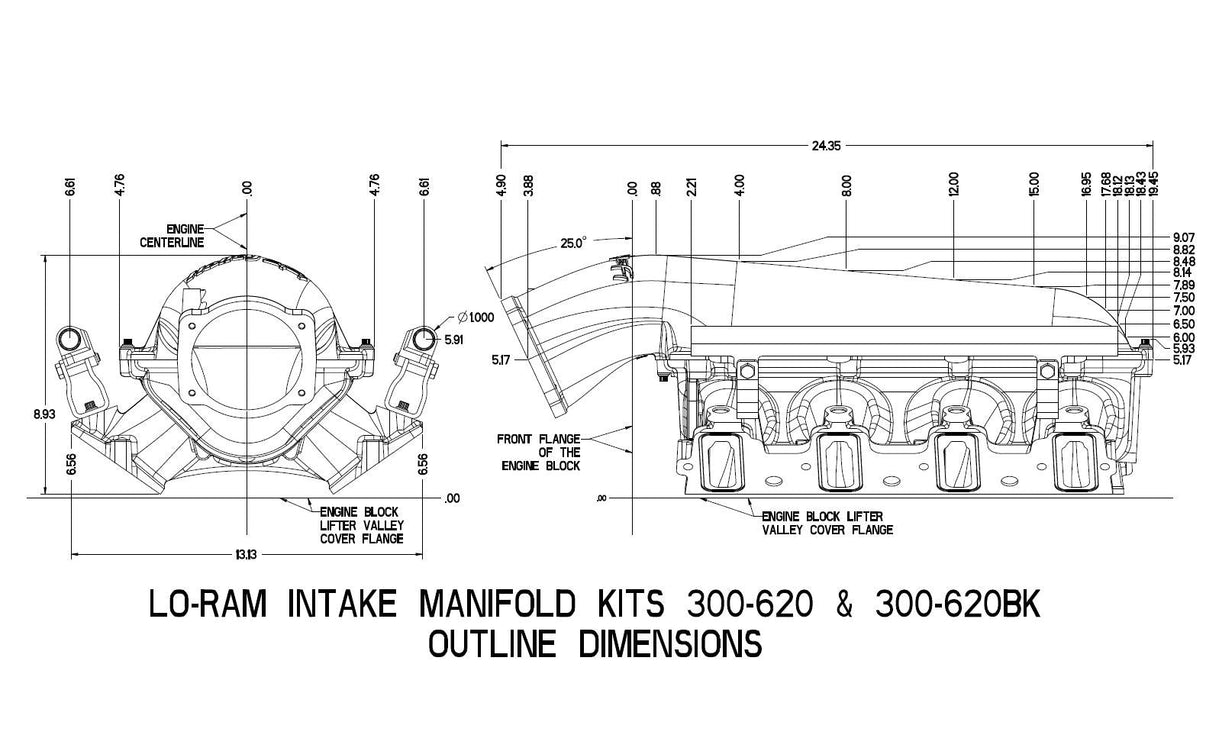

Front Maximum Height
9.07" without Intercooler
Fuel Injectors Included
No
Fuel Rail(s) Included
Yes
Fuel System Type
EFI

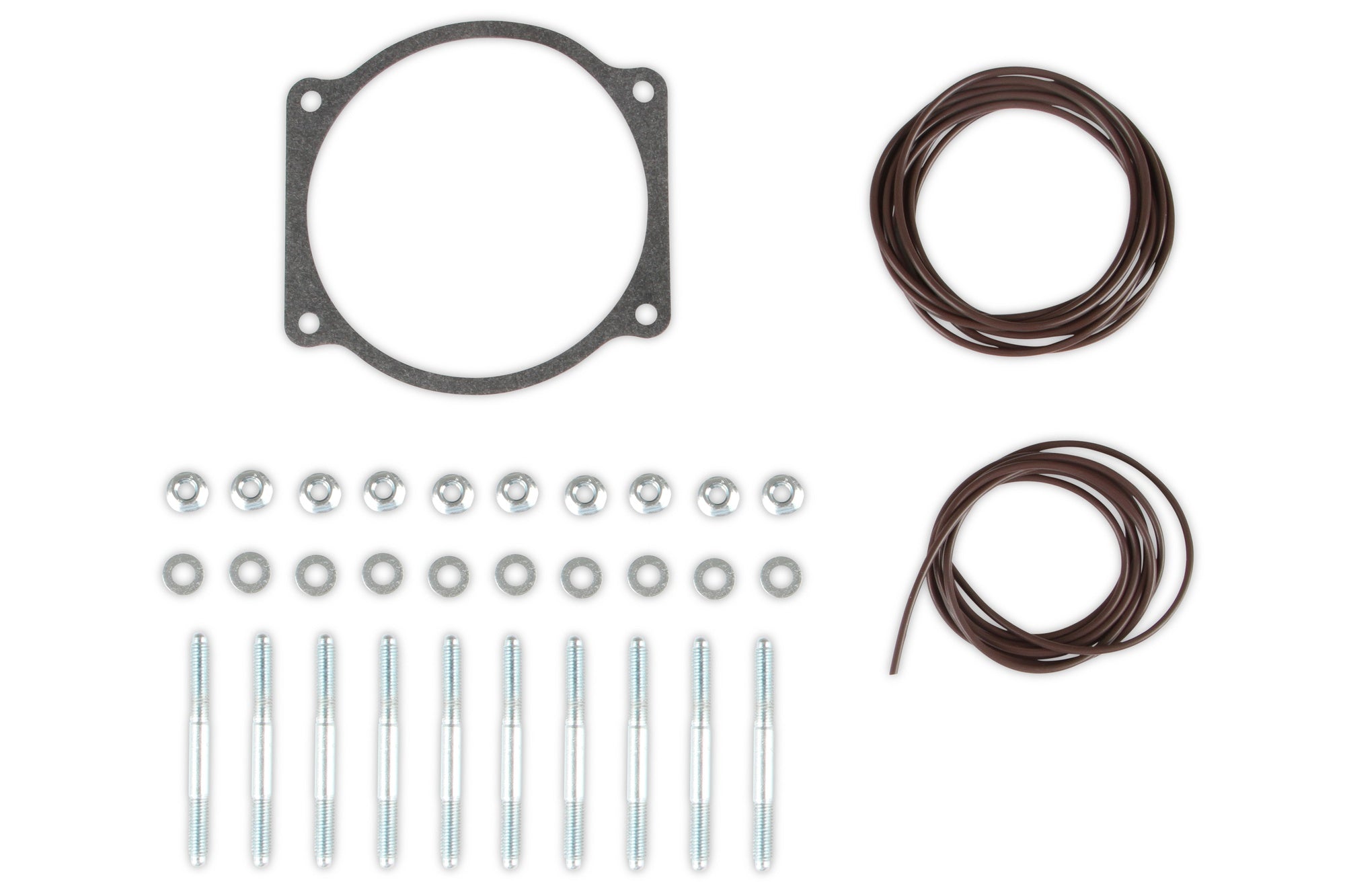

Gasket Or Seal Included
Yes
Grade Type
Performance
Injector Quantity
Single
Inlet Location
Top
Intake Port Gasket(s) Included
No
Manifold Type
Lo-Ram
Material
Aluminum
Nitrous Bung(s) Included
No
Part Type
Engine Intake Manifold
Plenum Finish
Black
Product Type
Intake Manifold
Recommended Use
Forced Induction
Removable Runners
No
Removable Top/Lid
Yes
RPM Power Band
3500-8000 RPM
Single Or Dual Plane Type
Single Plane
Throttle Body Bore Diameter
105 MM
Throttle Body Gasket Included
Yes
Throttle Body Included
No
Vacuum Ports
Yes
Warranty
Manufacturer's Limited 90 Day Warranty
📦

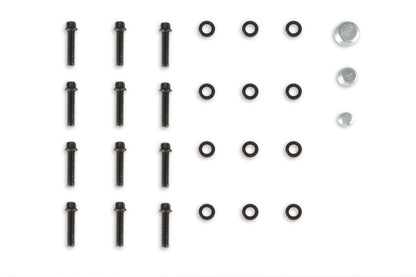

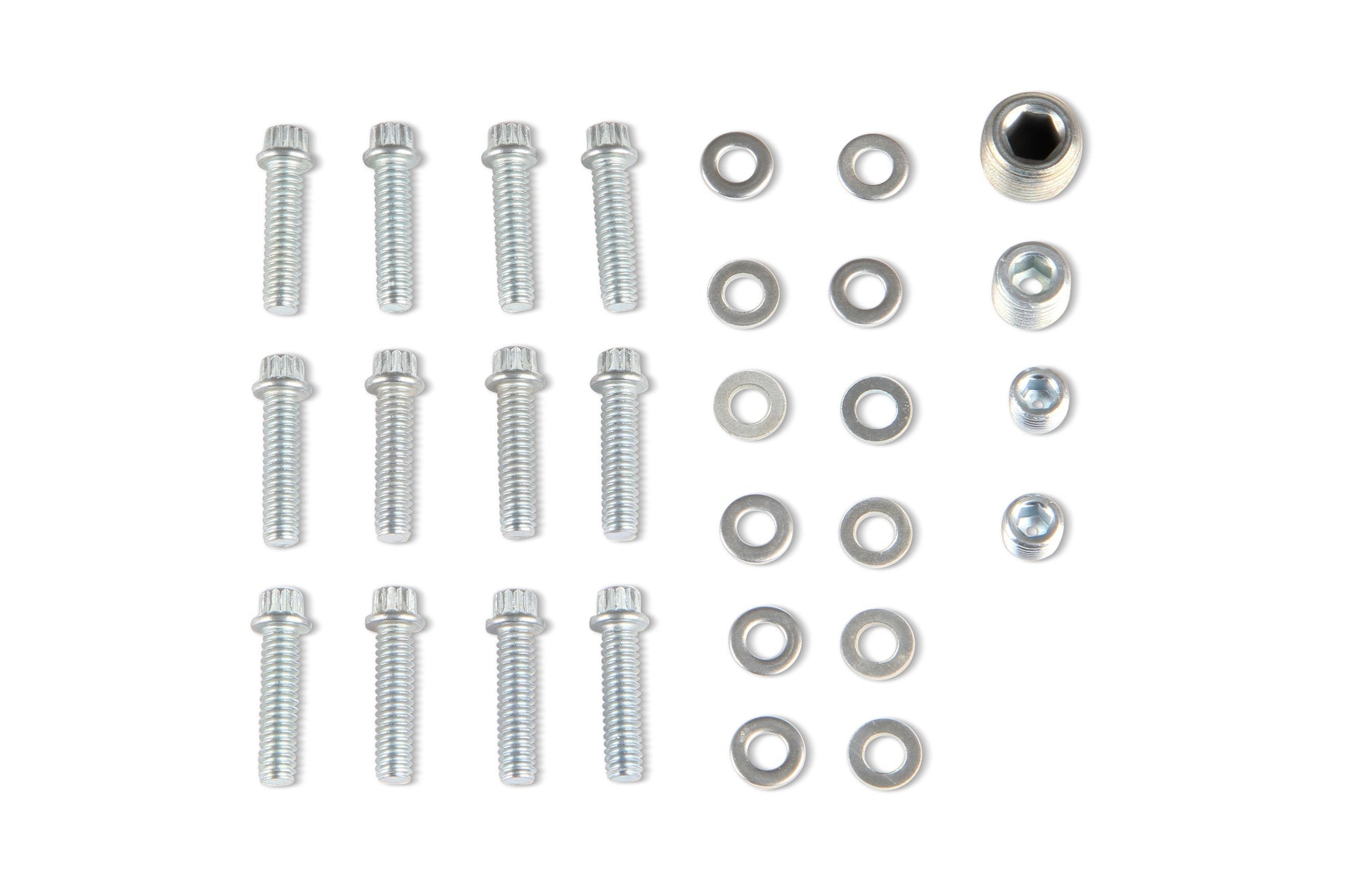

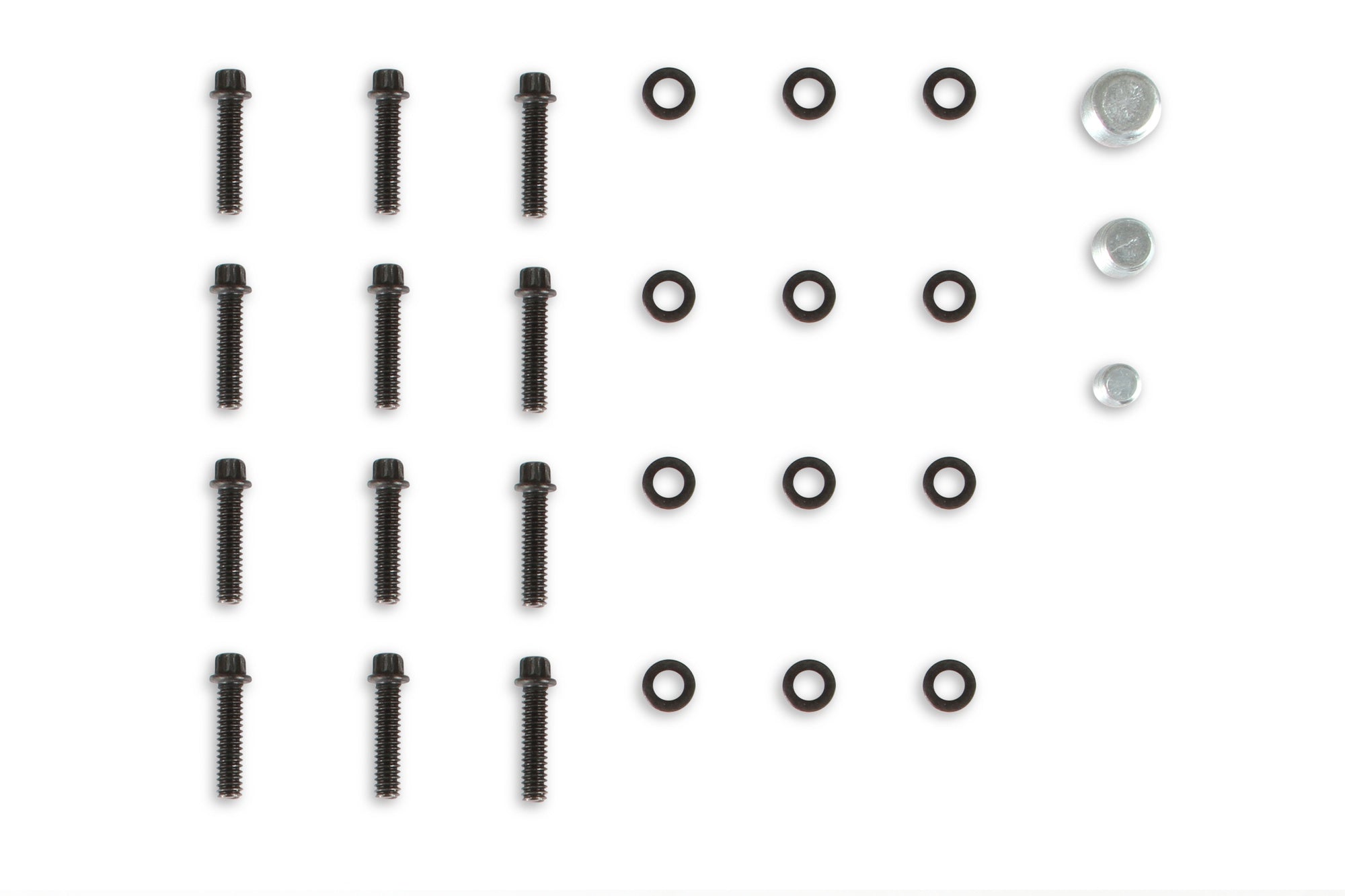

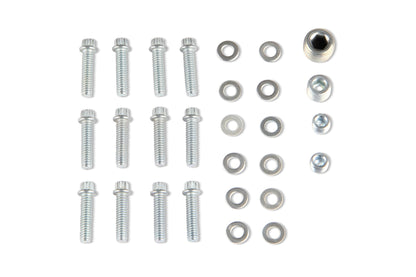

Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
