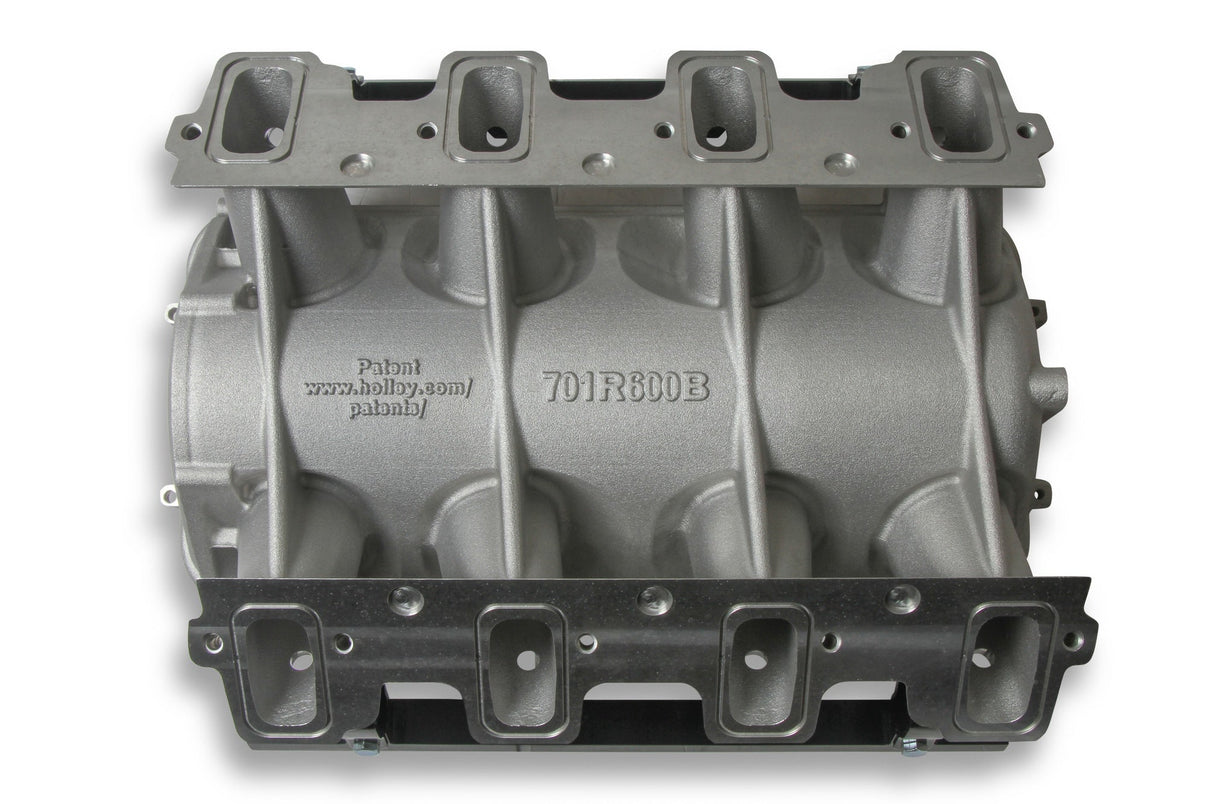

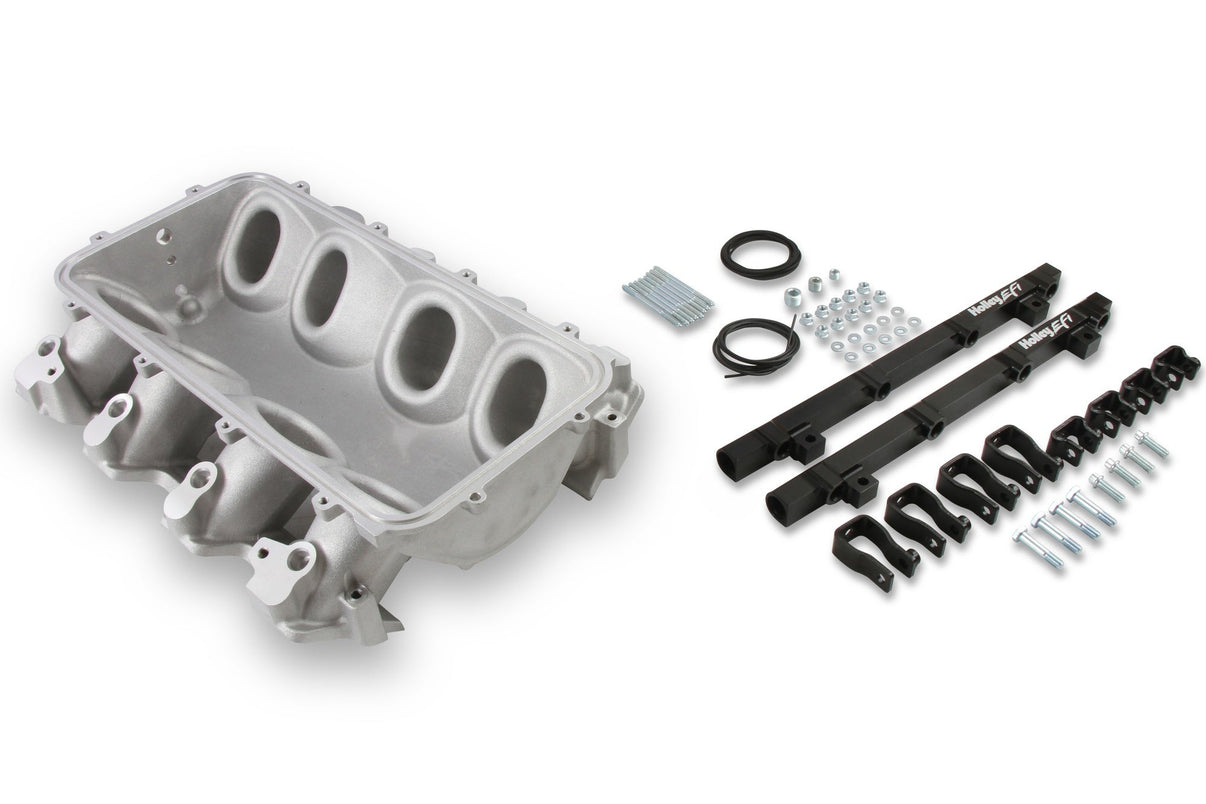

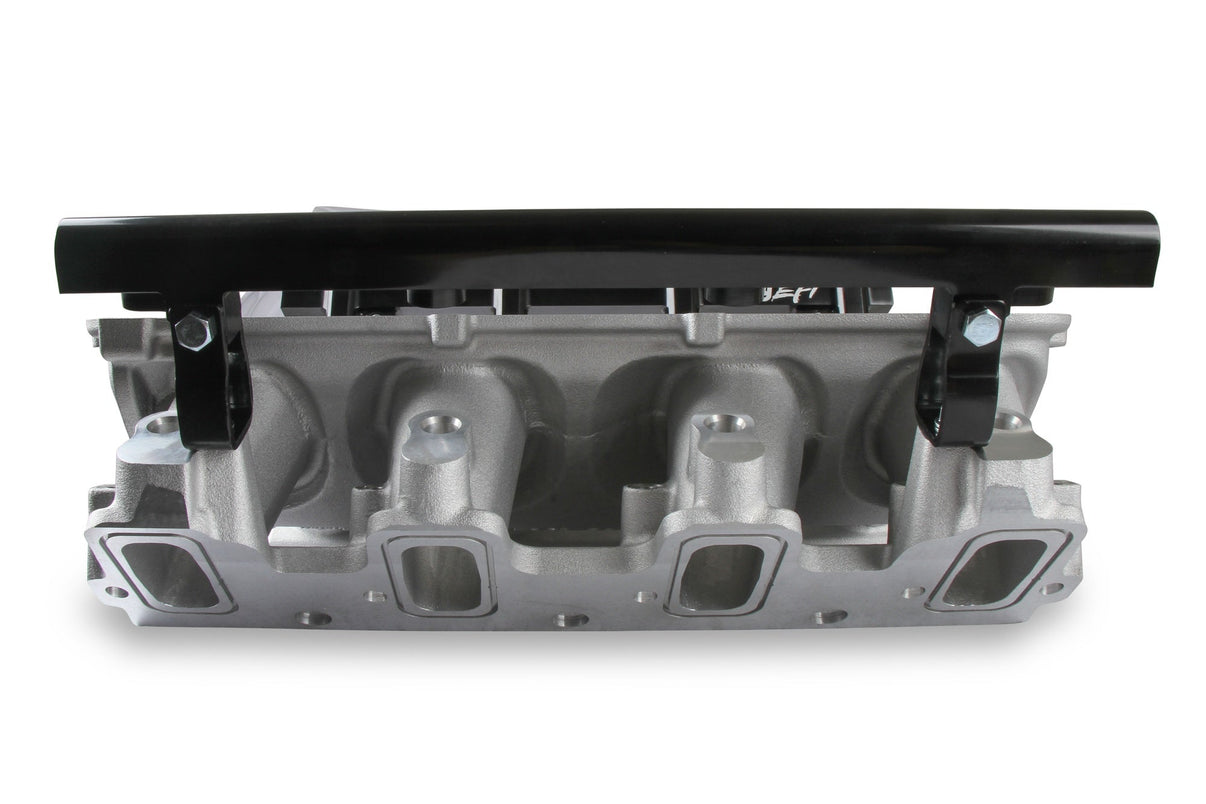

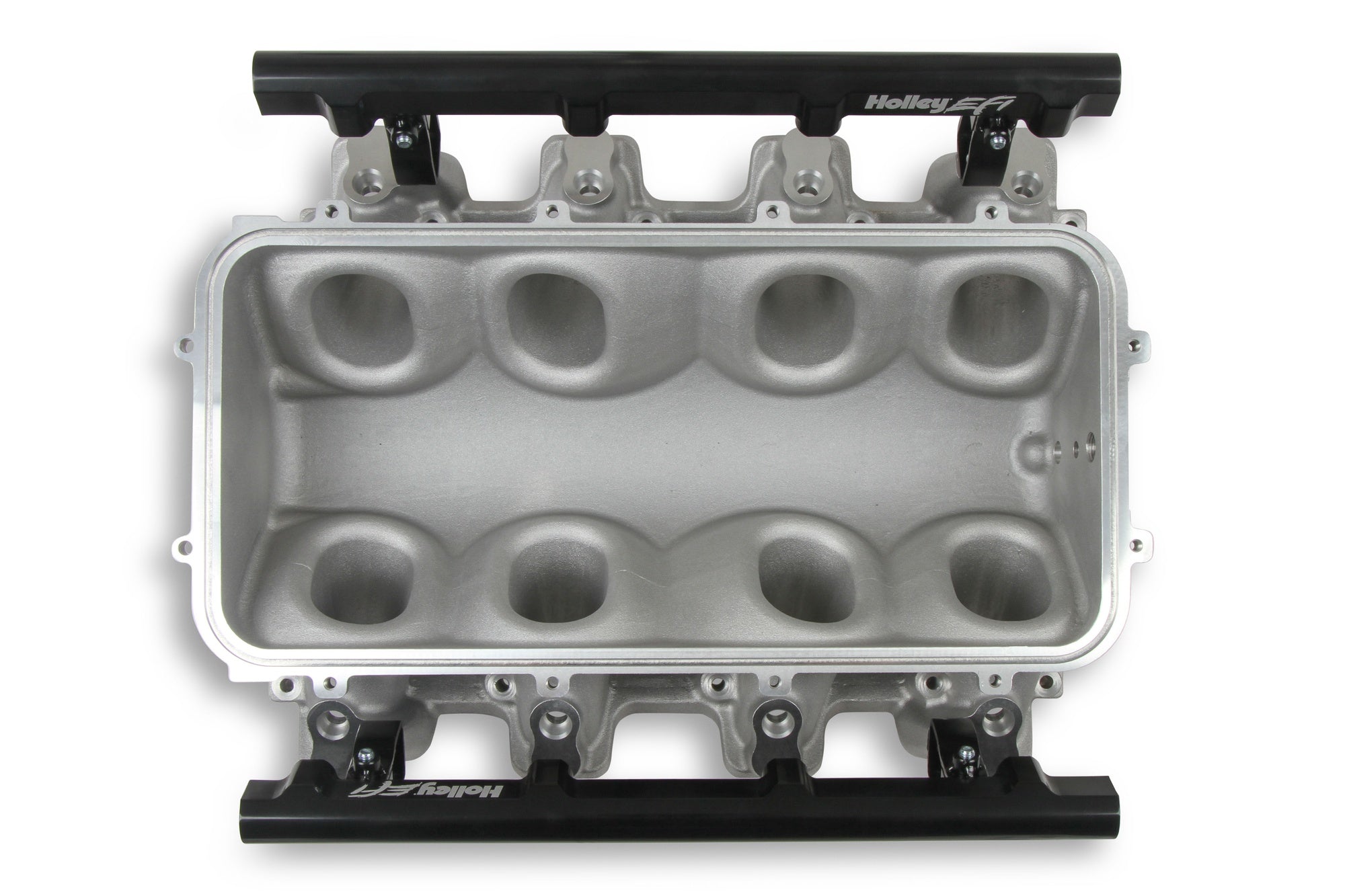

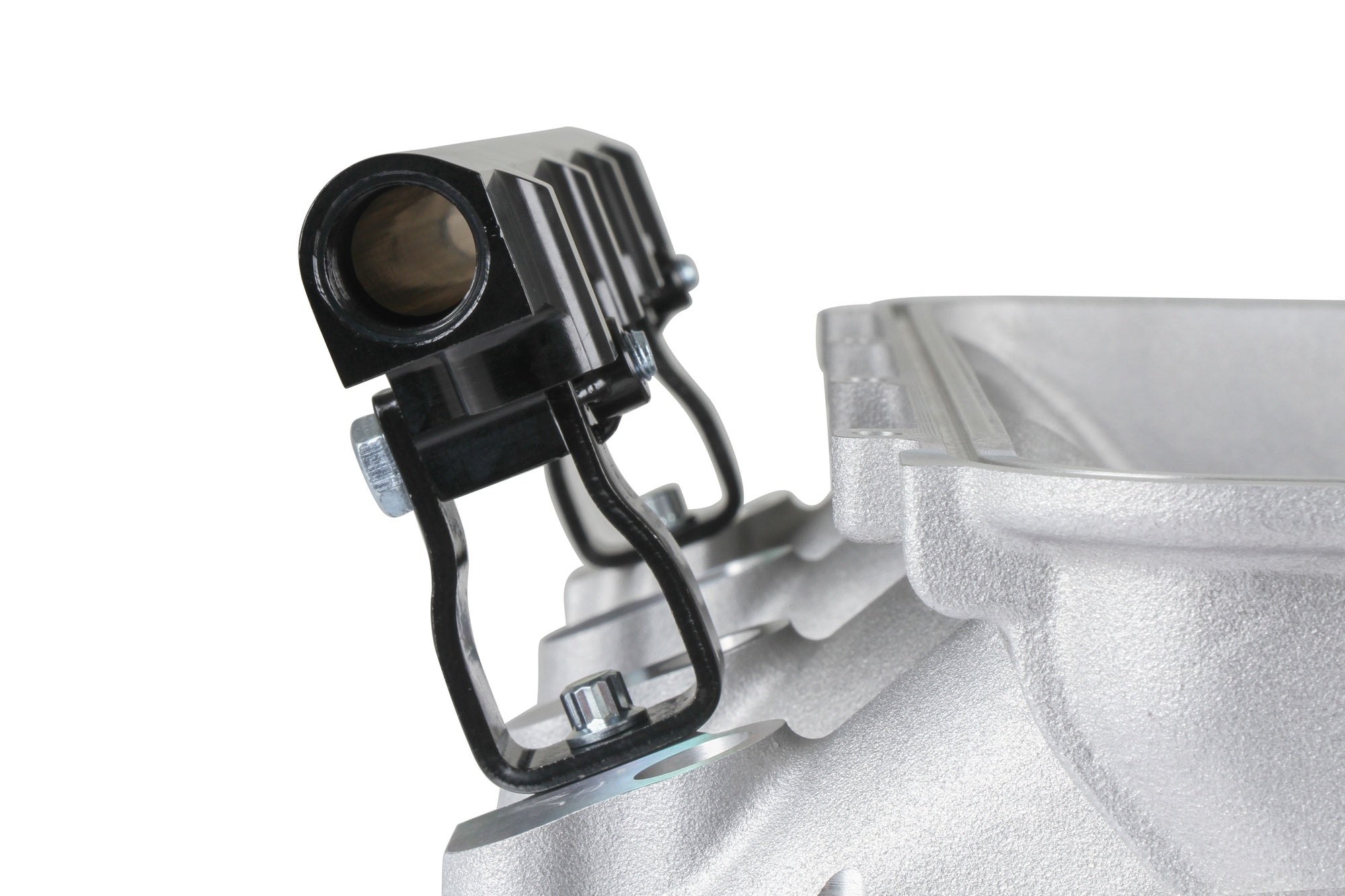

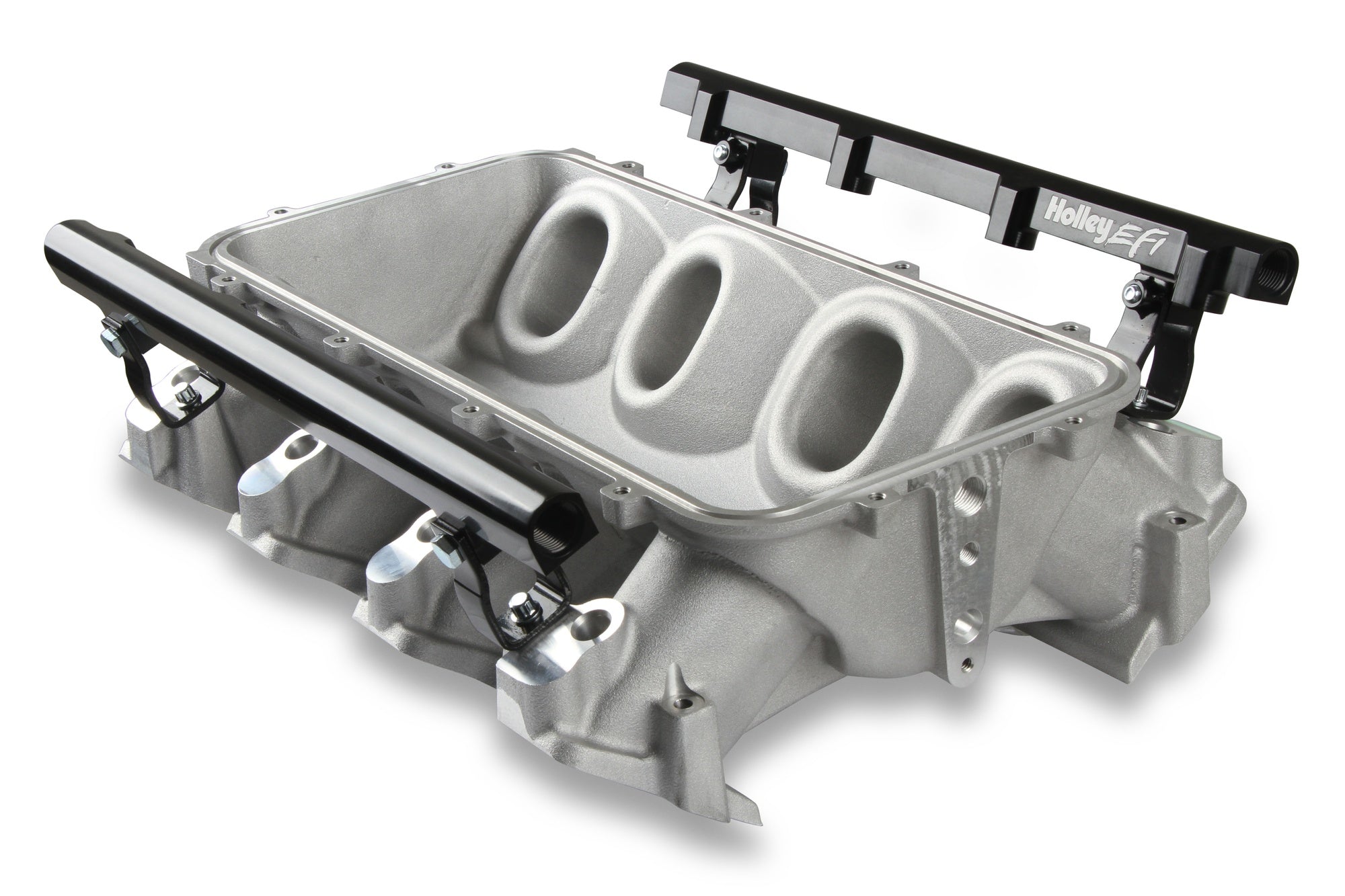

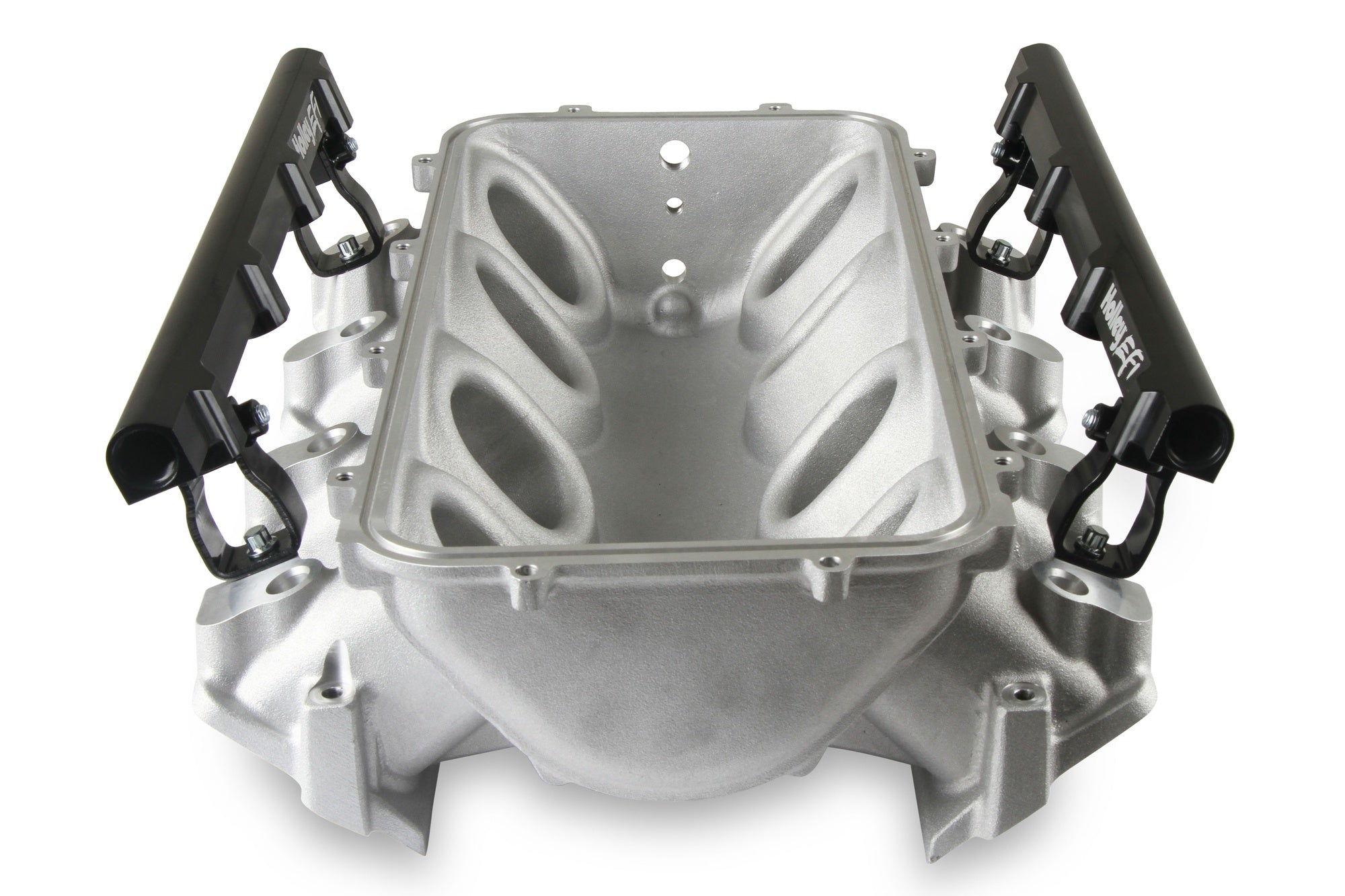

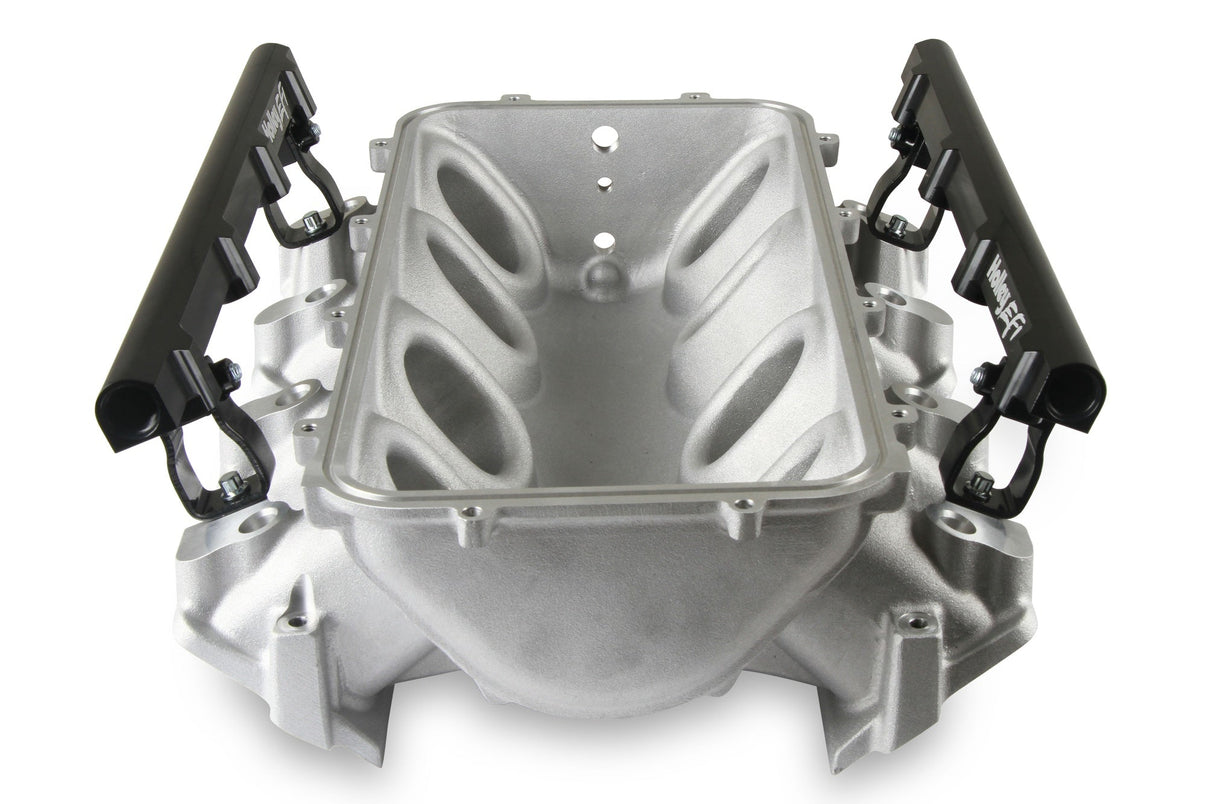

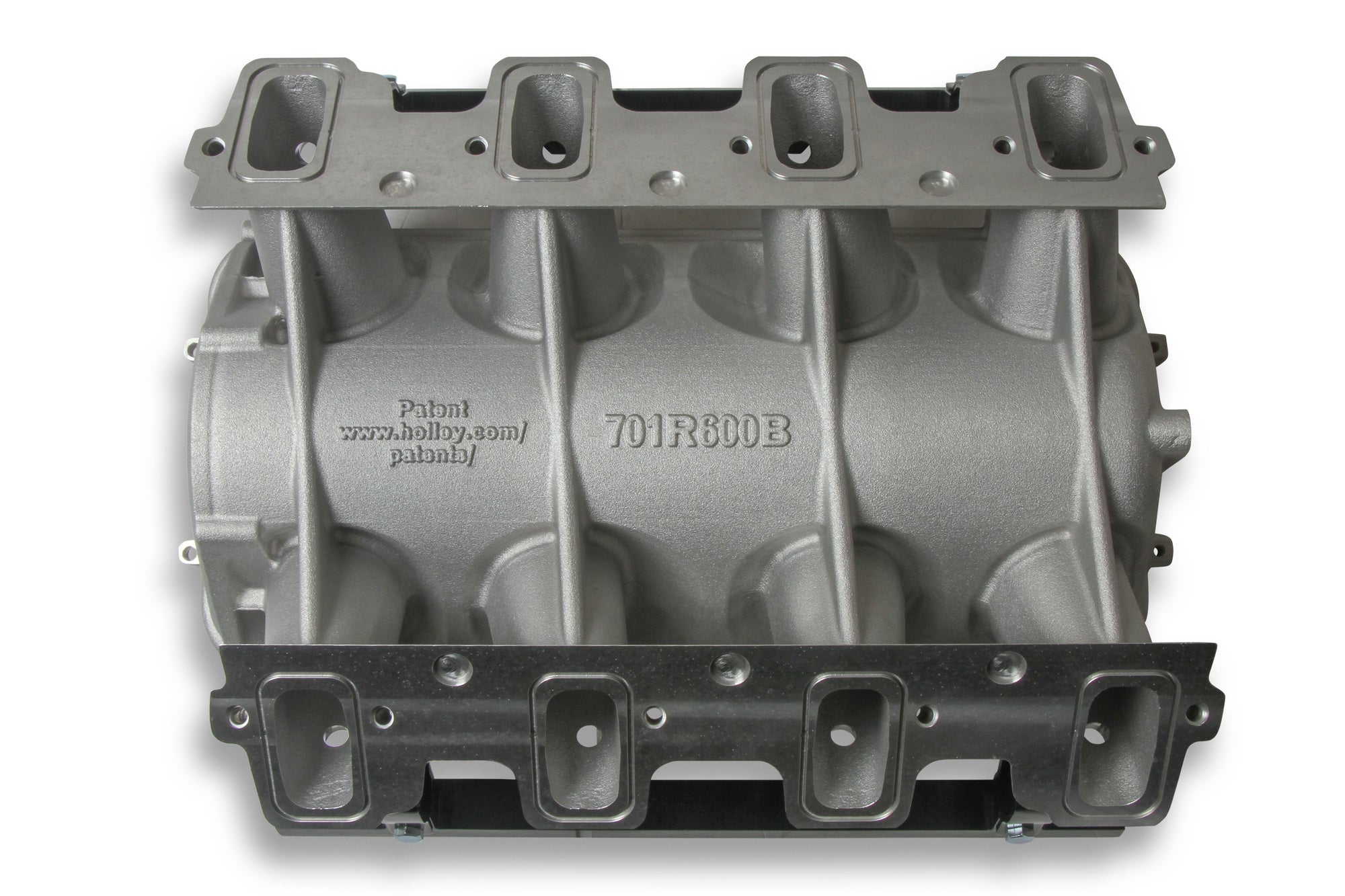

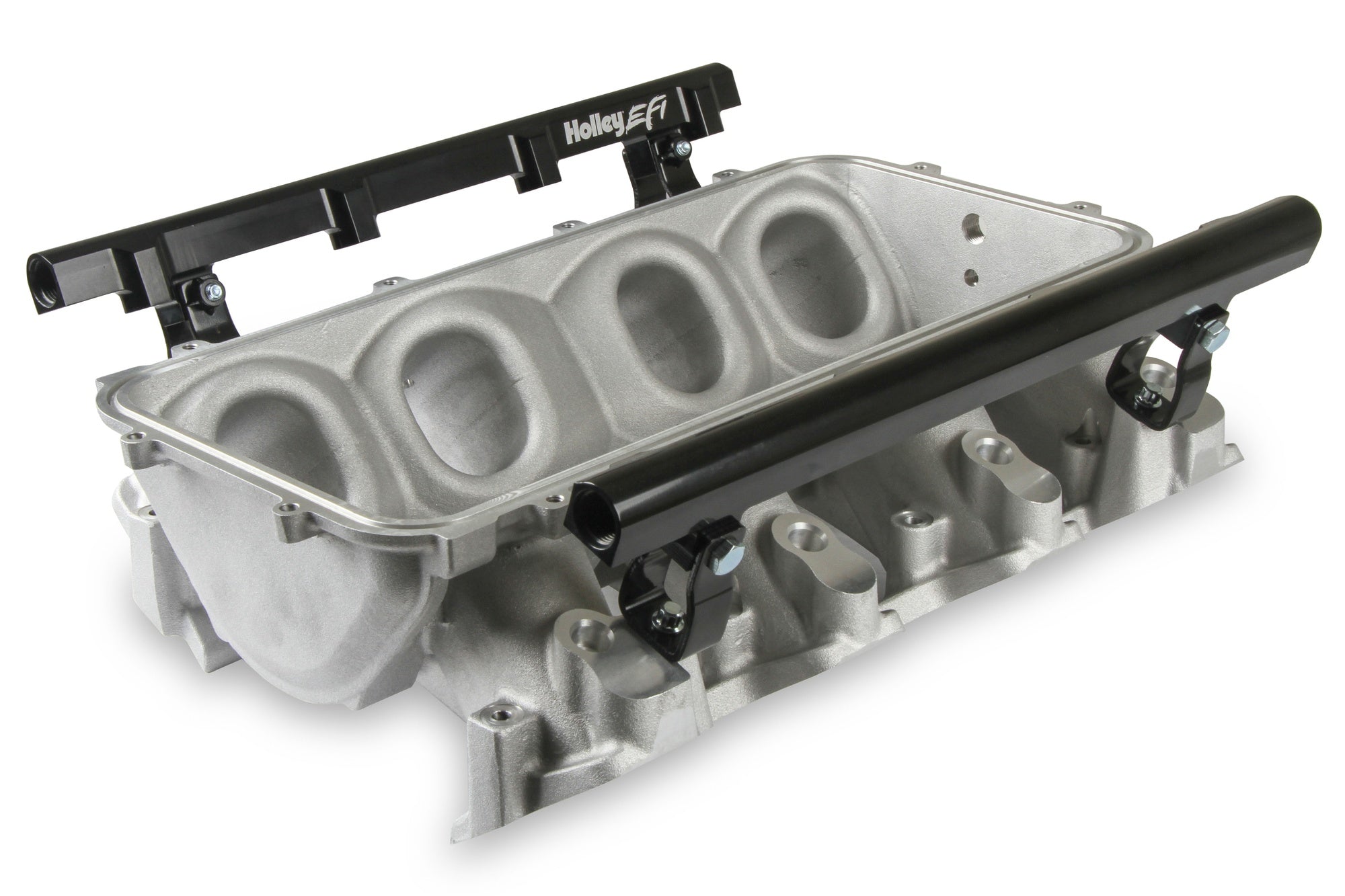

Holley Lo-Ram Manifold Base and Fuel Rails Single Fuel Injector GM LS3/L92

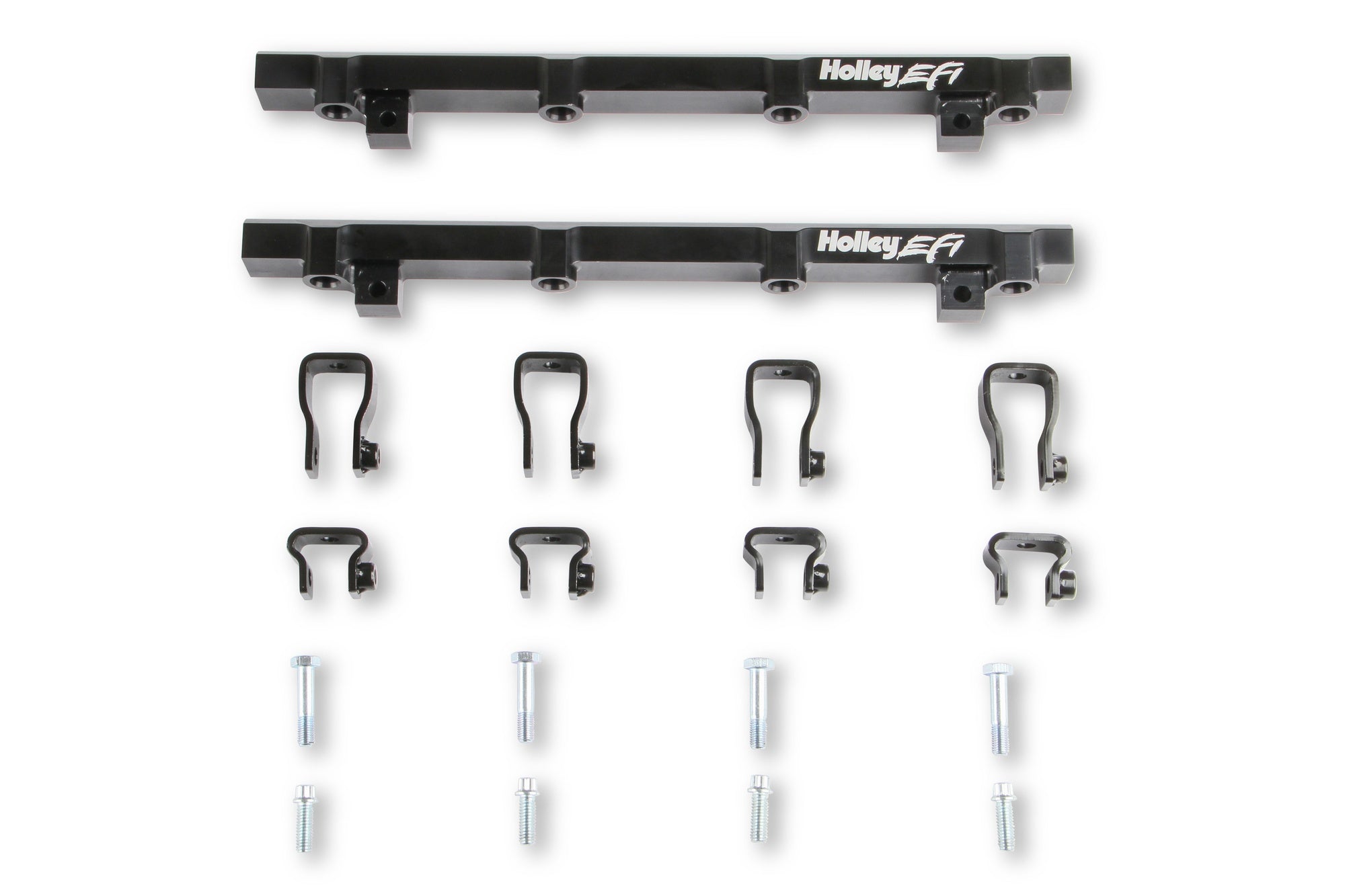

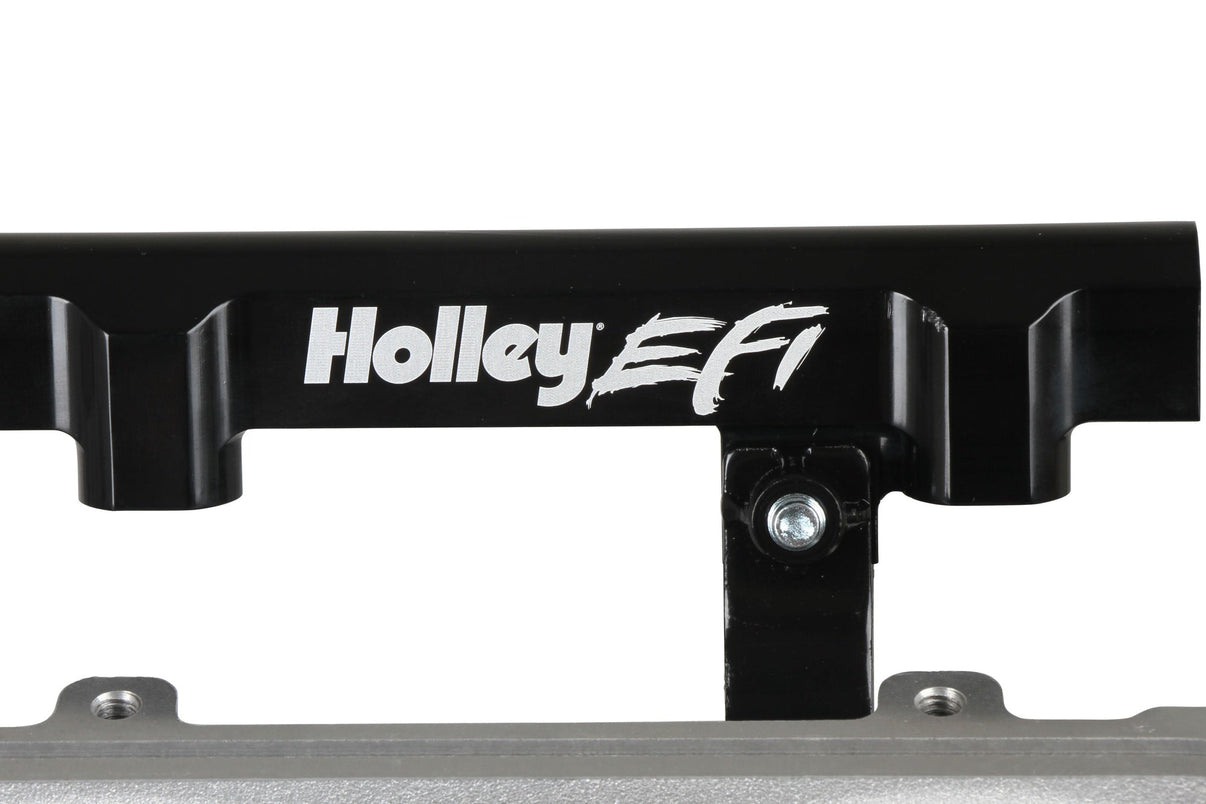

The Holley LS3 Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS3/L92 cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. The Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications and the 105 mm throttle body part number 112-581 or similar models. The base intake manifold is designed with a low height to aid the packaging of a plenum-mounted air-to-water intercooler in a top-feed configuration. Additional manifold designs include both single and dual injector options. Available with both as-cast satin and black power-coat finishes. High volume fuel rails for eight and sixteen injector configurations. Mounting hardware included with 3/4-16 O-ring ports (8 AN)
The Holley LS3 Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS3/L92 cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. The Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications and the 105 mm throttle body part number 112-581 or similar models. The base intake manifold is designed with a low height to aid the packaging of a plenum-mounted air-to-water intercooler in a top-feed configuration. Additional manifold designs include both single and dual injector options. Available with both as-cast satin and black power-coat finishes. High volume fuel rails for eight and sixteen injector configurations. Mounting hardware included with 3/4-16 O-ring ports (8 AN)
📋
Product Specifications
Basic Operating RPM Range
3500-8000
Basic Operating RPM Range
3500-8000 RPM
Brand
Holley EFI
Carburetor Flange
N/A
Carburetor Quantity
N/A
Carburetor Studs Included
N/A
CNC Ported
No
Color
Silver
Construction
Cast
Cylinder Head Port Shape
Rectangle
Deck Height
9.24
EGR Port
No
Engine
GM LS3/L92
Flange Style
N/A
Fuel Injectors Included
No
Fuel Rail(s) Included
Yes
Fuel System Type
EFI
Gasket Or Seal Included
Yes
Grade Type
Performance
Injector Quantity
Single
Inlet Location
Top
Intake Port Gasket(s) Included
No
Manifold Type
Lo-Ram
Material
Aluminum
Nitrous Bung(s) Included
No
Part Type
Engine Intake Manifold
Plenum Finish
Natural
Product Type
Intake Manifold Base
Recommended Use
Forced Induction
Removable Runners
No
Removable Top/Lid
Yes
RPM Power Band
3500-8000 RPM
Single Or Dual Plane Type
Single Plane
Throttle Body Bore Diameter
N/A
Throttle Body Gasket Included
No
Throttle Body Included
No
Vacuum Ports
Yes
Warranty
Manufacturer's Limited 90 Day Warranty
📦

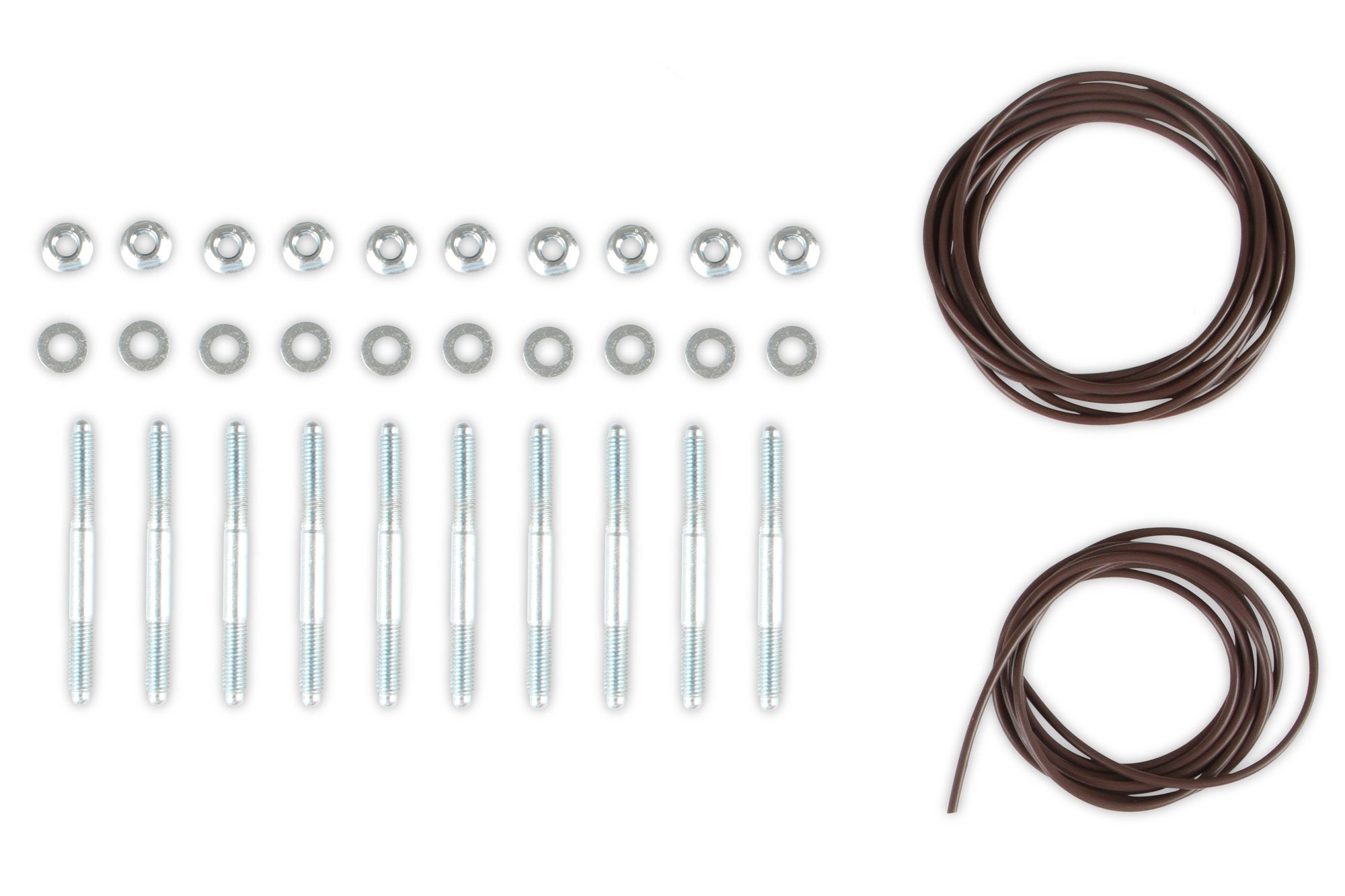

Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
