Key Features

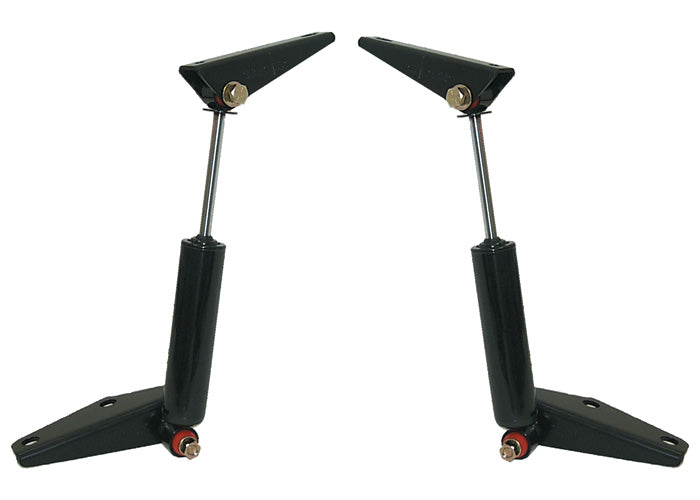

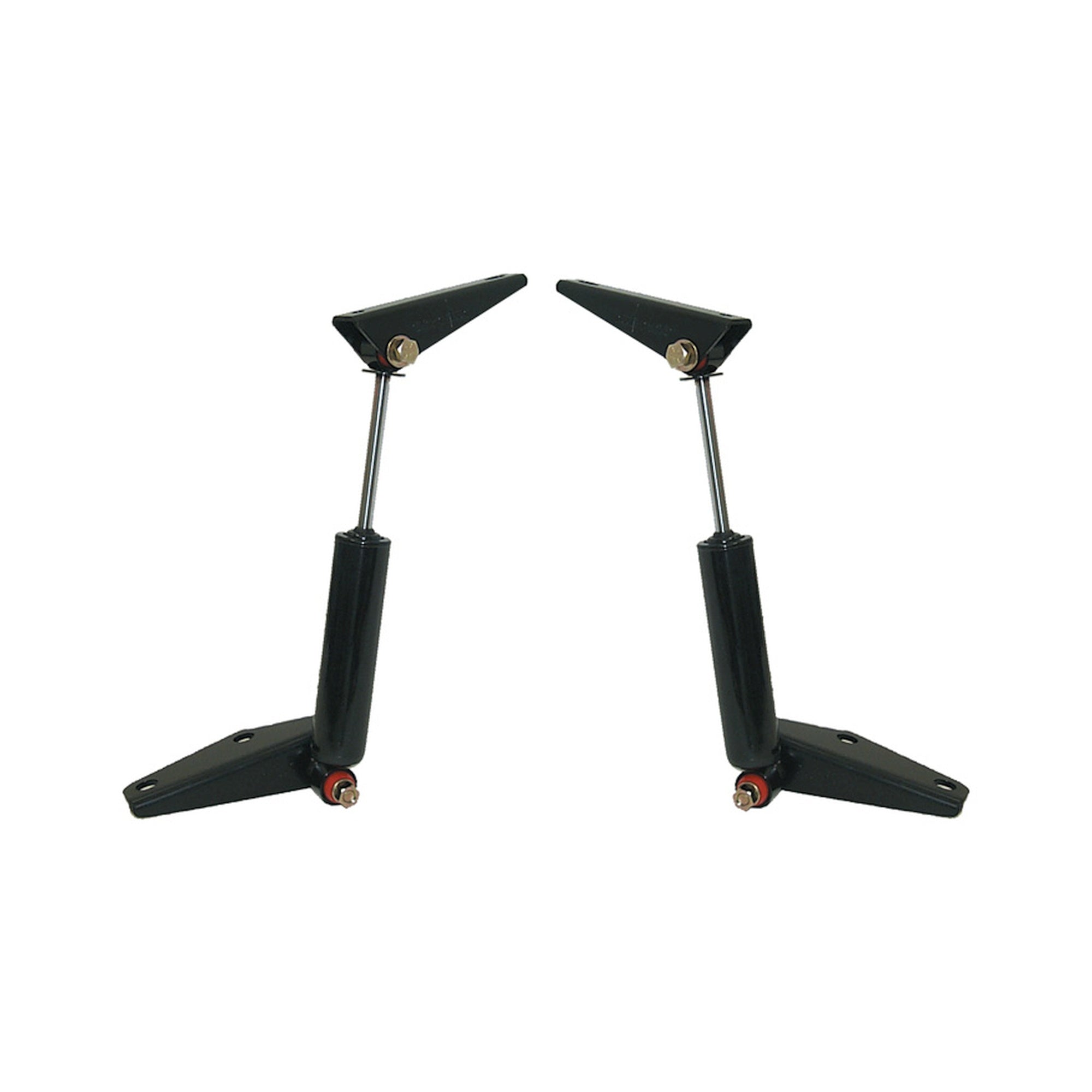

Brothers Trucks Rear Shock Relocator Kit
This kit solves the problem with the coil spring rear suspension when the vehicle is lowered. The rear shocks are angled forward from the factory, and when you lower the truck, the angle increases. For optimum performance, a shock should not be angled more than 15 degrees. This kit lowers the bottom shock mount and brings the upper mount farther back, straightening the angle of the shock. Upper bracket bolts into the original brackets holes and the lower connects in place of the original under the control arm, with the u-bolt. Kit includes all necessary hardware. Note: will not work with rear leaf spring suspensions. SHOCKS NOT INCLUDED
This kit solves the problem with the coil spring rear suspension when the vehicle is lowered. The rear shocks are angled forward from the factory, and when you lower the truck, the angle increases. For optimum performance, a shock should not be angled more than 15 degrees. This kit lowers the bottom shock mount and brings the upper mount farther back, straightening the angle of the shock. Upper bracket bolts into the original brackets holes and the lower connects in place of the original under the control arm, with the u-bolt. Kit includes all necessary hardware. Note: will not work with rear leaf spring suspensions. SHOCKS NOT INCLUDED
📋
Product Specifications
Brand
Brothers Trucks
Category
Suspension
Emission Code
6
part type
Suspension Shock Absorber Relocation Bracket Kit
Product Type
Suspension Shock Absorber Mount Kit
Sub Category
Brackets
Warning
California Proposition 65
📦
Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
