Ignition Coil- SuperCoil- A...
Get notified when this item is back in stock
Press & drag to view
ACCEL
Product Details
🔧
Vehicle Compatibility
Fits Ignition Coil- SuperCoil- AC/Delco Style for GM 1986-1999 DIS- Yellow-Individual.
Please refer to manufacturer specifications for complete compatibility information.
⭐
Key Features

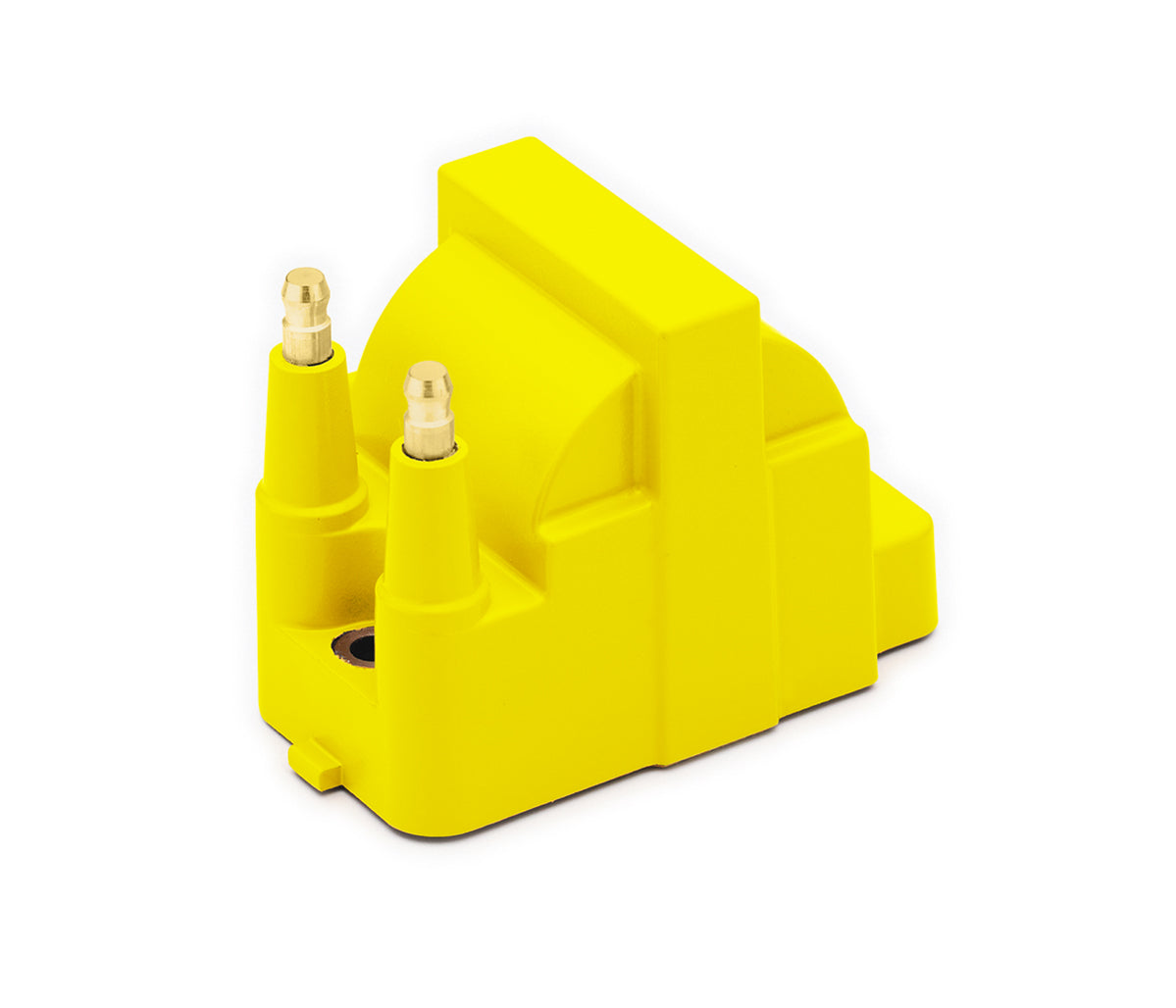

Ignition Coil- SuperCoil- AC/Delco Style for GM 1986-1999 DIS- Yellow-Individual
Re-engineered to be the only true performance AC/Delco style DIS coil. ""Raised Dome"" construction, section bobbin technology, highly specialized silicone magnetic steel core, optimized windings, resistance, and turns ratio result in higher energy and voltage outputs, and longer dwell. Compatible with OE computer controlled ignition systems as well as Crane or MSD capacitive discharge DIS ignition systems. Brass contact increases energy transfer and resists corrosion better than aluminum. High dielectric strength ""ACCEL Yellow"" over molded housing. Packaged as single unit: 4 cyls require 2 coils, 6 cyls require 3 coils and 8 cyls require 4 coils.
Re-engineered to be the only true performance AC/Delco style DIS coil. ""Raised Dome"" construction, section bobbin technology, highly specialized silicone magnetic steel core, optimized windings, resistance, and turns ratio result in higher energy and voltage outputs, and longer dwell. Compatible with OE computer controlled ignition systems as well as Crane or MSD capacitive discharge DIS ignition systems. Brass contact increases energy transfer and resists corrosion better than aluminum. High dielectric strength ""ACCEL Yellow"" over molded housing. Packaged as single unit: 4 cyls require 2 coils, 6 cyls require 3 coils and 8 cyls require 4 coils.
📋
Product Specifications
Application
GM
Brand
ACCEL
Category
Ignition Coils
Color
Yellow
Emission Code
3
Maximum Voltage
45
part type
Direct Ignition Coil
Part Type
Ignition Coil
Peak Increase in Current vs. OE
12%
Peak Increase in Dwell vs. OE
21%
Peak Increase in Voltage vs. OE
10%
Primary Resistance
0.5 Ohms
Product Type
Ignition Coils
Quantity Per Pkg.
1
Quantity
1
Secondary Resistance
8.0 k Ohms
Sub Category
Ignition Coil
Turns Ratio
75:1
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
Weight
1.0000
📦
Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
