HolleyPart 0-80576saMade in US
Product Details
⭐
Key Features
Supercharger XP

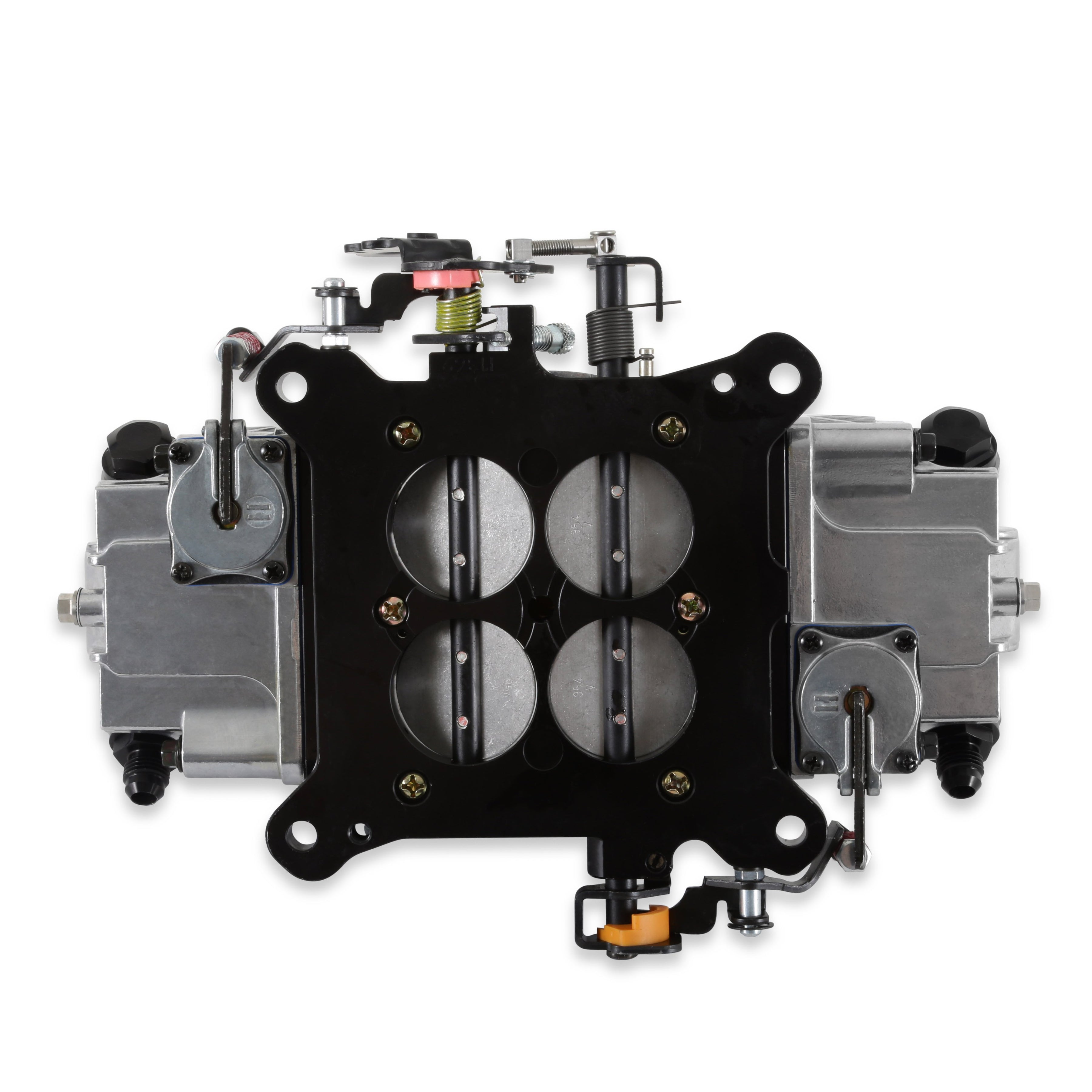

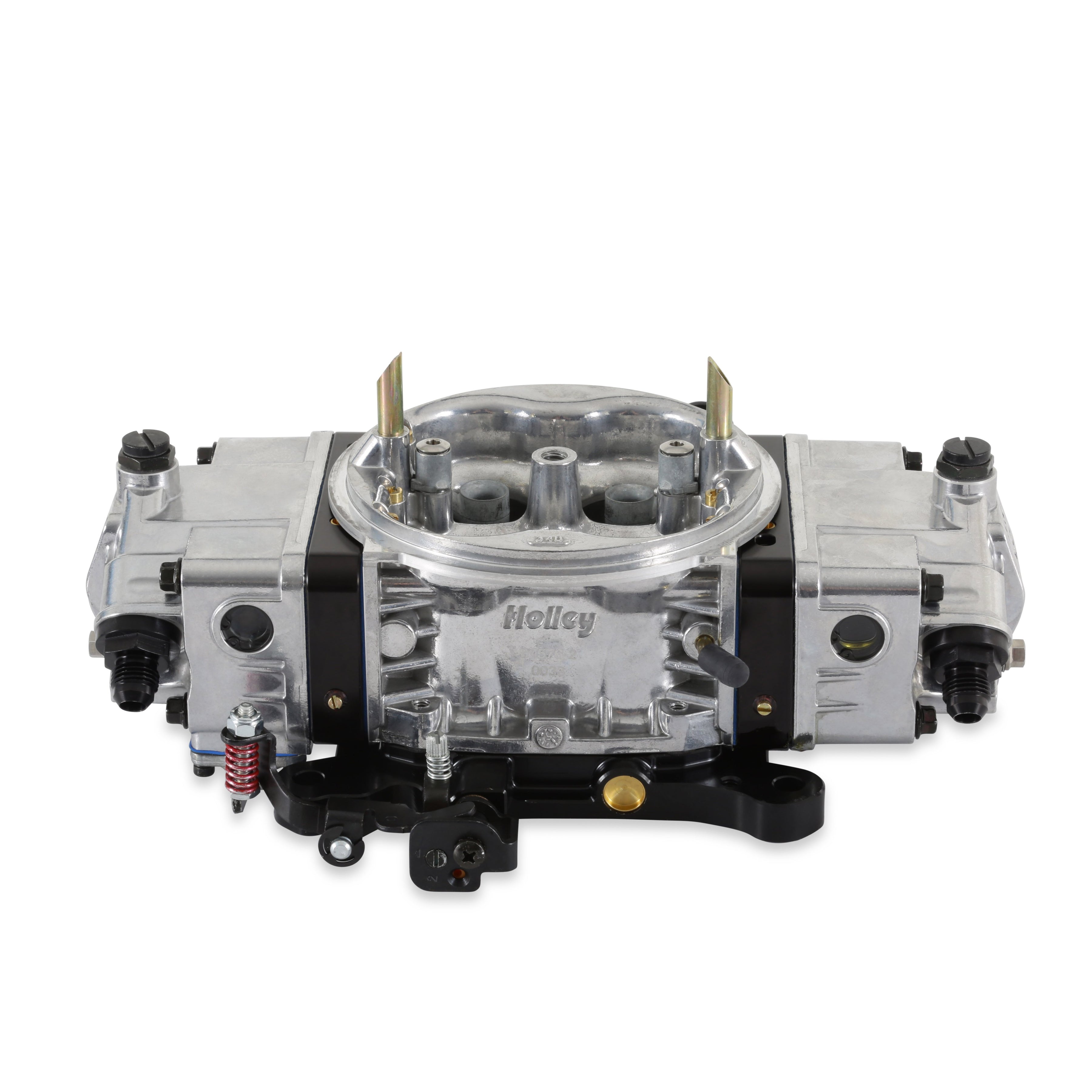

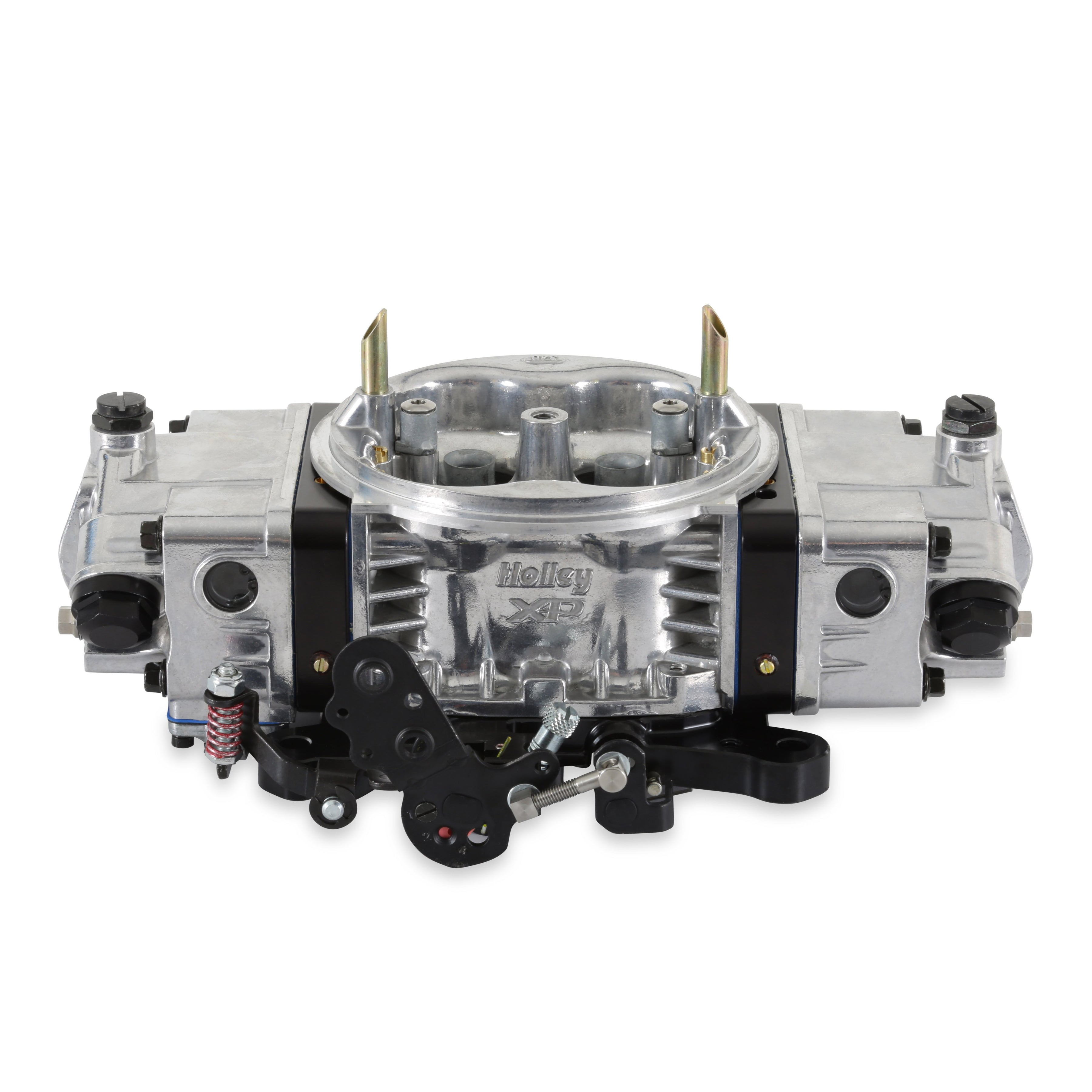

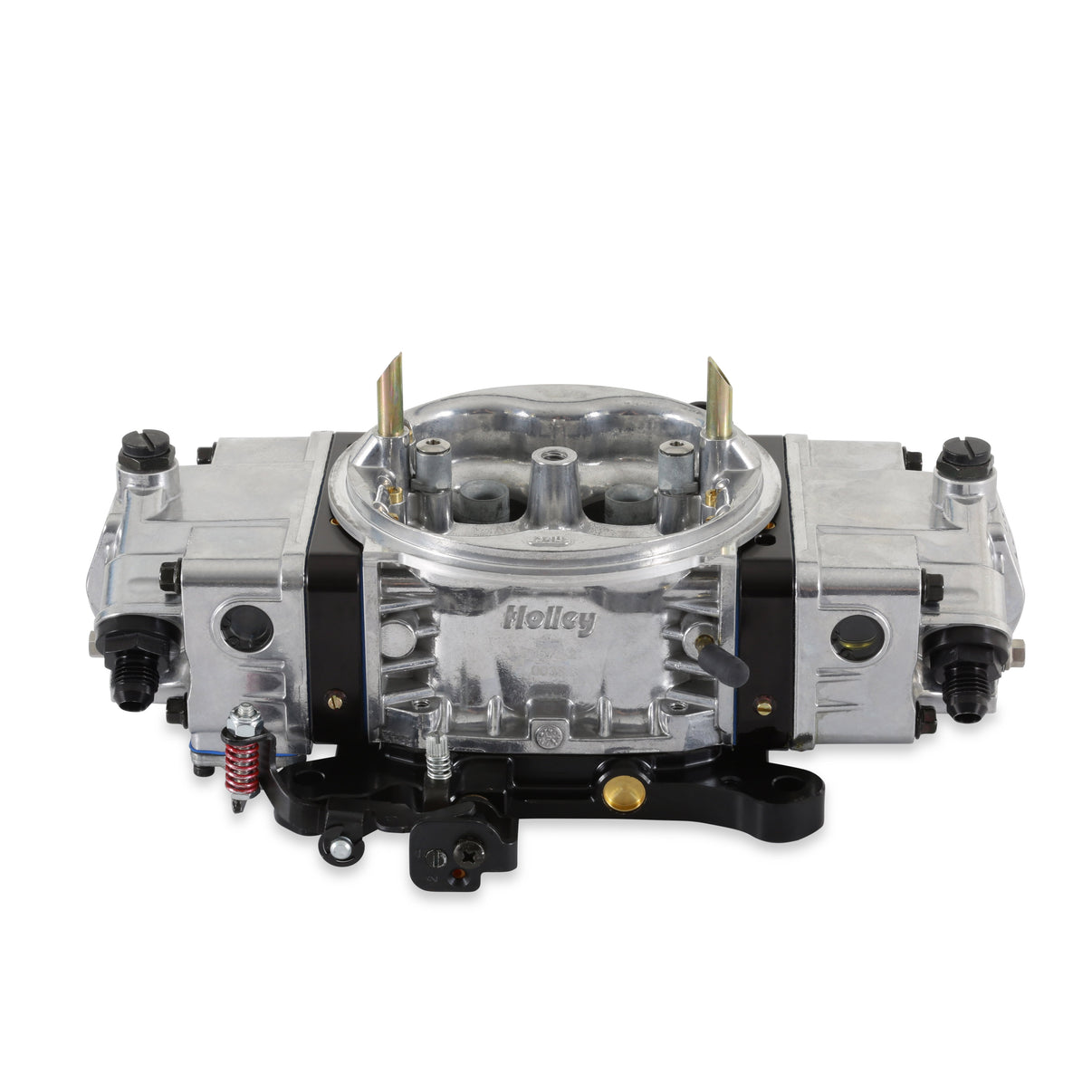

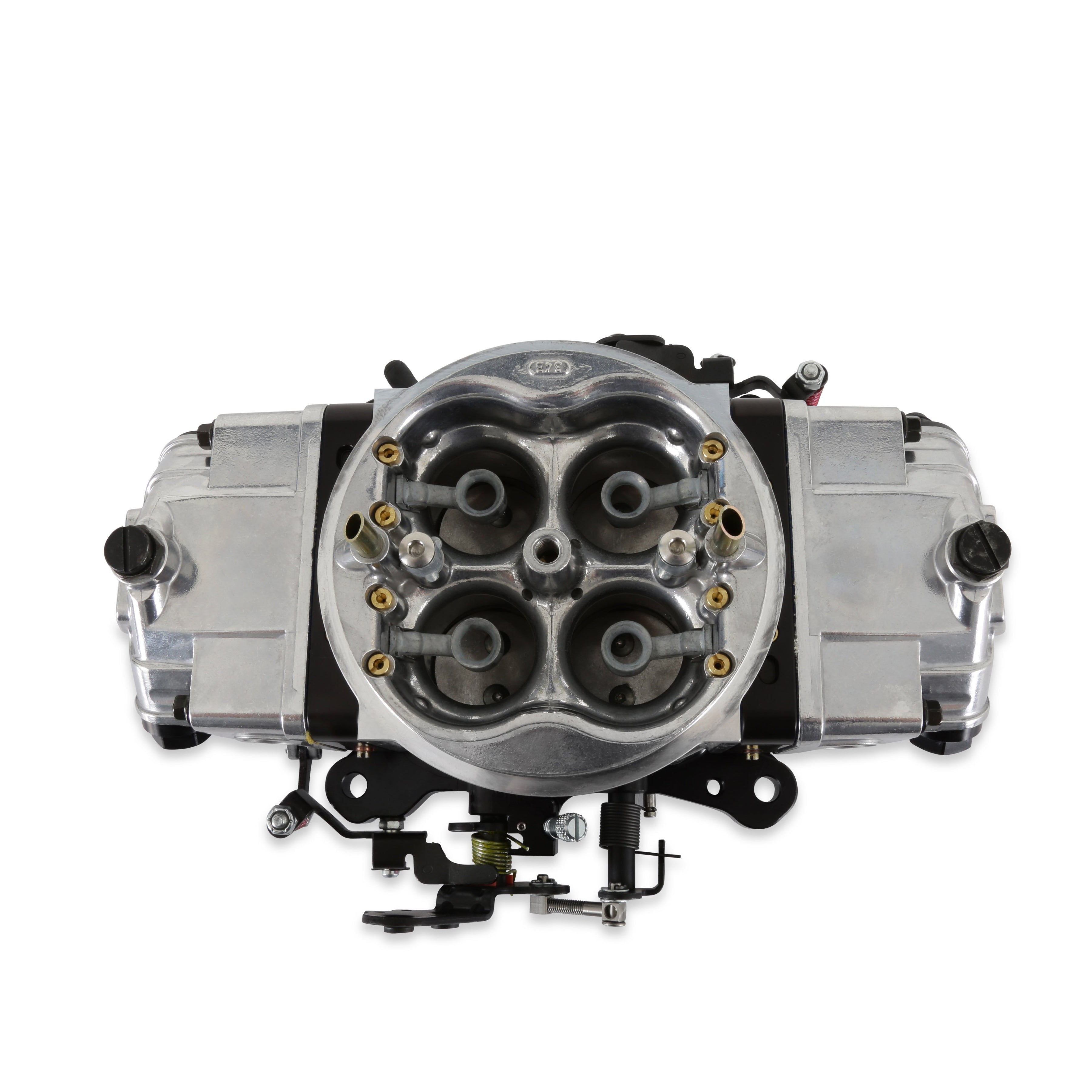

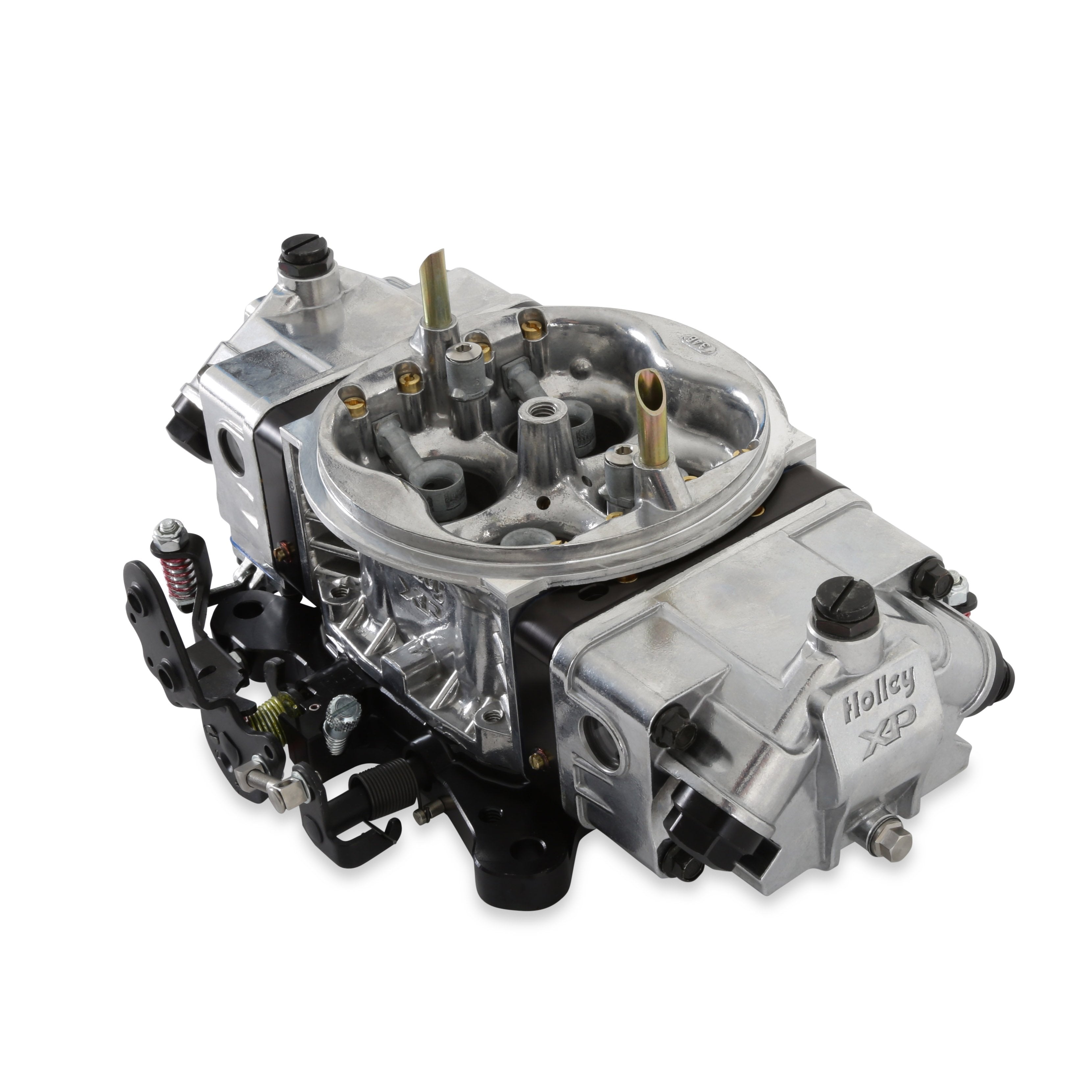

By popular demand, Holley is expanding the draw-thru supercharger carburetor line to now include the XP series. Like the existing HP line, these are available in 600, 750, and 950 CFM flow rates and standard polished with black accents. The feature-laden XP includes a contoured venturi inlet for balanced air flow, screw in air bleeds for precision tuning capabilities, high flow billet metering blocks, billet base plate, and Dominator style fuel bowls which allow plumbing from either side. Supercharger XP carburetors also have a unique capability that allows their power valves to reference the intake manifold vacuum below the supercharger. This allows the power valve to operate as it should, based off intake manifold vacuum. A power valve provides further enrichment to the main metering system under load (low vacuum) conditions. Holley XP carburetors are the standard for square bore race carburetors. Race-Ready out of the box!
750 CFM - 4150 - Mechanical Secondaries - Shiny - Gasoline
- Tumble polished shiny finish for good looks
- Designed for use on the WEIAND® 671 supercharger (big block Chevrolet/Chrysler 392) or WEIAND® 871 supercharger (small block Chevrolet/Chrysler 426)
- Contoured venturri inlet offers balanced airflow for increased horsepower
- Screw in air bleeds for precision tuning capabilities
- Dual 30cc accelerator pumps for additional fuel under initial acceleration
- Dual feed fuel inlets for constant high volume fuel delivery
- 4 corner idle allows you to precisely control your idle system
- Mechanical Secondaries for perfect off the line launches
- Boost referenced power valve for proper enrichment under acceleration
- Throttle lever cut off for clearance on a sideways application
- 100% wet-flow tested by Holley technicians to assure it arrives ready to run!
📖
About this product
750 CFM - 4150 - Mechanical Secondaries - Shiny - Gasoline
📋
Product Specifications
Automotive Item Grade
Performance
Barrel Quantity
4
Barrels
4
Body Color
Polished
Body Color
Polished Aluminum
Body Finish
Polished
Body Material
Aluminum
Booster Design
Downleg
Booster
Downleg
Brand
Holley
California Proposition 65 Chemical Name
4
Carburetor Material
Aluminum
Carburetor Use
Performance and Race
Category
Air and Fuel Delivery
CFM Rating
750
Cfm
750
Choke
None
Circuit Count
2
Circuit
2
Color
Polished Aluminum
Condition
New
Cubic Feet Per Minute Rating
750
Emission Code
3
Finish
Polished
Flange Shape
Square
Flange Type
Square/4150
Fuel Inlet
Dual
Fuel Type
Gasoline
Fuel
Gasoline
Grade Type
Performance
Linkage Attached
Yes
Marine Approved
No
Marine Use
No
Material
Aluminum
Mounting Hole Quantity
4
Part Type
Carburetor
Primary Jet Diameter
72
Primary Main Jet Size
72
Primary Main Jet
72
Primary Power Valve
10.5
Primary Pump Nozzle Size
31
Product Type
Carburetor
Secondaries
Mechanical
Secondary Barrel Type
Mechanical
Secondary Main Jet Size
86
Secondary Main Jet
86
Secondary Pump Nozzle Size
31
Spacer Included
No
Sub Category
Carburetion
Supercharged Application
Yes
Supercharger Compatible
Yes
System Type
Draw Thru
Throttle Bore Diameter
1.688 inch
Throttle Bore
1.688 inch
Venturii Size
1.375 inch
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
Emissions Code
3
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
14.3 × 12.6 × 9.5 in
Shipping Dimensions
14.3 × 12.6 × 9.5 in
Weight
4314 g (4.31 kg)
