Holley Sniper EFIPart 821062Made in CN
Product Details
⚙️
Vehicle Fitment & Compatibility
View all 0 vehicle applications
Years
Make / Model
Submodel
Engine
1900
No applications match your search.
⭐
Key Features

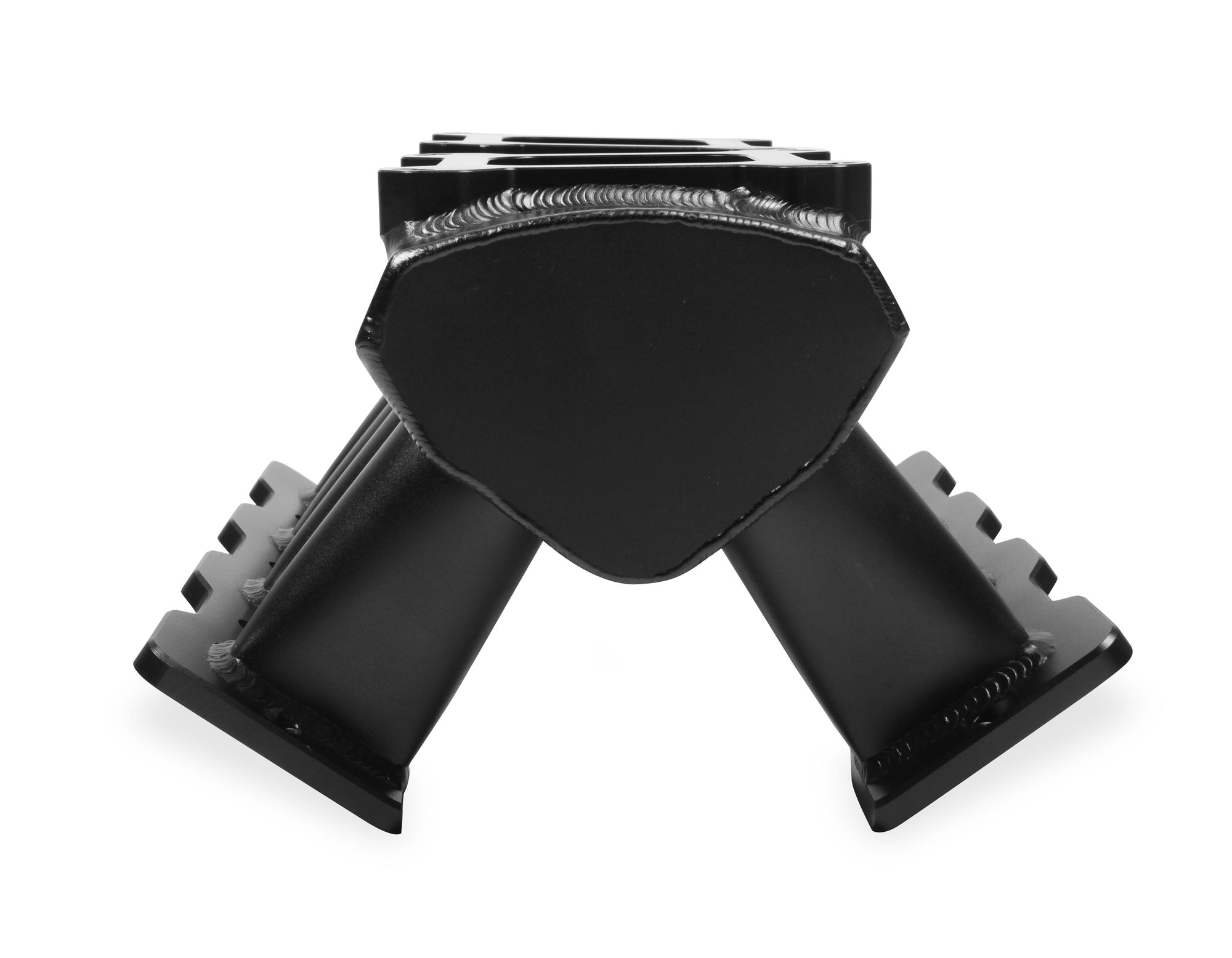

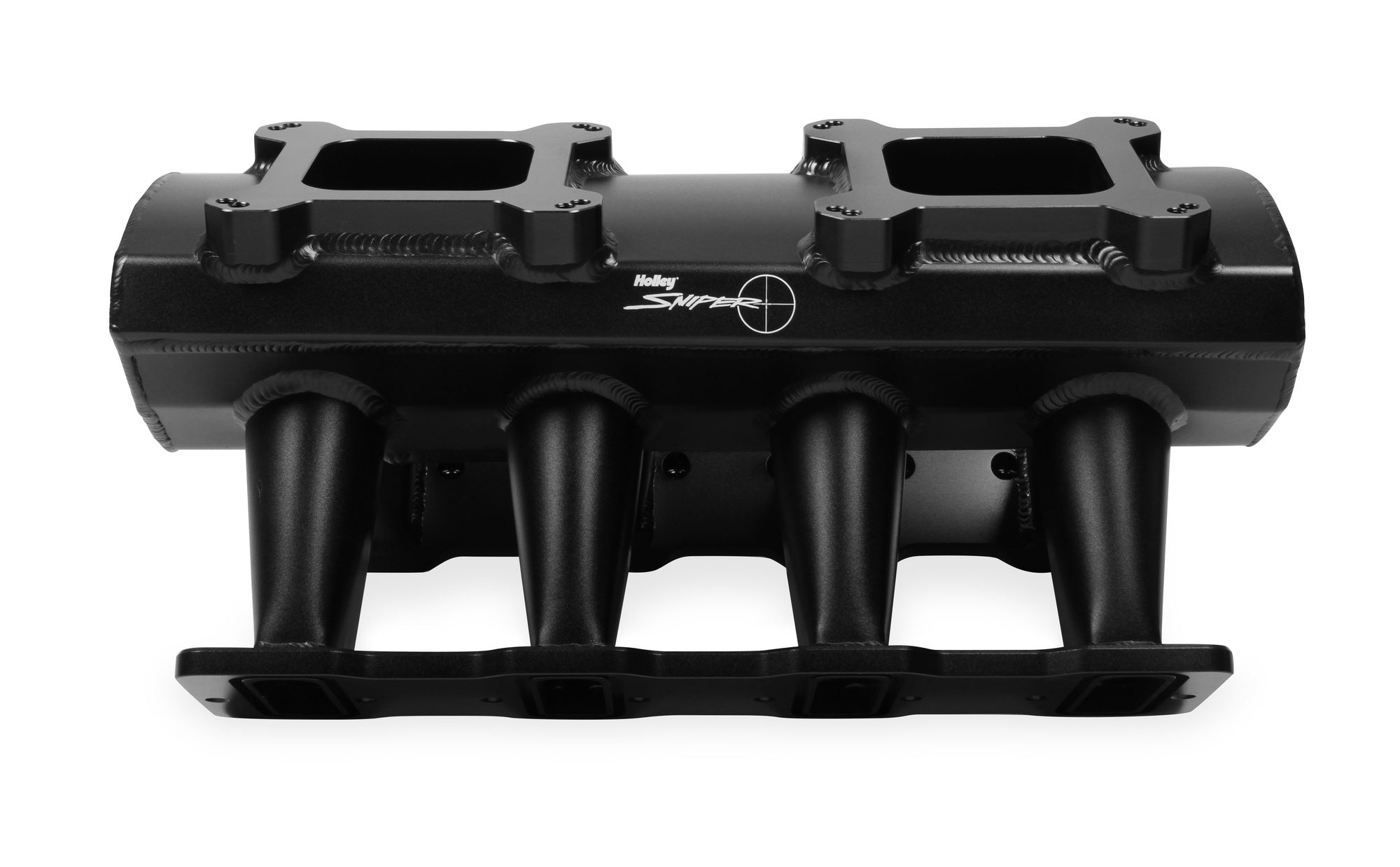

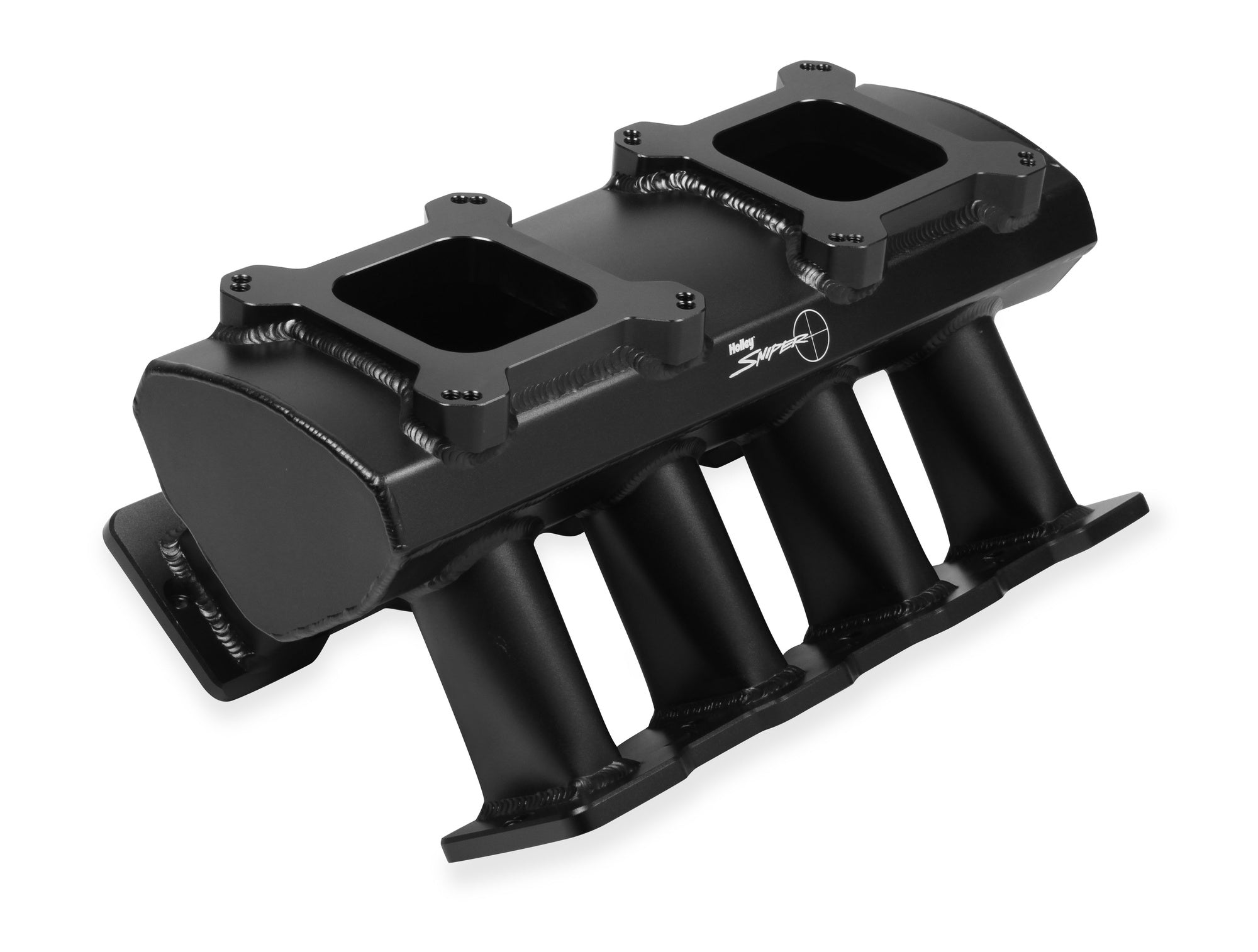

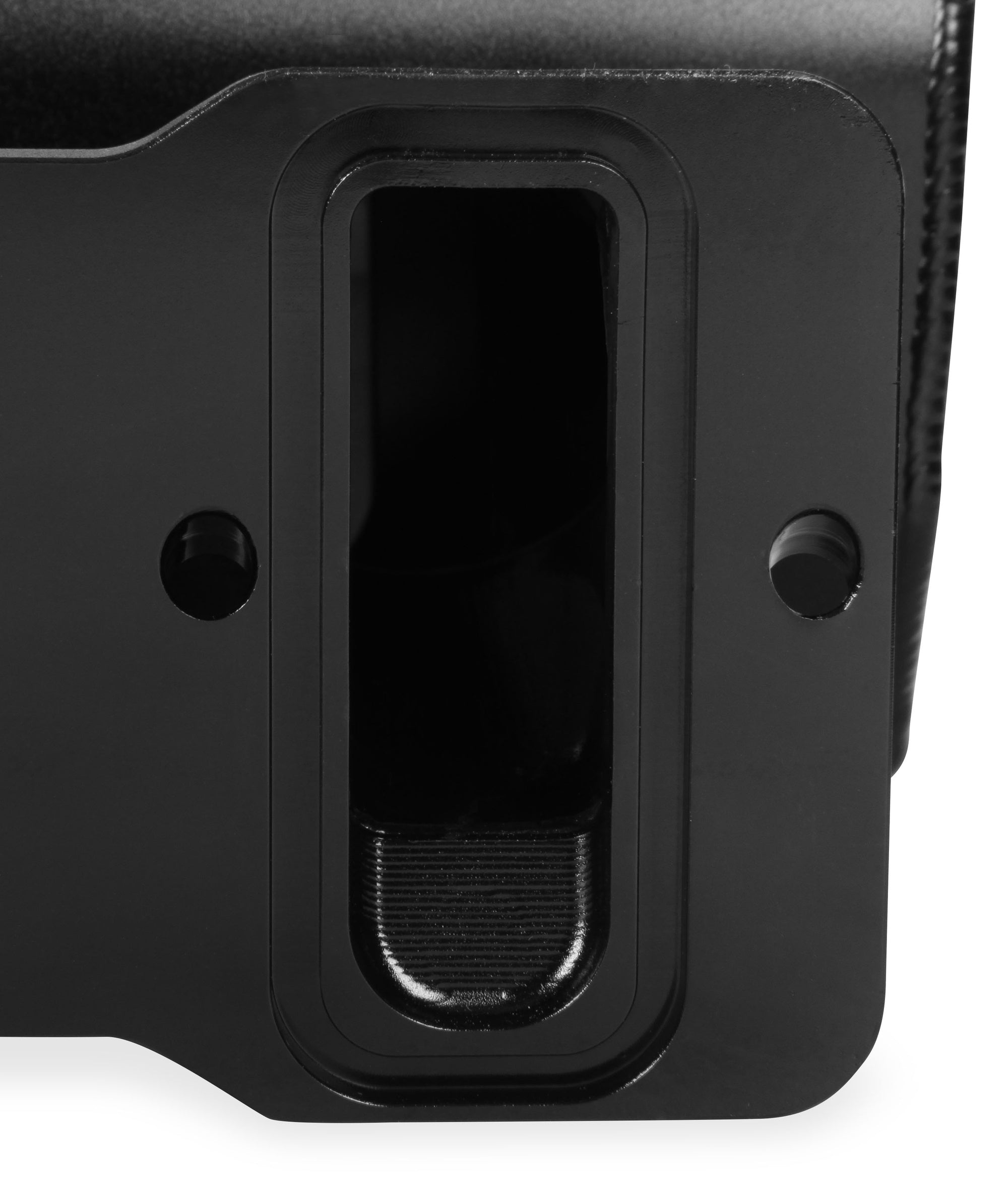

Hi-Ram Sheet Metal Fabricated Intake Manifold LS1/LS2/LS6 Single Plane Dual Quad Carbureted Black with Sniper logo
Holley is now offering budget friendly fabricated intake manifolds for LS, Small Block Chevy and Small Block Ford engines in carbureted and EFI versions!
Hi-Ram Sheet Metal Fabricated Intake Manifold LS1/LS2/LS6 Single Plane Dual Quad Carbureted Black with Sniper logo
- Available in 92mm and 102mm bore Throttle Body Openings
- Runner lengths with tapered top on EFI intakes designed to increase velocity and more evenly distribute airflow to all 8 cylinders
- 3mm (1/8") thick T6061 Sheet Aluminum construction, more durable than competitive intakes

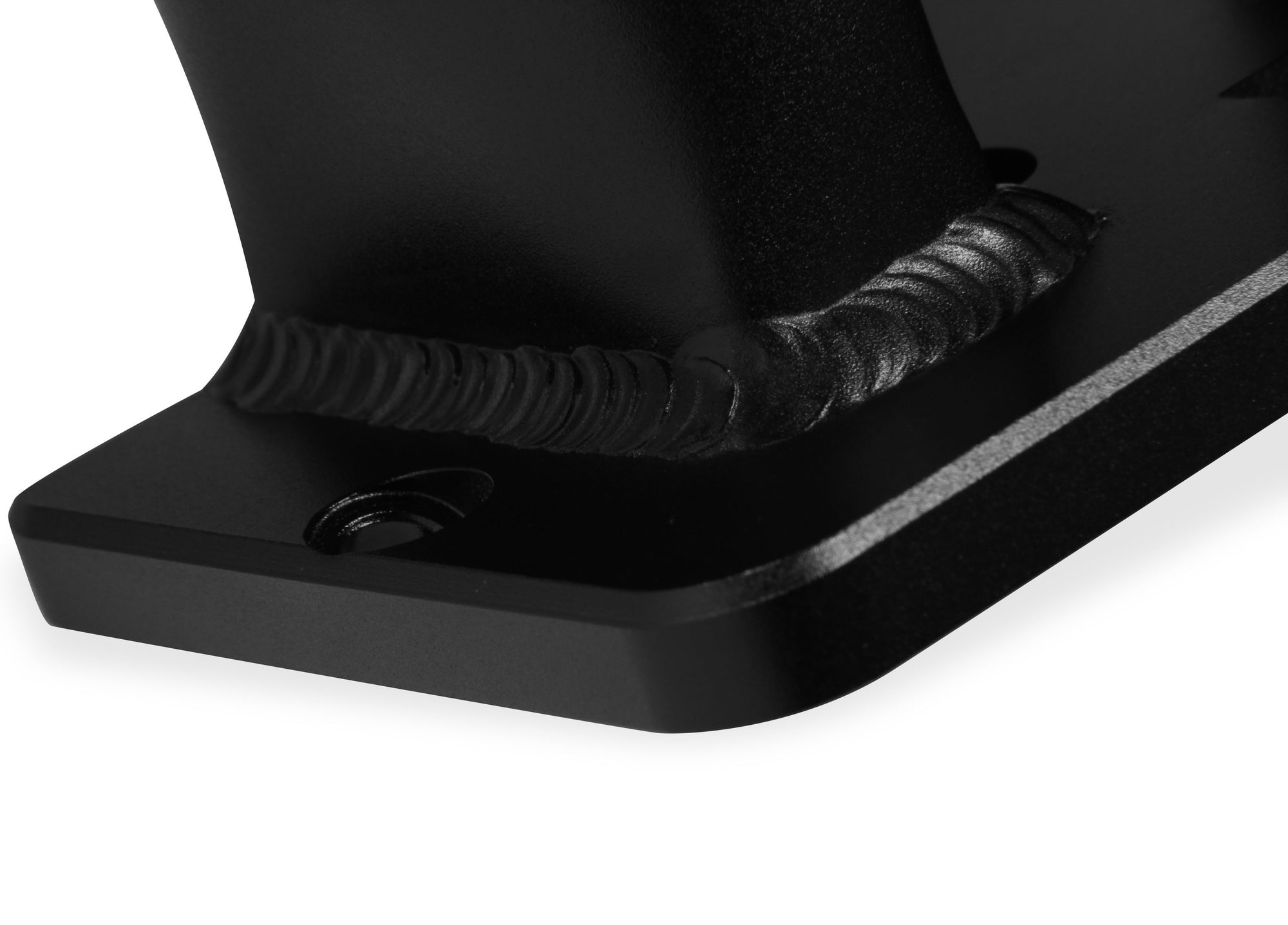

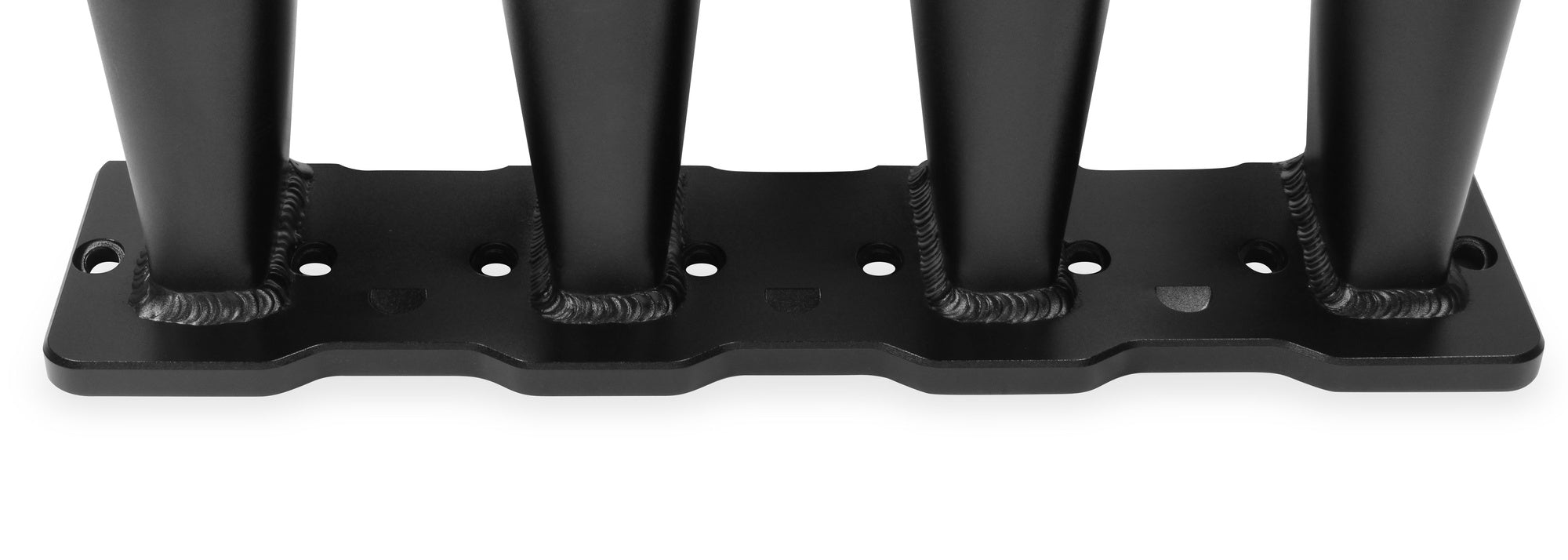

- 100% TIG welded
- EFI Intakes include 3/8" Fuel rail kits (Sniper logo laser engraved)
- Available for EFI and Carbureted applications with custom Holley Sniper logo
📖
About this product
Hi-Ram Sheet Metal Fabricated Intake Manifold LS1/LS2/LS6 Single Plane Dual Quad Carbureted Black with Sniper logo
📋
Product Specifications
Automotive Item Grade
Performance
Basic Operating RPM Range
2500-7000
Brand
Holley Sniper EFI
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes

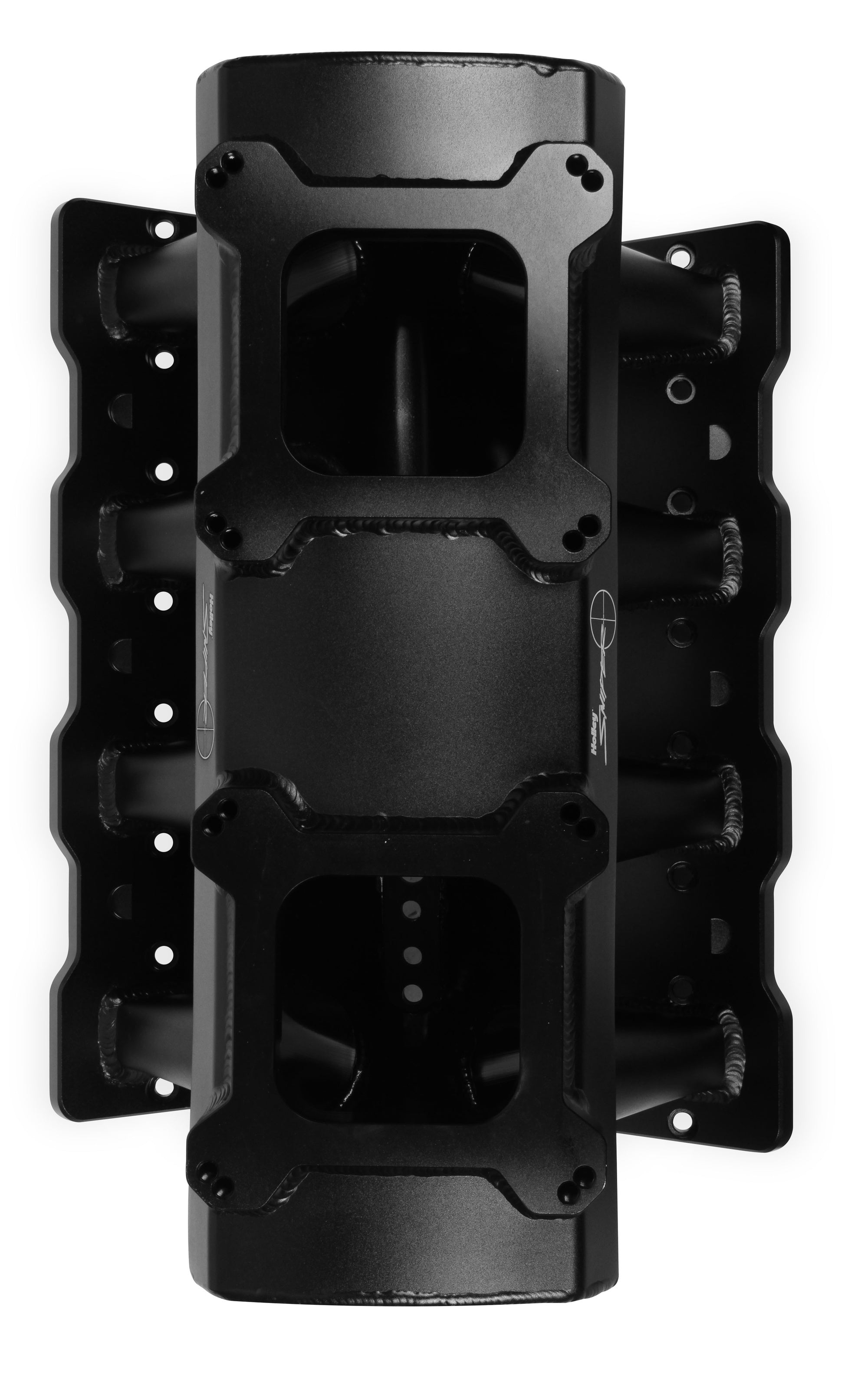

Carburetor Flange
Square/4150
Carburetor Quantity
2
Carburetor Studs Included
No
Category
Sniper Intake Manifolds SP
CNC Ported
No
Color
Black
Construction
Fabricated

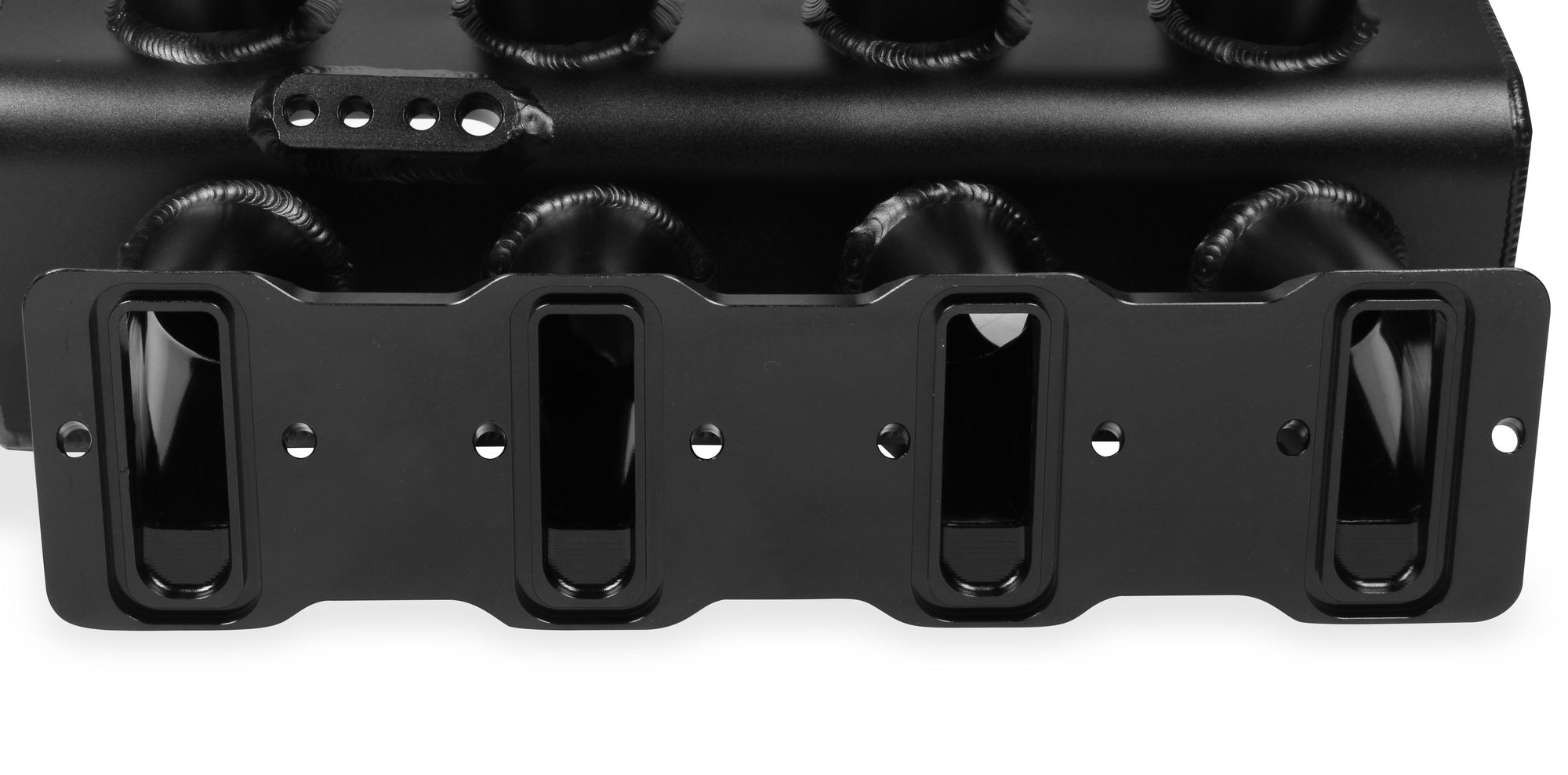

Cylinder Head Port Shape
Cathedral
Deck Height
9.24
EGR Port
No
Emission Code
4
Flange Size
4150
Flange Style
4150 Square Bore
Front Maximum Height
9.015
Fuel Injectors Included
No
Fuel Rail(s) Included
No
Fuel System Type
Carb
Gasket Or Seal Included
Yes
Grade Type
Performance

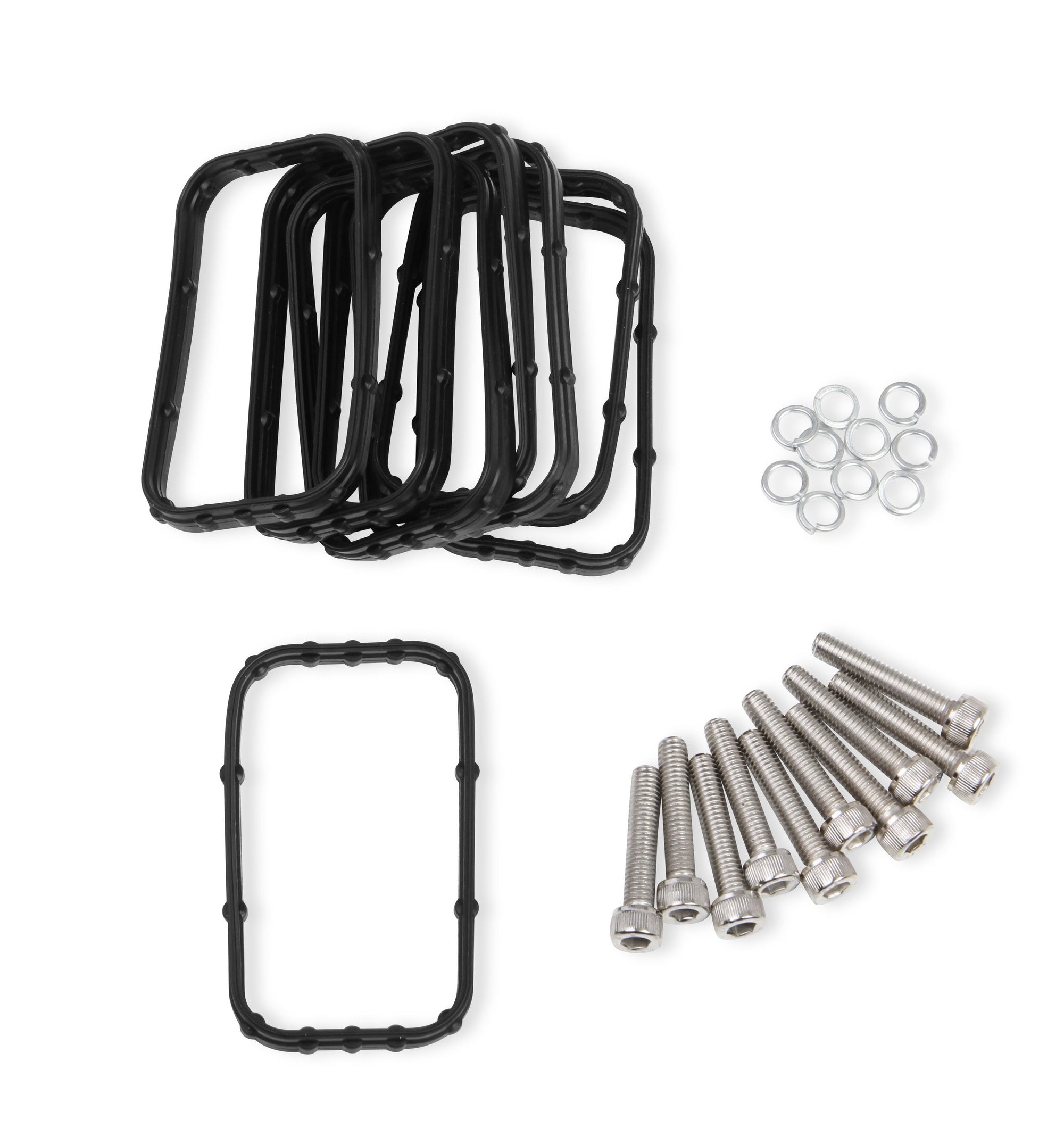

Intake Port Gasket(s) Included
Yes
Material
Aluminum
Nitrous Bung(s) Included
No
Part Type
Engine Intake Manifold
Plenum Finish
Black
Product Type
Intake Manifold
Prop 65 Yes/No
Yes
Rear Maximum Height
9.015
Removable Runners
No
Removable Top/Lid
No
Runner Length
4.921" (125mm)
Single Or Dual Plane Type
Single Plane
Style
Carbureted
Throttle Body Bore Diameter
3.6
Throttle Body Gasket Included
No
Throttle Body Included
No
Vacuum Ports
(3) 1/8"-28BSPT & (1) 1/4"-19BSPT
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
CN
⚠ Prop 65 Warning
Yes
1
Emissions Code
4
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
21.0 × 15.2 × 10.8 in
Shipping Dimensions
21.0 × 15.2 × 10.8 in
Weight
5715 g (5.72 kg)
