Holley Sniper EFIPart 825131Made in CN
Product Details
⚙️
Vehicle Fitment & Compatibility
View all 0 vehicle applications
Years
Make / Model
Submodel
Engine
1900
No applications match your search.
⭐
Key Features
Not Compatible with Large Cap HEI Distributors
Each manifold is ready to bolt-on out of the box (including a high-flow fuel rail kit for EFI versions). These manifolds are precision fixtured and welded for a perfect fit and maximum structural integrity. | Holley Sniper continues to push the aftermarket by introducing fabricated carbureted and EFI intake manifolds for GM Small Block and LS along with Ford 4.6 Modular 3-valve and 5.0L Coyote engines. These performance sheet metal intakes are great looking and an excellent value compared to other fabricated intake manifolds.

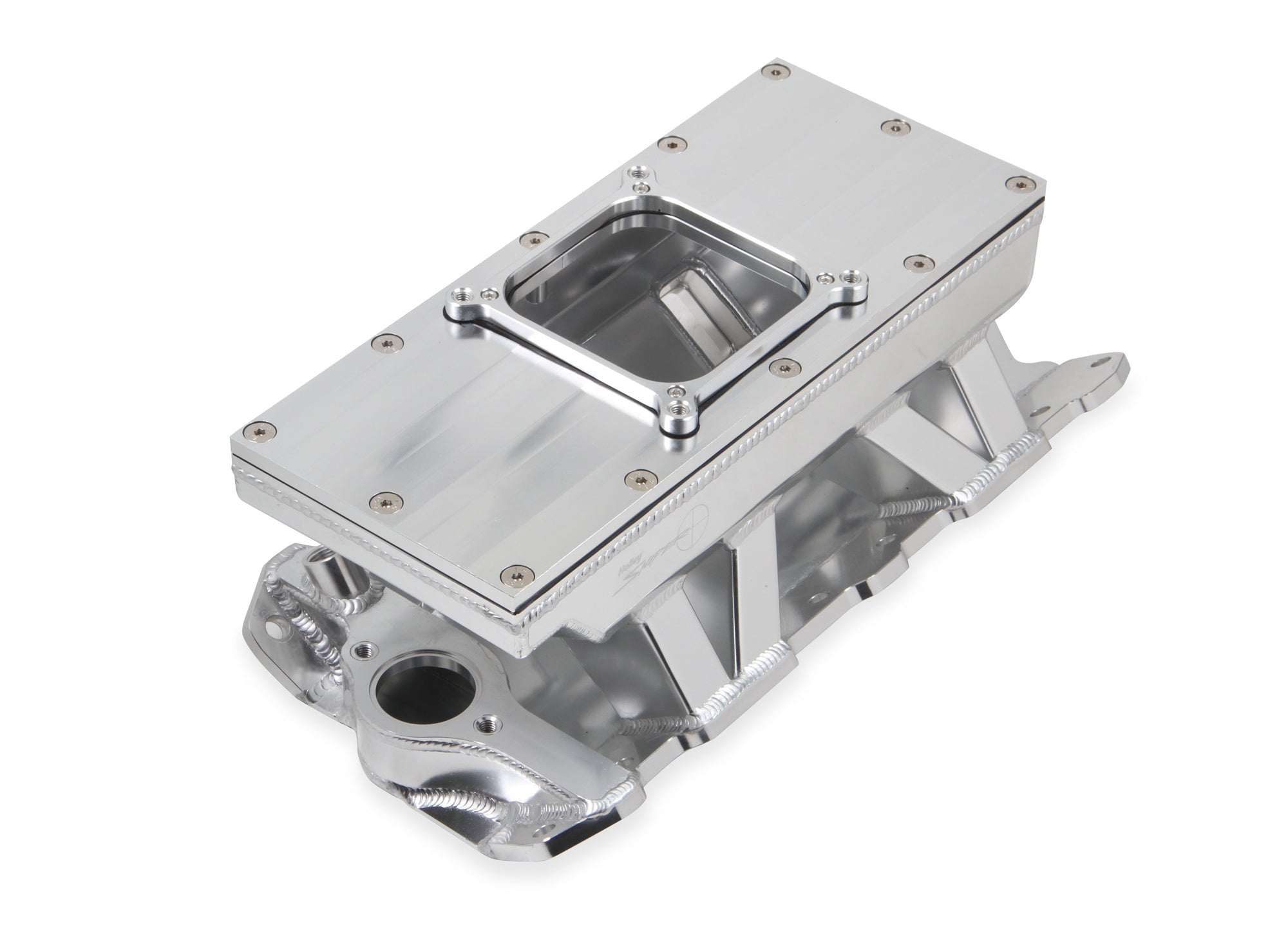

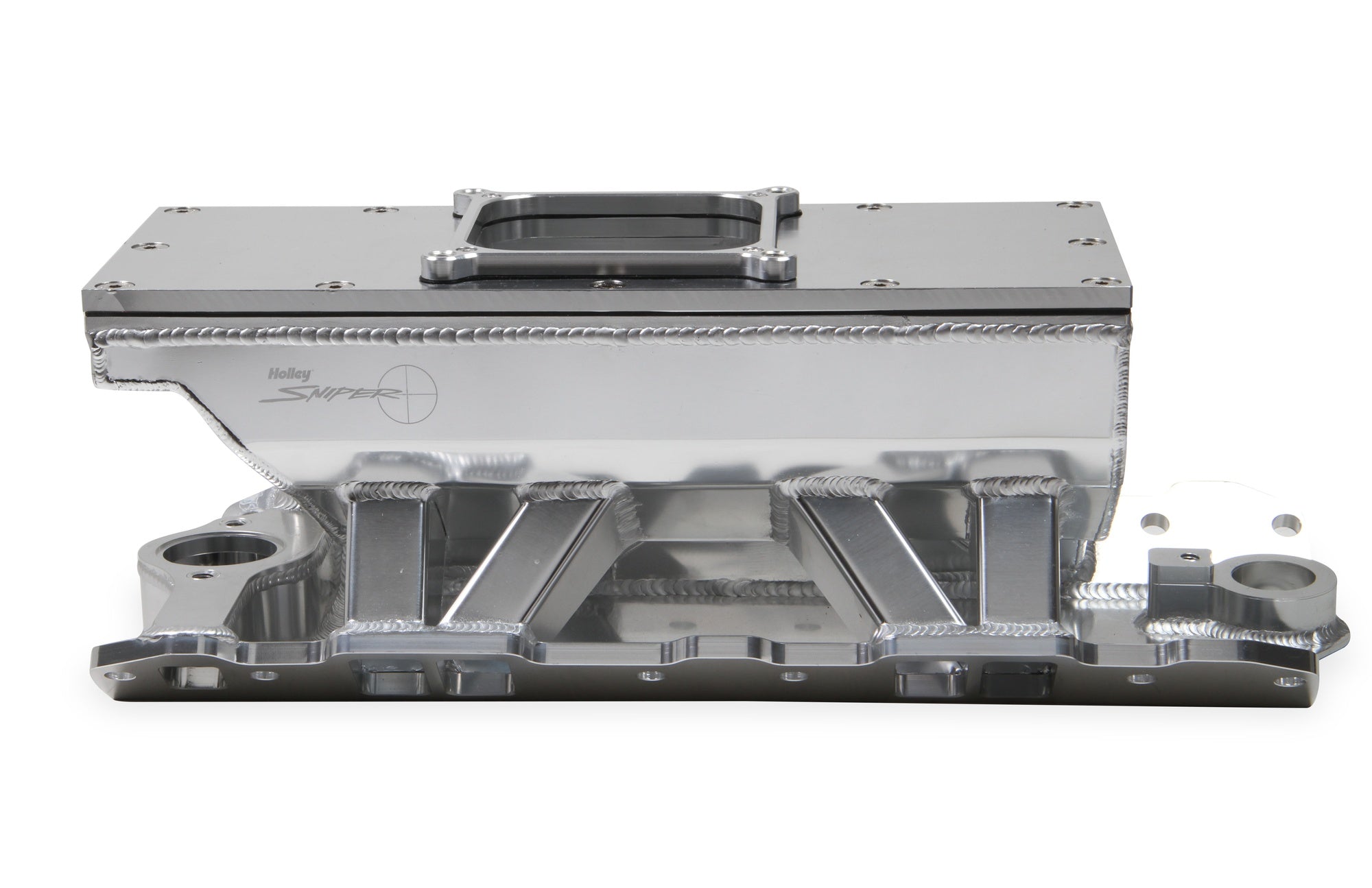

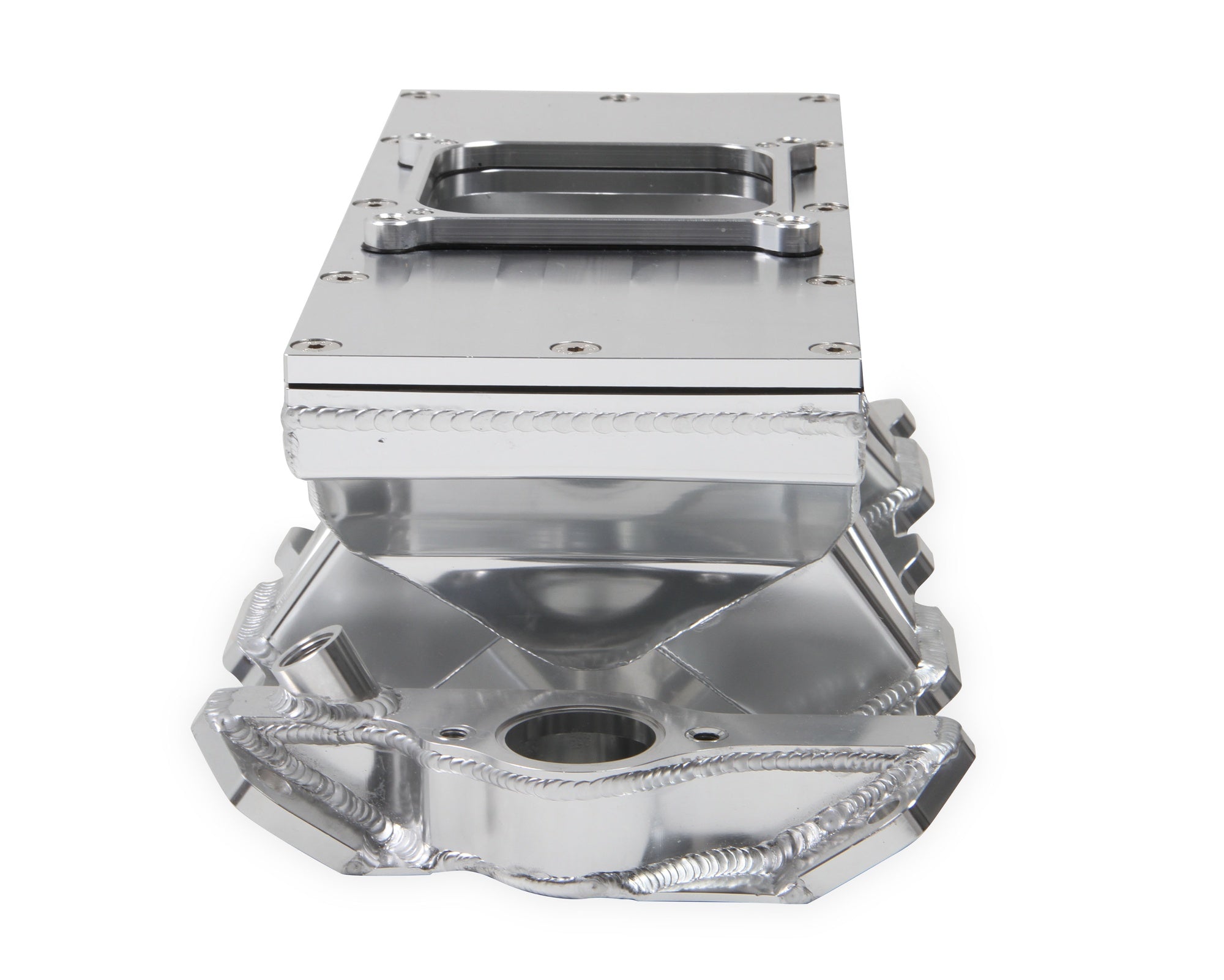

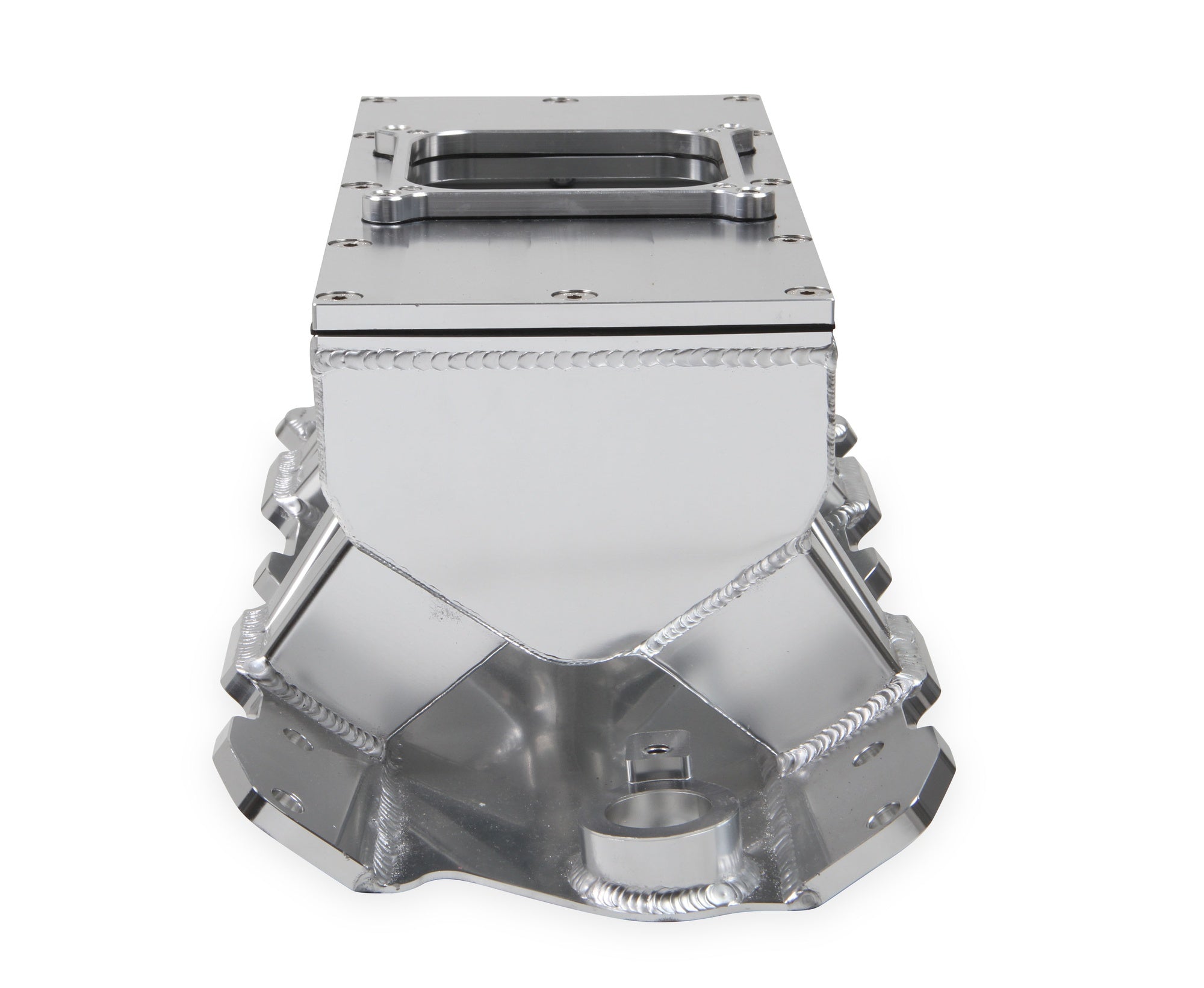

Fabricated Intake Manifold SBC Single Plane Carbureted (4500 style flange changeable plate) Silver with Sniper logo
- 100% TIG welded
- Runner lengths with tapered top on EFI intakes designed to increase velocity and more evenly distribute airflow to all 8 cylinders
- Available in Silver and Black Finishes
- 3mm (1/8") thick T6061 Sheet Aluminum construction, strong and durable even under high horsepower and boosted conditions
- EFI Intakes include 3/8" Fuel rail kits with -8A fittings and crossover braided line capable of supporting 750+ horsepower (w/ laser engraved Sniper EFI logo)
- Expanded Designs to accommodate (1 x 4150) & (2 x 4150) carbureted applications for GM LS7, Ford 4.6L 3-valve Mod-Motor, and Ford 5.0L Coyote platforms
- NEW “Modular” Removable Top Plates options for Small Block Chevy now available (1 x 4150, 2 x 4150, and 1 x 4500 flange options)
📖
About this product
Fabricated Intake Manifold SBC Single Plane Carbureted (4500 style flange changeable plate) Silver with Sniper logo
📋
Product Specifications
Automotive Item Grade
Performance
Basic Operating RPM Range
1800-7000
Brand
Holley Sniper EFI
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Carburetor Flange
Dominator/4500
Carburetor Quantity
1
Carburetor Studs Included
No
Category
Sniper Intake Manifolds SP
CNC Ported
No
Color
Polished
Construction
Fabricated
Cylinder Head Port Shape
Rectangle
Deck Height
9.025
EGR Port
No
Emission Code
4
Flange Size
4500
Flange Style
4150 Square Bore
Front Maximum Height
8.503
Fuel Injectors Included
No
Fuel Rail(s) Included
No
Gasket Or Seal Included
No
Grade Type
Performance
Intake Port Gasket(s) Included
No
Material
Aluminum
Nitrous Bung(s) Included
No
Part Type
Engine Intake Manifold
Plenum Finish
Polished

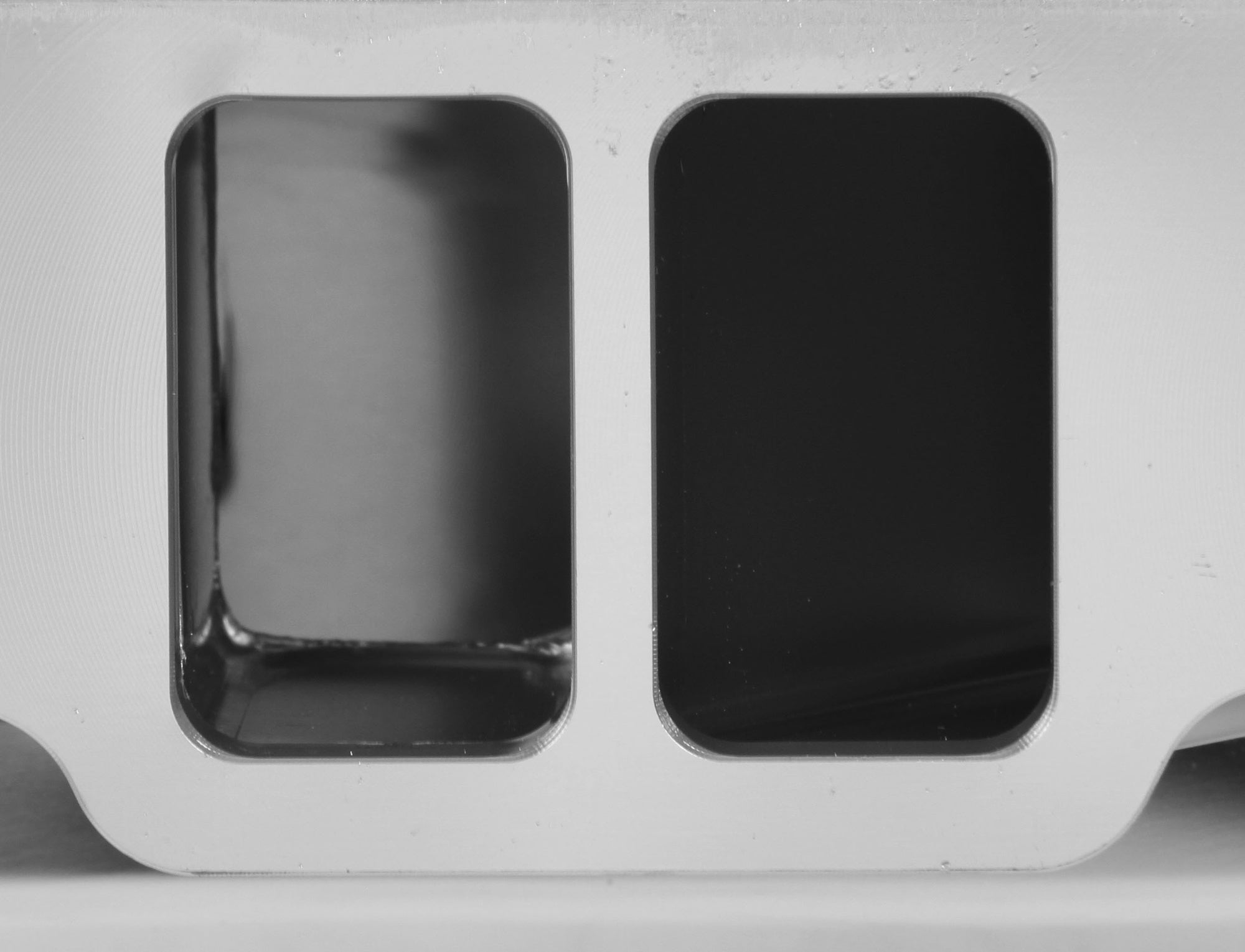

Port Size
1.90" x 1.15"
Product Type
Intake Manifold
Prop 65 Yes/No
Yes
Rear Maximum Height
8.503
Removable Runners
No
Removable Top/Lid
Yes
Single Or Dual Plane Type
Single Plane
Style
Carbureted
Throttle Body Bore Diameter
3.6
Throttle Body Gasket Included
No
Throttle Body Included
No
Vacuum Ports
None
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
CN
⚠ Prop 65 Warning
Yes
1
Emissions Code
4
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
22.9 × 12.2 × 10.4 in
Shipping Dimensions
22.9 × 12.2 × 10.4 in
Weight
6690 g (6.69 kg)
