Holley Sniper EFIPart 829082Made in CN
Product Details
⚙️
Vehicle Fitment & Compatibility
View all 0 vehicle applications
Years
Make / Model
Submodel
Engine
1900
No applications match your search.
⭐
Key Features
These Hi-Ram style intake manifolds are designed for high performance engine applications with maximum engine speeds of 7000-7500rpm (Carbureted) and 6800-7400rpm (Fuel Injected), depending on the engine combination. These manifolds are intended for maxim
Holley is now offering budget friendly fabricated intake manifolds for the popular Ford 4.6L 3v engine in carbureted and EFI versions!

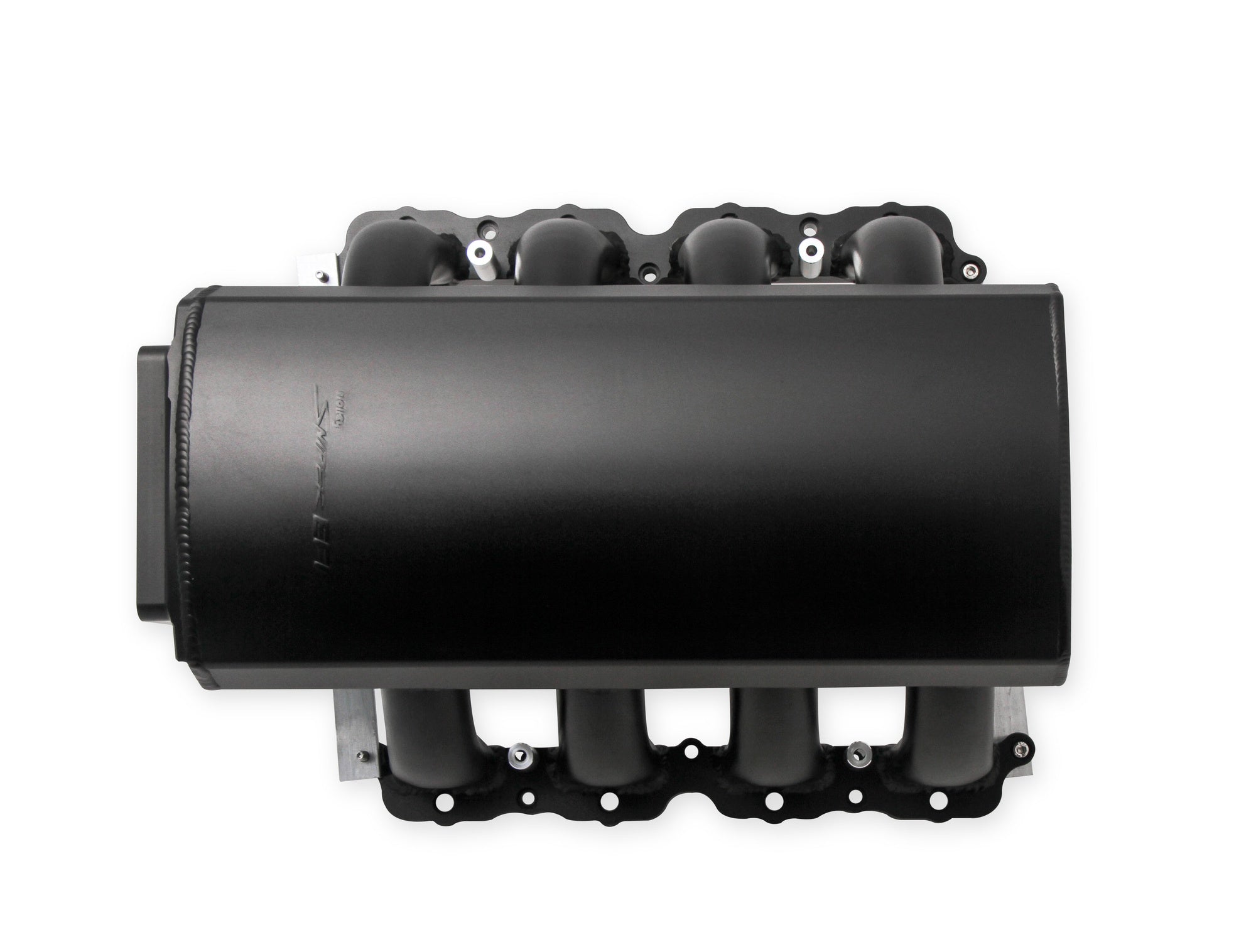

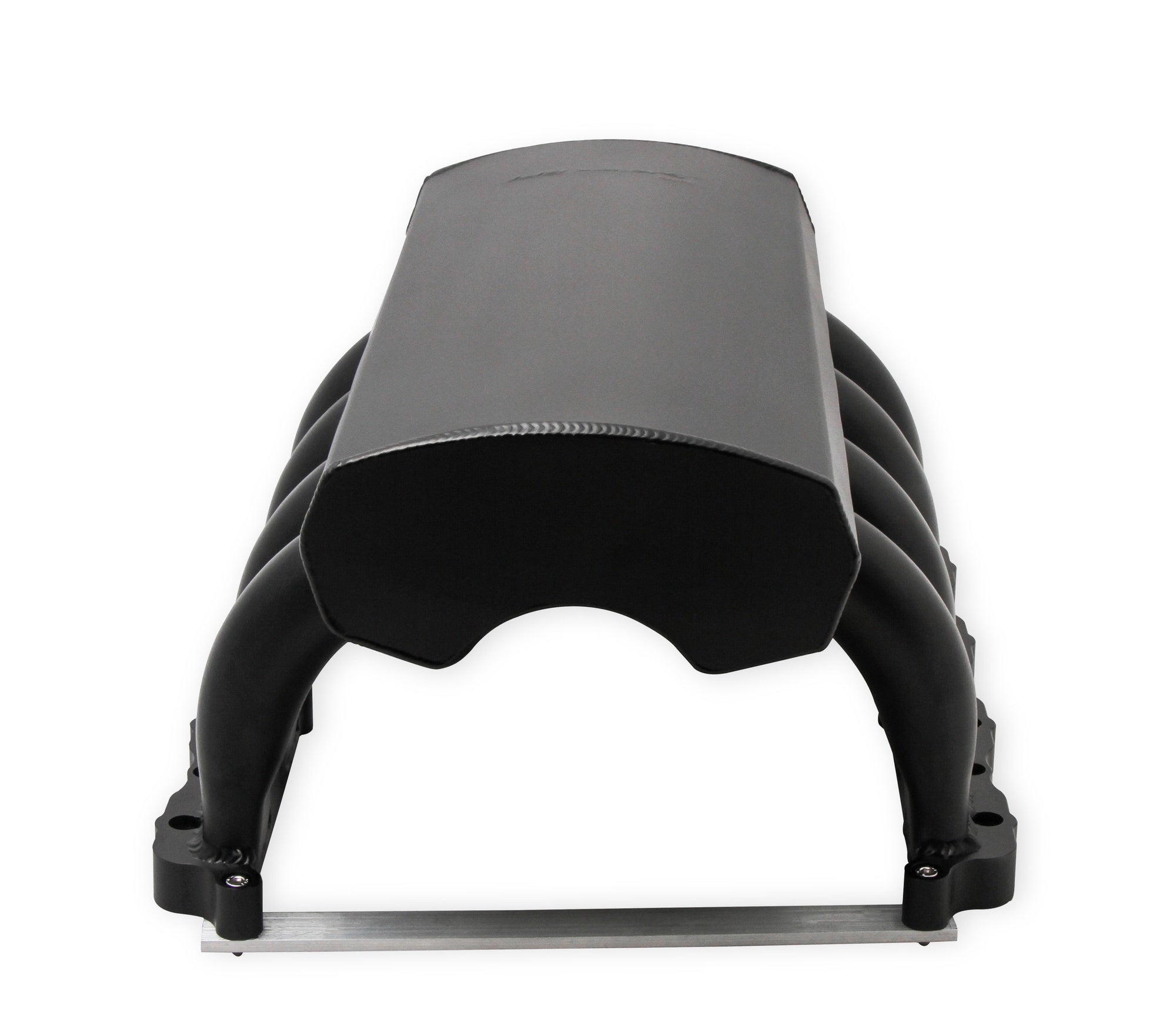

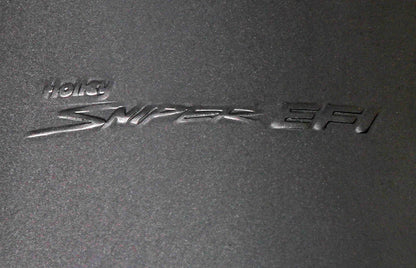

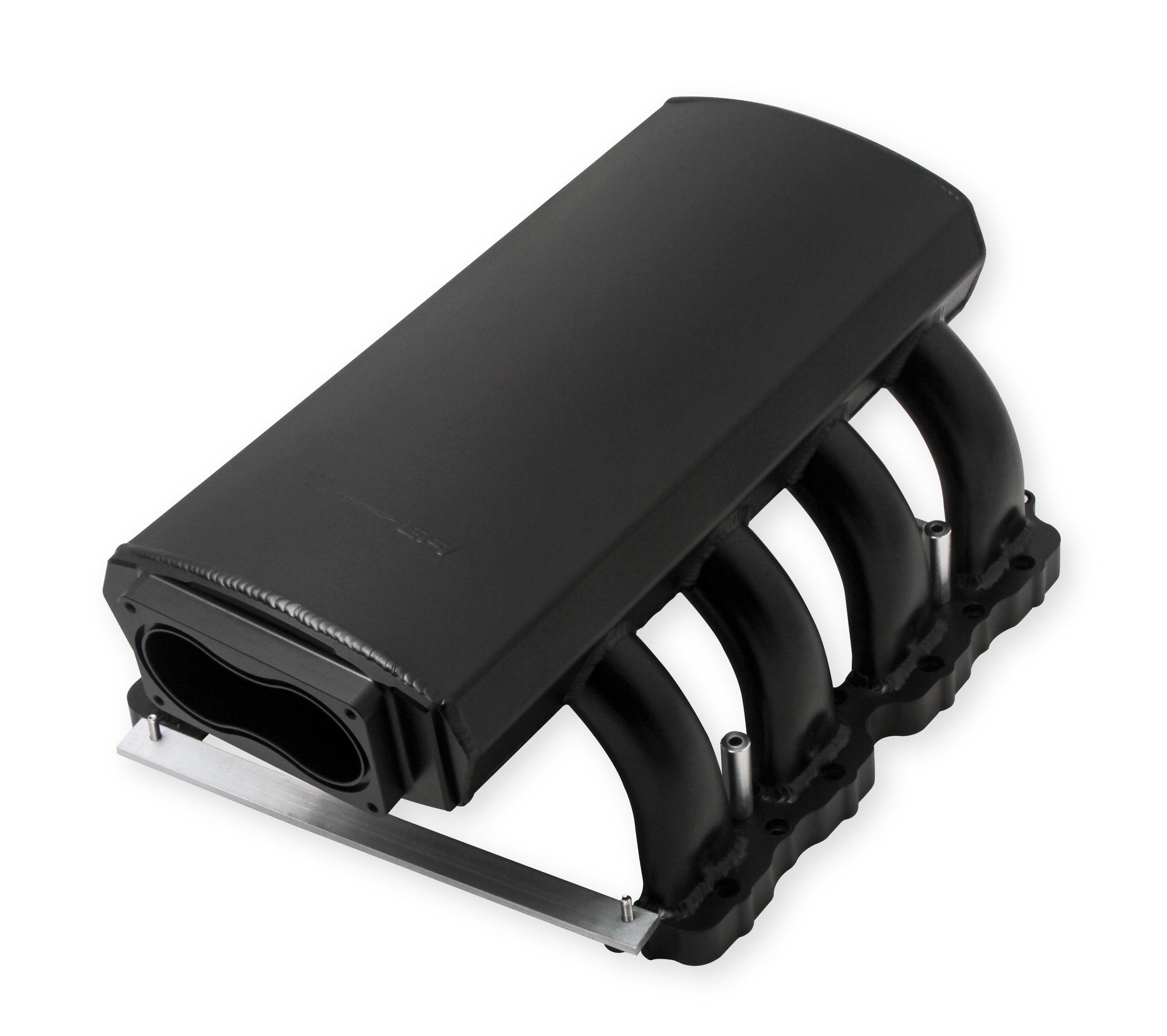

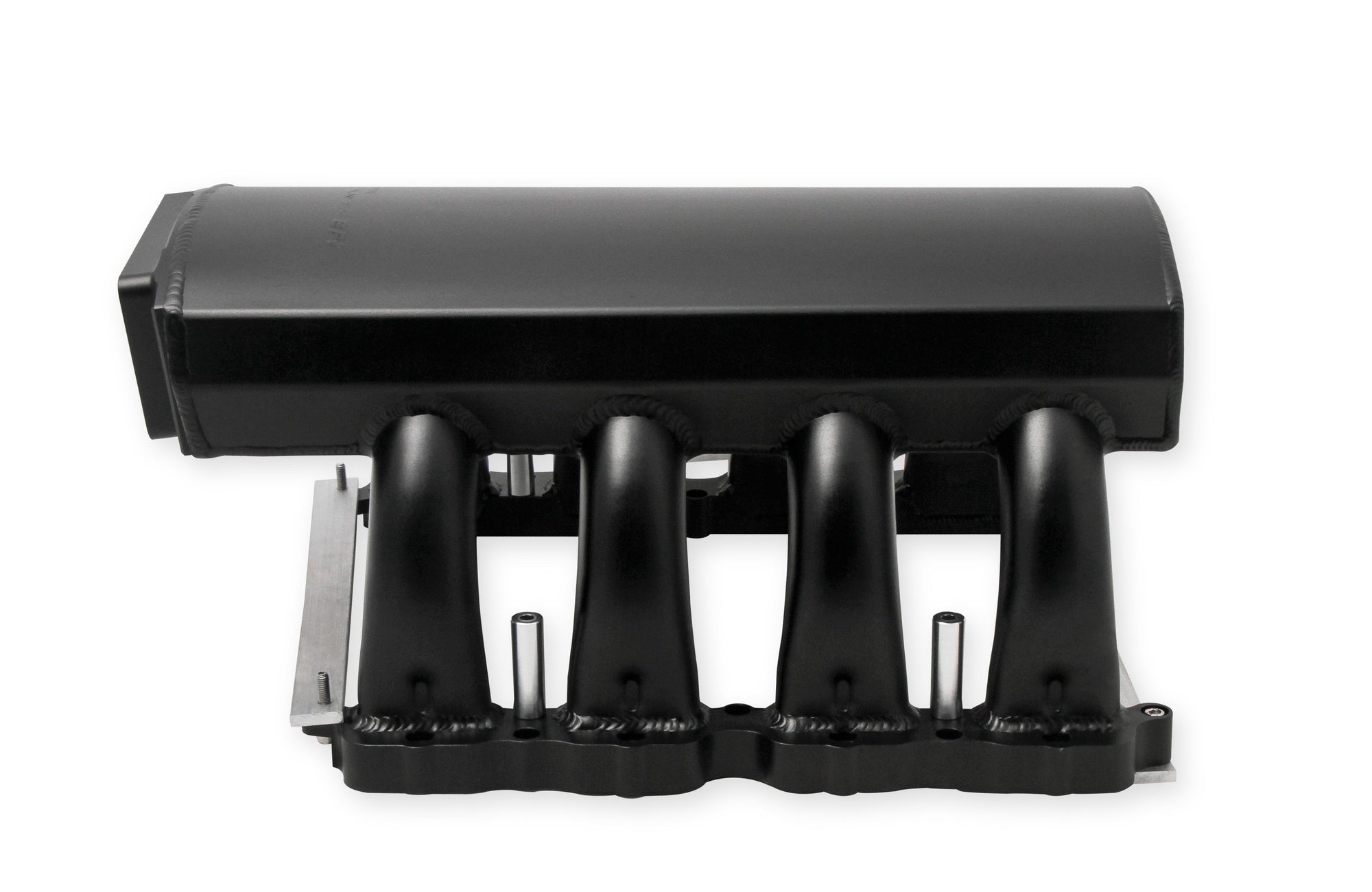

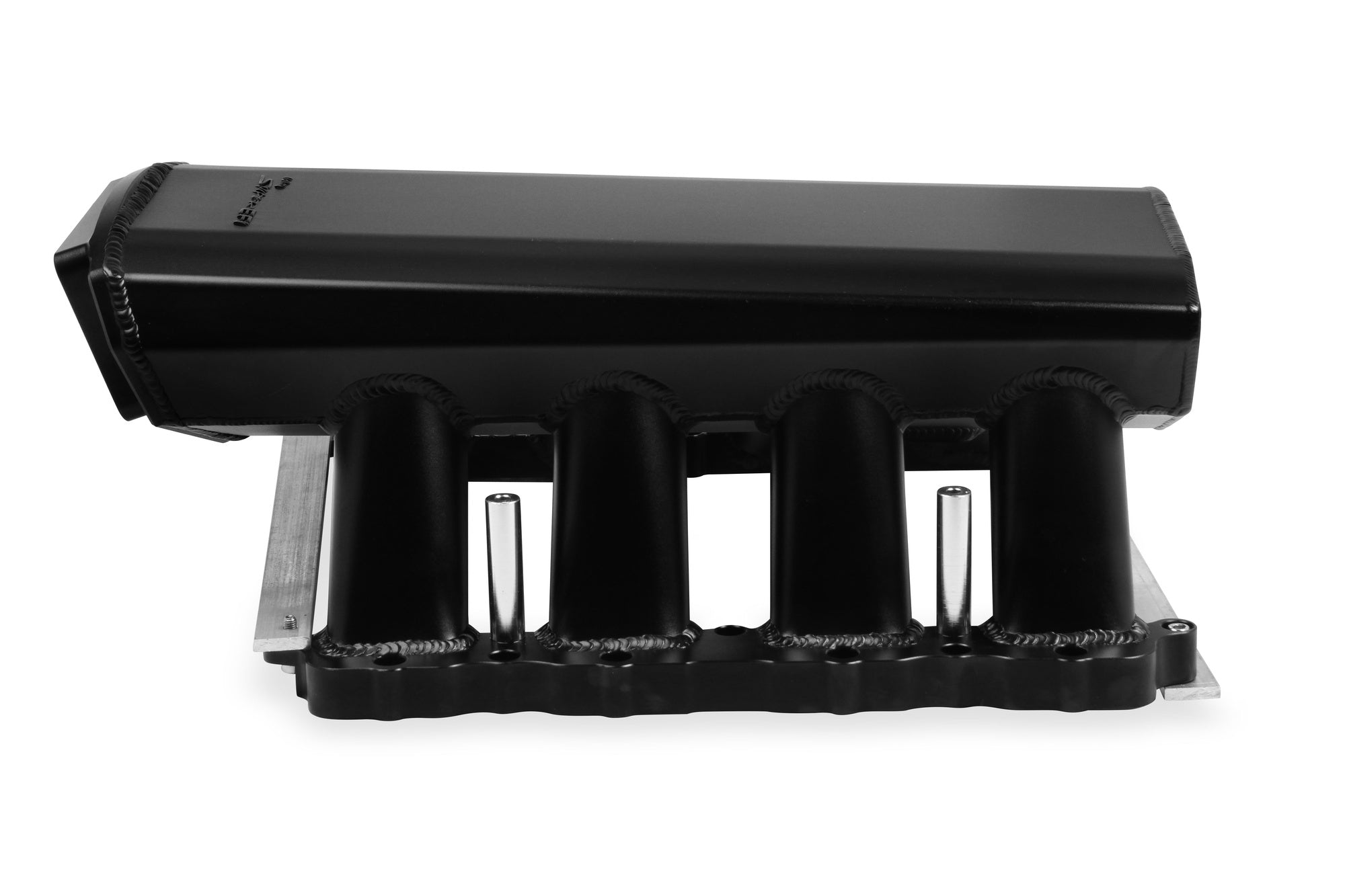

Hi-Ram Sheet Metal Fabricated Intake Manifold 2005-10 Ford 4.6L 3v 130mm Throttle Body opening + Fuel Rail Kit Black with Sniper EFI logo. PLEASE NOTE: Some OEM Style Throttle Bodies may require a Throttle Body Spacer (Sniper Part # 860006)
- Designed to use Ford Factory style twin 65mm Throttle Body

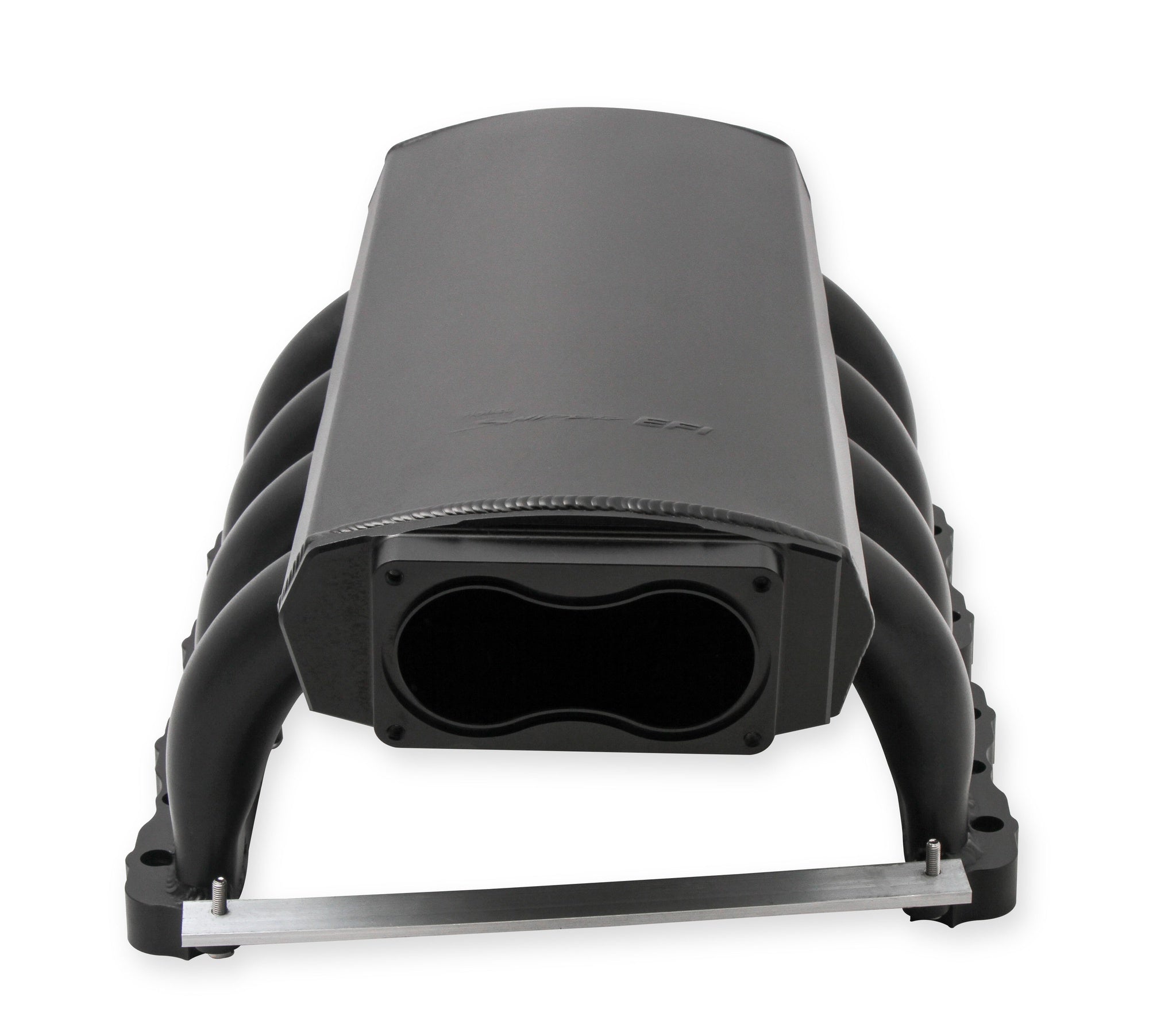

- Twin 65mm throttle bore opening for increased air flow
- 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability

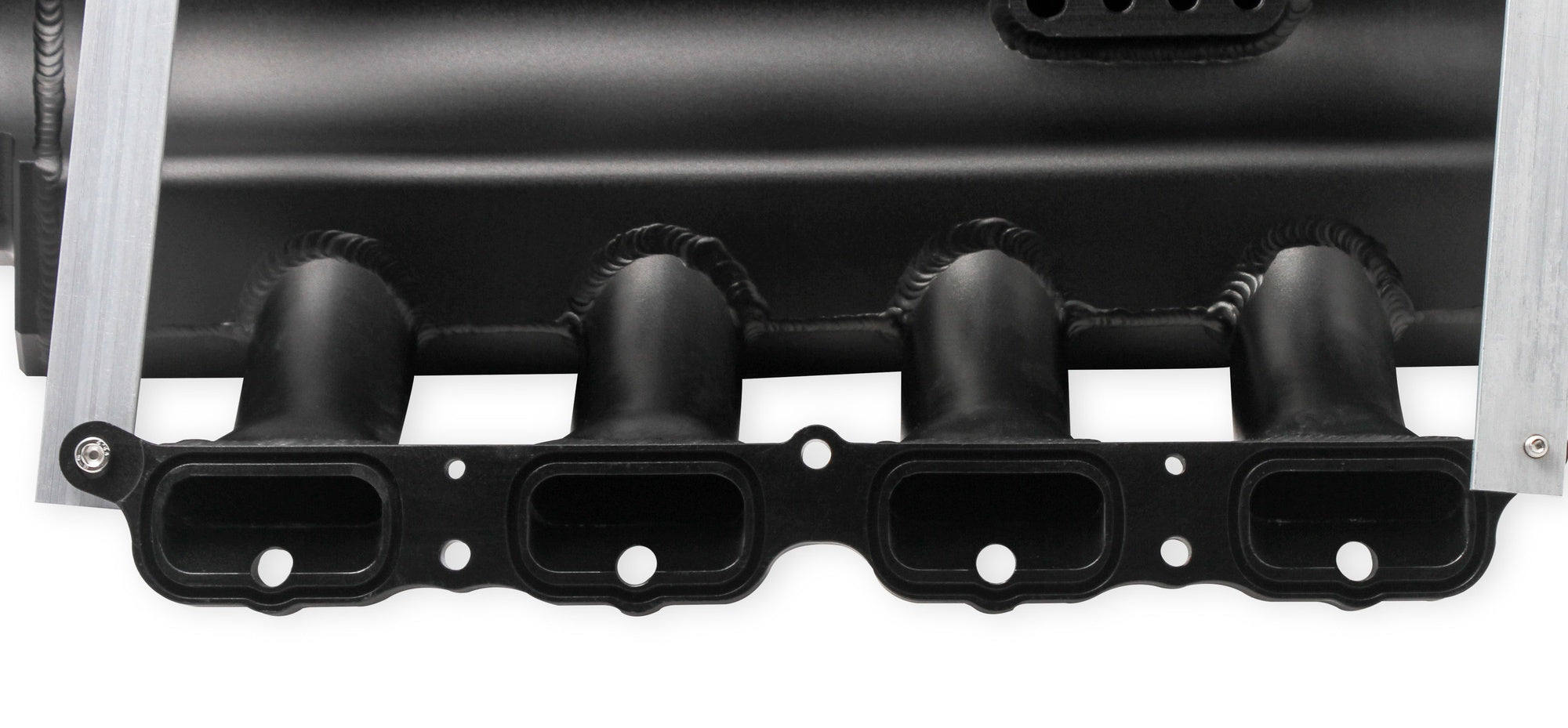

- Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response

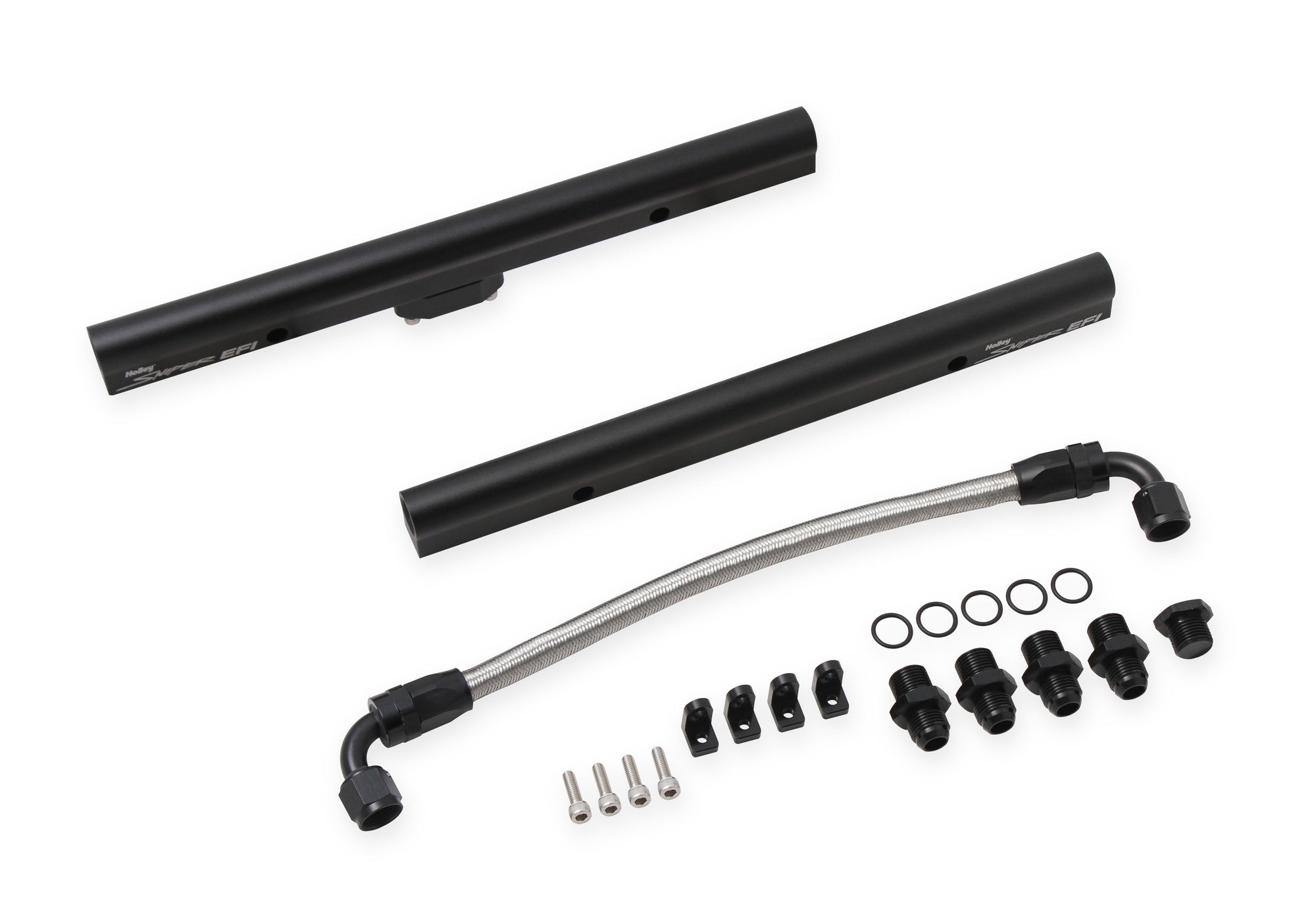

- Includes 3/8" Fuel rail kits (Sniper logo laser engraved)

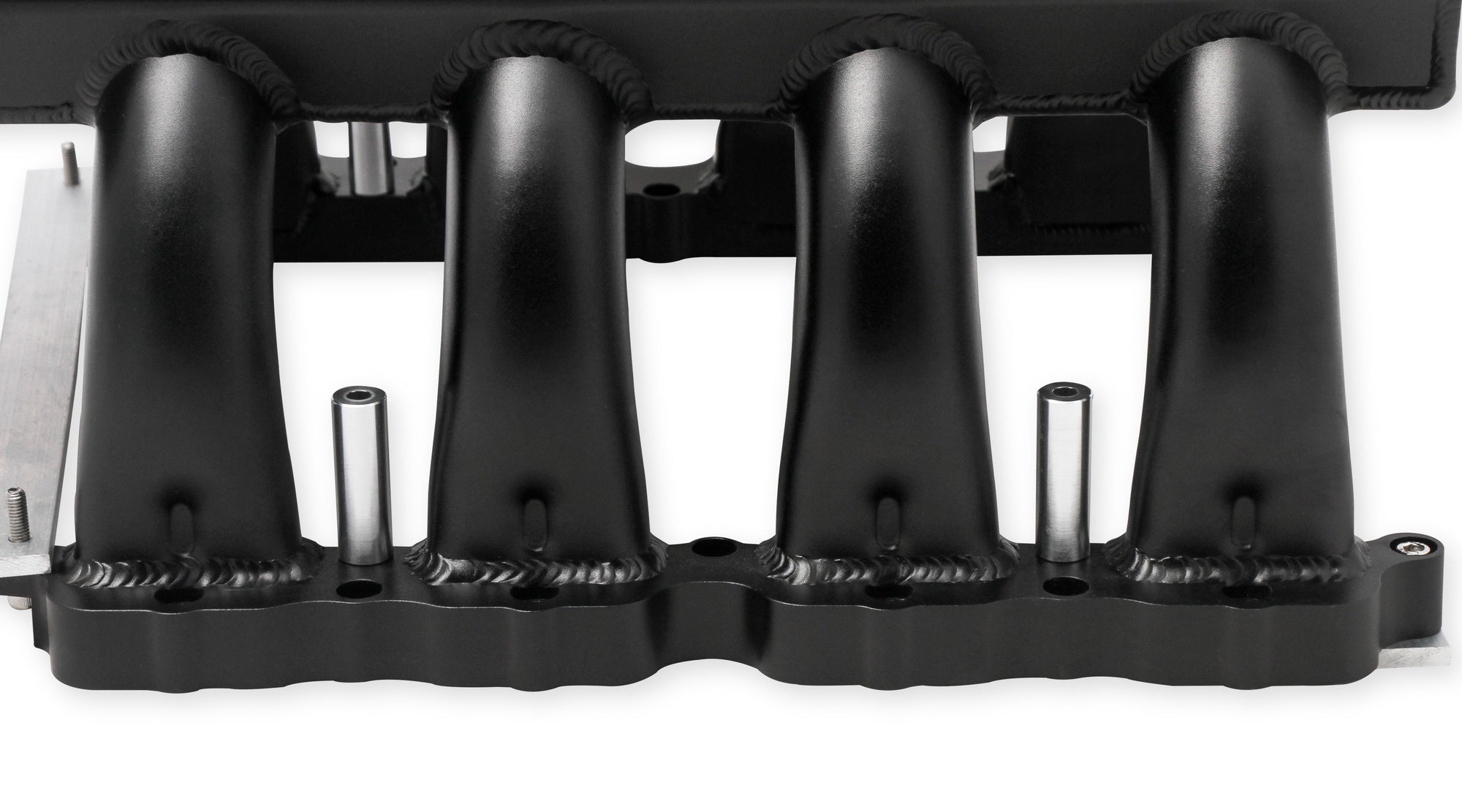

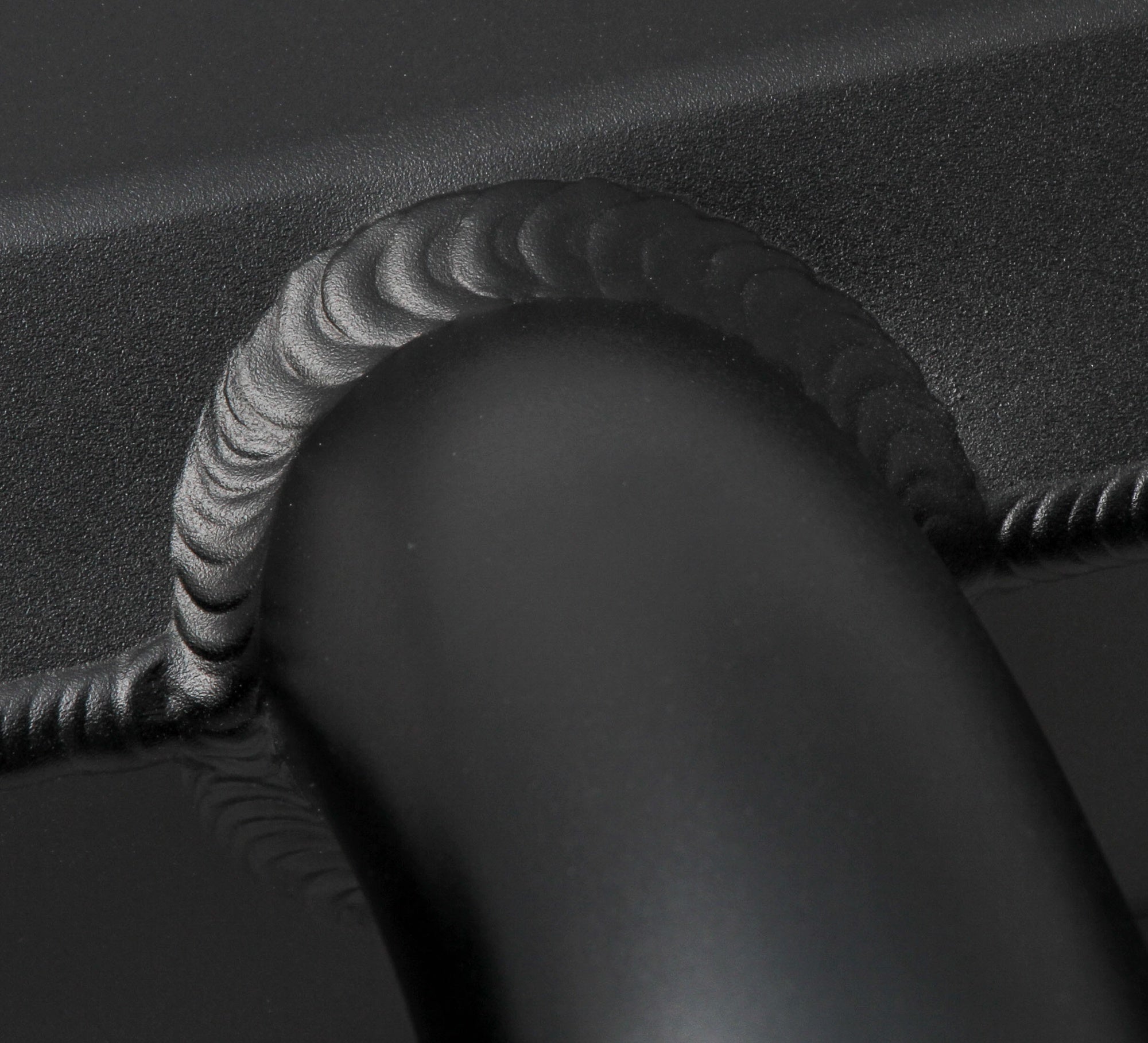

- 100% TIG welded for strength and durability
- The Sniper intake will only accept EV1 style injectors.
- Product includes all gaskets and hardware for a hassle-free installation

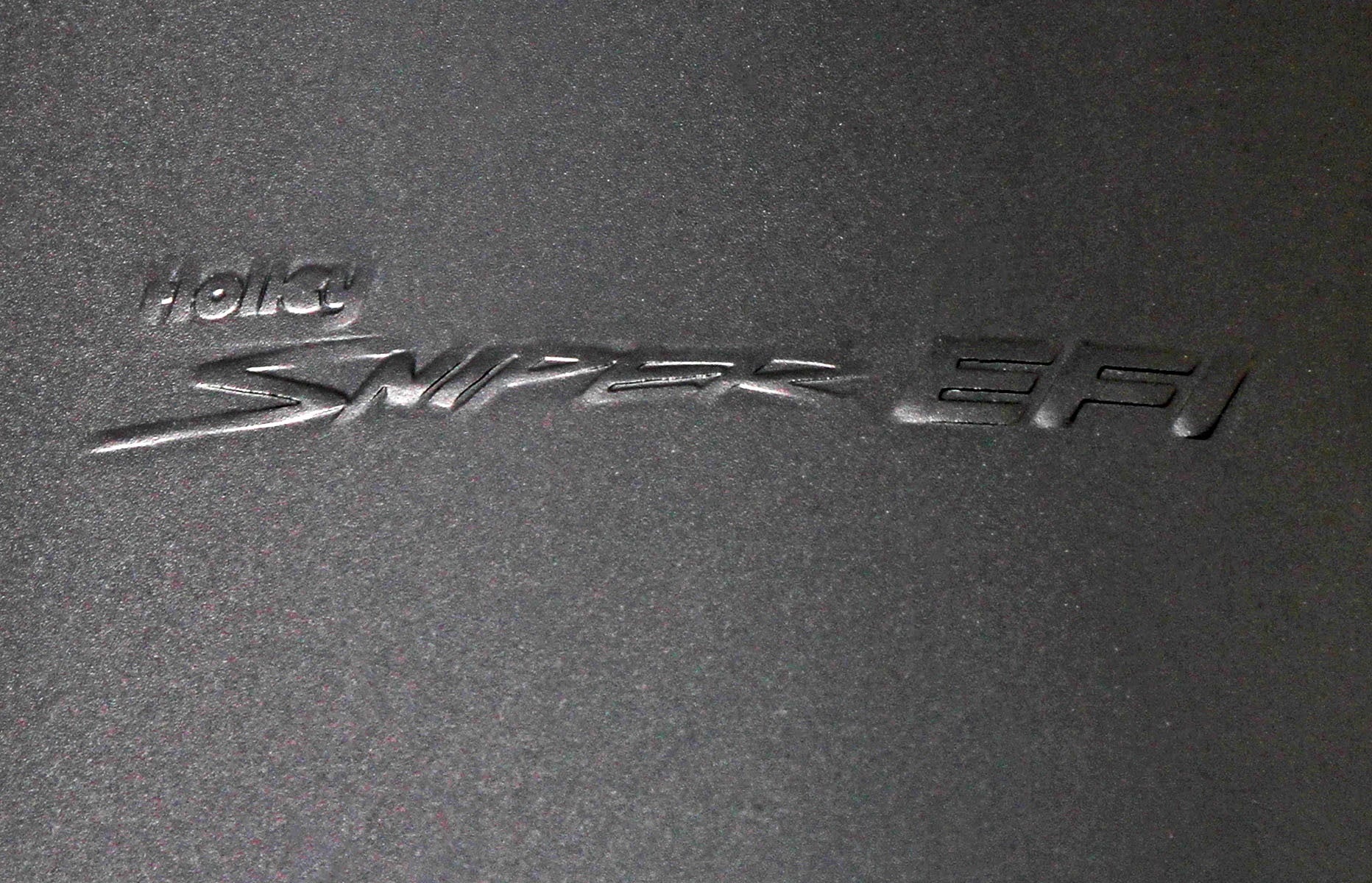

- Black Finish creates stealthy under-hood styling
📖
About this product
Hi-Ram Sheet Metal Fabricated Intake Manifold 2005-10 Ford 4.6L 3v 130mm Throttle Body opening + Fuel Rail Kit Black with Sniper EFI logo. PLEASE NOTE: Some OEM Style Throttle Bodies may require a Throttle Body Spacer (Sniper Part # 860006)
📋
Product Specifications
Automotive Item Grade
Performance
Basic Operating RPM Range
2200-6800
Brand
Holley Sniper EFI
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Carburetor Flange
N/A
Carburetor Quantity
N/A
Carburetor Studs Included
No
Category
Sniper EFI Intakes
CNC Ported
No
Color
Black
Construction
Fabricated

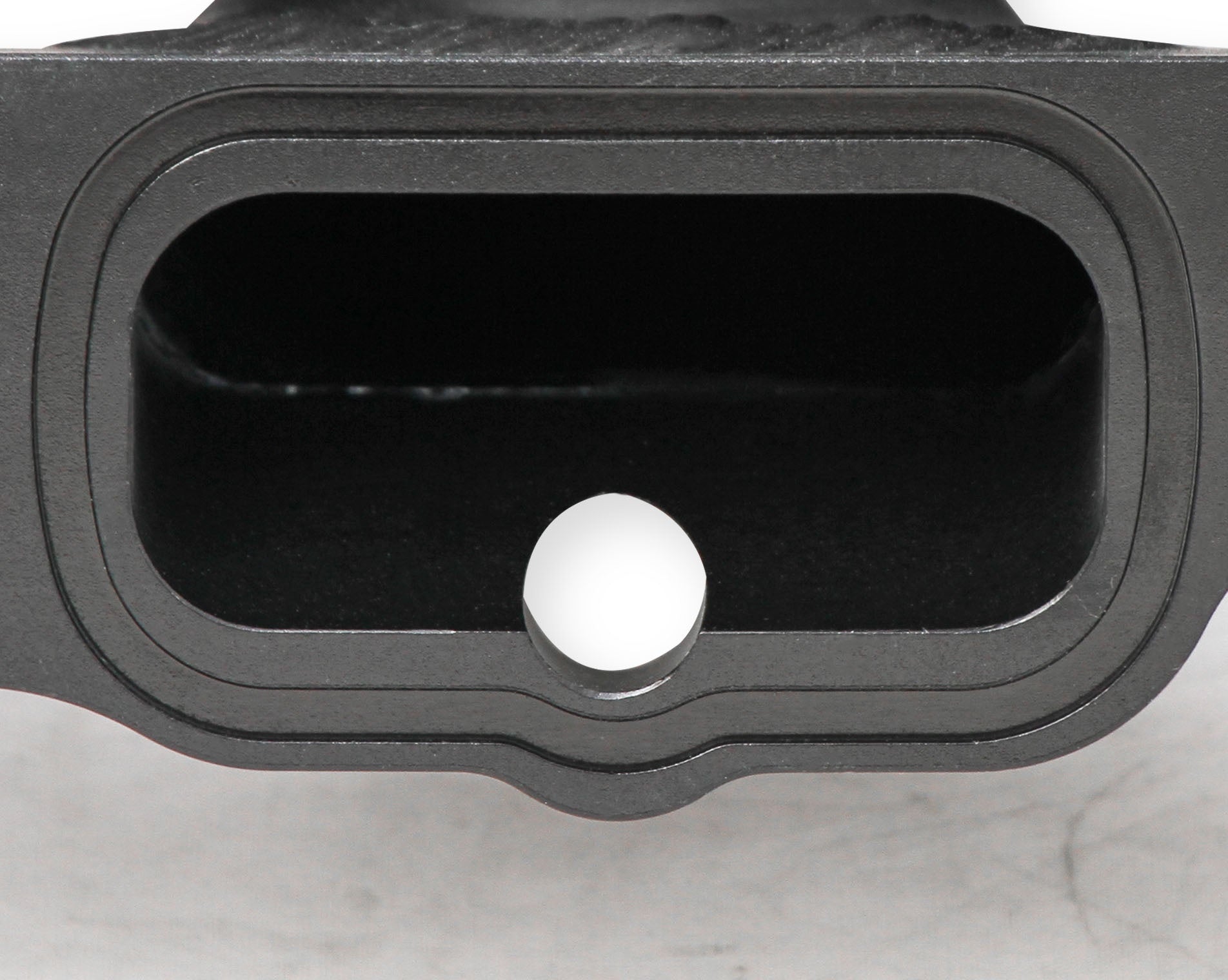

Cylinder Head Port Shape
Oval with dimple
Deck Height
8.937
EGR Port
No
Emission Code
4
Flange Style
N/A
Front Maximum Height
8.07
Fuel Injectors Included
No
Fuel Rail(s) Included
Yes
Gasket Or Seal Included
Yes
Grade Type
Performance
Injector Style Provision
EV-1
Intake Port Gasket(s) Included
Yes
Material
Aluminum
Nitrous Bung(s) Included
No
Part Type
Engine Intake Manifold
Plenum Finish
Black
Product Type
Intake Manifold
Prop 65 Yes/No
Yes
Rear Maximum Height
7.007
Removable Runners
No
Removable Top/Lid
No
Runner Length
5.709" (145mm)
Single Or Dual Plane Type
Single Plane
Style
EFI
Throttle Body Bore Diameter
130
Throttle Body Gasket Included
Yes
Throttle Body Included
No
Throttle Bore
130mm
Vacuum Ports
(3) 1/8"-28BSPT & (1) 1/4"-19BSPT
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
CN
⚠ Prop 65 Warning
Yes
1
Emissions Code
4
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
22.7 × 17.1 × 13.0 in
Shipping Dimensions
22.7 × 17.1 × 13.0 in
Weight
8528 g (8.53 kg)
