Holley Sniper EFIPart 835172Made in CN
Product Details
⭐
Key Features
Not Compatible with Large Cap HEI Distributors
Each manifold is precision fixtured and welded for a perfect fit and maximum structural integrity. They are ready to bolt on out of the box and offered in a single or dual 4150 or 4500 carb flange. | Holley Sniper Fabricated Manifolds continue to push the aftermarket by introducing intakes for Big Block Chevy Engines. These Intakes are good looking, perform well, and offer an extremely good value for a performance sheet metal style intake manifold.

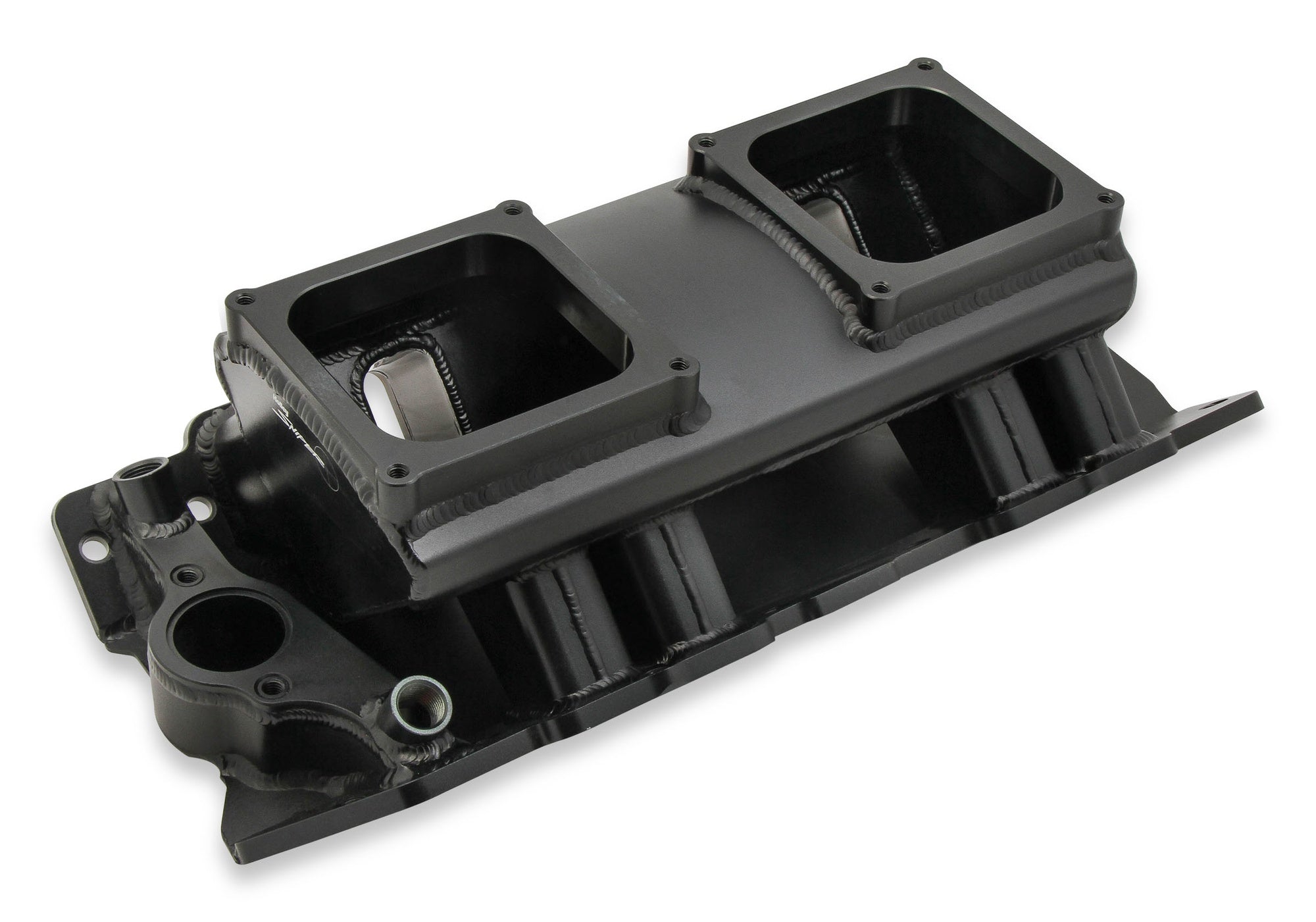

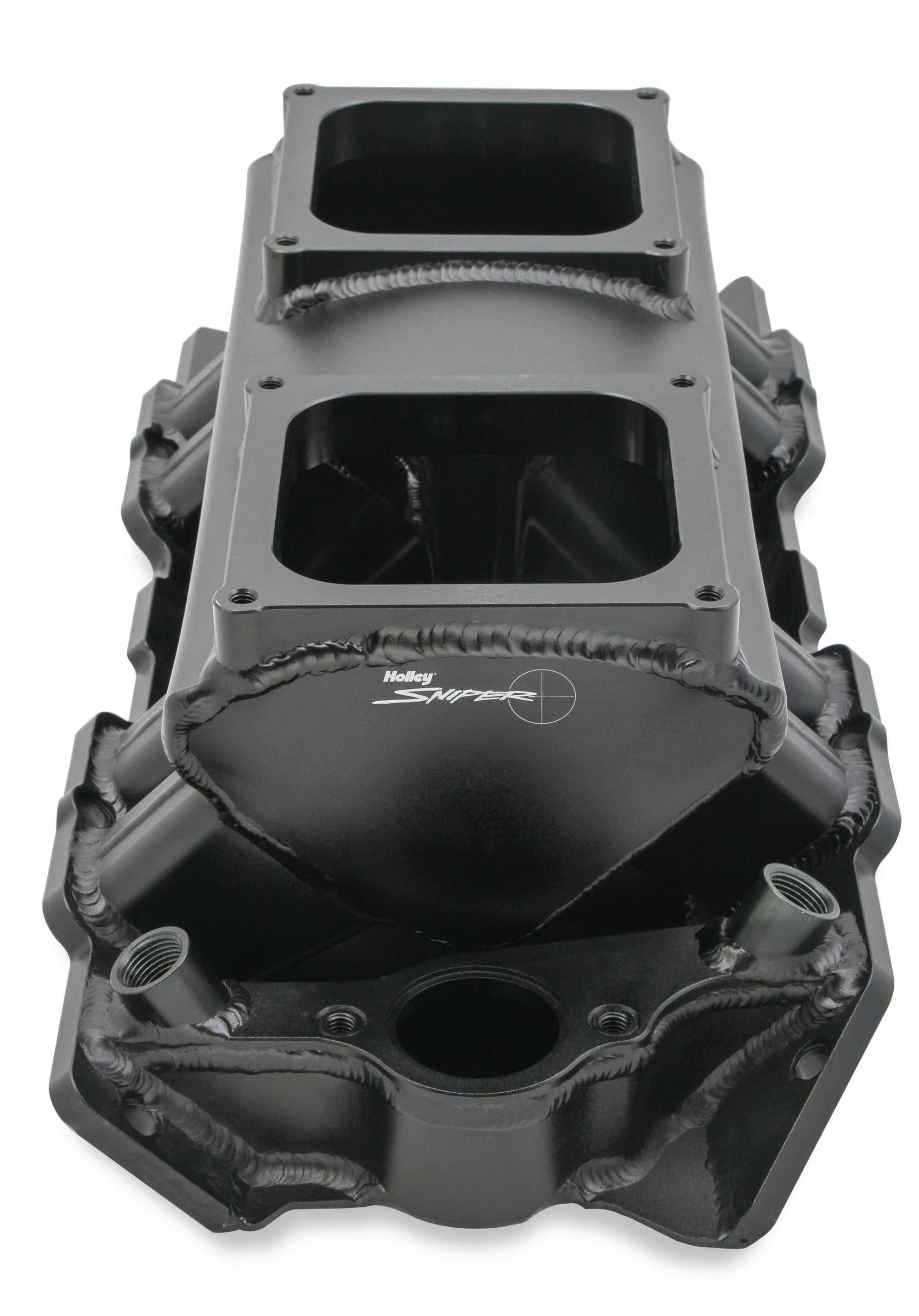

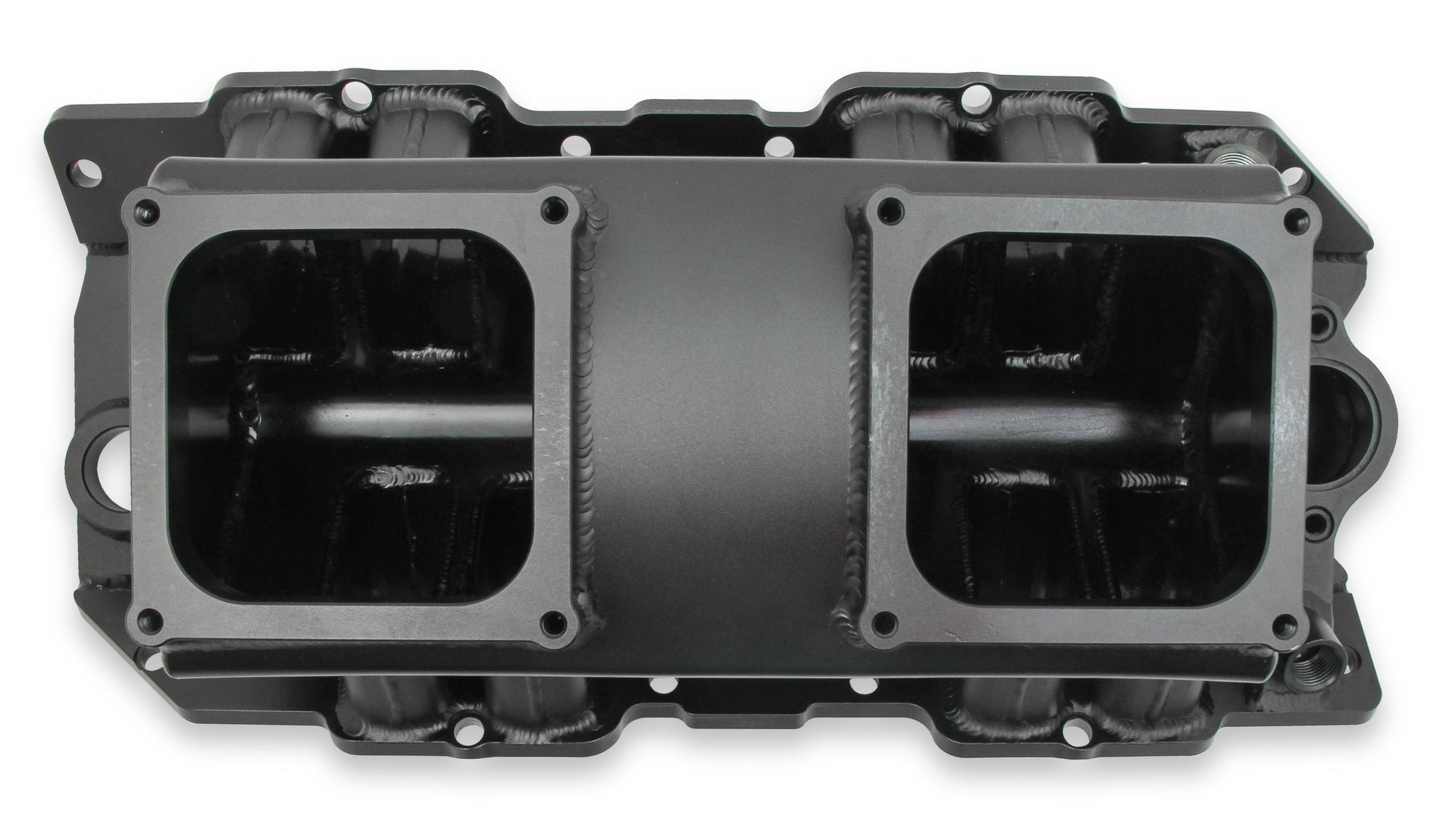

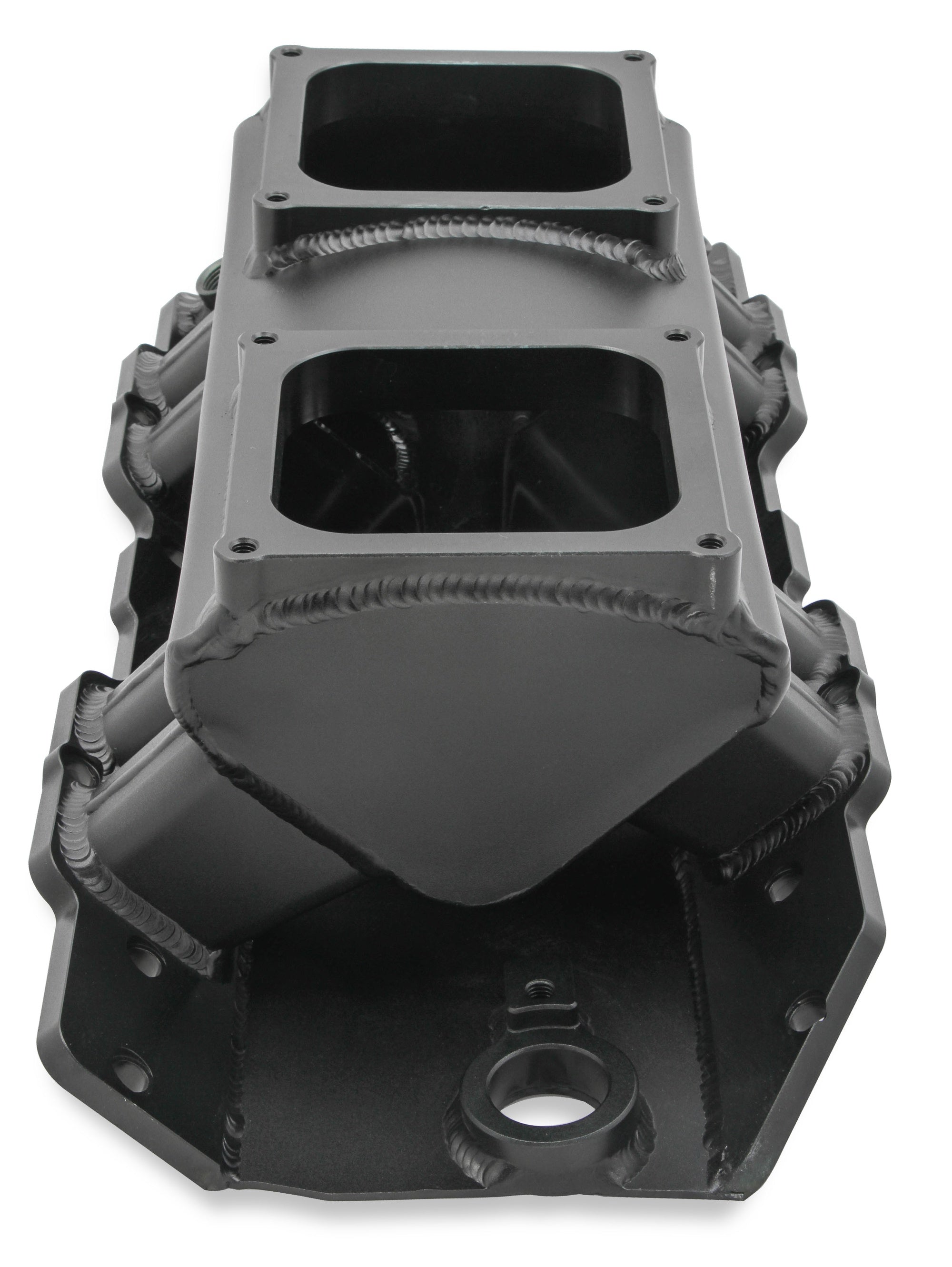

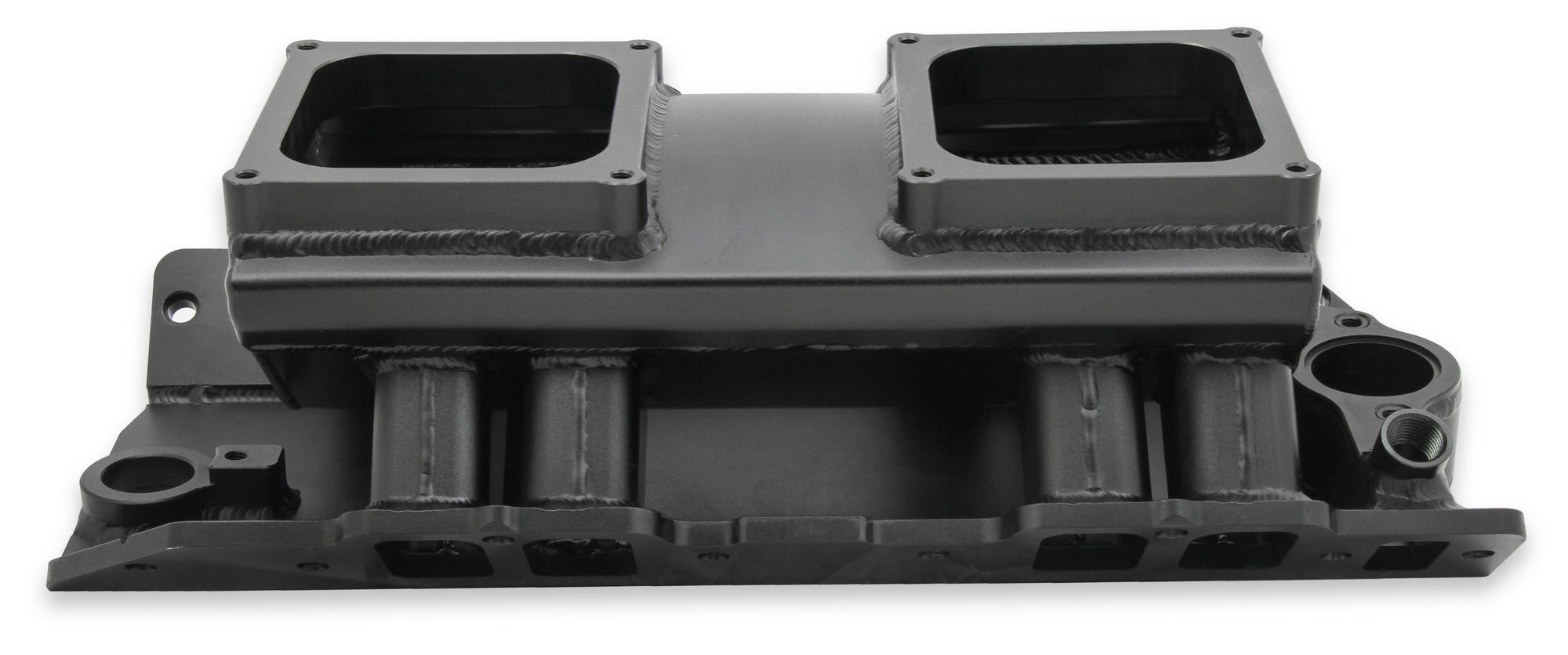

Fabricated Intake Manifold BBC Single Plane 2 x 4500 Black with Sniper Logo
- Choice of bright silver or black anodized finish

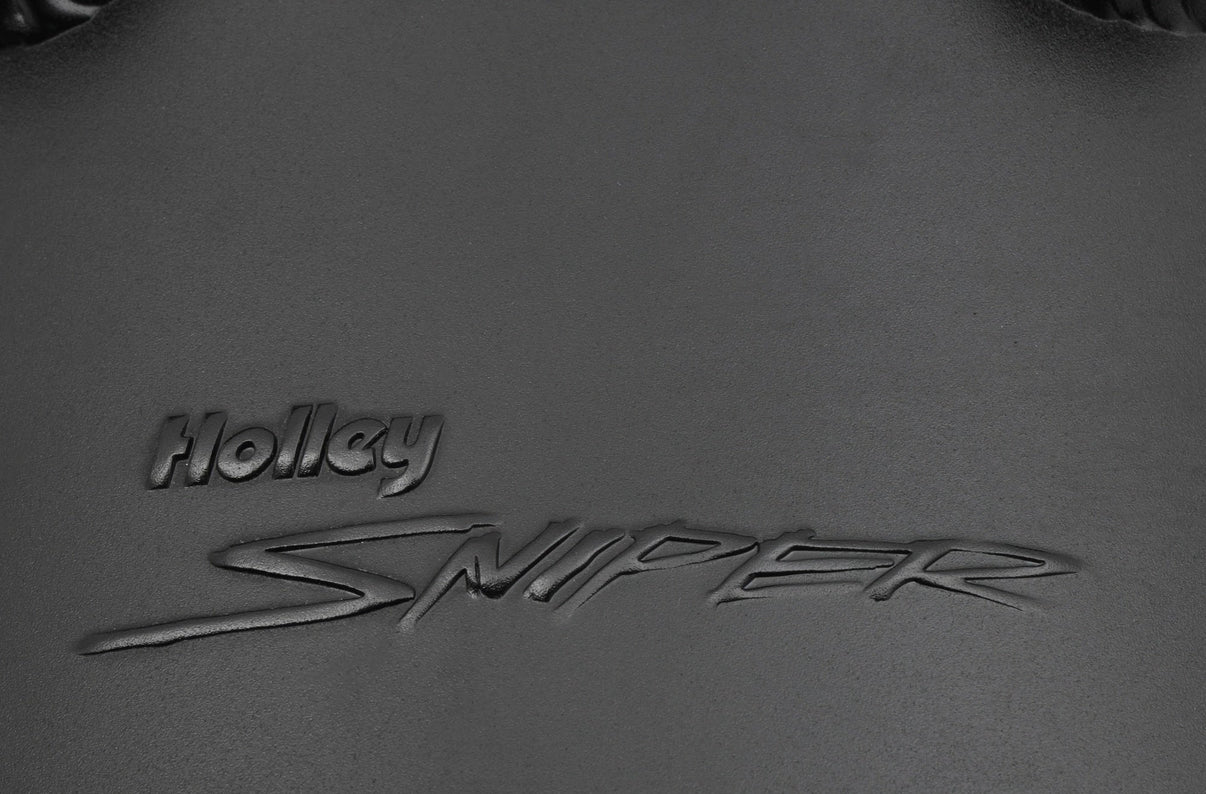

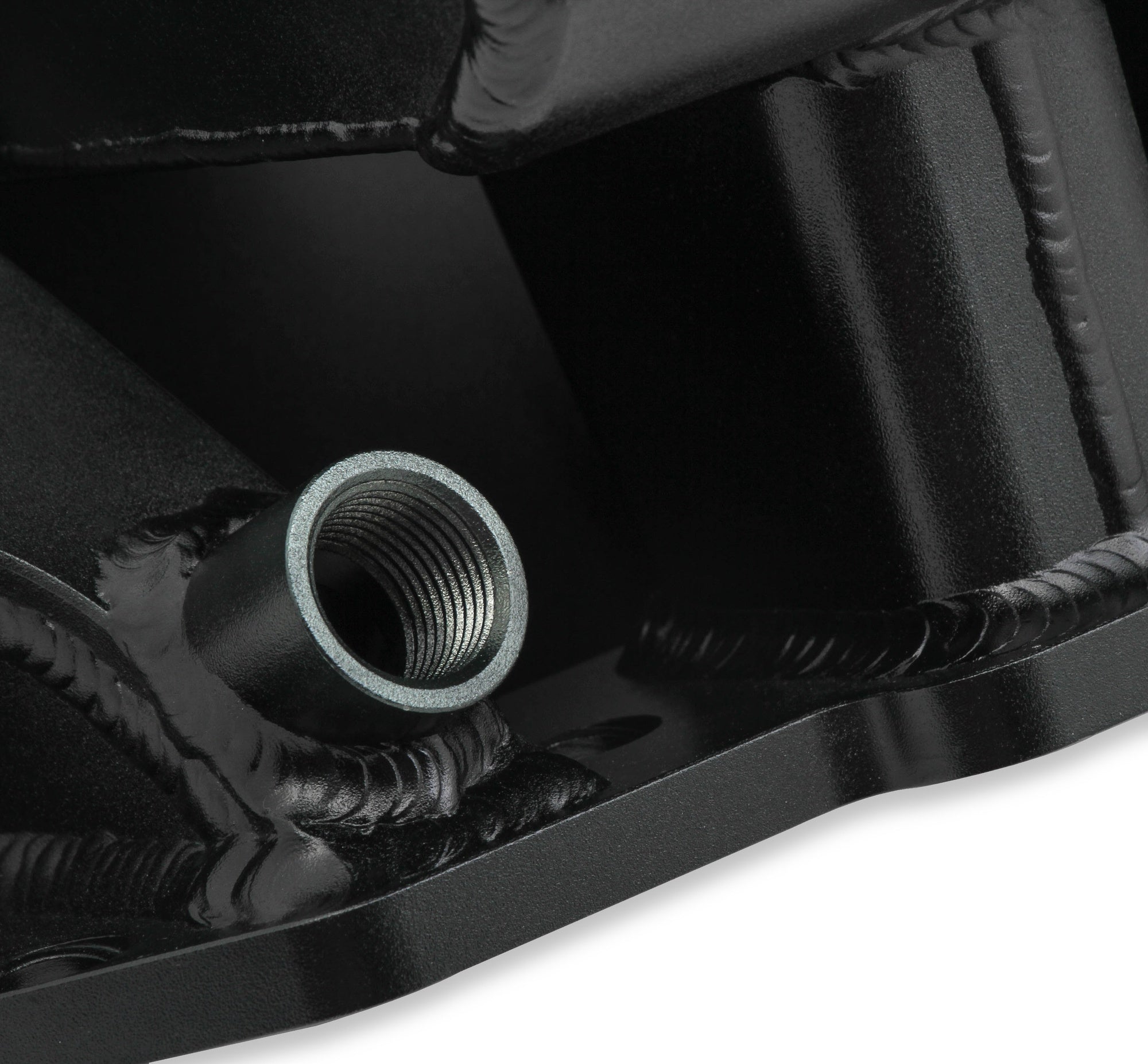

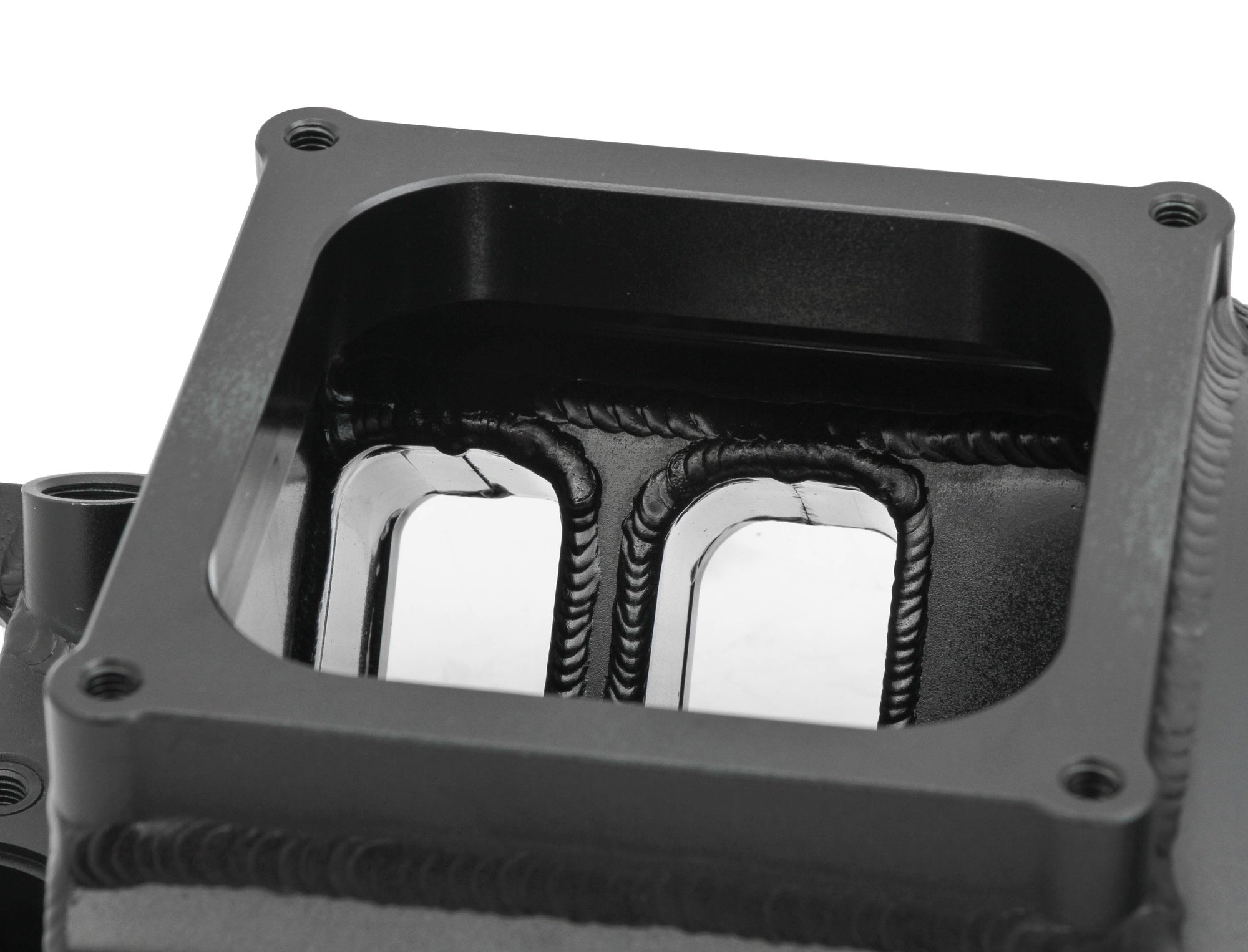

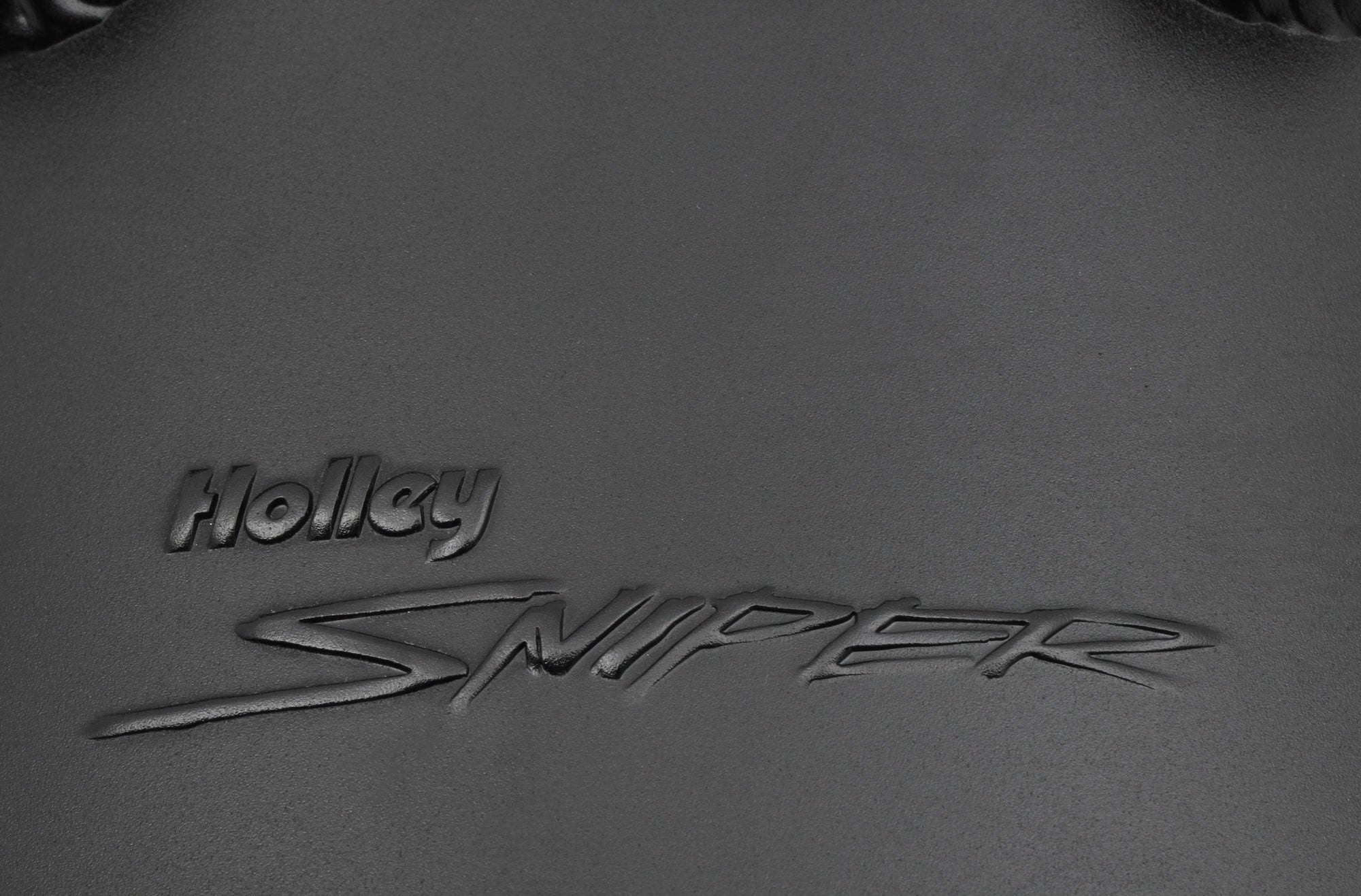

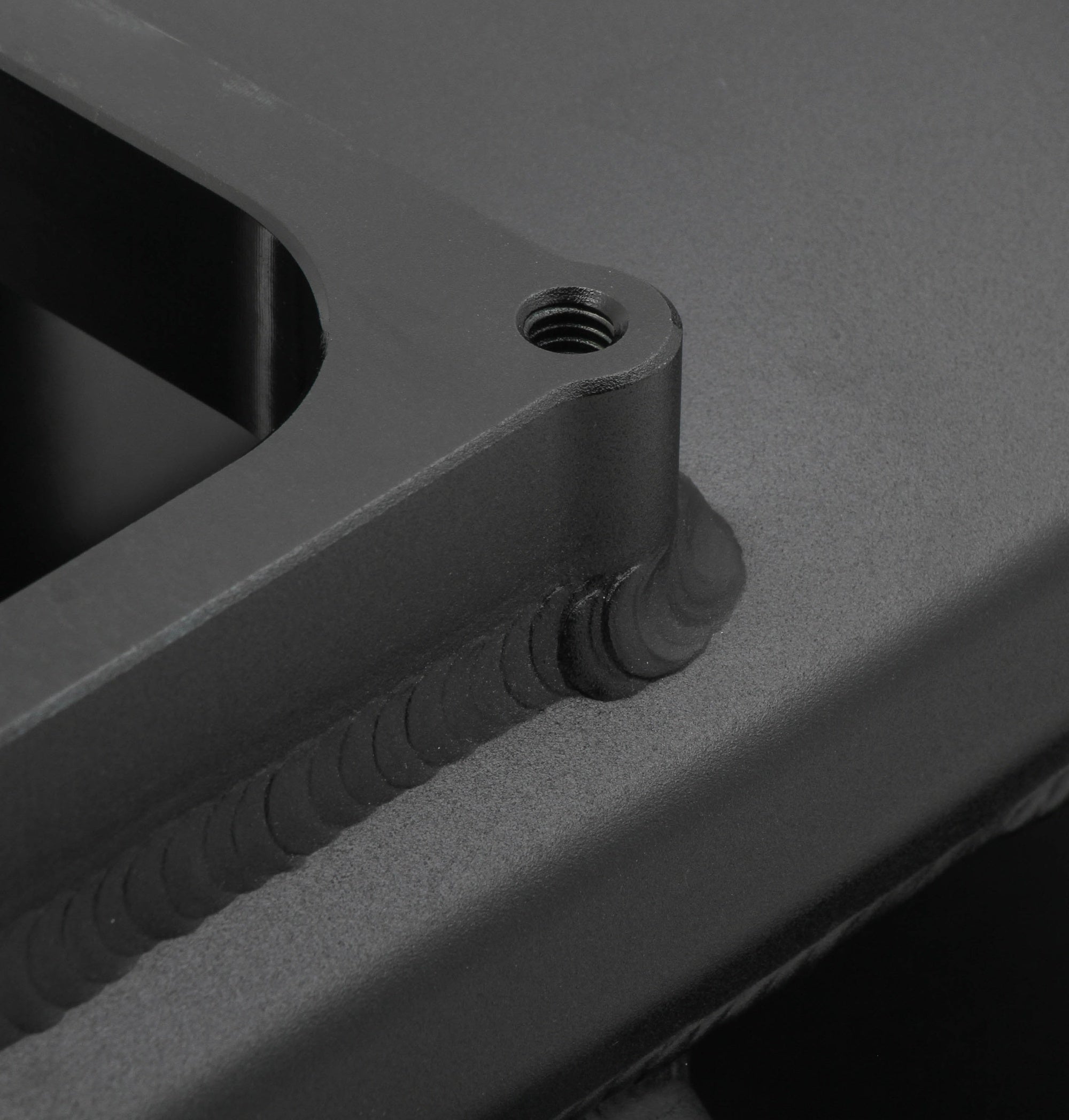

- 100% TIG welded (laser engraved Sniper logo)
- Fits standard deck height blocks

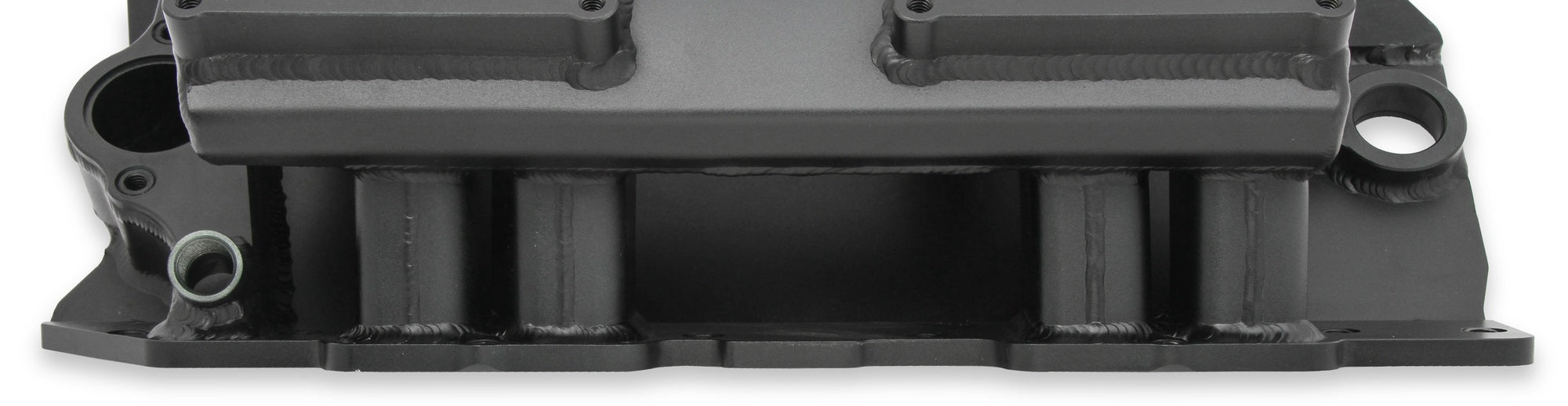

- Equal runner lengths designed to increase velocity and more evenly distribute airflow to all 8 cylinders
- 3mm (1/8") thick T6061 Sheet Aluminum construction, strong and durable for high horsepower and boosted conditions
- Expanded Designs to accommodate (1 or 2 x 4150) & (1 or 2 x 4500) carbureted applications.
📖
About this product
Fabricated Intake Manifold BBC Single Plane 2 x 4500 Black with Sniper Logo
📋
Product Specifications
Automotive Item Grade
Performance
Basic Operating RPM Range
1800-7000
Brand
Holley Sniper EFI
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Carburetor Flange
Dominator/4500
Carburetor Quantity
2
Carburetor Studs Included
No
Category
Sniper Intake Manifolds SP
CNC Ported
No
Color
Black
Construction
Fabricated
Cylinder Head Port Shape
Rectangle
Deck Height
9.8
EGR Port
No
Emission Code
4
Flange Size
4500
Flange Style
Dominator/4500
Front Maximum Height
6.5
Fuel Injectors Included
No
Fuel Rail(s) Included
No
Gasket Or Seal Included
Yes
Grade Type
Performance
Intake Port Gasket(s) Included
No
Material
Aluminum
Nitrous Bung(s) Included
No
Part Type
Engine Intake Manifold
Plenum Finish
Black
Port Shape
Rectangular

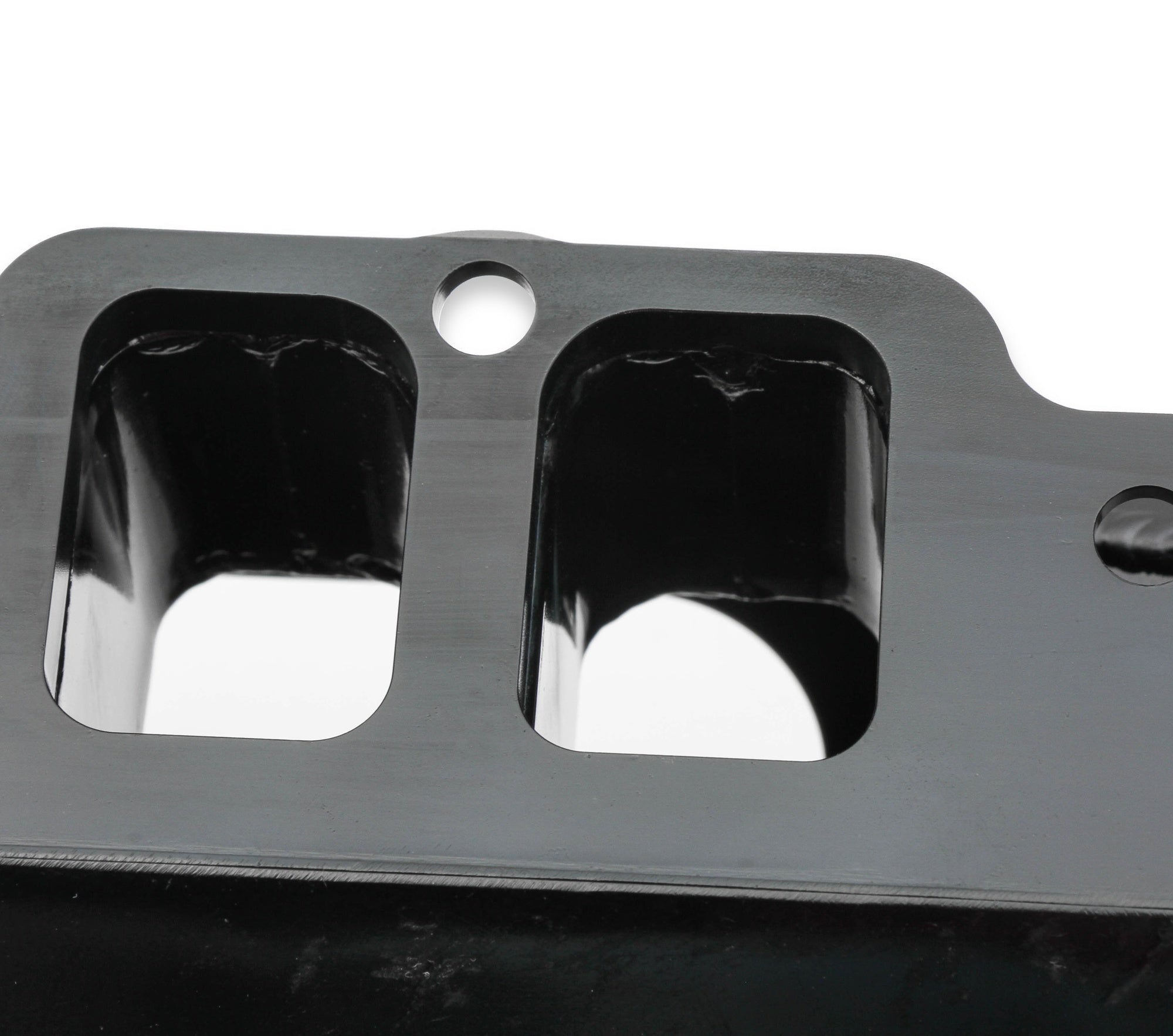

Port Size
1.55" x 2.21"
Product Type
Intake Manifold
Prop 65 Yes/No
Yes
Rear Maximum Height
6.5
Removable Runners
No
Removable Top/Lid
No
Single Or Dual Plane Type
Single Plane
Style
Carbureted
Throttle Body Bore Diameter
5
Throttle Body Gasket Included
No
Throttle Body Included
No
Vacuum Ports
None
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
CN
⚠ Prop 65 Warning
Yes
1
Emissions Code
4
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
24.4 × 12.8 × 9.2 in
Shipping Dimensions
24.4 × 12.8 × 9.2 in
Weight
5557 g (5.56 kg)
