HolleySKU 302-3bkMade in CN
Product Details
⭐
Key Features

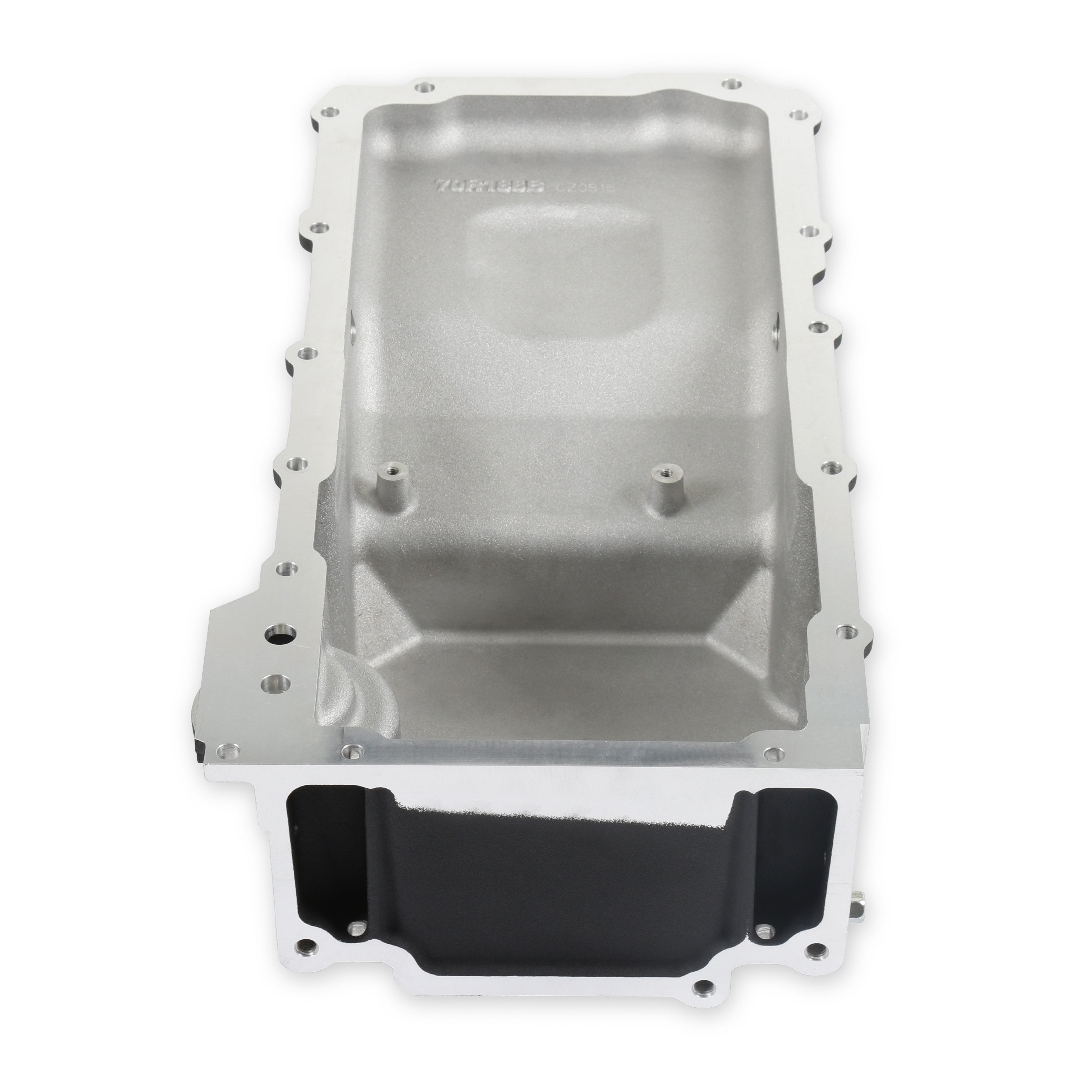

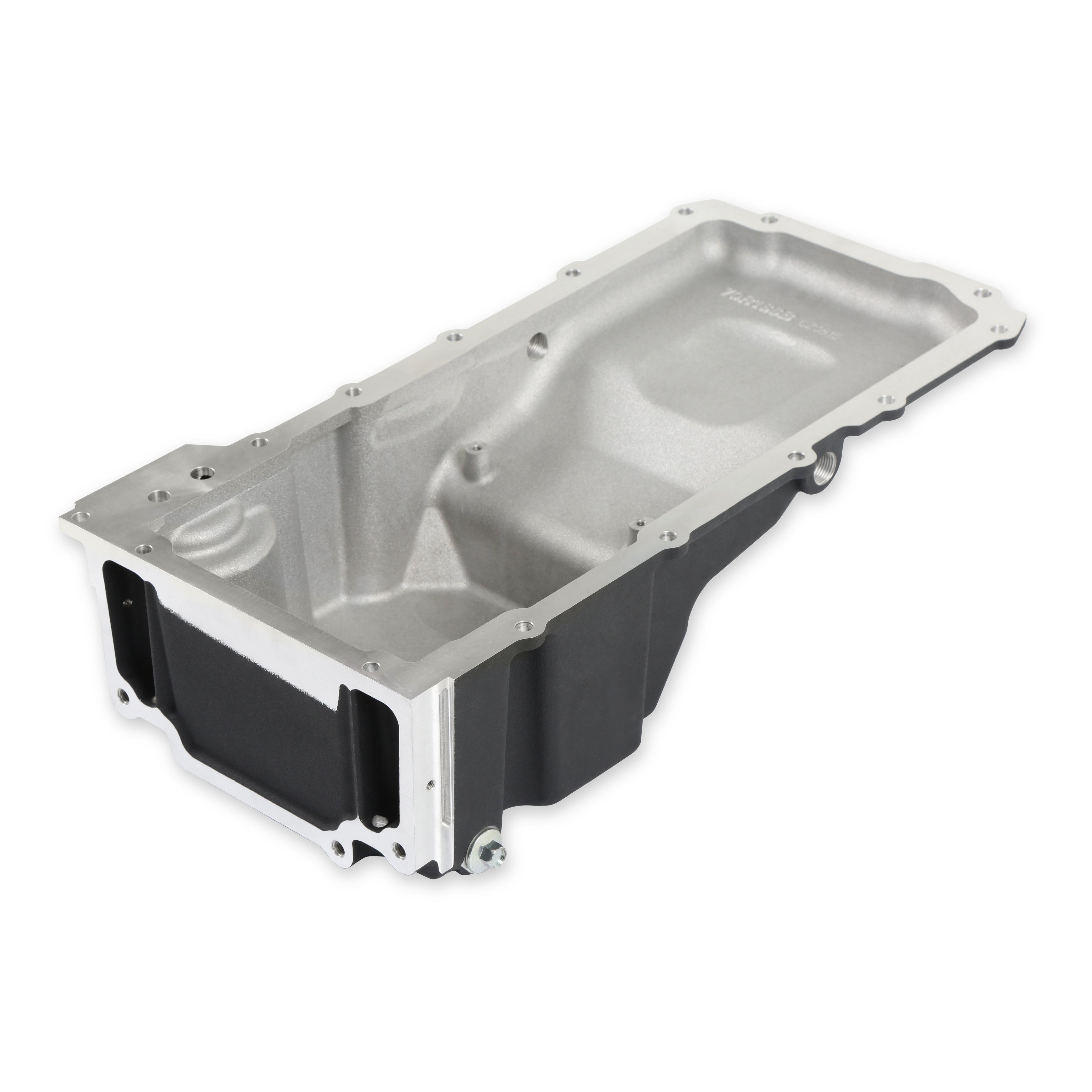

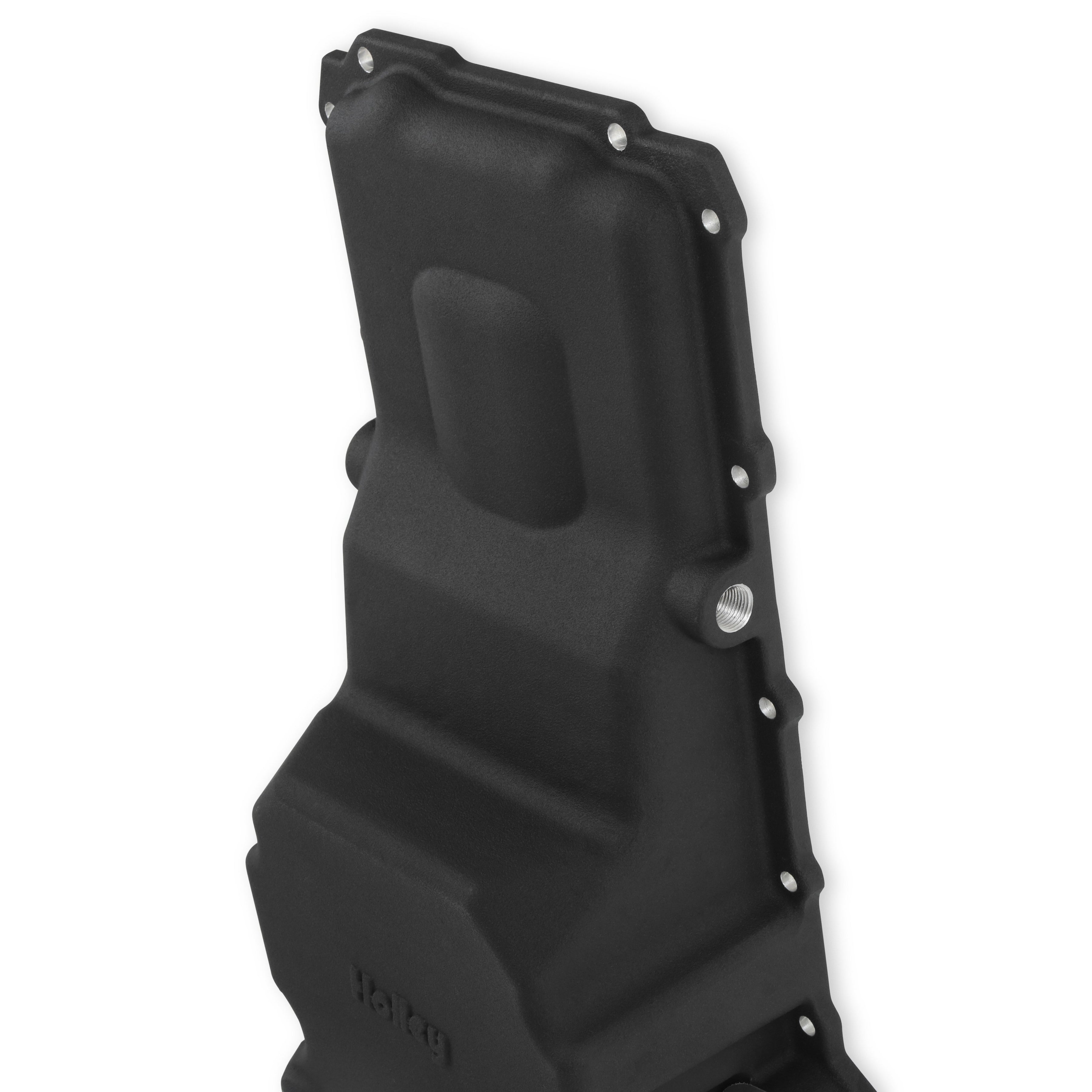

GM LS Swap Oil Pan

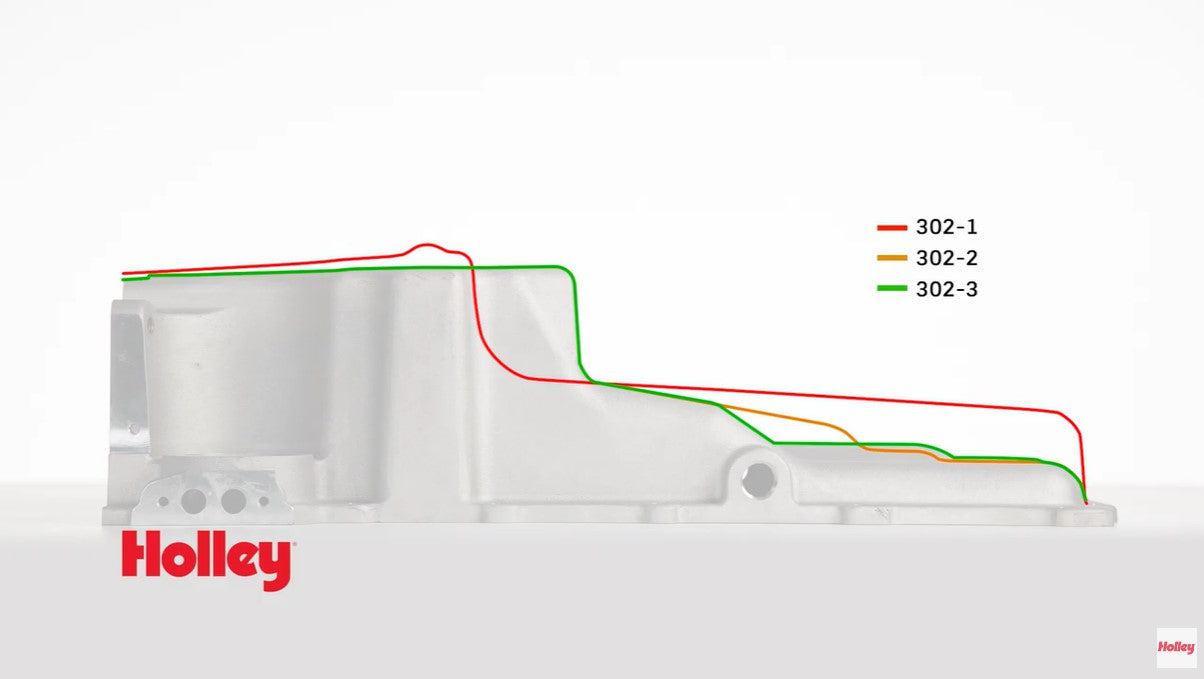

Holley engineering has taken their LS Swap oil pans to the next level! The 302-3 design has even more sump clearance, includes two 1/2-inch NPT oil return bosses, and can clear a 4.00-inch stroke crankshaft. Just like the 302-2, the new designed 302-3 will fit the 1955-1987 GM Muscle Cars and Trucks that need a little more clearance in the front of the oil pan. However, the new design will also fit the Ford Fox body Factory K-member and was designed to clear the Fox Body rack and pinion too. It's a win-win for more LS conversions.
Fits LS Swapped GM Muscle Car/Classic Car/Trucks and any LS Swapped Vehicles Requiring Even More Clearance than the 302-1 and 302-2 Provide - Black Finish

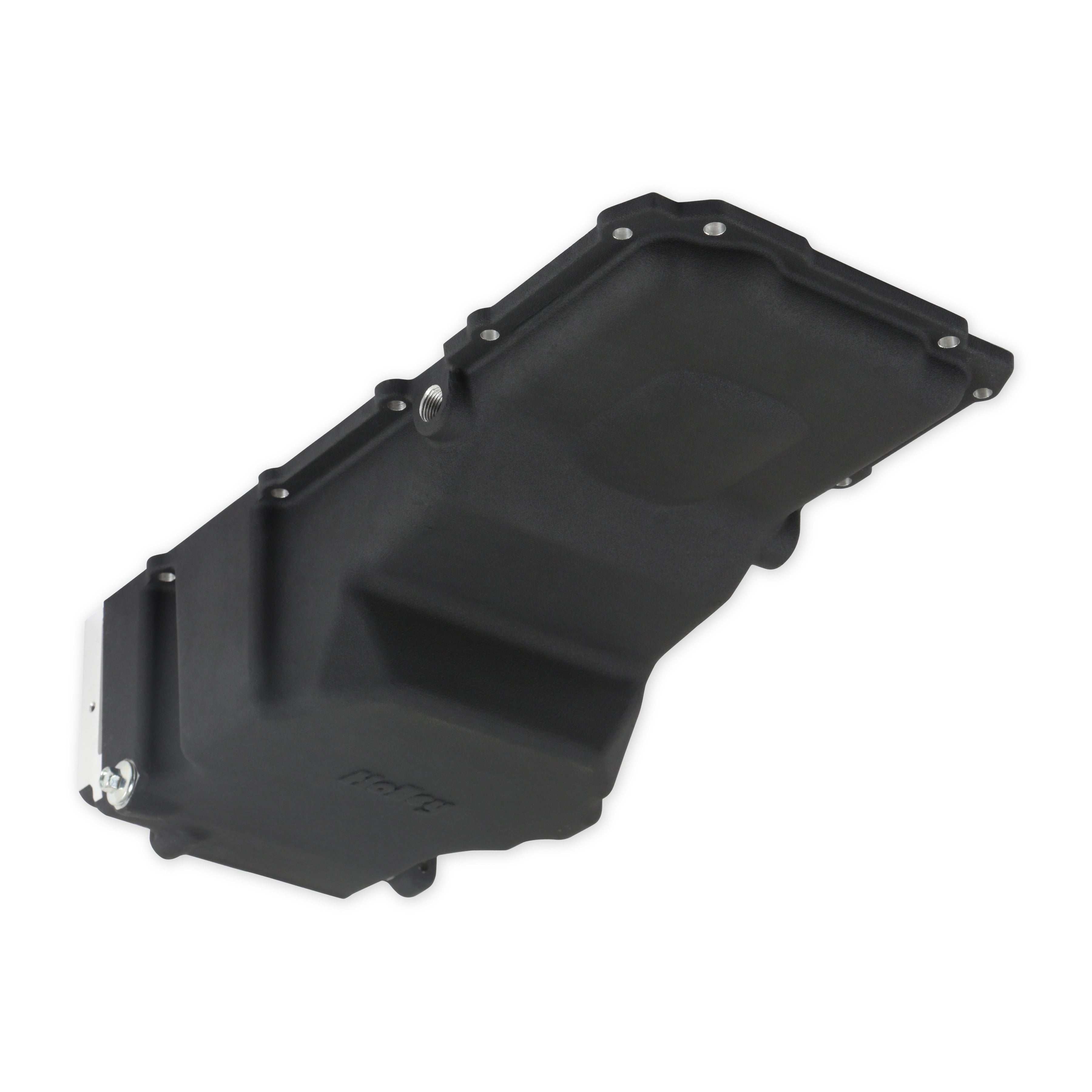

- The black finish on the LS swap pan looks great and compliments other engine accessories that have a black finish (accessory drive system, valve covers, intake manifolds, etc.)
- Designed for LS engine retrofit installations in GM muscle/classic car and truck chassis requiring more oil pan to chassis clearance around the front half of the oil pan

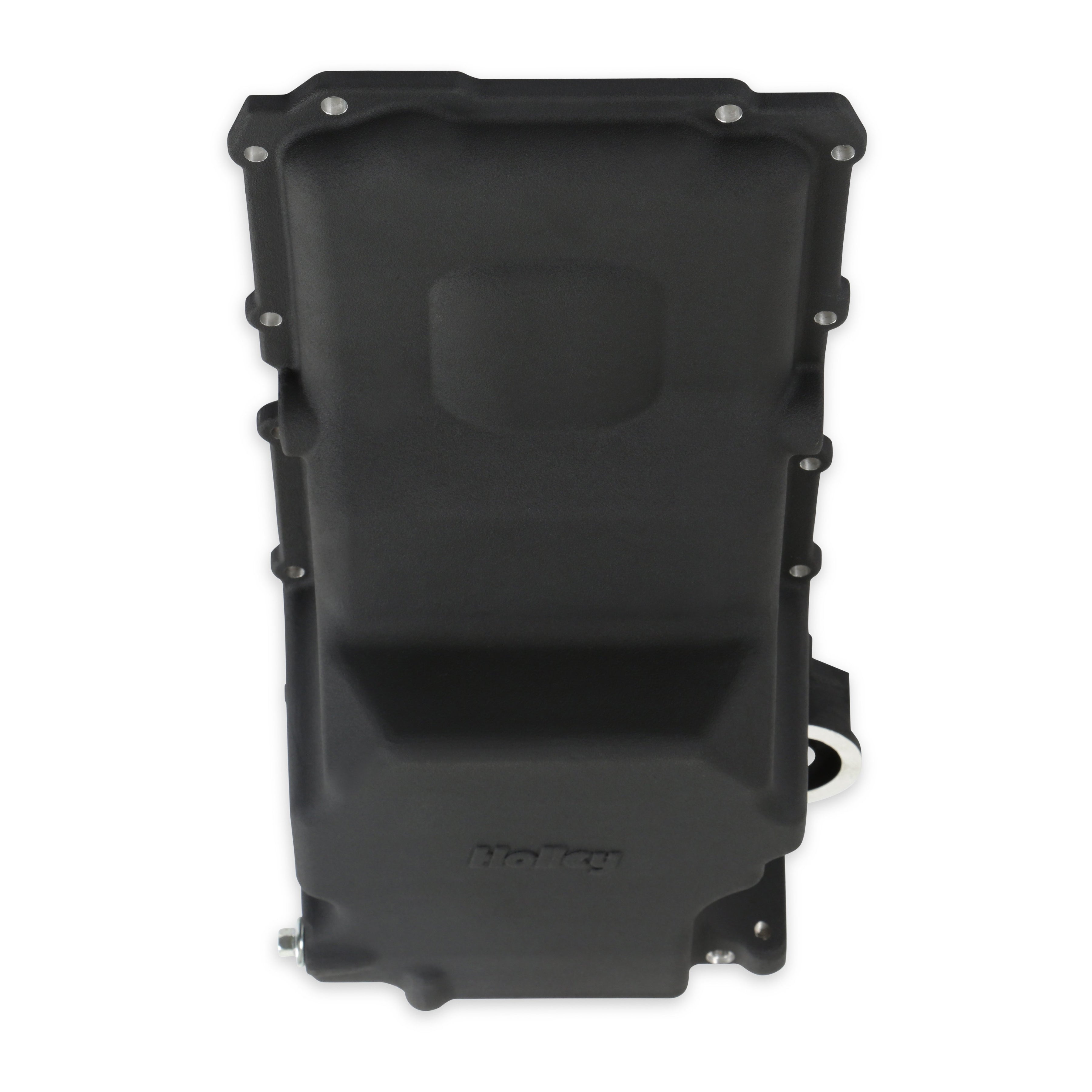

- The profile of the sump has been revised to provide extra chassis and steering rack clearance
- Perfect for: 1967-1969 Camaro/Firebird, 1968-1974 Nova/Apollo/Ventura/Omega, 1982-1992 F-body, 1978- 1987 G-body, and 1964-1972 A-body applications. Also 1979-2004 Mustang and 1979-1986 Capri Fox bodies
- NOTE – Oil pan #302-3 will clear a 4.00-inch stroke crankshaft
- Includes two 1/2-inch NPT oil return ports to provide a convenient oil return for turbochargers. (one port on each side)
- Can be used with Earls oil cooler adaptor LS0012ERL and LS0013ERL, or Earls oil cooler block off plate LS0020ERL with 1/8-inch NPT port

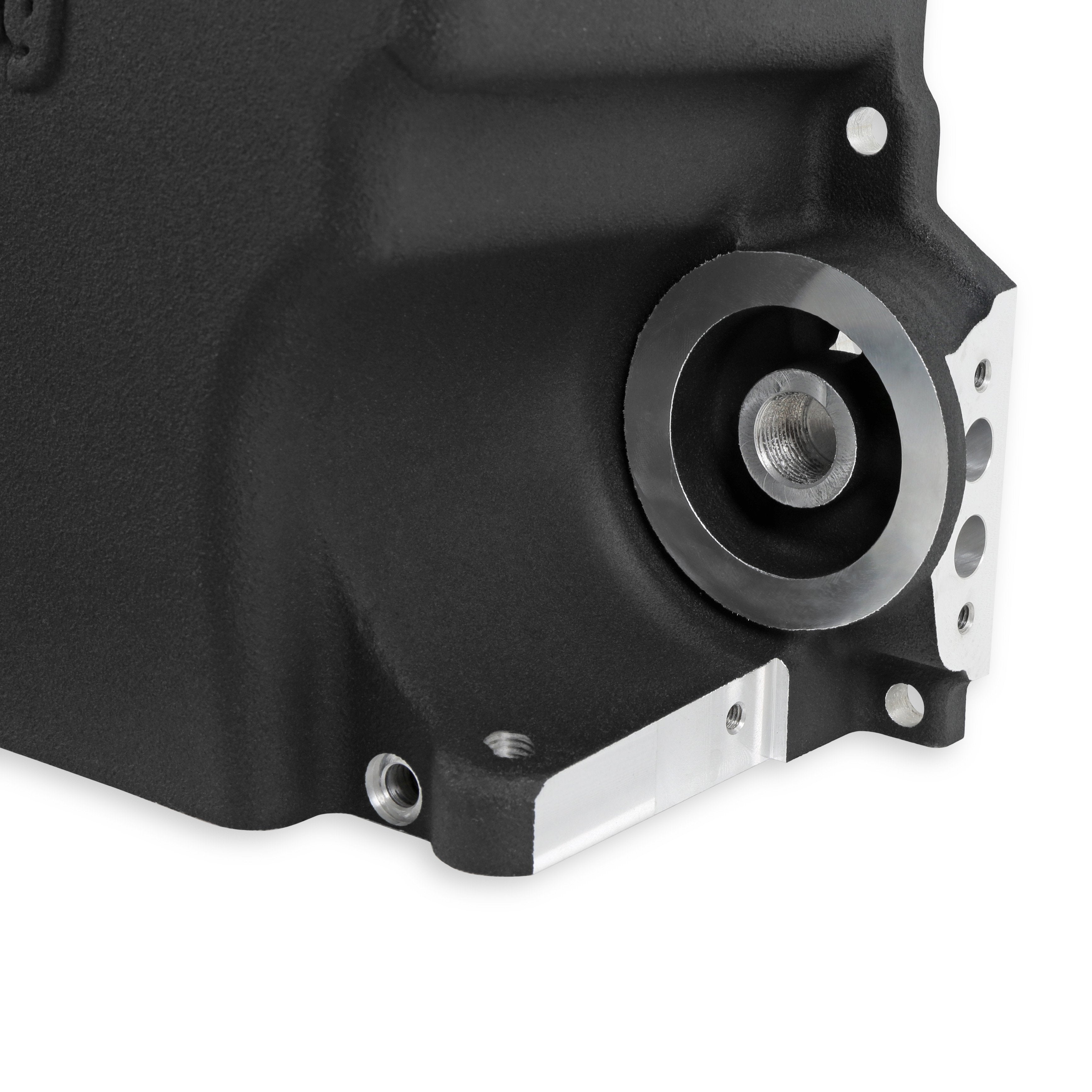

- Provides OE Style fitment - OE oil filter mounting, OE oil cooler port provision, OE engine NVH suppression, OE flange gasket, and sealing proper structural rigidity, and OE bell-housing attachments
- Traditional high-quality cast aluminum appearance with clean exterior styling
- Provides maximum clearance for vehicles where the steering linkage is behind the engine cross member

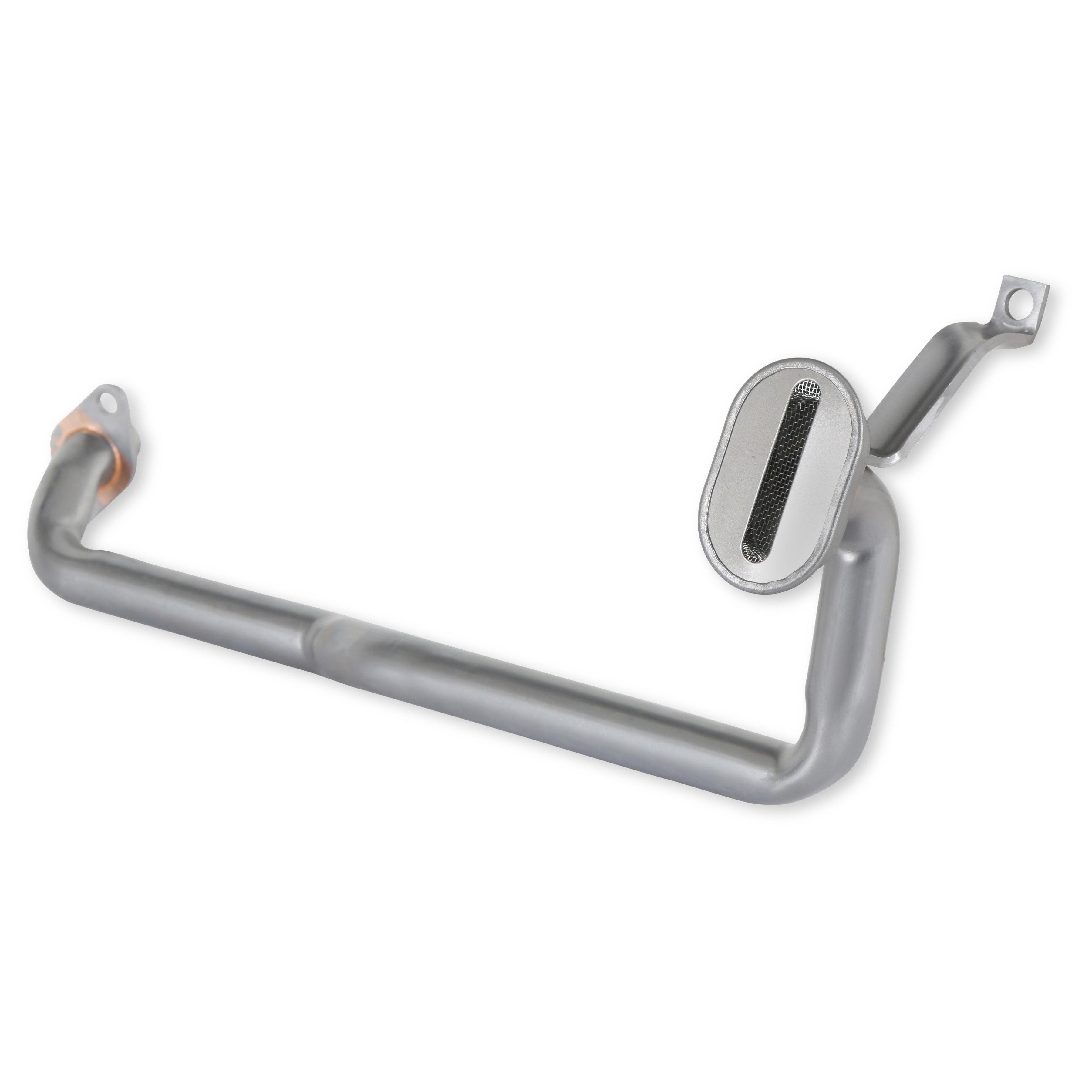

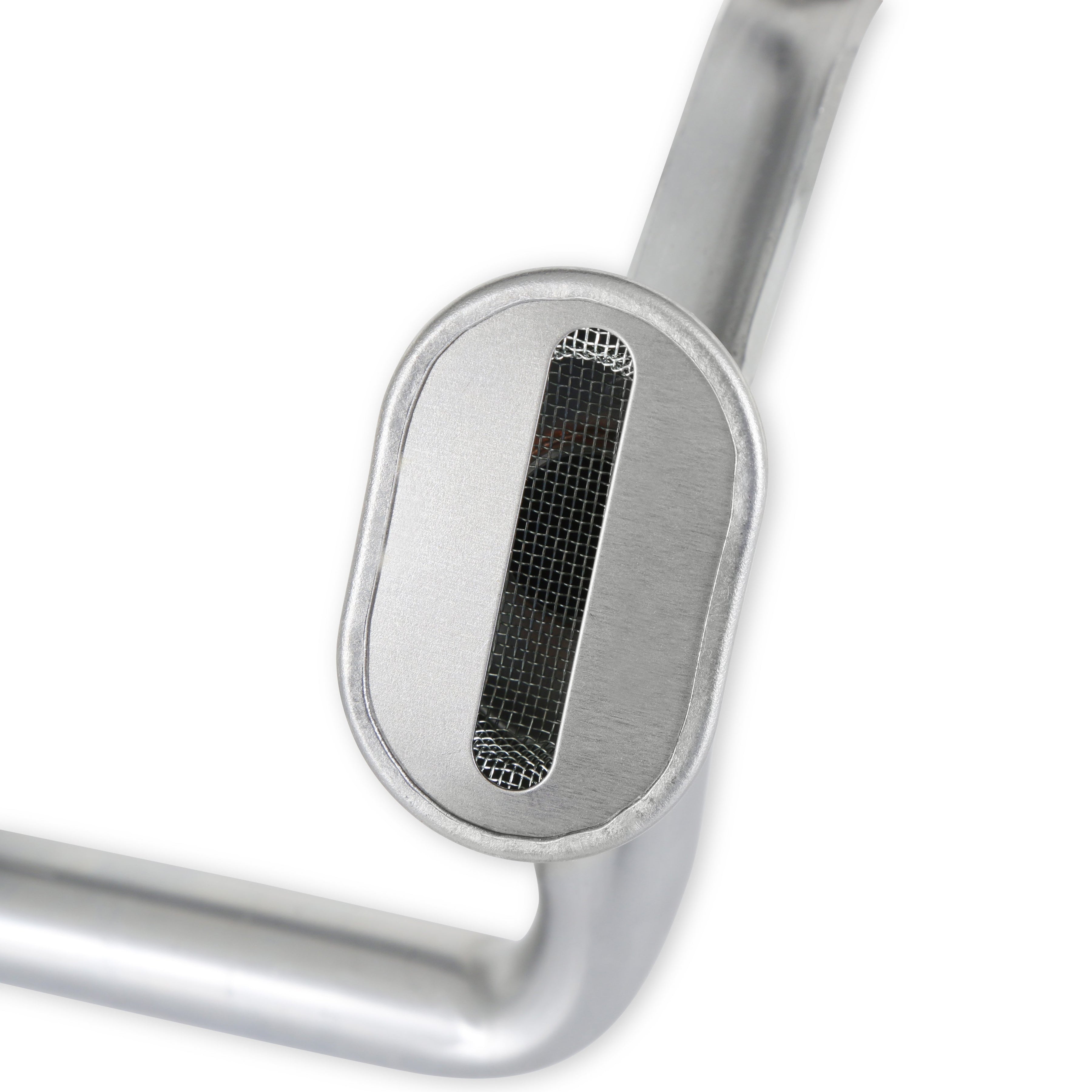

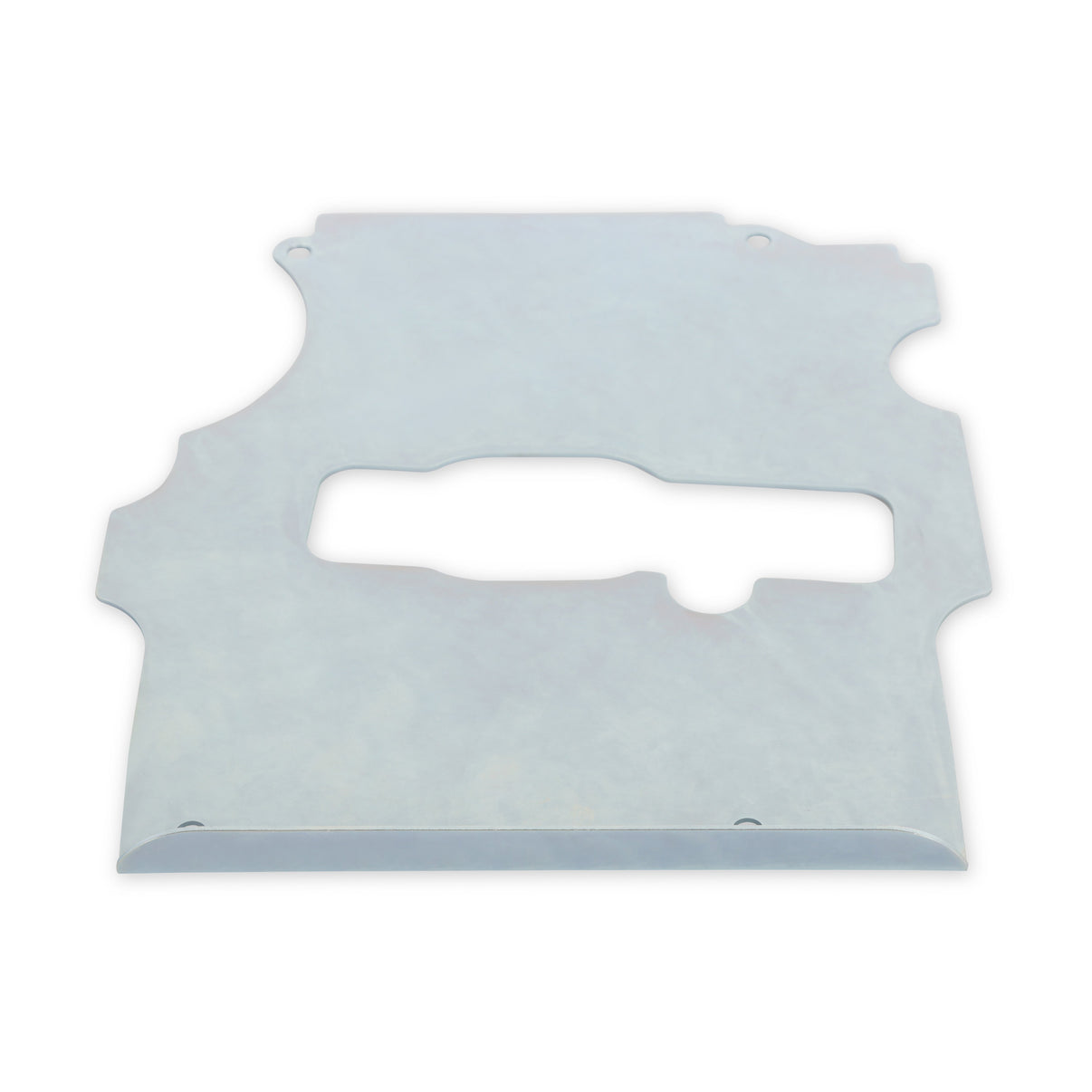

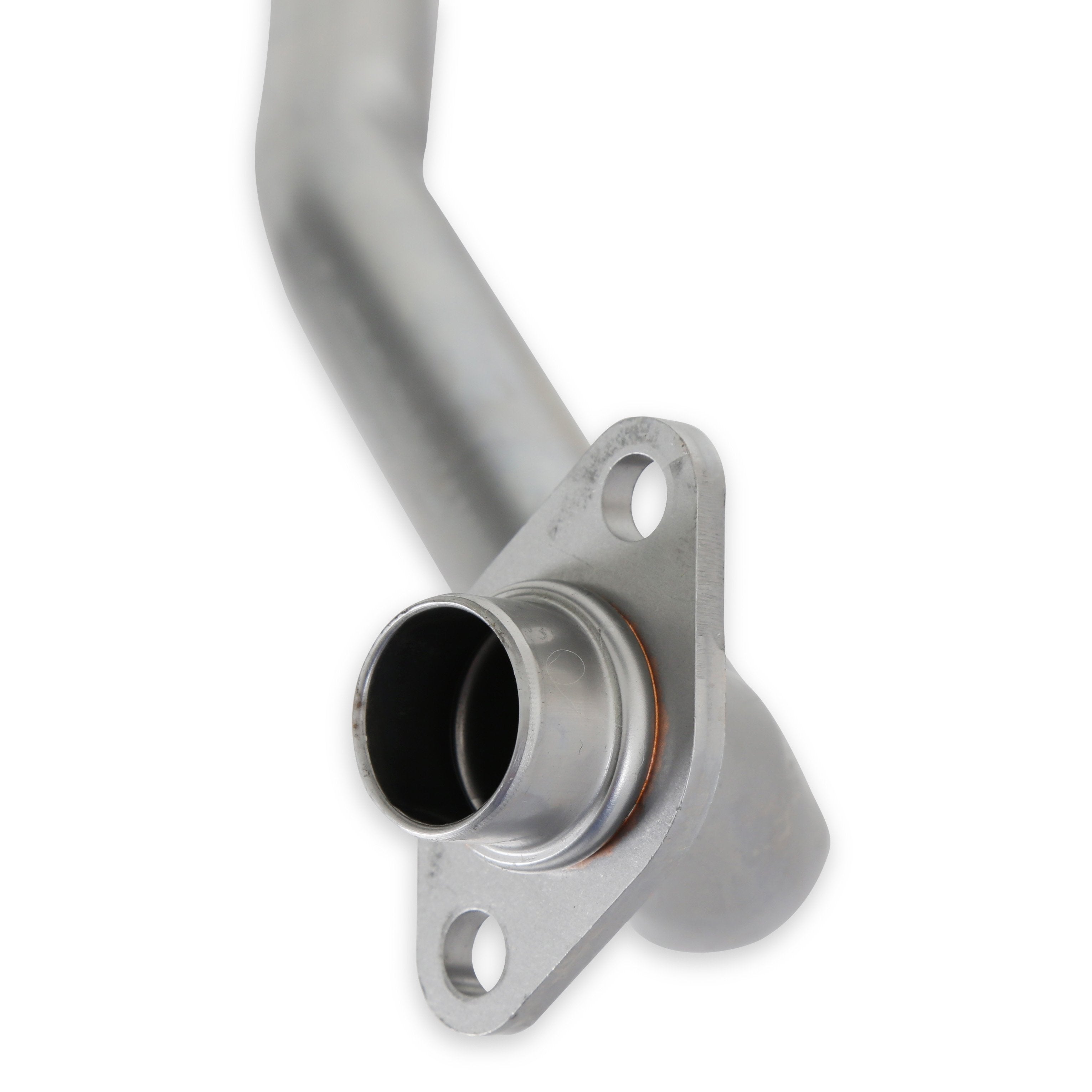

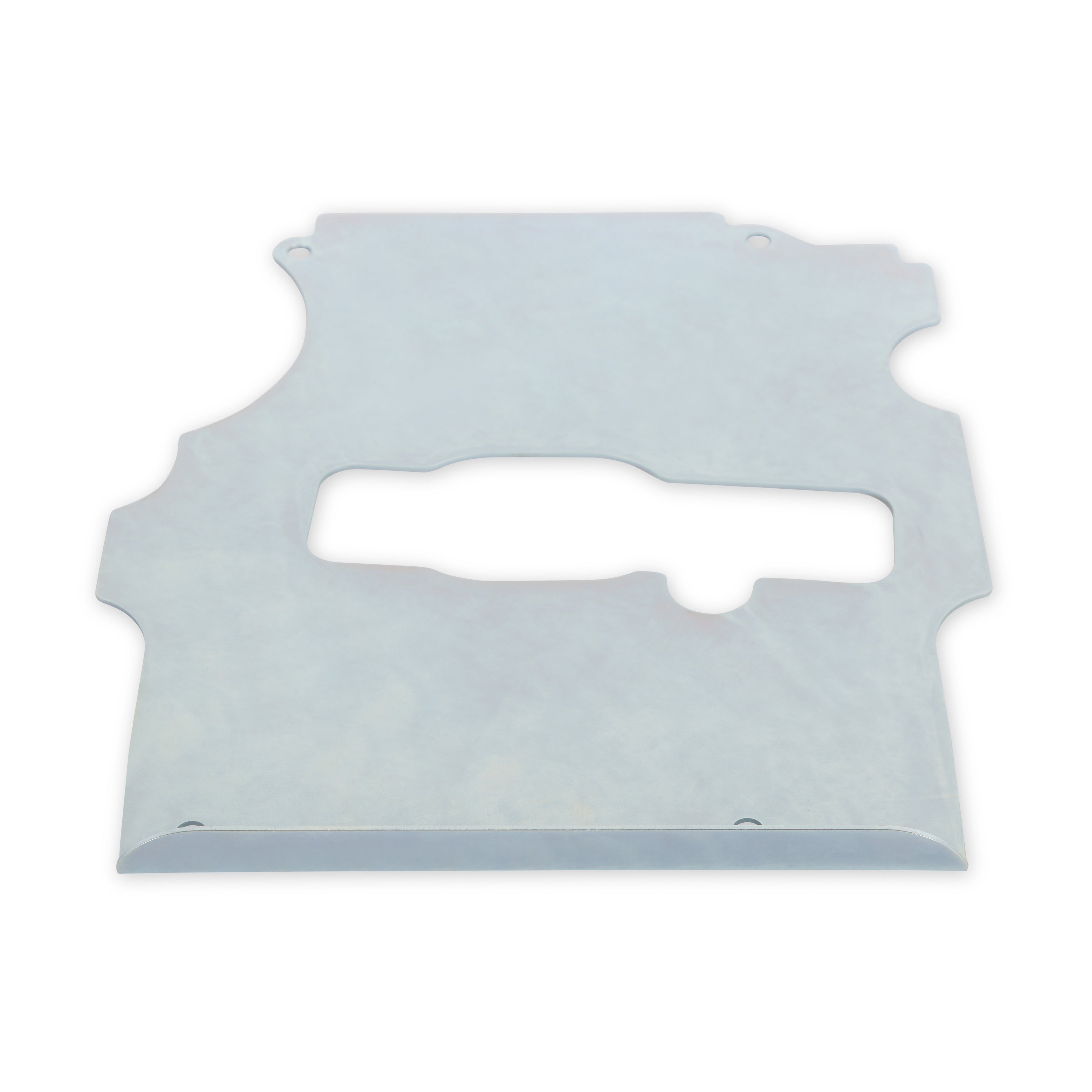

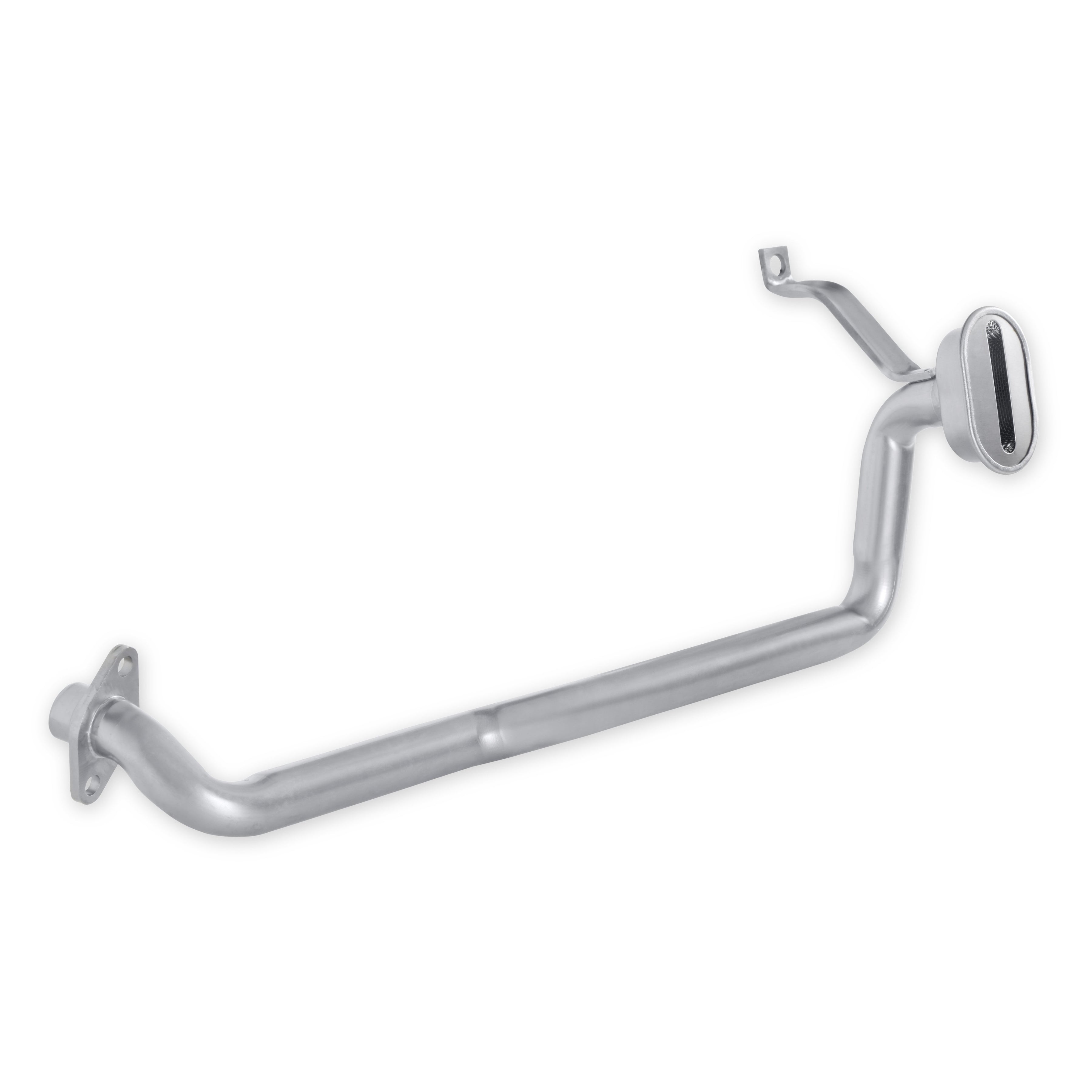

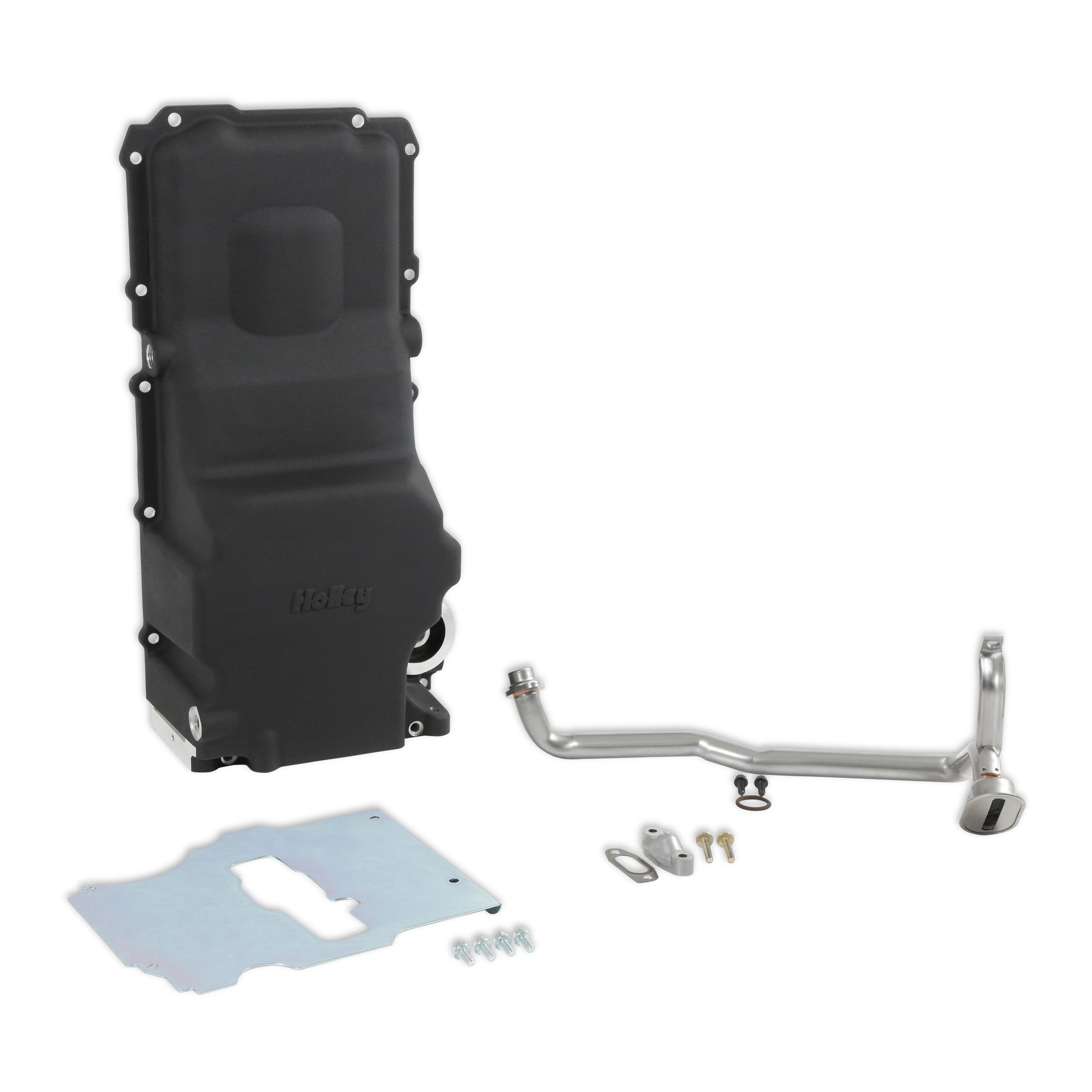

- Complete kit includes sump baffle, OE style pick-up tube, sump plug, oil filter stud, oil passage cover, etc.
📖
About this product
Fits LS Swapped GM Muscle Car/Classic Car/Trucks and any LS Swapped Vehicles Requiring Even More Clearance than the 302-1 and 302-2 Provide - Black Finish
📋
Product Specifications
Application
GM LS Engines
Automotive Item Grade
Performance
Baffled
No
Brand
Holley
California Proposition 65 Chemical Name
4
Capacity
5.6
Capacity
5.6 QT
Category
Engine
Choose Your Part
Oil Pan Kit
Color
Black
Crank Shaft Wiper Included
No
Dipstick Port
No
Drain Plug Included
Yes
Emission Code
6
Finish
Black
Grade Type
Performance
Material
Aluminum
Maximum Stroke
4.00"
Oil Pan Capacity
5.6 Quarts
Oil Pan Type
Cast
Oil Return Size
1/2" NPT
Part Type
Engine Oil Pan
Pickup Included
Yes
Product Type
Oil Pan Kit
Sub Category
Cylinder Block Components
Sump Location
Rear
Sump Type
Wet
Turbo Oil Drainback
Yes
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
Windage Tray Included
No
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
CN
Emissions Code
6
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
24.8 × 13.0 × 6.5 in
Shipping Dimensions
24.8 × 13.0 × 6.5 in
Weight
7409 g (7.41 kg)
