Earl's PerformancePart 629120erlMade in US
Product Details
⭐
Key Features
Note: All UltraPro hose assemblies must be pressure tested prior to use.
Earl's UltraPro Series hose-ends are manufactured from premium materials to be light weight and rugged and are perfectly matched to Earl's UltraPro Series hose. Earl's UltraPro Series hose-ends feature ultra high-strength 2024-T8 aluminum in high-stress components, and fluoroelastomer internal seals which are chemically resistant to all known fuels, oils, and coolants. They feature brazed bent tubes for unmatched strength and all unnecessary weight has been eliminated from Ultra-Pro components.

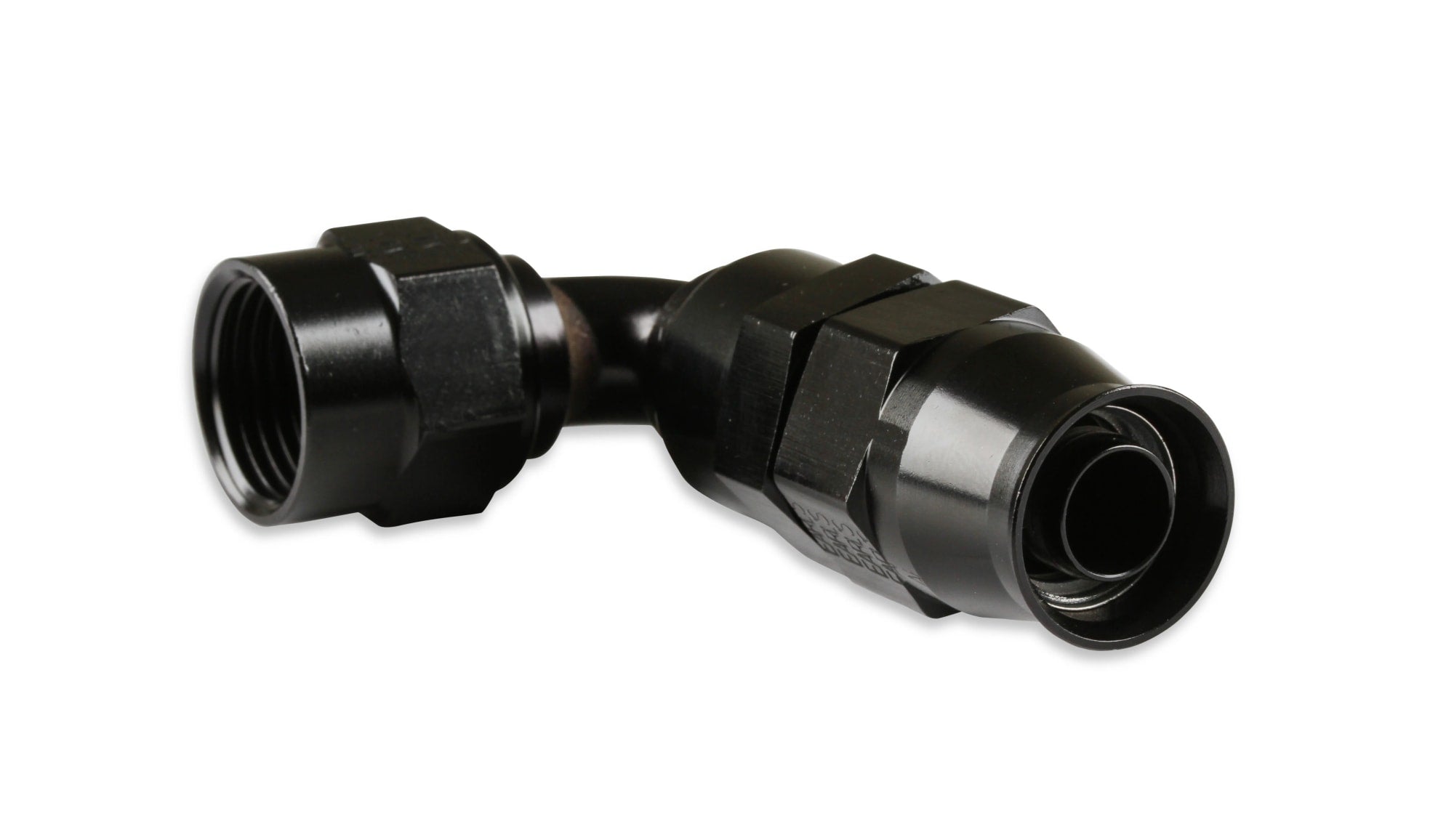

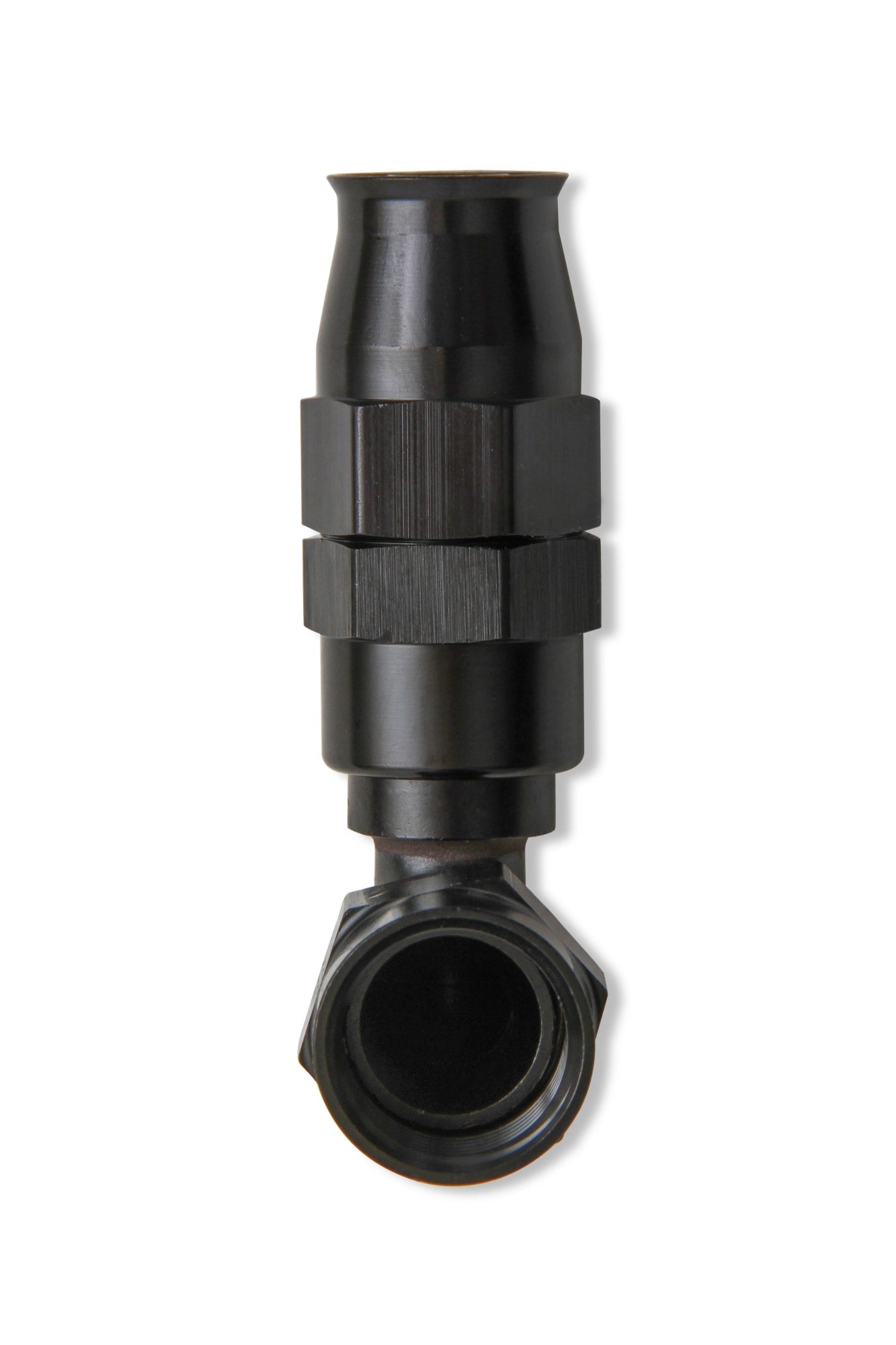

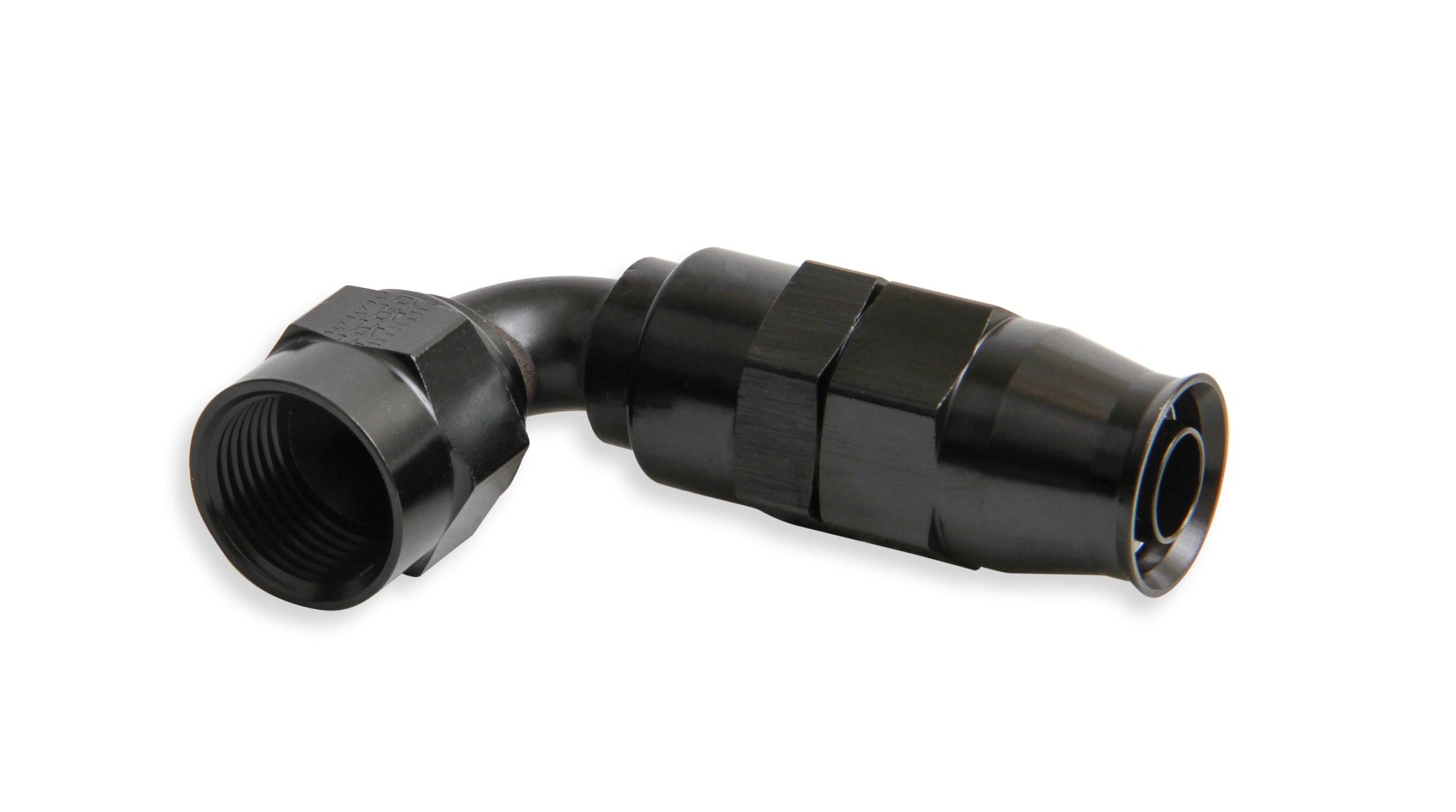

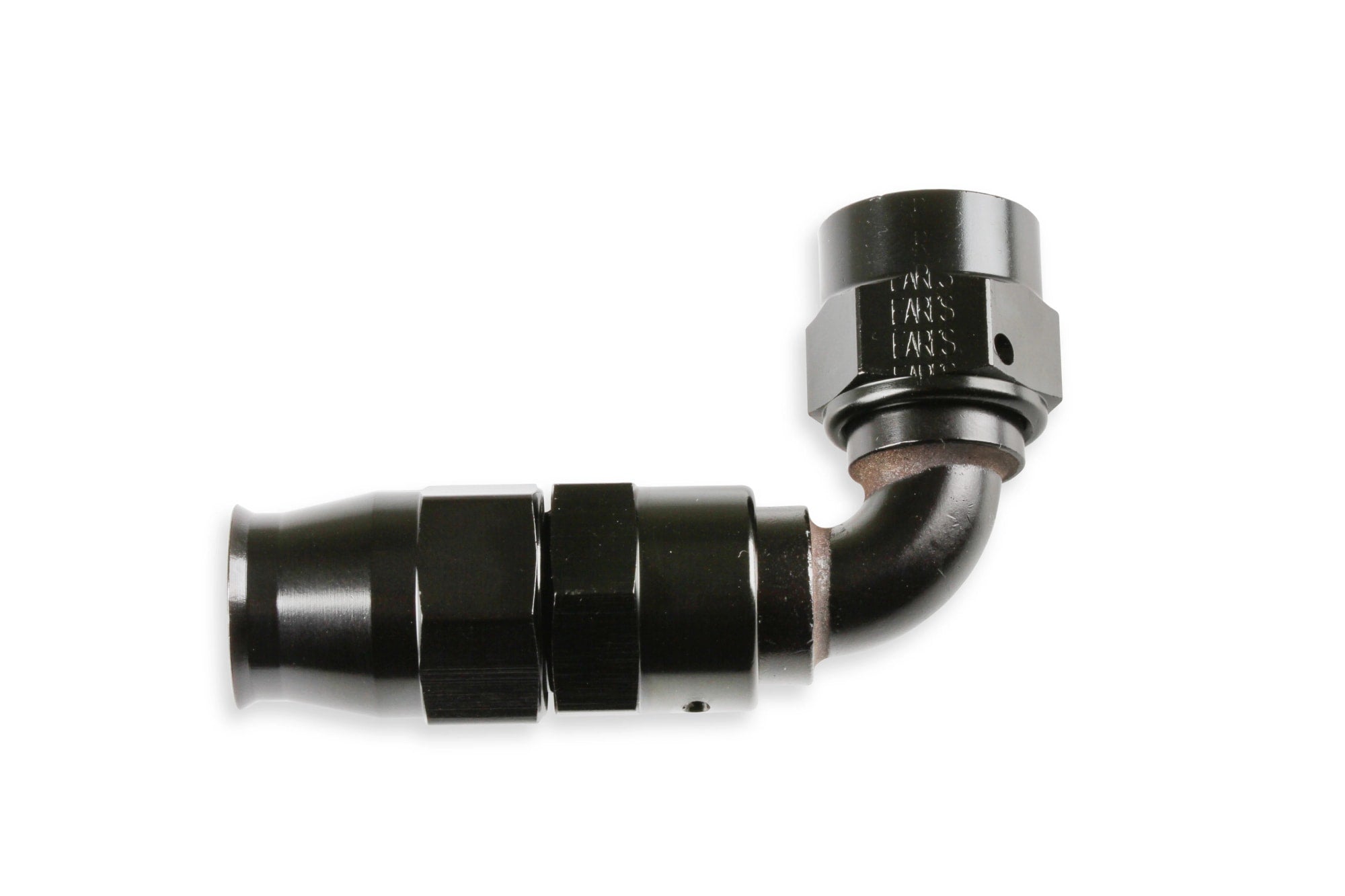

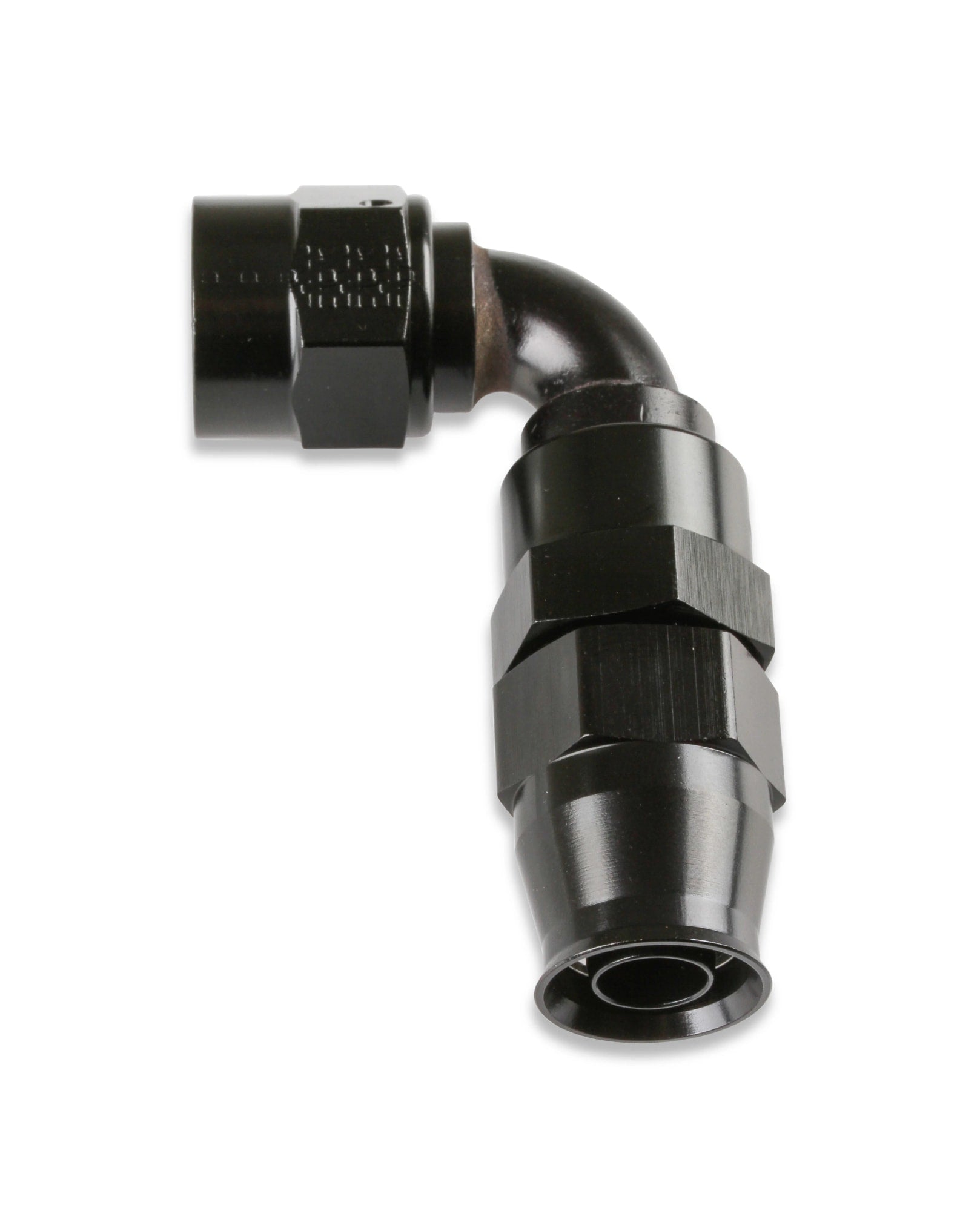

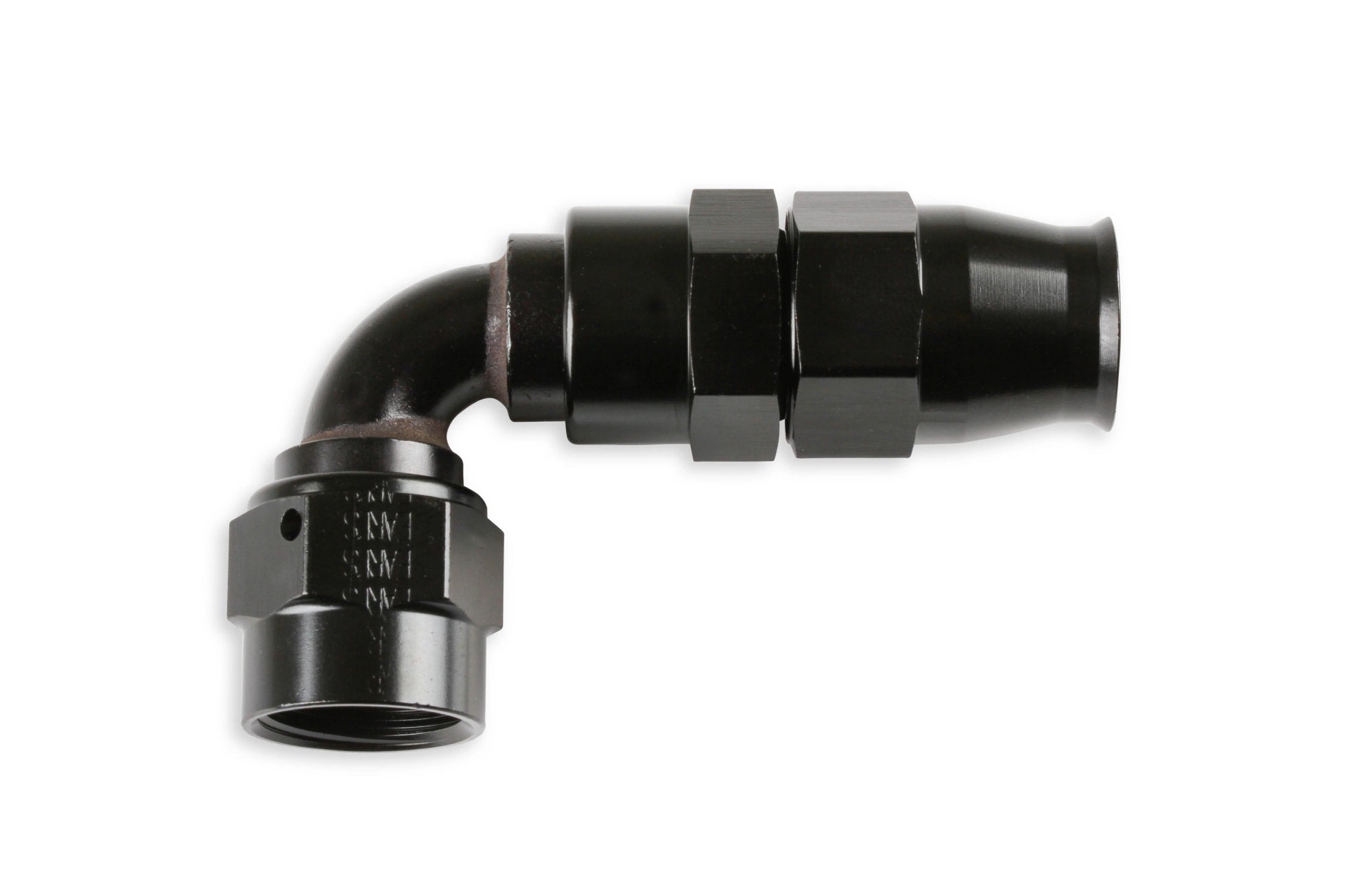

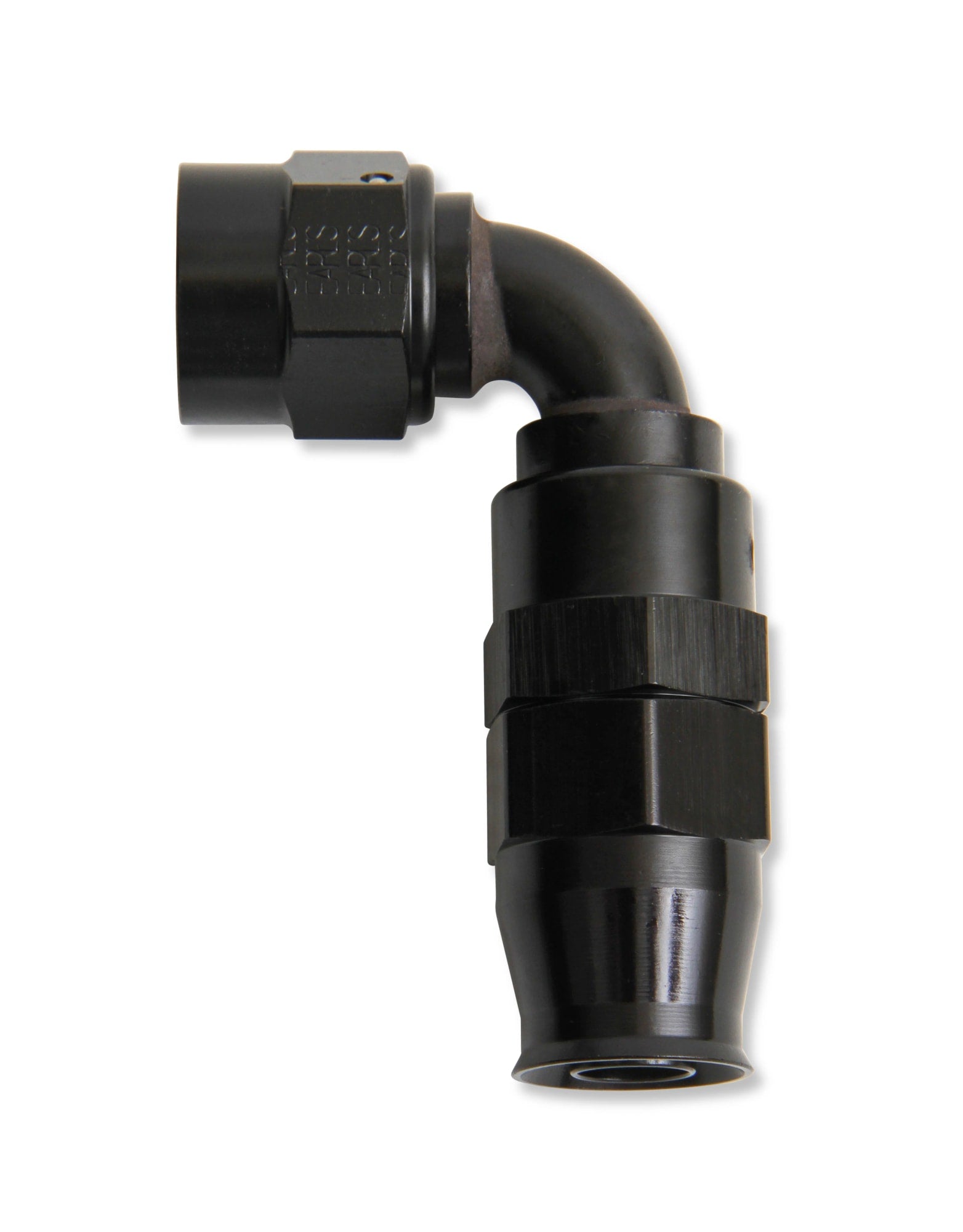

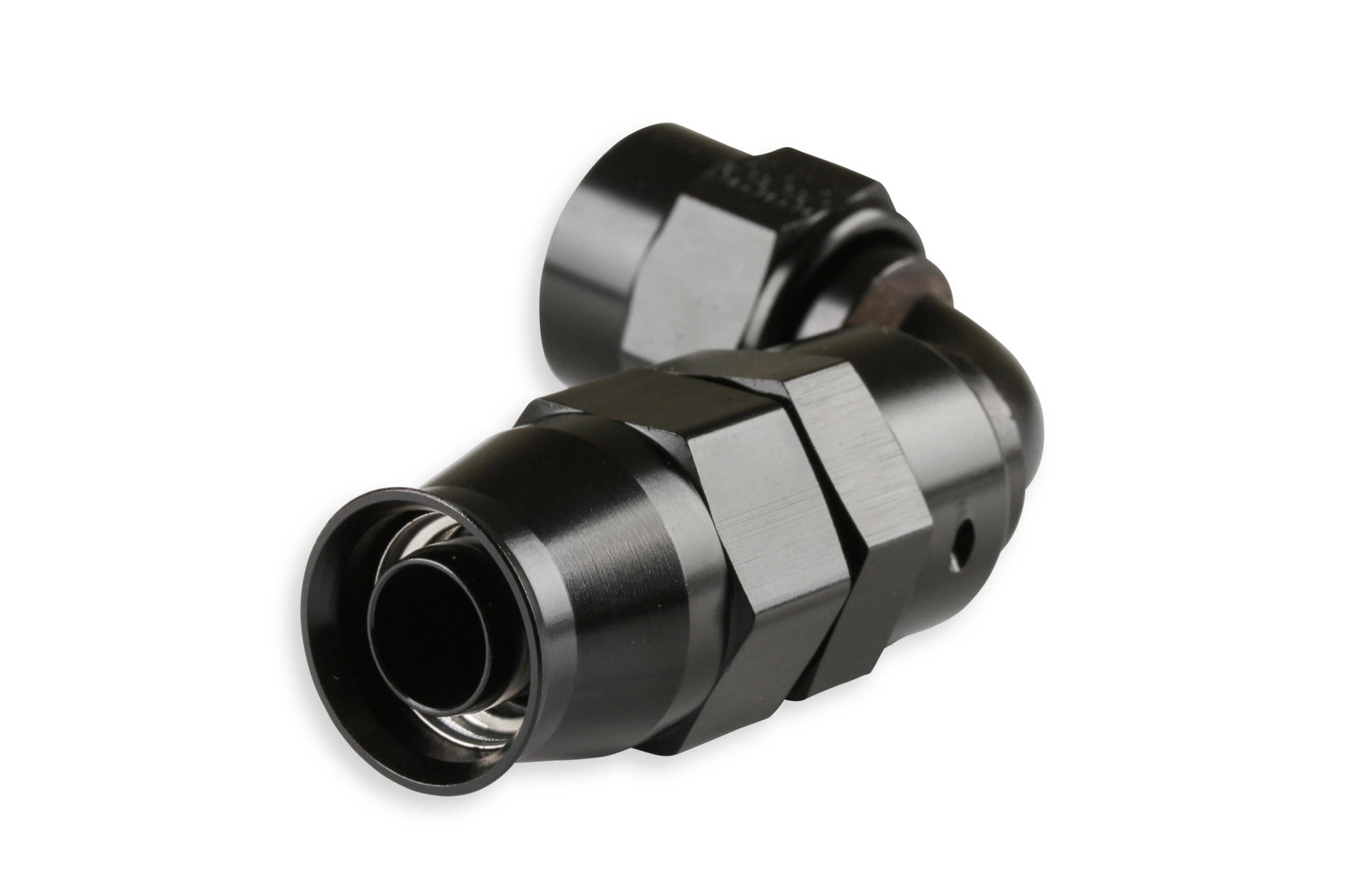

-20 AN Twist-on (Dynamic Swivel) 90 Degree Bent Tube Hose-End
- Available Dynamic Swivel, technology used in selected hose-ends allows 360 degrees of rotation of installed line after installation!
- Internal seals are a‚uoroelastomer material which is resistant to all known fuel, oil and coolant!
- SAE port, jump size, and Wiggins connector adapter/hose-ends available
- High stress components are made of high-strength 2024-T8 grade aluminum instead of 6061-T6 aluminum used by competitors!
- UltraPro bent tube hose-ends are dip-brazed for a permanent and robust bond!
- Designed to withstand harsh environments, brutal vibration, high flow requirements and extreme pressures!
- Assembled with an olive that threads onto the double-helix ribbed inner liner of the hose for positive engagement and retention of the hose-ends!
- Black Anodized
- Straight, 30º, 45º, 60º, 90º, 120º, 150º, and 180º angles available
- Available in Twist-on and Crimp-on styles for more plumbing options at home or at the track!
- Traditional Mil-Spec Bent tube design for unmatched strength and flow!
📖
About this product
-20 AN Twist-on (Dynamic Swivel) 90 Degree Bent Tube Hose-End
📋
Product Specifications
Adjustable
Yes
AN Thread
20 AN
Angle
90 Degree
Assembly Method
Twist On
Brand
Earl's
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Category
Hardware and Service Supplies
Compatible Hose
UltraPro
Emission Code
5
Finish
Anodized Black
Fitting To Hose Mate Type
Twist On
Hose End Family
UltraPro - Twist On
Hose End Series
62
Hose End Size
20 AN
Hose Size
20 AN
Material
Aluminum
Part Type
Clamp-On Hose Fitting
Product Type
Twist-On Hose Ends
Prop 65 Yes/No
Yes
Reusable
Yes
Sub Category
Hardware
Swivel
Yes
Warning
California Proposition 65
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
⚠ Prop 65 Warning
Yes
1
Emissions Code
5
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
7.1 × 4.05 × 3.65 in
Shipping Dimensions
7.1 × 4.05 × 3.65 in
Weight
288 g (0.29 kg)
