MSDPart 8251Made in US
Product Details
⭐
Key Features
Universal - Use with MSD 7 or 8 Series Ignition Control
Coils have always had to compromise voltage output against current output. More voltage increases the initial ionization of the spark plug gap, but lowers the amount of current, or heat, that follows across the plug gap. When a coil is designed to produce more current, the voltage output generally suffers which taxes the ease of ionizing the gap. The MSD HVC Coils are designed to produce maximum voltage and energy!
Universal - Use with MSD 7 or 8 Series Ignition Control
- Spark plug style terminal and threaded brass primary studs
- No CARB Exemption Order Number
- 85:1 turns ratio and lower primary resistance produce high voltage output
- Designed for racing applications with an MSD 7 Series Ignition Control

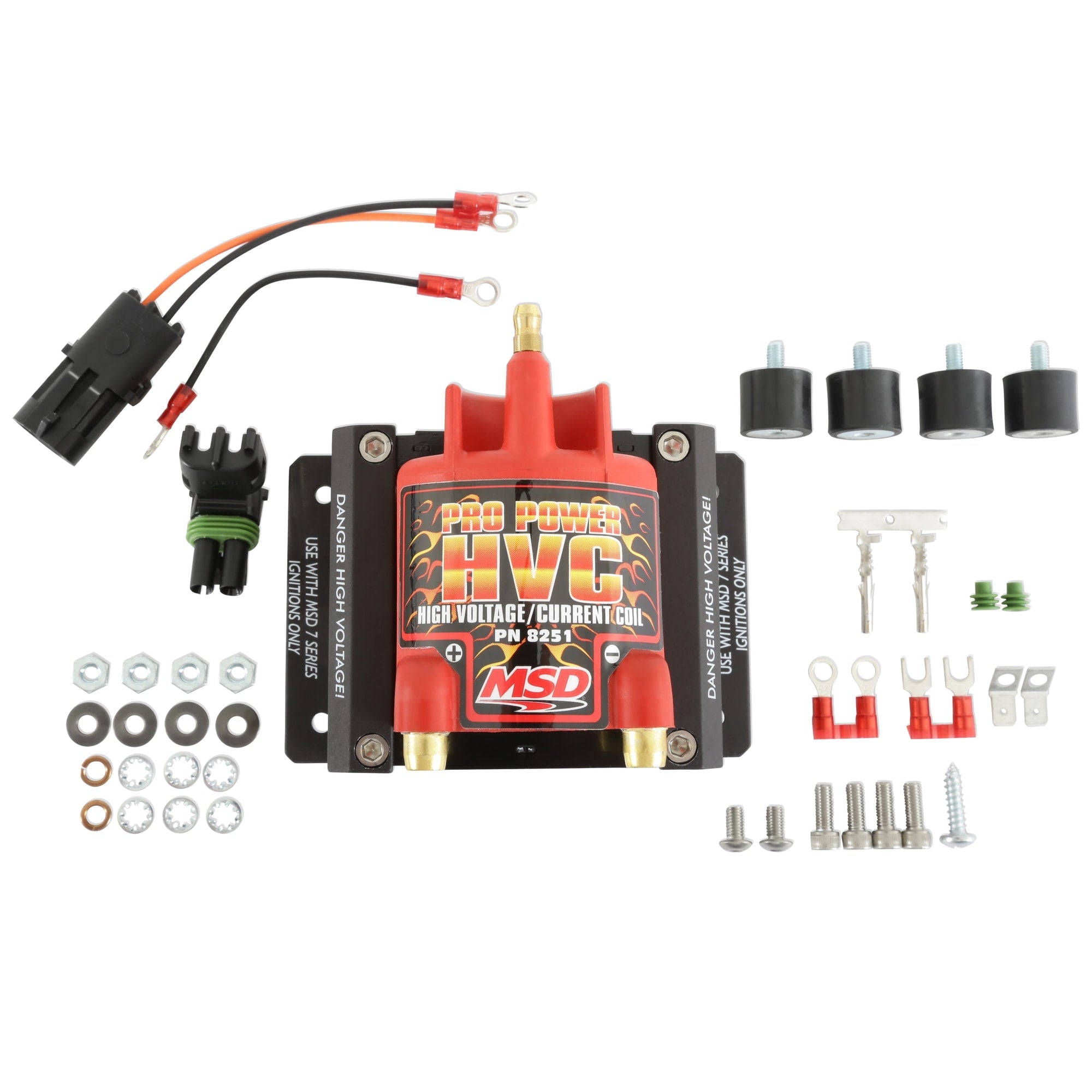

- Supplied with rubber shock mounts
- Windings are encased in red epoxy and secured with extruded brackets
- Efficient E-core winding design produces more voltage and current
📖
About this product
Universal - Use with MSD 7 or 8 Series Ignition Control
📋
Product Specifications
Brand
MSD
California Proposition 65 Chemical Name
72
Category
Ignition
Color
Red
Emission Code
4
Inductance (mH)
1
Inductance
1 mH
Maximum Voltage
45
Part Type
Ignition Coil
Peak Current
1.1
Peak Current
1.1 Amp
Primary Resistance
.04 OHMs
Primary Resistance
0.04
Product Type
Ignition Coils
Secondary Resistance
86
Spark Duration
0.15
Spark Duration
150 uS
Sub Category
Ignition Coil
Turns Ratio
3.54
Turns Ratio
3.542361111111111
Type
Drag Race / Long Duration Use
Warning
California Proposition 65
Warranty
Manufacturer's Limited 1 Year Warranty
Weight
N/A
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 1 Year Warranty
Country of Origin
US
Emissions Code
4
HS Code
8511300080
📐
Dimensions & Shipping
Product Dimensions
5.5 × 5.5 × 4.6 in
Shipping Dimensions
5.5 × 5.5 × 4.6 in
Weight
1565 g (1.57 kg)
