MSDPart 8252Made in US
Product Details
⭐
Key Features
Universal - Add To Any MSD 6-Series Ignition
Coils have always had to compromise voltage output against current output. More voltage increases the initial ionization of the spark plug gap but lowers the amount of current, or heat, that follows across the plug gap. When a coil is designed to produce more current, the voltage output generally suffers which taxes the ease of ionizing the gap. The MSD HVC Coils are designed to produce maximum voltage and energy!
Universal - Add To Any MSD 6-Series Ignition
- CARB E.O. Approved
- Spark plug style terminal and threaded brass primary studs
- Works with electronic ignitions and MSD Ignition Controls (ballast resistor required for points systems)
- Designed for high rpm, long duration applications
- 100:1 turns ratio and lower primary resistance produce high voltage output

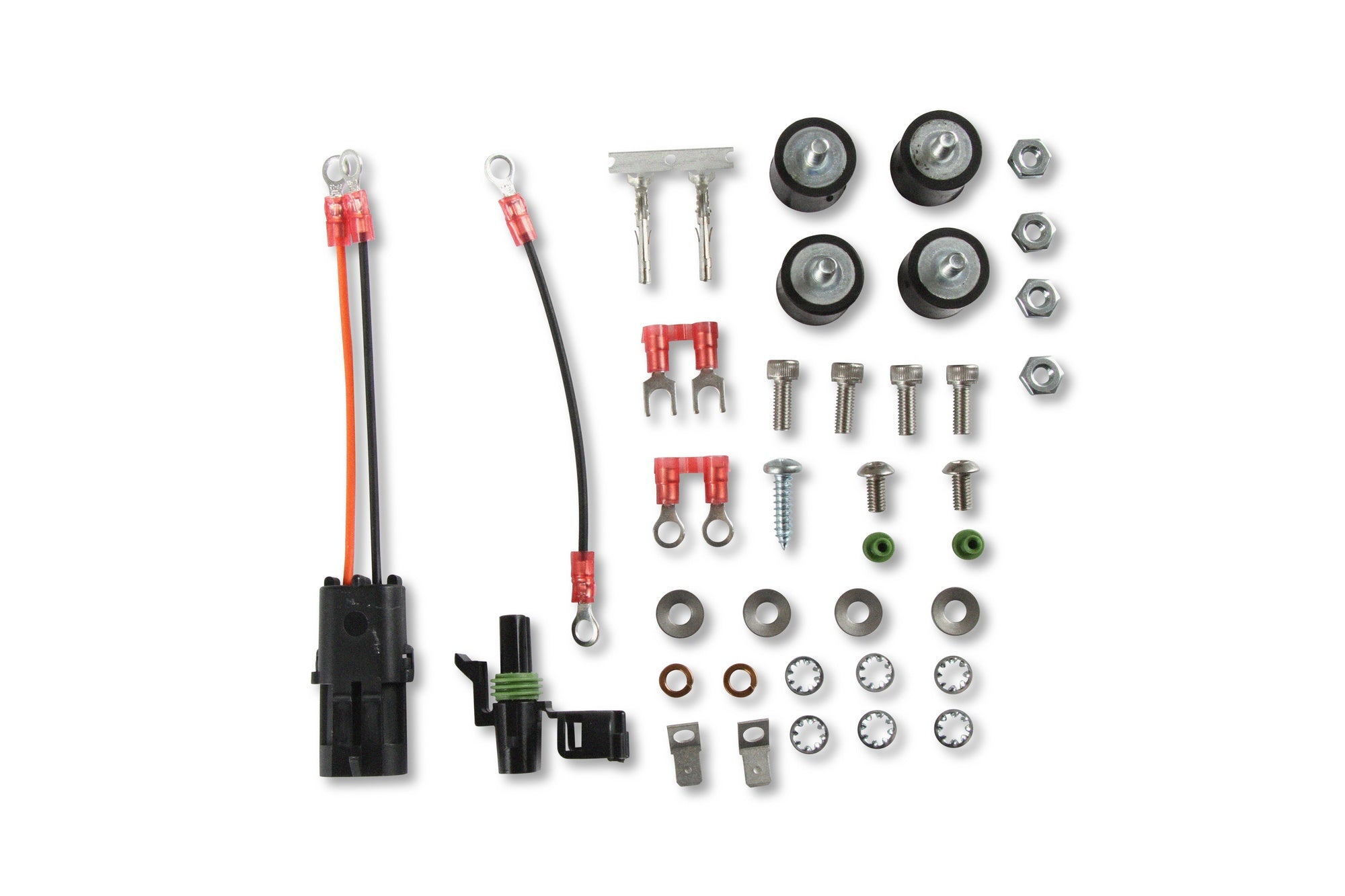

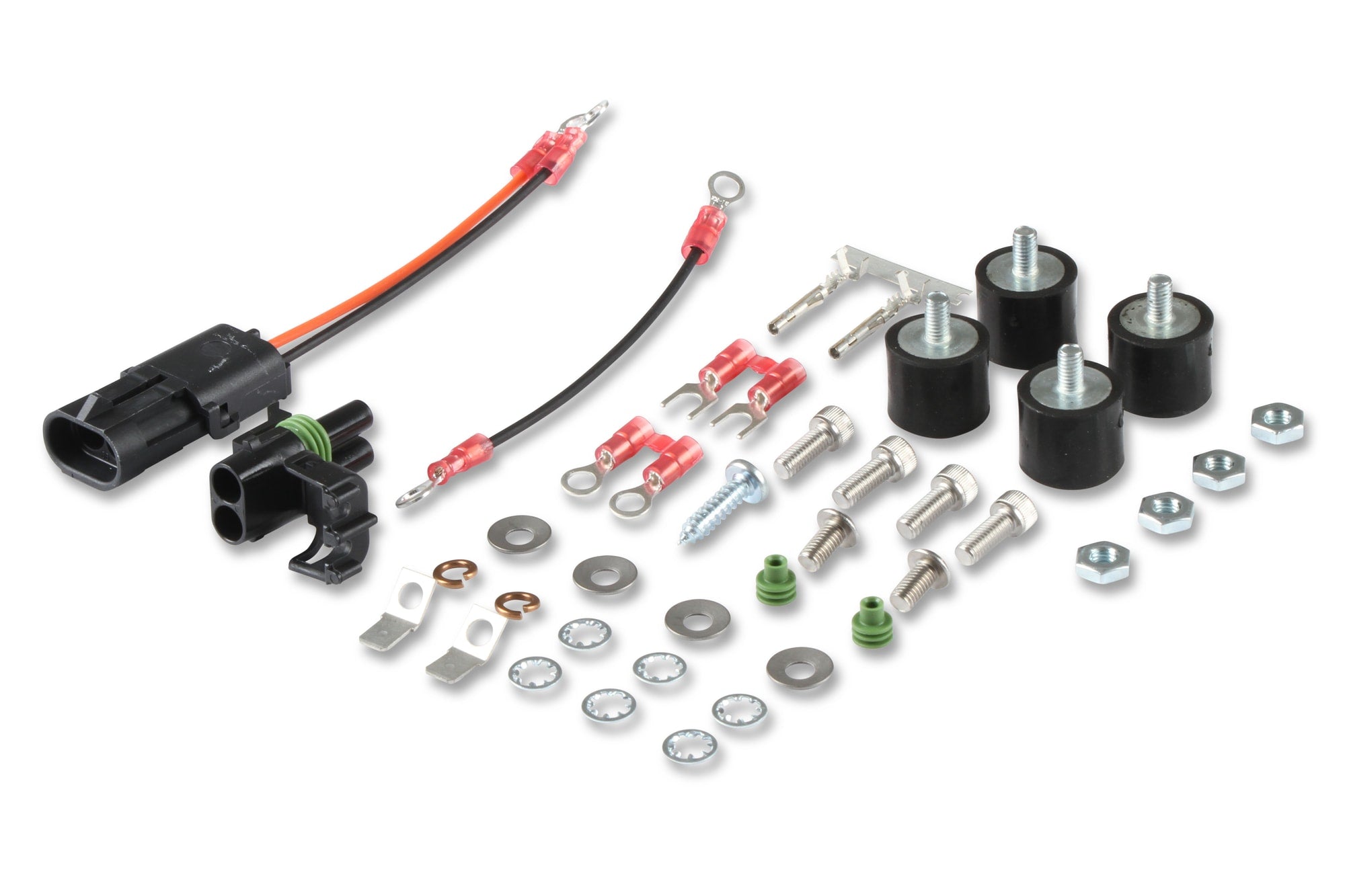

- Supplied with rubber shock mounts
- Windings are encased in blue epoxy and secured with extruded brackets
📖
About this product
Universal - Add To Any MSD 6-Series Ignition
📋
Product Specifications
Brand
MSD
C.a.r.b. Eo #
D-40-37
California Proposition 65 Chemical Name
72
Category
Ignition
Color
Blue
Emission Code
1
Inductance (mH)
7
Inductance
7 mH
Maximum Voltage
42
Part Type
Ignition Coil
Peak Current
300
Primary Resistance
.02 OHMs
Primary Resistance
0.02
Product Type
Ignition Coil
Secondary Resistance
1.38K
Secondary Resistance
1.38K OHMs
Spark Duration
0.2
Spark Duration
200 uS
Sub Category
Ignition Coil
Type
Drag Race / Long Duration Use
Warning
California Proposition 65
Warranty
Manufacturer's Limited 1 Year Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 1 Year Warranty
Country of Origin
US
Emissions Code
1
HS Code
8511300080
📐
Dimensions & Shipping
Product Dimensions
6.1 × 5.5 × 5.4 in
Shipping Dimensions
6.1 × 5.5 × 5.4 in
Weight
1656 g (1.66 kg)
