MSDPart 826123Made in US
Product Details
⭐
Key Features
**Designed to be used with Power Grid 600 Single Channel Ignition, PN 8001**

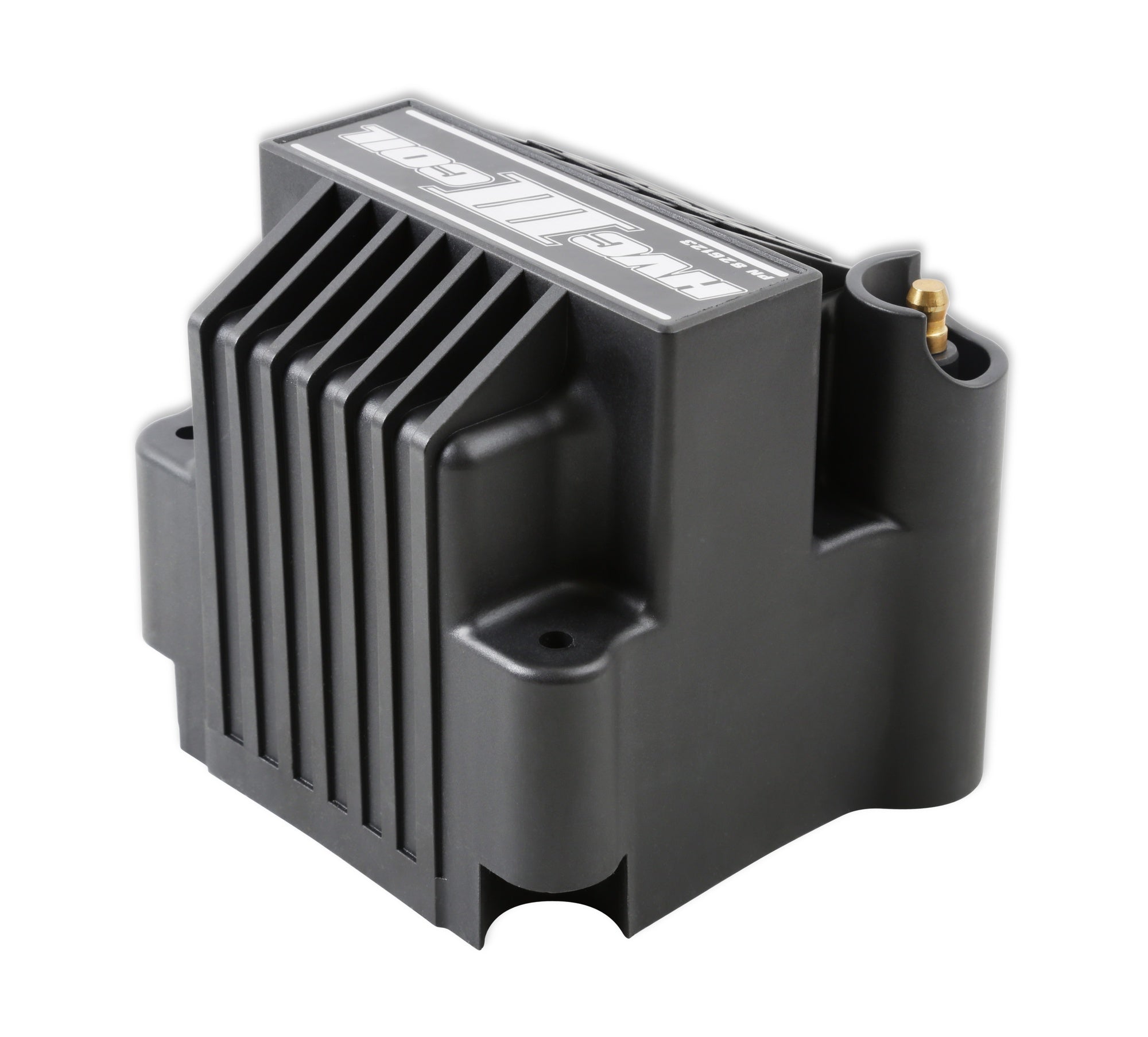

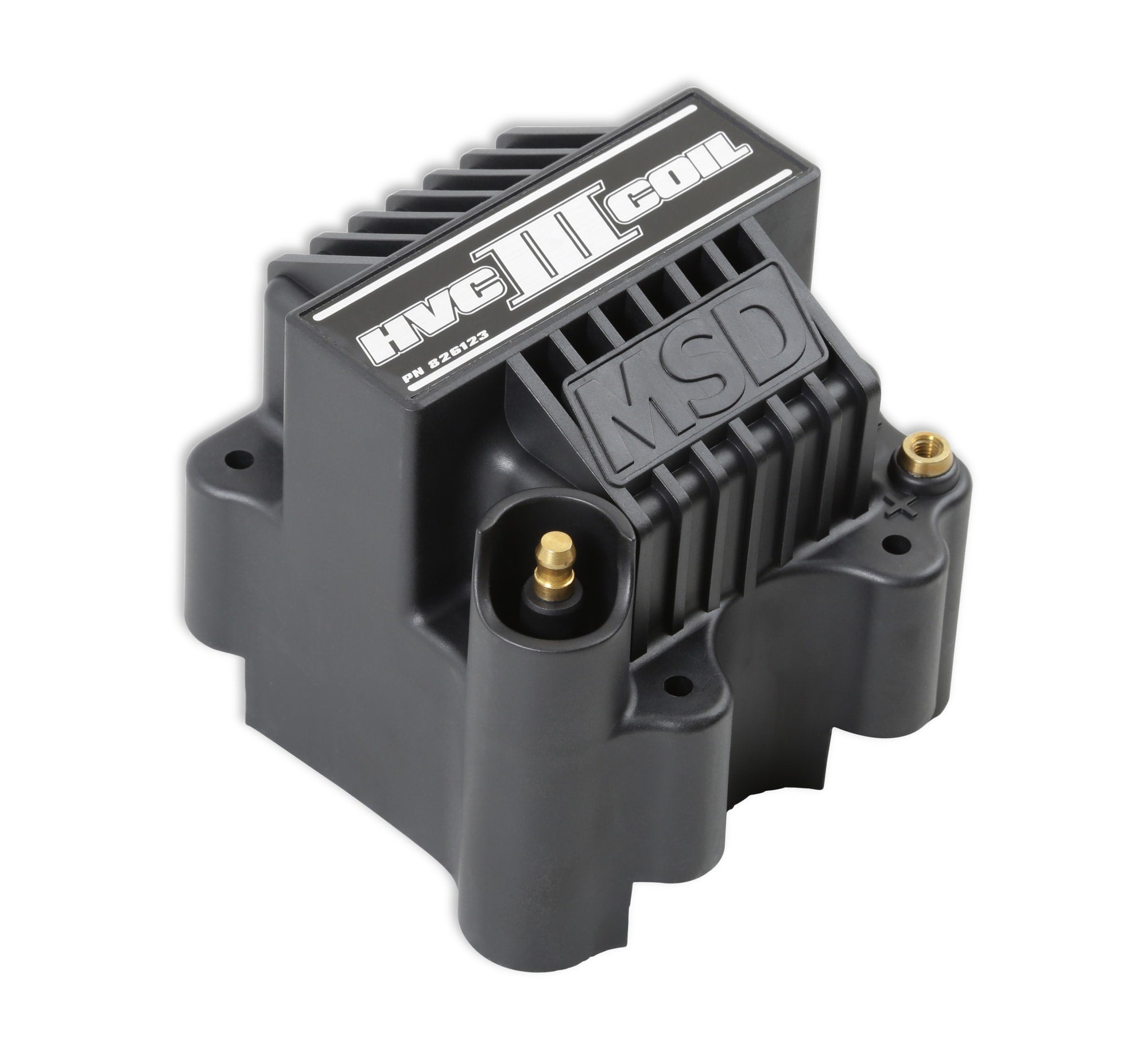

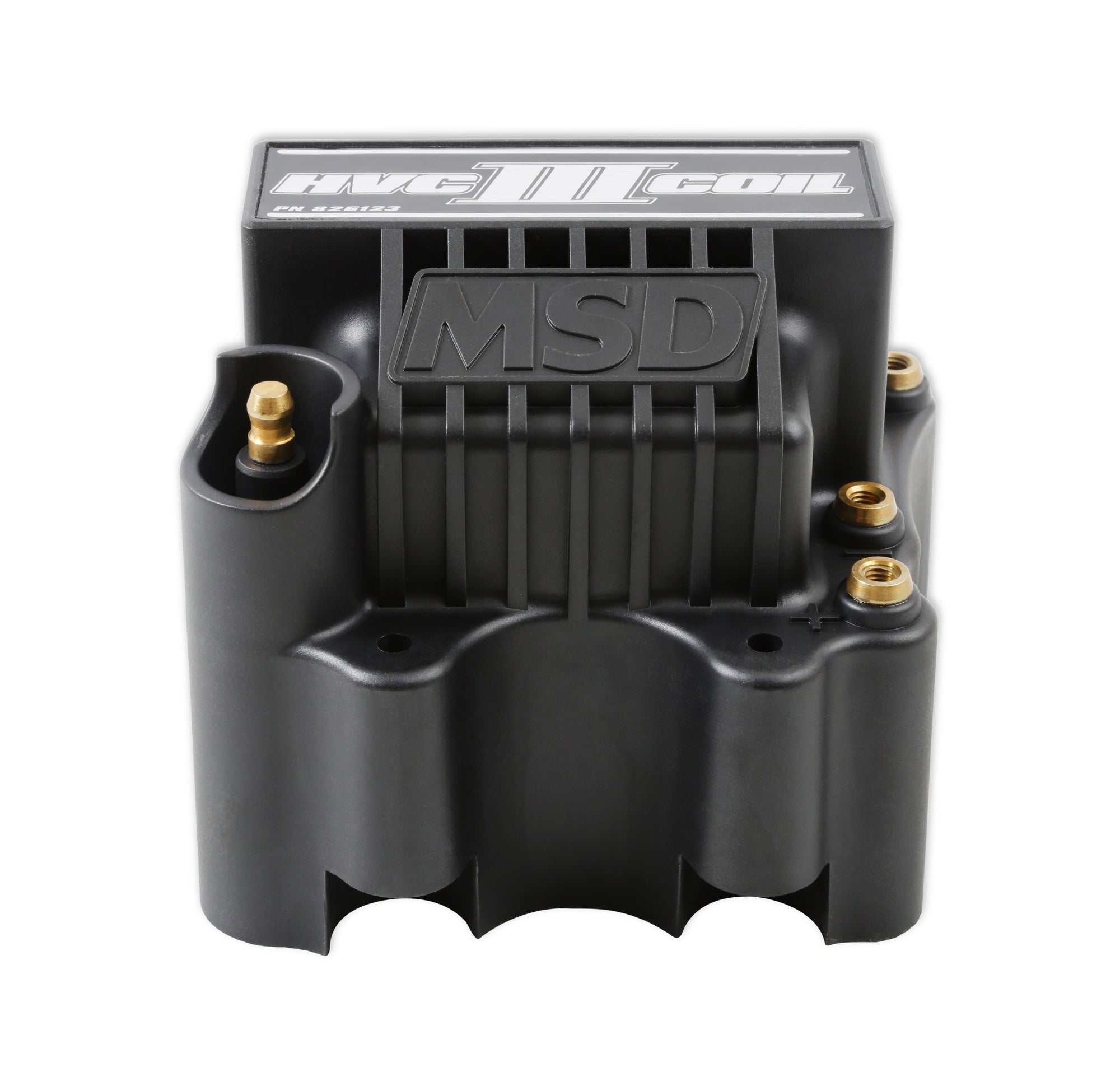

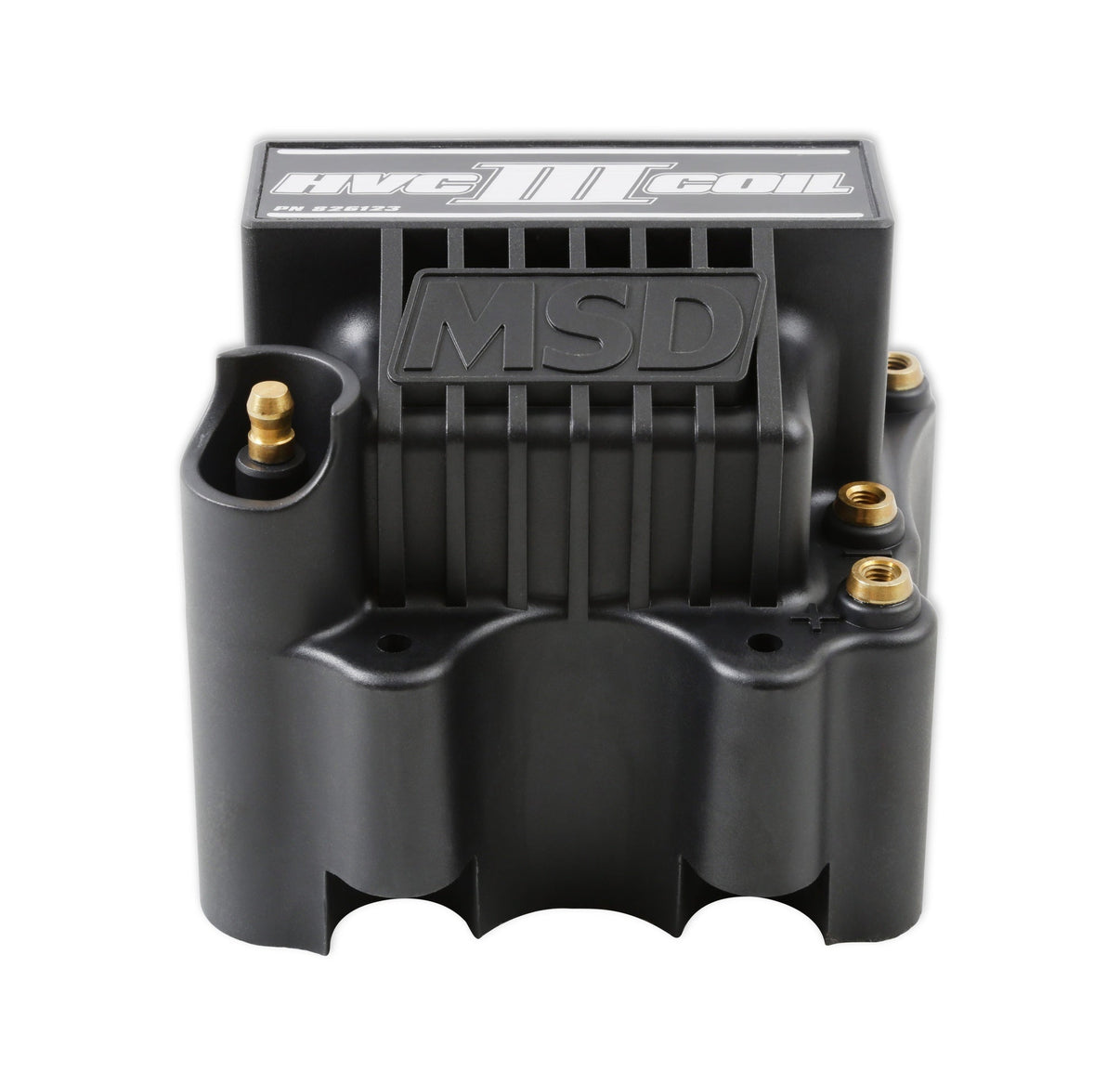

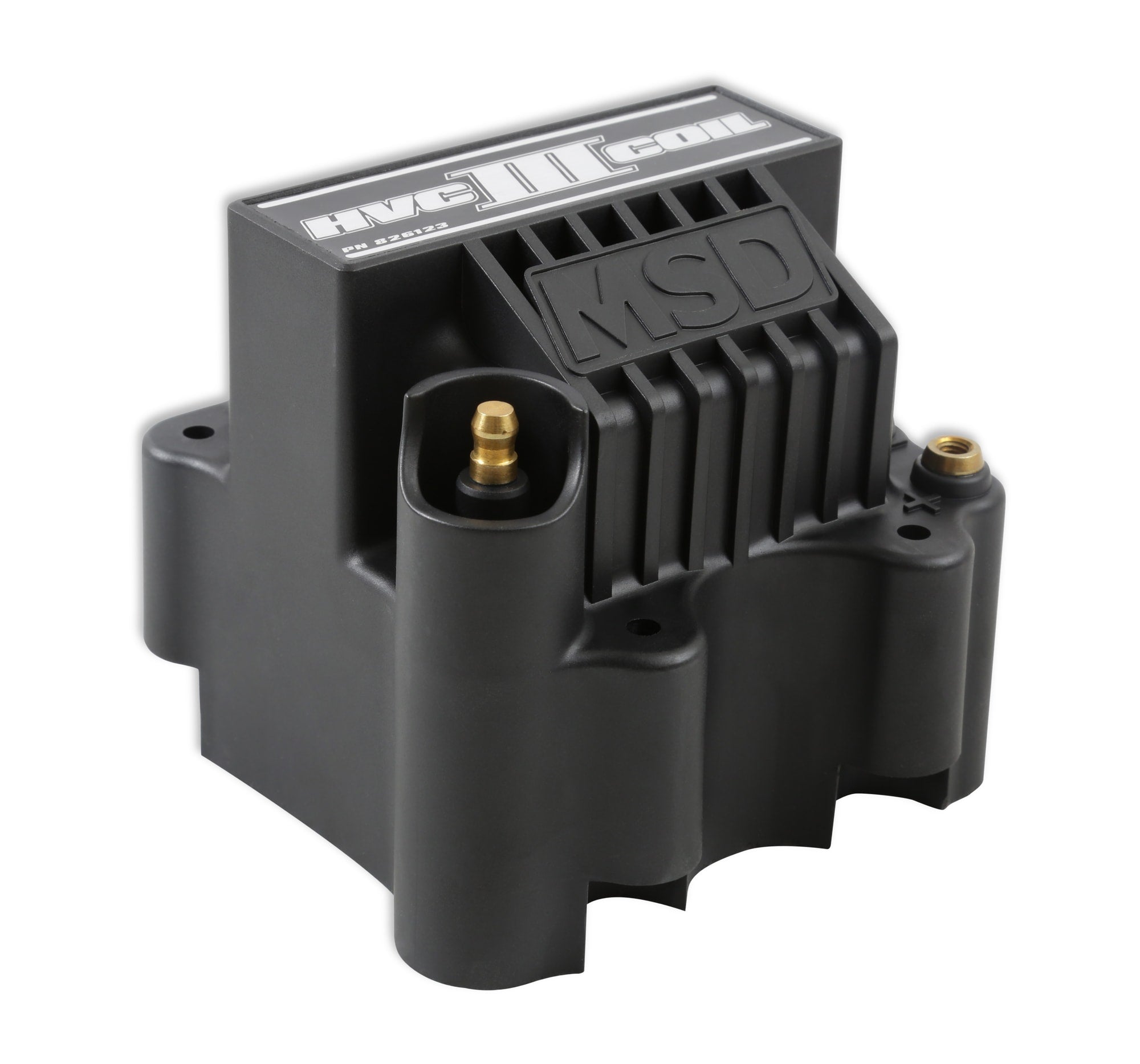

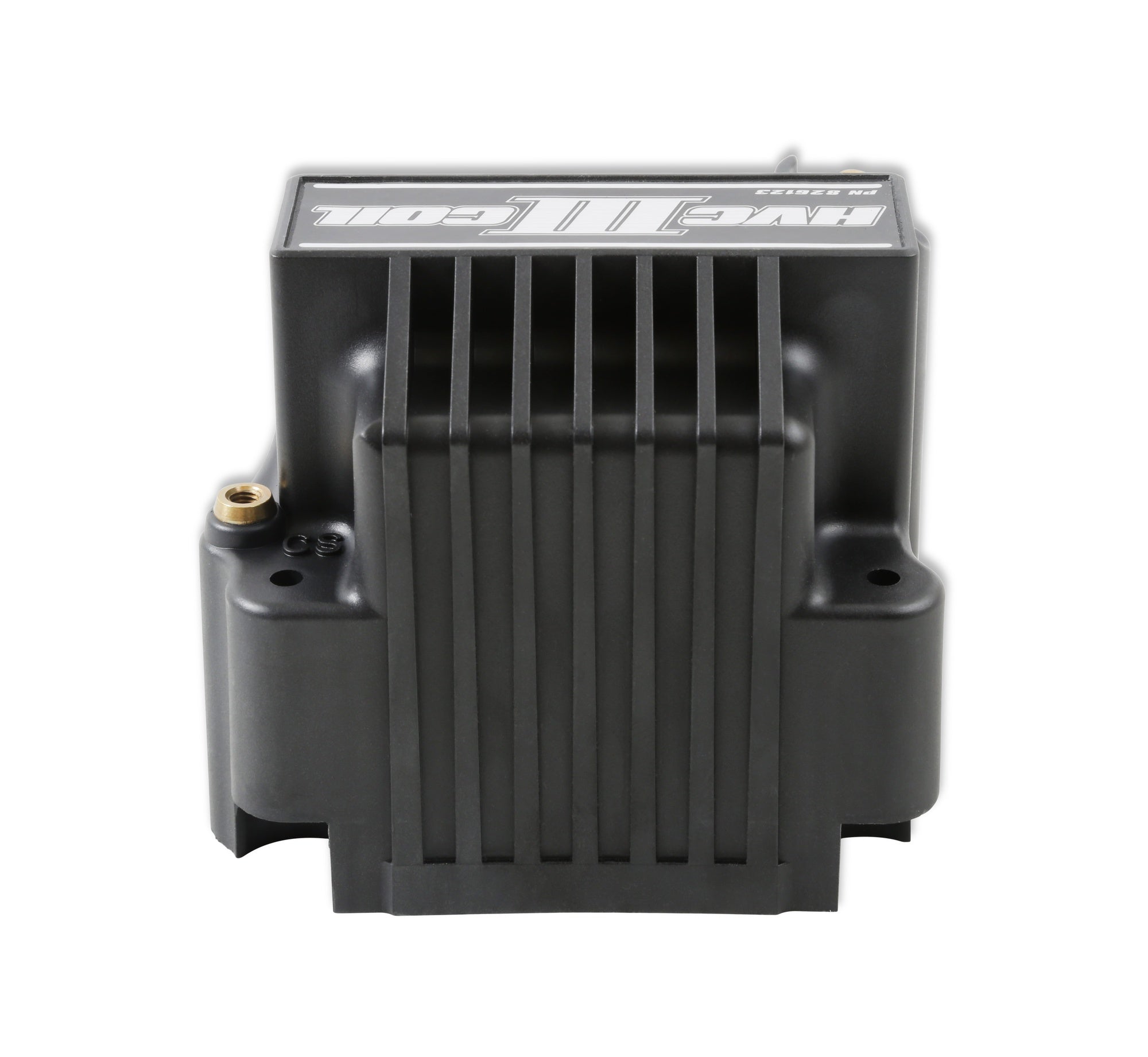

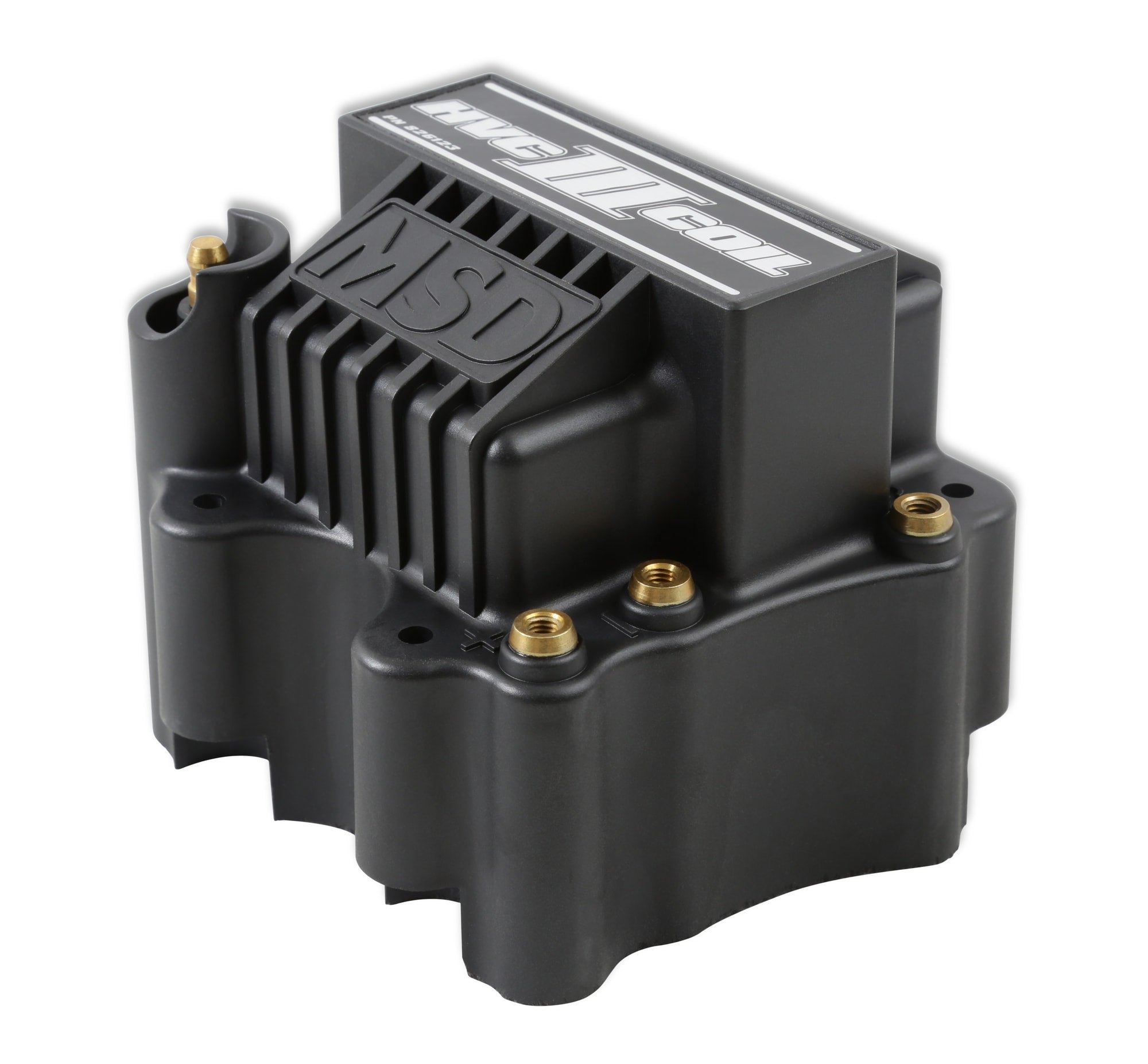

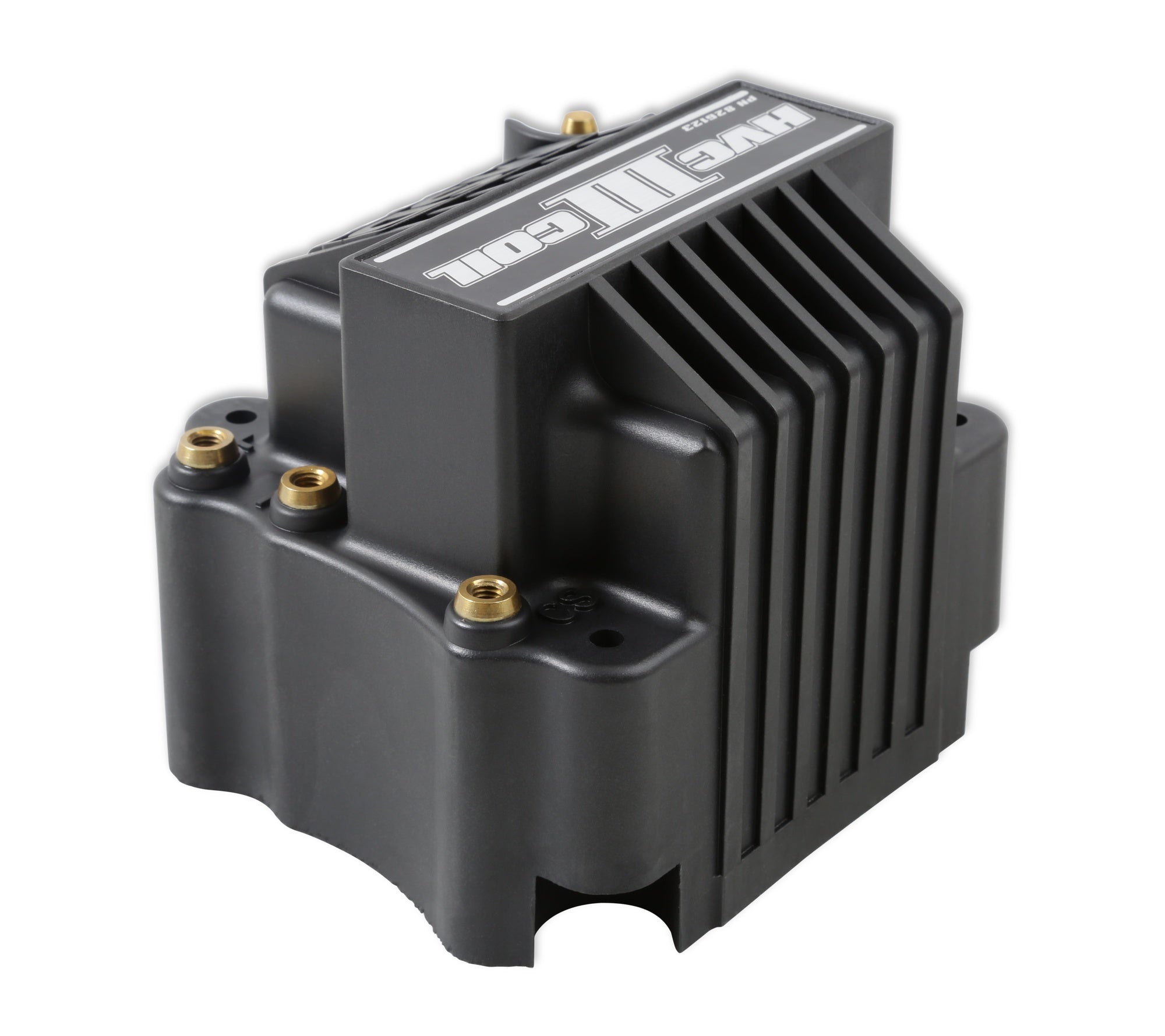

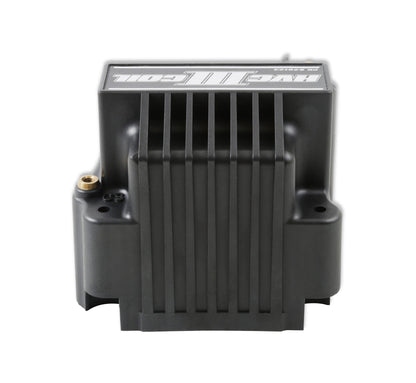

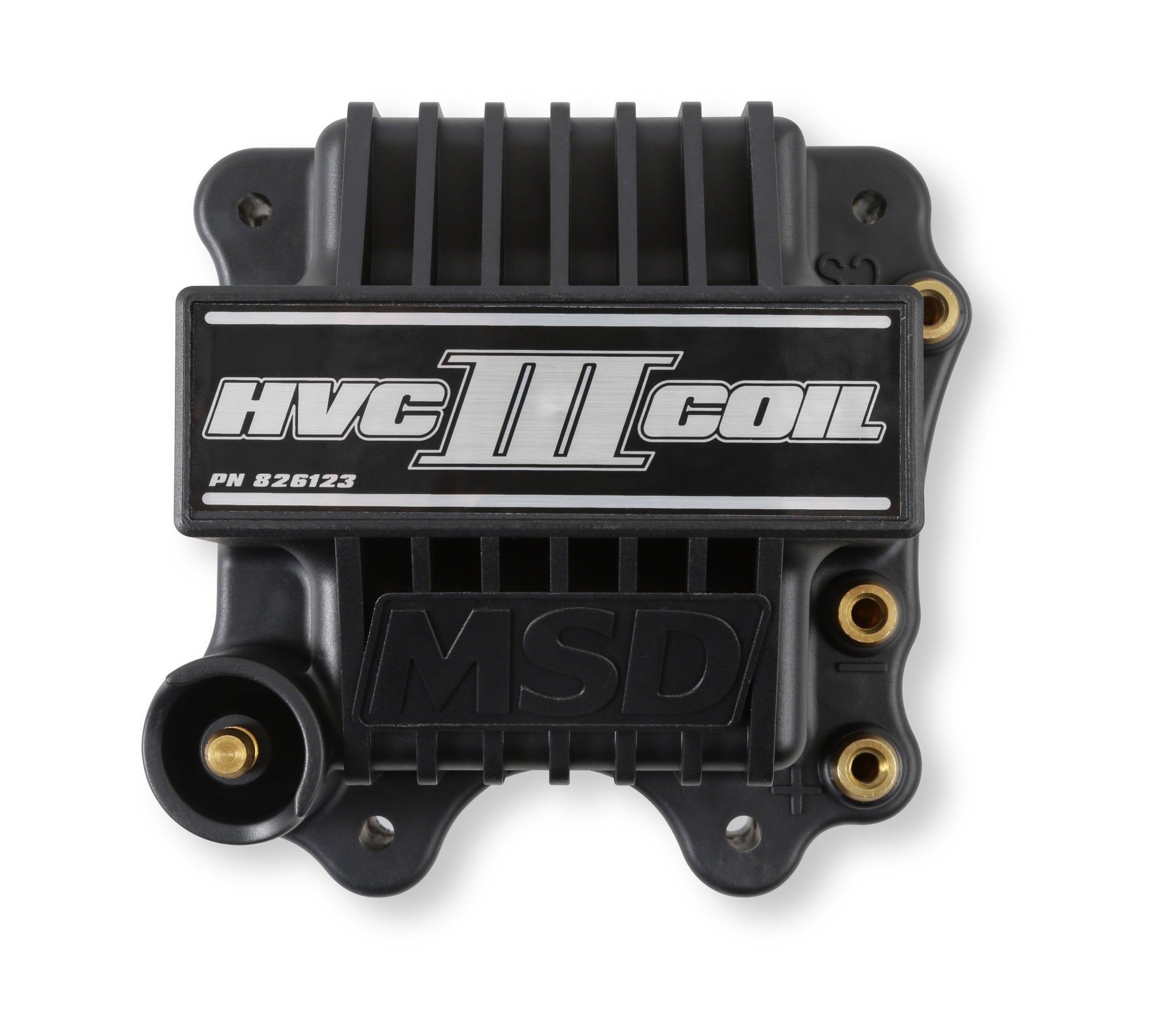

The HVC III Coil is completely built in-house so our engineers have exclusive control over their performance and quality. The Coil utilizes an iron U-Core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from Dupont Rynite FR946 material which has incredible dielectric capabilities at high temperatures. MSD also incorporated a cutting-edge winding material that has improved insulation and is also capable of enduring extreme voltages. Together, these materials create a durable coil with incredible voltage capabilities, lightning-quick rise time, and longer spark duration. Equipped with an industry-first third terminal to allow secondary current sensing, for each spark, when used in conjunction with the MSD 8001 Pro 600 Single Channel ignition.
Use with MSD Power Grid 600 Single Channel - PN 8001

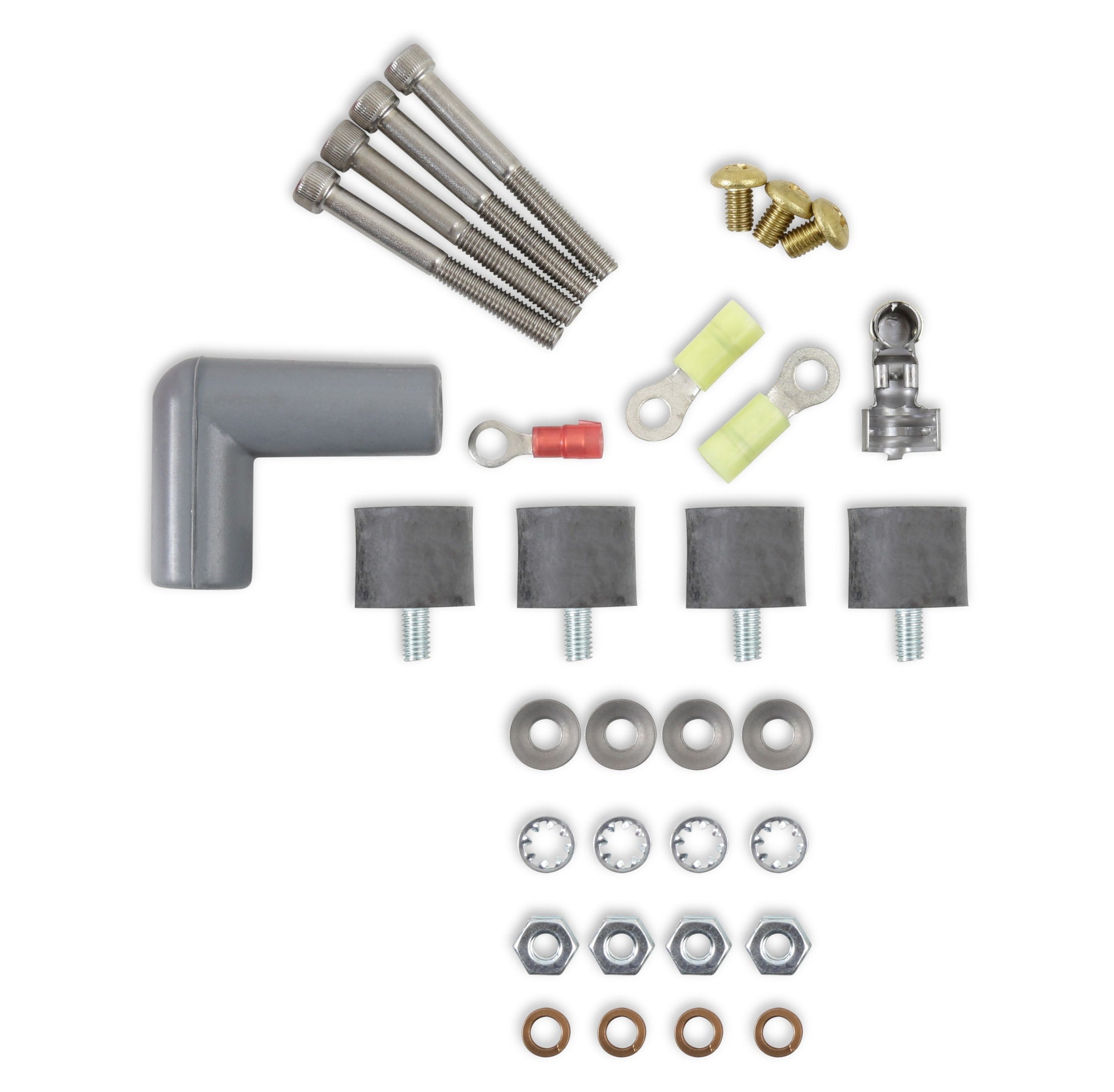

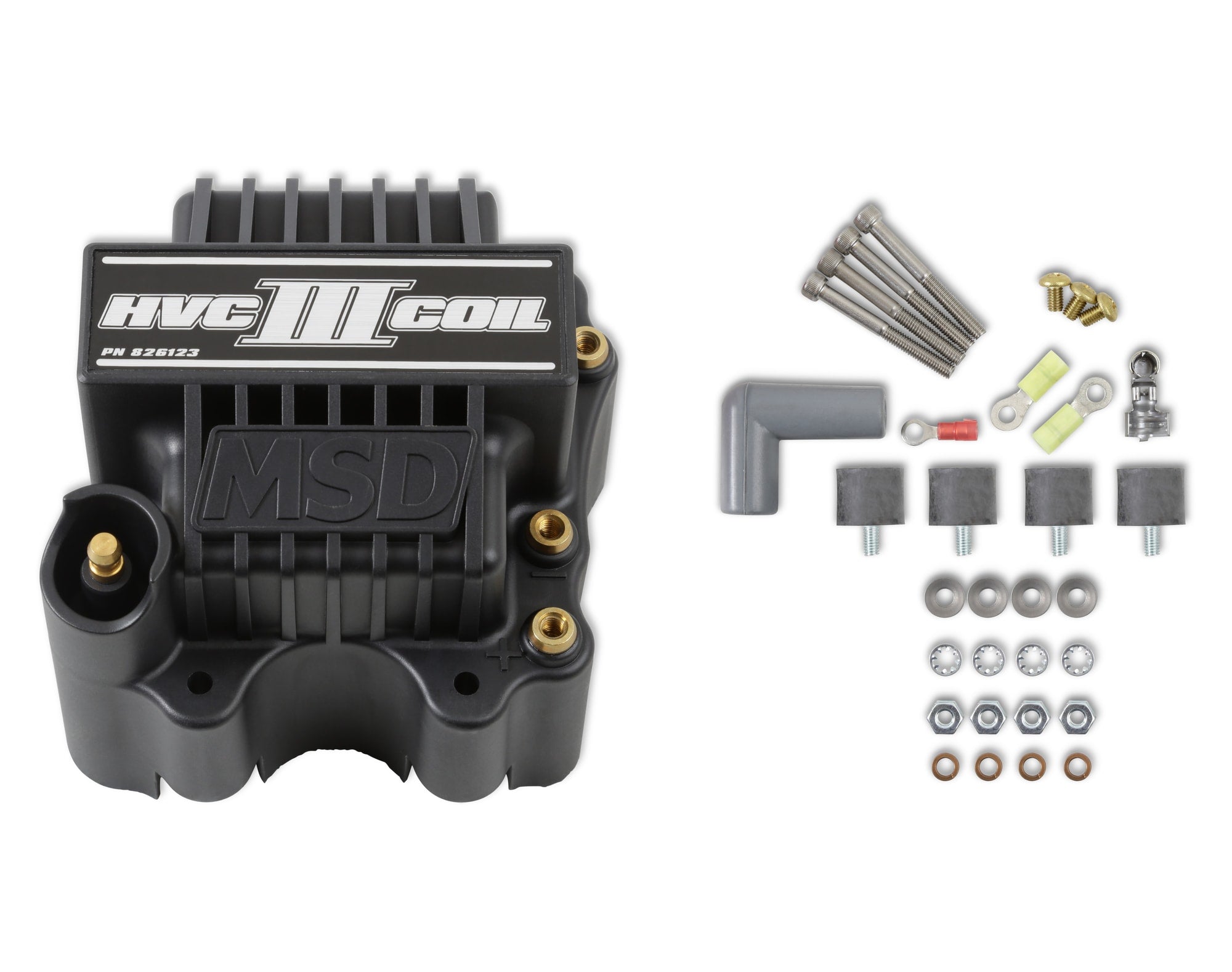

- Supplied with mounting hardware and rubber shock mounts
- Designed for racing applications with an MSD 7 or 8 Series Ignition Control or Pro 600 Single Channel - P/N 8001
- Windings are encased in fracture resistant compound for vibration resistance
- 70:1 turns ratio and lower primary resistant compound for vibration resistance

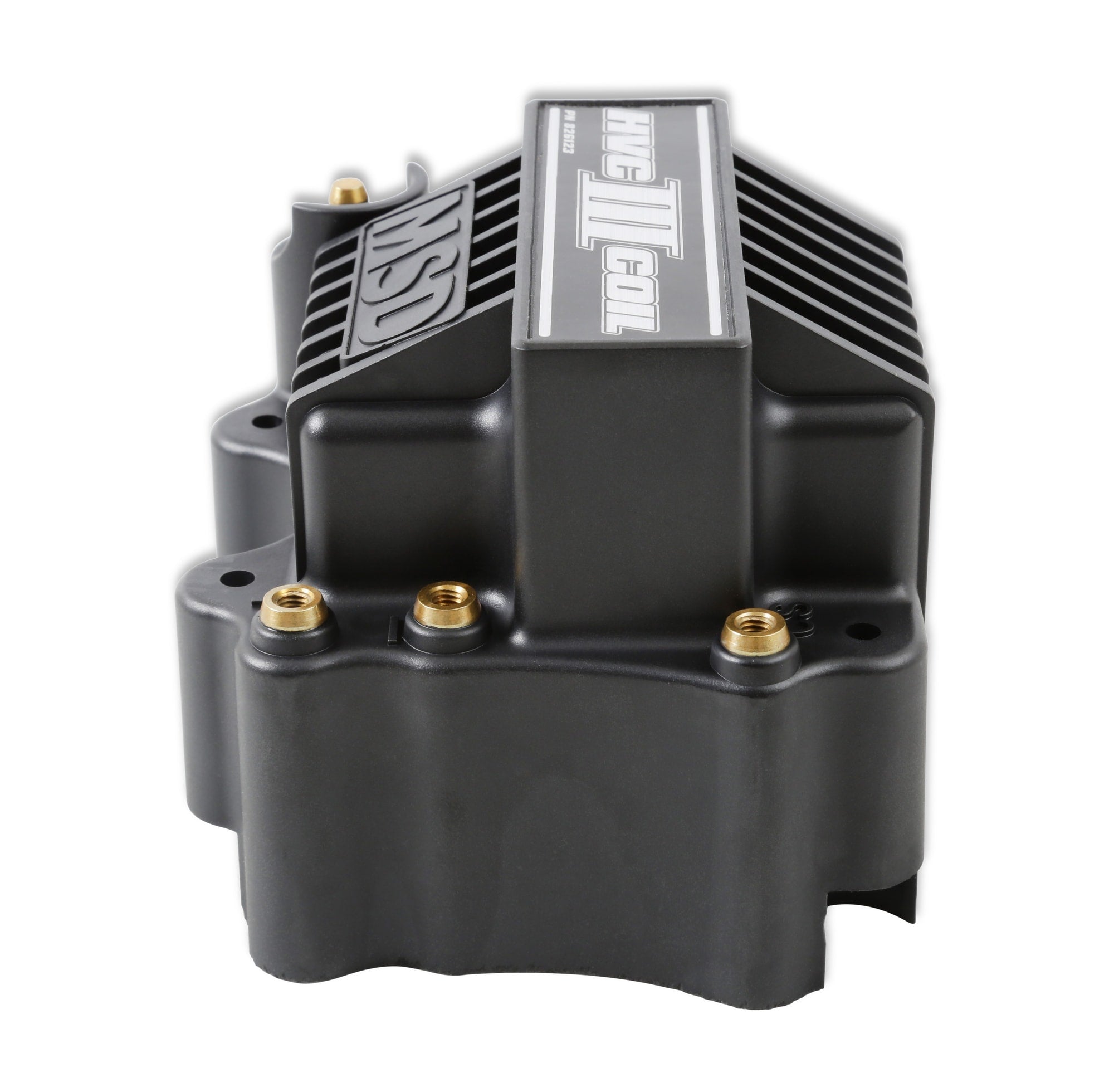

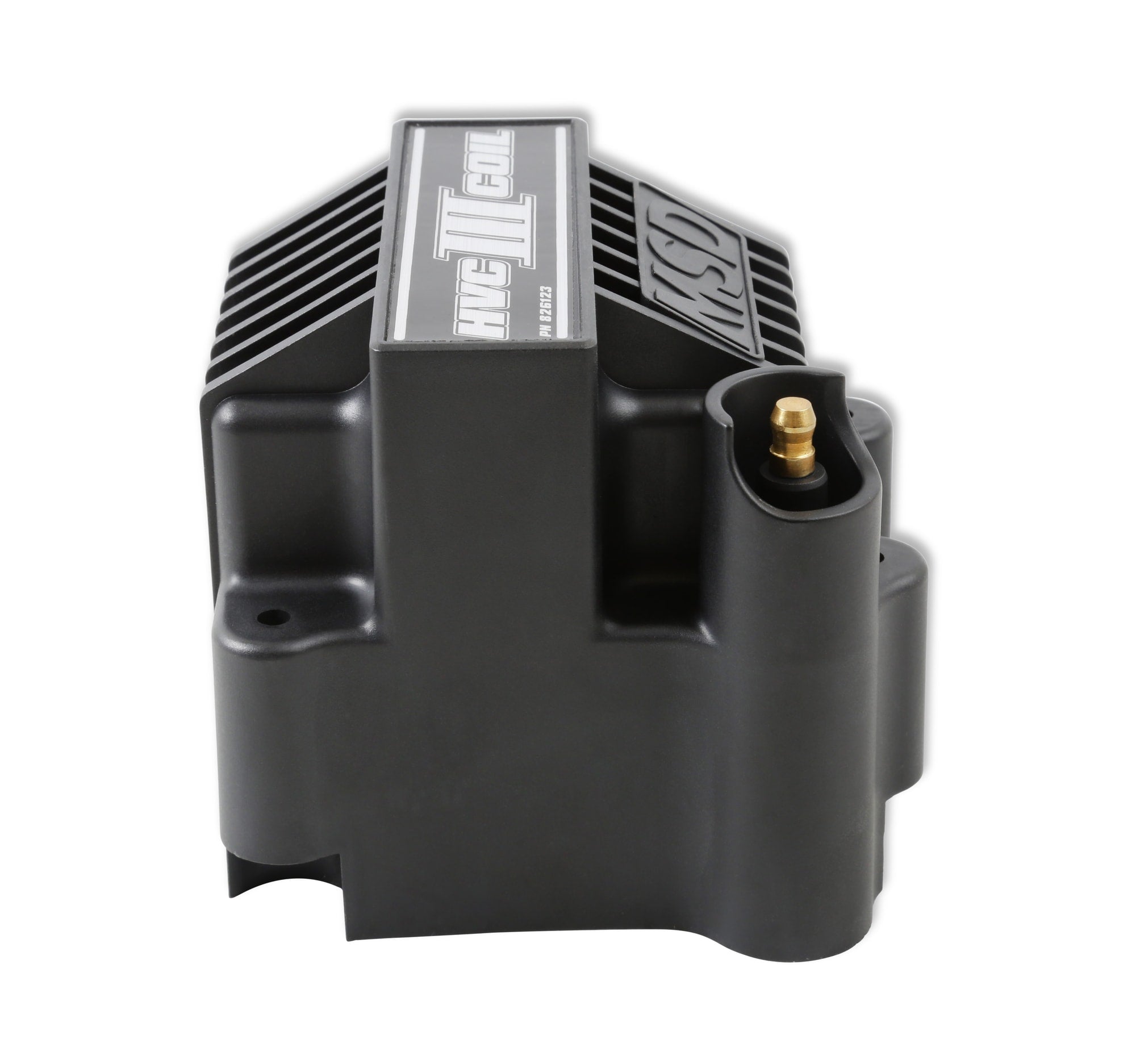

- Dupont Rynite housing with isolated tower and brass primary terminals
- New U-Core winding design produces more voltage and current

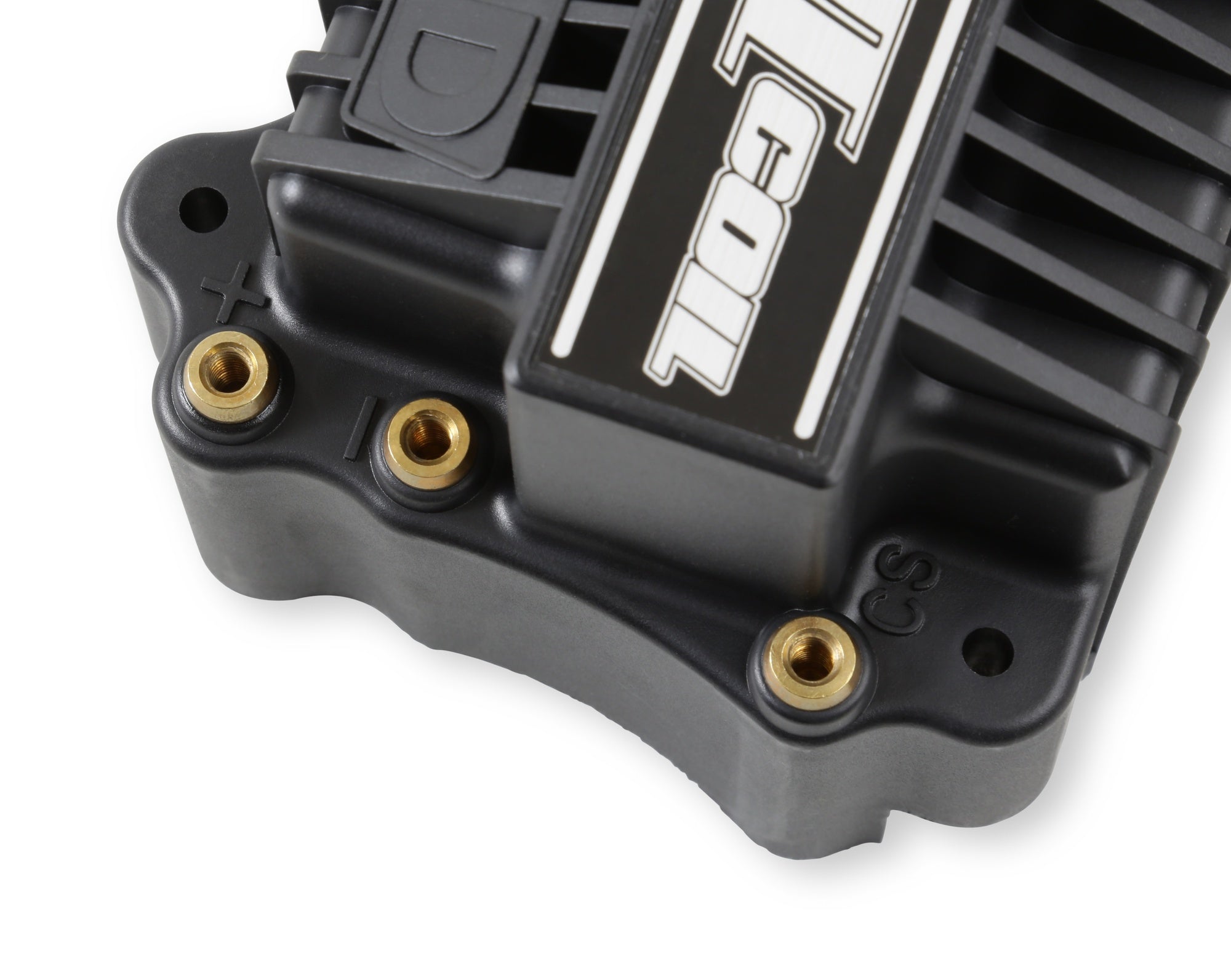

- Built-in Current Sensing when used with MSD Pro 600 Single Channel (8001)
📖
About this product
Use with MSD Power Grid 600 Single Channel - PN 8001
📋
Product Specifications
Brand
MSD
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Category
Ignition
Color
Black
Emission Code
4
Inductance (mH)
0.25
Inductance
.250 mH
Maximum Voltage
45
Part Type
Ignition Coil
Peak Current
2
Peak Current
2 Amps
Primary Resistance
.016 OHMs
Primary Resistance
0.016
Product Type
Coil
Prop 65 Yes/No
Yes
Secondary Resistance
30
Spark Duration
0.15
Spark Duration
150 uS
Sub Category
Ignition Coil
Turns Ratio
2.917361111111111
Turns Ratio
2.92
Type
Drag Race / Long Duration Use
Warning
California Proposition 65
Warranty
Manufacturer's Limited 1 Year Warranty
Weight
3.75
Weight
3.75 Lbs
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 1 Year Warranty
Country of Origin
US
⚠ Prop 65 Warning
Yes
1
Emissions Code
4
HS Code
8511300080
📐
Dimensions & Shipping
Product Dimensions
6.1 × 5.5 × 5.4 in
Shipping Dimensions
6.1 × 5.5 × 5.4 in
Weight
1610 g (1.61 kg)
