Holley EFIPart 556-113Made in US
Product Details
⚙️
Vehicle Fitment & Compatibility
View all 0 vehicle applications
Years
Make / Model
Submodel
Engine
1900
No applications match your search.
⭐
Key Features
Will not work on balancers which do not have a center-hub extrusion (i.e.: Innovators West, etc.). Not for use with Holley EFI with a 4x LSx or Chyrsler V8 NGC cam sensor
Holley's EFI Crank Trigger Kit is engineered to provide an accurate crank speed & position signal to Holley EFI systems in the most-demanding, high horsepower, racing applications. Crank position is measured every 10 degrees as opposed to every 45 degrees for a standard 4-Magnet, MSD "style" Crank trigger. It is designed for use on early model BBC Chevy applications using a standard ATI or Fluidamper "style" balancer up to 7-1/4" in diameter.

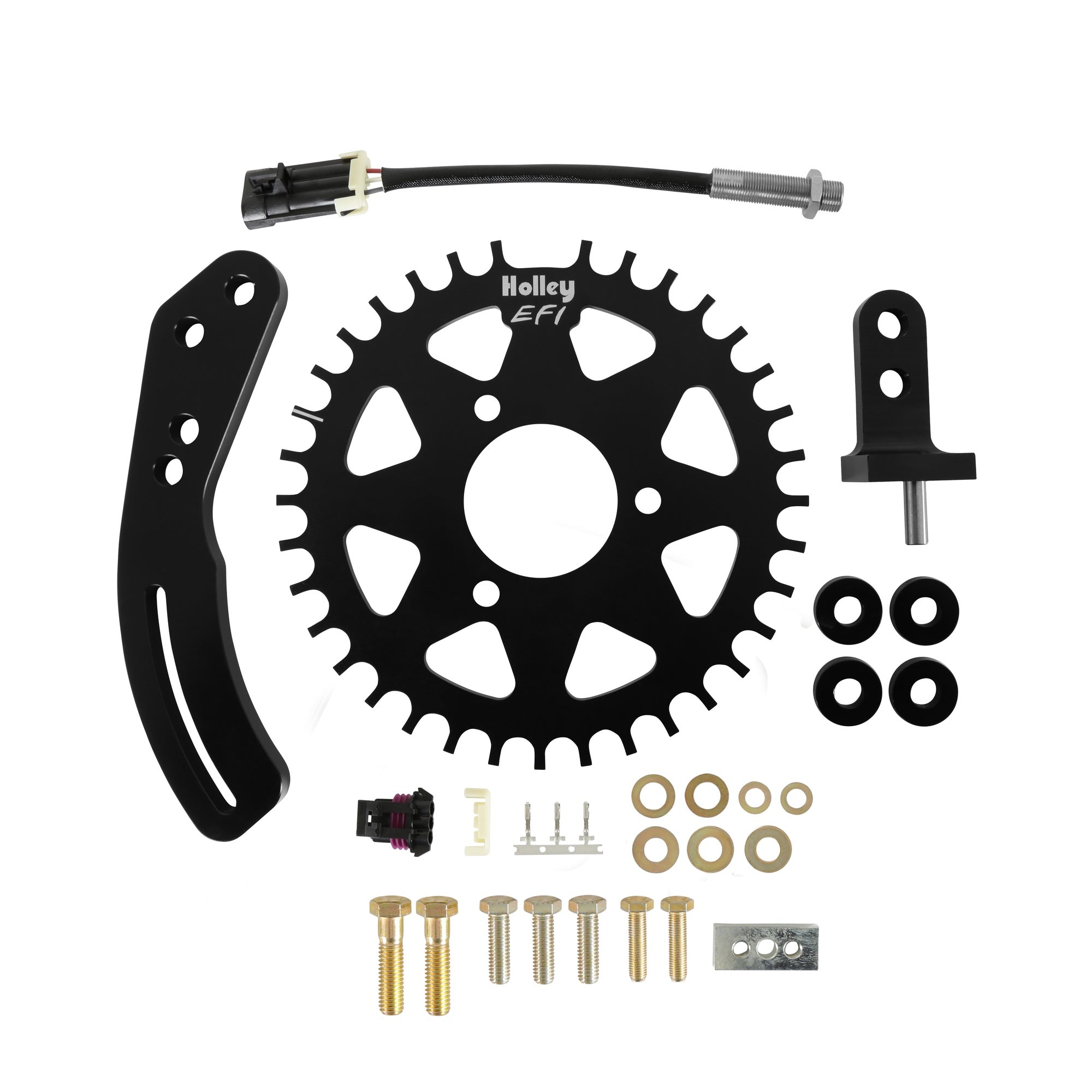

36-1 Tooth Crank Trigger System for Big Block Chevy

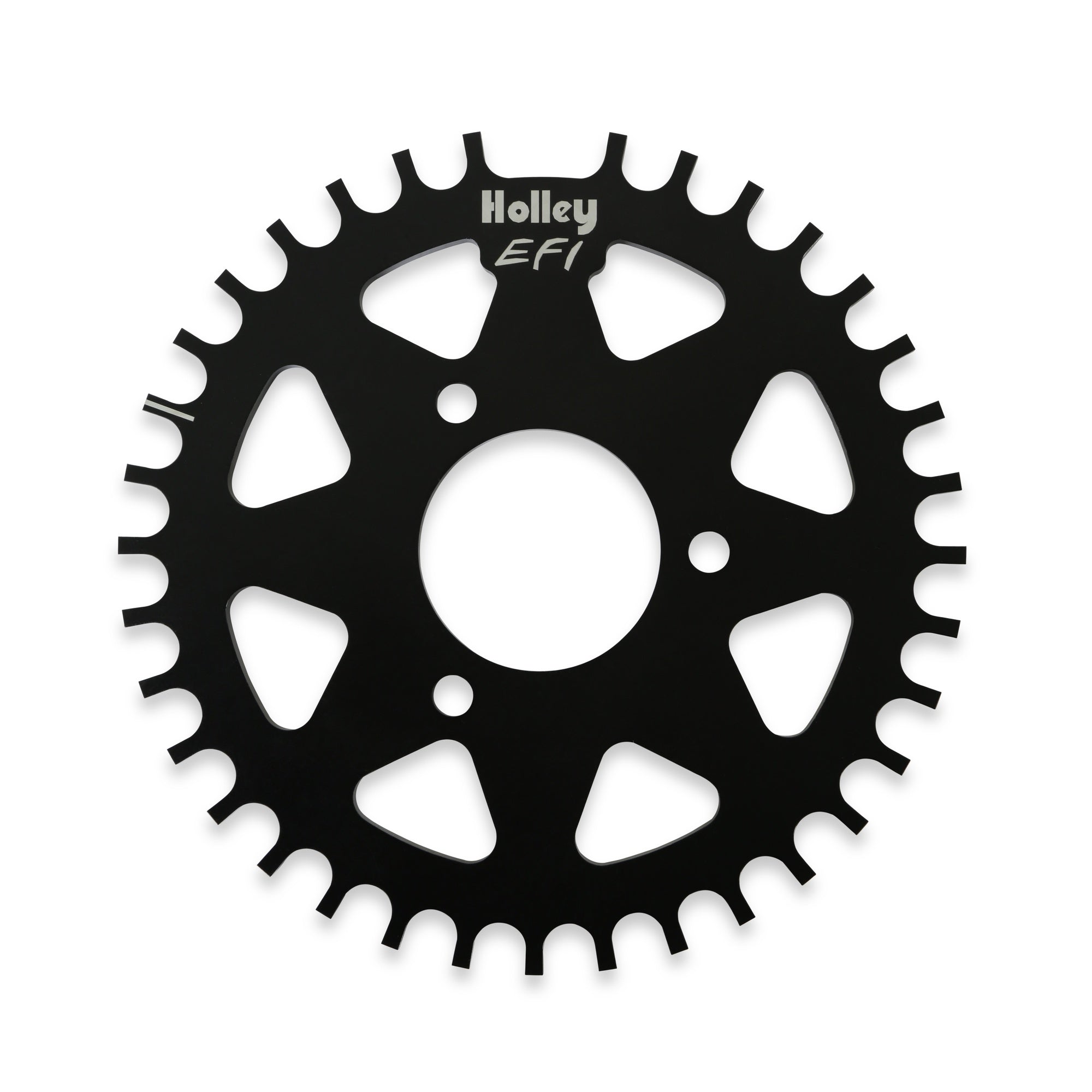

- 8” diameter, 1/4” thick, billet steel, 36-1 tooth, crank wheel with Black Zinc Oxide finish for superior corrosion resistance & striking good looks.
- Crank wheel centers off of the balancer’s hub, eliminating the need for a centering ring

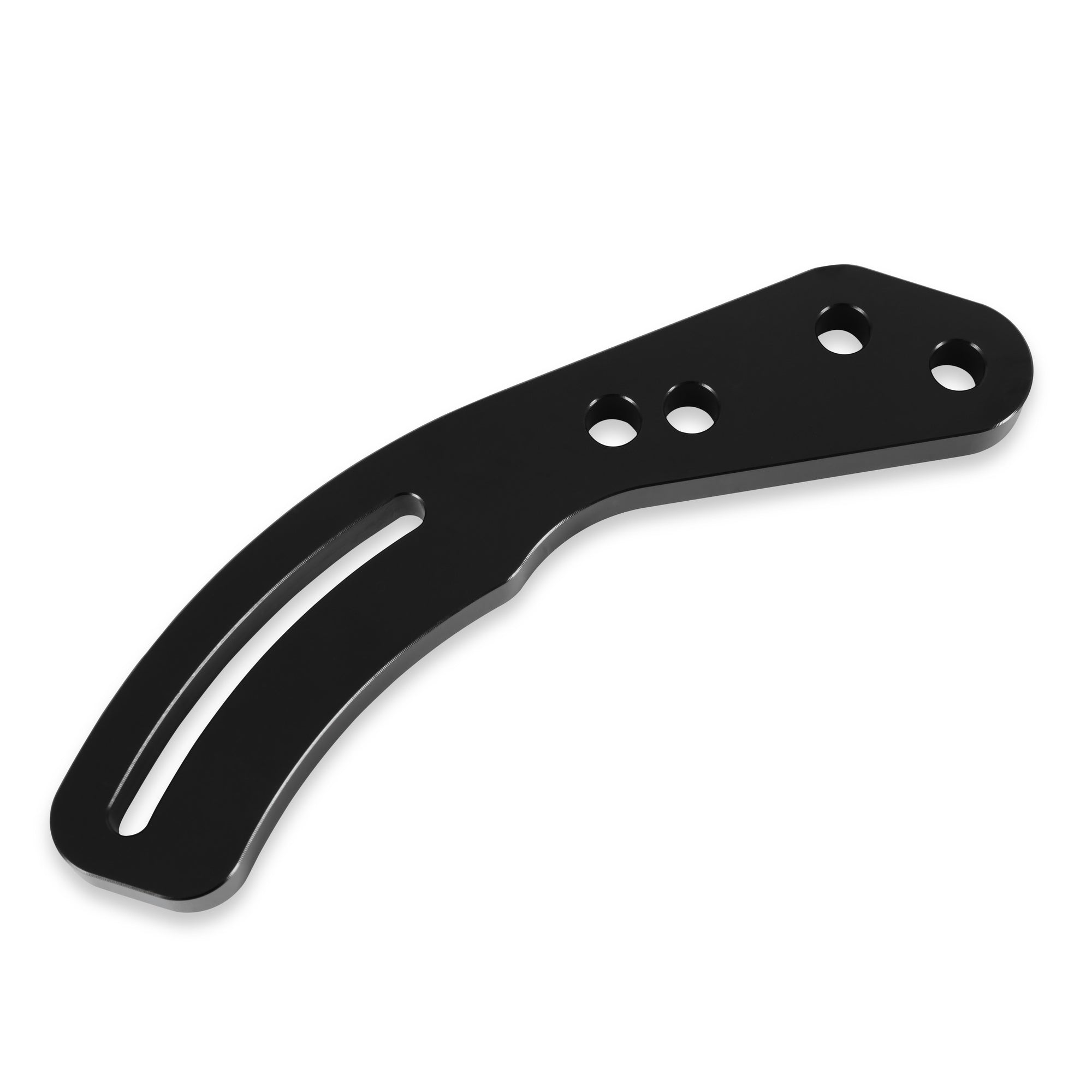

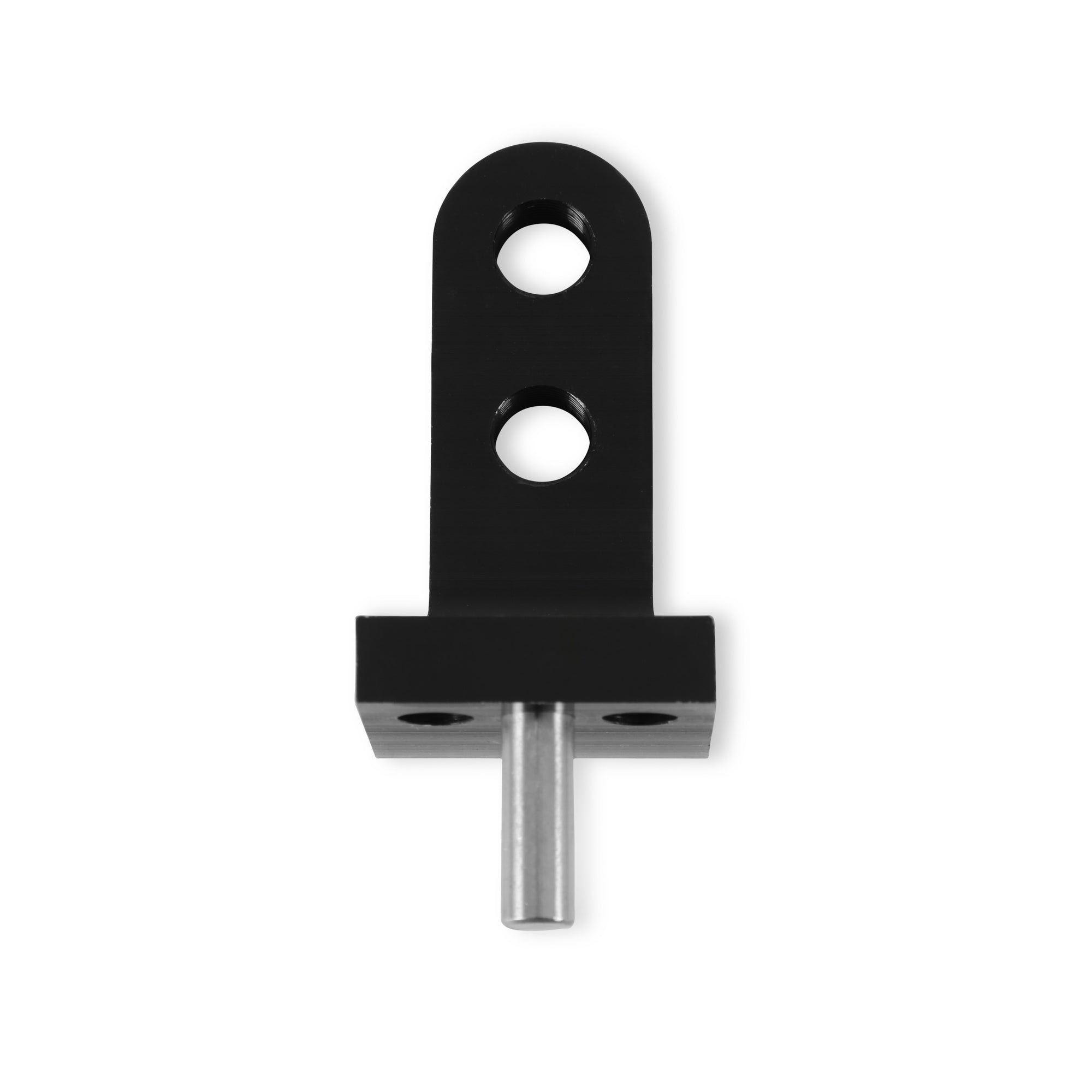

- All billet, 6061-T6 aluminum sensor mounting brackets with “bright-dipped” black anodized finish & Laser etched Holley EFI logo

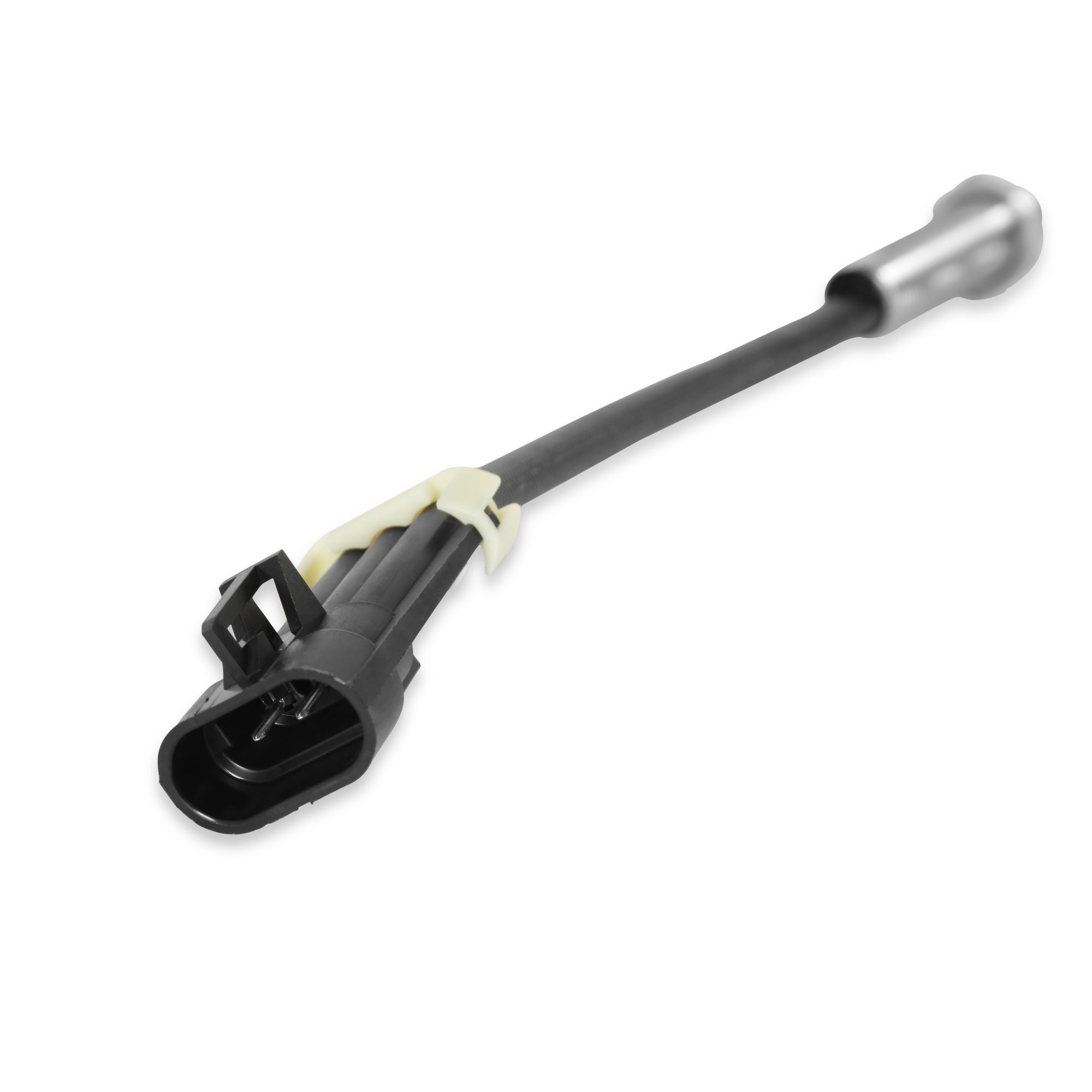

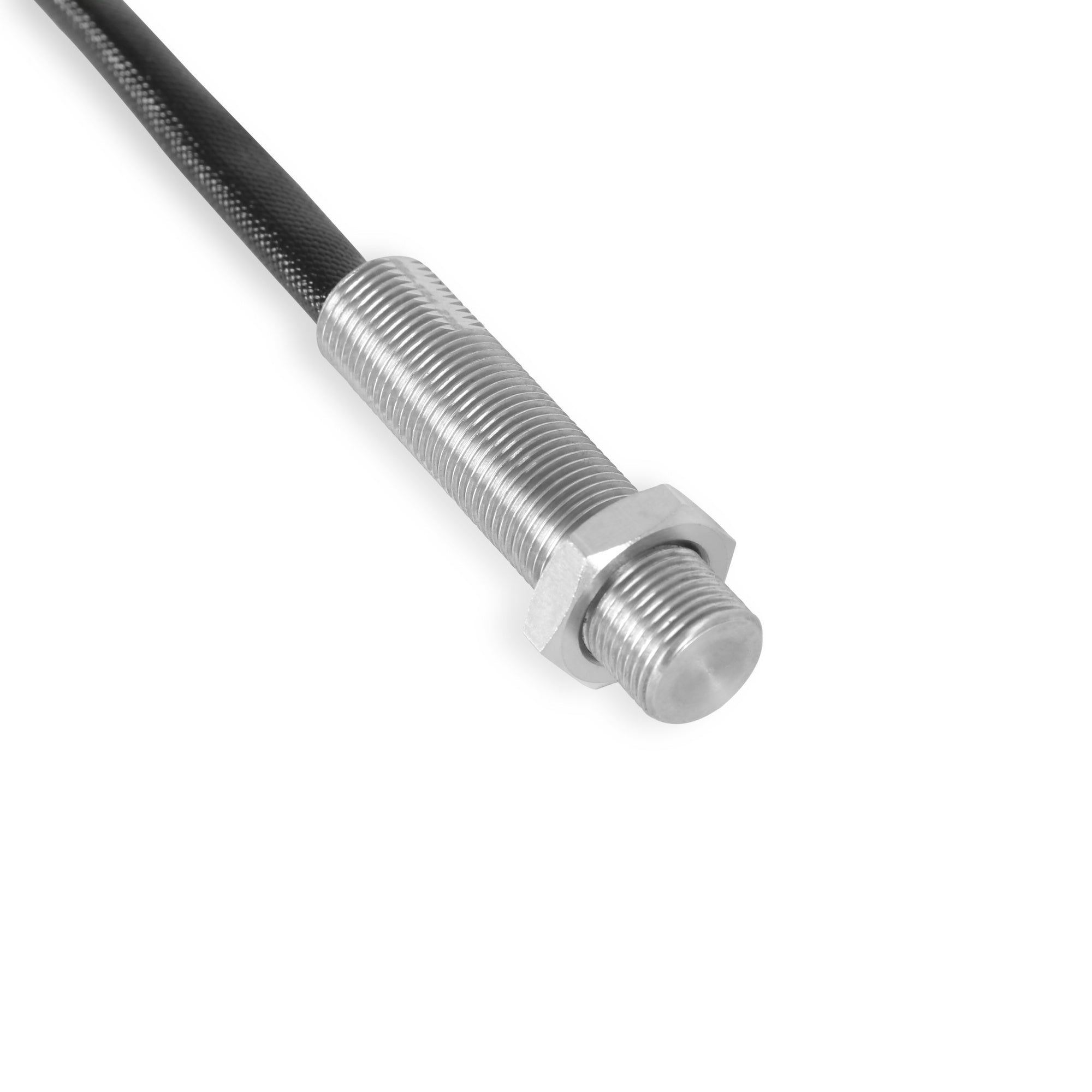

- Custom 3-wire, ferrous-target, Hall-effect sensor with M12X1mm threads for finer gap adjustment
- All Grade 8 & Mil. Spec mounting hardware
📖
About this product
36-1 Tooth Crank Trigger System for Big Block Chevy
📋
Product Specifications
Automotive Item Grade
Performance
Bracket Color
Black
Bracket Material
Aluminum
Brand
Holley EFI
California Proposition 65 Chemical Name
20
Category
Ignition
Collection
Air & Fuel Delivery
Collection
Air & Fuel Delivery - Fuel Injection (EFI)
Color
Black
Country
US
Diameter
8 in.
Emission Code
3
Emission Code
4
Finish
Black Zinc Oxide
Grade Type
Performance
HTS Code
8409915085
Menu
Sensors
Part Type
Ignition Crank Trigger Kit
Pickup Included
Yes
Product Type
Crank Trigger Kit
Prop 65 Yes/No
No
Sensor Dimensions
12mm x 50mm
Sensor Type
Hall Effect
Sub Category
Sensors
Trigger Type
36-1
Trigger Wheel Color
Black
Trigger Wheel Material
Steel
Trigger Wheel Mount Hole Quantity
3
Trigger Wheel Outside Diameter
8 IN
Trigger Wheel Thickness
1/4 IN
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
Wheel Width
1/4"
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
Emissions Code
4
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
10.6 × 10.4 × 2.2 in
Shipping Dimensions
10.6 × 10.4 × 2.2 in
Weight
1383 g (1.38 kg)
