7AL TÆNDINGSKONTROL - GULD - MSD Ultra 7AL Tænding

Normalpris £922.00 GBP inc VAT
Fragt beregnet ved kassen.
Varenummer: 7227

Udsolgt

Checking stock levels…
🇬🇧 UK warehouse
🇺🇸 US warehouse
Estimated Delivery


Se detaljer
MSDPart 7227Made in US

Product Details

Key Features

For racers that need serious spark output, the ULTRA 7AL is the right choice. Offering high voltage with four step retards, three rev limits, and two RPM switch outputs, the new 7AL checks all the boxes!

For racers that need serious spark output, the new ULTRA 7AL is the right choice. Offering Industry-Leading Spark Energy Output in a compact, and efficient package. The Ultra 7AL includes four-step retards, three rev limits, and two RPM-activated switch outputs. The ULTRA 7AL also features two different power output settings that can be used for on-the-fly changes which are perfect for drag-and-drive applications! All features are adjusted using plug-in modules including the 3-Step Rev Control and Multi-Step Retard. The Rev Control allows you to set one rev limit for the burnout, another for the staging rpm limit, and a third for top-end engine protection in the event of driveline failure. Four separate stages can be activated independently for nitrous users as well. Plus, two RPM Activated Switch outputs can be used for air shifters, shift lights, or other devices that require a perfectly timed ground trigger! The MSD 7AL also features an adjustable start retard giving you control over the amount of retard pulled out during cranking.

For racers that need serious spark output, the ULTRA 7AL is the right choice. Offering high voltage with four step retards, three rev limits, and two RPM switch outputs, the new 7AL checks all the boxes!

  • Quickens Throttle Response
  • High Power: 1.8A per 1K RPM (14.7A @ 8K RPM) Low Power: 0.9A per 1K RPM (7.2A @ 8K RPM)
  • Launch Rev Limit
  • On the Fly Power Output Selection
  • The Ultra 7AL is 56% lighter, and over 50% smaller than the 7AL-3
  • Uses familiar Pills for Rev Limit and Timing Retard Adjustments
  • Two multi-colored LEDs let you know exactly what is going on (previous boxes feature a single status LED)
  • Features an adjustable switch for start retard settings, eliminates the need for additional external wiring to the starter solenoid
  • The Ultra 7AL has over twice the spark output of the 7AL-3, (330mJ vs 160mJ)
  • Industry Leading Spark Energy & Efficiency
  • Increases Overall Performance and Power
  • Adjustable start retard improves engine start-up, especially in high-compression engines.
  • Two (2) RPM Activated Switch Outputs (compared to the 7AL’s single RAS output)
📖

About this product

For racers that need serious spark output, the ULTRA 7AL is the right choice. Offering high voltage with four step retards, three rev limits, and two RPM switch outputs, the new 7AL checks all the boxes!

🎬

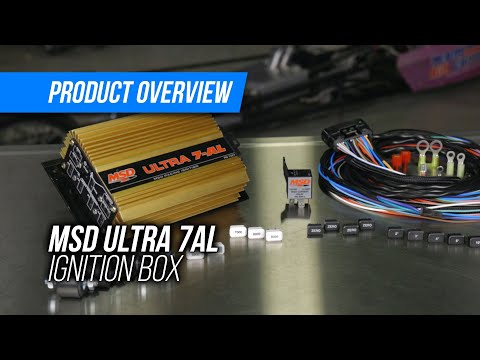

Product Videos

📋

Product Specifications

Application
High Horsepower Drag Racing
Automotive Item Grade
Performance
Brand
MSD
California Proposition 65 Chemical Name
16
Category
Ignition
Color
Gold
Condition
New
Connector Gender
Male
Connector Quantity
1
Current Draw
6000
Current Draw
8000
Current Draw
High Power
Dimensions
7.5" L x 4.5" W x 2.25" H
Emission Code
4
Features
4-Step Rev Limiter
Features
Start Retard
Grade Type
Performance
Height
2.25
Ignition Coil Included
No
Ignition Type
Performance
Length
7.5
Maximum RPM
Firmware Limited to 15K RPM
Mount Type
Surface Mount
Mounting Hardware Included
No
Part Type
Ignition Control Module
Primary Voltage
High Power
Product Type
Ignition Box
RPM Range
Firmware Limited to 15K RPM
Secondary Voltage
40KV with Coil PN 82612
Spark Duration
27° Crank Rotation @ 750 RPM
Spark Energy (mj Per Spark)
330
Spark Energy
330 mJ per spark
Sub Category
Control Modules
Terminal Gender
Female
Terminal Quantity
1
Type
Drag Race
Voltage Required
7-20
Voltage Required
7-20 VDC
Warning
California Proposition 65
Warranty
Manufacturer's Limited 1 Year Warranty
Weight And Size
5.3lb
Weight And Size
5.3lbs.
Weight
5.3
Width
4.5
🛡️

Warranty & Compliance

Warranty
Manufacturer's Limited 1 Year Warranty
Country of Origin
US
Emissions Code
4
HS Code
8511804000
📐

Dimensions & Shipping

Product Dimensions
13.0 × 13.0 × 4.25 in
Shipping Dimensions
13.0 × 13.0 × 4.25 in
Weight
2109 g (2.11 kg)
