MSDPart 8485Made in US
Product Details
⭐
Key Features
VW Type I (air cooled) Billet distributor requires an MSD 6 or 7-series ignition.
Using technology gained from building distributors for off-road and NASCAR racers, MSD offers this Billet Distributor for the popular Type 1 engine. | A maintenance-free magnetic pickup is responsible for triggering the MSD Ignition. This pickup is accurate to within 1° at any rpm so you won't have to worry about points float or "burbles" at top end speeds. The pickup is triggered by a precision reluctor that is attached to a hardened steel shaft. For increased stability, a sealed ball bearing is used to guide the shaft. Since every engine application is different, the MSD Billet distributor features an easy-to-adjust mechanical advance assembly. By simply changing the advance springs and stop bushing you can tune in 24 different advance curves.
VW Type I (air cooled) Billet distributor requires an MSD 6 or 7-series ignition.
- Easy-to-adjust mechanical advance with supplied springs and stop bushings
- CNC machined billet aluminum housing and Dupont Rynite base
- Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
- Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
- No CARB Exemption Order Number
- Advance weight pins are staked and tig welded to the plate• Nylon pads ensure smooth operation of the advance weights
- Must be used with an MSD Ignition Control
- Mechanical advance assembly can be locked out for crank trigger systems

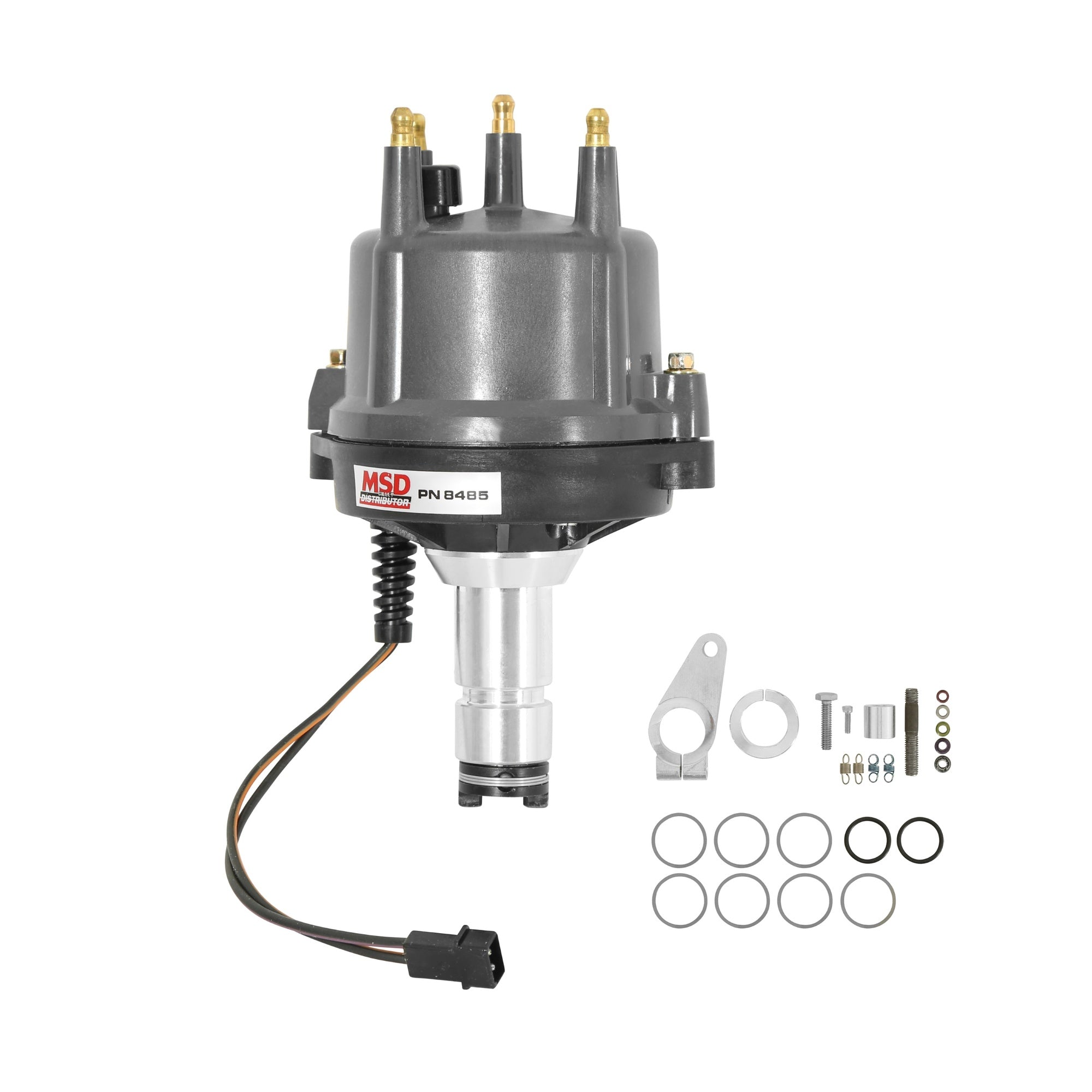

- Supplied with bolt down distributor cap and rotor
- Designed as a performance upgrade for VW Type I air cooled engines
- Polished steel shaft is QPQ coated and guided by a sealed ball bearing
📖
About this product
VW Type I (air cooled) Billet distributor requires an MSD 6 or 7-series ignition.
📋
Product Specifications
Automotive Item Grade
Performance
Brand
MSD
California Proposition 65 Chemical Name
30
Category
Ignition
Color
Gray
Distributor Cap Included
Yes
Distributor Type
Magnetic Pickup
Emission Code
3
Grade Type
Performance
Ignition Box Required
Yes
Ignition Coil Included
No
Ignition Rotor Included
Yes
Makes
Volkswagen
Part Type
Distributor
Product Type
Distributor
Sub Category
Distributor and Magneto
Warning
California Proposition 65
Warranty
Manufacturer's Limited 1 Year Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 1 Year Warranty
Country of Origin
US
Emissions Code
3
HS Code
8511300040
📐
Dimensions & Shipping
Product Dimensions
18.0 × 7.1 × 6.9 in
Shipping Dimensions
18.0 × 7.1 × 6.9 in
Weight
2223 g (2.22 kg)
