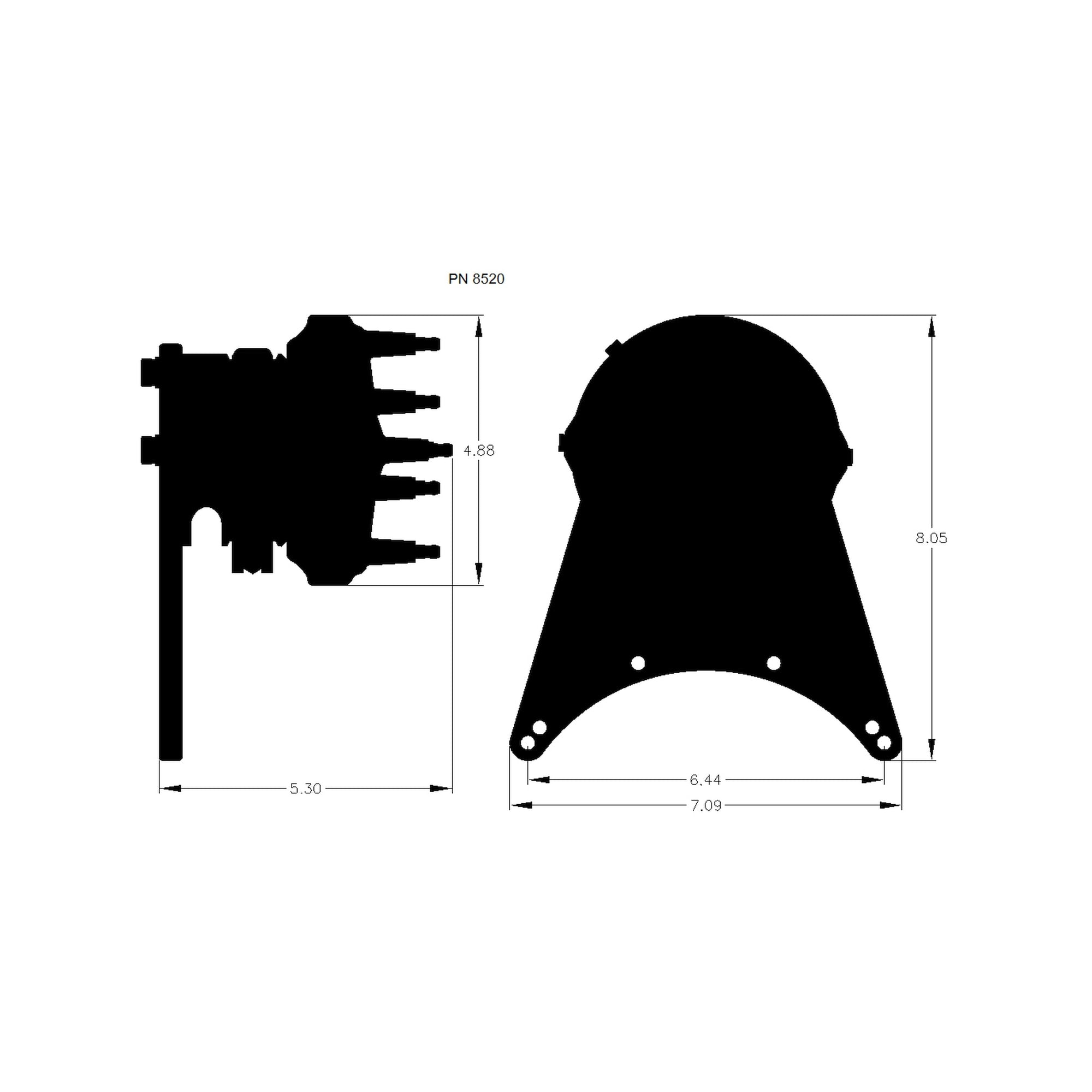

MSDPart 8520Made in US
Product Details
⚙️
Vehicle Fitment & Compatibility
View all 0 vehicle applications
Years
Make / Model
Submodel
Engine
1900
No applications match your search.
⭐
Key Features
Will not fit raised cam big blocks such as Merlin, Donovan or Dart blocks or GEN V or GEN VI **Optional Bolt Down Clamp Kit, PN 8499**
Note: Must be used with a Jesel or Comp Cams Camshaft Belt Drive Kit and an MSD Flying Magnet Crank Trigger. | We revised the front drive with our standard Ford-style cap and rotor. This creates a downsized package for an easier fit in tight engine compartments. The Front Drive distributor is supplied with mounting bolts, cam pulley and drive belt. | MSD's Pro-Billet Front Drive distributor is the solution for race engines that don't have room for a standard distributor due to firewall clearance or intake combinations. | The MSD Front Drive distributor is belt-driven from a pulley installed on the camshaft. For increased strength and durability a 9mm belt is used which is wider than any other drive assembly. The distributor head is CNC-machined from a billet of aluminum and is secured to a strong precision bracket. This system is an extremely accurate way to distribute the spark energy from your MSD Ignition!
Fits big block Chevy. Must be used with a Jesel or Comp Cams Camshaft Belt Drive Kit and an MSD Flying Magnet Crank Trigger.

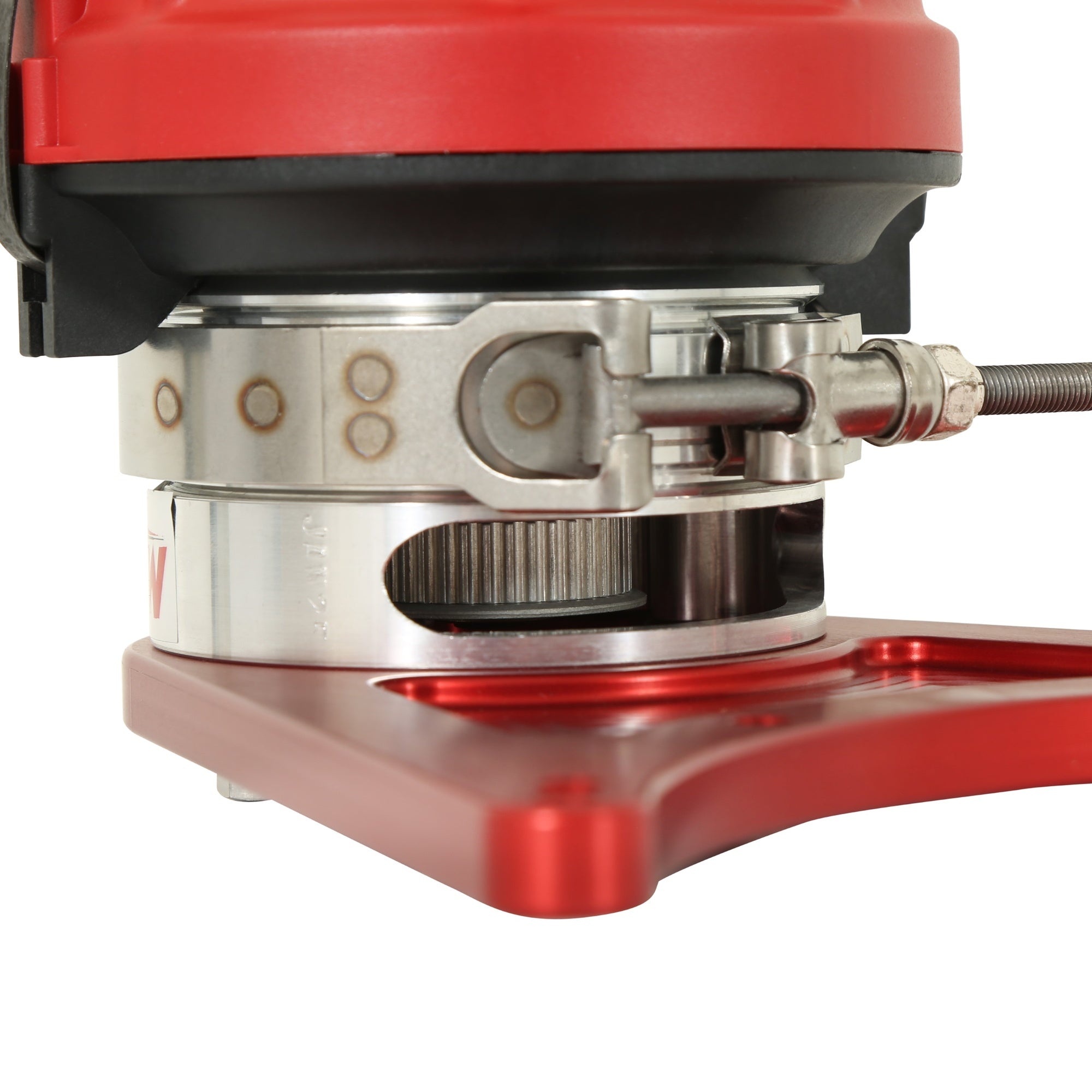

- Band clamp mount allows easy rotor phasing adjustment
- The only front drive distributor with adjustable belt tension

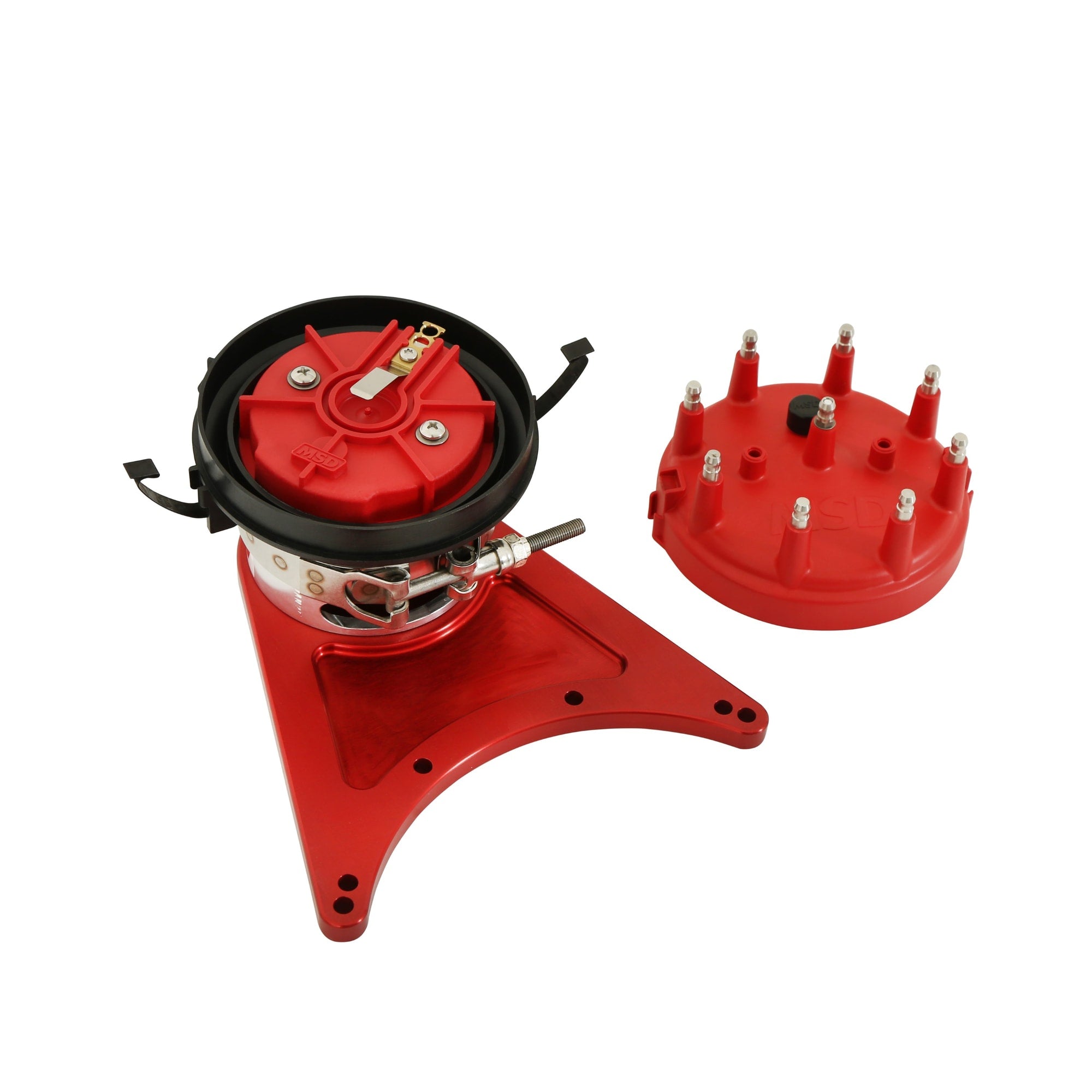

- The MSD Cap and Rotor are injection molded from strong DuPont Rynite material

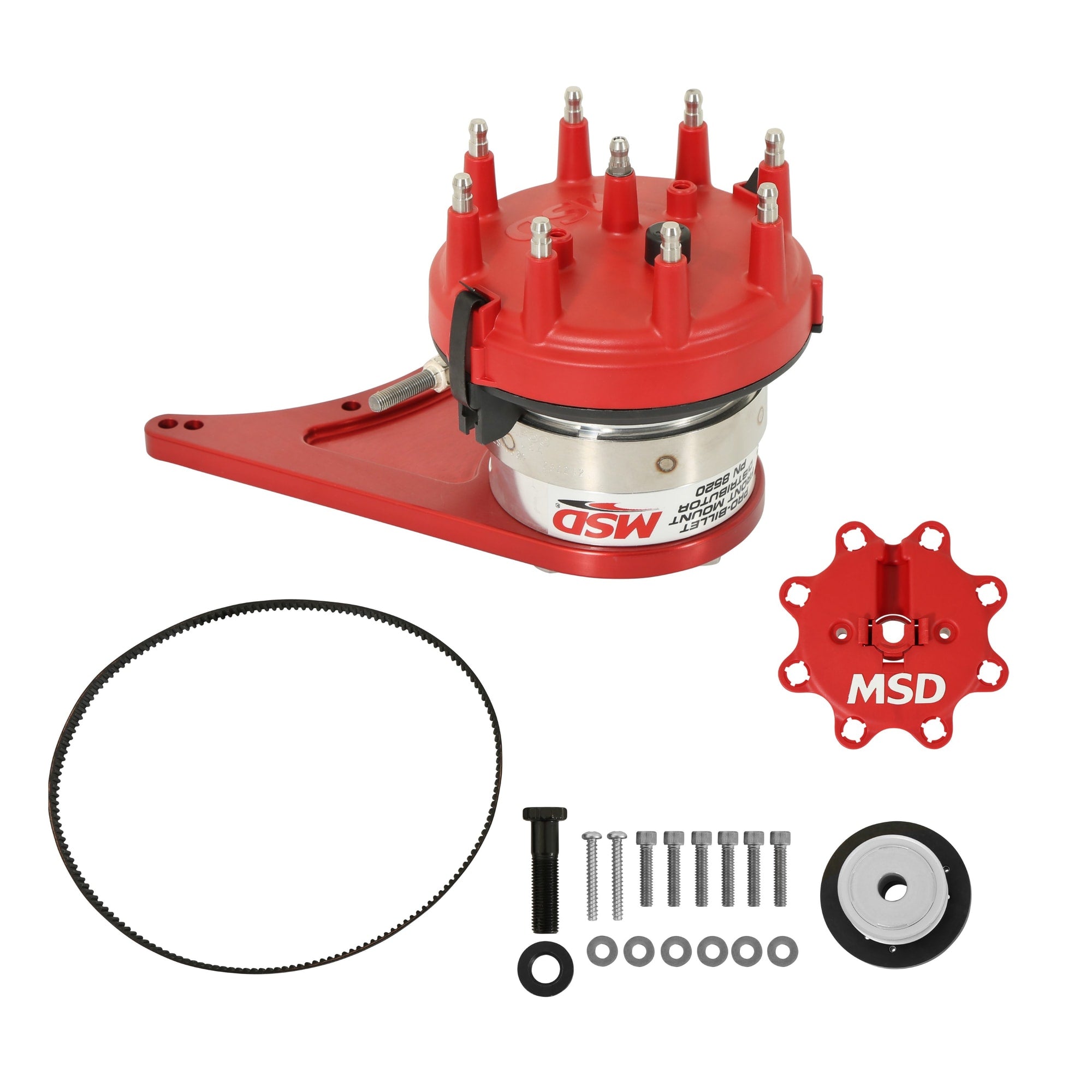

- Supplied with cam gear, hardware and extra wide 9mm belt

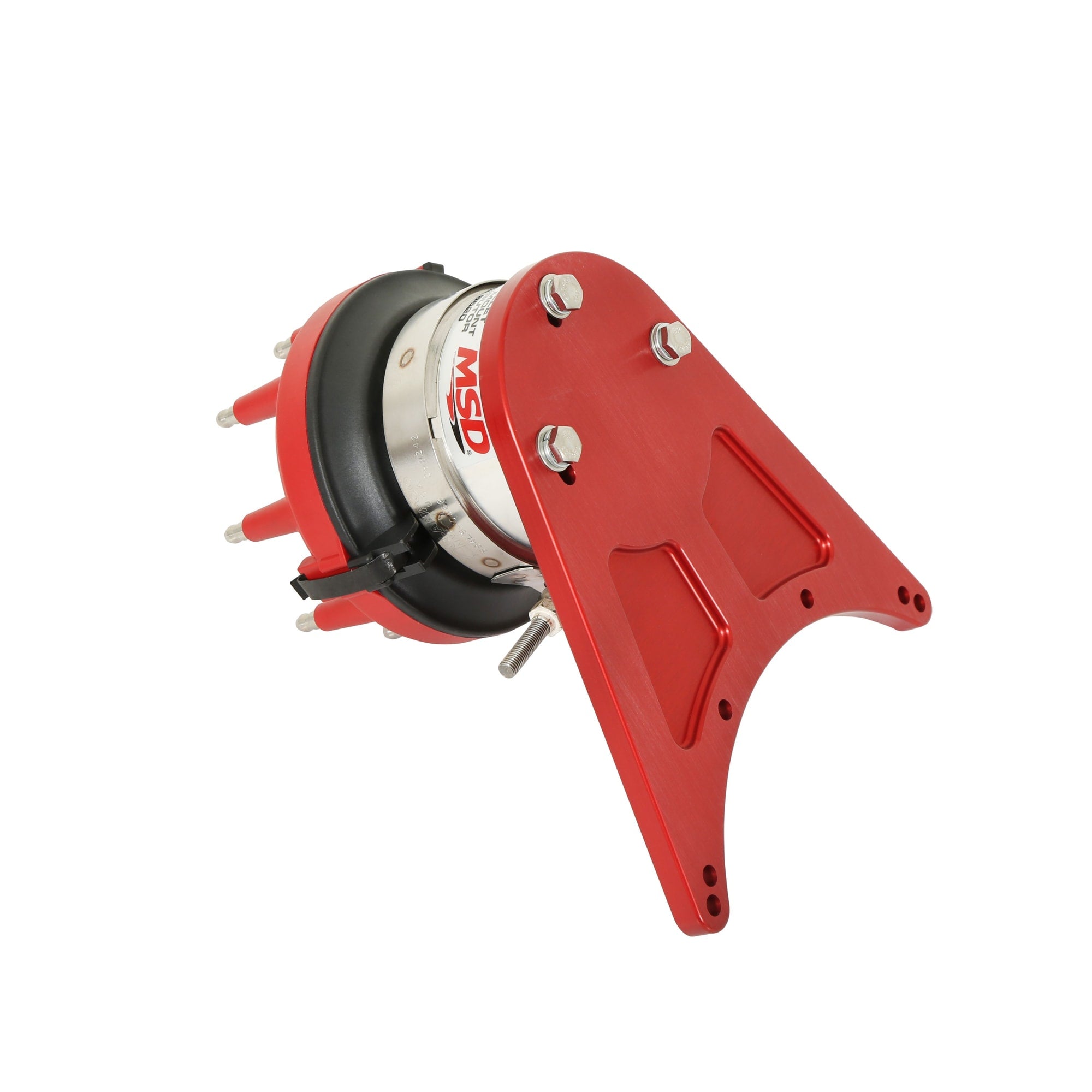

- Billet aluminum bracket and lower housing for strength
📖
About this product
Fits big block Chevy. Must be used with a Jesel or Comp Cams Camshaft Belt Drive Kit and an MSD Flying Magnet Crank Trigger.
📋
Product Specifications
Automotive Item Grade
Performance
Brand
MSD
California Proposition 65 Chemical Name
16
Category
Ignition
Color
Red
Distributor Cap Included
Yes
Distributor Type
Crank Trigger
Emission Code
4
Grade Type
Performance
Ignition Box Required
Yes
Ignition Coil Included
No
Ignition Rotor Included
Yes
Part Type
Distributor
Product Type
Distributor
Quantity
1
Sub Category
Distributor and Magneto
Warning
California Proposition 65
Warranty
Manufacturer's Limited 1 Year Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 1 Year Warranty
Country of Origin
US
Emissions Code
4
HS Code
8511300040
📐
Dimensions & Shipping

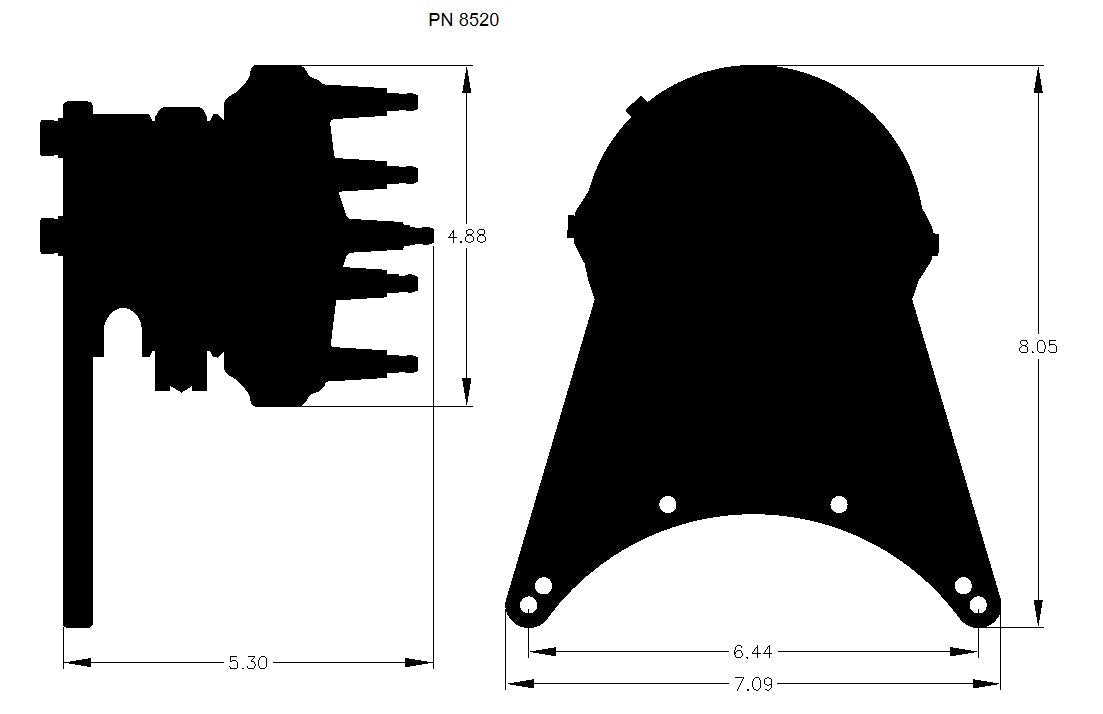

Product Dimensions
14.1 × 10.6 × 9.6 in
Shipping Dimensions
14.1 × 10.6 × 9.6 in
Weight
2654 g (2.65 kg)
