MSDPart 8523Made in US
Product Details
⭐
Key Features
Fits 290, 304, 343, 360, 390, 401 engines. Ready-to-run distributors include a built-in ignition module. No MSD Ignition control required. Includes a built-in rev limiter

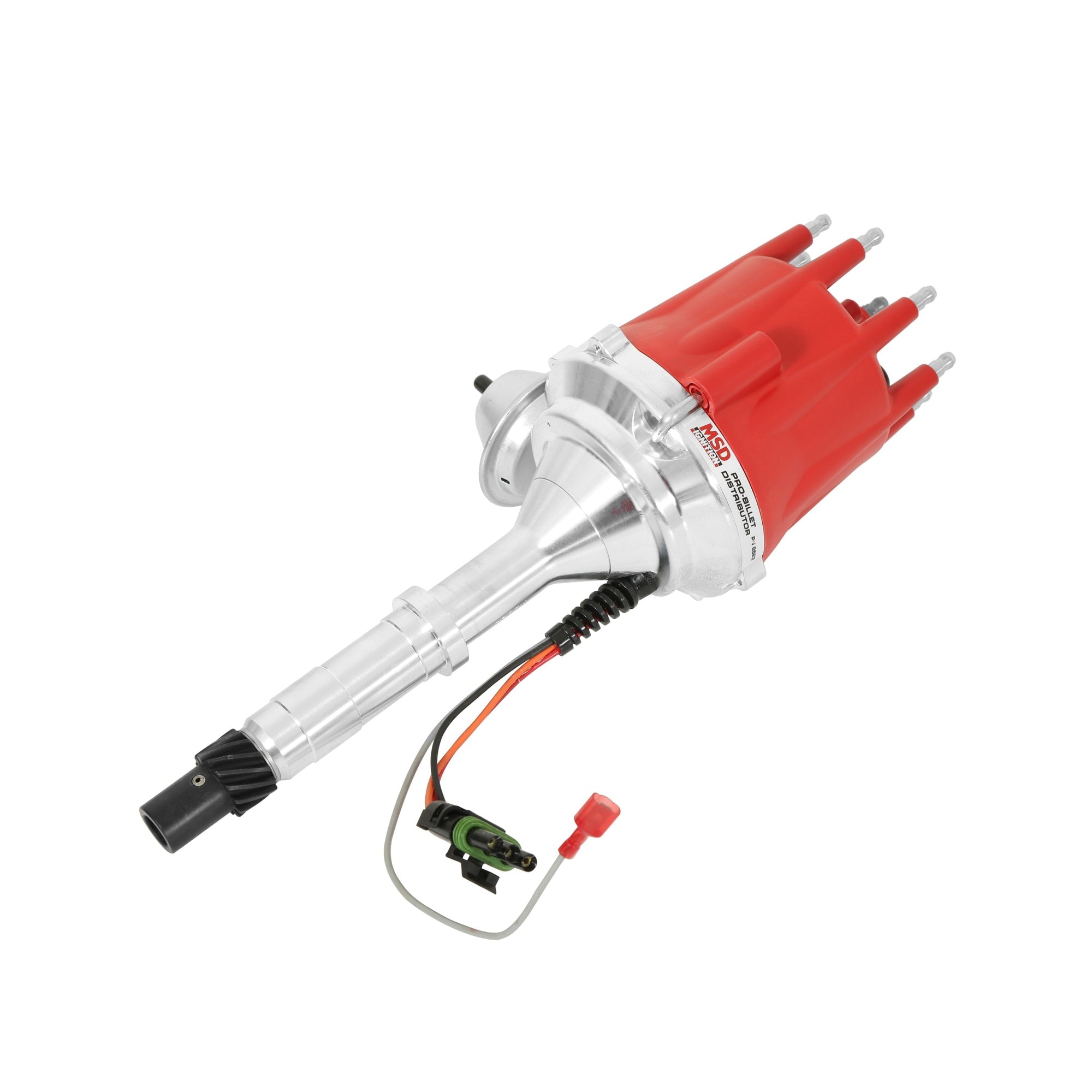

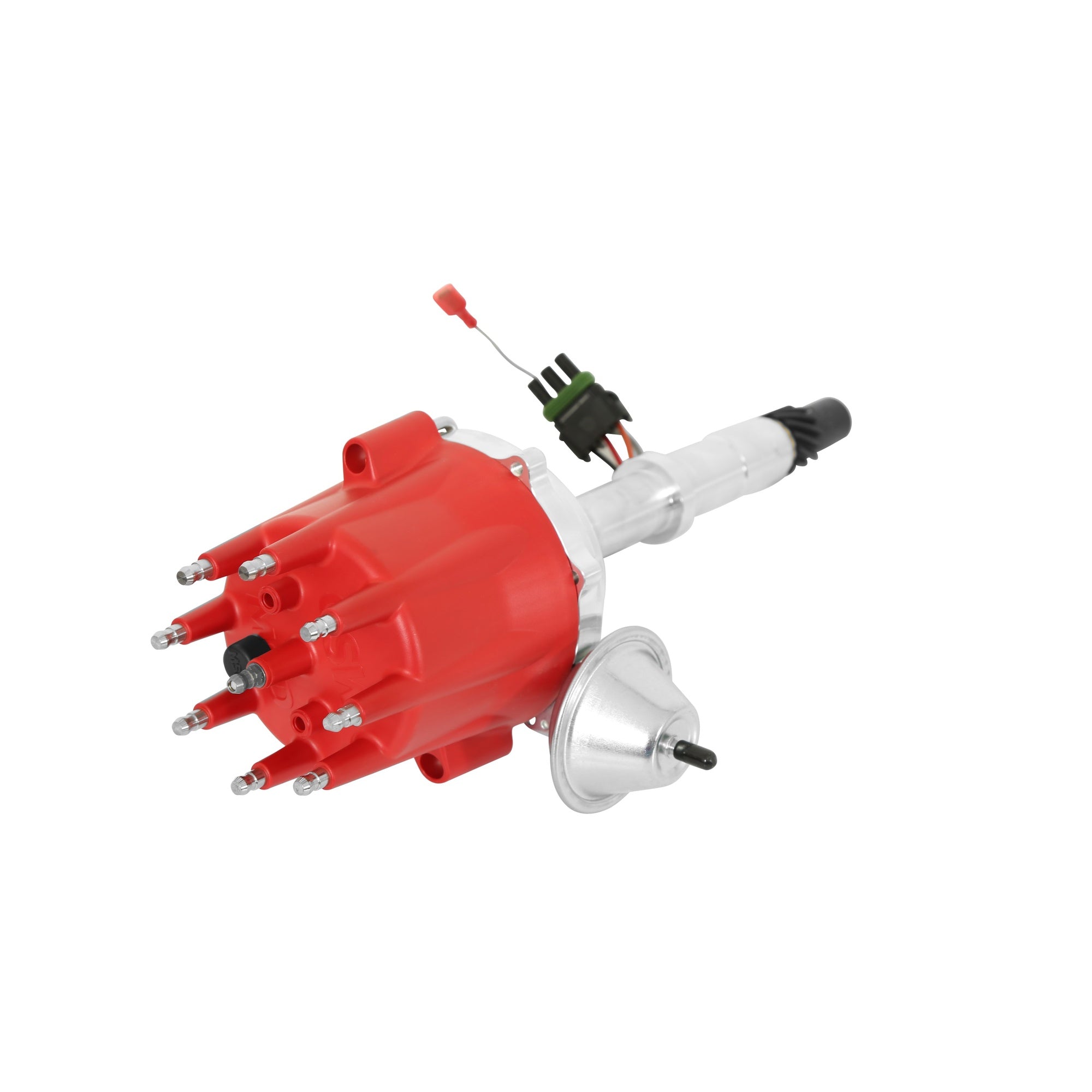

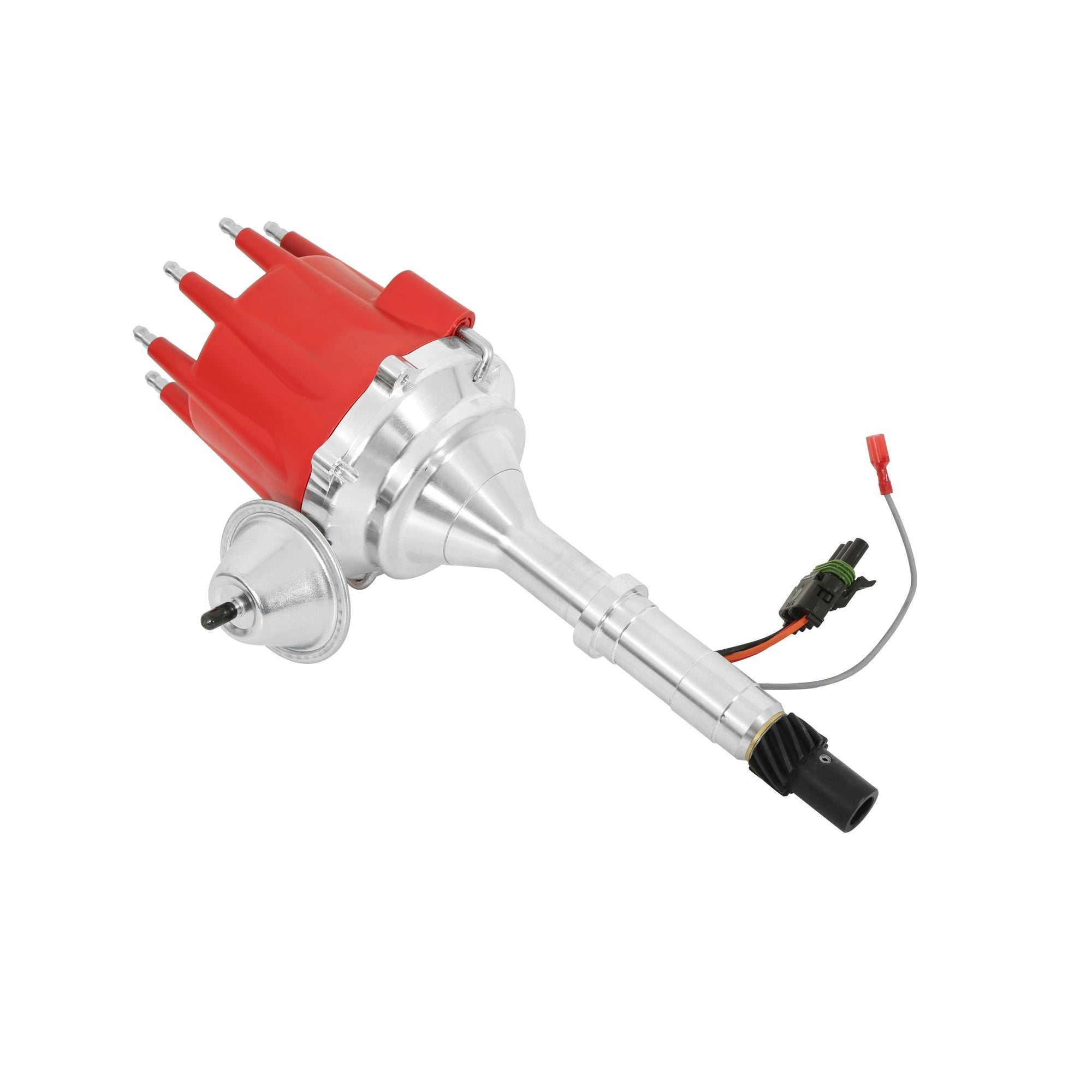

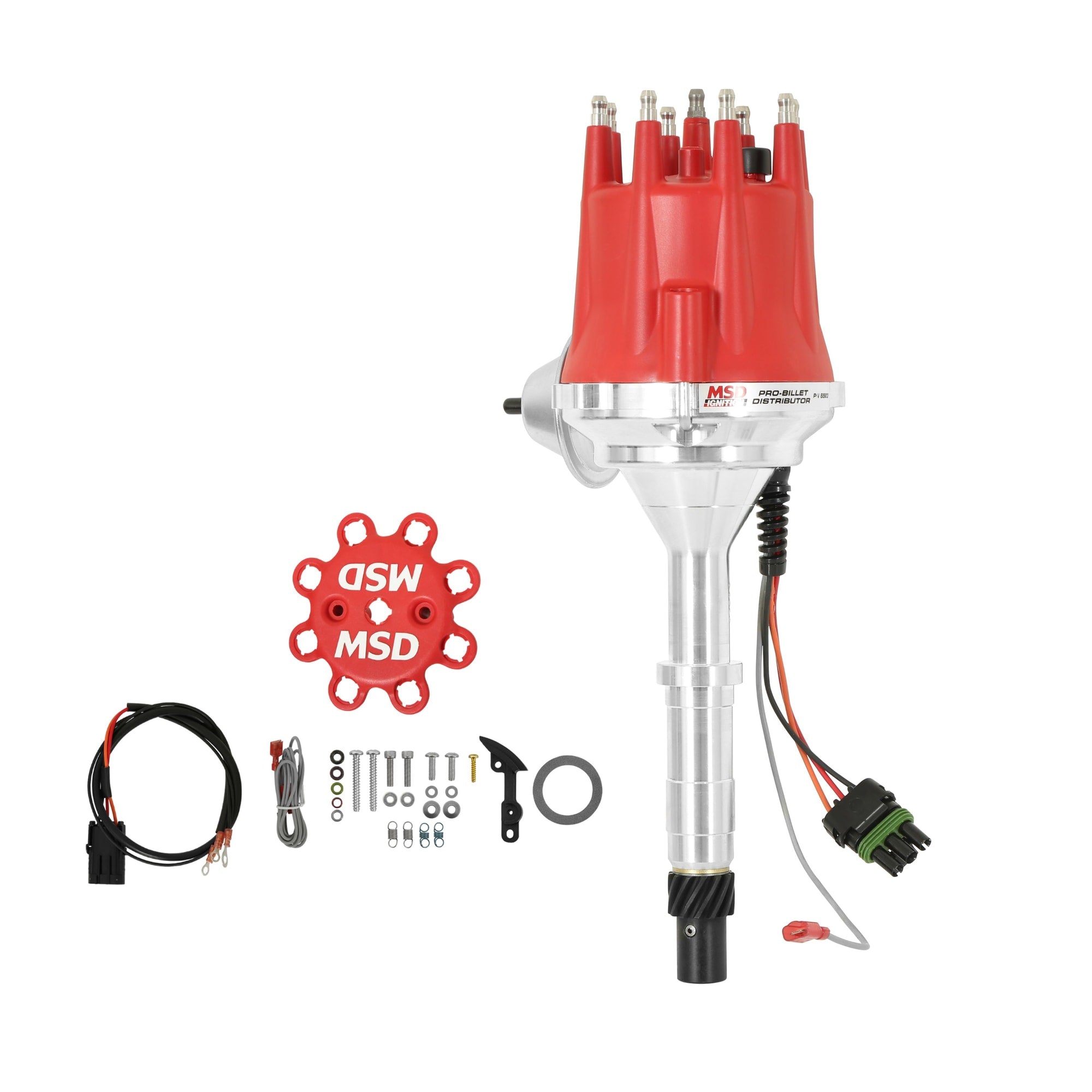

Since this distributor has its own ignition module there is no need to run an MSD Ignition Control. Installation of the distributor is simple with only three wires to connect with the supplied Weathertight harness. | Under the MSD cap there is a mechanical advance assembly that can easily be tuned to your engine's specifications. Different advance springs and stop bushings are supplied, giving you 24 curves to choose from. The Ready-to-Run AMC distributor also has a vacuum advance canister and is supplied with everything you need for installation! | Finally an answer for your AMC's worn out breaker points distributor! This Ready-to-Run Pro-Billet Distributor has a built-in inductive module that produces up to 7.5 amps to create a high voltage spark at the plug. This spark improves combustion of the fuel mixture resulting in quick starts, a smooth idle and great performance.
Fits 290, 304, 343, 360, 390, 401 engines. Ready-to-run distributors include a built-in ignition module. No MSD Ignition control required. Includes a built-in rev limiter
- Does not require an MSD Ignition Control
- Supplied with an HEI style distributor cap and rotor (accepts Cap-A-Dapts)
- Easy-to-adjust mechanical advance with supplied springs and stop bushings
- Vacuum advance canister for improved economy (can be locked out)
- CARB E.O. Approved

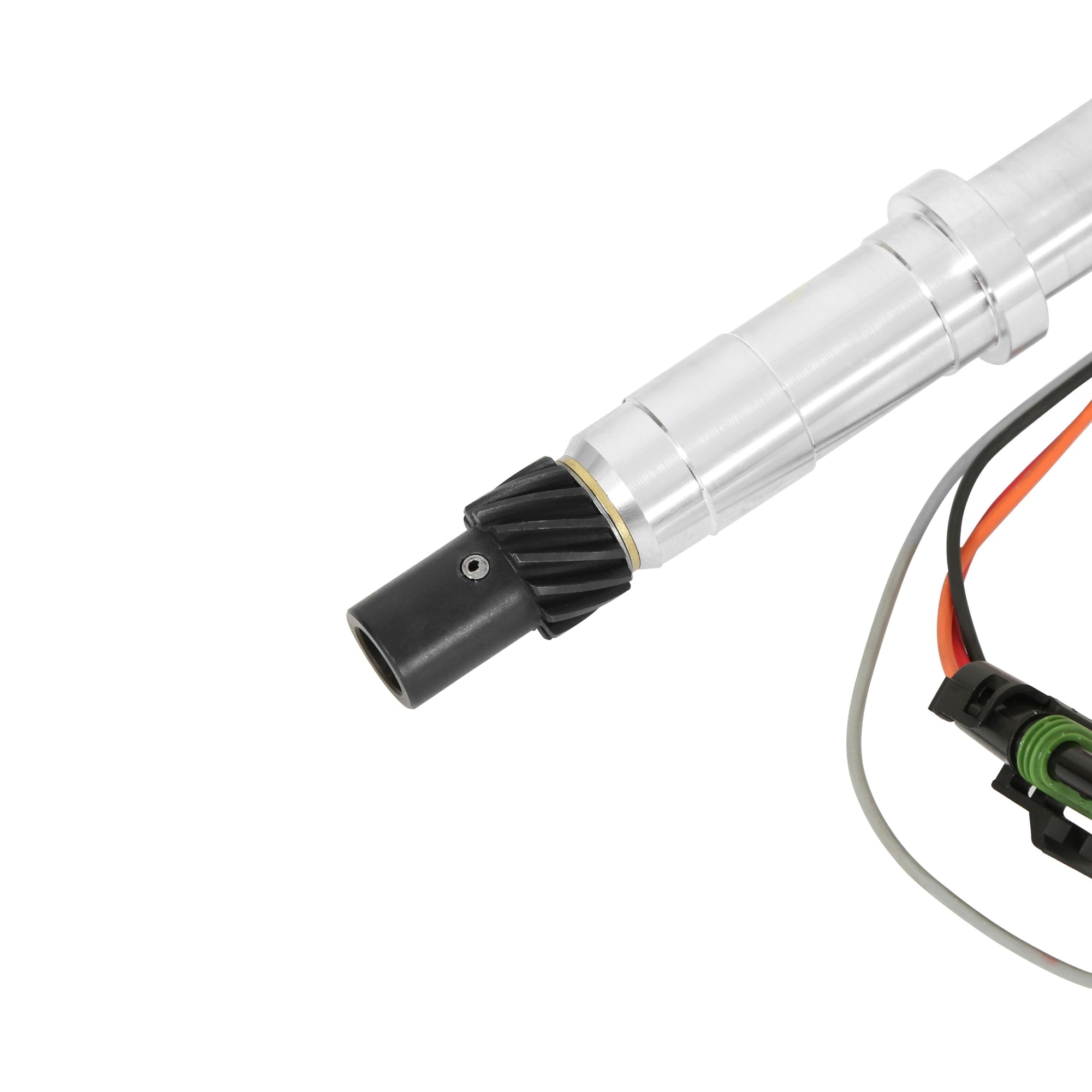

- Polished steel shaft is QPQ coated and guided by a sealed ball bearing
- Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
- Simple and clean installation with only three wires to connect
- CNC machined billet aluminum housing and billet aluminum base
- Includes built-in Rev Limiter!
- Powerful built-in module produces a 7.5 amp single spark through high rpm
📖
About this product
Fits 290, 304, 343, 360, 390, 401 engines. Ready-to-run distributors include a built-in ignition module. No MSD Ignition control required. Includes a built-in rev limiter
📋
Product Specifications
Automotive Item Grade
Performance
Brand
MSD
C.a.r.b. Eo #
D-40-39
California Proposition 65 Chemical Name
30
Category
Ignition
Color
Red
Distributor Cap Included
Yes
Distributor Type
Ready To Run
Emission Code
1
Gear Material
Cast Iron Melonized QPQ Coated
Grade Type
Performance
Ignition Box Required
No
Ignition Coil Included
No
Ignition Rotor Included
Yes
Part Type
Distributor
Product Type
Distributor
Sub Category
Distributor and Magneto
Warning
California Proposition 65
Warranty
Manufacturer's Limited 1 Year Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 1 Year Warranty
Country of Origin
US
Emissions Code
1
HS Code
8511300040
📐
Dimensions & Shipping
Product Dimensions

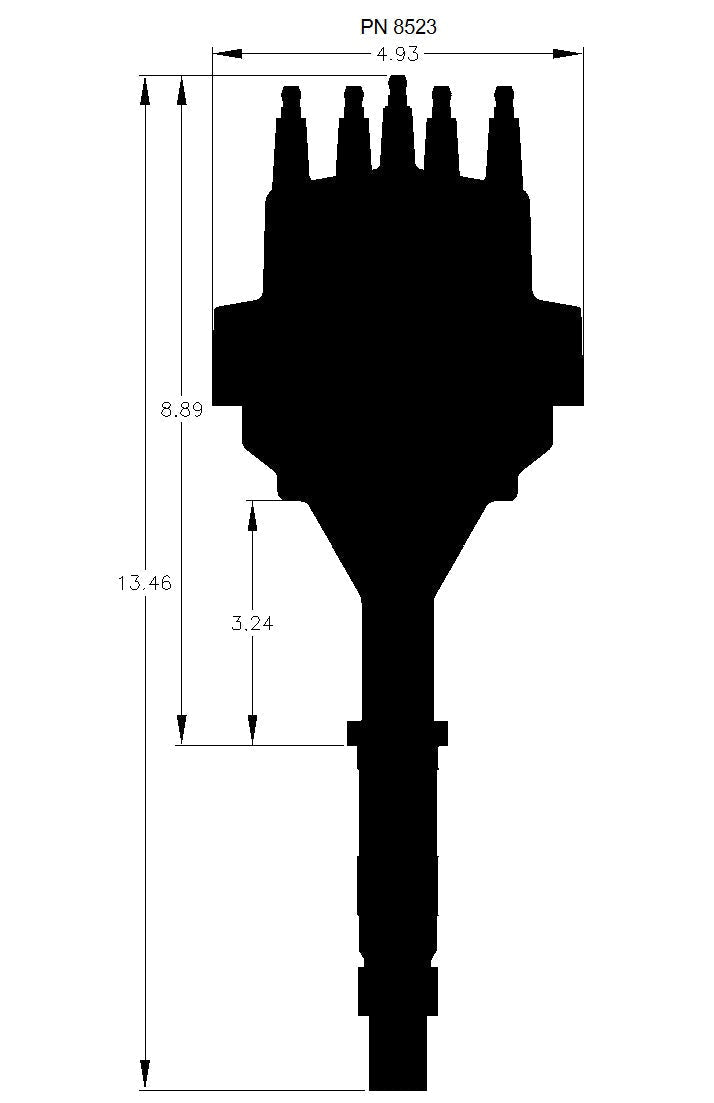

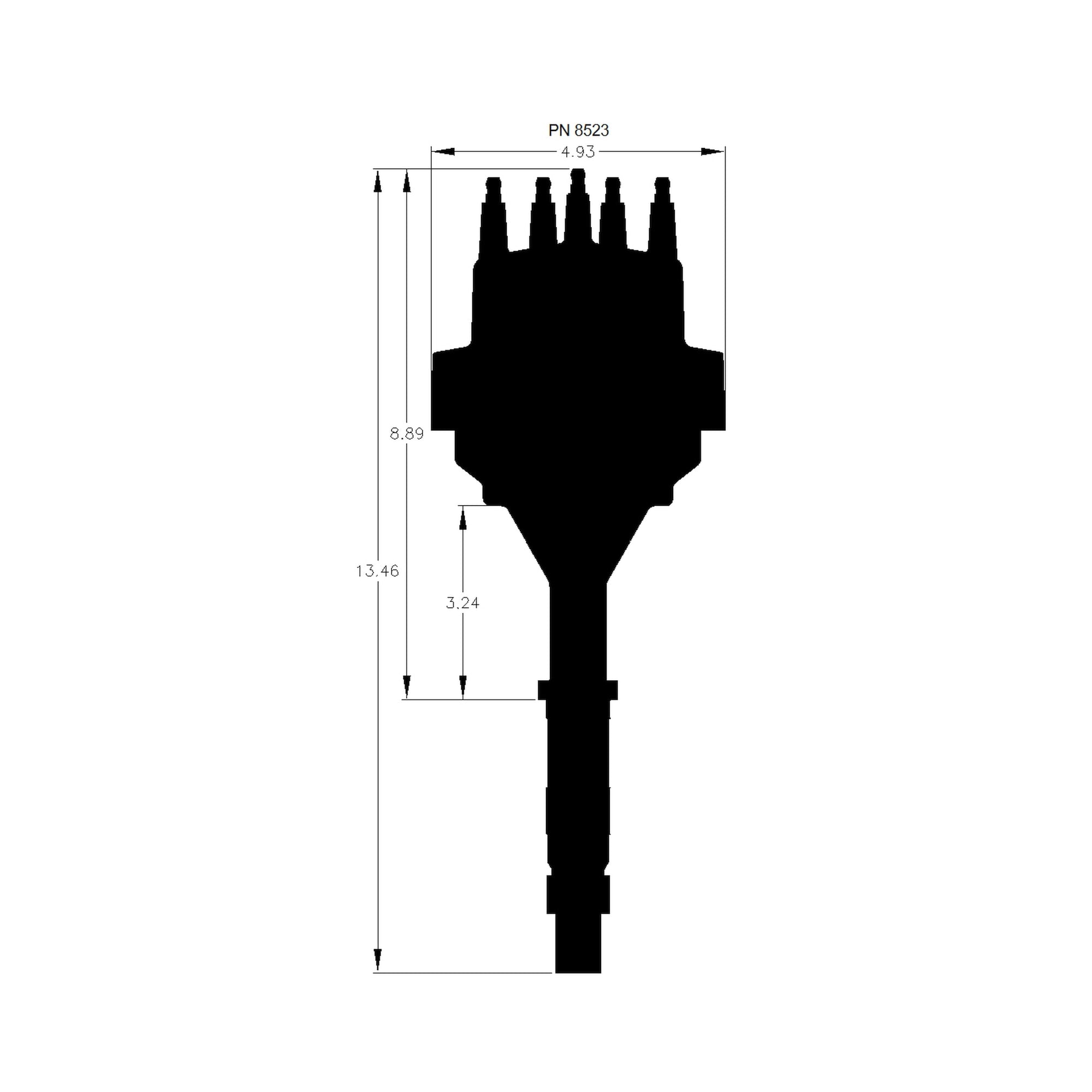

19.4 × 7.1 × 6.8 in
Shipping Dimensions
19.4 × 7.1 × 6.8 in
Weight
2835 g (2.84 kg)
