Key Features

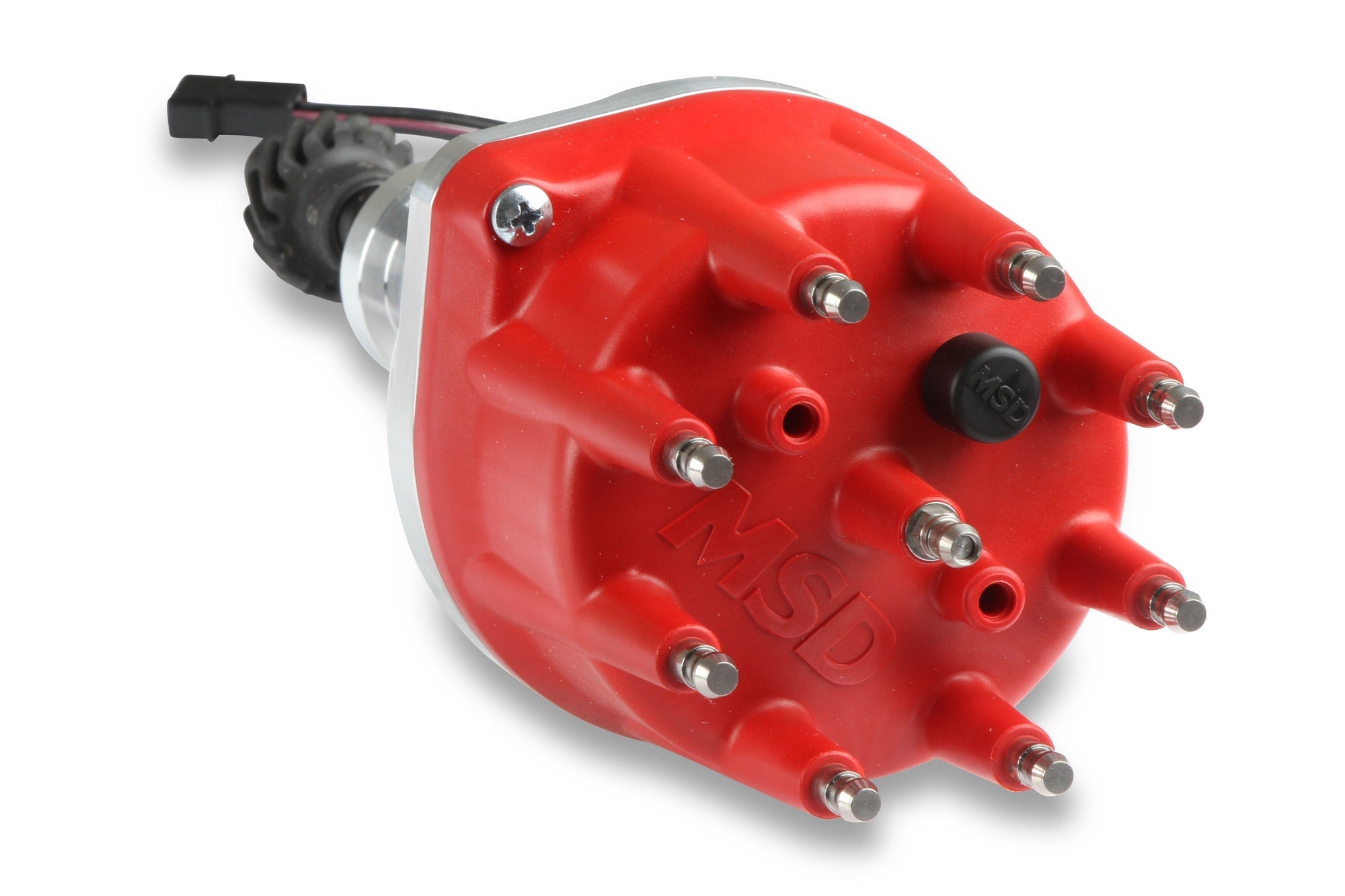

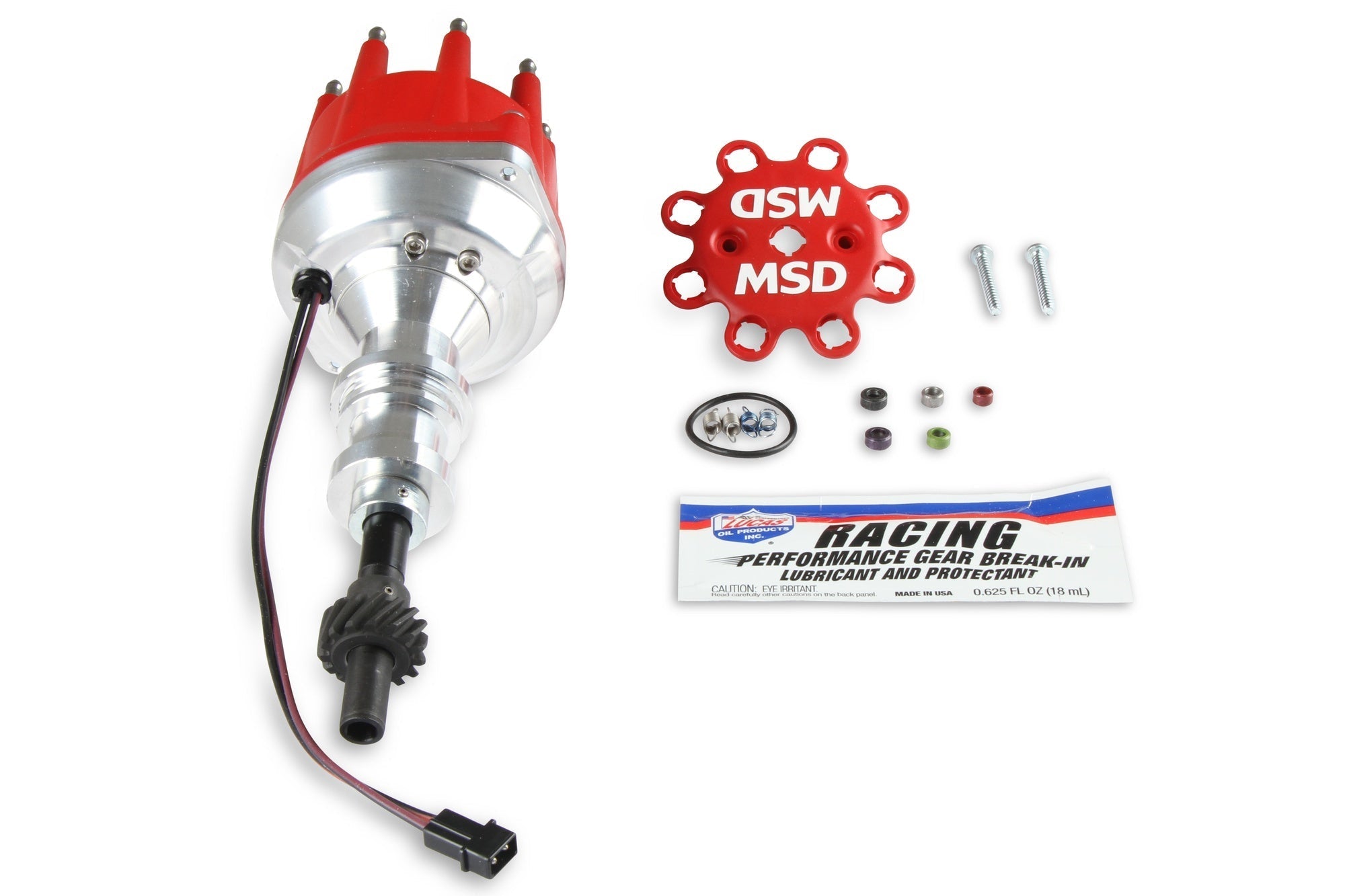

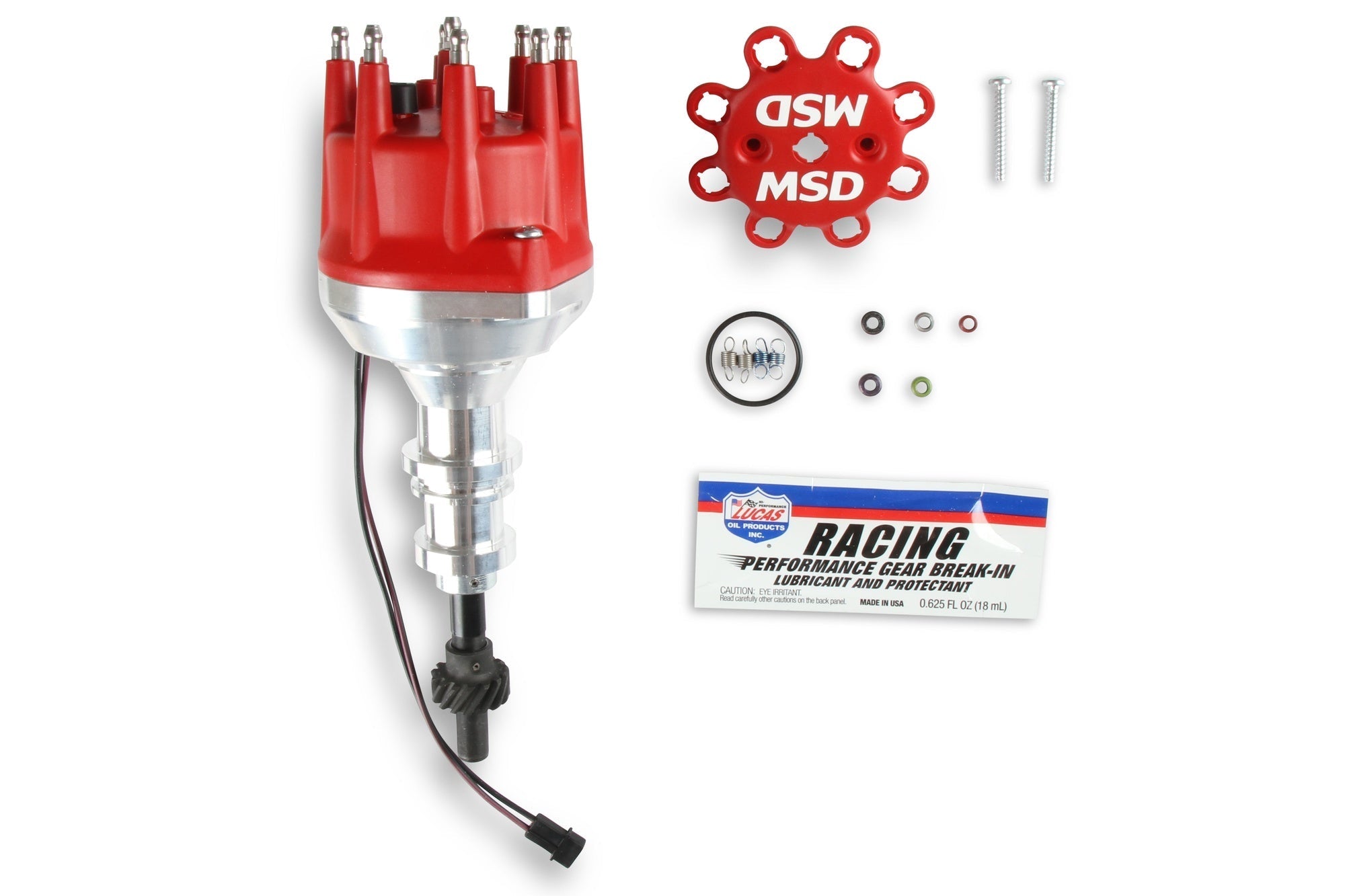

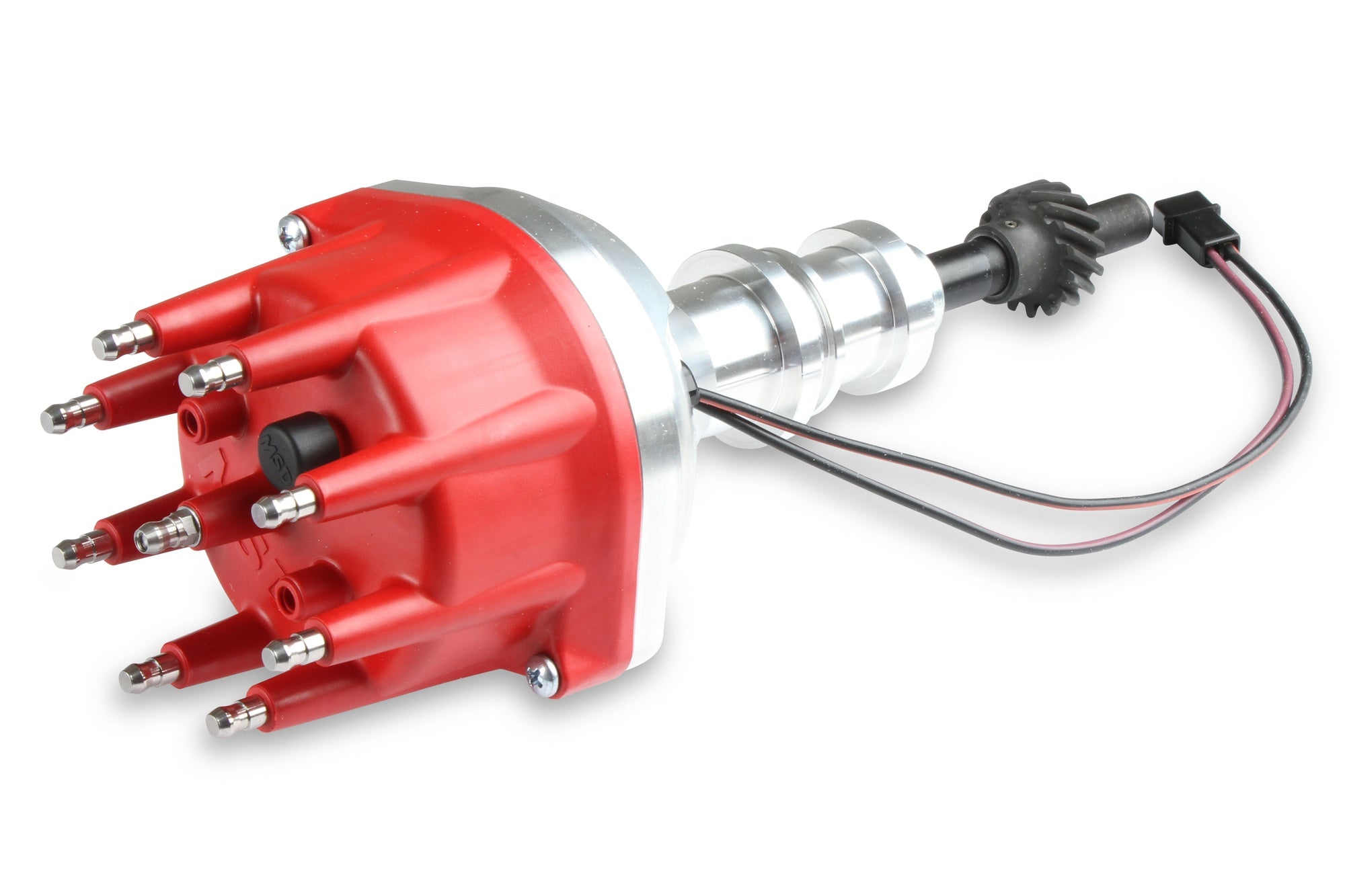

MSD's Pro-Billet Small Diameter Distributor w/Red Cap and Steel Gear, requires the use of MSD 6, 7, 8 Series Ignition and designed to fit Holley 351W Hi-Ram Carburetor Intake Manifolds
Specifically designed for use with the Holley Ford Hi-Ram carburetor intake manifolds, the Ford distributors are built on the proven foundation of the MSD Pro-Billet distributor line. They rely on MSD's race proven magnetic pickup and precision reluctor to deliver accurate trigger signals to the MSD Ignition throughout RPM range. The reluctor assembly is turned by a hardened steel shaft which rides in a sealed ball bearing for high rpm stability and endurance. Mounted to the top of this shaft is a fully adjustable mechanical advance assembly, and while at the bottom, you have a steel gear for use with hydraulic roller camshafts.
MSD's Pro-Billet Small Diameter Distributor w/Red Cap and Steel Gear, requires the use of MSD 6, 7, 8 Series Ignition and designed to fit Holley 351W Hi-Ram Carburetor Intake Manifolds
- Advance weight pins are staked and tig welded to the plate for strength and durability
- Designed specifically for the Holley Ford 351W Hi-Ram Carbureted Manifold P/N 300-243, 300-243BK, with 300-207, 300-207BK Hi-Ram Plenum Top

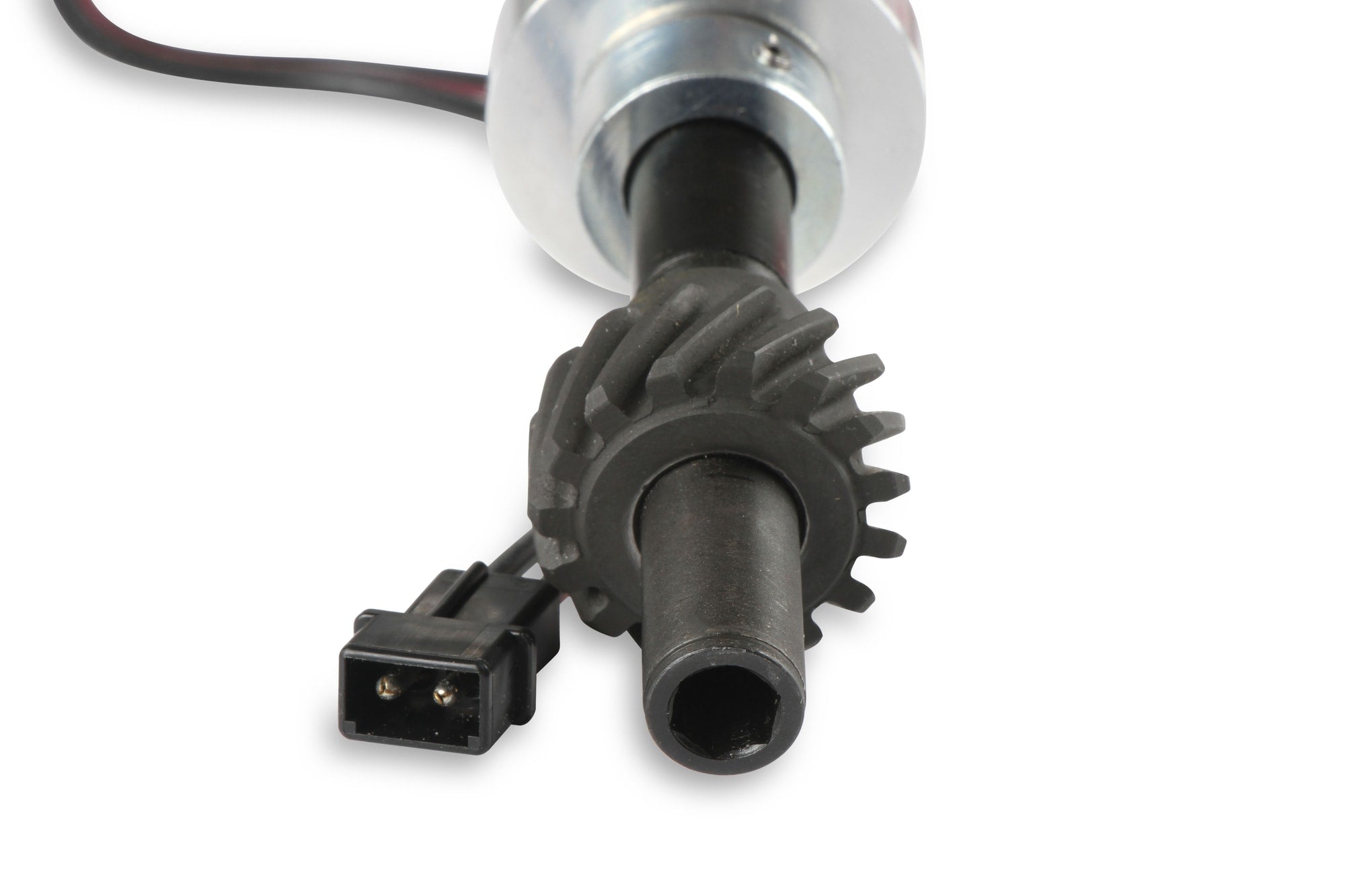

- Supplied with a steel distributor gear, compatible with most hydraulic roller cam applications
- Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
- Easy-to-adjust mechanical advance with supplied springs and stop bushings provide the ability to create a timing curve perfect for your engine
- CNC machined billet aluminum housing and billet aluminum base
- Must be used with an MSD Ignition Control that accepts magnetic inputs signal
- Nylon pads ensure smooth operation of the advance weights
- Polished steel shaft is QPQ coated and guided by a sealed ball bearing
- Mechanical advance assembly can be locked out for crank trigger systems
- Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
📖
About this product
MSD's Pro-Billet Small Diameter Distributor w/Red Cap and Steel Gear, requires the use of MSD 6, 7, 8 Series Ignition and designed to fit Holley 351W Hi-Ram Carburetor Intake Manifolds
📋
Product Specifications
Automotive Item Grade
Performance
Brand
MSD
California Proposition 65 Chemical Name
4
Category
Ignition
Color
Red
Distributor Cap Included
Yes
Distributor Type
Magnetic Pickup
Emission Code
3
Gear Material
Steel Melonized QPQ Coated
Gear
Steel
Grade Type
Performance
Ignition Box Required
Yes
Ignition Coil Included
No
Ignition Rotor Included
Yes
Part Type
Distributor
Product Type
Distributor
Sub Category
Distributor and Magneto
Warning
California Proposition 65
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
Emissions Code
3
HS Code
8511300040
📐
Dimensions & Shipping
Product Dimensions
17.5 × 7.1 × 6.9 in
Shipping Dimensions
17.5 × 7.1 × 6.9 in
Weight
1814 g (1.81 kg)
