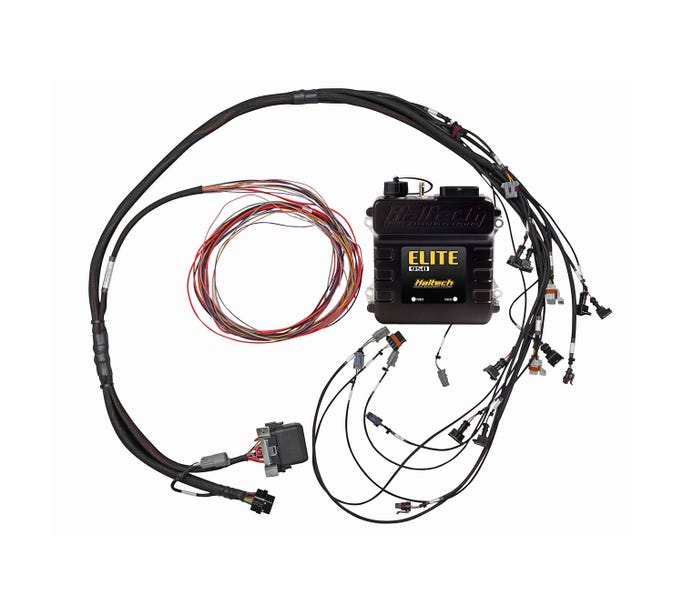

Haltech ECU Kit - Elite 950 - 24X - Ev1 Injector Connectors

HALTECH ECU KIT - ELITE 950 - 24X - EV1 INJECTOR CONNECTORS - HT-150721
HARNESS OVERVIEW
By far your easiest, most time-effective wiring solution for race cars or engine swaps. Each Terminated Engine Harness is made to suit a specific engine and comes terminated with ECU connectors at one end and all engine connectors at the other. All your factory connectors are labelled, crimped and terminated at exactly the right length to help you be up and running in no time.
• An efficient Haltech Plug'n'Play product that allows you to be up and running in just a few hours.
• The quick start guide will walk you through installation of the Haltech Plug'n'Play harness into your vehicle.
• The guide is accompanied by the full ECU manual and Software located on the CD or USB key provided with the ECU to refer to while completing your installation and configuration.
ECU OVERVIEW
The Elite 950 is a simple yet powerful ECU designed specifically for basic V8 engines and carburetor-to-EFI conversions. Suitable for either naturally aspirated or forced induction engines the Elite 950 gives you full control over fuel delivery, ignition timing and boost levels. This robust, competitively priced ECU features an environmentally sealed, waterproof case, 8 fuel and 4 ignition channels and a 3 BAR internal MAP sensor. Alongside the Elite 950 ECU is the Elite Software Programmer (ESP) that brings levels of functionality and user friendliness never seen before in an engine control package. Together they offer true cutting edge technology to tuners and performance enthusiasts worldwide.
• Supports 1 to 8 Cylinder engines
• 1 to 2 Rotor engines
• Normally aspirated or forced induction
• Load sensing by Throttle Position (TPS), Manifold Absolute Pressure (MAP) or Mass Air Flow (MAF)
• Staged, Sequential, semi sequential, batch or multipoint injection patterns
• Distributor ignition systems, multi-coil systems, expand CDI range or Haltech Multiplex CDI systems
• Connect to a wide range of display dashes and expansion devices via CAN.
• Waterproof case (IP67) (with USB cover fitted)
• 34 position AMP connector
• 8 x Fuel Injection Outputs (peak and hold (0-8A peak / 0-2A hold)
• 4 x Ignition Outputs
