Holley

Holley komplet gearkassemonteringssæt - 6-bolts LS-motor til T-56 / Magnum

Tilbudspris £1,492.99 GBP inc VAT Normalpris £1,585.99 GBP
Fragt beregnet ved kassen.
Varenummer: 319-510

Stock Levels:

Checking stock levels…
🇬🇧 UK warehouse
🇺🇸 US warehouse
Estimated Delivery


Se detaljer
HolleyPart 319-510Made in US

Product Details

Key Features

Everything you need to connect a 6-Bolt LS Engine to a Tremec T-56 or Magnum Transmission

These Holley Transmission Installation Kits come complete with everything you need to bolt a GM-style Tremec T-56 or Magnum transmission to almost any Gen III or Gen IV Small Block Chevrolet Engines with a 6-bolt flywheel. Built with a mixture of our best brands including Lakewood and Hays, this kit includes a bellhousing, billet steel flywheel, clutch and pressure plate, hydraulic release bearing, roller pilot bearing, and all hardware needed to install these components. | The 319-510 is set up to be used with the 6-bolt flywheel LS engines which are the majority of the Gen III and Gen IV engines produced before 2009 (LS1, LS2, LS3, LS6, LS7, LM7, LQ9, L33, and similar truck engines). | The 319-511 is very similar to the 319-510 but is designed to be used with the 8-bolt flywheel LS and Gen V LT engines that come after 2009 (LSA, LT1, LT4, L83, and similar truck engines).

Everything you need to connect a 6-Bolt LS Engine to a Tremec T-56 or Magnum Transmission

  • Designed for Gen III/Gen IV Small Block Chevrolet Engines with 6-bolt crank/flywheel using a GM-style Tremec T-56 or Magnum Transmission
  • Light weight cast aluminum bellhousing and stamped steel dust cover provides factory-like installation and appearance
  • Billet steel flywheel for light weight (28 pounds) and additional strength
  • Roller style pilot bearing offers improved shifting by reducing parasitic drag and transmission wear
  • 26-spline, 12-inch organic sprung clutch offers superior clamping force and smooth engagement for engines up to 550 Naturally Aspirated Horsepower (500 w/ Power Adder)

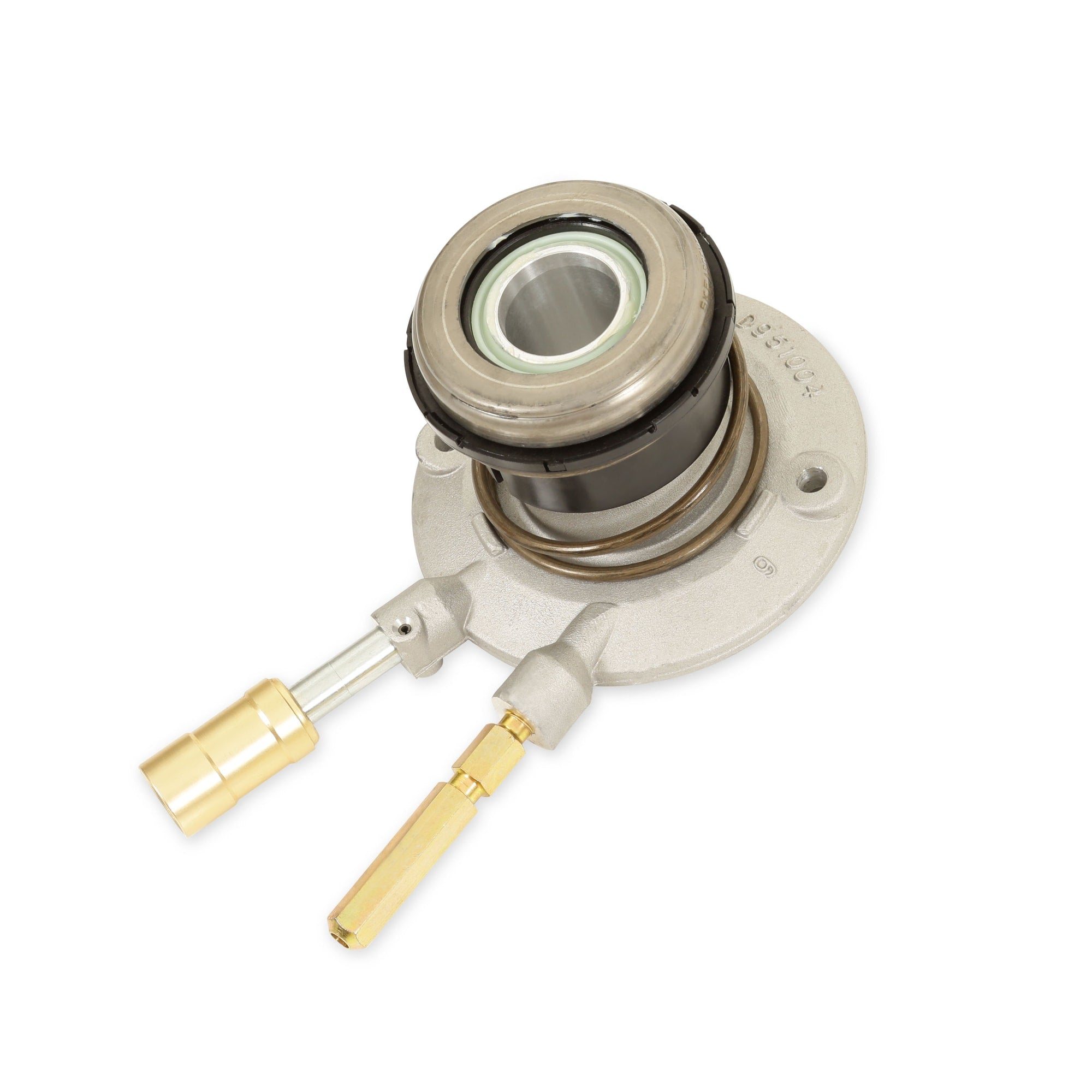

  • Adjustable Hydraulic Release Bearing offers reduced pedal effort and easy installation
  • Works with OE (original equipment) or MSD High Torque starters
  • All hardware included (flywheel, transmission, and engine connections)
📖

About this product

Everything you need to connect a 6-Bolt LS Engine to a Tremec T-56 or Magnum Transmission

🎬

Product Videos

📋

Product Specifications

Automotive Item Grade
Performance
Bellhousing Material
Aluminum
Brand
Holley
California Proposition 65 Chemical Name
4
Category
Transmission
Collection
Suspension & Steering
Collection
Suspension & Steering - Steering Racks & Columns
Crankshaft Bolt Hole Count
6
Disc Diameter
12
Disc Material
Organic
Disc Style
Spring Hub
Emission Code
5
Engine Make
GM
Flywheel Material
Billet Steel
Grade Type
Performance
Hardware
Steel
Input Shaft Diameter
1-1/8 in.
Input Spline
26
Menu
Manual Transmission Components
Part Type
Transmission Installation Kit
Pilot Bearing
Roller
Pressure Plate Style
Diaphragm
Product Type
Installation Kit
Release Bearing
Hydraulic
Sub Category
Manual Transmission Components
Warning
California Proposition 65
🛡️

Warranty & Compliance

Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
Emissions Code
5
HS Code
8409915085
📐

Dimensions & Shipping

Product Dimensions
20.8 × 20.5 × 17.0 in
Shipping Dimensions
20.8 × 20.5 × 17.0 in
Weight
33997 g (34.0 kg)
