Holley Sniper EFIPart 860009Made in CN
Product Details
⚙️
Vehicle Fitment & Compatibility
View all 0 vehicle applications
Years
Make / Model
Submodel
Engine
1900
No applications match your search.
⭐
Key Features
Will need to use 543-105 for IAC sensor and 870001 for TPS sensor listed under Parts & Kits tab. IAC motor attaching hardware : requires (2) 8-32 UNC screws TPS sensor attaching hardware: requires (2) M4 x 0.7 screws
Sniper EFI's new 90mm billet aluminum throttle bodies are designed as a direct fit for the Fabricated Race intake manifolds. Don't let the low price fool you, these are feature packed throttle bodies available in both bright silver or black anodized finishes. The enlarged bore sizes allow for increased airflow to support your higher horsepower needs, a progressive throttle pulley enhances low speed drivability and a double return spring provides solid and secure throttle control feel.

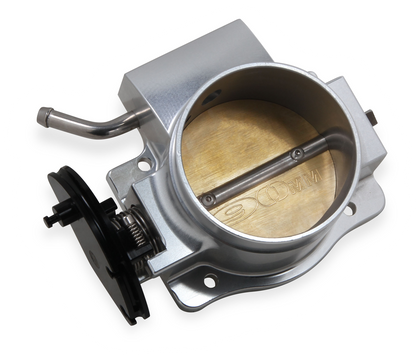

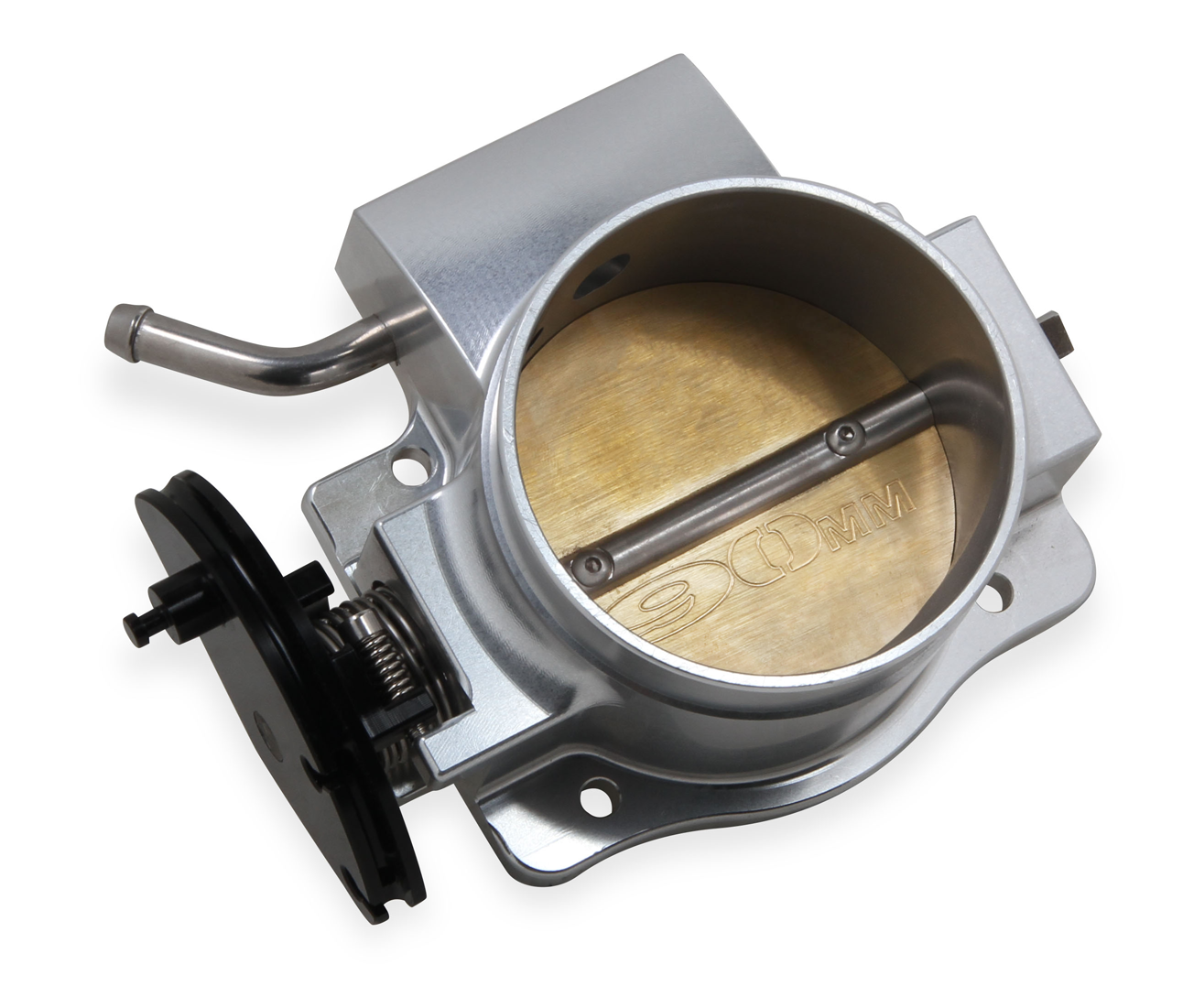

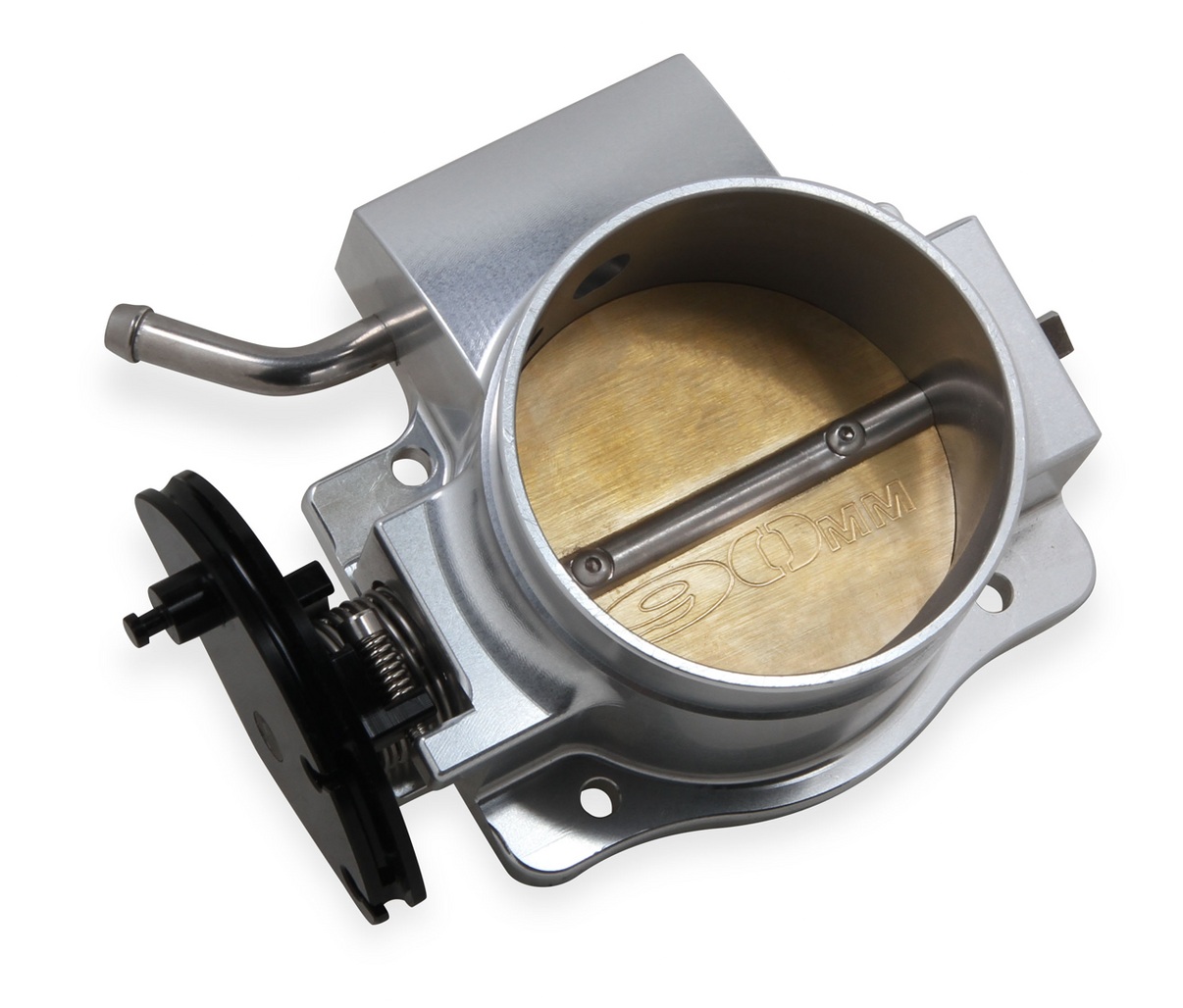

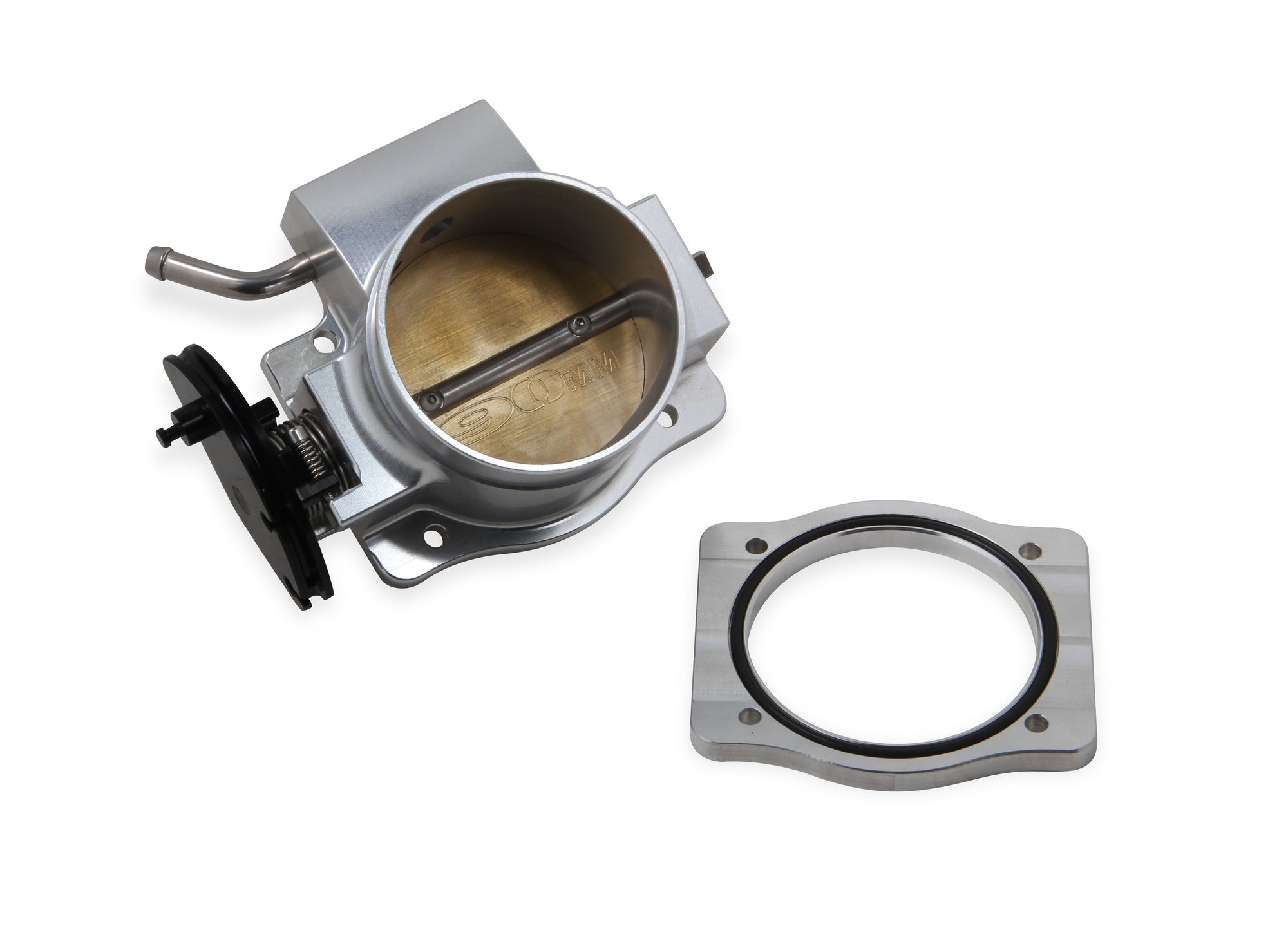

90MM Throttle Body with Sniper EFI Logo Silver for 2011-present Ford Coyote 5.0L
- Cable operated throttle body available in 90mm opening
- Adjustable throttle stop
- High quality billet aluminum construction
- Available in two finishes Silver or Black anodized
- Laser engraved Sniper EFI logo
- Progressive throttle pulley and double return spring
- Mounting bolts included
- Enlarged bore allows increased airflow to support higher horsepower requirements

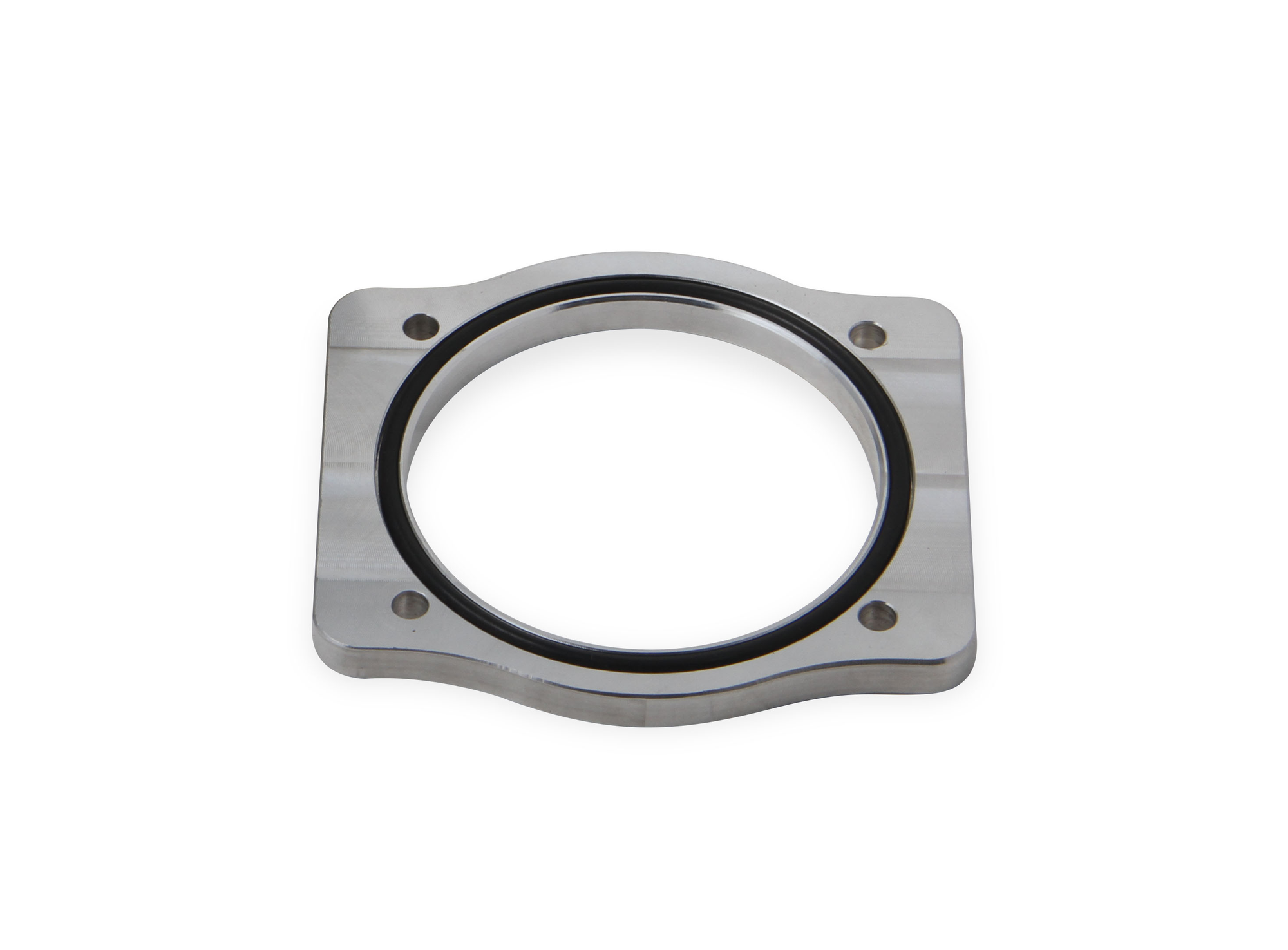

- Designed for us when installing an OEM throttle body for motor housing clearance or can be used as spacer on Sniper EFI intakes for increased horsepower and throttle response
📖
About this product
90MM Throttle Body with Sniper EFI Logo Silver for 2011-present Ford Coyote 5.0L
📋
Product Specifications
Automotive Item Grade
Performance
Billet Color
Silver
Brand
Holley Sniper EFI
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Category
Sniper EFI Intakes
Emission Code
4
Finish
Silver
Fuel Injectors Included
No
Gasket Or Seal Included
No
Grade Type
Performance
IAC Hardware Specs
(2) 8-32 UNC
Idle Air Control Motor Included
No
Material
Billet Aluminum
Mounting Hardware Included
Yes
Part Type
Fuel Injection Throttle Body
Product Type
Throttle Body
Prop 65 Yes/No
Yes
Throttle Body Spacer Included
No
Throttle Bore
90
Throttle Diameter (mm)
90
Throttle Position Sensor Included
No
TPS Hardware Specs
(2) M4 x 0.7
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
CN
⚠ Prop 65 Warning
Yes
1
Emissions Code
4
HS Code
8481809050
📐
Dimensions & Shipping
Product Dimensions
7.0 × 5.9 × 2.6 in
Shipping Dimensions
7.0 × 5.9 × 2.6 in
Weight
1202 g (1.2 kg)
