HolleyPart 12-1500Made in US

Product Details

Key Features

*Compatible for methanol and E85 for competitive drag race use only- when draining and flushing after each race event *These pumps are not for use on aircraft of any type These pumps do not have an internal bypass. A bypass style regulator and retur

Holley set the bar in 2011 with the release of the HP and Dominator in-line fuel pumps. In 2015, Holley has raised the bar again with the introduction of the VR1 and VR2 Brushless in-line fuel pumps. Featuring brushless pump technology and a twin screw rotor design, the VR1 and VR2 in-line fuel pumps are capable of high pressures and flows while maintaining a low amperage draw and quiet performance. Designed to work on high boosted race cars as well as your daily driven weekend endurance car, these pumps work with gasoline, methanol, and E-85* (Compatible for methanol and E85 for competitive drag race use only- when draining and flushing after each race event) and can maintain pressures of 130 PSI and up to 335 GPH flow**. Fueled by TI Automotive. | The pumps include a 2 step controller for pump speed control. The pumps can be ran in one of two different speeds. A low speed control for low fuel consumption requirements or at full speed for high fuel consumption requirements. The VR2 includes (2) controllers for precise control of both pumps independently of each other. Both the VR1 and VR2 pumps are proven for 18.5V compatibility. | **At 13.8V | * Overall pump dimensions: 8.75" Long; 3" Wide; 2.75" Tall

Street/Strip Carb or EFI Applications Supports up to 2150 EFI or 2400 Carb HP Compatible with Pump Gas, Race Gas, Methanol and E85*

  • Capable of 130 PSI while providing significant flow for forced induction applications where belt driven pumps are normally used.
  • Unlike other pumps, the VR Series are built for continuous duty if needed.
  • Billet aluminum construction for durability and good looks

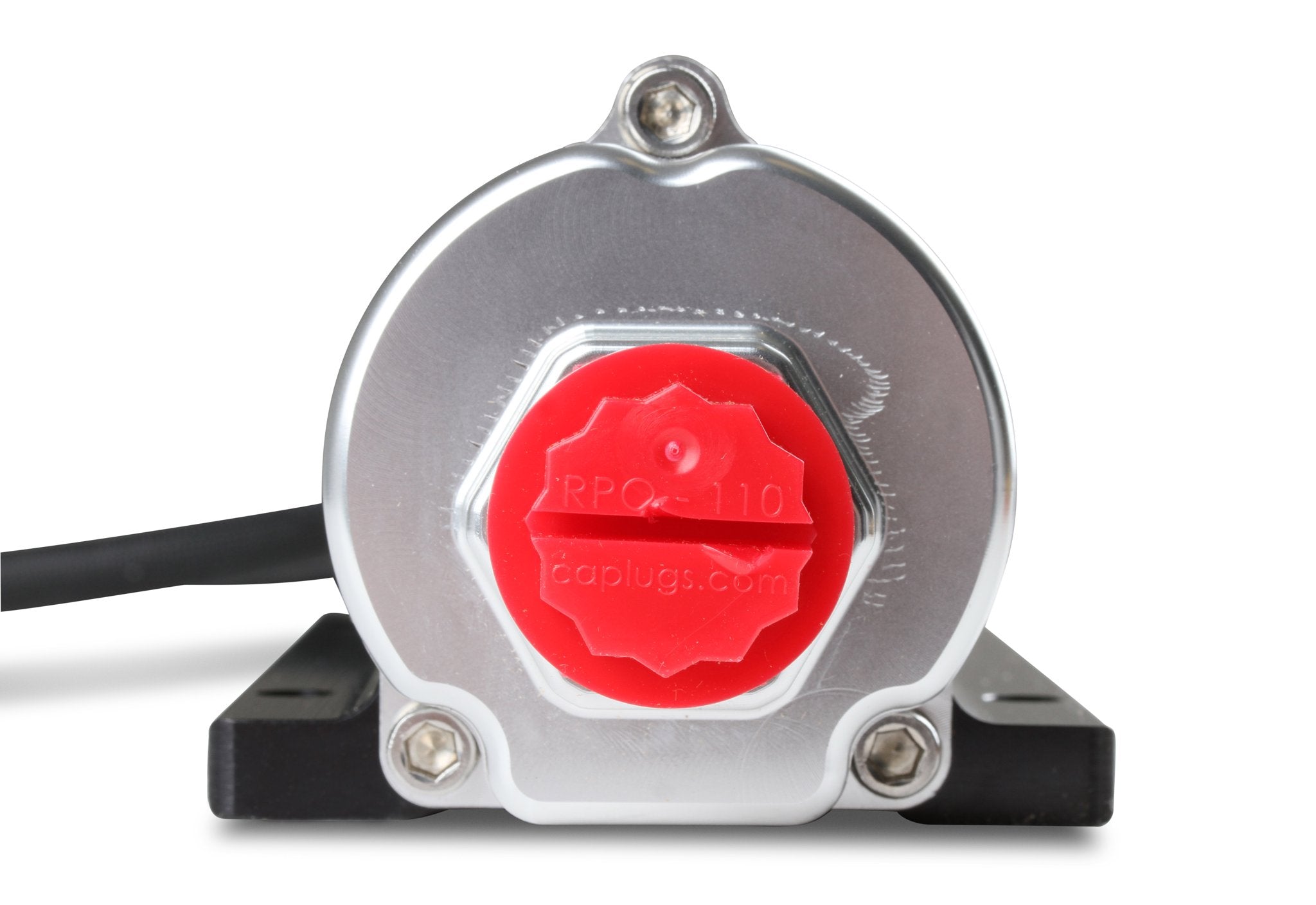

  • VR1 pump features a 10 AN O-ring inlet and outlet
  • High flow and high pressure with low amperage draw
  • Can be fully submerged in the fuel cell or chassis mounted
  • Maximum amp draw of the VR1 is 19 AMPS and 38 AMPS for the VR2
  • Holley also offers a complete line of fuel filters and fuel pressure regulators that are designed to work as a system with these pumps
📖

About this product

Street/Strip Carb or EFI Applications Supports up to 2150 EFI or 2400 Carb HP Compatible with Pump Gas, Race Gas, Methanol and E85*

📋

Product Specifications

Application
Universal
Automotive Item Grade
Performance
Brand
Holley
California Proposition 65 Chemical Name
20
Category
Air and Fuel Delivery
Collection
Air & Fuel Delivery
Collection
Air & Fuel Delivery - Fuel Pumps & Accessories
Color
Silver
Emission Code
5
Finish
Anodized
Free Flow GPH
170 @ 13.8 Volts
Free Flow LPH
644
Fuel Delivery Type
Carburetor
Fuel Delivery Type
Fuel Injection
Fuel Sending Unit Included
No
Fuel System
Carbureted
Fuel System
EFI
Fuel Type
E85
Fuel Type
Gasoline
Fuel Type
Methanol
Gasket Or Seal Included
No
Grade Type
Performance
Inlet Fitting Thread Size
7/8-14
Inlet Fitting Thread Size
7/8-14 IN
Inlet Size
10 AN O-ring
Inlet Type
10 AN ORB
Internal Or External
Internal External
Material
Aluminum
Maximum Amperage Draw
19
Maximum Flow Rating
170
Maximum Flow Rating
170 GPH
Maximum Pressure
130
Maximum Pressure
130 PS
Menu
Fuel Pumps and Related Components
Mounting Hardware Included
No
Negative Ground
Yes
Outlet Fitting Thread Size
7/8-14
Outlet Fitting Thread Size
7/8-14 IN
Outlet Quantity
1
Outlet Size
10 AN O-ring
Outlet Type
10 AN ORB
Part Type
Electric Fuel Pump
Product Type
Brushless Fuel Pump
Pump Body Color
Black
Regulator Included
No
Strainer Included
No
Sub Category
Fuel Pumps and Related Components
Terminal Quantity
2
Universal Or Specific Fit
Universal
Voltage
12
Voltage
12 2H
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
Wire Quantity
2
Wiring Harness Included
yes
🛡️

Warranty & Compliance

Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
Emissions Code
5
HS Code
8413301000
📐

Dimensions & Shipping

Product Dimensions
15.4 × 12.3 × 4.2 in
Shipping Dimensions
15.4 × 12.3 × 4.2 in
Weight
2699 g (2.7 kg)
