HolleyPart 12-169Made in US
Product Details
⭐
Key Features
It is recommended to use a Holley 12-753 30 Amp Fuel Pump Relay along with a minimum size of 12 Gauge wire for your installation. *** Maximum 6AN line and fitting size due to space limitations between unit and fuel tank.

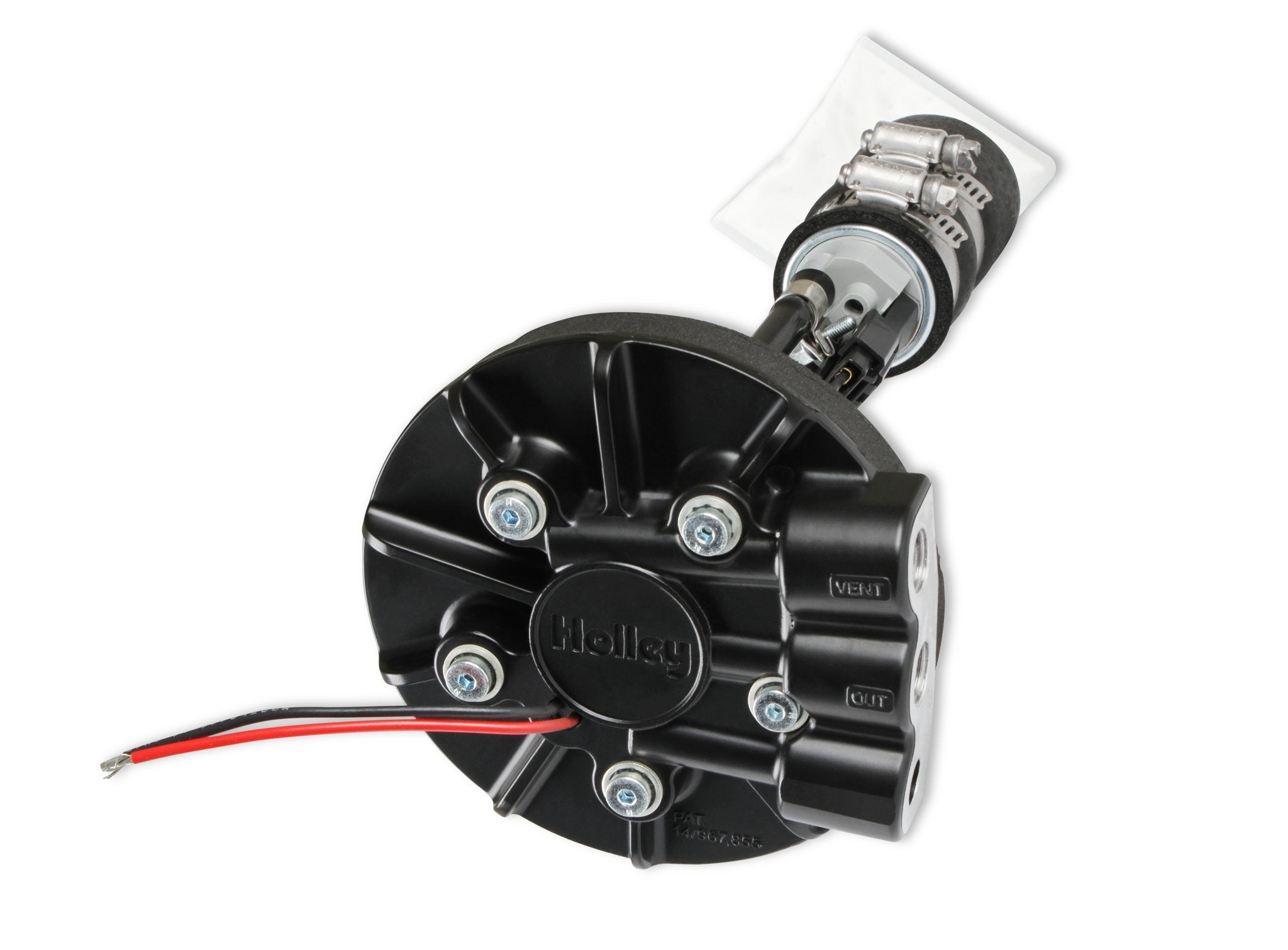

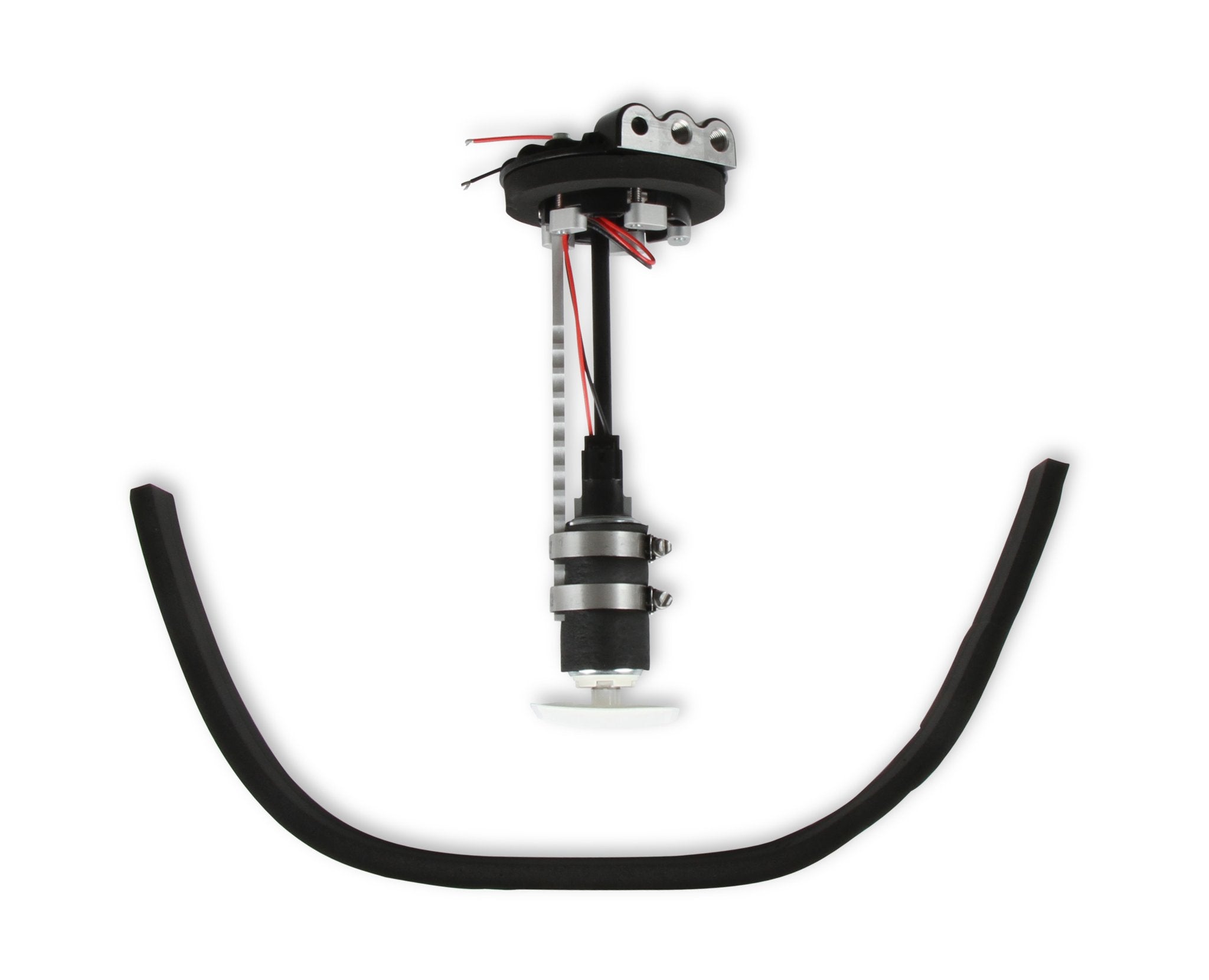

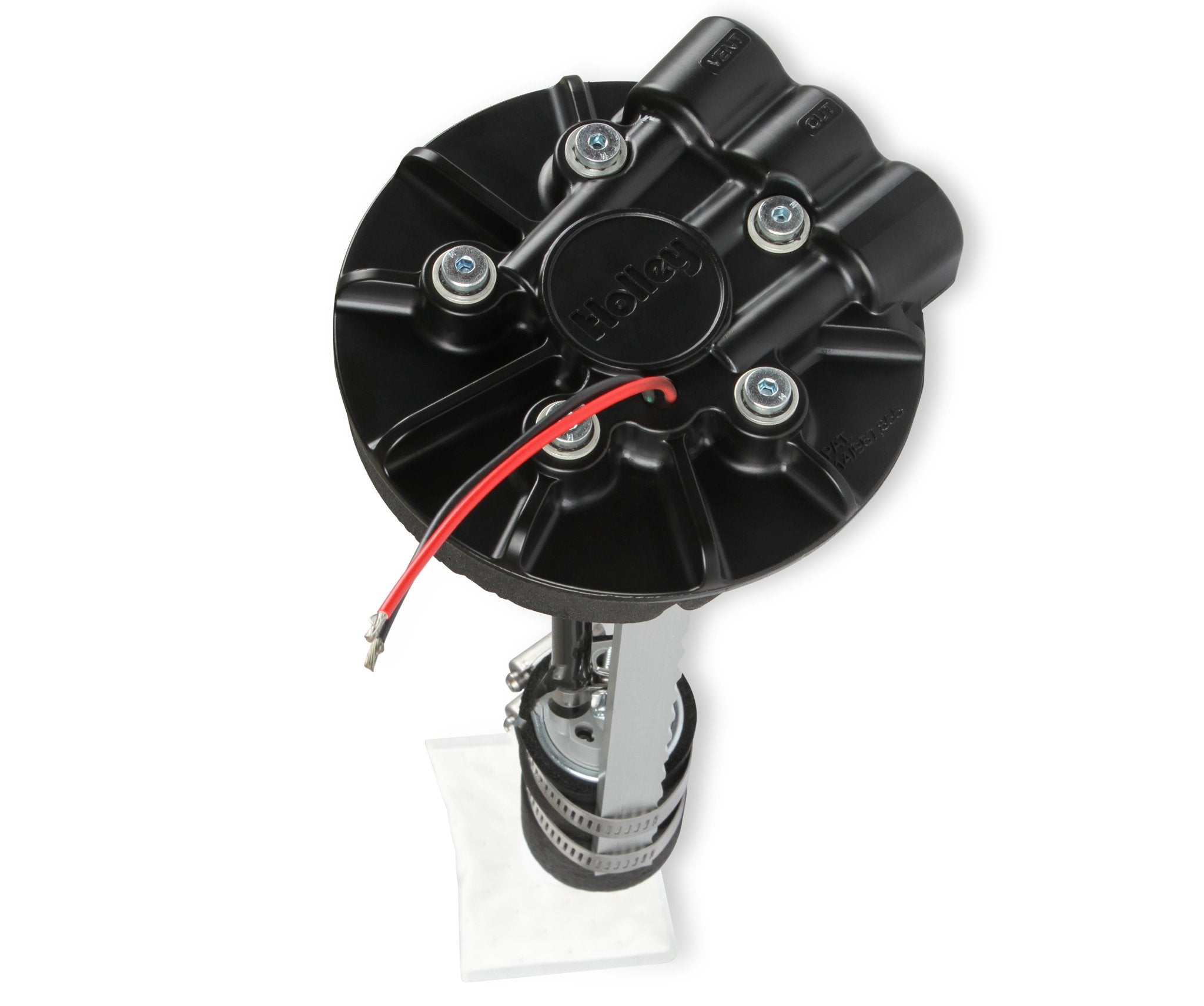

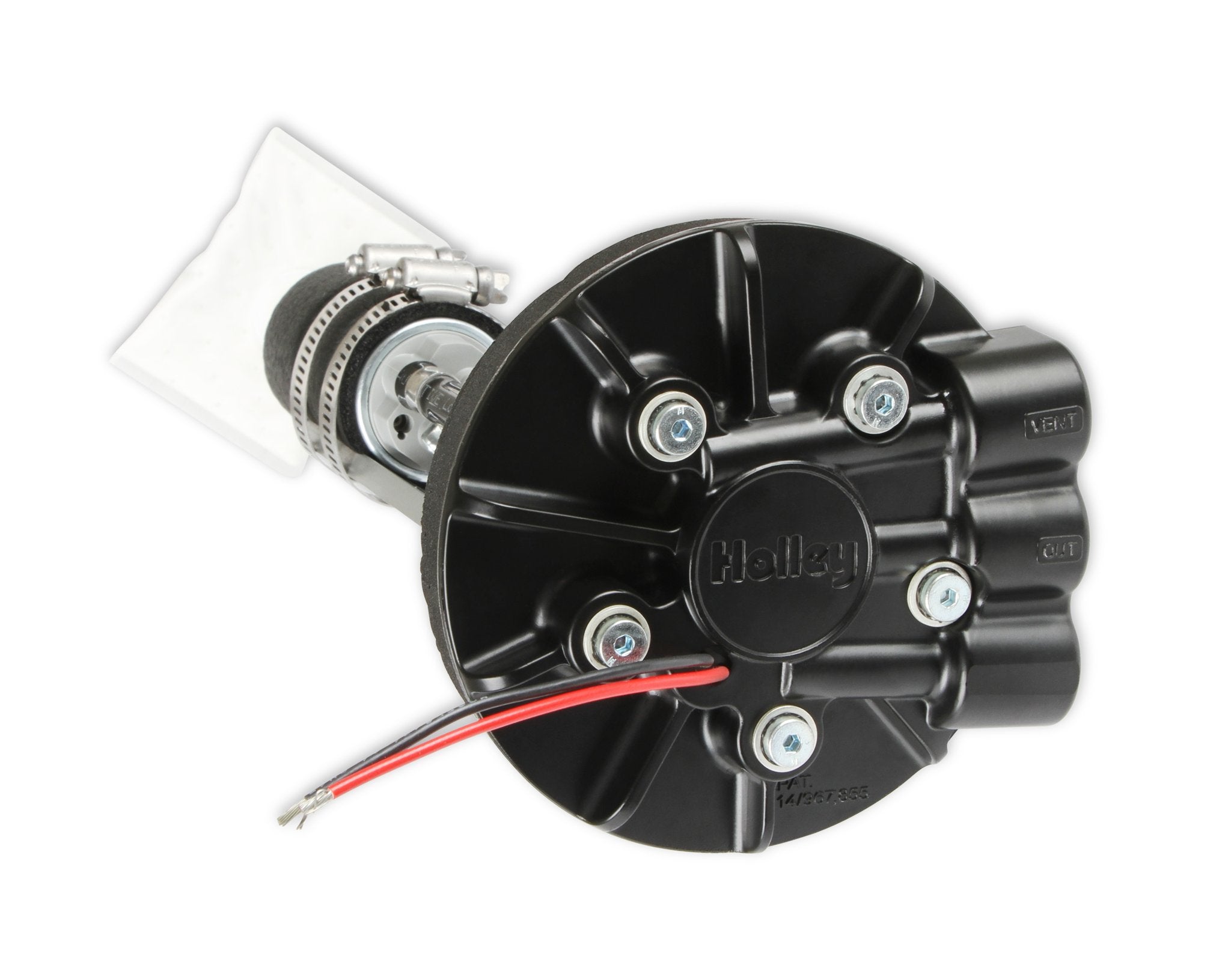

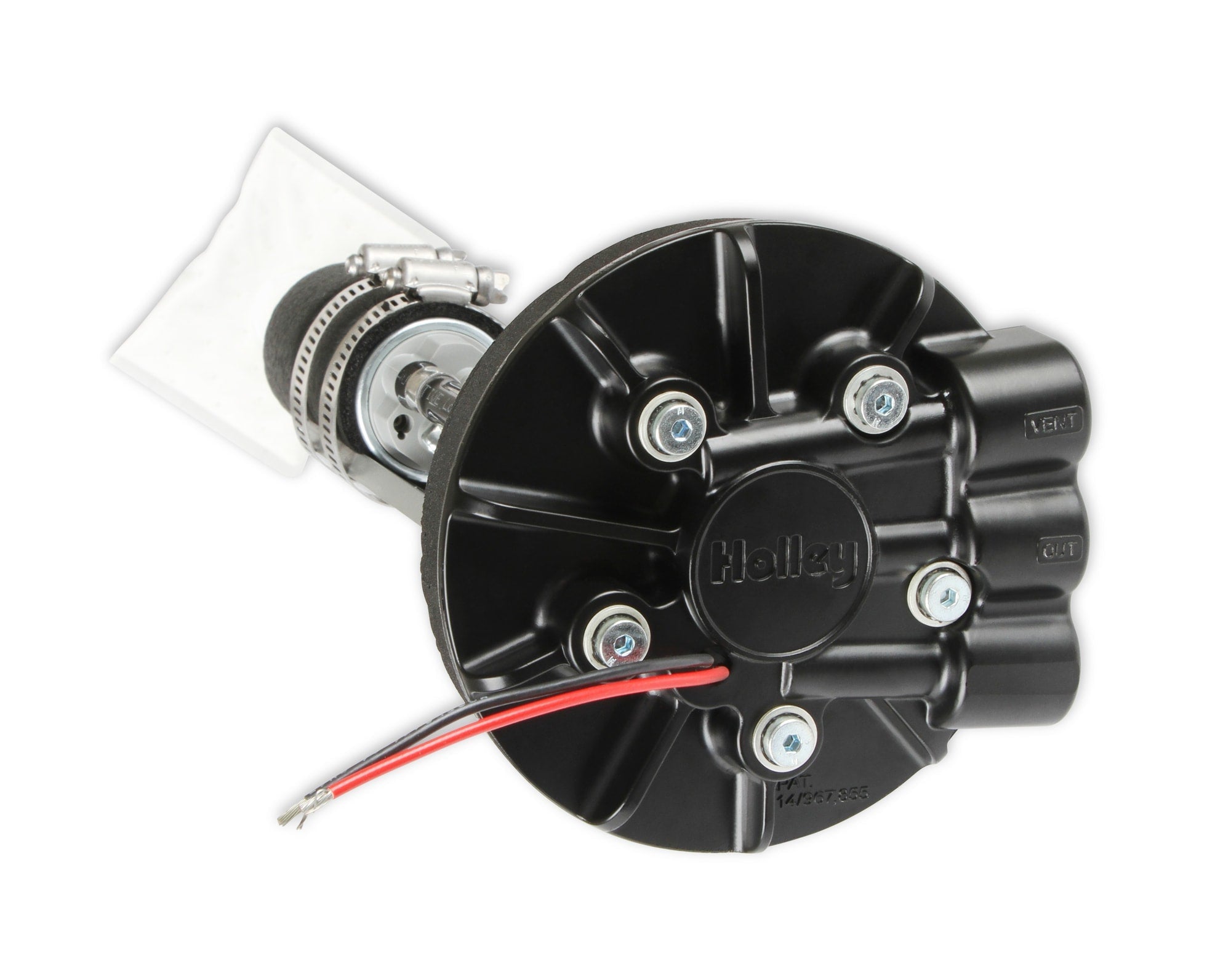

Are you interested in an EFI retrofit kit, but just can't get past the complication of the fuel system? Available in return and returnless versions, you can rest assured Holley has the solution you need for your EFI fuel pump woes. | Now you can convert your factory tank or fuel cell to an in-tank EFI fuel system quickly and easily! The conversion is easily accomplished with basic tools and requires no welding or fabrication. The aluminum 5 inch diameter module design includes a die cast pump hanger bracket to control pump vibration while also providing a low profile design to fit where space is at a premium. Holley's innovative clamping system and integrated fuel pump makes it easy. Once installed, hook up your fuel lines and your power source/ground and you're off and running! NO hassle! | Supports up to 550 EFI or 700 Carb HP (@ 60 PSI at 13.5 Volts / 10.4 AMP Draw) Of course there are many variables, estimates are based on gasoline. Individual systems will vary based on fuel system design, regulator type, fuel cell location, etc...
255 LPH Drop-In Retrofit EFI Fuel System Supports up to 550 EFI or 700 Carb HP
- The easiest way to convert your vehicle to an in-tank, EFI fuel system

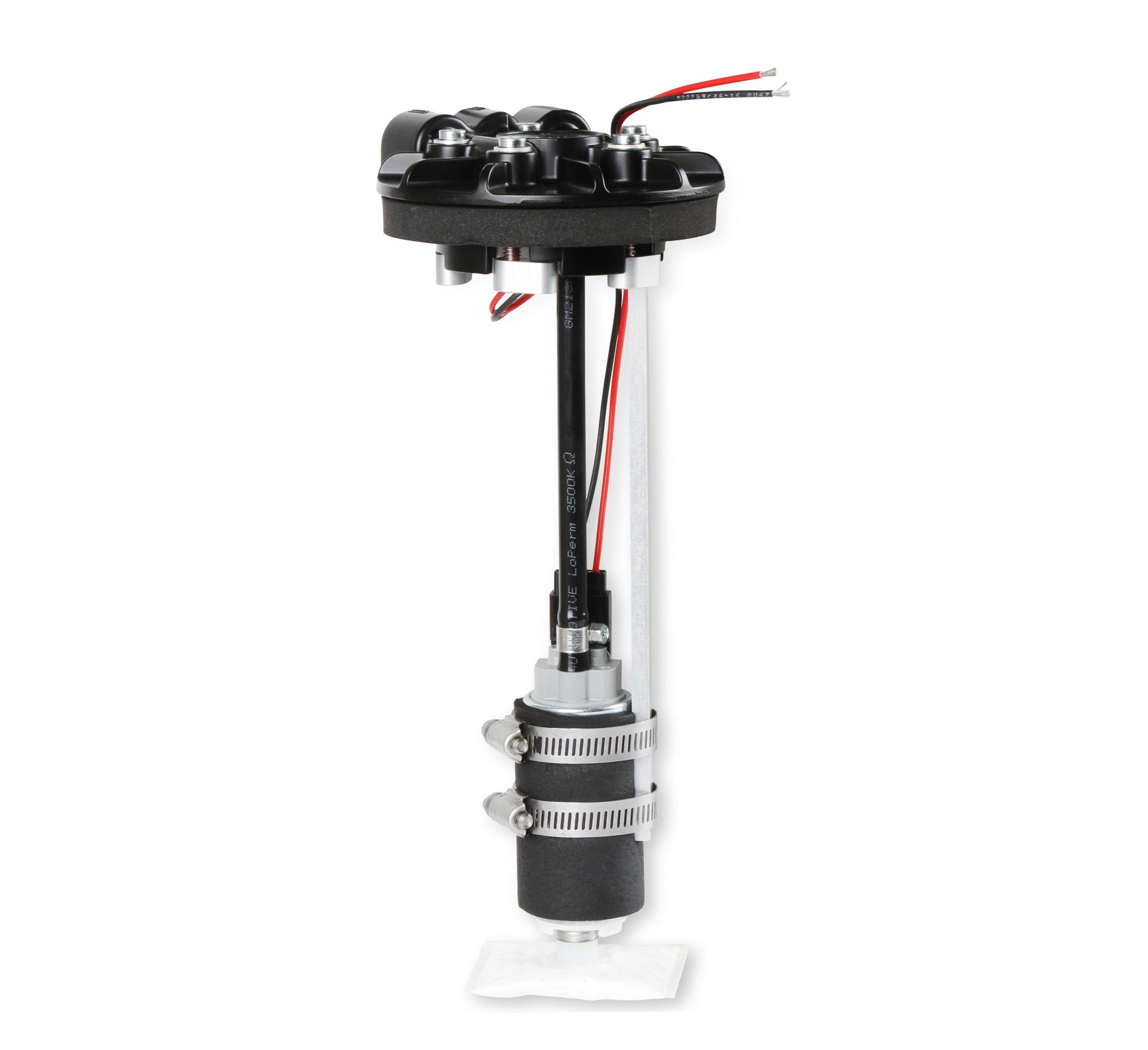

- Installs in any fuel tank from 7” to 12” deep to fit a wide variety of applications
- The low profile 5 inch diameter design is only 1.275 inches thick above the tank mounting surface for added clearance when needed

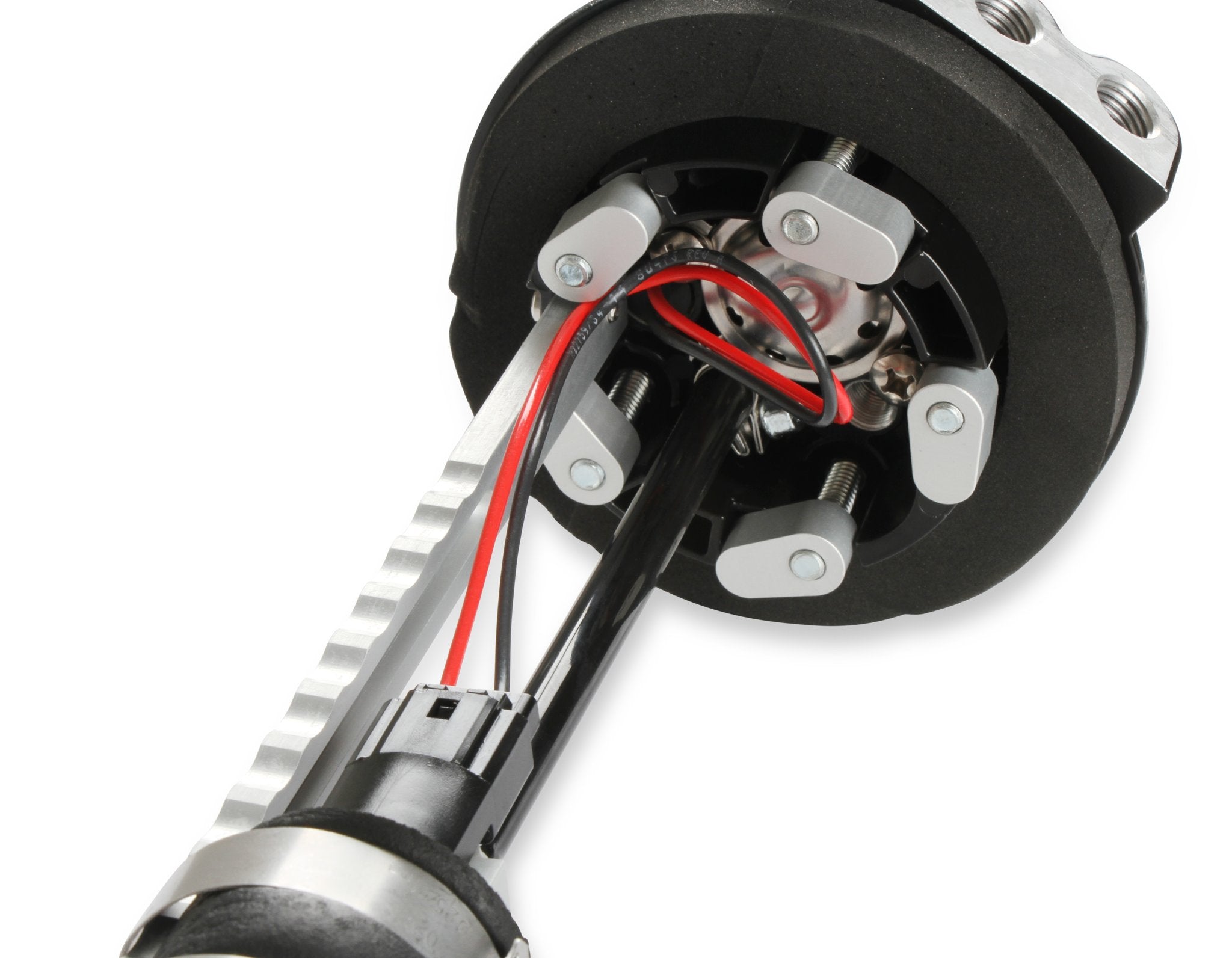

- The innovative clamping system allows you to locate the module anywhere in the tank beside your existing sending unit
- The clamping system allows you to rotate the unit 360 degrees for easier clocking of the plumbing and wiring locations under your ride
- Die cast aluminum construction for corrosion resistance and long lasting good looks
- ¼” NPT ports for a wide variety of plumbing options
- Ideal for Terminator EFI, Sniper EFI, MSD Atomic EFI or any TBI of EFI conversion
- Optional roll over valve available
- Two different fuel pumps are available to match your requirements - 255LPH or 400LPH for both return and returnless style systems
📖
About this product
255 LPH Drop-In Retrofit EFI Fuel System Supports up to 550 EFI or 700 Carb HP
📋
Product Specifications
Application
Universal
Automotive Item Grade
Performance
Average Current Draw
10.4
Average Flow Rating
255
Average Flow Rating
255 LPH
Brand
Holley
California Proposition 65 Chemical Name
4
Category
Air and Fuel Delivery
Collection
Air & Fuel Delivery
Collection
Air & Fuel Delivery - Fuel Pumps & Accessories
Connector Color
Black
Connector Quantity
1
Emission Code
5
Free Flow LPH
255
Fuel Filter Included
Yes
Fuel Sending Unit Included
No
Fuel Tank Pressure Sensor Included
No
Fuel Type
Gasoline
Gasket Or Seal Included
Yes
Gasket Or Seal Material
Foam
Grade Type
Performance
Height
Adjustable
Housing Material
Aluminum
In Tank Or External
In Tank
Inlet Fitting Thread Size
1/4
Inlet Fitting Thread Size
1/4 IN
Inlet Quantity
None
Inlet Type
NPT

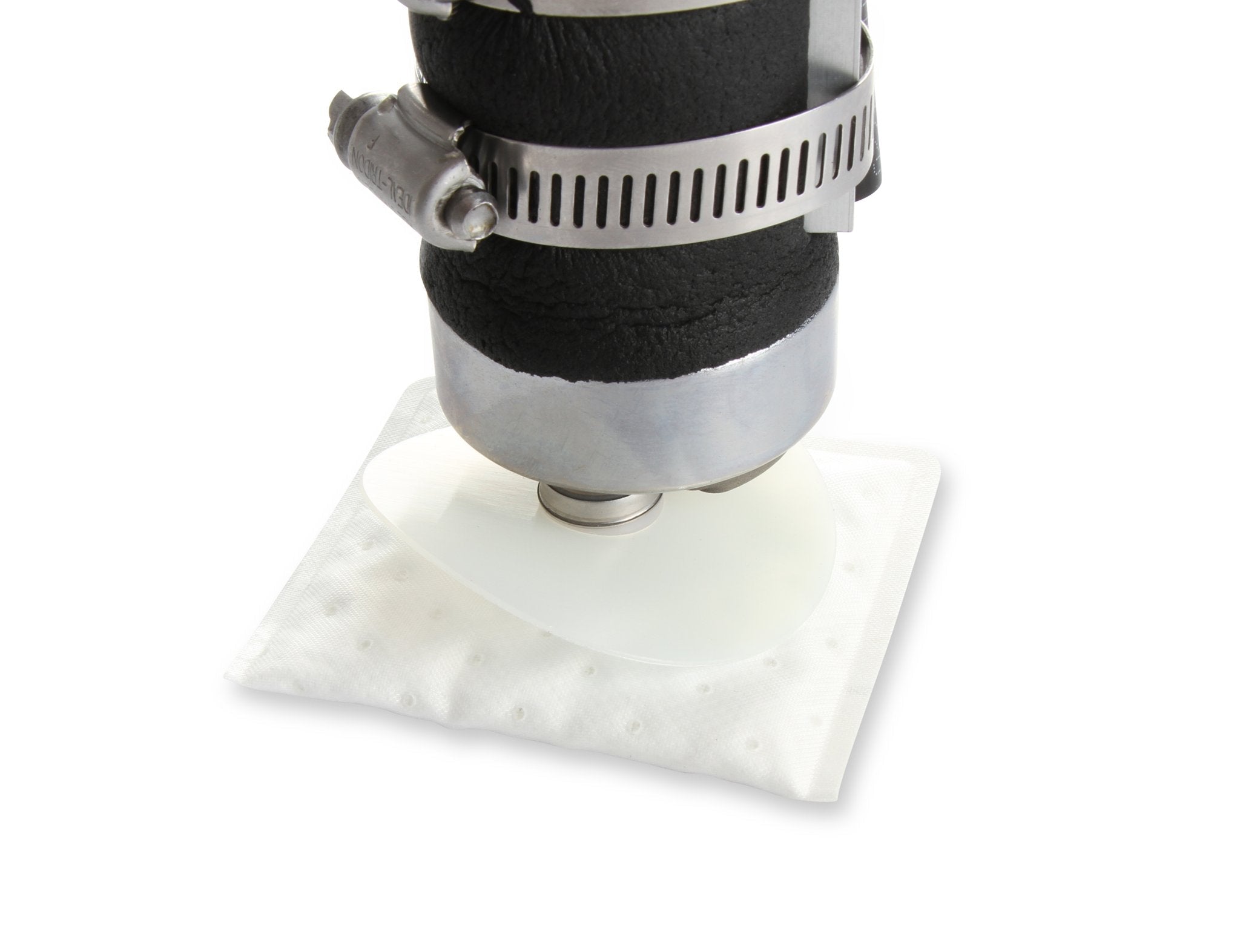

Internal Or External Strainer
External
Lock Ring Included
Yes
Material
Die Cast Aluminum
Maximum Pressure
60
Maximum Pressure
60 PS
Menu
Fuel Pumps and Related Components
Minimum Fuel Tank Depth
7 inches
Mounting Hardware Included
Yes
Negative Ground
Yes
NPT Thread
1/4 NPT
Outlet Fitting Thread Size
1/4
Outlet Fitting Thread Size
1/4 IN
Outlet Quantity
One
Outlet Type
NPT
Part Type
Fuel Pump Module Assembly
Product Type
Fuel Pump Module
Pump Type
Electric
Regulator Included
No
Sub Category
Fuel Pumps and Related Components
Top Mount Diameter
5
Top Mount Diameter
5 IN
Universal Or Specific Fit
Universal
Voltage
12
Voltage
12 2H
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
Wire Harness Included
Yes
Wire Quantity
2
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
Emissions Code
5
HS Code
8413301000
📐
Dimensions & Shipping
Product Dimensions
14.4 × 6.4 × 6.3 in
Shipping Dimensions
14.4 × 6.4 × 6.3 in
Weight
1270 g (1.27 kg)
