Earl's PerformancePart 12018002erlMade in US
Product Details
⭐
Key Features
*Pump gas compatible for intermittent or under 90 degree ambient temperature use Pump gas use recommendations: • This pump is compatible with pump gas, but is not recommended for street driven vehicles where the ambient temperature is regularly above 90 d

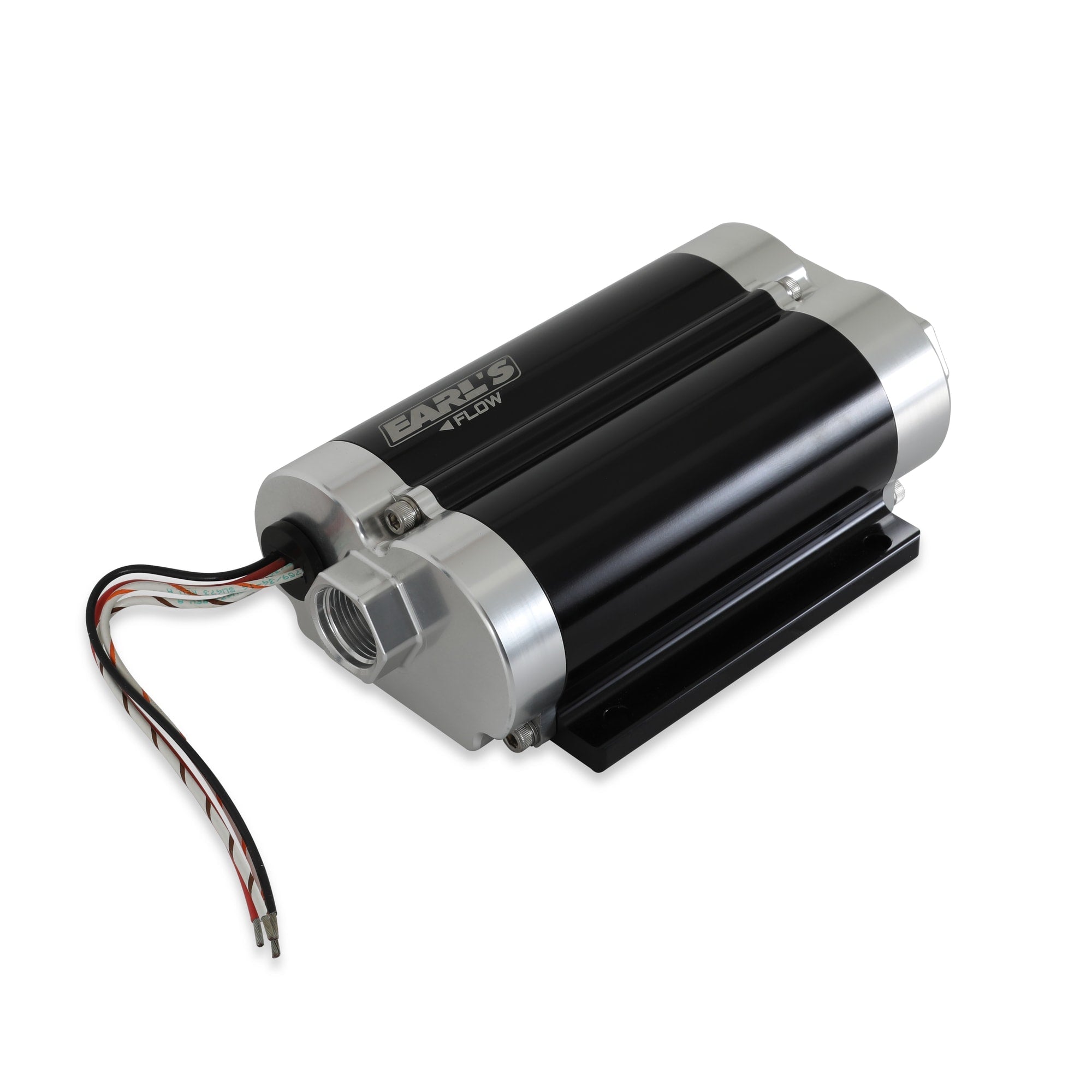

Need to feed some serious horsepower? Have a nitrous or forced induction powerplant that also sees street duty? Earl's Dual in-line fuel pumps are the answer! The patent pending twin pump design allows you to use one pump for cruising and both pumps when you activate the nitrous switch or start building boost! By staging the second pump, you eliminate the unnecessary recirculating and heating of extra fuel which can lead to poor performance and hot fuel issues. As an added benefit for the hard core enthusiasts that run events like Hot Rod Power Tour and the Baja 1000, the extra pump offers the peace of mind that you will always finish what you start! For hard core race vehicles, both pumps can be wired for full time duty to get maximum performance and are proven with 18.5 volt compatibility at pressures up to 80 psi. At only 5.1 lbs, they weigh half a pound less than competitive 1000+ horsepower pumps yet have twice the features!
Street/Strip Carb or EFI Applications Supports up to 1800 EFI or 2100 Carb HP Compatible with Pump Gas*, Race Gas, Diesel or E85
- Billet aluminum construction for durability and good looks
- 10 AN O-ring inlet/outlet for high flow and superior sealing
- Excellent for use with carbureted or EFI applications
- Fully submersible in-tank for custom applications, space savings and less plumbing
- Compatible with 12v to 18.5v systems for street or race use
- Compact (7.66 Long x 5 Wide x 2.5 Tall) for easy installation on frame rails or other tight areas
- Twin pump design allows the use of both pumps simultaneously or independently - second pump can be activated on demand for power adders such as nitrous or boost
- Patent pending dual pump technology
- Proven durability beyond 3,000 hours in race gas or diesel fuels
- Weighs only 5.1 lbs.
- Current draw at 43 PSI and 13.5 VDC is 17.2 Amps
- Not designed for use on aircraft of any type.
📖
About this product
Street/Strip Carb or EFI Applications Supports up to 1800 EFI or 2100 Carb HP Compatible with Pump Gas*, Race Gas, Diesel or E85
📋
Product Specifications
Application
Universal
Automotive Item Grade
Performance
Brand
Earl's
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Category
Air and Fuel Delivery
Collection
Air & Fuel Delivery - Fuel Pumps & Accessories
Color
Silver
Emission Code
5
Finish
Anodized
Forced Induction Hp@43psi
1400
Forced Induction Hp@60psi
1200
Forced Induction Hp@8psi
1600
Free Flow GPH
200
Fuel Sending Unit Included
No
Fuel System
Carbureted
Fuel System
EFI
Fuel Type
Diesel
Fuel Type
Gasoline
Gasket Or Seal Included
No
Gph@43psi
156
Gph@60psi
140
Gph@8psi
200
Inlet Size
2 x 10 AN O-Ring - 7/8-14 SAE
Lph@43psi
590
Lph@60psi
530
Lph@8psi
720
Material
Aluminum
Mounting Hardware Included
No
Naturally Aspirated Hp@43psi
1800
Naturally Aspirated Hp@60psi
1600
Naturally Aspirated Hp@8psi
2100
Outlet Size
10 AN O-Ring - 7/8-14 SAE
Part Type
Electric Fuel Pump
Product Type
Fuel Pump
Prop 65 Yes/No
Yes
Pump Body Color
Black Anodized
Strainer Included
No
Terminal Quantity
2
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
Wiring Harness Included
No
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
⚠ Prop 65 Warning
Yes
1
Emissions Code
5
HS Code
8413301000
📐
Dimensions & Shipping
Product Dimensions
11.25 × 7.35 × 3.25 in
Shipping Dimensions
11.25 × 7.35 × 3.25 in
Weight
2635 g (2.64 kg)
