Earl's PerformancePart 166025erlMade in US
Product Details
⭐
Key Features
For use with Steel and Aluminum tanks ONLY!

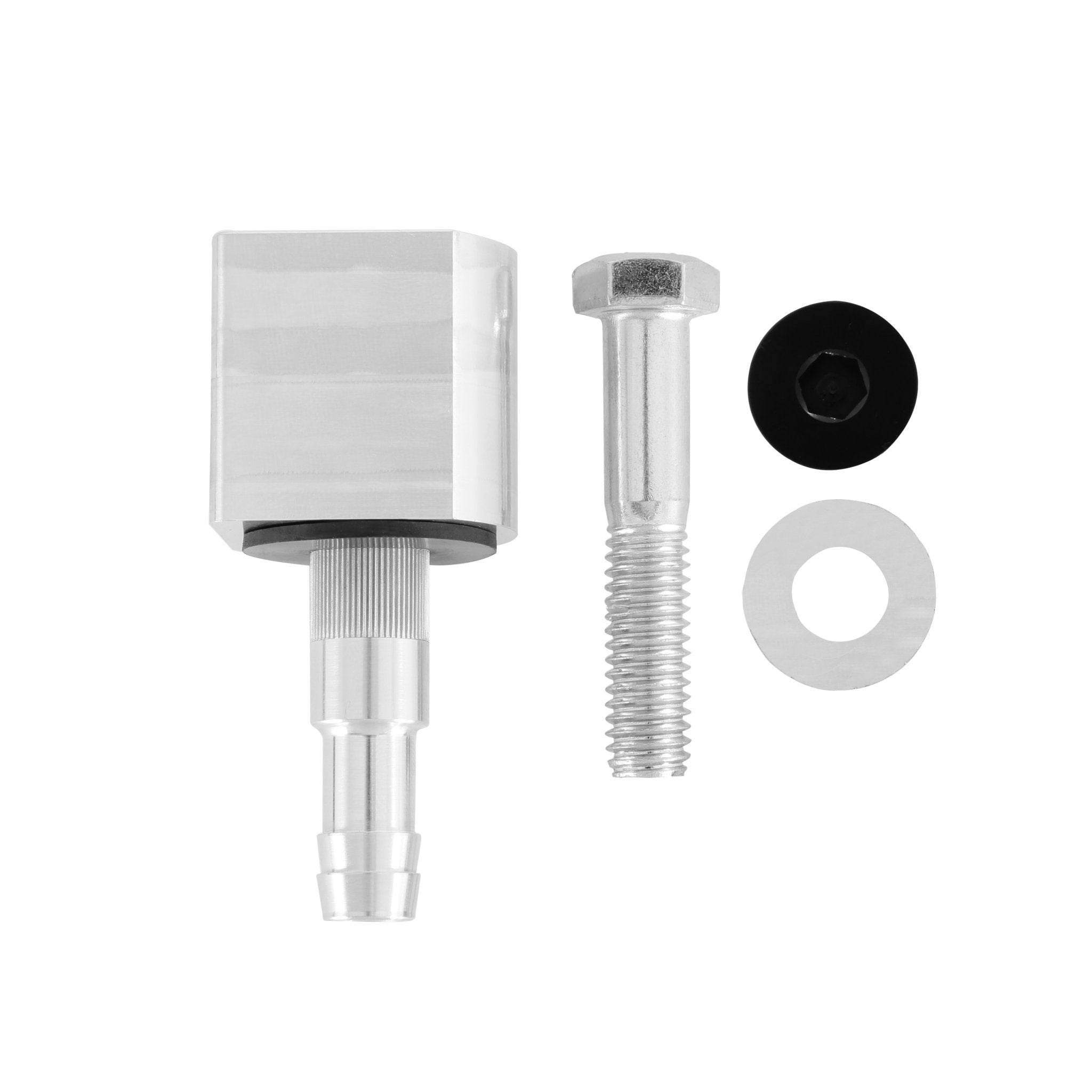

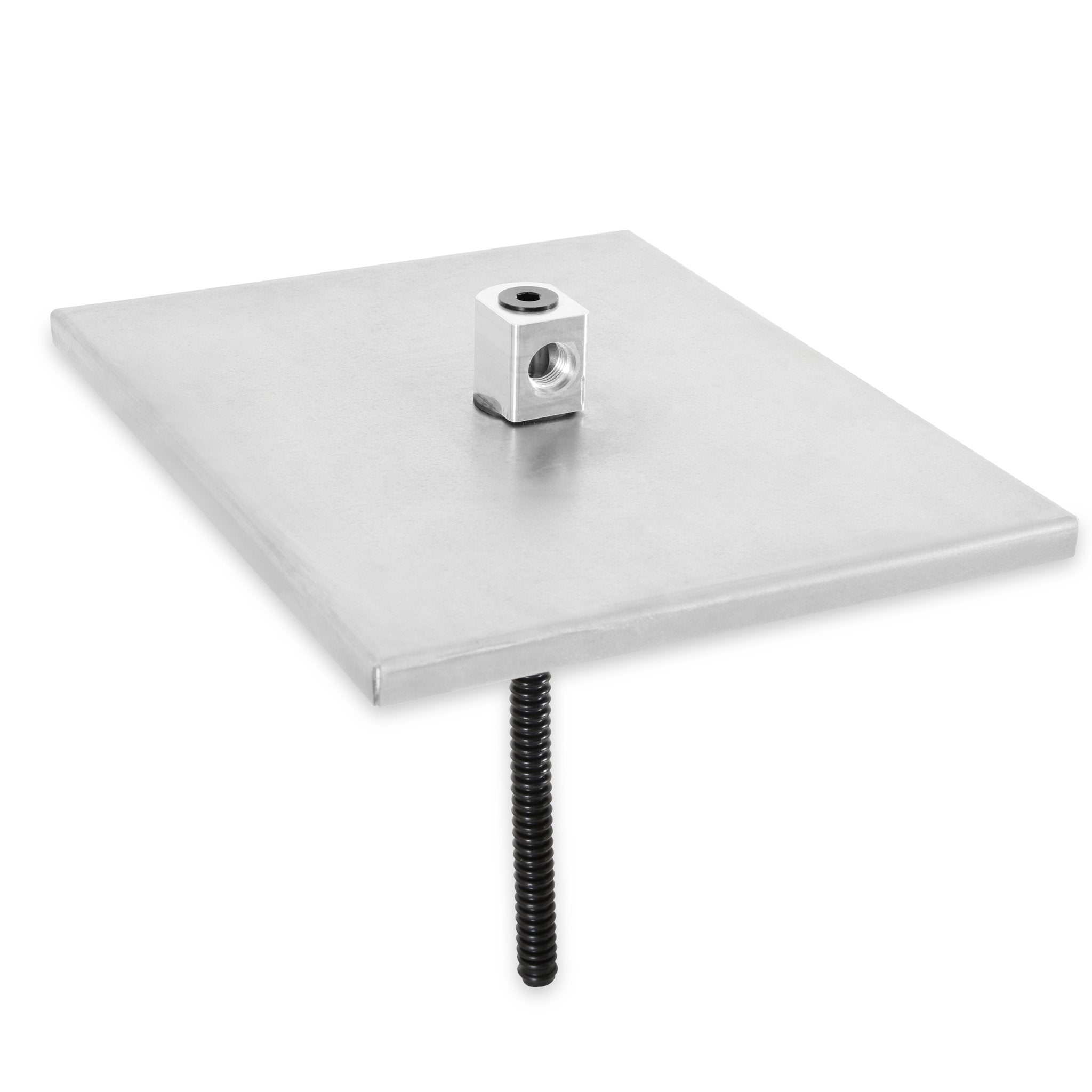

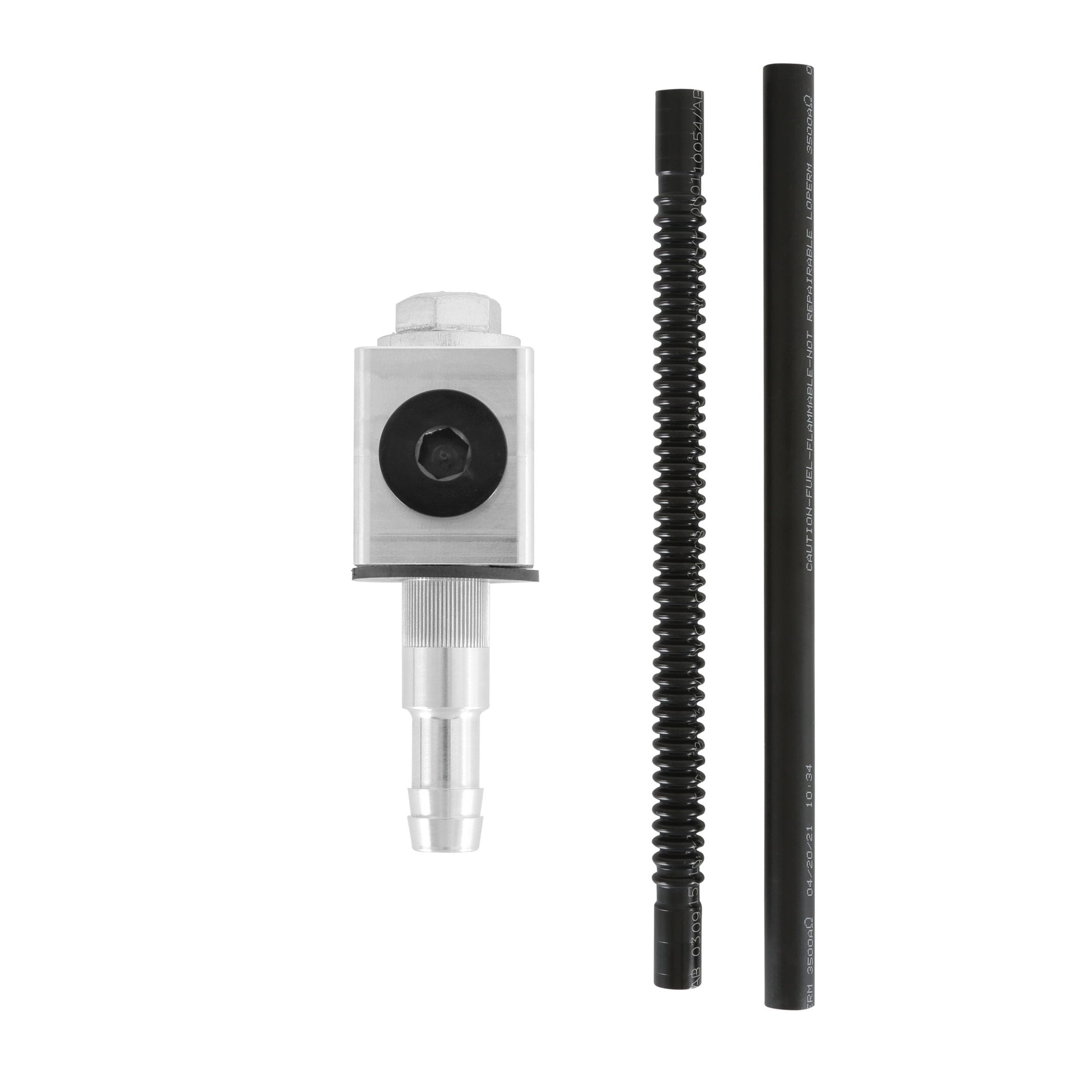

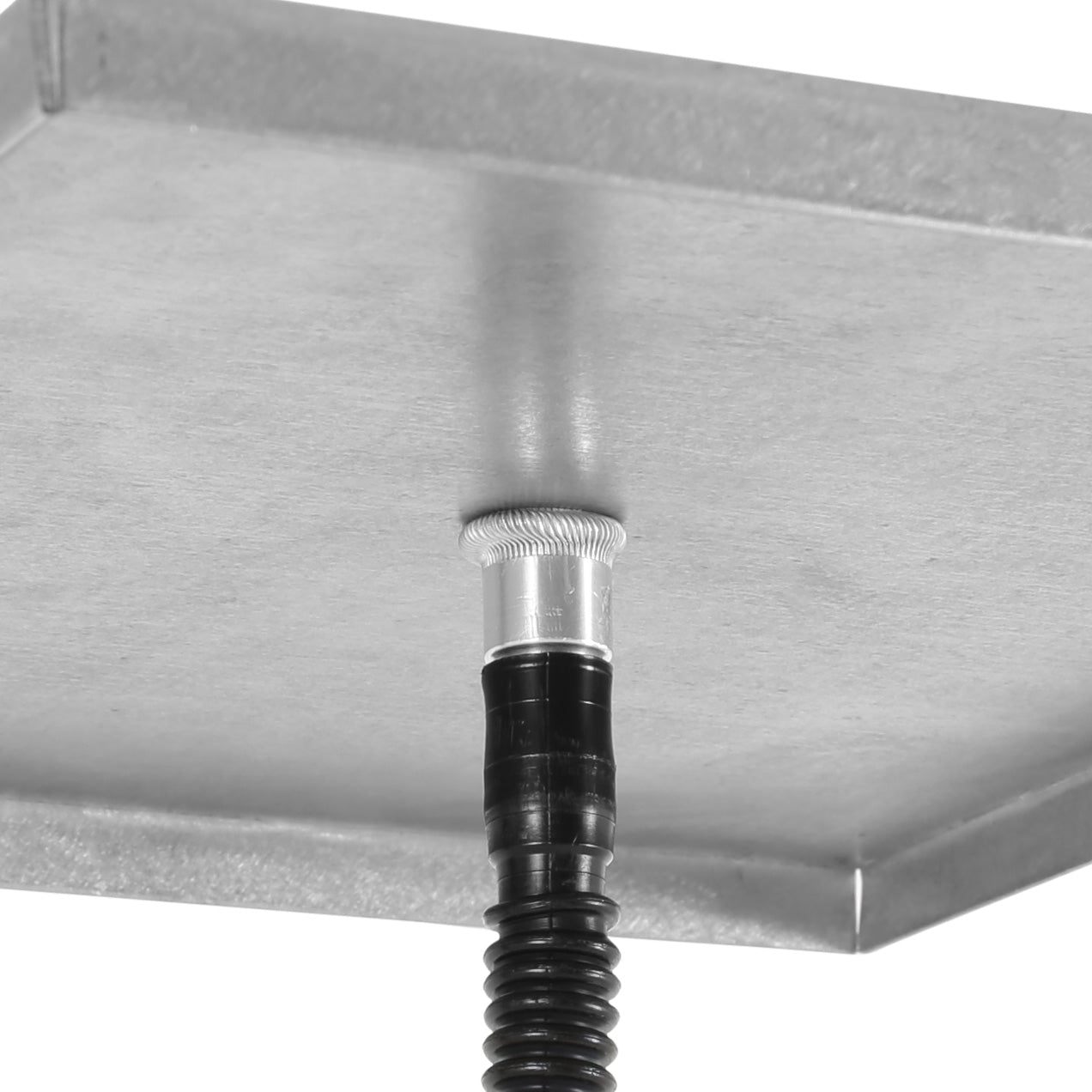

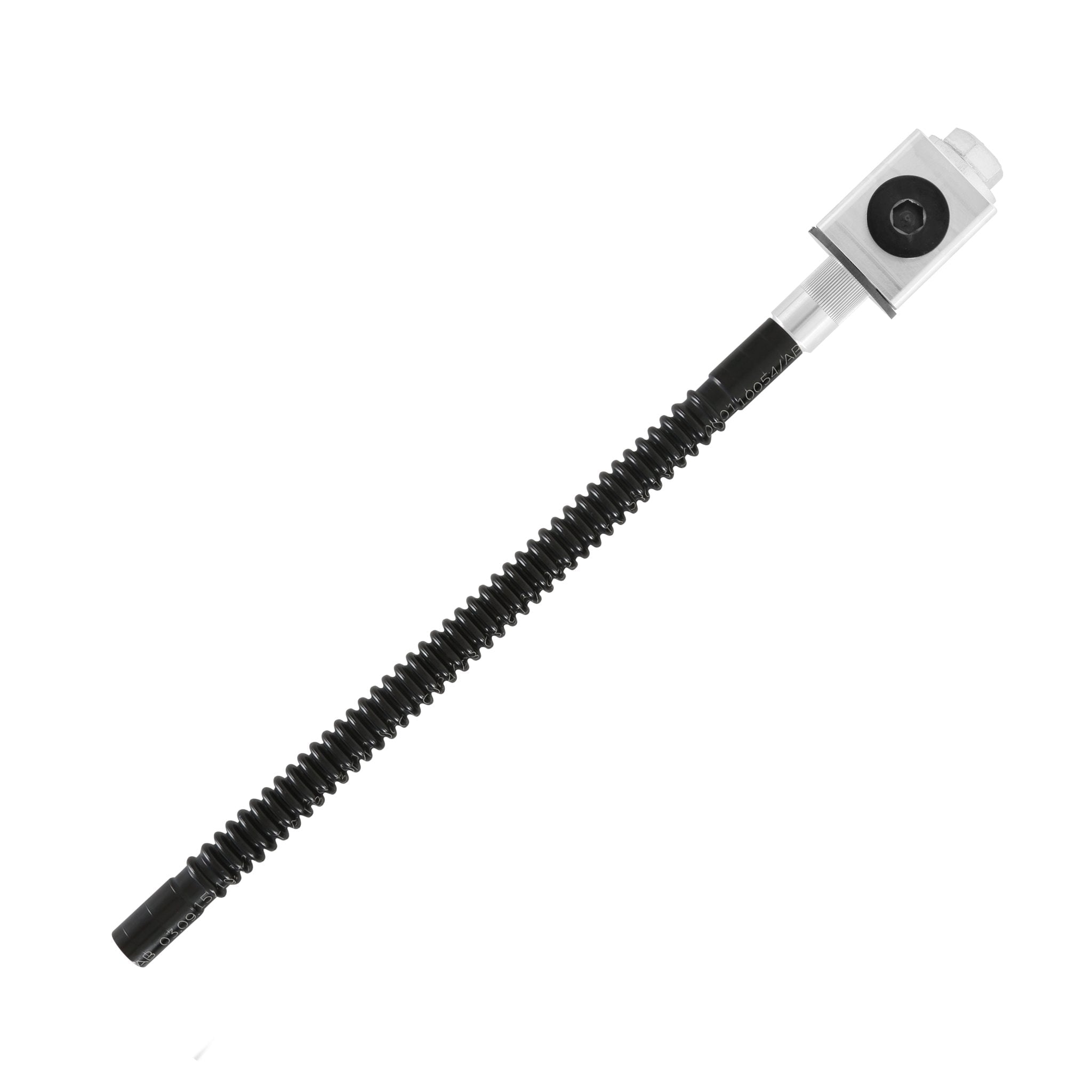

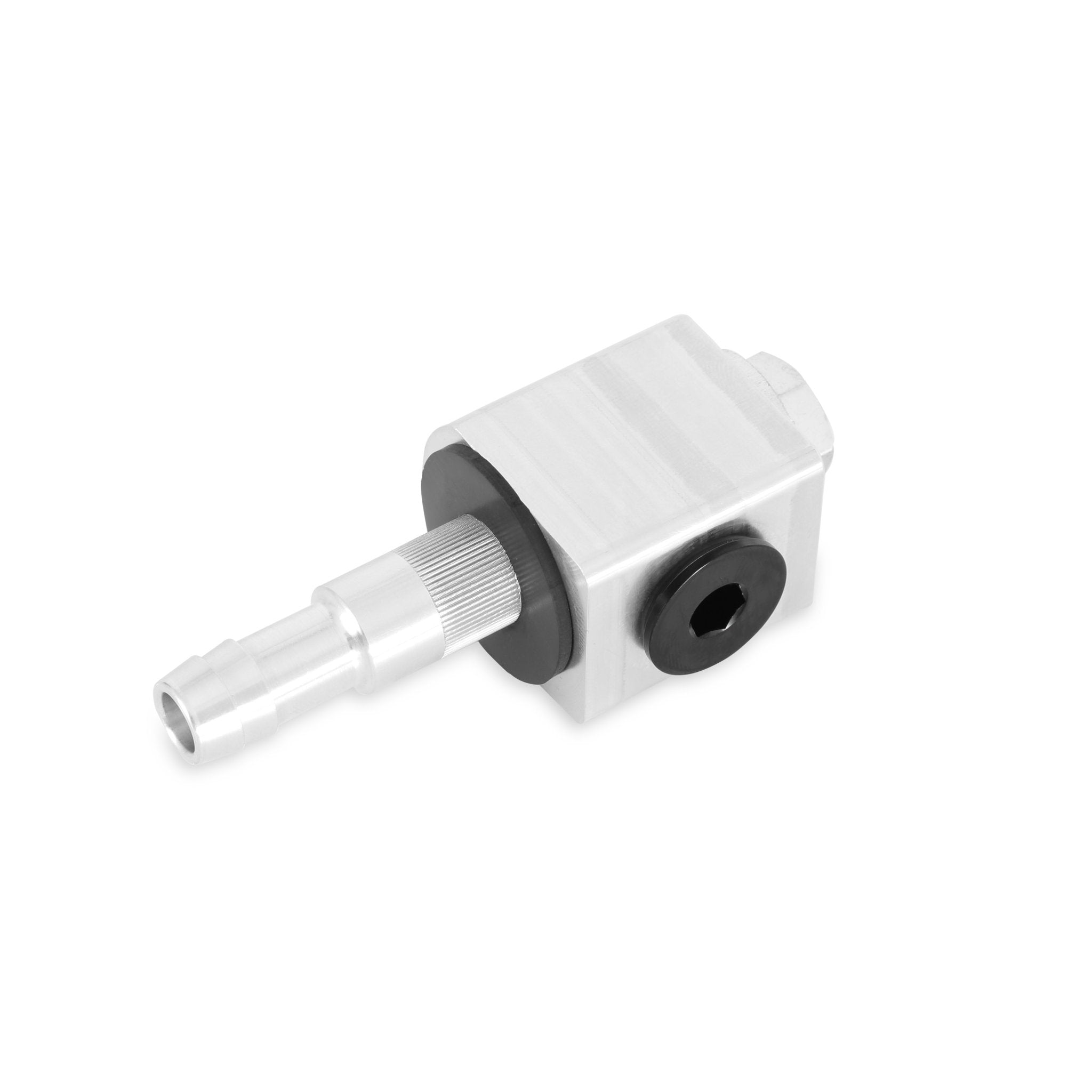

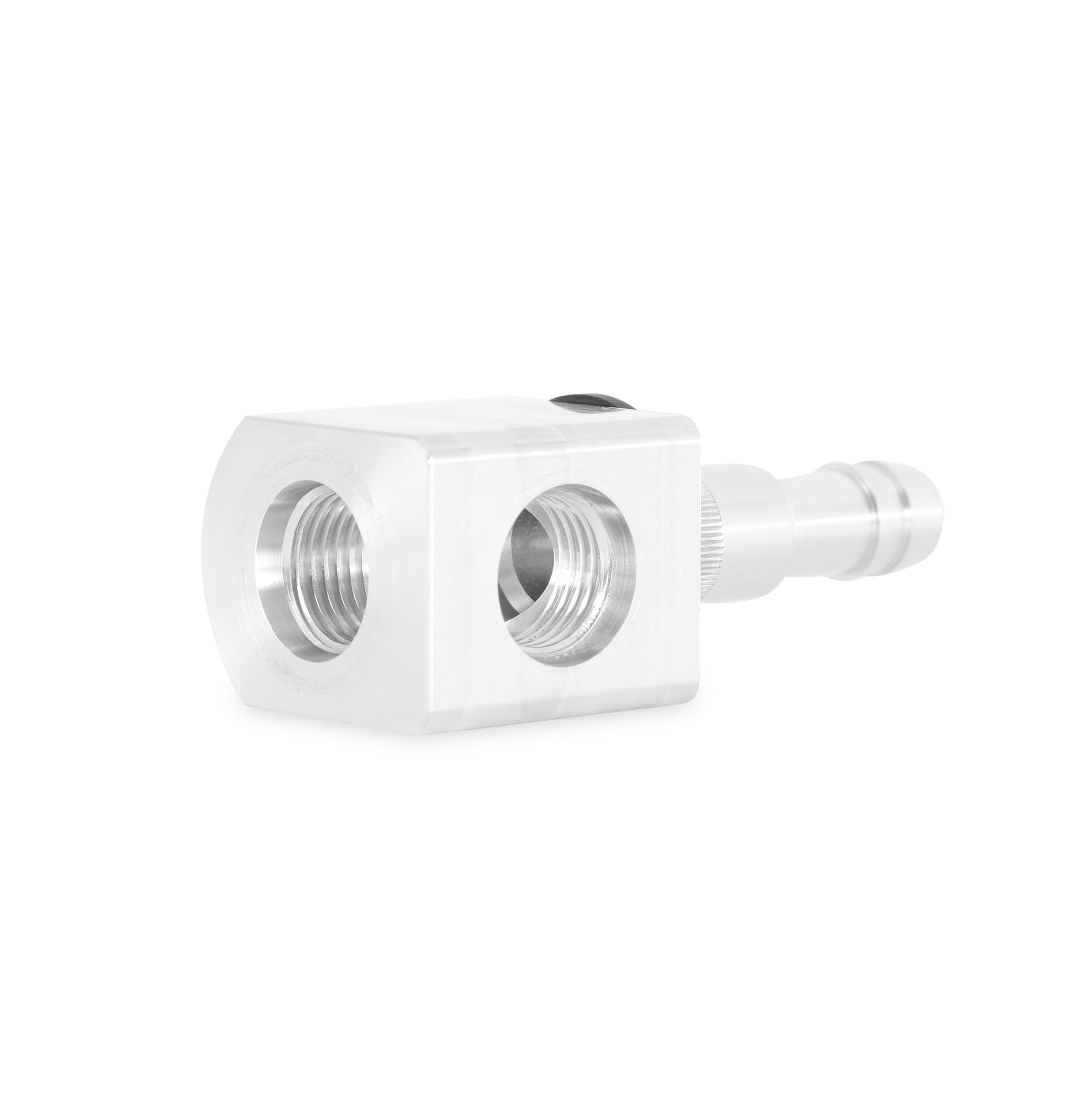

Introducing the Earl's Universal Weld-less Fuel Return Fitting! This new design eliminates the need to access the inside of the tank or cell! The fitting installs just like a rivet nut. Just drill a hole, install return tube, insert the fitting with the rubber washer, and tighten the bolt! The fitting collapses or "mushrooms" from the underside which secures the fitting to the tank creating a perfect seal to the tank mating surfaces! The fitting is machined out of 6061 Billet Aluminum and has been tested with tank material thicknesses up to 1/8" (0.125 inches). Each kit includes an oversized Viton Fluoroelastomer Rubber Sealing Washer, Hex Head Screw with Steel Washer, -6AN Low Profile Port Plug with Viton O-Ring, and two tube options (Fixed and Flexible Nylon).
Universal weld-less fuel return fitting for Electronic Fuel Injection (EFI) installations
- Comes with 6AN ORB plug and installation hardware
📖
About this product
Universal weld-less fuel return fitting for Electronic Fuel Injection (EFI) installations
📋
Product Specifications
Brand
Earl's
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Category
Air and Fuel Delivery
Emission Code
4
Material
6061 Aluminum
Part Type
Fuel Injection Fuel Return Pipe
Product Type
Weld-less Fuel Return Fitting
Prop 65 Yes/No
Yes
Sub Category
Fuel Injection System and Related Components
Warning
California Proposition 65
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
⚠ Prop 65 Warning
Yes
1
Emissions Code
4
HS Code
8409918000
📐
Dimensions & Shipping
Product Dimensions
8.2 × 7.75 × 1.75 in
Shipping Dimensions
8.2 × 7.75 × 1.75 in
Weight
204 g (0.2 kg)
