AEM ElectronicsPart 25-305bkMade in US
Product Details
⭐
Key Features
Inlet: 2 x -6AN (9/16-18) Outlet: -6AN - Gauge Port: 1/8 in. NPT - Black

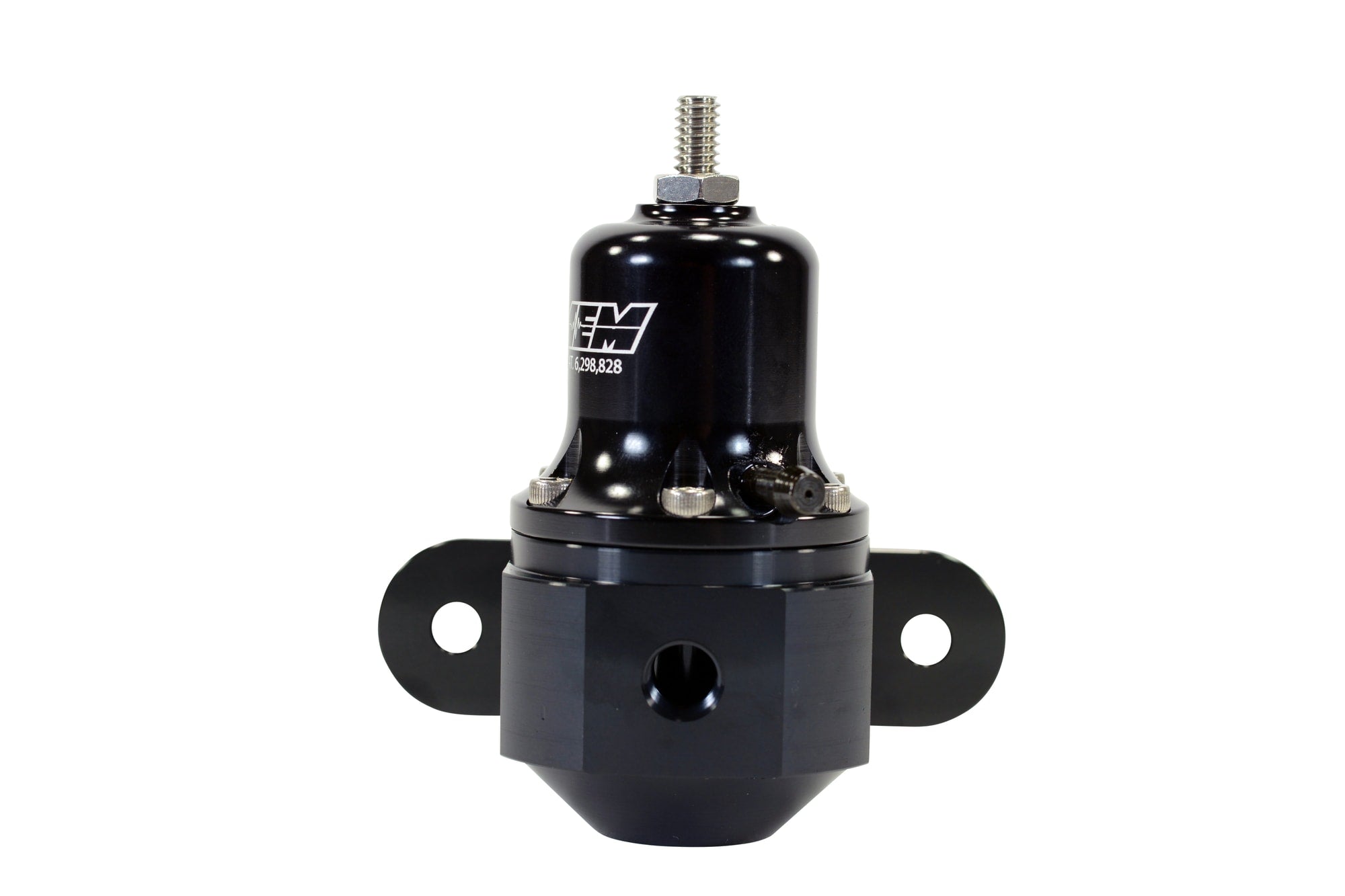

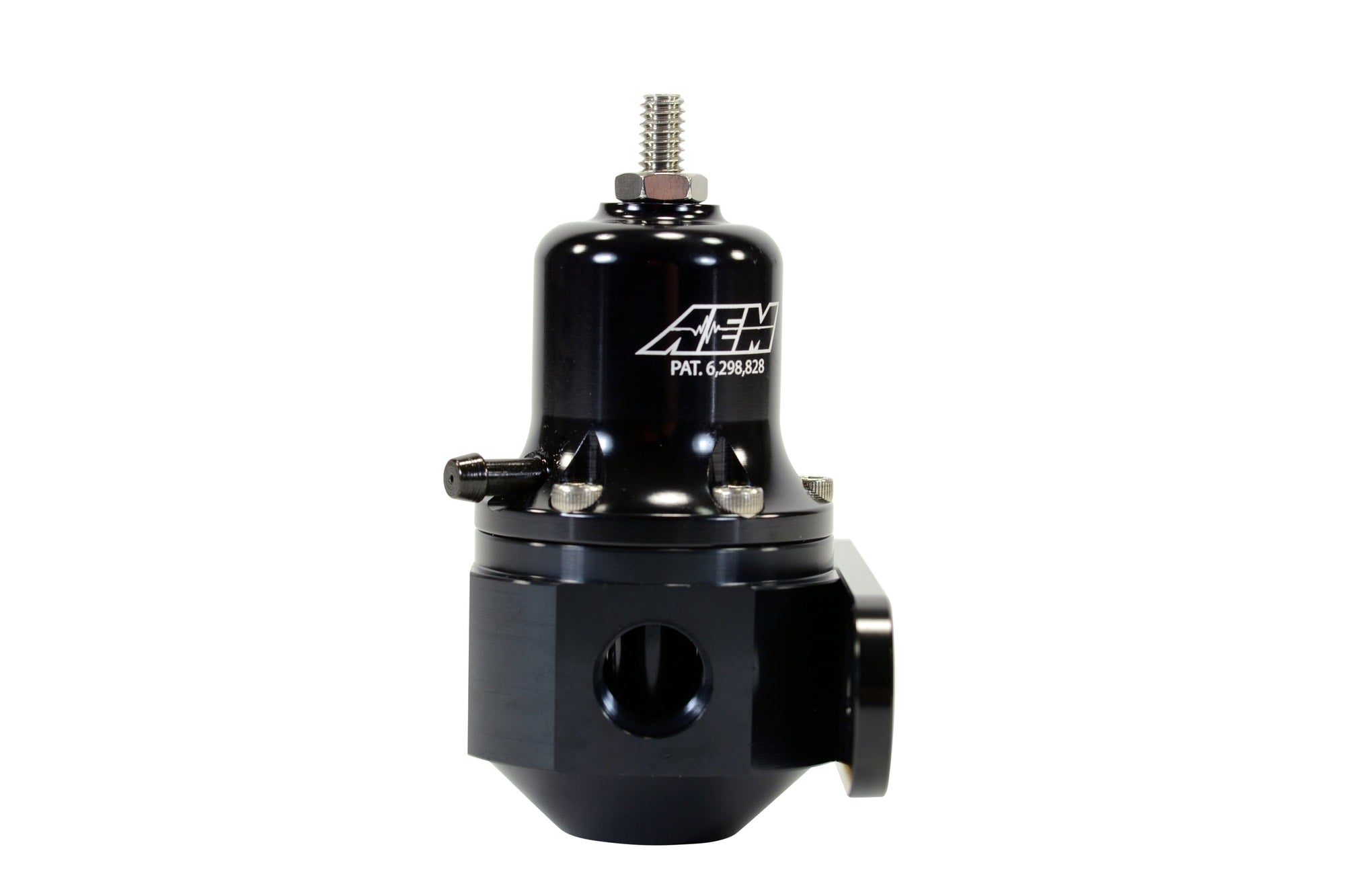

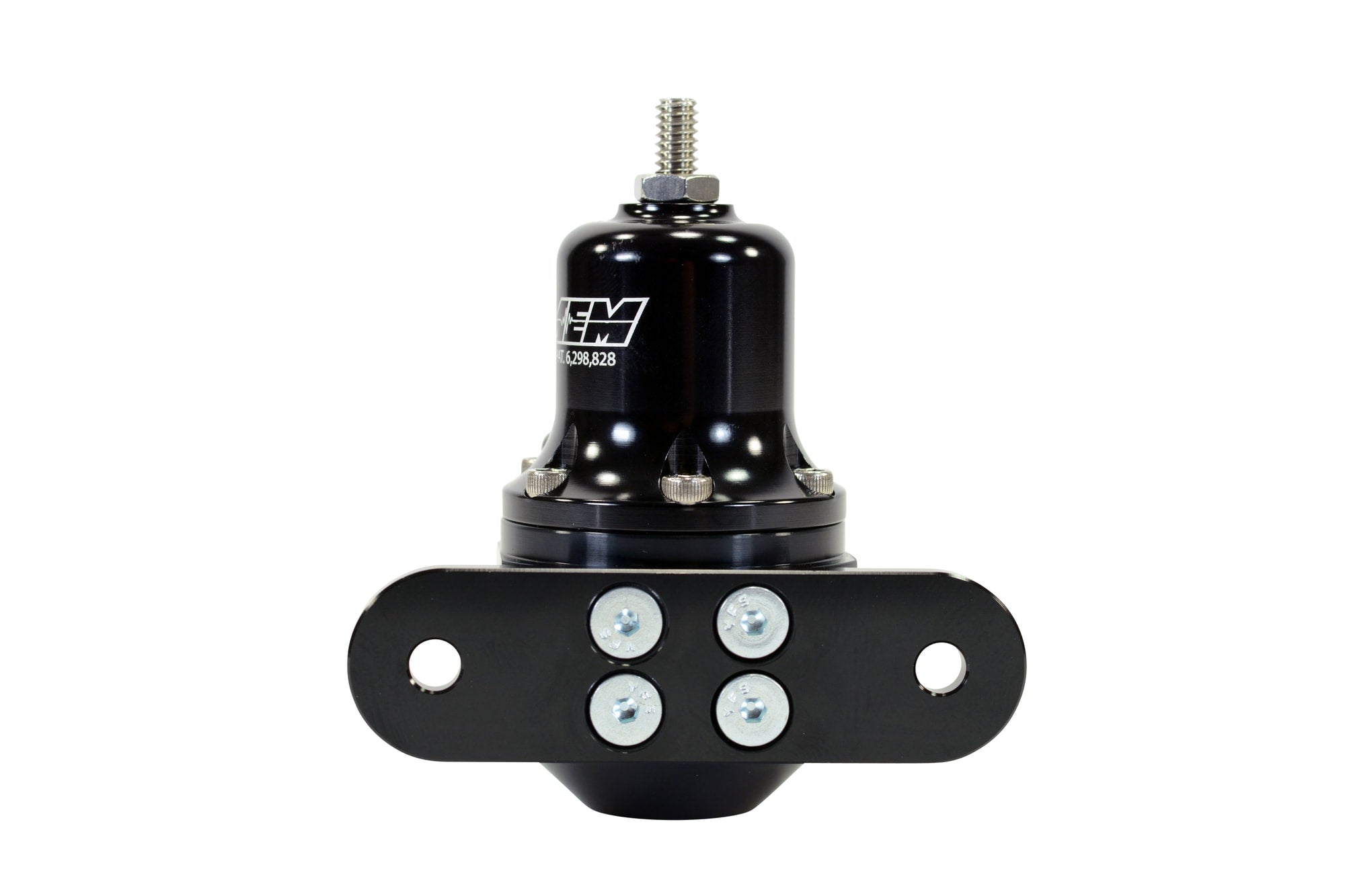

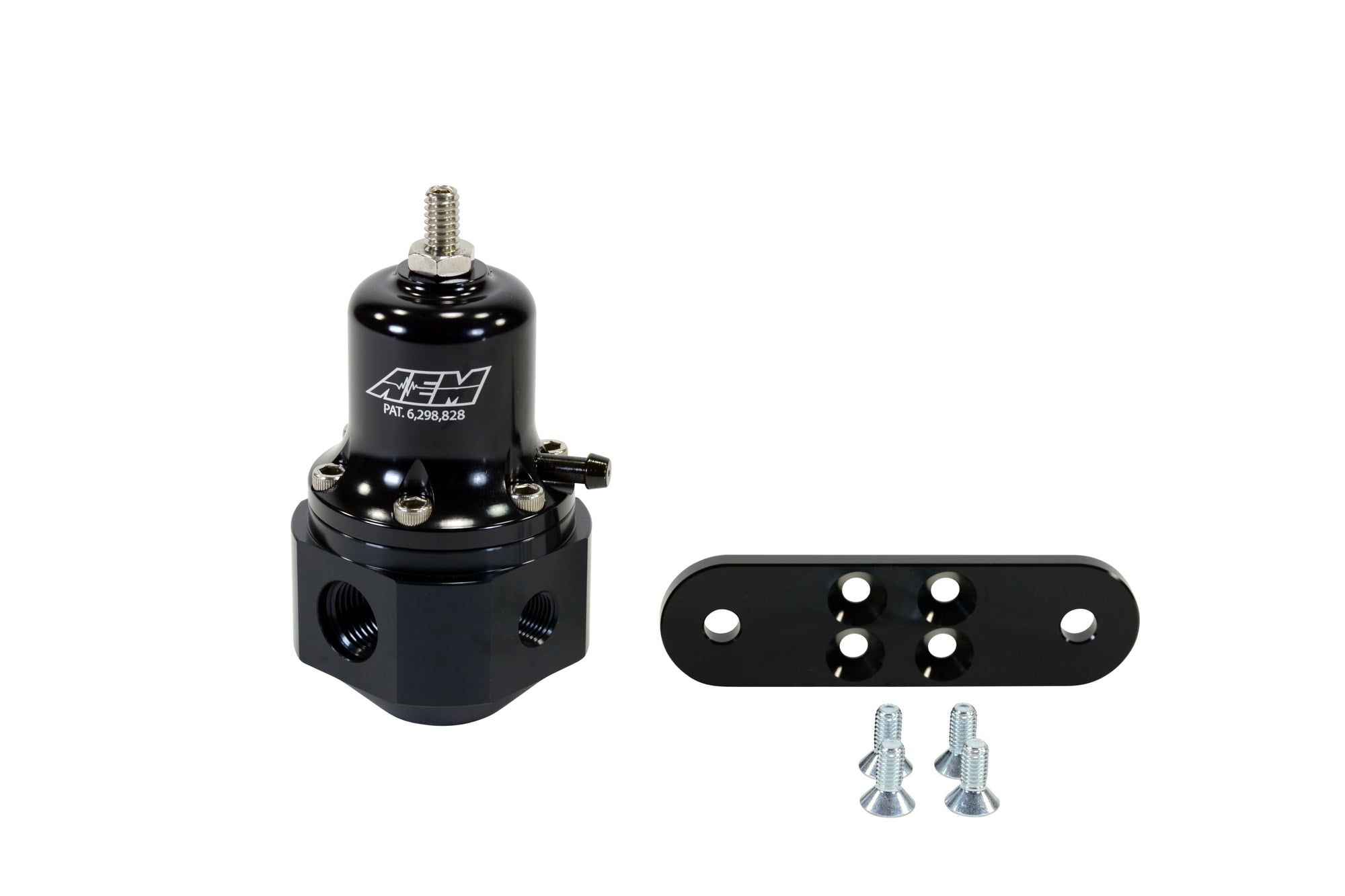

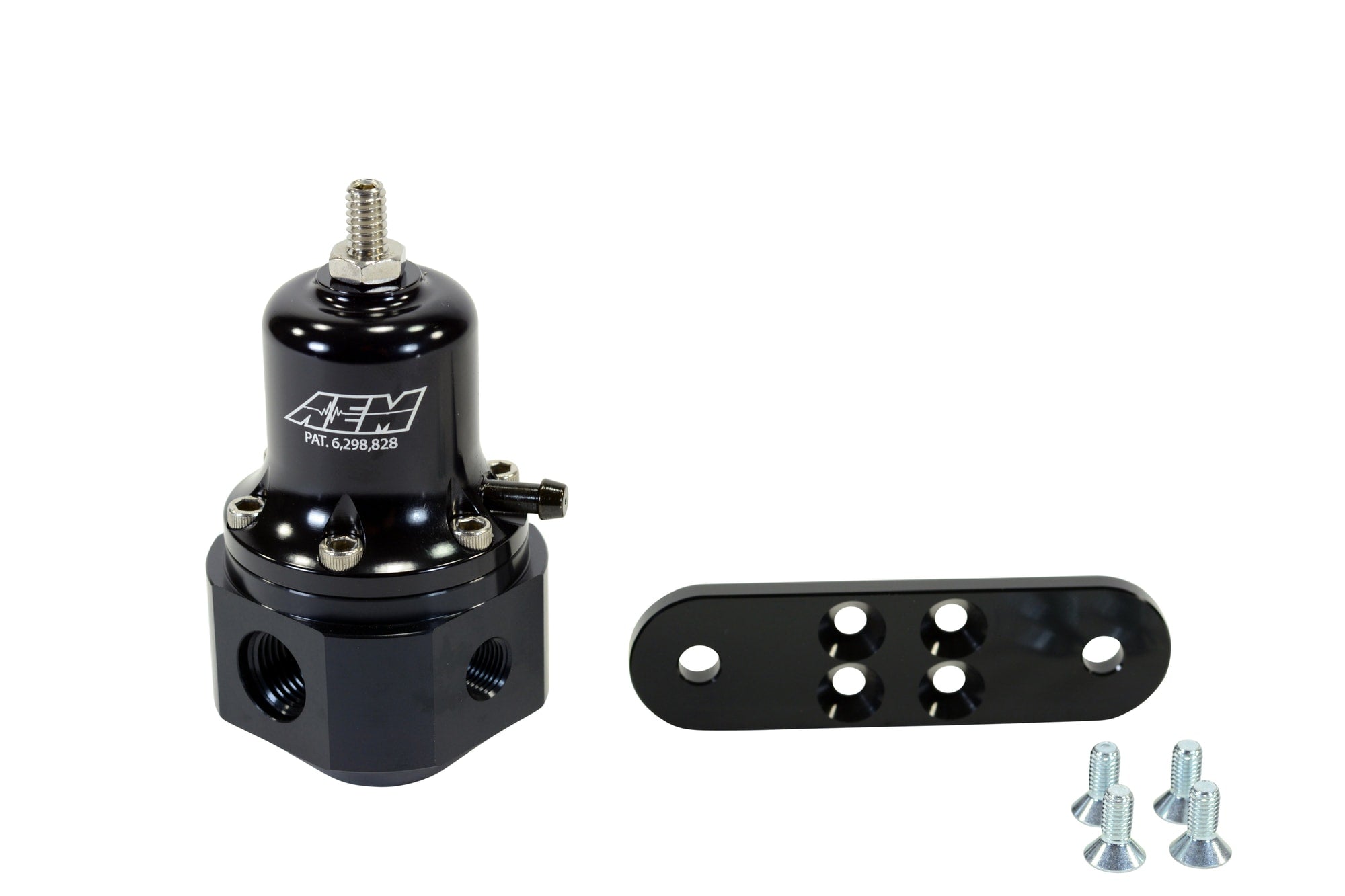

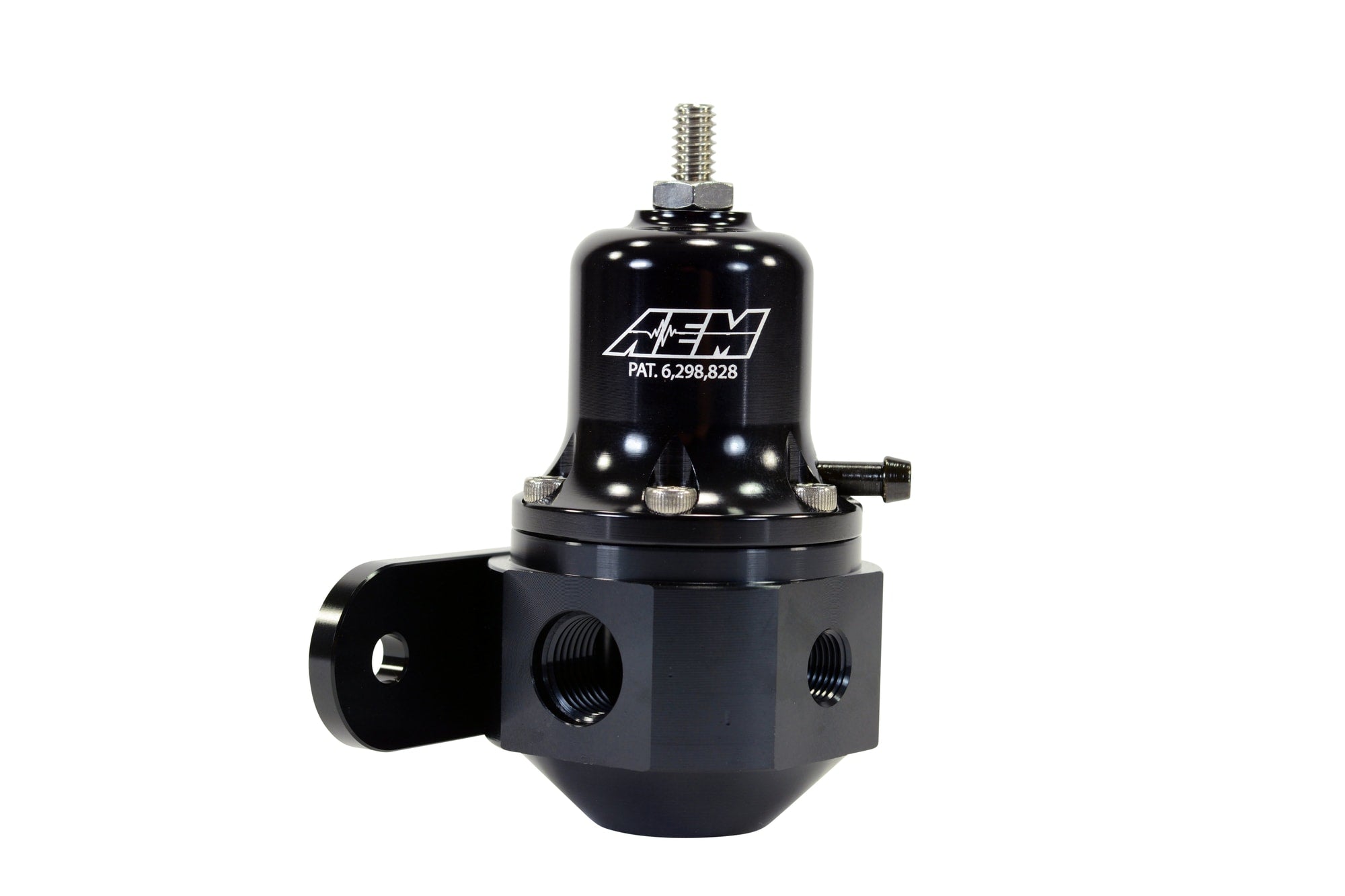

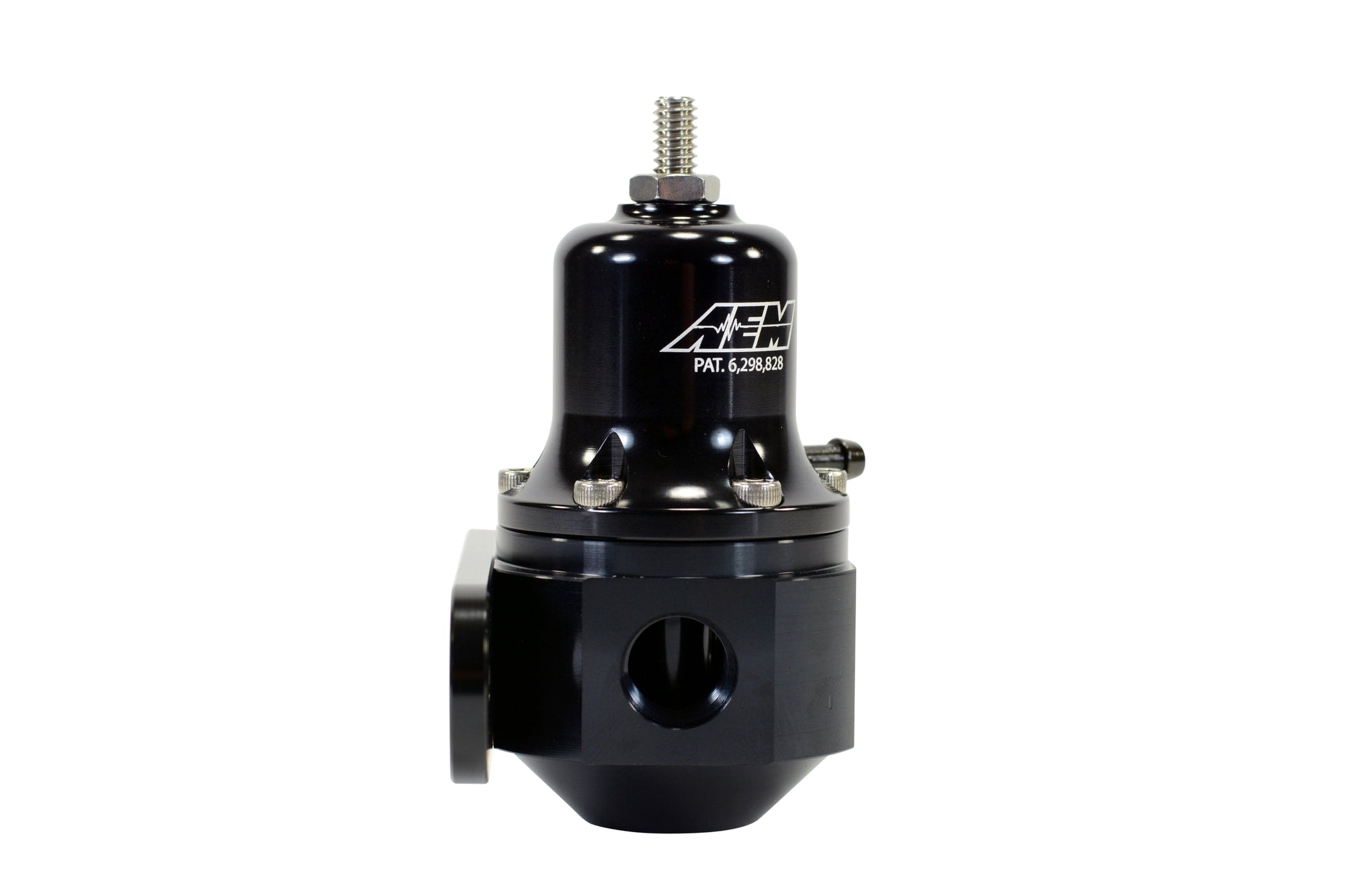

AEM High Capacity Universal Adjustable Fuel Pressure Regulator. Black Anodized. Inlet: 2 X -6 (9/16-18) Outlet: -6 (9/16"-18), Gauge Port: 1/8"NPT, Vacuum Hose: 5mm (3/16"), and Universal Mounting Bracket with Four (4) 10-32x1/2" Screws. Barb fitting for Outlet port sold separately PN 25-390.AEM's High Cap Universal Adjustable Fuel Pressure Regulator (PN 25-305BK) is the perfect solution for racers who need reliable fuel pressure in high-boost vehicles and racecars that require a large volume of fuel delivery. A longer spring provides for a wider range of adjustment (from 40 to 130 PSI). An easy-to-adjust set screw stands up to repeated adjustments.A single large return orifice is designed to handle high rate flow pumps. The regulator has a 1:1 rising pressure rate for boosted applications, and it is alcohol fuel and race fuel compatible. The High Cap Universal FPR is tapped to accept a 9/16"-18 O-Ring sealed fittings for inlet and return, and includes a 1/8 NPT port for a fuel pressure gauge or pressure sensor pick up.
Inlet: 2 x -6AN (9/16-18) Outlet: -6AN - Gauge Port: 1/8 in. NPT - Black
- Universal fuel pressure regulator adapts to virtually any vehicle
- Longer spring for wider range of adjustment (40 - 130 PSI)
- Three -6AN (9/16"-18) ORB O-ring style inlet ports (2 inlet, 1 return)
- Boost dependent rising fuel pressure rate (1:1)
- CNC-machined from 6061-T6 billet aluminum
- Alcohol fuel and race gas compatible
- Integrated 1/8" NPT gauge port
- Patent # 6,298,828
📖
About this product
Inlet: 2 x -6AN (9/16-18) Outlet: -6AN - Gauge Port: 1/8 in. NPT - Black
📋
Product Specifications
Brand
AEM
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Category
Air and Fuel Delivery
Color
Black
Country
US
Emission Code
4
Emission Code
5
Fuel System
EFI/Carb
Fuel Type
Gasoline
HTS Code
8481809040
Inlet Size
6 AN
Material
Aluminum
Outlet Size
6 AN
Part Type
Fuel Pressure Regulator
Product Type
Fuel Pressure Regulator
Prop 65 Yes/No
Yes
Return Size
6 AN
Style
Bypass
Sub Category
Carburetion
Warning
California Proposition 65
Warranty
Manufacturer's 1 Year Warranty
🛡️
Warranty & Compliance
Warranty
12 months · Manufacturer's 1 Year Warranty
Country of Origin
US
⚠ Prop 65 Warning
Yes
1
Emissions Code
5
HS Code
8481809040
📐
Dimensions & Shipping
Product Dimensions
4.6 × 4.4 × 3.3 in
Shipping Dimensions
4.6 × 4.4 × 3.3 in
Weight
454 g (0.45 kg)
