AEM ElectronicsPart 30-5600fMade in US
Product Details
⭐
Key Features
5-inch diagonal screen, carbon fiber enclosure, wiring harness included, Does Not Include Buttons (See PN 30-3610)

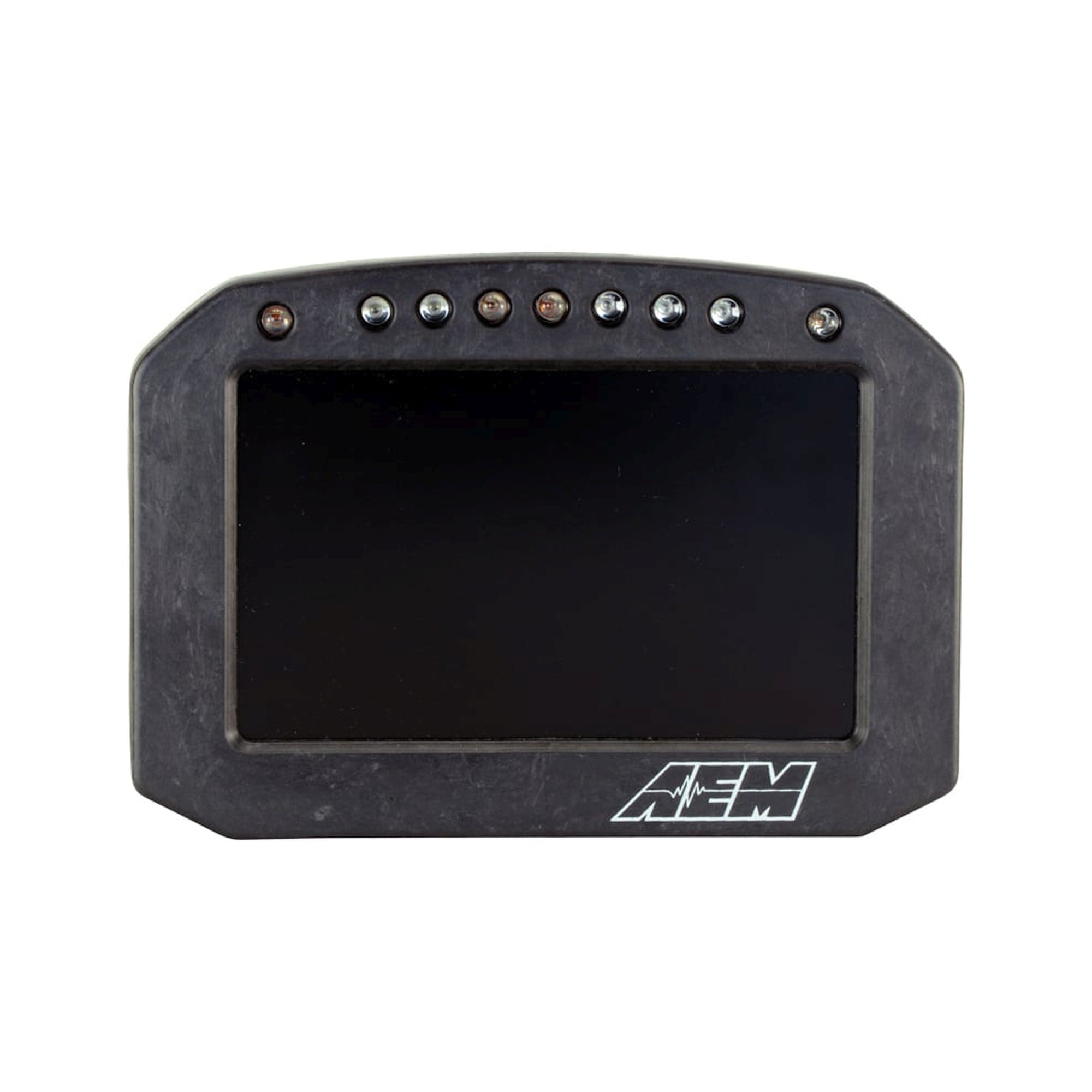

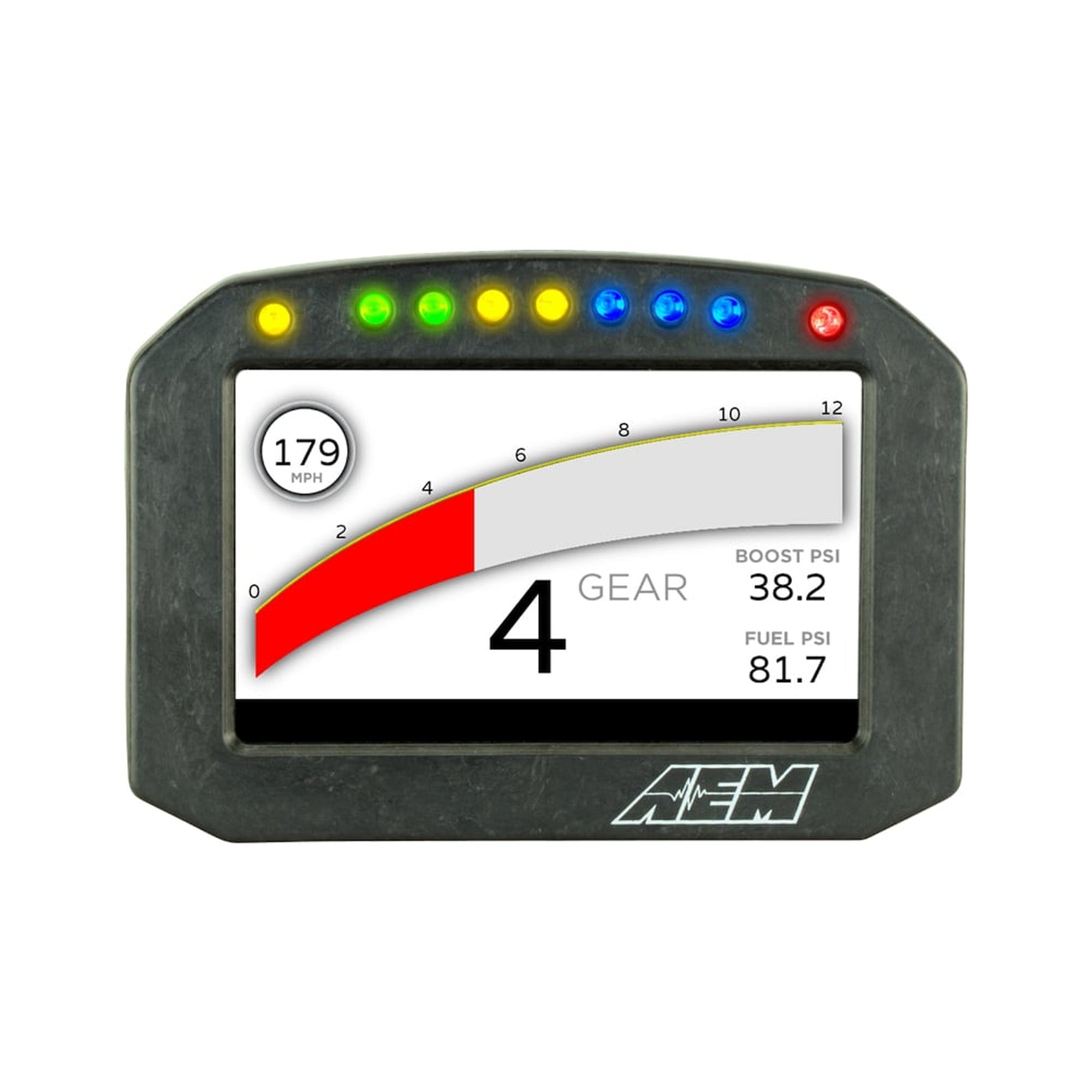

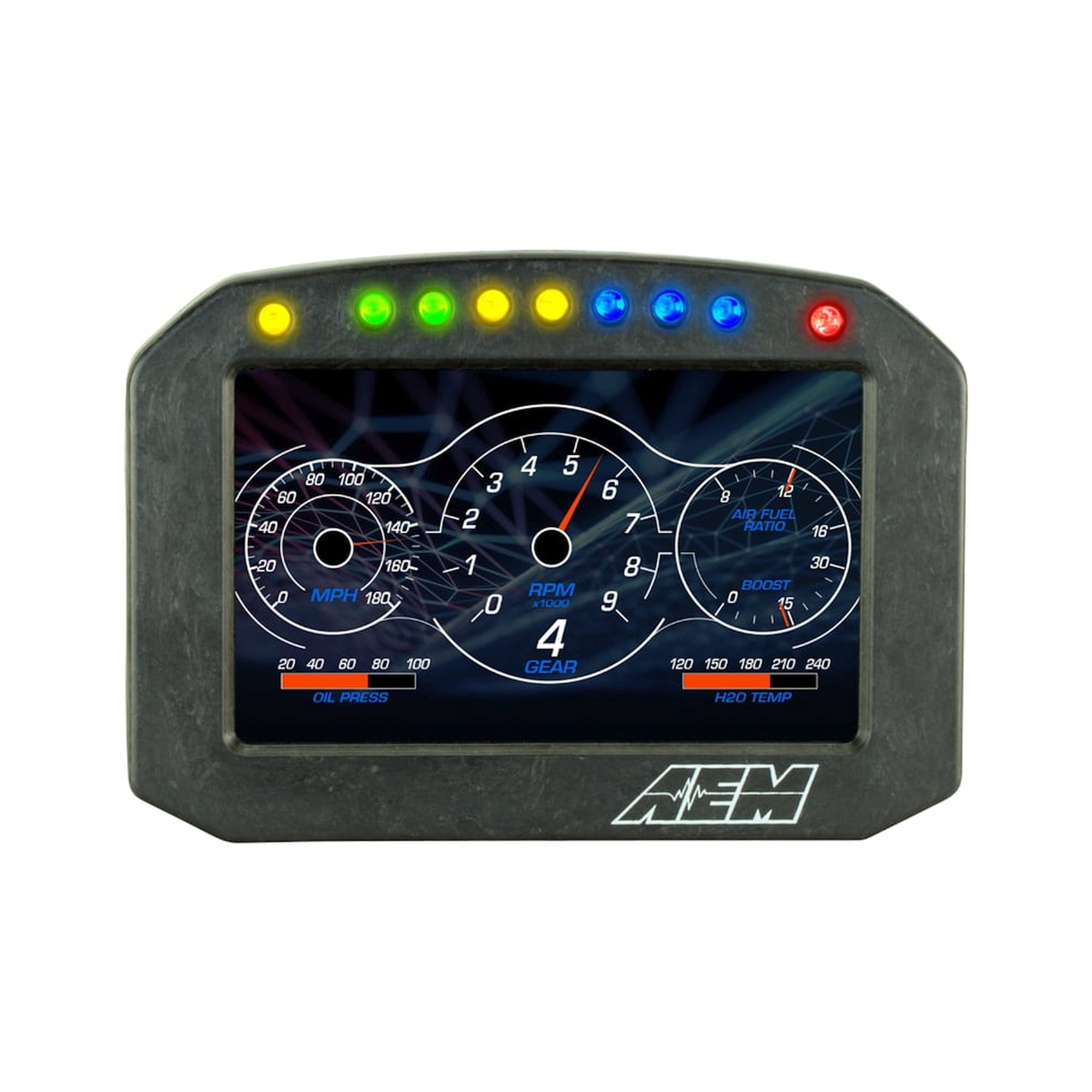

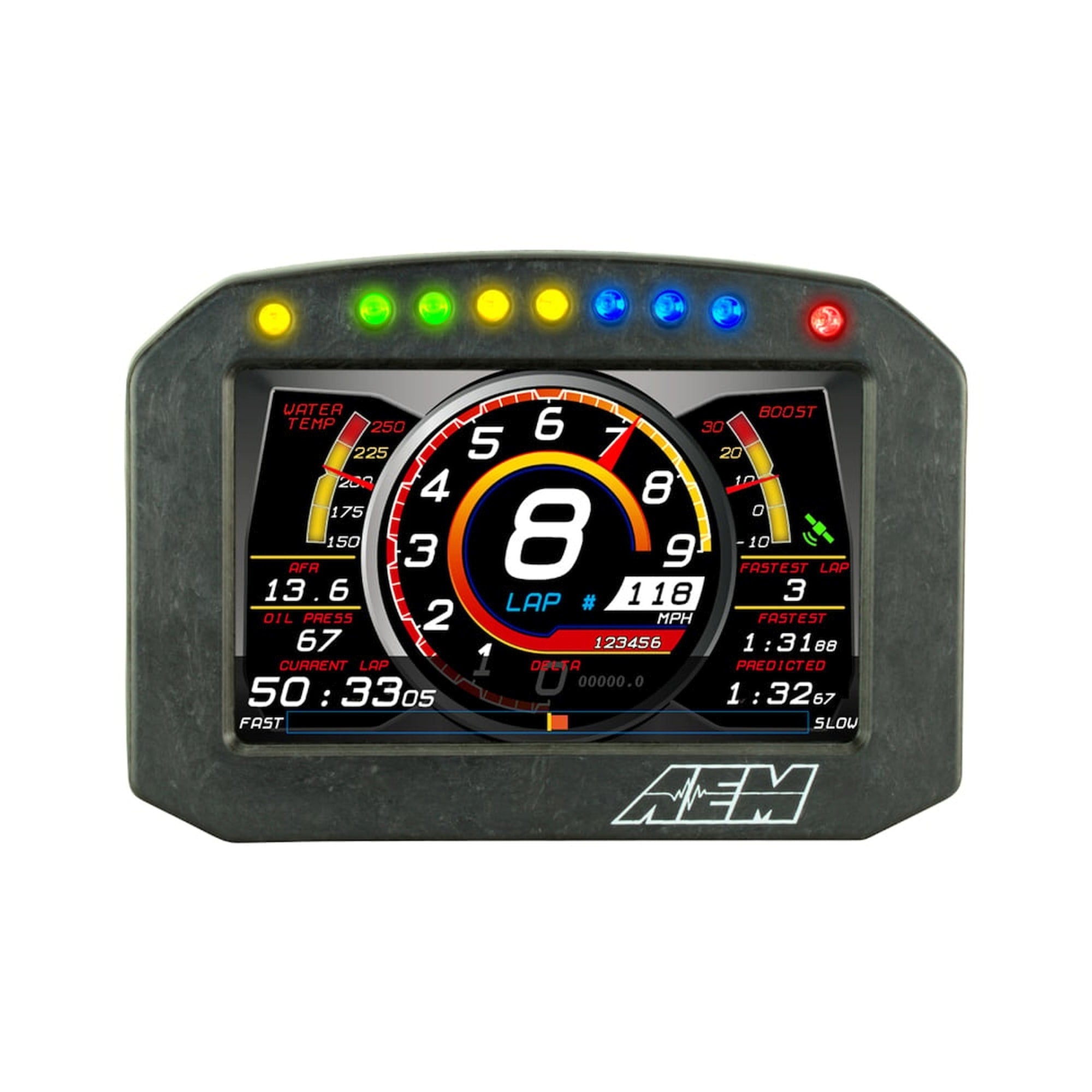

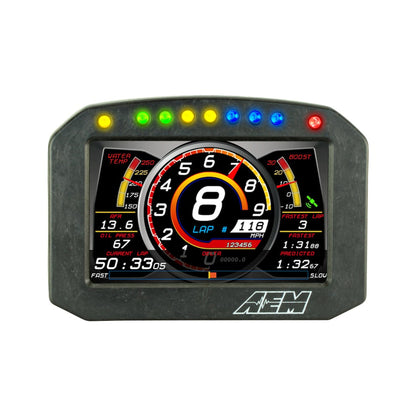

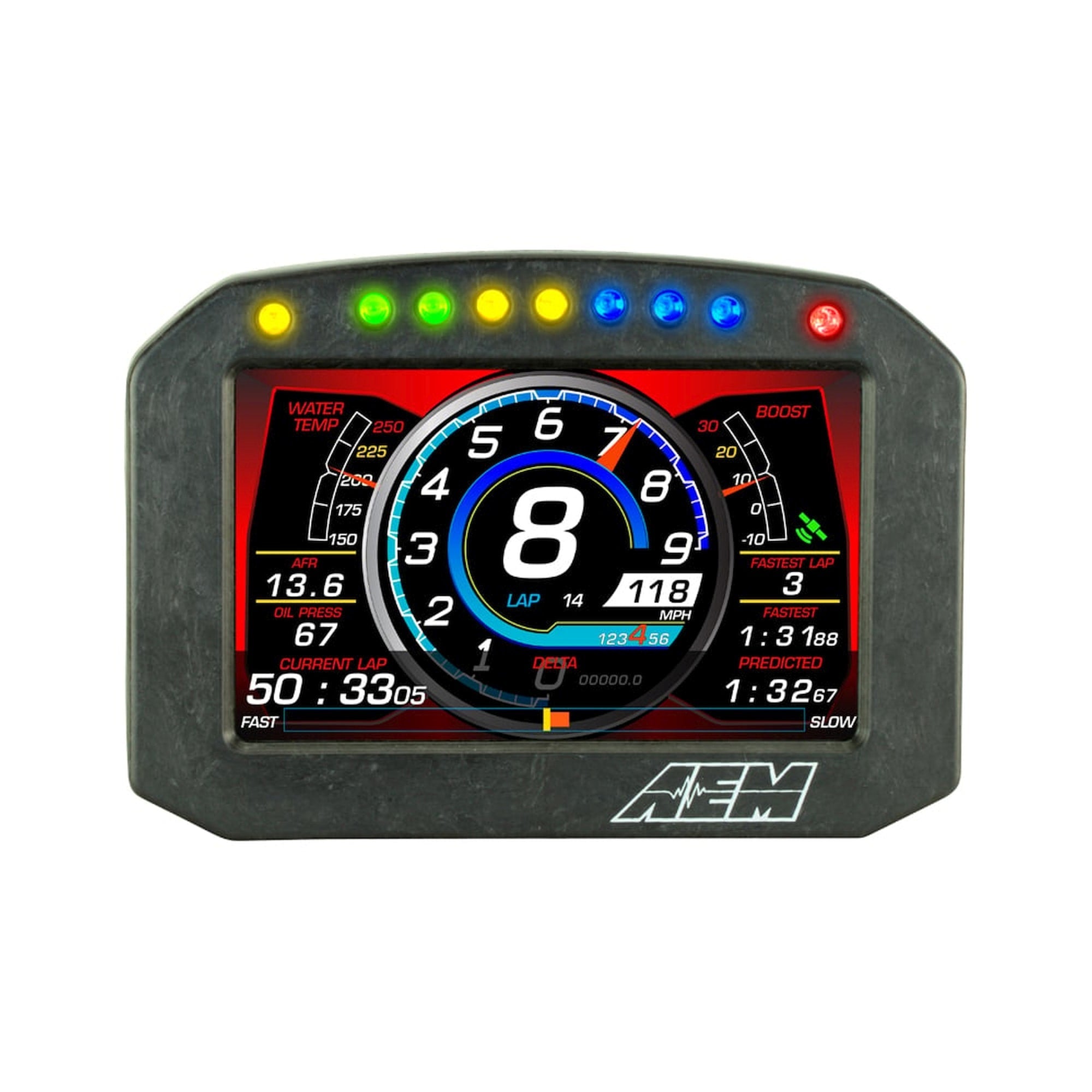

AEM CD5 Carbon Flat Panel Digital Displays are perfect for flush mount installation or in-dash enclosures with tight tolerances. They include all of the robust features found in the original CD-5 Carbon car dashboard monitors, but do not have buttons or an LED shade hood built into the enclosure. AEM CD5 Carbon Flat Panel Digital Displays feature full-color, daylight readable screens surrounded by a slim, tough, lightweight flow-molded carbon fiber composite housing. Seven ultra-bright LEDs span the top of the display housings for RPM and shift light indication. Users can program them to ascend in specific increments based on RPM range and flash when it is time to shift. Brightness is user programmable on the fixed color LEDs. A remote button kit (PN 30-3610, sold separately) easily wires into the CD Carbon wiring harness and allows users to change pages and clear memory. Two additional programmable LEDs are included in the car dashboard monitor's enclosure and are fully programmable
5-inch diagonal screen, carbon fiber enclosure, wiring harness included, Does Not Include Buttons (See PN 30-3610)
- Add Vehicle Dynamics Module for GPS, 3-axis gyroscope and 3 axis accelerometer for G-loads, roll, pitch, yaw, track mapping and lap timing (PN 30-2206, sold separately)
- User supplied graphics can be changed based on channel values (up to the full screen size)
- Seven programmable pages including four Main pages, Alarm, On-Change and Start-up pages (requires Button Kit PN 30-3610)
- Seven LED RPM/shift light indicators on top of the housing (programmable and dimmable)
- Direct sunlight readable (1000cd/m2 brightness and anti-glare filter)
- Install on carbureted and pre-2008 stock ECU-equipped vehicles using a 22 Channel CAN Sensor Module (PN 30-2212) or 6 Channel CAN Sensor Module (PN 30-2226)
- Two programmable LEDs
- Use the included page layouts and input your channels and text, or create your own from scratch
- Plug & Play Adapter Cables available for Holley, Link, MSD Atomic and Vi-Pec ECUs
- Accepts channels from AEMnet CAN-enabled devices and non-AEM CAN bus devices side by side
- Accepts channels from 2008-up factory ECUs using Plug & Play OBDII CAN Adapter Cable (PN 30-2217, sold separately)
- Unique On-Change page can be used to identify map switching for boost, traction, lap times, etc.
- Two extra switch inputs included for displaying user-triggered events (blinkers, high beams etc.)
- IP66 water resistance
- Rugged, lightweight flow-molded carbon fiber composite enclosure
- Over 200 supplied fully programmable SAE and custom warning icons, and you can add your own
- 'Headlight-in' connection dims the dash and LEDs during night operation
- Odometer function
- Full color 5" screen with 800x480 resolution
- Wiring interface/harnesses are identical between all CD Carbon Dashes
- Available with or without onboard 20 Hz GPS receiver and antenna
- Free DashDesign Graphics Editor software
- Convert CAN bus channel values to user-defined text
- Available with or without 200Mb internal logging (up to 1,000Hz/channel)
- Layout files interchangeable between all CD Carbon Dashes
- Install 8 additional temp inputs and send them to the CD Carbon Dash with our 8 Channel K-Type EGT CAN Module (PN 30-2224, sold separately)
- Dedicated Alarm page quickly identifies problems, programmable in almost any language! (user defined)
📖
About this product
5-inch diagonal screen, carbon fiber enclosure, wiring harness included, Does Not Include Buttons (See PN 30-3610)
📋
Product Specifications
Analog Or Digital
Digital
Automotive Item Grade
Performance
Automotive Item Grade
Premium
Brand
AEM
Built-In Buttons
No
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
CAN Ready
Yes
Category
Gauges and Gauge Accessories
Color
Black Carbon Composite
Connector Quantity
2
Country
US
Datalogging
No
Depth
3.1
Emission Code
4
Emission Code
5
Enclosure Material
Carbon Fiber
External Buttons Required
Yes
Gauge Quantity
1
GPS Included
No
Gps
No
Harness Included
Yes
HTS Code
9029204080
Illuminated
Yes
IP Rating
IP65
Logging
No
Material
Carbon Fiber Composite
OEM Replacement
No
Part Type
Digital Display
Part Type
Instrument Cluster
Product Type
Dash
Prop 65 Yes/No
Yes
Screen Size
5 Inch Diagonal
Sub Category
Instrument Panel
Terminal Quantity
12
Touchscreen
No
Universal Or Specific Fit
Universal
Warning
California Proposition 65
Warranty
Manufacturer's 1 Year Warranty
Wire Gauge Measurement
20
Wire Quantity
12
Wiring Harness Included
Yes
Wiring Harness Length
48
🛡️
Warranty & Compliance
Warranty
12 months · Manufacturer's 1 Year Warranty
Country of Origin
US
⚠ Prop 65 Warning
Yes
1
Emissions Code
5
HS Code
9029204080
📐
Dimensions & Shipping
Product Dimensions
12.25 × 7.75 × 3.25 in
Shipping Dimensions
12.25 × 7.75 × 3.25 in
Weight
862 g (0.86 kg)
